NISSAN X-TRAIL 2003 Service Manual PDF

PREPARATION
EM-9
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Commercial Service ToolsEBS00L7O
Tool nameDescription
Spark plug wrench Removing and installing spark plug
Pulley holderCrankshaft pulley removing and installing
Valve seat cutter set Finishing valve seat dimensions
TORX socketRemoving and installing flywheel
Size: T55
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
Valve guide reamer 1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d1: 6.0 mm (0.236 in) dia.
d2: 10.2 mm (0.402 in) dia.
S-NT047
ZZA1010D
S-NT048
PBIC1113E
S-NT030
S-NT015
S-NT016

EM-10
[QR]
PREPARATION

Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor
and heated oxygen sensor (Use with anti-
seize lubricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor and air fuel ratio sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor
Anti-seize lubricant i.e.: (Permatex
TM
133AR or equivalent meeting MIL
specification MIL-A-907)Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
Manual lift table caddy Removing and installing engine Tool nameDescription
AEM488
AEM489
ZZA1210D

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
EM-11
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting — Engine NoiseEBS00L7P
PBIC2347E

EM-12
[QR]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

Use the Chart Below to Help You Find the Cause of the Symptom.EBS00L7Q
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
To p o f
engine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-61
Rattle C A — A B CCamshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runoutEM-56EM-55
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—BB—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bush-
ing oil clearanceEM-99
EM-101
Slap or
rapA ——BBAPiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-104EM-100
EM-100
EM-101
Knock A B CBBBConnect-
ing rod
bearing
noiseConnecting rod bush-
ing oil clearance
Connecting rod bear-
ing oil clearanceEM-101EM-105
Knock A B — A B CMain
bearing
noiseMain bearing oil clear-
ance
Crankshaft runoutEM-106EM-105
Front of
engine
Front
coverTapping or
tickingA A —BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-48
EM-44
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belt
(Sticking
or slip-
ping)Drive belt deflection
EM-13
Creaking A B A B A BDrive belt
(Slipping)Idler pulley bearing
operation
Squall
CreakA B —BABWater
pump
noiseWater pump operationCO-20,
"WATER
PUMP"

DRIVE BELTS
EM-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

DRIVE BELTSPFP:02117
Checking Drive BeltsEBS00KN7
WARNING:
Be sure to perform this step when the engine is stopped.

Make sure that the indicator (single line notch on fixed side) of drive belt auto-tensioner is within the pos-
sible use range (between three line notches on moving side).
NOTE:

Check the drive belt auto-tensioner indicator (single line notch on fixed side) when engine is cold.

When new drive belt is installed, the indicator (single line notch on fixed side) should be within the
range “A” in the figure.

Visually check entire belt for wear, damage or cracks.

If the indicator (single line notch on fixed side) is out of the possible use range or belt is damaged, replace
drive belt.
Tension AdjustmentEBS00KN8
Belt tensioning is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Removal and InstallationEBS00KN9
REMOVAL
1. Remove splash guard on RH undercover.
2. With box wrench, and while securely holding the hexagonal part
in center of drive belt auto-tensioner pulley, move the wrench
handle in the direction of arrow (loosening direction of ten-
sioner).
CAUTION:
Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.
3. Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole of the retaining boss to fix
drive belt auto-tensioner pulley.
4. Loosen drive belt from water pump pulley in sequence, and
remove it.
PBIC1234E
PBIC2169E

EM-14
[QR]
DRIVE BELTS

INSTALLATION
1. With box wrench, and while securely holding the hexagonal part in center of drive belt auto-tensioner pul-
ley, move the wrench handle in the direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a location where pinching may occur if the holding tool accidentally comes
off.
2. Insert a rod approximately 6 mm (0.24 in) in diameter such as short-length screwdriver into the hole of
retaining boss to fix drive belt auto-tensioner pulley.
3. Hook drive belt onto all pulleys except for water pump, and then onto water pump pulley finally.
CAUTION:
Confirm belt is completely set to pulleys.
4. Release drive belt auto-tensioner, and apply tension to drive belt.
5. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
6. Confirm tension of drive belt at indicator is within the range of possible use. Refer to EM-13, "
Checking
Drive Belts" .
Removal and Installation of Drive Belt Auto-TensionerEBS00KNA
REMOVAL
1. Remove splash guard on RH undercover.
2. Remove drive belt. Refer to EM-13, "
Removal and Installation" .
3. Remove drive belt auto-tensioner.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When installing drive belt auto-tensioner, be careful not to damage water pump pulley.
1. Drive belt auto-tensioner 2. Water pump pulley
PBIC2170E

AIR CLEANER AND AIR DUCT
EM-15
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

AIR CLEANER AND AIR DUCTPFP:16500
Removal and InstallationEBS00KNB
REMOVAL
1. Remove mass air flow sensor harness clamp.
2. Disconnect harness connector from mass air flow sensor.
3. Remove air duct (inlet), air ducts and air cleaner case/mass air flow sensor assembly disconnecting their
joints.

Add marks as necessary for easier installation.
4. Remove mass air flow sensor from air cleaner case upper.
CAUTION:
Handle mass air flow sensor with following cares.

Do not shock it.

Do not disassemble it.

Do not touch its sensor.
5. Remove resonator in fender lifting left fender protector.
1. Air cleaner filter 2. Clip 3. Air cleaner case upper
4. Clamp 5. Air duct 6. PCV hose
7. Clamp 8. Bracket 9. Mass air flow sensor
10. O-ring 11. Air duct 12. Air duct (inlet)
13. Clip 14. Collar 15. Grommet
16. Resonator 17. Bracket (A/T models) 18. Mounting rubber
19. Collar 20. Grommet 21. Air cleaner case lower
PBIC2171E

EM-16
[QR]
AIR CLEANER AND AIR DUCT

INSTALLATION
Note the following, and install in the reverse order of removal.

Align marks. Attach each joint. Screw clamps firmly.
Changing Air Cleaner FilterEBS0123Q
REMOVAL
1. Unfasten clips and lift up air cleaner case upper.
2. Remove air cleaner filter.
INSTALLATION
Install in the reverse order of removal.

INTAKE MANIFOLD
EM-17
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INTAKE MANIFOLDPFP:14003
Removal and Installation (QR20DE)EBS00KNC
REMOVAL
1. Release fuel pressure. Refer to EC-48, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-510,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove air cleaner case upper, mass air flow sensor and air duct assembly. Refer to EM-15, "
AIR
CLEANER AND AIR DUCT" .
3. Remove quick connector caps, and disconnect quick connectors
at engine side and vehicle side. Refer to EM-32, "
Removal and
Installation (QR20DE)" .
4. Remove electric throttle control actuator with the following procedure:
a. Disconnect harness connector.
1. Vacuum hose 2. Intake manifold 3. PCV hose
4. Bracket 5. Gasket 6. Electric throttle control actuator
7. Gasket 8. Intake manifold support 9. Gasket
10. Vacuum hose 11.EVAP canister purge volume con-
trol solenoid valve12. Vacuum hose
13. Bracket 14. Bracket
PBIC2172E
PBIC2175E

EM-18
[QR]
INTAKE MANIFOLD

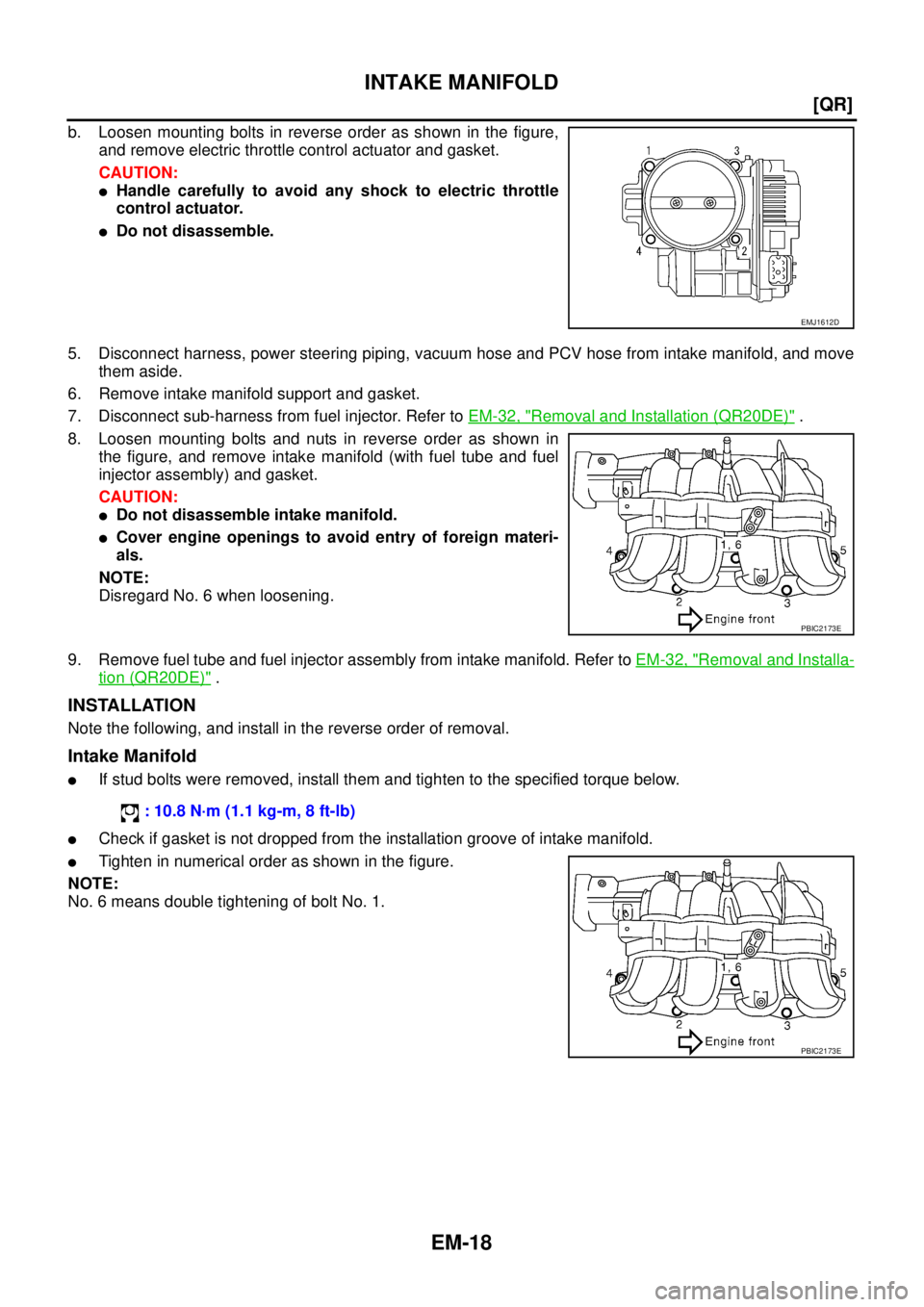

b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
5. Disconnect harness, power steering piping, vacuum hose and PCV hose from intake manifold, and move
them aside.
6. Remove intake manifold support and gasket.
7. Disconnect sub-harness from fuel injector. Refer to EM-32, "
Removal and Installation (QR20DE)" .
8. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:

Do not disassemble intake manifold.

Cover engine openings to avoid entry of foreign materi-
als.
NOTE:
Disregard No. 6 when loosening.
9. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-32, "
Removal and Installa-
tion (QR20DE)" .
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Check if gasket is not dropped from the installation groove of intake manifold.

Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
EMJ1612D
PBIC2173E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PBIC2173E
