8. Remove fuel injector from fuel tube with the following procedure:
a. Open and remove clip.
b. Remove fuel injector from fuel tube by pulling straight.
CAUTION:

Be careful with remaining fuel that may go out from fuel
tube.

Be careful not to damage fuel injector nozzle during
removal.

Do not bump or drop fuel injector.

Do not disassemble fuel injector.
INSTALLATION
1. Note the following, and install O-rings to fuel injector.
CAUTION:

Upper and lower O-rings are different. Be careful not to confuse them.

Handle O-ring with bare hands. Do not wear gloves.

Lubricate O-ring with new engine oil.

Do not clean O-ring with solvent.

Make sure that O-ring and its mating part are free of foreign material.

When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to
twist or stretch O-ring. If O-ring was stretched while it was being attached, do not insert it
quickly into fuel tube.

Insert O-ring straight into fuel tube. Do not decenter or twist it.
SBIA0364E
Fuel tube side : Black
Nozzle side : Green

EM-40
[QR]
FUEL INJECTOR AND FUEL TUBE

2. Install fuel injector to fuel tube with the following procedure:
a. Insert clip into clip mounting groove on fuel injector.

Insert clip so that lug “A” of fuel injector matches notch “A” of
clip.
CAUTION:

Do not reuse clip. Replace it with a new one.

Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.

Insert it while matching it to the axial center.

Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of clip.

Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
3. Install fuel tube and fuel injector assembly with the following procedure:
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten mounting bolts evenly in two steps in numerical order as
shown in the figure.
4. Connect sub-harness for fuel injector.
5. Install intake manifold collector. Refer to EM-20, "
Removal and Installation (QR25DE)" .
6. Note the following, and connect quick connectors at engine side and vehicle side to install fuel feed hose.
NOTE:
There is quick connector for the engine side and for the vehicle side, and they have different shapes. But
connection is same procedure. The following procedure shows the engine side.
a. Check the connection for foreign material and damage.
b. Align center to insert quick connector straightly into fuel tube.
NOTE:
The figure shows engine side as an example.

Insert fuel tube into quick connector until the top spool on fuel
tube is inserted completely and the second level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:

Hold “A” position in the figure when inserting fuel tube
into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.

Insert until you hear a “click” sound and actually feel the engagement.
SBIA0439E
1st step
: 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step
: 23.6 N·m (2.4 kg-m, 17 ft-lb)
KBIA0239E
KBIA0272E

FUEL INJECTOR AND FUEL TUBE
EM-41
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


To avoid misidentification of engagement with a similar sound, be sure to perform the next
step.
c. Before clamping fuel feed hose with hose clamps, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel feed tube.
d. Install quick connector cap to quick connector connection. (On
both the engine side and the vehicle side)

Install so that the arrow mark on the side faces up.
CAUTION:

Make sure that quick connector and fuel tube are
securely fit into quick connector cap installation groove.

If quick connector cap cannot be installed smoothly,
quick connector may have not been installed correctly.
Check connection again.
NOTE:
There is quick connector cap for the engine side and for the
vehicle side, and they have different shapes. The figure shows engine side as an example.
7. Install fuel feed hose to hose clamp.
8. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leaks
1. Apply fuel pressure to fuel lines with turning ignition switch “ON” (with engine stopped). Then make sure
there are no fuel leaks at connections.
NOTE:
Use mirrors for checking on invisible points.
2. Start engine. With engine speed increased, make sure again there are no fuel leaks at connections.
CAUTION:
Do not touch engine immediately after stopped as engine becomes extremely hot.
PBIC2348E

EM-42
[QR]
ROCKER COVER

ROCKER COVERPFP:13264
Removal and InstallationEBS00KNI
REMOVAL
1. Disconnect PCV hose from rocker cover.
2. Remove ignition coil. Refer to EM-29, "
IGNITION COIL" .
3. Loosen bolts in reverse order shown in the figure.
1. PCV hose 2. O-ring 3. PCV valve
4. Oil filler cap 5. Rocker cover 6. Rocker cover gasket
PBIC2349E
KBIA0242E

ROCKER COVER
EM-43
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION
1. Apply liquid gasket of 3.0 mm (0.12 in) diameter to the position
shown in the figure with the following procedure:
a. Refer to figure “a” to apply liquid gasket to joint part of camshaft
bracket (No. 1) and cylinder head.
b. Refer to figure “b” to apply liquid gasket in 90 degrees to figure
“a”.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover.

Check if rocker cover gasket is not dropped from the installation groove of rocker cover.
3. Tighten bolts in two steps separately in numerical order as
shown in the figure.
4. Install in the reverse order of removal after this step.
PBIC2350E
1st step
: 2.0 N·m (0.2 kg-m, 18 in-lb)
2nd step
: 8.3 N·m (0.85 kg-m, 73 in-lb)
KBIA0242E

EM-44
[QR]
TIMING CHAIN

TIMING CHAINPFP:13028
Removal and InstallationEBS00KNL
REMOVAL
1. Remove the following parts.

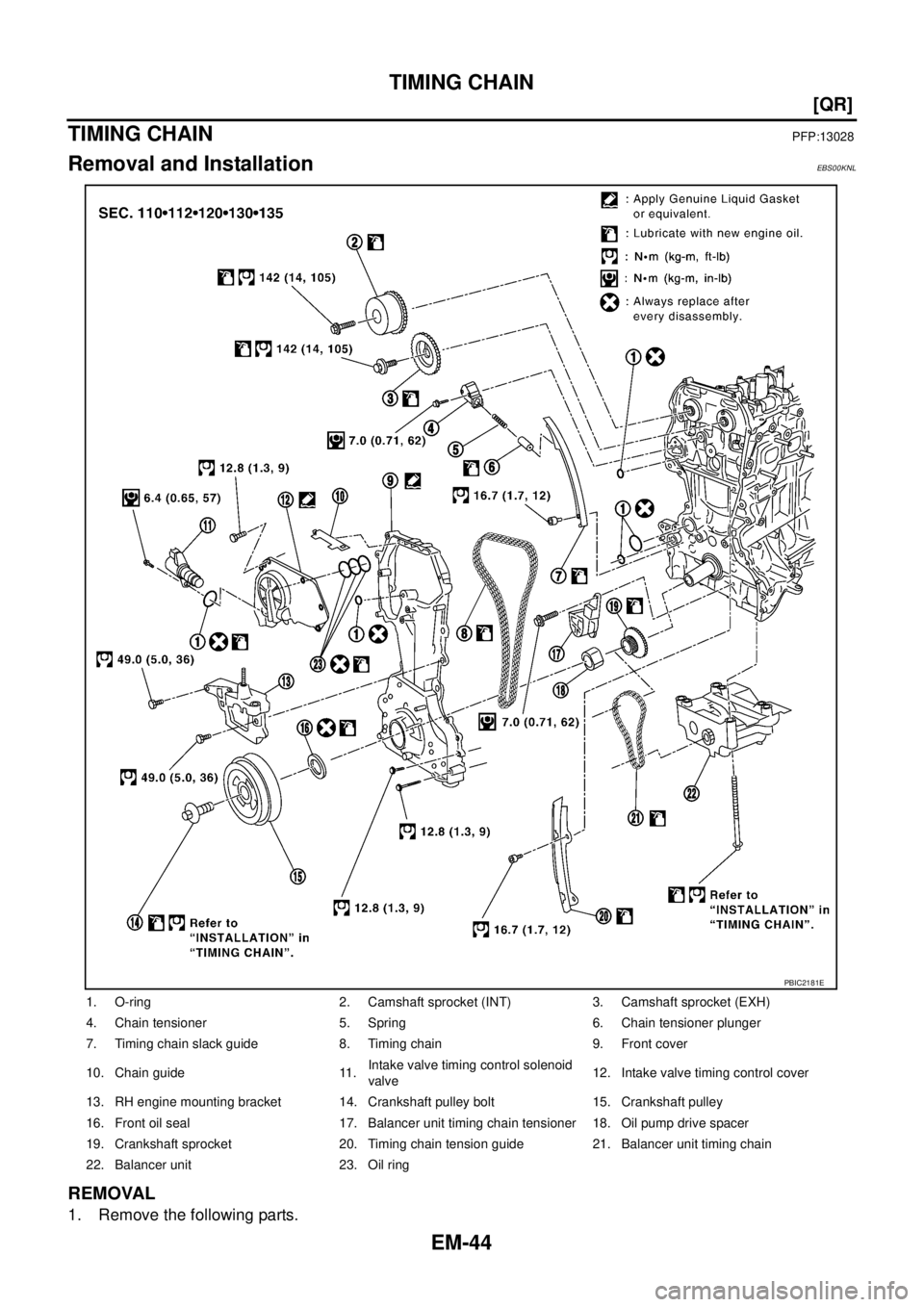

1. O-ring 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Chain tensioner 5. Spring 6. Chain tensioner plunger
7. Timing chain slack guide 8. Timing chain 9. Front cover
10. Chain guide 11.Intake valve timing control solenoid
valve12. Intake valve timing control cover
13. RH engine mounting bracket 14. Crankshaft pulley bolt 15. Crankshaft pulley
16. Front oil seal 17. Balancer unit timing chain tensioner 18. Oil pump drive spacer
19. Crankshaft sprocket 20. Timing chain tension guide 21. Balancer unit timing chain
22. Balancer unit 23. Oil ring
PBIC2181E

TIMING CHAIN
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Hood assembly; Refer to BL-12, "HOOD" .

RH and LH undercovers

PCV hose; Refer to EM-17, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-29, "IGNITION COIL" .

Rocker cover; Refer to EM-42, "ROCKER COVER" .

Engine coolant reservoir tank; Refer to CO-12, "RADIATOR" .

Drive belt; Refer to EM-13, "REMOVAL" .

Alternator; Refer to SC-12, "CHARGING SYSTEM" .

Drive belt auto-tensioner; Refer to EM-14, "REMOVAL" .

Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove A/C compressor from engine. Temporarily secure A/C compressor to vehicle side with a rope to
avoid putting a load on them.
3. Remove bracket mounting bolts for fixing A/C piping on right strut housing and exhaust manifold cover.
Doing so simplifies moving.
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-34, "
HYDRAULIC LINE" .
5. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix power steering reservoir tank vertically.
6. Install engine slingers into front left of cylinder head and rear
right of cylinder head.

Use alternator bracket mounting bolt holes for the front side.
7. Lift with hoist, and support the engine posture.
8. Remove RH engine mounting insulator and bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
9. Remove center member and rear engine mounting bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
10. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
11. Remove oil pan (upper and lower), and oil strainer. Refer to EM-25, "
OIL PAN AND OIL STRAINER" .
12. Remove intake valve timing control cover.

Loosen bolts in reverse order as shown in the figure.

U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v -
alent tool to cut liquid gasket for removal.
CAUTION:
Be careful not to damage mounting surface.
13. Pull chain guide between camshaft sprockets out through front cover.
14. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:Slinger bolts:
Front
: 57.9 N·m (5.9 kg-m, 43 ft-lb)
Rear
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0271E
KBIA0085E

EM-46
[QR]
TIMING CHAIN

a. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
b. At the same time, make sure that the mating marks on camshaft
sprockets are located as shown in the figure.

If not, rotate crankshaft pulley one more turn to align mating
marks to the positions in the figure.
15. Remove crankshaft pulley with the following procedure:
a. Fix crankshaft pulley with a pulley holder (commercial service
tool), loosen crankshaft pulley bolt, and locate bolt seating sur-
face at 10 mm (0.39 in) from its original position.
b. Attach a pulley puller (special service tool) in the M 6 thread hole
on crankshaft pulley, and remove crankshaft pulley.
16. Remove front cover with the following procedure:
KBIA0190E
PBIC2351E
PBIC2434E
PBIC2413E

TIMING CHAIN
EM-47
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

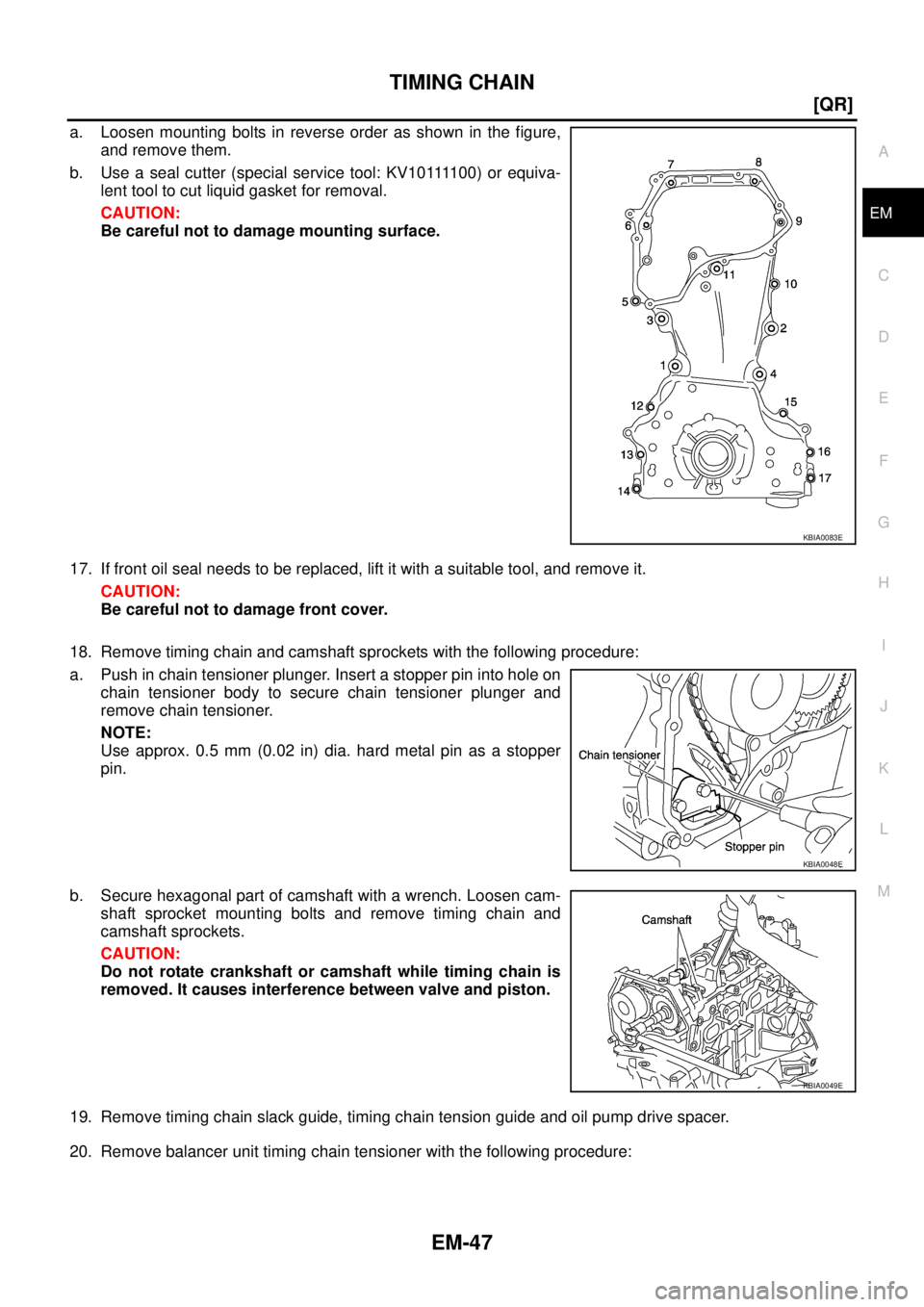

a. Loosen mounting bolts in reverse order as shown in the figure,
and remove them.
b . U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v a -
lent tool to cut liquid gasket for removal.
CAUTION:
Be careful not to damage mounting surface.
17. If front oil seal needs to be replaced, lift it with a suitable tool, and remove it.
CAUTION:
Be careful not to damage front cover.
18. Remove timing chain and camshaft sprockets with the following procedure:
a. Push in chain tensioner plunger. Insert a stopper pin into hole on
chain tensioner body to secure chain tensioner plunger and
remove chain tensioner.
NOTE:
Use approx. 0.5 mm (0.02 in) dia. hard metal pin as a stopper
pin.
b. Secure hexagonal part of camshaft with a wrench. Loosen cam-
shaft sprocket mounting bolts and remove timing chain and
camshaft sprockets.
CAUTION:
Do not rotate crankshaft or camshaft while timing chain is
removed. It causes interference between valve and piston.
19. Remove timing chain slack guide, timing chain tension guide and oil pump drive spacer.
20. Remove balancer unit timing chain tensioner with the following procedure:
KBIA0083E
KBIA0048E
KBIA0049E

EM-48
[QR]
TIMING CHAIN

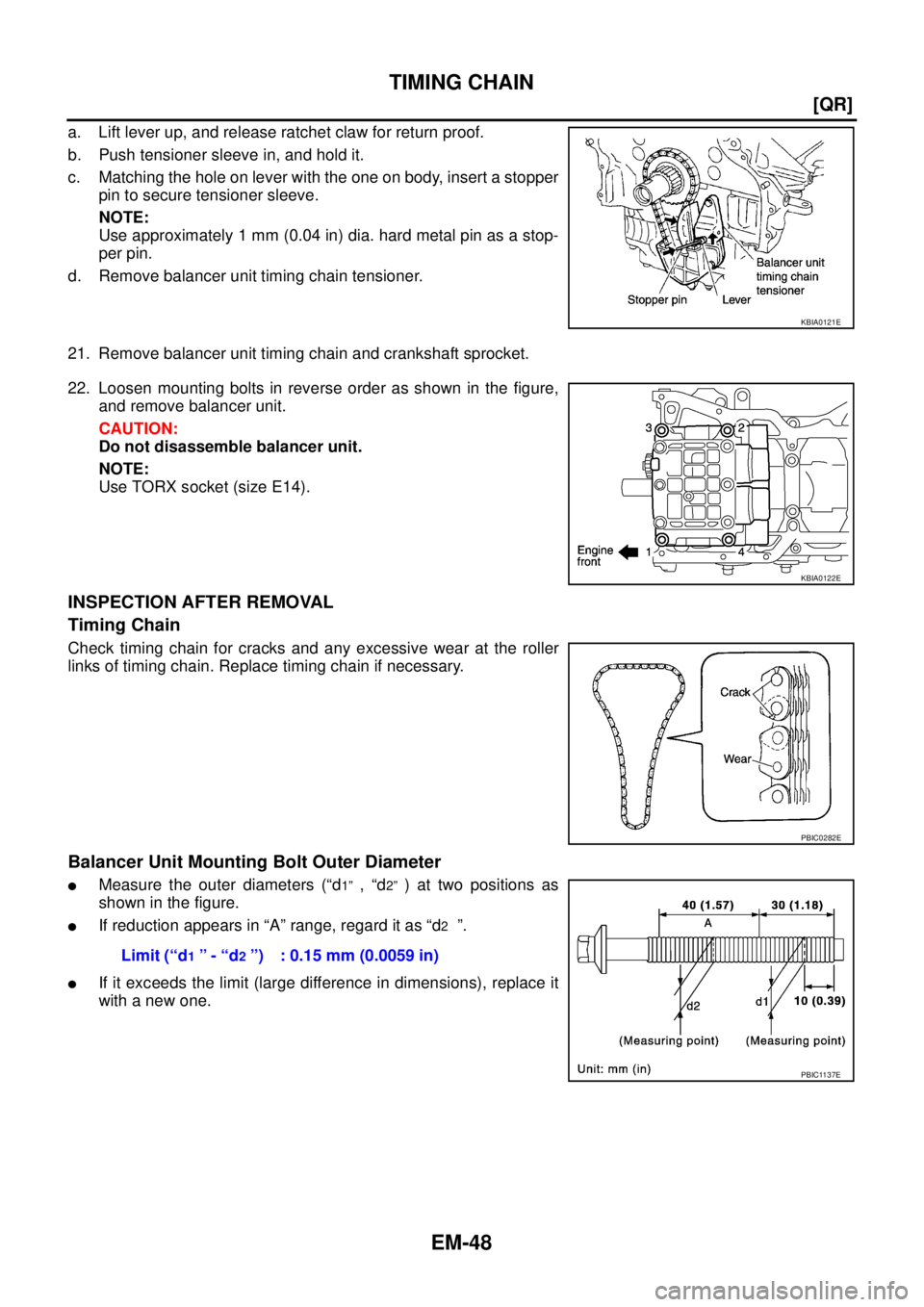

a. Lift lever up, and release ratchet claw for return proof.
b. Push tensioner sleeve in, and hold it.
c. Matching the hole on lever with the one on body, insert a stopper
pin to secure tensioner sleeve.
NOTE:
Use approximately 1 mm (0.04 in) dia. hard metal pin as a stop-
per pin.
d. Remove balancer unit timing chain tensioner.
21. Remove balancer unit timing chain and crankshaft sprocket.
22. Loosen mounting bolts in reverse order as shown in the figure,
and remove balancer unit.
CAUTION:
Do not disassemble balancer unit.
NOTE:
Use TORX socket (size E14).
INSPECTION AFTER REMOVAL
Timing Chain
Check timing chain for cracks and any excessive wear at the roller
links of timing chain. Replace timing chain if necessary.
Balancer Unit Mounting Bolt Outer Diameter

Measure the outer diameters (“d1” , “d2” ) at two positions as
shown in the figure.

If reduction appears in “A” range, regard it as “d2 ”.

If it exceeds the limit (large difference in dimensions), replace it
with a new one.
KBIA0121E
KBIA0122E
PBIC0282E
Limit (“d1 ” - “d2 ”) : 0.15 mm (0.0059 in)
PBIC1137E
