Keys
Leaving children in a vehicle with the ignition
key is dangerous for many reasons.
A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don’t leave the keys in a vehicle with children.
2-2

One key is used for the
ignition and all locks.
When a new vehicle
is delivered, the key has a
bar-coded key tag. This tag may be removed by your
dealer before it is delivered.
Each tag has a key code on it that tells your dealer or a
qualified locksmith how to make extra keys. Keep the
tag in a safe place. If you lose your keys, you'll be able
to have one made easily using this tag. If you need
See
Roadside Assistance Program on page 7-5 for more
information.
I^... I,-., -- +A ..-,,r A,-.,I," S'." tL#. r.rrrrn,-.+ I,_>, a I IGVV ncy, yu tu yuu~ uGat--=l IWI LI IG UUI I G~L nGy UWUG.
Notice: Your vehicle has a number of new features
that can help prevent theft. You can have a lot
of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in.
So be sure you have
spare keys.
Remote Keyless Entry System
If equipped, the keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15
of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
i . I nis aevice may nor cause inierfererlce, arid
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
-.
2-3

Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system.
If the
transmitter does not work or
if you have to stand closer
to your vehicle for the transmitter to work, try this:
e
e
e
e
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine
if battery replacement is
necessary. See “Battery Replacement” under
Remote Keyless Entry System Operation on
page 2-4.
If you are still having trouble, see your dealer or a
qualified technician for service.
Remote Keyless Entry System
Operation
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about
3 feet
(1 m) up to 30 feet (9 m) away using the remote keyless
entry transmitter supplied with your vehicle.
The following functions are
available with the keyless
entry system:
@ (Lock): All doors will automatically lock when this
button on the transmitter is pressed. The interior
lamps will turn
off after all of the doors are closed. If all
of the doors are closed, the parking lamps will flash
twice and the horn will chirp to indicate locking
has occurred.
2-4

6 (Unlock): The driver’s door will unlock
automatically when this button on the transmitter is
pressed.
If the button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
10 seconds or until the ignition is
turned on. The parking lamps will flash twice to
indicate unlocking has occurred.
(rsy (Remote Trunk Release): The trunk will unlock
when the vehicle symbol on the transmitter is pressed,
as long as the trunk lockout
is not engaged. You
can open the trunk with the transmitter when the vehicle
speed is less than
2 mph (3 km/h), when the parking
brake is engaged, or when the ignition is
off. The interior
lamps will come on for
10 seconds or until the ignition
switch is turned to
ON.
.# (Horn): The horn will sound and the headlamps
and the parking lamps will flash for up to two minutes
when the horn symbol on the transmitter is pressed. The
interior
lamps will come on and remain on while the
horn is sounding and the lamps are flashing. The horn
and lamps can be turned
off by pressing the horn
symbol button again or by turning the ignition to
ON.
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature
the parking lamps will flash and the horn will chirp.
The programmable horn chirp can be disabled by pressing and holding either
of the door lock switches in
the unlock position for
10 seconds with the ignition
ON and all of the doors closed. When you hear the horn
chirp, programming is complete.
To reactivate the horn chirp feature, repeat the above
procedure.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
ynlIr dealer When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
2-5

Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery
is weak if the transmitter won’t
work at the normal range in any location.
If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
To replace the battery in the remote keyless entry
transmitter do the following:
1. Use a flat object like a coin to separate the bottom
half from the top half of the transmitter.
2. Remove the battery and replace it with the new
one. Make sure the positive side of the battery
faces
up. Use one three-volt, CR2032, or
equivalent, type battery.
3. Put the two halves back together. Make sure the
cover is on tightly,
so water won’t get in.
2-6

Doors and Locks
Door Lcnks
~~ -
Unlocked doors can be dangerous.
Passengers - especially children - can
easily open
the doors and fall out of a
moving vehicle. When a door
is locked, the
handle won’t open
it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren’t locked. So,
wear safety belts properly and lock the
doors whenever you drive.
vehicles may be unable to get out.
A child
can be overcome by extreme heat and can
from heat stroke. Always lock your vehicle
whenever you leave
it.
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent
this from happening.
Young children who get into unlocked
szcer per!?laK!n! i!?;wies cr e‘!e!? del!!?
0 Outsiders can easily enter through an There are
several ways to lock and unlock your vehicle.
From the outside, use your key or remote keyless
entry system, if your vehicle
is equipped with this
feature.
If your vehicle has remote keyless entry, you
can only use your key to unlock the driver’s side door.
From tne insiae, you can iock or uniock
ine door by
moving the manual lever forward or rearward.
2-7

Power Door Locks
With the power door locks, you can lock or unlock all of
the doors on your vehicle using the driver’s or front
passenger’s door lock switch.
Press the bottom of the switch to lock
all of the doors.
Press the top of the switch to unlock all of the doors.
Delayed Locking
This feature will allow the driver to delay the actual
locking of the vehicle. This feature will not operate
if the
key is left in the ignition. See
Lockout Protection on
page2-71
later in this section.
When the lower part of the driver’s power door lock
switch is pressed, with the key removed from the ignition
and the driver’s door open, three chimes will be heard.
The doors will not lock. Seven seconds after the
driver’s door has been closed, all of the doors will lock
and the parking lamps will flash. The horn will also
chirp
if the horn chirp feature is enabled. See
“Programmable Horn Chirp” listed previously for more
information.
If the driver opens another door before the seven
seconds are up, the doors will not lock until seven
seconds have elapsed after the last door is closed.
If the lower part of the power door lock switch is
pressed twice when leaving the vehicle, or the lock
symbol button on the remote keyless entry transmitter is
pressed, the doors will lock immediately.
If the power door lock switch is pressed to unlock, the
doors will not lock automatically.
Programmable Automatic
Door Locks
Your vehicle has a feature that allows you to program
your power door locks to automatically lock and
unlock under certain conditions. You can program your
vehicle to have all of the doors lock when you move
your shift lever out of PARK (P) to REVERSE
(R) if your
vehicle has an automatic transaxle or when the
vehicle speed is greater than
5 mph (8 km/h) if your
vehicle has a manual transaxle.
If someone needs to get
out while the vehicle is running, have that person use
the door lock. When the door is closed again, it will lock
automatically when the vehicle reaches about
5 mph
(8 km/h). You can also program all doors to
automatically unlock when the shift lever is moved to
PARK (P) on vehicles with an automatic transaxle or to
REVERSE (R) on vehicles with a manual transaxle
when the key is turned to
OFF.
2-8

Customizing the Automatic Door Locks
One of four operating modes may be selected and
programmed by the driver on vehicles with an automatic
transaxle:
Mode
1: All doors automatically lock when the transaxle
is shifted out of PARK (P). The doors will remain
locked unless manually unlocked or the lock button is
pressed.
All doors will unlock when the transaxle is
shifted into PARK (P) and the key is turned to
OFF.
Mode 2: This mode is only available on vehicles
equipped with a remote keyless entry transmitter.
All
doors automatically lock when the transaxle is shifted
out of PARK (P). Automatic driver’s door only unlock
when the transaxle
is shifted into PARK (P) and the key
is turned to
OFF.
Mode 3: All doors automatically lock when the transaxle
is shifted out of PARK (P).
No automatic door unlock.
Mode
4: No automatic door lock or unlock.
One of the four operating modes may be selected and
transaxle: Mode
1: All doors automatically lock when the vehicle
speed is greater than
5 mph (8 km/h). The doors
will remain locked unless manually unlocked or the lock
huffon is pressed. A!! doors will unlock when the
transaxle
is shifted into REVERSE (R) and the key is
turned to
OFF.
^I I-. . 11- - -I..:. _^__ -.- .-.l-:-1-- ... :*L. -^_. .,I ~IUCJI~I I 11 II~U uy 11 IG UI IVGI VI I VGI IILIGCI VVILI I 6 I I la1 lual
Mode 2: This mode is only available with the remote
keyless entry transmitter. All doors automatically
lock when the vehicle speed is greater than
5 mph
(8 km/h). Automatic driver’s door only unlock when the
transaxle is shifted into REVERSE (R) and the key
is turned to
OFF.
Mode 3: All doors automatically lock when the vehicle
speed is greater than
5 mph (8 km/h). No automatic
door unlock.
Mode
4: No automatic door lock or unlock.
Before your vehicle was shipped from the factory
it was
programmed in Mode
1. To determine the current
mode or to change to a different mode, do the following:
1.
2.
3.
4.
Put an automatic transaxle in PARK (P) or a
manual transaxle
in REVERSE (R) with the parking
brake engaged and turn the ignition to
ON.
Press and hold the lower part of the power door
lock switch for
10 seconds. Release the switch
when you hear the chime.
Count the number of chimes you hear. The number
You can change the mode by pressing and
holding the lower part of the power door lock switch
(two chimes for Mode
2, three chimes for Mode 3
and four chimes for Mode 4).
Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
c! chirzcs tc!!s yc: v:!ic!? n?!x!e ;‘c)L!!- vehk!e In in-
The mode you selected is now set.
2-9

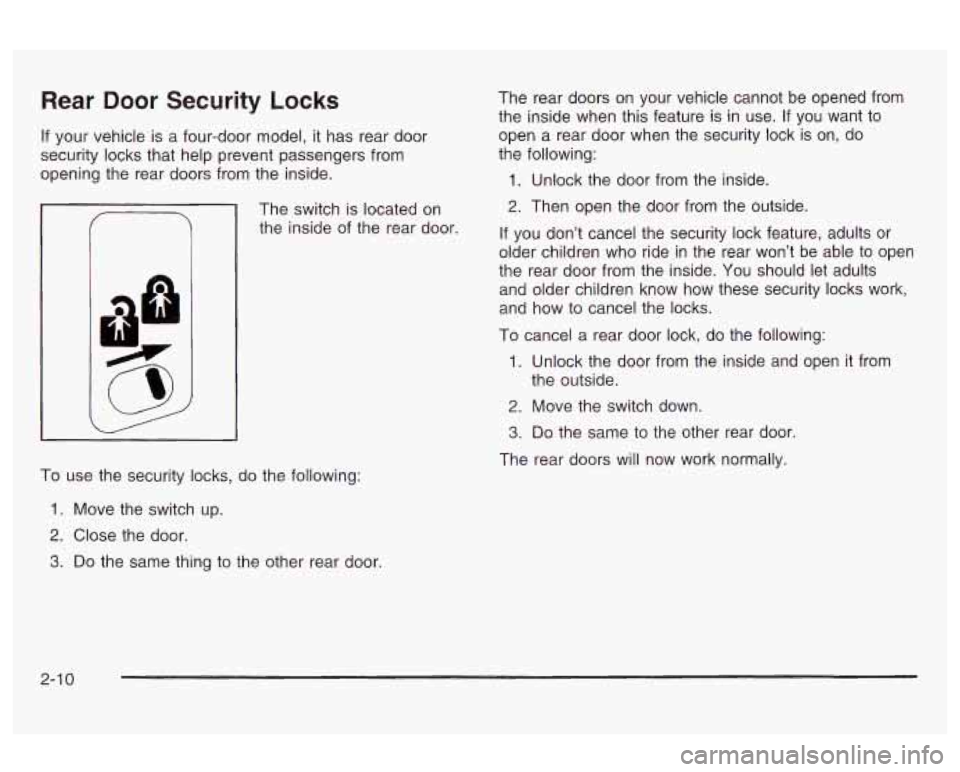

Rear Door Security Locks
If your vehicle is a four-door model, it has rear door
security locks that help prevent passengers from
opening the rear doors from the inside.
The switch is located on
the inside of the rear door. The
rear doors on your vehicle cannot be opened from
the inside when this feature
is in use. If you want to
open a rear door when the security lock is on, do
the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able
to open
the rear door from the inside. You should let adults
and older children know how these security locks work,
and how to cancel the locks.
To cancel a rear door lock,
do the following:
1. Unlock the door from the inside and open it from
2. Move the switch down.
the
outside.
3. Do the same to the other rear door.
The rear doors will now work normally.
To use the security locks, do the following:
1. Move the switch up.
2. Close the door.
3. Do the same thing to the other rear door.
2-1 0

Lockout Protection
Lockout protection is intended to provide enhanced
security and convenience. This feature prevents a driver
who has left the keys in the ignition from locking the
doors, using the power door locks while any door
is open.
To override this feature, when the key is in the ignition
and any door is open, press and hold down the
power door lock switch for three seconds.
This feature cannot guarantee that you will never be
locked out of your vehicle.
If you don’t leave the keys in
the ignition, or
if you use the manual door lock or the
remote keyless entry transmitter, you could still lock your
keys inside your vehicle. Always remember to take
your keys with you.
Leaving Your Vehicle
If you are leaving your vehicle, open your door and
set the locks from the inside, then get out and close
the door.
Trunk
When closing the trunk, close from the center to ensure
’+ ‘ully latches.
It can be d,,,gerous L drive wit.. Ihe trL ... c lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can’t see or smell
CO.
It can cause unconsciousness and even
death. If you must drive with the trunk
lid open
or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk
lid:
Make sure all other windows are shut.
0 Turn the fan on your heating or cooling
system to
its highest speed and select the
control setting that will force outside air into your vehicle. See “Climate Controls”
in the Index.
instrument panel, open them all the way.
- !f ywu lIUYC UII “ULlrLV V., V. U..UY. L.. Y .-~~ma CImnerr mi~ AII+ICI+E A- AS. ~~nr(ar )ha
See “Engine Exhaust” in the Index.
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder or use the remote keyless
entry transmitter,
if your vehicle has this feature.
2-1 1
