relay OLDSMOBILE AURORA 2003 Owners Manual

Relays 27
28
29 30
31
32
33
34
35
36
37
38
39
40 Usage
High-Beam Headlamp
Low-Beam Headlamp
Fog Lamps
Daytime Running Lamps
Horn
Air Conditioner Clutch
HVAC Solenoid
Accessory
Air Pump
Starter
1
Cooling Fan 1
Ignition 1
Cooling Fan Series/Parallel
Cooling Fan 2 Circuit
Breakers
41
Fuses 42
43
44
45
46
47
48
49
50
51
52
53 Usage
Starter
Usage
Not Used Empty
ABS
Air Pump A
Cooling Fan
1
Cooling Fan 2
Spare
Spare
Spare
Spare
Spare Fuse Puller
5-94
ProCarManuals.com

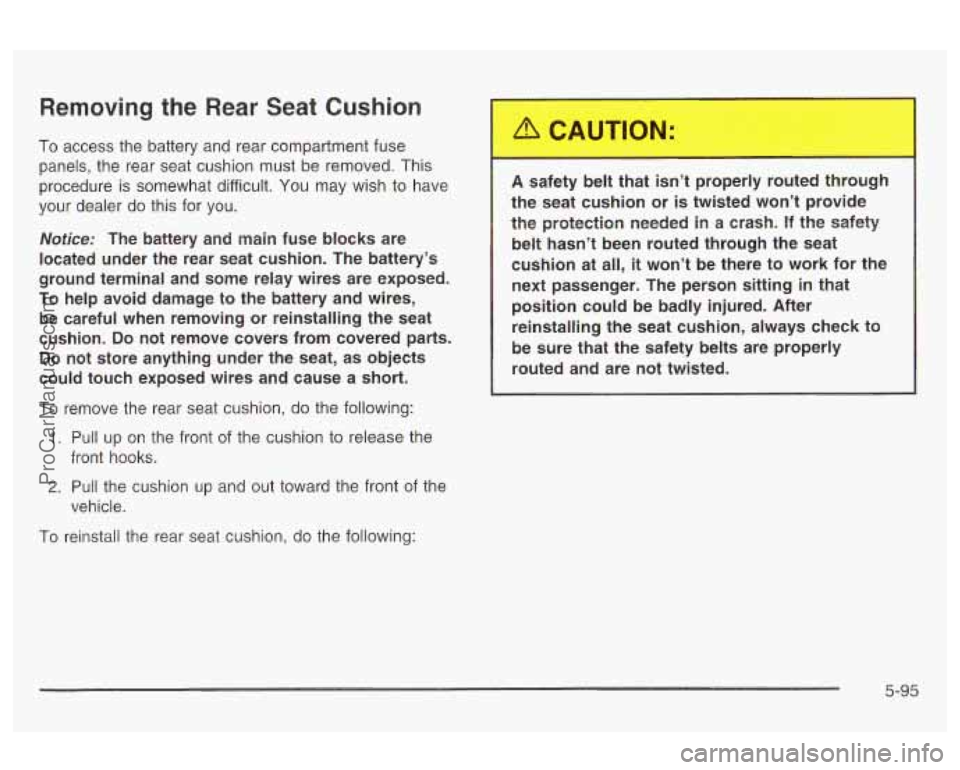

Removing the Rear Seat Cushion
To access the battery and rear compartment fuse
panels, the rear seat cushion
must be removed. This
procedure is somewhat difficult. You may wish to have
your dealer do this for you.
Notice: The battery and main fuse blocks are
located under the rear seat cushion. The battery’s
ground terminal and some relay wires are exposed.
To help avoid damage to the battery and wires,
be careful when removing or reinstalling the seat
cushion.
Do not remove covers from covered parts.
Do not store anything under the seat, as objects
could touch exposed wires and cause a short.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release the
2. Pull the cushion up and out toward the front of the
front hooks.
vehicle.
To reinstall the rear seat cushion, do the following: A safety belt that
isn’t properly routed through
the seat cushion or
is twisted won’t provide
the protection needed
in a crash. ld the safety
belt hasn’t been routed through the seat
cushion at all,
it won’t be there to work for the
next passenger. The person sitting
in that
position could be badly injured. After
reinstalling the seat cushion, always check to
be sure that the safety belts are properly
routed and are not twisted.
5-95
ProCarManuals.com

Fuses 35
36
37
38
Relays 39
40
41
42 43
44 Usage
Anti-lock Brake System (ABS)
Turn SignaVHazard HVAC Battery
Dimmer
Usage Fuel Pump
Parking Lamp
Ignition
1
Rear Fog Lamp
Not Used Park Relays
45
46
47
4%
49
50
51
52
53
54 55 Usage
Reverse
Retained Accessory Power (RAP)
Fuel Tank Door Lock
Not Used
Ignition 3
Fuel Tank Door Release
Interior Lamps
Trunk Release
Front Courtesy Lamps
Not Used Electronic Level Control (ELC)
5-98
ProCarManuals.com

Circuit
Breakers
56
57
Relays
58
59
Fuses 60
61
62
63
64
65
66
67
68
69
70
71 72 Usage
Power Seats
Power Windows
Usage
Cigar
Rear Defogger
Usage Not Used
Rear Defog
Not Used
Audio Amplifier
Electronic Level Control (ELC)
Cigar Not Used
Not Used
Not Used
Spare
Spare
Spare
Spare Fuses
73
74
75 Usage
Spare
Spare Fuse Puller
5-99
