engine OLDSMOBILE CUTLASS 1997 Owners Manual

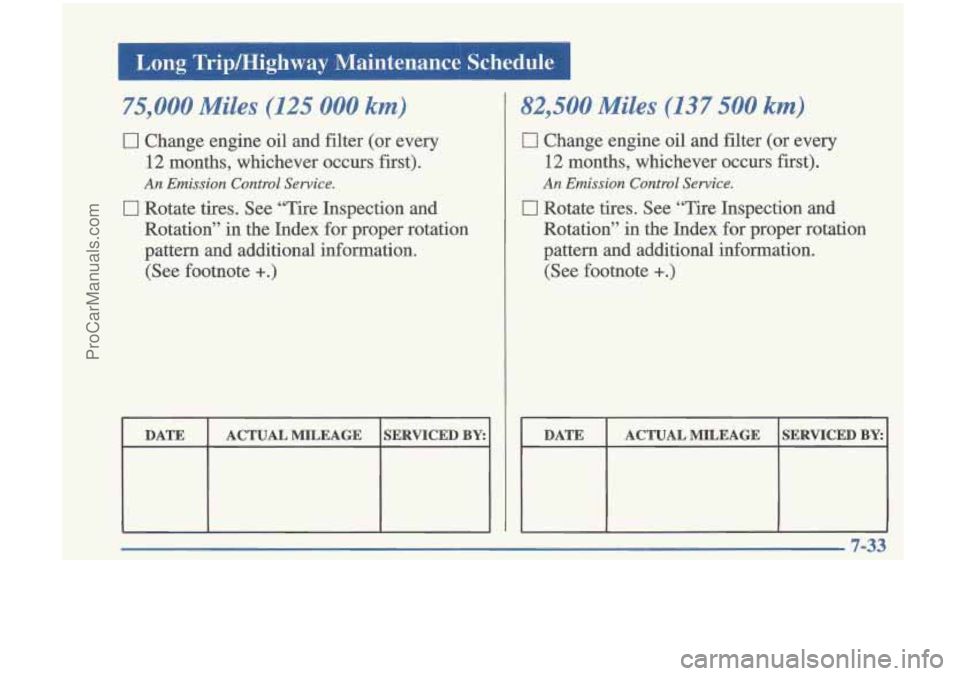

75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional infomation.
(See footnote
+.)
DATE SERVICED BY: ACTUAL MILEAGE
I I I I
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
An Emission Control Service.
I I
DATE ACTUAL MILEAGE SERVICED BY:
7-33
ProCarManuals.com

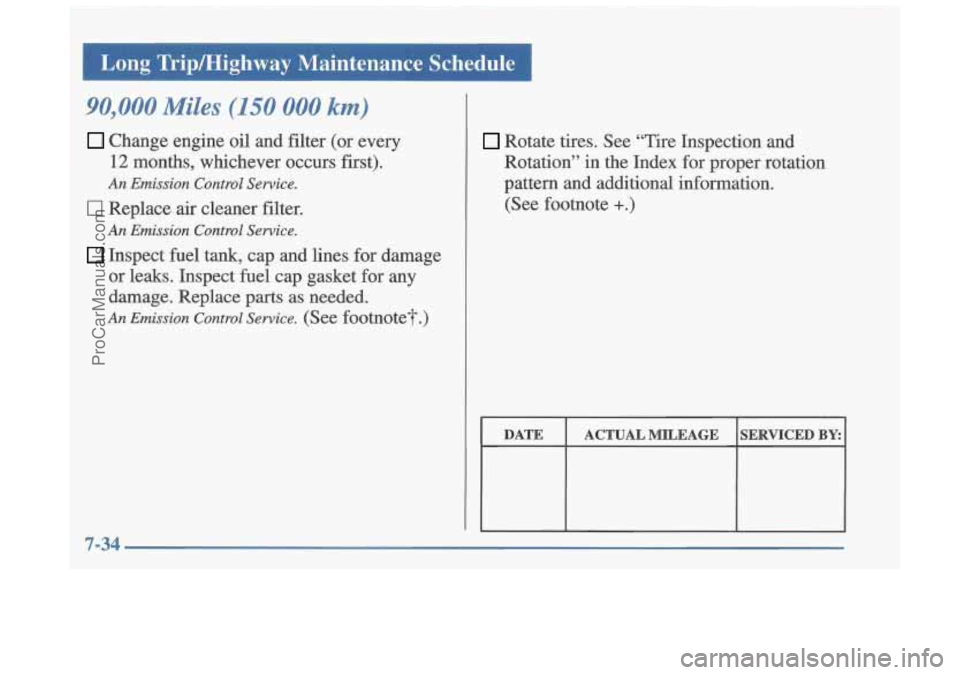

90,000 Miles (150 000 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Replace air cleaner filter.
Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for
any
damage. Replace parts as needed.
An Emission Control Service. (See footnote?.)
An Emission Control Service.
Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. (See footnote
+.)
DATE ACTUAL MILEAGE SERVICED BY:
ProCarManuals.com

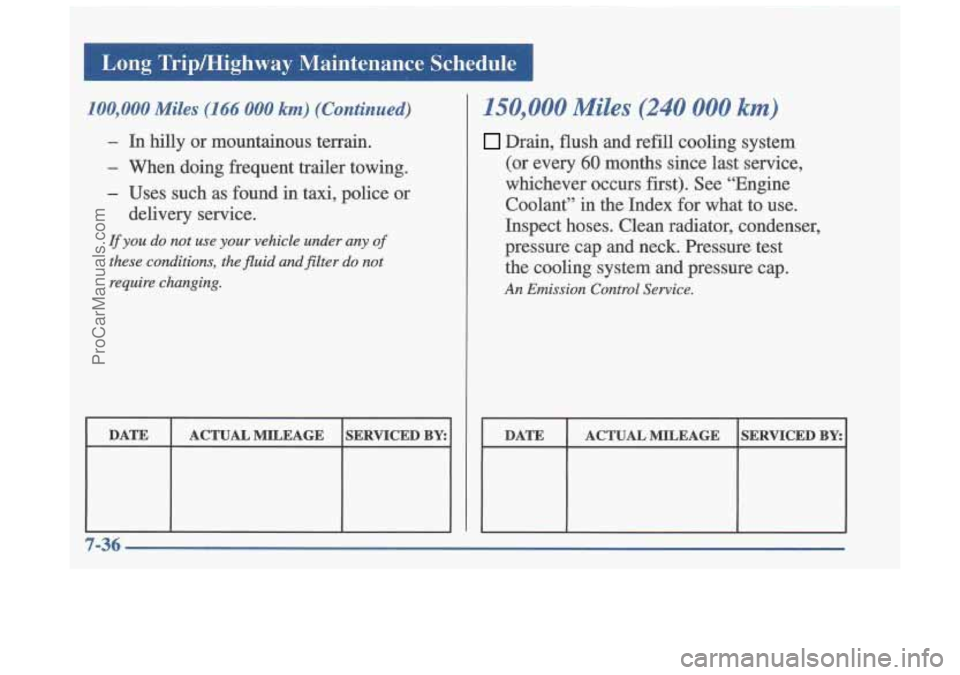

100,000 Miles (166 000 km) (Continued)
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
If you do not use your vehicle under any of
these conditions, the fluid and filter do not
require changing.
delivery service.
I I
DATE ACTUAL MILEAGE SERVICED BY:
150,000 Miles (240 000 km)
Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant” in the Index for what
to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test the cooling system and pressure cap.
An Emission Control Service.
DATE ACTUAL MILEAGE
7
SERVICED BY:
7-56
ProCarManuals.com

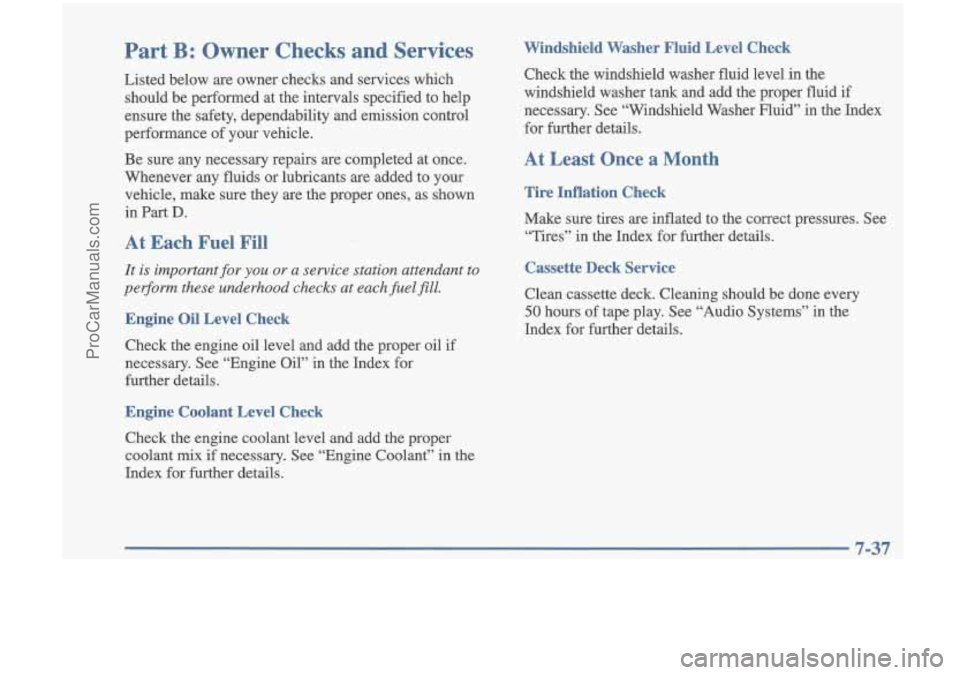

Part B: Owner Checks and Services
Listed below are owner checks and services which should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in
Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
peform these underhood checks at eachfuelfill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation Check
Make sure tires are inflated to the correct pressures. See
“Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
ProCarManuals.com

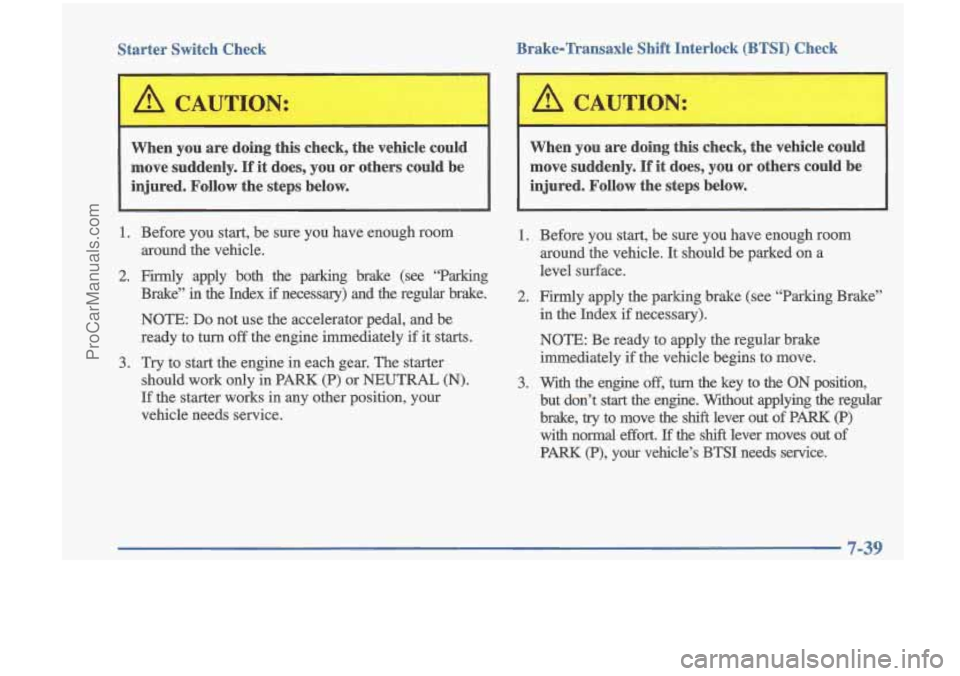

Starter Switch Check Brake-Transaxle Shift Interlock (BTSI) Check
When you are doing
this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
c I
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
2. Firrnly apply both the parking brake (see “Parking
Brake”
in the Index if necessary) and the regular brake.
NOTE:
Do not use the accelerator pedal, and be
ready to turn
off the engine immediately if it starts.
3.
Try to start the engine in each gear. The starter
should work only in PARK (P) or
NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service. around
the vehicle.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a
level surface.
2. Firrnly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the ON position,
but don’t
start the engine. Without applying the regular
brake,
‘uy to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out of
PARK (P), your vehicle’s BTSI needs service.
7-39
ProCarManuals.com

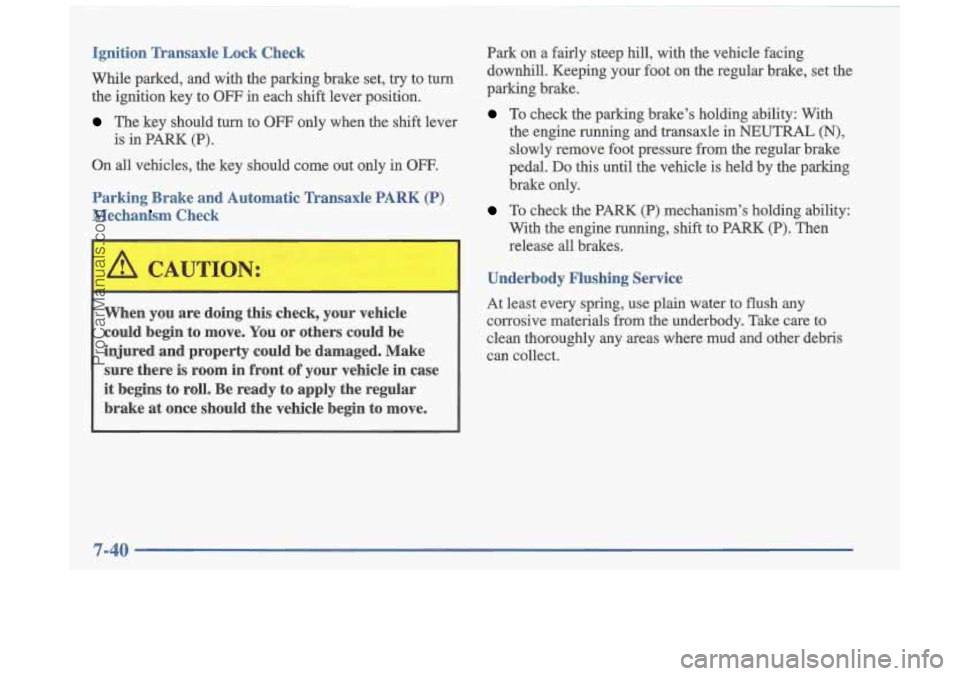

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn the ignition key
to OFF in each shift lever position.
The key should turn to OFF only when the shift lever
On all vehicles, the key should come out only in
OFF.
is in PARK (P).
Parking Brake and Automatic Transaxle PARK
(P)
MecT m .-,’ leck
When you are doing this check, your vehicle
could begin to move. You
or others could be
injured and property could be damaged. Make
sure there
is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake
at once should the vehicle begin to move. Park on
a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability: With
the engine running and transaxle in
NEUTRAL (N),
slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking
brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK
(P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-40
ProCarManuals.com

Part C: Periodic Maintenance
Inspections
Listed below are inspections and servlces which should be
performed at least twice a year (for instance, each spring
and fall). You should let your
GM retailer’s service
department or other
qualified service center do these jobs.
Make sure
any necessary repairs are completed at once.
Proper procedures to perform these services may be
found
in a GM service manual. See “Service and Owner
Publications” in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system.
Look for broken, damaged, missing or
out-of-position parts
as well as open seams, holes, loose connections or other conditions
whch could cause a heat
build-up in the floor pan or could let exhaust fumes into
the vehicle.
See “Engine Exhaust” in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace
as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Replace
any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc. The
parking brake is self-adjusting and no manual adjustment is required. You may need
to have your
brakes inspected more often
if your driving habits or
conditions result
in frequent braking.
7-41
ProCarManuals.com

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM retailer.
USAGE
Engine Oil
Engine Coolant
Hydraulic Brake
System
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine
Oil“ in the Index, ~
50/50 mixture of clean water
(preferably distilled) and use only
GM Goodwrench@ DEX-COOL
Rul
or Havoline@ DEX-COOL TM
coolant. See “Engine Coolant” in
the Index.
Delco Supreme
11@ Brake Fluid
(GM Part
No. 12377967 or
equivalent DOT-3 brake fluid).
~~
USAGE
Power Steering
System
Automatic
Transaxle Key Lock
Cylinders
Windshield
Washer Solvent
Hood Latch
Assembly,
Pivots, Spring
Anchor and
Release Pawl
Hood and Door
Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
GM Power Steering Fluid (GM
Part No. 1052884 - 1 pint,
1050017
- 1 quart, or equivalent).
DEXRON@-III Automatic
Transmission Fluid.
Multi-Pu ose lubricant, Superlube
% (GM Part
No. 12346241 or equivalent).
GM Optikleen@) Washer Solvent (GM
Part No. 1051515)
or equivalent.
Lubriplate lubricant aerosol (GM
Part No. 12346293 or equivalent) or lubricant meeting requirements
of NLGI
# 2, Category LB
or GC-LB.
Multi-pu ose lubricant, Superlube
% (GM Part
No. 12346241 or equivalent).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement
Parts” in the Index for recommended
replacement filters and spark plugs.
7-42
ProCarManuals.com

Brakes. Anti-Lock .......................... 2.54. 4.7
Braking
........................................ 4-6
Braking in Emergencies
........................... 4-9
Break.In. New Vehicle
.......................... 2-13
BTSICheck
................................... 7-39
Bulb Replacement
.............................. 6-26
Back-up Lamp
.............................. 6-29
CHMSL
.................................... 6-29
Dome Lamp
................................. 6-31
Front Turn Signal Lamps
....................... 6-27
Headlamps
.................................. 6-27
Rear Turn Signal Lamp
........................ 6-29
BTSI
.................................... 2.24. 7.39
Stoplamp
................................... 6-29
Taillamp
.................................... 6-29
.Capacities and Specifications
.................... 6-57
Carbon Monoxide
............... .2.10.2.25. 4.27 4-35
Cassette Deck Service
........................... 7-37
Cassette Tape Player
........................ 3.9. 3.14
Cassette Tape Player Care
........................ 3-22
CDPlayer
..................................... 3-14
CD Player Theft-Deterrent Feature
................. 3- 19
Center Console Storage Area
...................... 2-41
Center Rear Passenger Position
.................... 1-33
Certification Label
.............................. 4-3 1
Chains. Safety ................................. 4-36
Chains. Tire
................................... 6-40
Changing
a Flat Tire ............................. 5-20
Charging System Indicator Light
................... 2-52
Center High-Mounted Stoplamp Bulb Replacement
.... 6-29 Check Engine Light
............................. 2-55
Check Oil Light
........................... 2.59. 6. 10
Checking Your Restraint Systems
.................. 1-47
Chemical Paint Spotting
.......................... 6-47
Child Restraints
................................ 1-36
Securing in a Rear Outside Seat Position
........... 1-38
Securing in the Center Rear Seat Position
.......... 1-40
Securing in the Right Front Seat Position
.......... 1-42
TopStrap
................................... 1-37
WheretoPut
................................ 1-36
Circuit Breakers and Fuses
....................... 6-51
Cleaner.
Air ................................... 6-15
Cleaning
...................................... 6-41
Aluminum Wheels
............................ 6-46
Exterior LampsLenses
........................ 6-45
Fabric
........................... ' ........... 6-41
Glass
....................................... 6-44
Inside
of Your Oldsmobile ...................... 6-41
Instrument Panel
............................. 6-43
Leather
..................................... 6-43
Outside
of Your Oldsmobile .................... 6-44
Special Problems
............................. 6-42
Stains
...................................... 6-42
Tires
....................................... 6-46
Vinyl
....................................... 6-43
Wheels
..................................... 6-46
Windshield and Wiper Blades ................... 6-44
Climate Control System
........................... 3-2
Clock. Setting the
................................ 3-7
Comfort Controls
................................ 3-2
Compact Disc Care
............................. 3-23
ProCarManuals.com

Compact Disc Player ............................ 3-14
Compact Spare Tire
............................. 5-32
Control of a Vehicle
.............................. 4-6
Convenience Net
............................... 2-43
Convex Outside Mirror
.......................... 2-40
Coolant
....................................... 6- 16
Adding
..................................... 6-19
Checking
................................... 6-18
Heater. Engine
............................... 2- 15
SurgeTank .................................. 5-14
Surge Tank Pressure Cap
....................... 6- 19
Whattouse
................................. 6-17
Cooling System
................................ 5-14
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-32
CruiseLight
................................... 2-60
Cupholder, Center Console
....................... 2-42
Cupholder, Instrument Panel
...................... 2-42
Cupholder, Rear Seat
............................ 2-42
Customer Assistance for Text Telephone Users
......... 8-4
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Damage. Finish
............................... 6-47
Damage. Sheet Metal
............................ 6-47
Daytime Running Lamps
......................... 2-36
Dead Battery
................................... 5-3
Defects. Reporting Safety
......................... 8-8
Defensive Driving ............................... 4-2
Defogger. Rear Window
.......................... 3-5 Defogging
..................................... 3-4
Dimensions. Vehicle
............................ 6-58
Dolby' B Noise Reduction
.................. 3.12. 3.17
Dome Lamp
................................... 2-38
Dome Lamp Bulb Replacement
.................... 6-31
DoorLocks
..................................... 2-4
Drive. Automatic Transaxle
....................... 2-19
DriverPosition
................................. 1-12
Driving City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-20
InaBlizzard
................................. 4-26
In Foreign Countries
........................... 6-5
IntheRain .................................. 4-16
Night
...................................... 4-14
OnCurves
................................... 4-9
On Grades While Towing a Trailer ............... 4-38
On Hill and Mountain Roads
.................... 4-22
On Snow and Ice
............................. 4-25
Throughwater
............................... 4-18
WetRoads
.................................. 4-16
Winter
...................................... 4-24
With a Trailer
................................ 4-36
DrunkenDriving
................................ 4-3
Electrical Equipment. Adding
.......... 2-15. 3-20. 6-50
Electrical System
............................... 6-50
9-3
ProCarManuals.com
