OLDSMOBILE CUTLASS 1997 Owners Manual

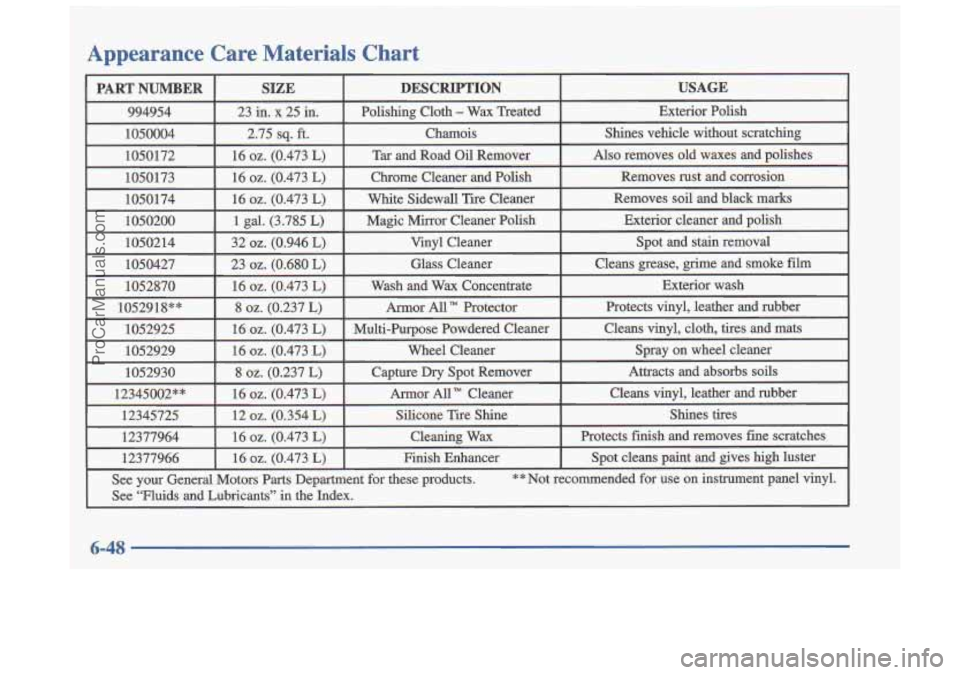

Appearance Care Materials Chart
ProCarManuals.com

Vehicle Identification Number (VIN)
ENGINE A7 f ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Oldsmobile. It appears
on a plate in the front corner
of the instrument panel, on
the driver’s side. You can see it
if you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and SerVice Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the bottom of your spare tire
cover. It’s very helpfbl
if you ever need to order parts.
On this label
is:
your VIN,
the model designation,
0 paint information and
a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
6-49
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your Oldsmobile
unless you check with your retailer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to add anything electrical to your Oldsmobile, see
“Servicing Your Air Bag-Equipped Oldsmobile”
in the Index.
Headlamp Wiring
The headlamp wiring is protected by fuses, one for each
headlamp, in the fuse block. An electrical overload will
cause the lamps to
turn off. If this happens. have your
headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker and a fuse.
If the motor overheats due to
heavy snow, etc., the wiper
will stop until the motor
cools.
If the overload is caused by some electrical
problem and not snow, etc., be sure to get it .fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse block protect the power
windows and other power accessories. When the current
load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed or
goes away.
6-50
..
ProCarManuals.com

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links in the wiring itself.
This
greatly reduces the chance of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can. Also, there are spare fuses
in the left side instrument panel fuse block door.
There are three fuse blocks in your vehicle: two
instrument panel fuse blocks and the engine
compartment fuse block.
Instrument Panel Fuse Block
The instrument panel fuse
blocks are located at each end
of the instrument panel.
To access the fuses, open
the fuse panel door by
pulling out.
To replace the door, insert
the hooks at the front end
first, then push the door in
to the instrument panel to secure it.
ProCarManuals.com

Instrument Panel Fuse Block - Left
In the left instrument panel fuse block, there are spare
fuses and a fuse puller.
P-

I RELAY I MICRO
DR UNLOCK OK
DR LOCK DR UNLOCK DRIVERS
Usage
Radio
Wipers
Trunk Release and Remote
Lock Control
Turn Signals
Power Mirrors
Air Bag
Fuse
G)
H)
J)
K)
STOP LPS
HAZARD LPS
IPCENAC
BATT
MICRO RELAY
TRUNK REL CIRCUIT BRKR
PWR SEATS
MICRO RELAY
DR UNLOCK
MICRO RELAY
DR LOCK
MICRO RELAY
DRIVERS DR
UNLOCK
Usage
Body Function Control Module
Powertrain Control Module
Door Locks
Body Function Control Module,
Cluster
Stoplamps
Hazard Lamps Cluster, Climate Control
Remote Trunk Release
Power Seats
Door Locks
Door Locks
Not Used
6-52
ProCarManuals.com

Instrument Panel Fuse Block - Right
SEE OTHER END CAP FOR FUSE PULLER AND SPARE FUSES
CIRCUIT
0
MICRO
E n FOGLPS
0
B. CRUISE SW A. INST LPS
C. HVAC BLOWER
D. CRUISE E. FOG LPS F. INT LPS G. RDO BAlT H. SUNROOF
Usage
Instrument Panel Lights, Dimmer
Cruise Control
Climate Control System MICRO
RELAY
FOG LPS
Usage
Cruise Control
Fog Lamps Interior Lamps,
Body Function
Control Module
Radio
Sunroof
Power Windows
Fog Lamps
6-53
ProCarManuals.com

Engine Compartment Fuse Block
The engine compartment fuse block is located on the
driver's side
of the engine compartment, near the air
cleaner.
F nn
Fuse
Maxi-Fuses
1)
2)
3)
Usage
Ignition Switch
Left-Hand Electrical
Center-Power Seats, Power
Mirrors, Door Locks,
Trunk
Release and Remote Lock Control
Left-Hand Electrical Center-Stoplamps, Hazard Lamps,
Body Function Control Module,
Cluster, Climate Control System
6-54
ProCarManuals.com

Fuse
Maxi-Fuses
4)
Usage
Right-hand Electrical Center-Fog
Lamps, Radio, Body Function Control Module, Interior Lamps
Ignition Switch
Not Used
Anti-Lock Brakes
Cooling Fans
Rear Defog
Not Used
Anti-Lock Brakes Cooling Fan
HVAC Blower (Climate Control)
Cooling Fans
Cooling Fans 35)
36)
37)
Usage
Air Conditioning Compressor
Not Used
Fuel
Pump
Automatic Light Control
Automatic Light Control
Horn
Daytime Running Lamps
Spare Fuses
Rear Defog
Accessory Power Outlets, Cigar Lighter
Anti-Lock Brakes
Anti-Lock Brakes
Air Conditioning Compressor,
Body Function Control Module
Automatic Transaxle
ProCarManuals.com

Fuse
Mini-Fuses
39)
40)
41)
42)
43)
44)
Usage
Powertrain Control
Module, Ignition
Anti-Lock Brakes
Ignition System
Back-up Lamps, Brake-Transaxle
Shift Interlock
Horn
Powertrain Control Module
Parking
Lamps
Rear Defog, Daytime Running
Lamps, Climate Control System
Fuse
Mini-Fuses
47)
Usage
Canister Purge Valve, Powertrain
Control Module, Exhaust
Gas
Recirculation, Heated 02 Sensor
Fuel Pump, Injectors Generator
Right-Hand Headlamp
Left-Hand Headlamp
Cooling
Fan
WAC Blower (Climate Control )
Fuse Puller for Mini-Fuses
Tach Test Point for
Diagnostic Testing
6-56
ProCarManuals.com

Replacement Bulbs
High-Beam Headlamp .................... 9005
Outside Lamps Bulb
Low-Beam Headlamp .................... 9006
Front
Park/Turn ...................... 3 157 NA
Back-up
............................... 3057
Rear Turn Signal
........................ 3357
Center High Mounted Stop Lamp
(CHMSL) ... 921
TaiUStoplarnp
........................... 3057
Inside Lamps Bulb
Dome .................................. 561
Capacities and Specificatio,ns
Cooling System ............. 13.6 quarts (12.9 L)
Engine Crankcase ............ 4.5 quarts (4.3 L)
Refrigerant, Air Conditioning ..... See refrigerant
charge label under the hood.
Fuel Tank ................ ._ 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading
Information label on the driver’s
side rear passenger door.
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level or as recommended
in
this manual.
See “Recommended Fluids and Lubricants”
in
the Index.
6-57
