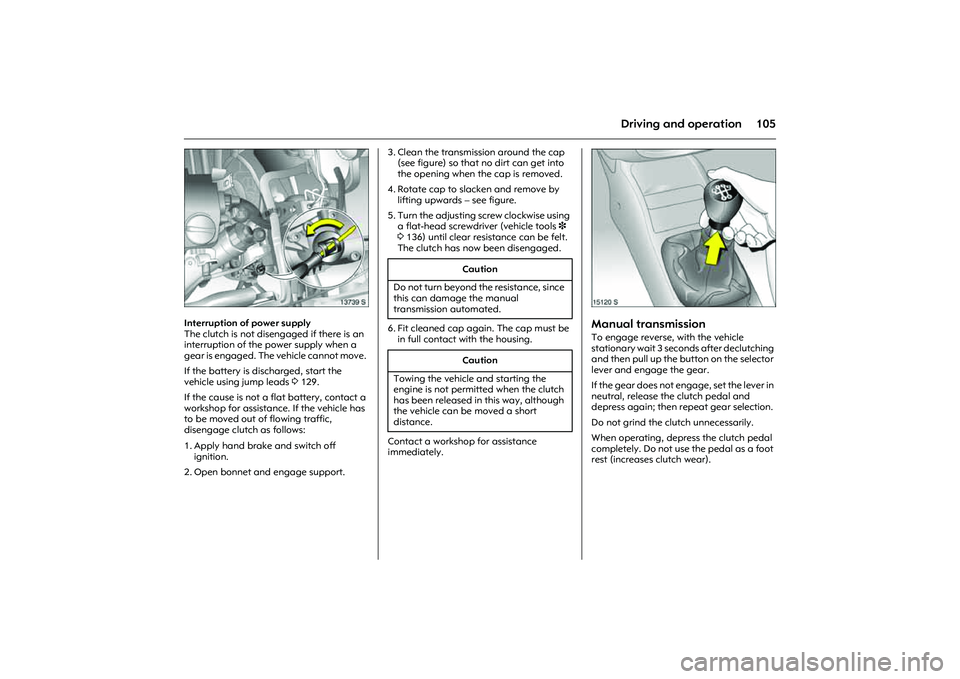

Interruption of power supply
The clutch is not disengaged if there is an
interruption of the power supply when a
gear is engaged. The vehicle cannot move.
If the battery is discharged, start the
vehicle using jump leads 3129.
If the cause is not a flat battery, contact a
workshop for assistance. If the vehicle has
to be moved out of flowing traffic,
disengage clutch as follows:
1. Apply hand brake and switch off
ignition.
2. Open bonnet and engage support.3. Clean the transmission around the cap
(see figure) so that no dirt can get into
the opening when the cap is removed.
4. Rotate cap to slacken and remove by
lifting upwards – see figure.
5. Turn the adjusting screw clockwise using
a flat-head screwdriver (vehicle tools 3
3136) until clear resistance can be felt.
The clutch has now been disengaged.
6. Fit cleaned cap again. The cap must be
in full contact with the housing.
Contact a workshop for assistance
immediately.
Picture no: 15120s.tif
Manual transmissionTo engage reverse, with the vehicle
stationary wait 3 seconds after declutching
and then pull up the button on the selector
lever and engage the gear.
If the gear does not engage, set the lever in
neutral, release the clutch pedal and
depress again; then repeat gear selection.
Do not grind the clutch unnecessarily.
When operating, depress the clutch pedal
completely. Do not use the pedal as a foot
rest (increases clutch wear).
Caution
Do not turn beyond the resistance, since
this can damage the manual
transmission automated.
Caution
Towing the vehicle and starting the
engine is not permitted when the clutch
has been released in this way, although
the vehicle can be moved a short
distance.

128 Self-help, vehicle careSelf-help, vehicle care
Diesel fuel system, bleeding If the tank is allowed to run dry, the diesel
fuel system must be bled. Turn over the
ignition three times for 15 seconds at a
time. Then start the engine for a maximum
of 40 seconds
1). Repeat this process after
no less than 5 seconds. If the engine fails to
start, seek the assistance of a workshop.
Picture no: 16121s.tif
Bonnet Pull the release lever located on the driver’s
side below the instrument panel. Return the
release lever to its original position. Diesel fuel system, bleeding ............... 128
Bonnet .................................................. 128
Starting the engine with jump leads3 129
Towing .................................................. 131
Warning triangle ¨ 3 and first-aid kit
(cushion) + 3.................................... 133
Spare wheel 3...................................... 134
Jack £ 3 and vehicle tools3............ 136
Changing wheels ................................. 137
Tyre repair kit 3................................... 142
Electrical system .................................. 145
Fuses and the most important circuits
they protect ....................................... 147
Bulb replacement ................................ 151
Vehicle care.......................................... 160
1)For technical reasons, only 30 seconds is
possible for engine Z 17 DTH. Sales
designation
3184.

129
Self-help, vehicle care
Picture no: 18097s.tif

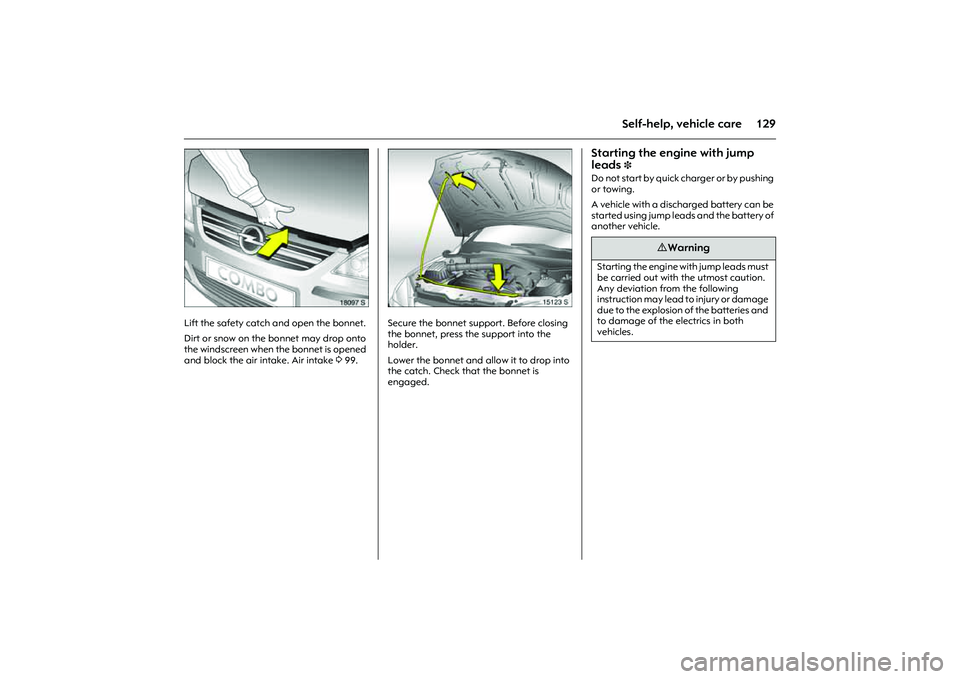

Lift the safety catch and open the bonnet.
Dirt or snow on the bonnet may drop onto
the windscreen when the bonnet is opened
and block the air intake. Air intake 399.
Picture no: 15123s.tif
Secure the bonnet support. Before closing
the bonnet, press the support into the
holder.
Lower the bonnet and allow it to drop into
the catch. Check that the bonnet is
engaged.
Starting the engine with jump
leads
3
Do not start by quick charger or by pushing
or towing.
A vehicle with a discharged battery can be
started using jump leads and the battery of
another vehicle.
9 Warning
Starting the engine with jump leads must
be carried out with the utmost caution.
Any deviation from the following
instruction may lead to injury or damage
due to the explosion of the batteries and
to damage of the electrics in both
vehicles.

130 Self-help, vehicle care
Picture no: 15286a.tif

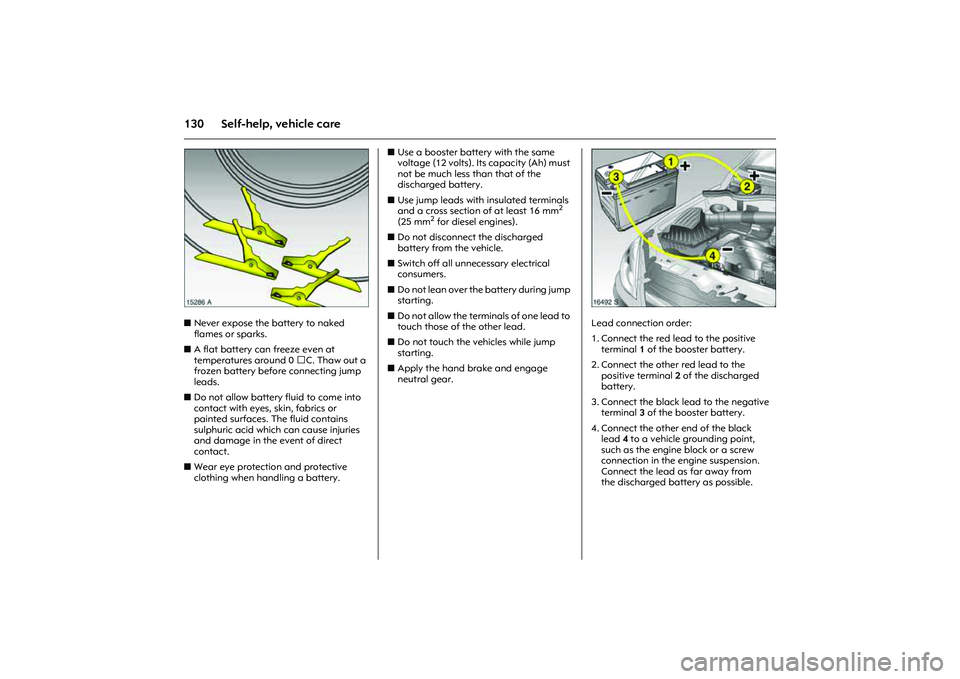

zNever expose the battery to naked
flames or sparks.
zA flat battery can freeze even at
temperatures around 0 C. Thaw out a
frozen battery before connecting jump
leads.
zDo not allow battery fluid to come into
contact with eyes, skin, fabrics or
painted surfaces. The fluid contains
sulphuric acid which can cause injuries
and damage in the event of direct
contact.
zWear eye protection and protective
clothing when handling a battery. zUse a booster battery with the same
voltage (12 volts). Its capacity (Ah) must
not be much less than that of the
discharged battery.
zUse jump leads with insulated terminals
and a cross section of at least 16 mm
2
(25 mm
2 for diesel engines).
zDo not disconnect the discharged
battery from the vehicle.
zSwitch off all unnecessary electrical
consumers.
zDo not lean over the battery during jump
starting.
zDo not allow the terminals of one lead to
touch those of the other lead.
zDo not touch the vehicles while jump
starting.
zApply the hand brake and engage
neutral gear.
Picture no: 16492s.tif
Lead connection order:
1. Connect the red lead to the positive
terminal 1 of the booster battery.
2. Connect the other red lead to the
positive terminal 2 of the discharged
battery.
3. Connect the black lead to the negative
terminal 3 of the booster battery.
4. Connect the other end of the black
lead4 to a vehicle grounding point,
such as the engine block or a screw
connection in the engine suspension.
Connect the lead as far away from
the discharged battery as possible.

131
Self-help, vehicle care

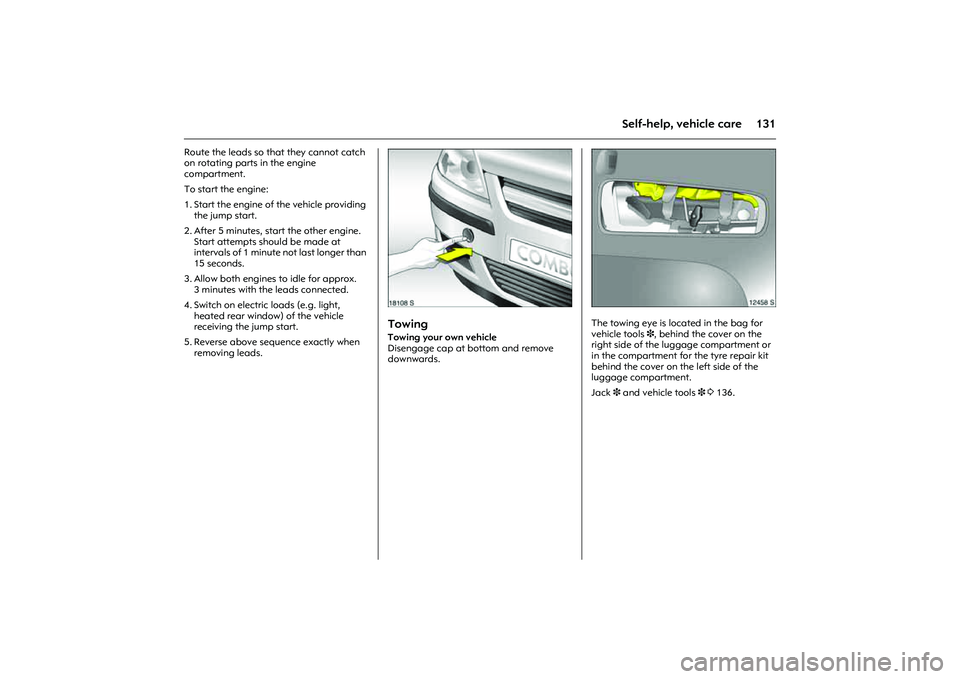

Route the leads so that they cannot catch
on rotating parts in the engine
compartment.
To start the engine:
1. Start the engine of the vehicle providing
the jump start.
2. After 5 minutes, start the other engine.
Start attempts should be made at
intervals of 1 minute not last longer than
15 seconds.
3. Allow both engines to idle for approx.
3 minutes with the leads connected.
4. Switch on electric loads (e.g. light,
heated rear window) of the vehicle
receiving the jump start.
5. Reverse above sequence exactly when
removing leads.
Picture no: 18108s.tif
Towing Towing your own vehicle
Disengage cap at bottom and remove
downwards.
Picture no: 12458s.tif
The towing eye is located in the bag for
vehicle tools 3, behind the cover on the
right side of the luggage compartment or
in the compartment for the tyre repair kit
behind the cover on the left side of the
luggage compartment.
Jack 3 and vehicle tools 3 3136.

180 Opel Service, maintenance
Picture no: 11678s.tif

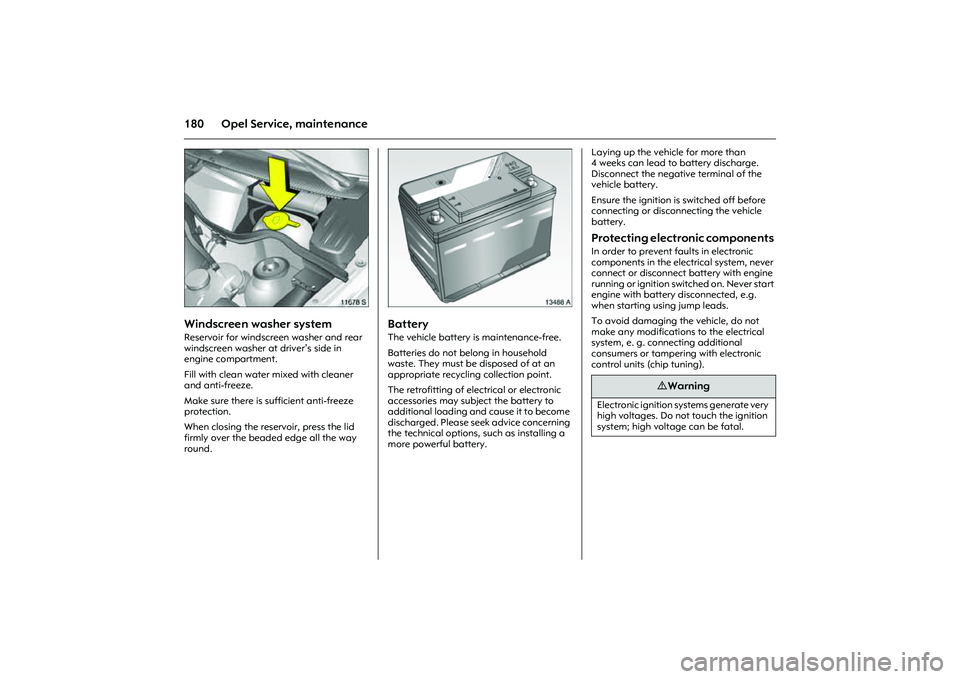

Windscreen washer system Reservoir for windscreen washer and rear
windscreen washer at driver’s side in
engine compartment.
Fill with clean water mixed with cleaner
and anti-freeze.
Make sure there is sufficient anti-freeze
protection.
When closing the reservoir, press the lid
firmly over the beaded edge all the way
round.
Picture no: 13488a.tif
Battery The vehicle battery is maintenance-free.
Batteries do not belong in household
waste. They must be disposed of at an
appropriate recycling collection point.
The retrofitting of electrical or electronic
accessories may subject the battery to
additional loading and cause it to become
discharged. Please seek advice concerning
the technical options, such as installing a
more powerful battery. Laying up the vehicle for more than
4 weeks can lead to battery discharge.
Disconnect the negative terminal of the
vehicle battery.
Ensure the ignition is switched off before
connecting or disconnecting the vehicle
battery.
Protecting electronic components In order to prevent faults in electronic
components in the electrical system, never
connect or disconnect battery with engine
running or ignition switched on. Never start
engine with battery disconnected, e.g.
when starting using jump leads.
To avoid damaging the vehicle, do not
make any modifications to the electrical
system, e. g. connecting additional
consumers or tampering with electronic
control units (chip tuning).
9 Warning
Electronic ignition systems generate very
high voltages. Do not touch the ignition
system; high voltage can be fatal.
