PEUGEOT 1007 2008 Manual PDF
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 1007, Model: PEUGEOT 1007 2008Pages: 189, PDF Size: 10.54 MB
Page 71 of 189
4
74

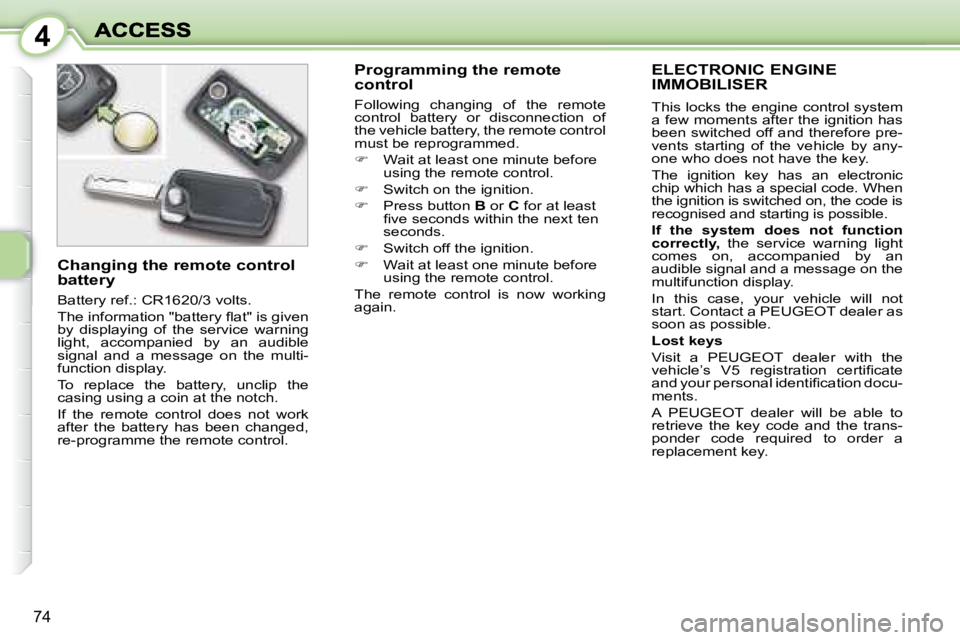

ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
b e e n s w i t c h e d o f f a n d t h e r e f o r e p r e -
v e n t s s t a r t i n g o f t h e v e h i c l e b y a n y -
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
If the system does not function
correctly, the service warning light
comes on, accompanied by an
audible signal and a message on the
multifunction display.
In this case, your vehicle will not
start. Contact a PEUGEOT dealer as
soon as possible.
Lost keys
Visit a PEUGEOT dealer with the
v e h i c l e ’ s V 5 r e g i s t r a t i o n c e r t i fi c a t e
a n d y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u -
ments.
A PEUGEOT dealer will be able to
r e t r i e v e t h e k e y c o d e a n d t h e t r a n s -
ponder code required to order a
replacement key.
Programming the remote
control
Following changing of the remote
control battery or disconnection of
the vehicle battery, the remote control
must be reprogrammed.
Wait at least one minute before
using the remote control.
Switch on the ignition.
Press button B or C for at least
fi v e s e c o n d s w i t h i n t h e n e x t t e n
seconds.
Switch off the ignition.
Wait at least one minute before
using the remote control.
The remote control is now working
again.
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n
by displaying of the service warning
light, accompanied by an audible
s i g n a l a n d a m e s s a g e o n t h e m u l t i -
function display.
To replace the battery, unclip the
casing using a coin at the notch.
If the remote control does not work
after the battery has been changed,
r e - p r o g r a m m e t h e r e m o t e c o n t r o l .
Page 72 of 189
4
75

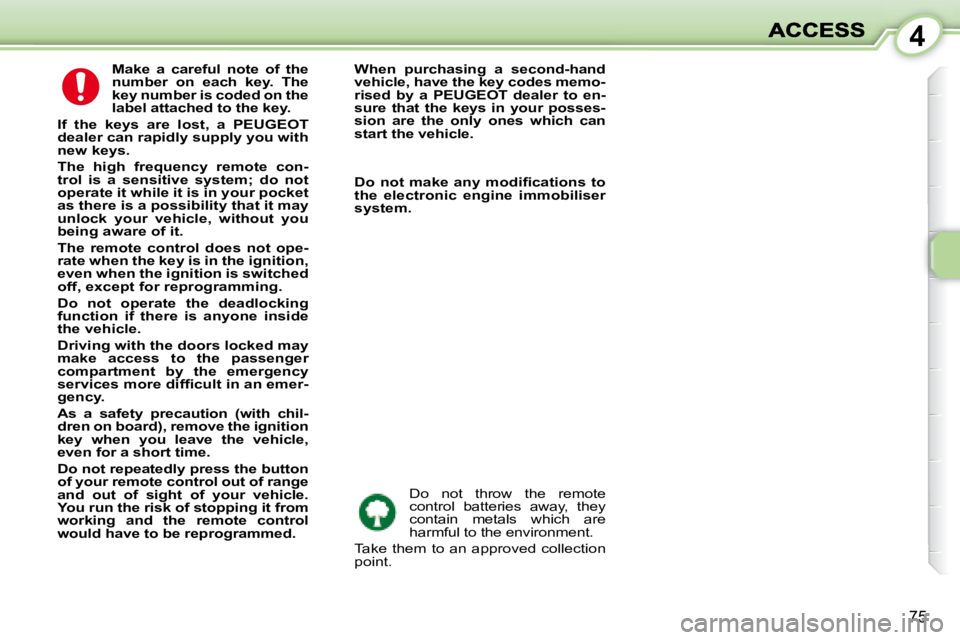

Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, a PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote con-
trol is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not ope-
rate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f fi c u l t i n a n e m e r -
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes memo-
rised by a PEUGEOT dealer to en-
sure that the keys in your posses-
sion are the only ones which can
start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system.
Page 73 of 189
4
74
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system
a few moments after the ignition has
b e e n s w i t c h e d o f f a n d t h e r e f o r e p r e -
v e n t s s t a r t i n g o f t h e v e h i c l e b y a n y -
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
If the system does not function
correctly, the service warning light
comes on, accompanied by an
audible signal and a message on the
multifunction display.
In this case, your vehicle will not
start. Contact a PEUGEOT dealer as
soon as possible.
Lost keys
Visit a PEUGEOT dealer with the
v e h i c l e ’ s V 5 r e g i s t r a t i o n c e r t i fi c a t e
a n d y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u -
ments.
A PEUGEOT dealer will be able to
r e t r i e v e t h e k e y c o d e a n d t h e t r a n s -
ponder code required to order a
replacement key.
Programming the remote
control
Following changing of the remote
control battery or disconnection of
the vehicle battery, the remote control
must be reprogrammed.
Wait at least one minute before
using the remote control.
Switch on the ignition.
Press button B or C for at least
fi v e s e c o n d s w i t h i n t h e n e x t t e n
seconds.
Switch off the ignition.
Wait at least one minute before
using the remote control.
The remote control is now working
again.
Changing the remote control
battery
Battery ref.: CR1620/3 volts.
T h e i n f o r m a t i o n " b a t t e r y fl a t " i s g i v e n
by displaying of the service warning
light, accompanied by an audible
s i g n a l a n d a m e s s a g e o n t h e m u l t i -
function display.
To replace the battery, unclip the
casing using a coin at the notch.
If the remote control does not work
after the battery has been changed,
r e - p r o g r a m m e t h e r e m o t e c o n t r o l .
Page 74 of 189
4
75
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, a PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote con-
trol is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not ope-
rate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Do not operate the deadlocking
function if there is anyone inside
the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f fi c u l t i n a n e m e r -
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
and out of sight of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes memo-
rised by a PEUGEOT dealer to en-
sure that the keys in your posses-
sion are the only ones which can
start the vehicle.
Do not throw the remote
control batteries away, they
contain metals which are
harmful to the environment.
Take them to an approved collection
point.
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the electronic engine immobiliser
system.
Page 75 of 189
4
76

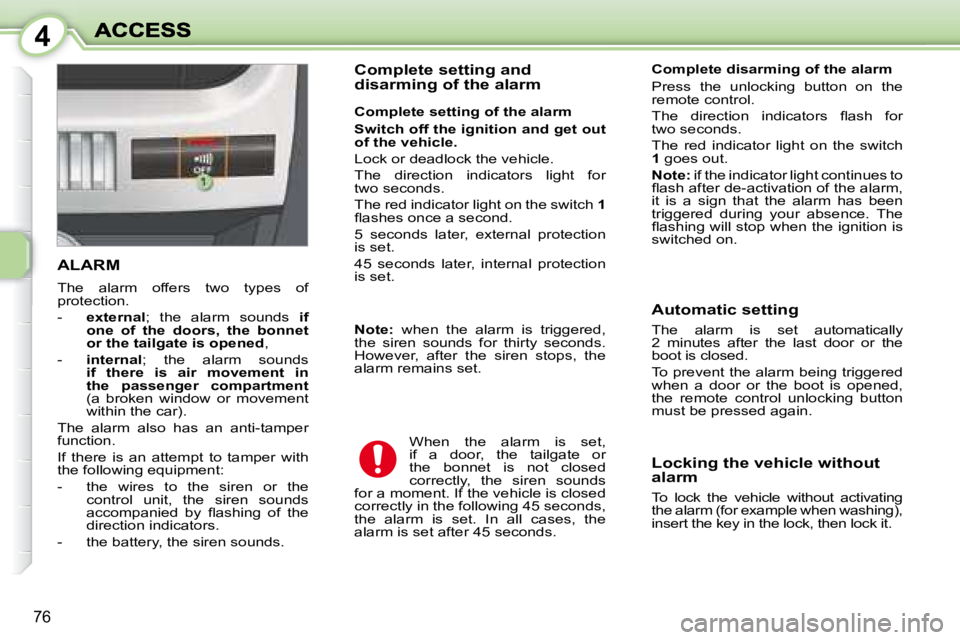

ALARM
The alarm offers two types of
protection.
- external ; the alarm sounds if
one of the doors, the bonnet
or the tailgate is opened ,
- internal ; the alarm sounds
if there is air movement in
the passenger compartment
(a broken window or movement
within the car).
T h e a l a r m a l s o h a s a n a n t i - t a m p e r
function.
If there is an attempt to tamper with
the following equipment:
- t h e w i r e s t o t h e s i r e n o r t h e control unit, the siren sounds
a c c o m p a n i e d b y fl a s h i n g o f t h e
direction indicators.
- t h e b a t t e r y , t h e s i r e n s o u n d s . Complete setting and
disarming of the alarm
Complete disarming of the alarm
Press the unlocking button on the
remote control.
T h e d i r e c t i o n i n d i c a t o r s fl a s h f o r
two seconds.
The red indicator light on the switch
1 goes out.
Note: if the indicator light continues to
fl a s h a f t e r d e - a c t i v a t i o n o f t h e a l a r m ,
it is a sign that the alarm has been
triggered during your absence. The
fl a s h i n g w i l l s t o p w h e n t h e i g n i t i o n i s
switched on.
When the alarm is set,
if a door, the tailgate or
the bonnet is not closed
correctly, the siren sounds
for a moment. If the vehicle is closed
correctly in the following 45 seconds,
the alarm is set. In all cases, the
alarm is set after 45 seconds. Automatic setting
The alarm is set automatically
2 minutes after the last door or the
boot is closed.
To prevent the alarm being triggered
when a door or the boot is opened,
the remote control unlocking button
must be pressed again.
Locking the vehicle without
alarm
To lock the vehicle without activating
the alarm (for example when washing),
insert the key in the lock, then lock it.
Complete setting of the alarm
Switch off the ignition and get out
of the vehicle.
Lock or deadlock the vehicle.
The direction indicators light for
two seconds.
The red indicator light on the switch 1
fl a s h e s o n c e a s e c o n d .
5 seconds later, external protection
is set.
45 seconds later, internal protection
is set.
Note: when the alarm is triggered,
the siren sounds for thirty seconds.
However, after the siren stops, the
alarm remains set.
Page 76 of 189
4
77

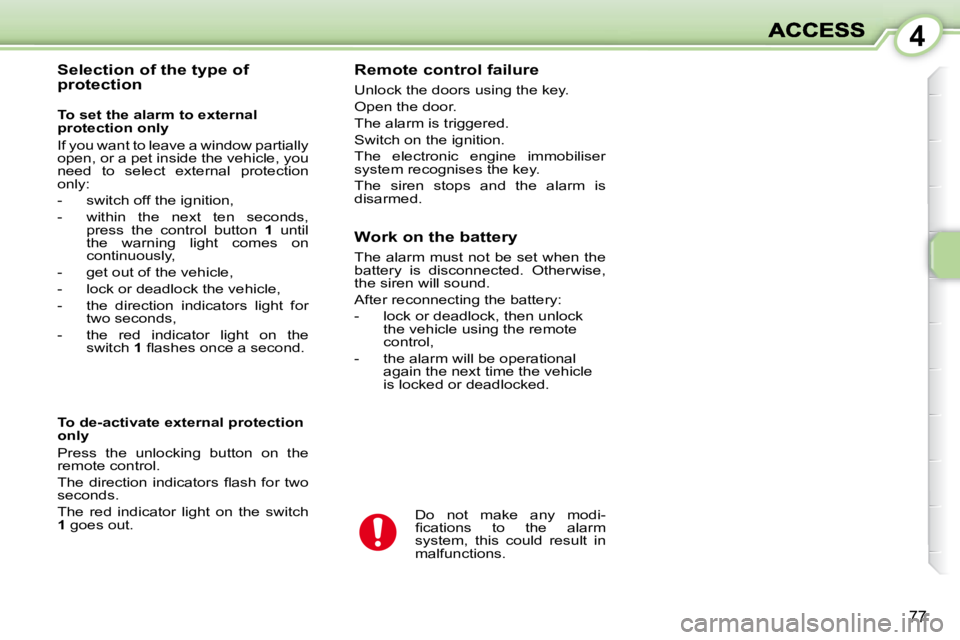

Selection of the type of
protection Remote control failure
Unlock the doors using the key.
Open the door.
The alarm is triggered.
Switch on the ignition.
The electronic engine immobiliser
system recognises the key.
The siren stops and the alarm is
disarmed.
D o n o t m a k e a n y m o d i -
fi c a t i o n s t o t h e a l a r m
system, this could result in
malfunctions.
To de-activate external protection
only
Press the unlocking button on the
remote control.
T h e d i r e c t i o n i n d i c a t o r s fl a s h f o r t w o
seconds.
The red indicator light on the switch
1 goes out. Work on the battery
The alarm must not be set when the
battery is disconnected. Otherwise,
the siren will sound.
After reconnecting the battery:
- l o c k o r d e a d l o c k , t h e n u n l o c k
the vehicle using the remote
control,
- t h e a l a r m w i l l b e o p e r a t i o n a l again the next time the vehicle
is locked or deadlocked.
To set the alarm to external
protection only
If you want to leave a window partially
open, or a pet inside the vehicle, you
need to select external protection
only:
- s w i t c h o f f t h e i g n i t i o n ,
- w i t h i n t h e n e x t t e n s e c o n d s ,
press the control button 1 until
the warning light comes on
continuously,
- g e t o u t o f t h e v e h i c l e ,
- l o c k o r d e a d l o c k t h e v e h i c l e ,
- t h e d i r e c t i o n i n d i c a t o r s l i g h t f o r two seconds,
- t h e r e d i n d i c a t o r l i g h t o n t h e switch 1 fl a s h e s o n c e a s e c o n d .
Page 77 of 189
4
78

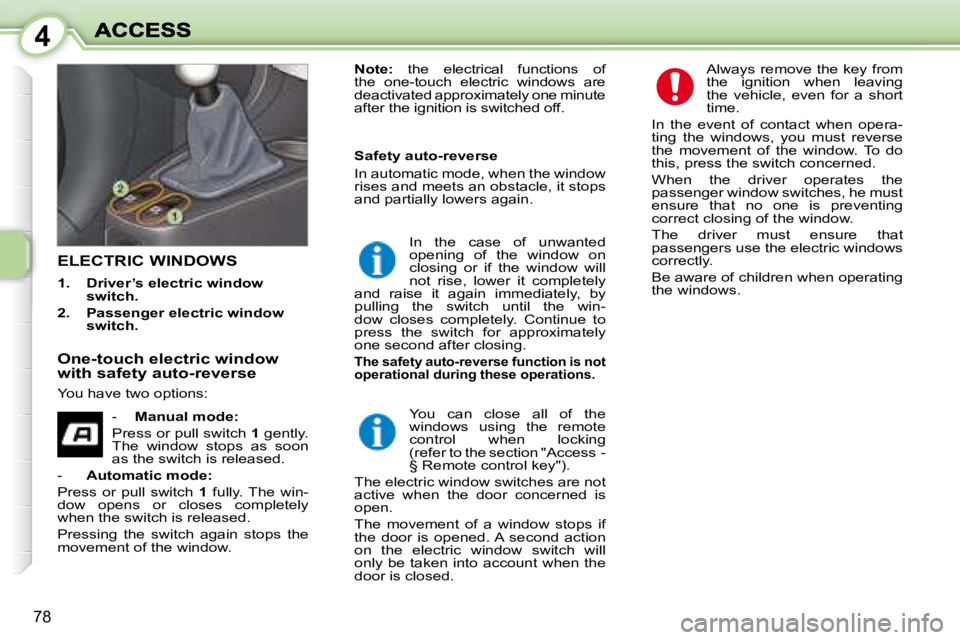

ELECTRIC WINDOWS
1. Driver’s electric window
switch.
2. Passenger electric window
switch.
One-touch electric window
with safety auto-reverse
You have two options: - Manual mode:
Press or pull switch 1 gently.
The window stops as soon
as the switch is released.
- Automatic mode:
Press or pull switch 1 f u l l y . T h e w i n -
dow opens or closes completely
when the switch is released.
Pressing the switch again stops the
movement of the window.
Note: the electrical functions of
t h e o n e - t o u c h e l e c t r i c w i n d o w s a r e
deactivated approximately one minute
after the ignition is switched off.
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.
In the case of unwanted
opening of the window on
closing or if the window will
not rise, lower it completely
and raise it again immediately, by
p u l l i n g t h e s w i t c h u n t i l t h e w i n -
dow closes completely. Continue to
press the switch for approximately
one second after closing.
The safety auto-reverse function is not
operational during these operations.
You can close all of the
windows using the remote
control when locking
( r e f e r t o t h e s e c t i o n " A c c e s s -
§ Remote control key").
The electric window switches are not
active when the door concerned is
open.
The movement of a window stops if
the door is opened. A second action
on the electric window switch will
only be taken into account when the
door is closed. Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
I n t h e e v e n t o f c o n t a c t w h e n o p e r a -
ting the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the
passenger window switches, he must
ensure that no one is preventing
correct closing of the window.
The driver must ensure that
passengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Page 78 of 189
4
79

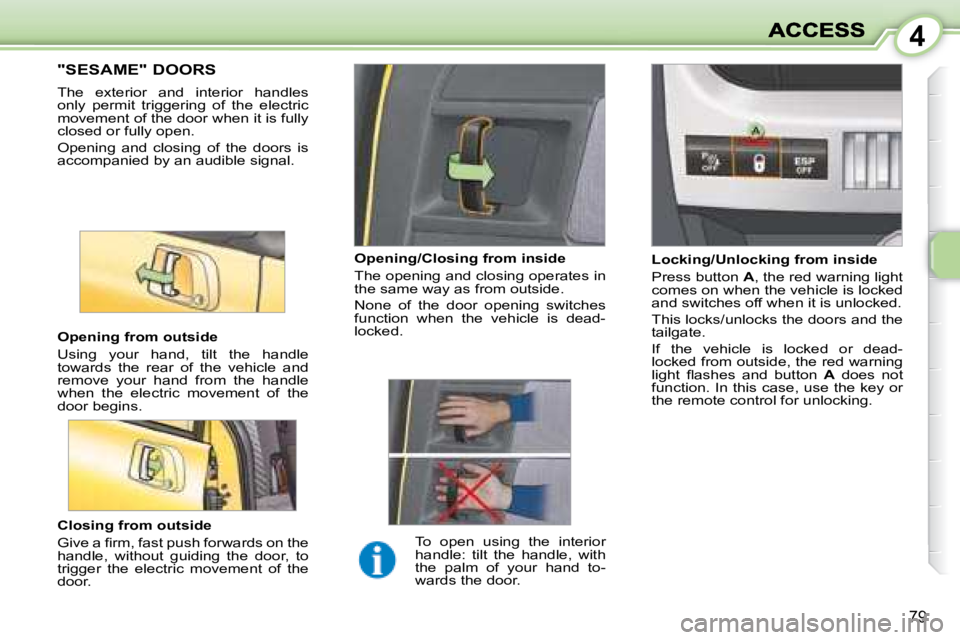

"SESAME" DOORS
The exterior and interior handles
only permit triggering of the electric
movement of the door when it is fully
closed or fully open.
Opening and closing of the doors is
accompanied by an audible signal.
Closing from outside
G i v e a fi r m , f a s t p u s h f o r w a r d s o n t h e
handle, without guiding the door, to
trigger the electric movement of the
door.
Opening from outside
Using your hand, tilt the handle
towards the rear of the vehicle and
remove your hand from the handle
when the electric movement of the
door begins.
Locking/Unlocking from inside
Press button
A , the red warning light
comes on when the vehicle is locked
and switches off when it is unlocked.
This locks/unlocks the doors and the
tailgate.
I f t h e v e h i c l e i s l o c k e d o r d e a d -
locked from outside, the red warning
l i g h t fl a s h e s a n d b u t t o n A does not
function. In this case, use the key or
the remote control for unlocking.
Opening/Closing from inside
The opening and closing operates in
the same way as from outside.
None of the door opening switches
f u n c t i o n w h e n t h e v e h i c l e i s d e a d -
locked.
To open using the interior
handle: tilt the handle, with
t h e p a l m o f y o u r h a n d t o -
wards the door.
Page 79 of 189
4
80

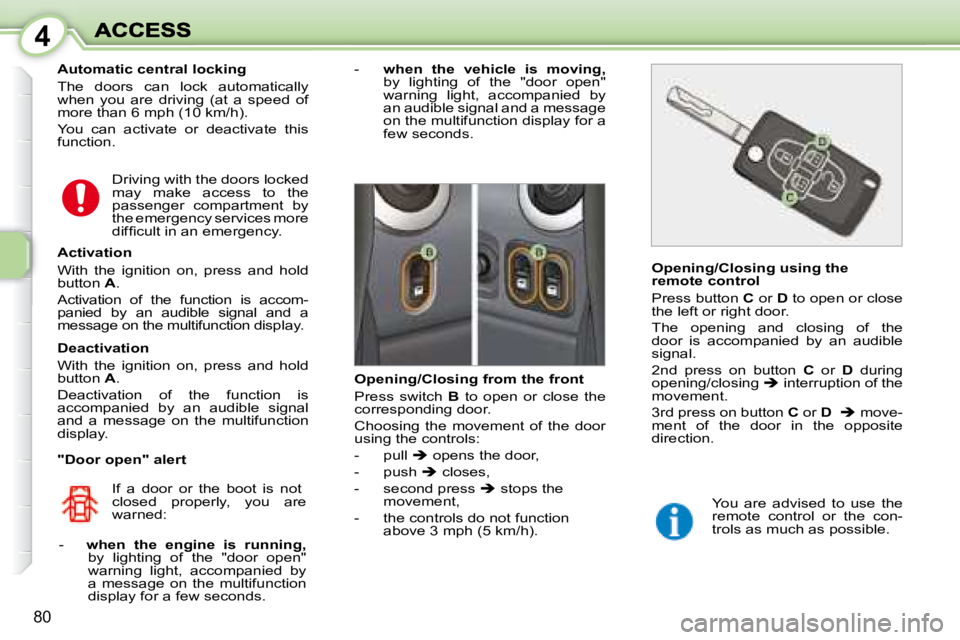

Automatic central locking
The doors can lock automatically
when you are driving (at a speed of
more than 6 mph (10 km/h).
You can activate or deactivate this
function. Driving with the doors locked
may make access to the
passenger compartment by
the emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
Activation
With the ignition on, press and hold
button A .
A c t i v a t i o n o f t h e f u n c t i o n i s a c c o m -
panied by an audible signal and a
message on the multifunction display.
Deactivation
With the ignition on, press and hold
button A .
Deactivation of the function is
accompanied by an audible signal
and a message on the multifunction
display.
"Door open" alert -
when the vehicle is moving,
by lighting of the "door open"
warning light, accompanied by
an audible signal and a message
on the multifunction display for a
few seconds.
Opening/Closing using the
remote control
Press button C or D to open or close
the left or right door.
The opening and closing of the
door is accompanied by an audible
signal.
2nd press on button C or D during
opening/closing interruption of the
movement.
3rd press on button C or D m o v e -
ment of the door in the opposite
direction.
You are advised to use the
r e m o t e c o n t r o l o r t h e c o n -
trols as much as possible.
Opening/Closing from the front
Press switch
B to open or close the
corresponding door.
Choosing the movement of the door
using the controls:
- p u l l opens the door,
- p u s h closes,
- s e c o n d p r e s s stops the
movement,
- t h e c o n t r o l s d o n o t f u n c t i o n above 3 mph (5 km/h).
If a door or the boot is not
closed properly, you are
warned:
- when the engine is running,
by lighting of the "door open"
warning light, accompanied by
a message on the multifunction
display for a few seconds.
Page 80 of 189
4
81

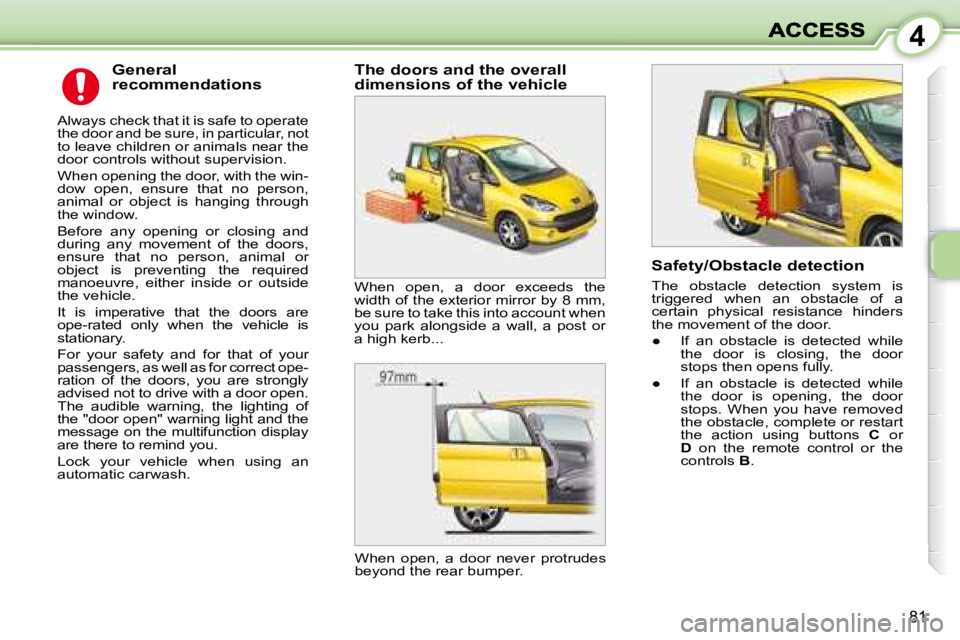

General
recommendations
Always check that it is safe to operate
the door and be sure, in particular, not
to leave children or animals near the
door controls without supervision.
W h e n o p e n i n g t h e d o o r , w i t h t h e w i n -
dow open, ensure that no person,
animal or object is hanging through
the window.
Before any opening or closing and
during any movement of the doors,
ensure that no person, animal or
object is preventing the required
manoeuvre, either inside or outside
the vehicle.
It is imperative that the doors are
o p e - r a t e d o n l y w h e n t h e v e h i c l e i s
stationary.
For your safety and for that of your
p a s s e n g e r s , a s w e l l a s f o r c o r r e c t o p e -
ration of the doors, you are strongly
advised not to drive with a door open.
The audible warning, the lighting of
the "door open" warning light and the
message on the multifunction display
are there to remind you.
Lock your vehicle when using an
automatic carwash. The doors and the overall
dimensions of the vehicle
Safety/Obstacle detection
The obstacle detection system is
triggered when an obstacle of a
certain physical resistance hinders
the movement of the door.
