Page 81 of 189
4
82

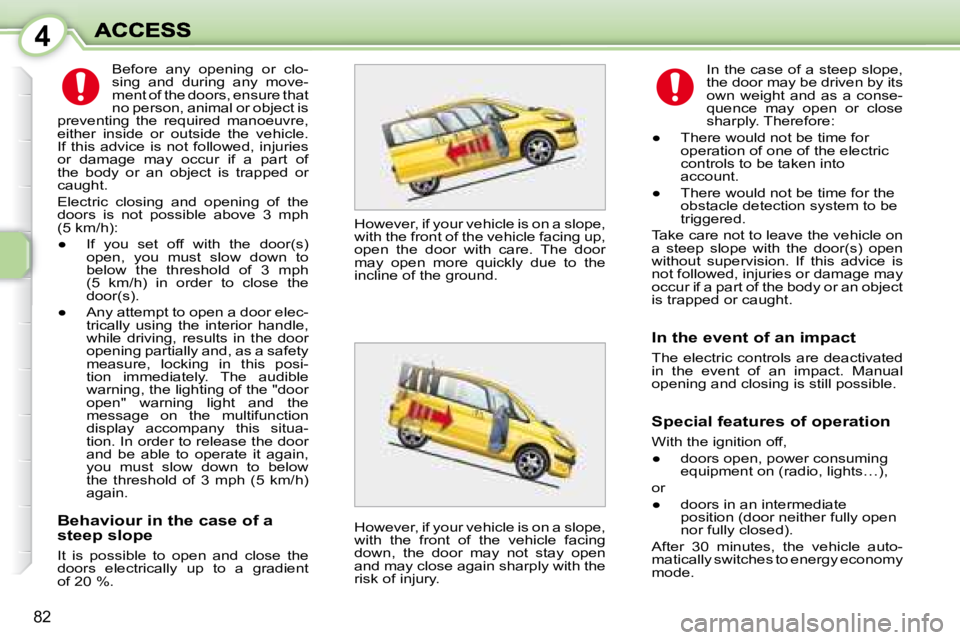

Behaviour in the case of a
steep slope
It is possible to open and close the
doors electrically up to a gradient
of 20 %. In the case of a steep slope,
the door may be driven by its
o w n w e i g h t a n d a s a c o n s e -
quence may open or close
sharply. Therefore:
Page 82 of 189
4
83

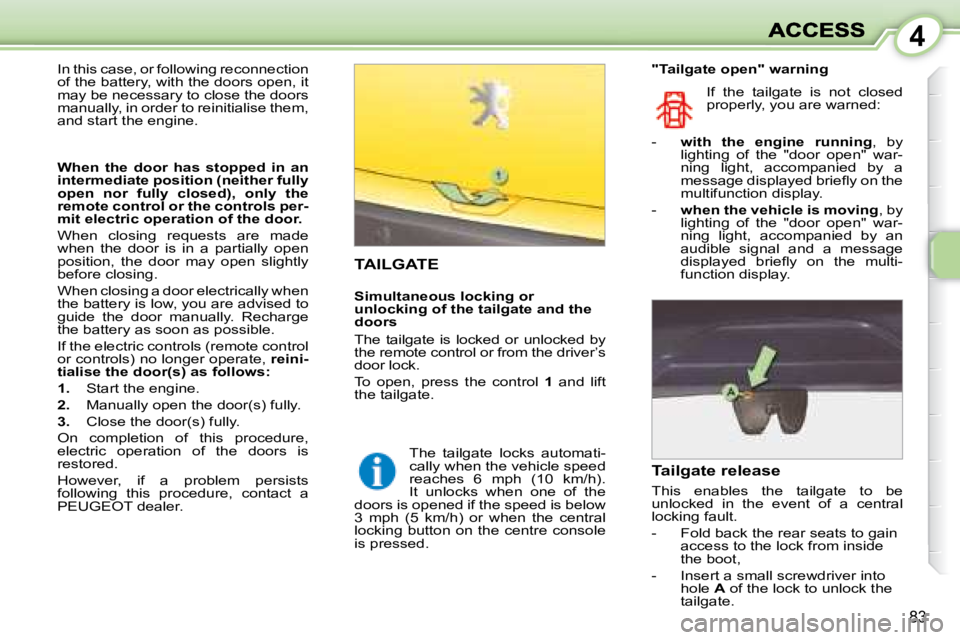

TAILGATE
Tailgate release
This enables the tailgate to be
unlocked in the event of a central
locking fault.
- F o l d b a c k t h e r e a r s e a t s t o g a i n access to the lock from inside
the boot,
- I n s e r t a s m a l l s c r e w d r i v e r i n t o hole A of the lock to unlock the
tailgate.
"Tailgate open" warning
In this case, or following reconnection
of the battery, with the doors open, it
may be necessary to close the doors
manually, in order to reinitialise them,
and start the engine. If the tailgate is not closed
properly, you are warned:
- with the engine running , by
l i g h t i n g o f t h e " d o o r o p e n " w a r -
ning light, accompanied by a
m e s s a g e d i s p l a y e d b r i e fl y o n t h e
multifunction display.
- when the vehicle is moving , by
l i g h t i n g o f t h e " d o o r o p e n " w a r -
ning light, accompanied by an
audible signal and a message
d i s p l a y e d b r i e fl y o n t h e m u l t i -
function display.
T h e t a i l g a t e l o c k s a u t o m a t i -
cally when the vehicle speed
reaches 6 mph (10 km/h).
It unlocks when one of the
doors is opened if the speed is below
3 mph (5 km/h) or when the central
locking button on the centre console
is pressed.
When the door has stopped in an
intermediate position (neither fully
open nor fully closed), only the
remote control or the controls per-
mit electric operation of the door.
When closing requests are made
when the door is in a partially open
position, the door may open slightly
before closing.
When closing a door electrically when
the battery is low, you are advised to
guide the door manually. Recharge
the battery as soon as possible.
If the electric controls (remote control
or controls) no longer operate, reini-
tialise the door(s) as follows:
1. Start the engine.
2. Manually open the door(s) fully.
3. Close the door(s) fully.
On completion of this procedure,
electric operation of the doors is
restored.
However, if a problem persists
following this procedure, contact a
PEUGEOT dealer. Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked by
the remote control or from the driver’s
door lock.
To open, press the control
1 and lift
the tailgate.
Page 83 of 189
4
83
TAILGATE
Tailgate release
This enables the tailgate to be
unlocked in the event of a central
locking fault.
- F o l d b a c k t h e r e a r s e a t s t o g a i n access to the lock from inside
the boot,
- I n s e r t a s m a l l s c r e w d r i v e r i n t o hole A of the lock to unlock the
tailgate.
"Tailgate open" warning
In this case, or following reconnection
of the battery, with the doors open, it
may be necessary to close the doors
manually, in order to reinitialise them,
and start the engine. If the tailgate is not closed
properly, you are warned:
- with the engine running , by
l i g h t i n g o f t h e " d o o r o p e n " w a r -
ning light, accompanied by a
m e s s a g e d i s p l a y e d b r i e fl y o n t h e
multifunction display.
- when the vehicle is moving , by
l i g h t i n g o f t h e " d o o r o p e n " w a r -
ning light, accompanied by an
audible signal and a message
d i s p l a y e d b r i e fl y o n t h e m u l t i -
function display.
T h e t a i l g a t e l o c k s a u t o m a t i -
cally when the vehicle speed
reaches 6 mph (10 km/h).
It unlocks when one of the
doors is opened if the speed is below
3 mph (5 km/h) or when the central
locking button on the centre console
is pressed.
When the door has stopped in an
intermediate position (neither fully
open nor fully closed), only the
remote control or the controls per-
mit electric operation of the door.
When closing requests are made
when the door is in a partially open
position, the door may open slightly
before closing.
When closing a door electrically when
the battery is low, you are advised to
guide the door manually. Recharge
the battery as soon as possible.
If the electric controls (remote control
or controls) no longer operate, reini-
tialise the door(s) as follows:
1. Start the engine.
2. Manually open the door(s) fully.
3. Close the door(s) fully.
On completion of this procedure,
electric operation of the doors is
restored.
However, if a problem persists
following this procedure, contact a
PEUGEOT dealer. Simultaneous locking or
unlocking of the tailgate and the
doors
The tailgate is locked or unlocked by
the remote control or from the driver’s
door lock.
To open, press the control
1 and lift
the tailgate.
Page 84 of 189
4
84

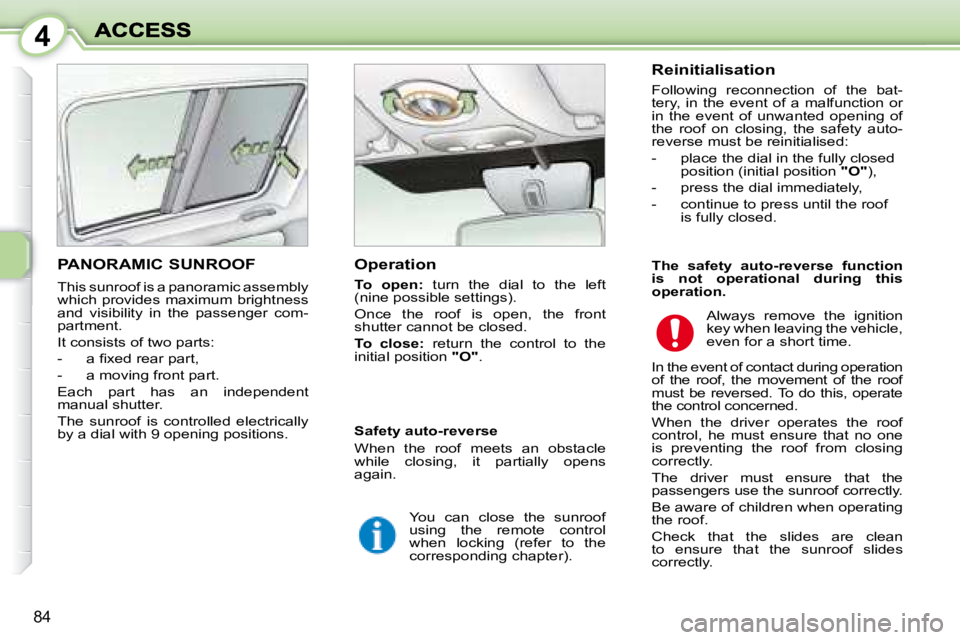

PANORAMIC SUNROOF
This sunroof is a panoramic assembly
which provides maximum brightness
a n d v i s i b i l i t y i n t h e p a s s e n g e r c o m -
partment.
It consists of two parts:
- a fi x e d r e a r p a r t ,
- a m o v i n g f r o n t p a r t .
Each part has an independent
manual shutter.
The sunroof is controlled electrically
by a dial with 9 opening positions. Operation
To open: turn the dial to the left
(nine possible settings).
Once the roof is open, the front
shutter cannot be closed.
To close: return the control to the
initial position "O" . Reinitialisation
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t -
tery, in the event of a malfunction or
in the event of unwanted opening of
t h e r o o f o n c l o s i n g , t h e s a f e t y a u t o -
reverse must be reinitialised:
- p l a c e t h e d i a l i n t h e f u l l y c l o s e d
position (initial position "O" ),
- p r e s s t h e d i a l i m m e d i a t e l y ,
- c o n t i n u e t o p r e s s u n t i l t h e r o o f is fully closed.
Always remove the ignition
key when leaving the vehicle,
even for a short time.
In the event of contact during operation
of the roof, the movement of the roof
must be reversed. To do this, operate
the control concerned.
When the driver operates the roof
control, he must ensure that no one
is preventing the roof from closing
correctly.
The driver must ensure that the
passengers use the sunroof correctly.
Be aware of children when operating
the roof.
Check that the slides are clean
to ensure that the sunroof slides
correctly.
Safety auto-reverse
When the roof meets an obstacle
while closing, it partially opens
again.
You can close the sunroof
using the remote control
when locking (refer to the
corresponding chapter).
The safety auto-reverse function
is not operational during this
operation.
Page 85 of 189
4
85

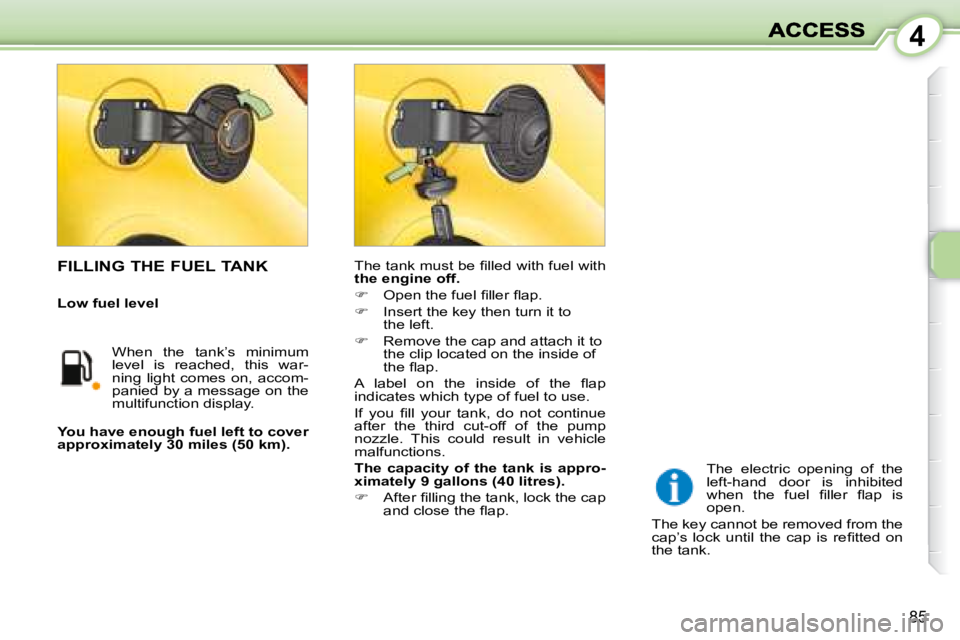

T h e t a n k m u s t b e fi l l e d w i t h f u e l w i t h
the engine off.
O p e n t h e f u e l fi l l e r fl a p .
Insert the key then turn it to
the left.
Remove the cap and attach it to
the clip located on the inside of
t h e fl a p .
A l a b e l o n t h e i n s i d e o f t h e fl a p
indicates which type of fuel to use.
I f y o u fi l l y o u r t a n k , d o n o t c o n t i n u e
a f t e r t h e t h i r d c u t - o f f o f t h e p u m p
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is appro-
ximately 9 gallons (40 litres).
A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p
a n d c l o s e t h e fl a p .
You have enough fuel left to cover
approximately 30 miles (50 km).
The electric opening of the
l e f t - h a n d d o o r i s i n h i b i t e d
w h e n t h e f u e l fi l l e r fl a p i s
open.
The key cannot be removed from the
c a p ’ s l o c k u n t i l t h e c a p i s r e fi t t e d o n
the tank. FILLING THE FUEL TANK
When the tank’s minimum
l e v e l i s r e a c h e d , t h i s w a r -
n i n g l i g h t c o m e s o n , a c c o m -
panied by a message on the
multifunction display.
Low fuel level
Page 86 of 189
5
86

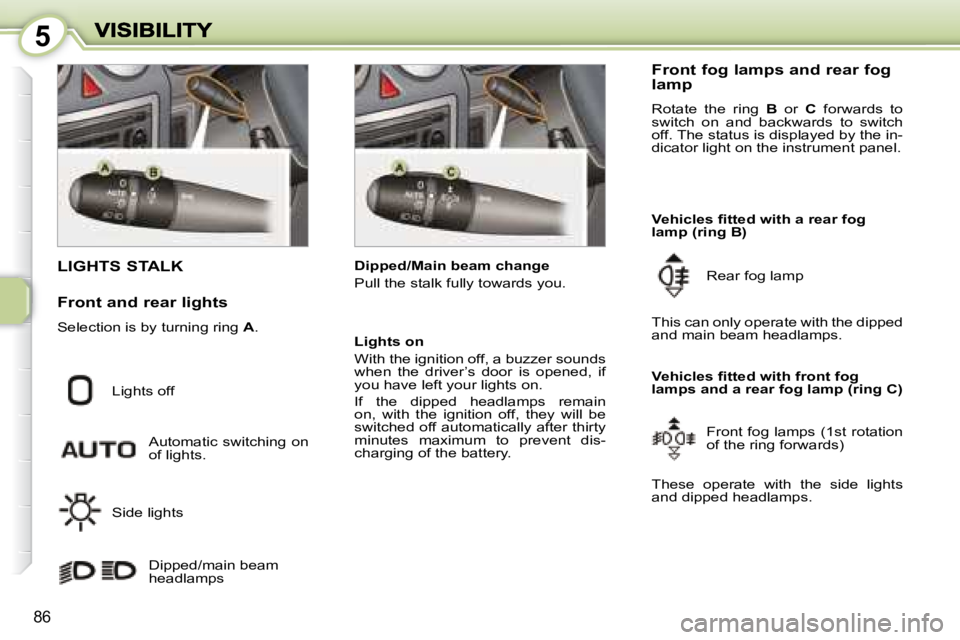

LIGHTS STALK
Lights off Automatic switching on
of lights.
Side lights Dipped/main beam
headlamps Dipped/Main beam change
Pull the stalk fully towards you.
Front fog lamps and rear fog
lamp
Rotate the ring
B or C forwards to
switch on and backwards to switch
off. The status is displayed by the in-
dicator light on the instrument panel.
V e h i c l e s fi t t e d w i t h a r e a r f o g
lamp (ring B)
Rear fog lamp
V e h i c l e s fi t t e d w i t h f r o n t f o g
lamps and a rear fog lamp (ring C) Front fog lamps (1st rotation
of the ring forwards)
These operate with the side lights
and dipped headlamps.
Lights on
With the ignition off, a buzzer sounds
when the driver’s door is opened, if
you have left your lights on.
If the dipped headlamps remain
on, with the ignition off, they will be
switched off automatically after thirty
minutes maximum to prevent dis-
charging of the battery.
This can only operate with the dipped
and main beam headlamps.
Front and rear lights
Selection is by turning ring
A .
Page 87 of 189
5
87

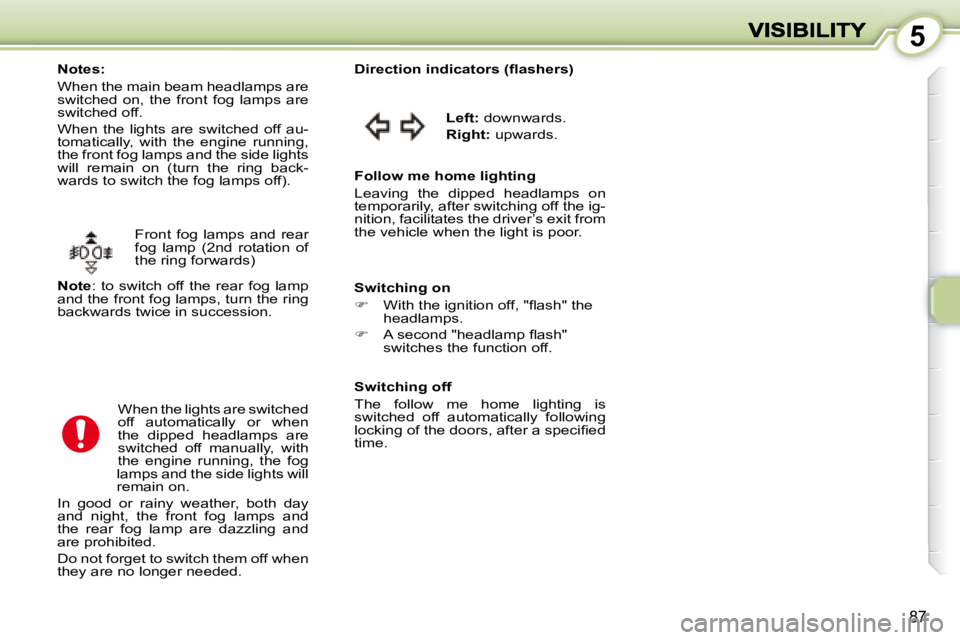

Front fog lamps and rear
fog lamp (2nd rotation of
the ring forwards)
Note : to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Notes:
When the main beam headlamps are
switched on, the front fog lamps are
switched off.
When the lights are switched off au-
tomatically, with the engine running,
the front fog lamps and the side lights
will remain on (turn the ring back-
wards to switch the fog lamps off).
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
Left: downwards.
Right: upwards.
When the lights are switched
off automatically or when
the dipped headlamps are
switched off manually, with
the engine running, the fog
lamps and the side lights will
remain on.
In good or rainy weather, both day
and night, the front fog lamps and
the rear fog lamp are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed. F o l l o w m e h o m e l i g h t i n g
Leaving the dipped headlamps on
temporarily, after switching off the ig-
nition, facilitates the driver’s exit from
the vehicle when the light is poor.
S w i t c h i n g o n
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps.
A s e c o n d " h e a d l a m p fl a s h "
switches the function off.
S w i t c h i n g o f f
The follow me home lighting is
switched off automatically following
l o c k i n g o f t h e d o o r s , a f t e r a s p e c i fi e d
time.
Page 88 of 189
5
88

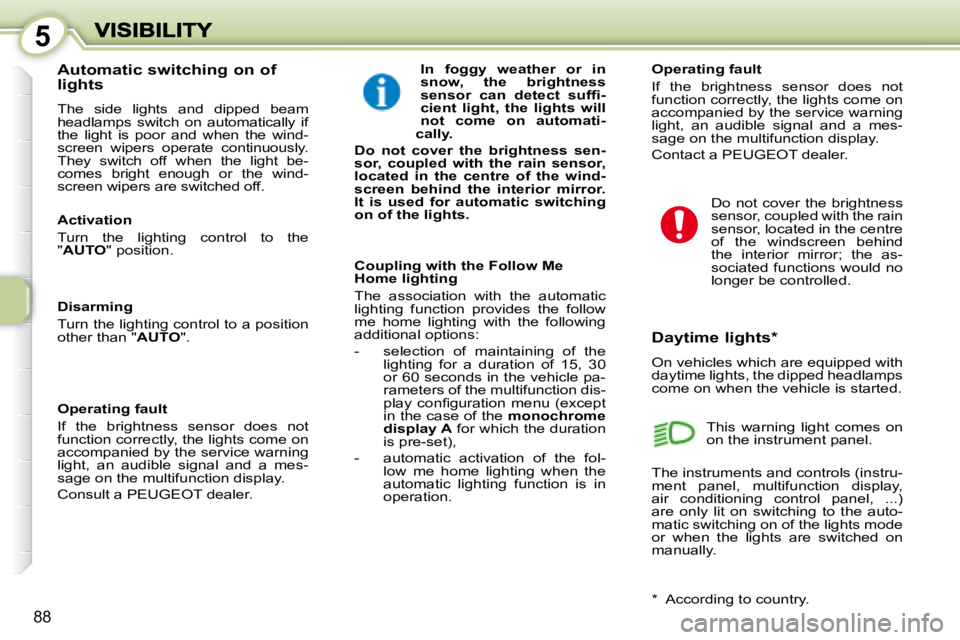

Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam
headlamps switch on automatically if
the light is poor and when the wind-
screen wipers operate continuously.
They switch off when the light be-
comes bright enough or the wind-
screen wipers are switched off.
I n f o g g y w e a t h e r o r i n
s n o w , t h e b r i g h t n e s s
s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t , t h e l i g h t s w i l l
n o t c o m e o n a u t o m a t i -
cally.
D o n o t c o v e r t h e b r i g h t n e s s s e n -
s o r , c o u p l e d w i t h t h e r a i n s e n s o r ,
l o c a t e d i n t h e c e n t r e o f t h e w i n d -
screen behind the interior mirror.
I t i s u s e d f o r a u t o m a t i c s w i t c h i n g
on of the lights.
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic
lighting function provides the follow
me home lighting with the following
additional options:
- selection of maintaining of the lighting for a duration of 15, 30
or 60 seconds in the vehicle pa-
rameters of the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
display A for which the duration
is pre-set),
- automatic activation of the fol- low me home lighting when the
automatic lighting function is in
operation.
Activation
Turn the lighting control to the
"
AUTO " position.
Disarming
Turn the lighting control to a position
other than " AUTO ".
Operating fault
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning
light, an audible signal and a mes-
sage on the multifunction display.
Consult a PEUGEOT dealer. Operating fault
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning
light, an audible signal and a mes-
sage on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen behind
the interior mirror; the as-
sociated functions would no
longer be controlled.
This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display,
air conditioning control panel, ...)
are only lit on switching to the auto-
matic switching on of the lights mode
or when the lights are switched on
manually.
* According to country.
Page 89 of 189
5
88
Daytime lights *
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
A u t o m a t i c s w i t c h i n g o n o f
lights
The side lights and dipped beam
headlamps switch on automatically if
the light is poor and when the wind-
screen wipers operate continuously.
They switch off when the light be-
comes bright enough or the wind-
screen wipers are switched off.
I n f o g g y w e a t h e r o r i n
s n o w , t h e b r i g h t n e s s
s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t , t h e l i g h t s w i l l
n o t c o m e o n a u t o m a t i -
cally.
D o n o t c o v e r t h e b r i g h t n e s s s e n -
s o r , c o u p l e d w i t h t h e r a i n s e n s o r ,
l o c a t e d i n t h e c e n t r e o f t h e w i n d -
screen behind the interior mirror.
I t i s u s e d f o r a u t o m a t i c s w i t c h i n g
on of the lights.
C o u p l i n g w i t h t h e F o l l o w M e
Home lighting
The association with the automatic
lighting function provides the follow
me home lighting with the following
additional options:
- selection of maintaining of the lighting for a duration of 15, 30
or 60 seconds in the vehicle pa-
rameters of the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u ( e x c e p t
in the case of the monochrome
display A for which the duration
is pre-set),
- automatic activation of the fol- low me home lighting when the
automatic lighting function is in
operation.
Activation
Turn the lighting control to the
"
AUTO " position.
Disarming
Turn the lighting control to a position
other than " AUTO ".
Operating fault
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning
light, an audible signal and a mes-
sage on the multifunction display.
Consult a PEUGEOT dealer. Operating fault
If the brightness sensor does not
function correctly, the lights come on
accompanied by the service warning
light, an audible signal and a mes-
sage on the multifunction display.
Contact a PEUGEOT dealer.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen behind
the interior mirror; the as-
sociated functions would no
longer be controlled.
This warning light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display,
air conditioning control panel, ...)
are only lit on switching to the auto-
matic switching on of the lights mode
or when the lights are switched on
manually.
* According to country.
Page 90 of 189
5
89

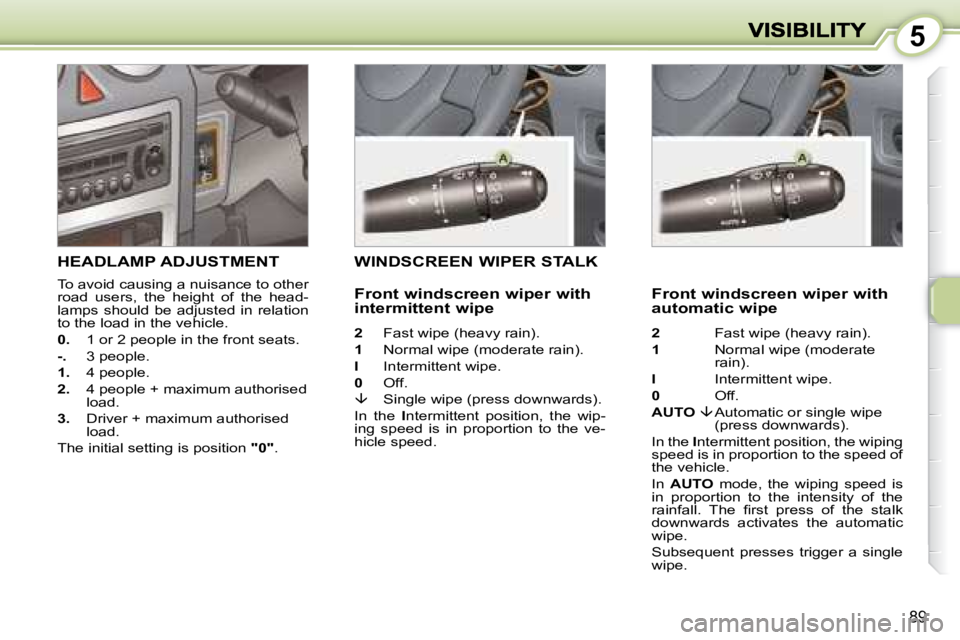

HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other
road users, the height of the head-
lamps should be adjusted in relation
to the load in the vehicle.
0. 1 or 2 people in the front seats.
- . 3 people.
1. 4 people.
2. 4 people + maximum authorised
load.
3. Driver + maximum authorised
load.
The initial setting is position "0" .
WINDSCREEN WIPER STALK
F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
I Intermittent wipe.
0 Off.
AUTO Automatic or single wipe
(press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is
in proportion to the intensity of the
r a i n f a l l . T h e fi r s t p r e s s o f t h e s t a l k
downwards activates the automatic
wipe.
Subsequent presses trigger a single
wipe.
F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the I ntermittent position, the wip-
ing speed is in proportion to the ve-
hicle speed.
