coolant level PEUGEOT 107 2012 Owners Manual

Instruments and controls
20





Warning lamps
Warning lampis onCauseAction/Observations



Parking brake

fixed. The parking brake is applied or not properly released. With
your foot on the brake pedal, release the parking brake
to switch off the warning lamp.
Observe the safety recommendations.
For more information, refer to the "Parkin
g brake" section.



STOP

fixed, associated
with another warning lamp.It is associated with the en
gine
oil pressure or the engine coolant temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT dealer or qualified workshop.



Engine oilpressure

fixed, associated
with the STOP warning lamp.The en
gine oilpressure is too low.
Stop as soon it is safe to do so.
Park, switch off the ignition and contact a PEUGEOT dealer or a qualified workshop.



Braking


fixed. The braking system fluid level has dropped significantly. Top up with brake
fluid recommended by PEUGEOT.
If the problem persists, have the system checked by a
PEUGEOT dealer or a qualified workshop.
+

fixed, associated
with the ABSwarning lamp.The braking systemhas a fault. Stop as soon as it is safe to do so. Park, switch off the ignition
and contact a PEUGEOT dealer or a qualified workshop.

1
VSC
Instruments and controls
21


Anti-lock Braking System (ABS)

fixed. The anti-lock braking system has a fault. The vehicle retains conventional brakin
g.
Drive carefully at reduced speed and contact a PEUGEOT
dealer or a qualified workshop without delay.



Electronicstability programme(ASR/ESP)

fixed. The ASR /ESP system is inaction. The system optimises traction and improves
the directional stability of the vehicle.




fix
ed. The ASR/ESP system has a fault. Have it checked by a PEUGEOT dealer or
a qualified workshop.



Coolanttemperature
fixed. The temperature of the engine coolant is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before checking up thelevel; top up if necessary.
If the problem persists, contact a PEUGEOT dealer or qualified workshop.



Airbagstemporar
ily.This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or a qualified
workshop.

flashing. At least one of the airbags hasa fault. The airba
gs may not be deployed in the event of a serious
impact. Have it checked by a PEUGEOT dealer or a qualified
workshop.
Warning lampis onCauseAction/Observations

10

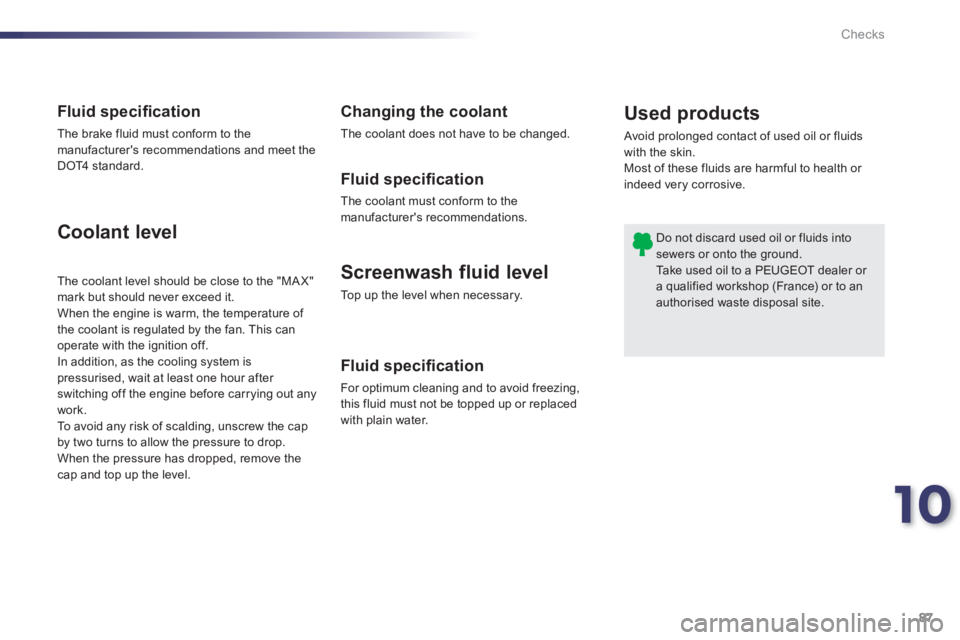

87 Checks
Screenwash fluid level
Top up the level when necessary.
Coolant level
Fluid specifi cation
For optimum cleaning and to avoid freezing,
this fluid must not be topped up or replaced
with plain water.



Fluid specifi cation

The brake fluid must conform to themanufacturer's recommendations and meet the
D
OT4 standard.


The coolant level should be close to the "MAX" mark but should never exceed it.
When the engine is warm, the temperature of
the coolant is regulated by the fan. This can
operate with the ignition off.
In addition, as the cooling system is pressurised, wait at least one hour after switching off the engine before carrying out anywork.
To avoid any risk of scalding, unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove thecap and top up the level.
Changing the coolant
The coolant does not have to be changed.
Fluid specifi cation
The coolant must conform to the
manufacturer's recommendations.









Used products
Avoid prolonged contact of used oil or fluids
with the skin.
M
ost of these fluids are harmful to health or indeed very corrosive.
Do not discard used oil or fluids intosewers or onto the ground.Take used oil to a PEUGEOT dealer or a qualified workshop (France) or to an authorised waste disposal site.

.

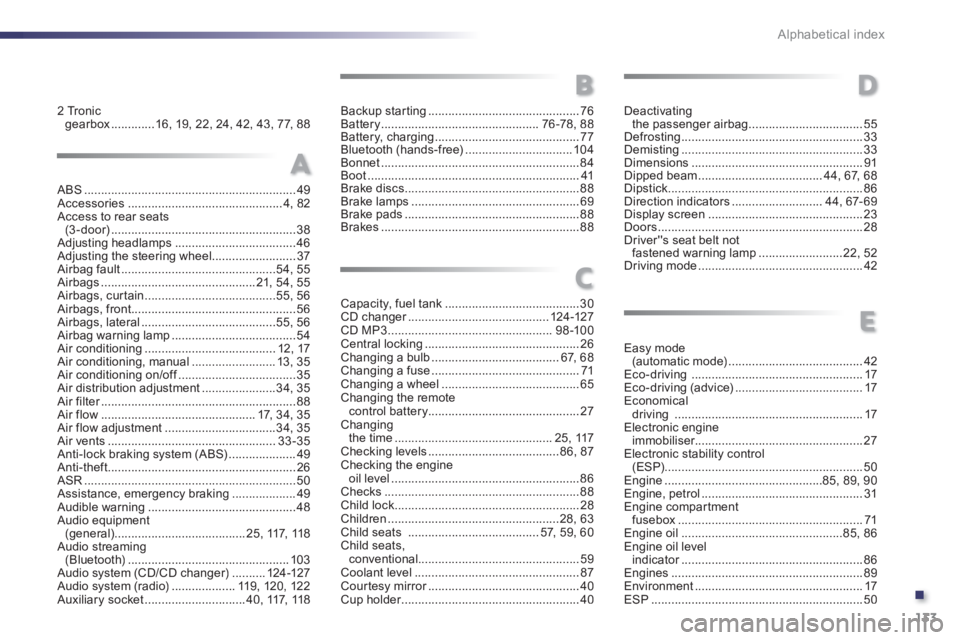

133 Alphabetical index
2 Tronic gearbox .............16, 19, 22, 24, 42, 43,77,88Backup starting .............................................76Battery...............................................76-78, 88Battery, charging ...........................................77Bluetooth (hands-free)................................104Bonnet...........................................................84Boot...............................................................41Brake discs....................................................88Brake lamps ..................................................69Brake pads ....................................................88Brakes ...........................................................88
Capacity, fuel tank........................................30CD changer..........................................r124-127CD MP3.................................................98-100Central locking..............................................26Changing a bulb ......................................67,68Changing a fuse ............................................71Changing a wheel .........................................65Changing the remotecontrol battery.............................................27Changingthe time...............................................25, 117Checking levels.......................................86,87Checking the engineoil level ........................................................86Checks ..........................................................88Child lock.......................................................28Children...................................................28, 63Child seats.......................................57,59, 60Child seats,conventional................................................59Coolant level .................................................87Courtesy mirror.............................................r40Cup holder.....................................................r40
B
C
Deactivatingthe passenger airbag..................................55Defrosting ......................................................33Demisting......................................................33Dimensions...................................................91Dipped beam.....................................44, 67, 68Dipstick..........................................................86Direction indicators...........................44, 67-69Display screen..............................................23Doors.............................................................28Driver''s seat belt notfastened warning lamp.........................22, 52Driving mode.................................................42
Easy mode(automatic mode) ........................................42Eco-driving...................................................17Eco-driving (advice)......................................17Economicaldriving ........................................................17Electronic engineimmobiliser..................................................27Electronic stability control (ESP)...........................................................50Engine...............................................85, 89,90Engine, petrol ................................................31Engine compartmentfusebox.......................................................71Engine oil ................................................85,86Engine oil levelindicator......................................................r86Engines.........................................................89Environment ..................................................17ESP ...............................................................50
E
ABS...............................................................49Accessories..............................................4, 82Access to rear seats(3-door) .......................................................38Adjusting headlamps....................................46Adjusting the steering wheel.........................37Airbag fault..............................................54, 55Airbags ..............................................21, 54, 55Airbags, curtain .......................................55,56Airbags, front.................................................56Airbags, lateral........................................55,56Airbag warning lamp.....................................54Air conditioning.......................................12, 17Air conditioning, manual.........................13, 35Air conditioning on/off...................................f35Air distribution adjustment......................34, 35Air filter..........................................................r88Air flow..............................................17,34, 35Air flow adjustment .................................34, 35Air vents..................................................33-35Anti-lock braking system (ABS)....................49Anti-theft........................................................26ASR...............................................................50Assistance, emergency braking...................49Audible warning............................................48Audio equipment(general).......................................25, 117,118Audio streaming(Bluetooth)................................................103Audio system (CD/CD changer)..........124-127Audio system (radio)................... 119,120,122Auxiliary socket ..............................40, 117,118
A
D
