PEUGEOT 108 2015 Owners Manual

17/08/15
14:48
68
km/h
25m
Audio and Telematics
2
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

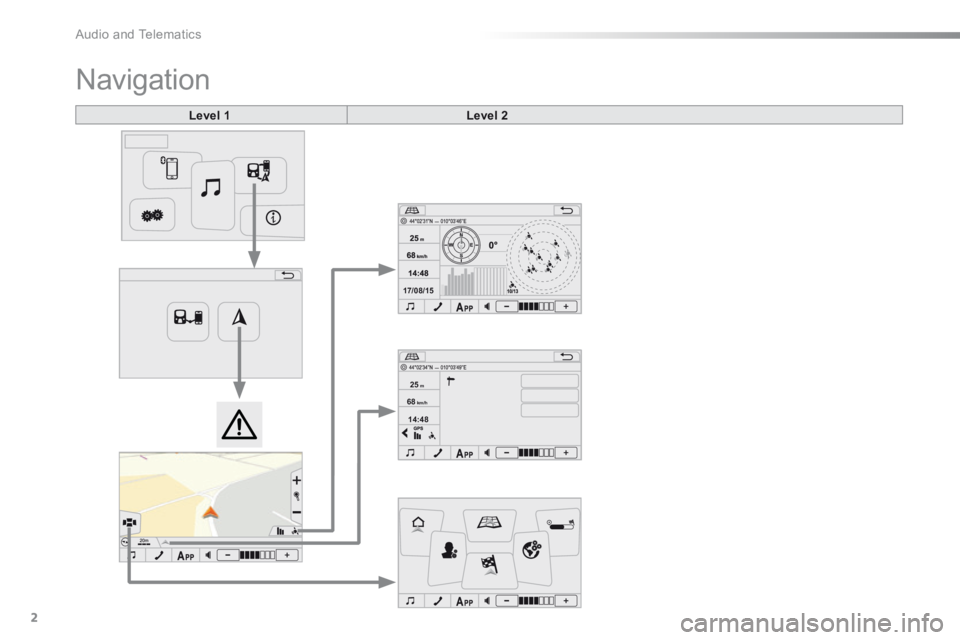

Navigation
Level 1Level 2

.
Audio and Telematics 3
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

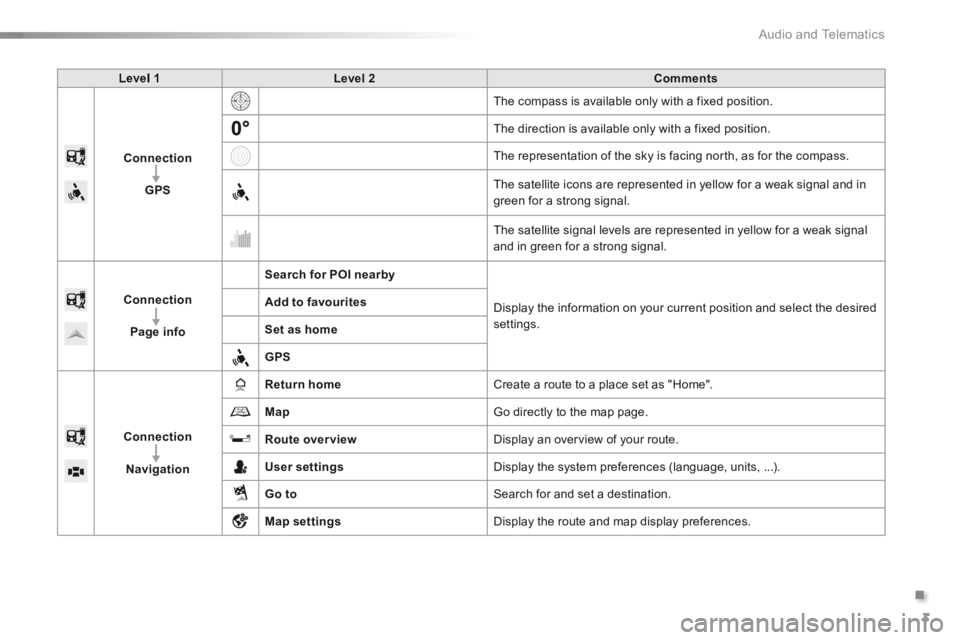

Level 1Level 2Comments
Connection
GPS
The compass is available only with a fixed position.
The direction is available only with a fixed position.
The representation of the sky is facing north, as for the compass.
The satellite icons are represented in yellow for a weak signal and in green for a strong signal.
The satellite signal levels are represented in yellow for a weak signal and in green for a strong signal.
Connection
Page info
Search for POI nearby
Display the information on your current position and select the desired settings.
Add to favourites
Set as home
GPS
Connection
Navigation
Return home Create a route to a place set as "Home".
Map Go directly to the map page.
Route overview Display an overview of your route.
User settings Display the system preferences (language, units, ...).
Go to Search for and set a destination.
Map settings Display the route and map display preferences.

17/08/15
14:48
68
km/h
25m
Audio and Telematics
4
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

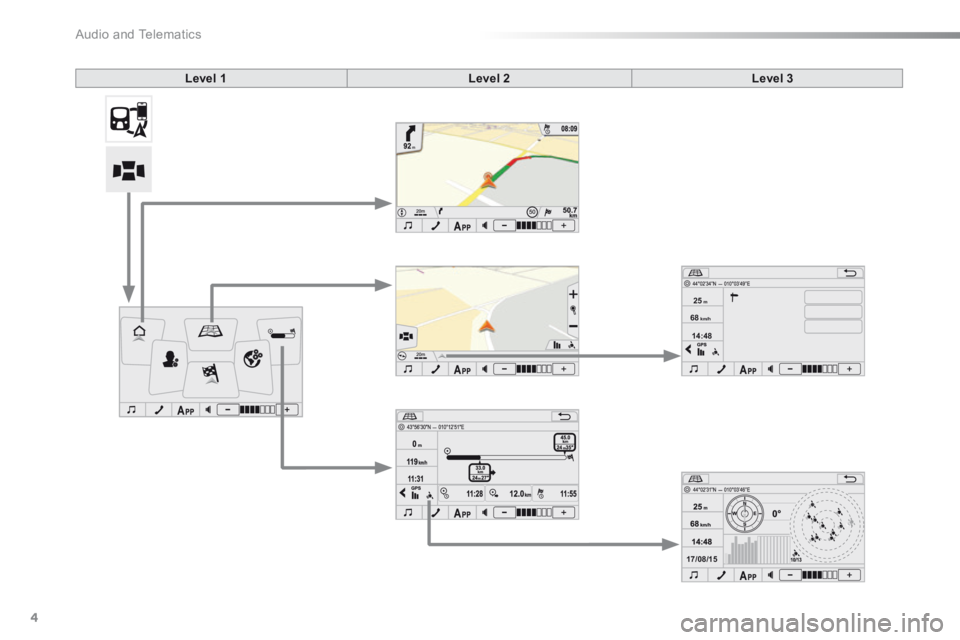

Level 1Level 2Level 3

.
Audio and Telematics 5
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

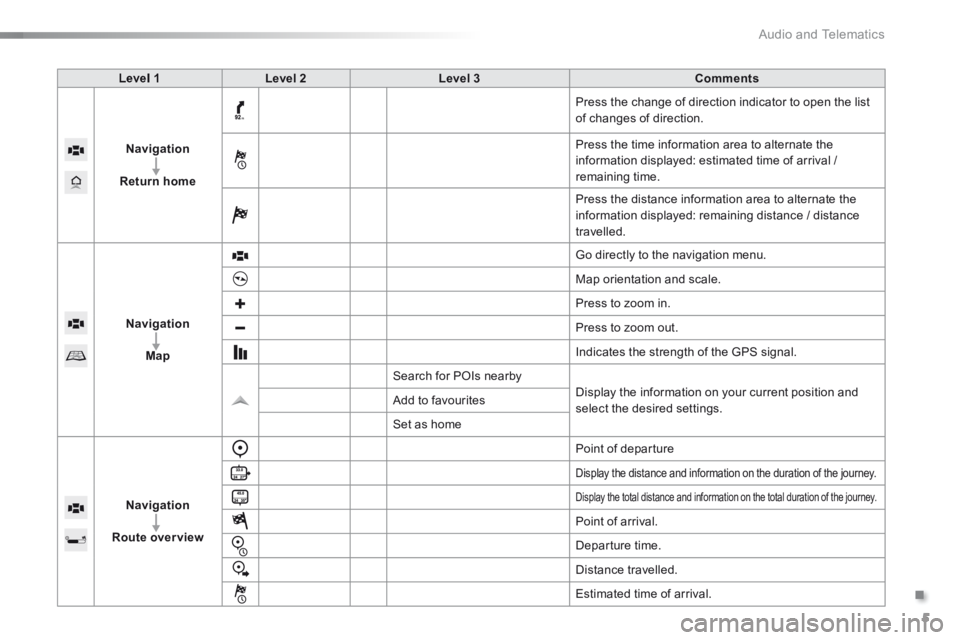

Level 1Level 2Level 3Comments
Navigation
Return home
Press the change of direction indicator to open the list of changes of direction.
Press the time information area to alternate the information displayed: estimated time of arrival / remaining time.
Press the distance information area to alternate the information displayed: remaining distance / distance travelled.
Navigation
Map
Go directly to the navigation menu.
Map orientation and scale.
Press to zoom in.
Press to zoom out.
Indicates the strength of the GPS signal.
Search for POIs nearby
Display the information on your current position and select the desired settings. Add to favourites
Set as home
Navigation
Route overview
Point of departure
Display the distance and information on the duration of the journey.
Display the total distance and information on the total duration of the journey.
Point of arrival.
Departure time.
Distance travelled.
Estimated time of arrival.

Audio and Telematics
6
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

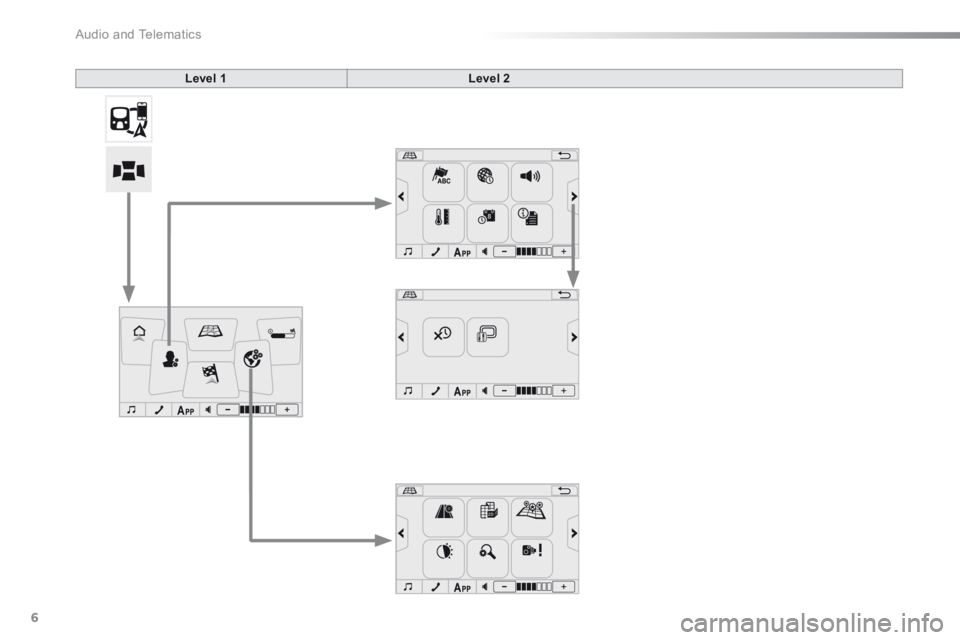

Level 1Level 2

.
Audio and Telematics 7
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

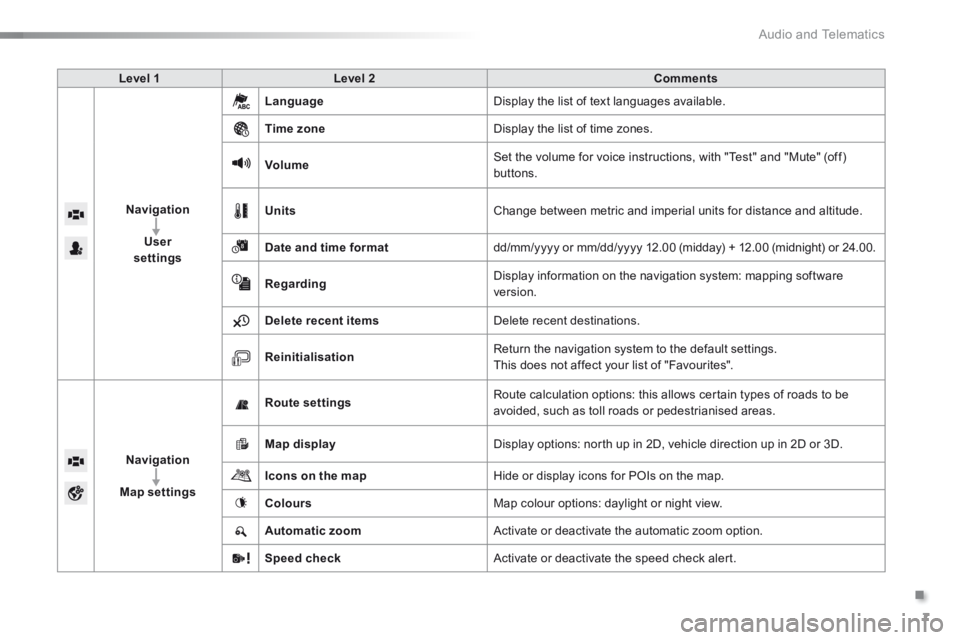

Level 1Level 2Comments
Navigation
User settings
Language Display the list of text languages available.
Time zone Display the list of time zones.
Volume Set the volume for voice instructions, with "Test" and "Mute" (off) buttons.
Units Change between metric and imperial units for distance and altitude.
Date and time format dd/mm/yyyy or mm/dd/yyyy 12.00 (midday) + 12.00 (midnight) or 24.00.
Regarding Display information on the navigation system: mapping software version.
Delete recent items Delete recent destinations.
Reinitialisation Return the navigation system to the default settings. This does not affect your list of "Favourites".
Navigation
Map settings
Route settings Route calculation options: this allows certain types of roads to be avoided, such as toll roads or pedestrianised areas.
Map display Display options: north up in 2D, vehicle direction up in 2D or 3D.
Icons on the map Hide or display icons for POIs on the map.
Colours Map colour options: daylight or night view.
Automatic zoom Activate or deactivate the automatic zoom option.
Speed check Activate or deactivate the speed check alert.

98765
43210
S
N
NE4400923212132
EW
Audio and Telematics
8
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

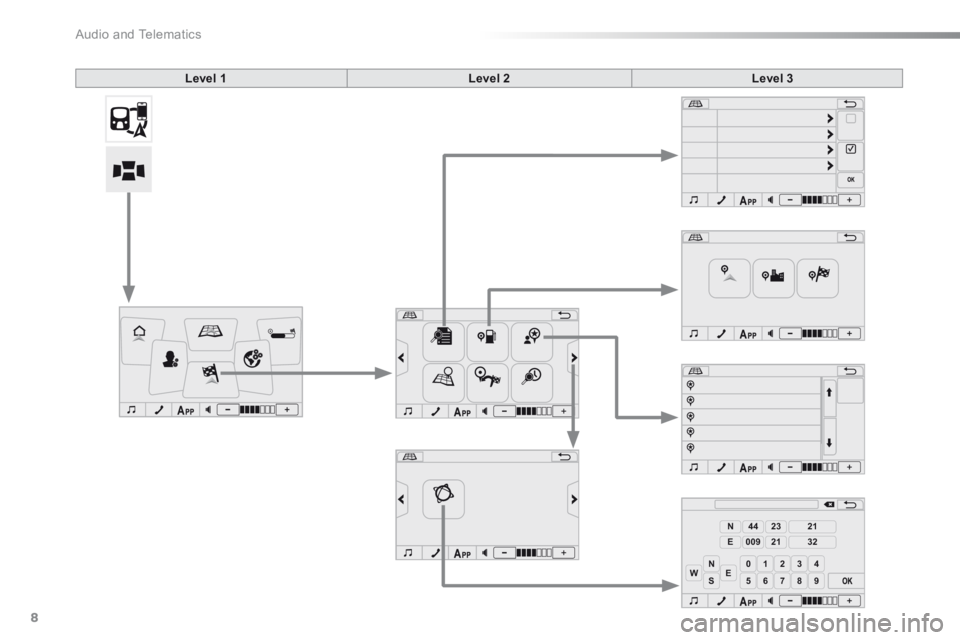

Level 1Level 2Level 3

.
Audio and Telematics 9
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015
Level 1Level 2Level 3Comments

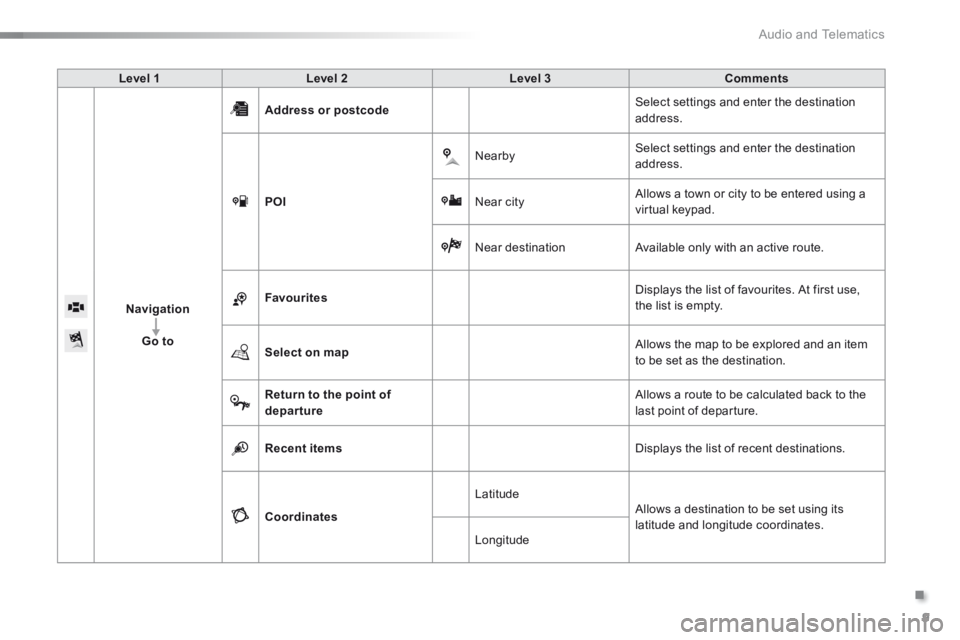

Navigation
Go to
Address or postcode Select settings and enter the destination address.
POI
Nearby Select settings and enter the destination address.
Near city Allows a town or city to be entered using a virtual keypad.
Near destination Available only with an active route.
Favourites Displays the list of favourites. At first use, the list is empty.
Select on map Allows the map to be explored and an item to be set as the destination.
Return to the point of departure Allows a route to be calculated back to the last point of departure.
Recent items Displays the list of recent destinations.
Coordinates
Latitude Allows a destination to be set using its latitude and longitude coordinates. Longitude

Audio and Telematics
10
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015

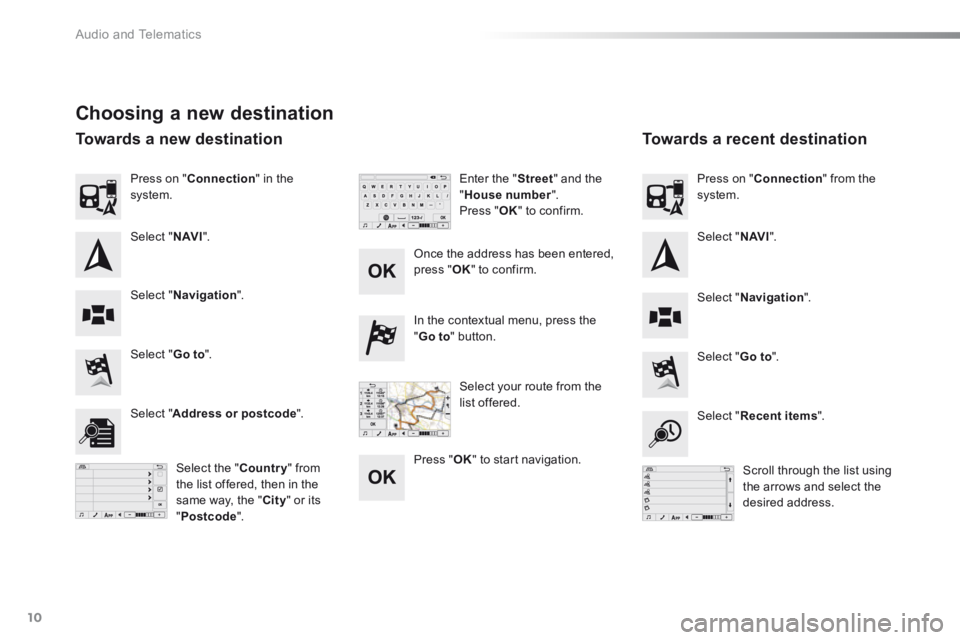

Choosing a new destination
Select " Go to ". Select " Go to ".
In the contextual menu, press the " Go to " button.
Select " Address or postcode ". Select " Recent items ".
Select the "Country" from the list offered, then in the same way, the " City " or its " Postcode ".
Scroll through the list using the arrows and select the desired address.
Once the address has been entered, press " OK " to confirm.
Press " OK " to start navigation.
Enter the " Street " and the " House number ". Press " OK " to confirm.
Select your route from the list offered.
Press on " Connection " in the system.
Select " N AV I ". Select " N AV I ".
Press on " Connection " from the system.
Select " Navigation ". Select " Navigation ".
Towards a new destination Towards a recent destination

.
Audio and Telematics 11
c1-108-post-it-web_en_chap12a_complementnav_toyota_tactile-1_ed01-2015
Select " N AV I ".
Select " Go to ".
Press on " Connection " from the system.
Select " Navigation ".

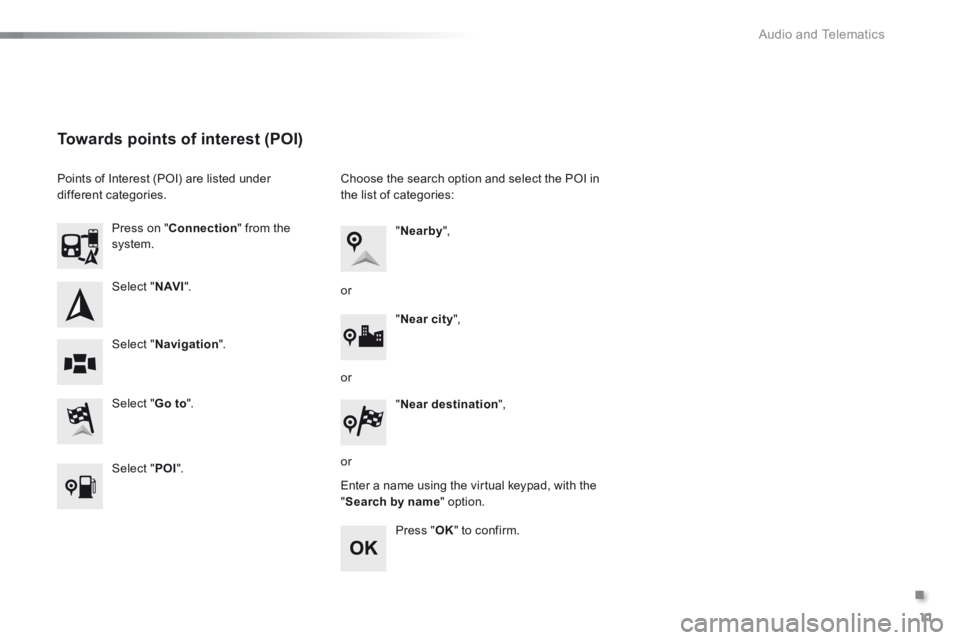

Towards points of interest (POI)
Points of Interest (POI) are listed under different categories.
Select " POI ".
Choose the search option and select the POI in the list of categories:
Enter a name using the virtual keypad, with the " Search by name " option.
Press " OK " to confirm.
" Nearby ",
" Near city ",
or
or
or
" Near destination ",
