headlamp Peugeot 206 CC 2003 User Guide
[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2003, Model line: 206 CC, Model: Peugeot 206 CC 2003Pages: 135, PDF Size: 2.11 MB
Page 111 of 135

30-06-2003
PRACTICAL INFORMATION
104
- Pull the tab
Aupwards and remove the protective cover.
- Disconnect the connector.
- Press the end of the securing clip to remove it. Change the faulty bulb.
- On fitting, ensure that the direction notches are in the correct position and that the clip is secured correctly.
- Reconnect the connector.
- Replace the protective cover.
CHANGING A BULB Dipped/main headlamps H7 55W Side lights W5W
Turn the pin connector
Ba quarter turn and remove it.
Change the bulb.
Remarks
- Only touch the bulbs with a dry cloth.
- To replace the bulbs on the right side, remove the wash-wipe reservoir filler pipe first.
- Condensation may form inside the headlamps. It will disappear when the lights are used.
Page 112 of 135

30-06-2003
PRACTICAL INFORMATION105
Amber direction indicators PY21W
Turn the pin connector
Ca quarter
turn and remove it. Change the bulb. Amber direction indicator side repeater WY5W Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the transparent cover a quarter turn. Change the bulb.
PEUGEOT recommends the use of H7 bulbs ofbrands:
- GE/TUNGSRAM, - PHILIPS,- OSRAM,
to avoid damaging the headlamps.These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbonate glass with a protec-
tive coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.
Page 119 of 135

30-06-2003
PRACTICAL INFORMATION111
Fuse Rating
Functions
1 10 A Reversing lights switch - Speed sensor
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP brake switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 Ð Not used
8 20 A Fan unit relay - Engine control unit - Engine management solenoid valve
9 15 A Left dipped headlamps
10 15 A Right dipped headlamps
11 10 A Left main beam headlamps
12 15 A Right main beam headlamps
13 15 A Horns
14 10 A Front windscreen wash pump
15 30 A Throttle housing heater - Oxygen sensor - Engine control unit - Ignition coil -
Engine management solenoid valve - Injectors
16 30 A Air pump relay
17 30 A Fast and slow-speed wiper
18 40 A Air conditioning fan
Page 124 of 135

30-06-2003
PRACTICAL INFORMATION
116
BODYWORK MAINTENANCE
To preserve the paintwork and the plastic trim on your vehicle, we rec-ommend that you wash them regu-
larly.
- by hand: there are no specific pre-
cautions to take;
- using an automatic car wash: repeated use of poorly maintained automatic car washes can lead tothe appearance of microscopicscratches which give the paint-work a matt appearance (espe-cially visible on dark colours);
- using a high pressure washer: always follow the recommenda-tions on the equipment (pressureand spraying distance). If there are damaged areas on the vehicle (painted bumpers orheadlamps), it is not recommend-ed to direct the high pressure jet
onto them. Wash these areas byhand. Also avoid the entry of water into the locks.

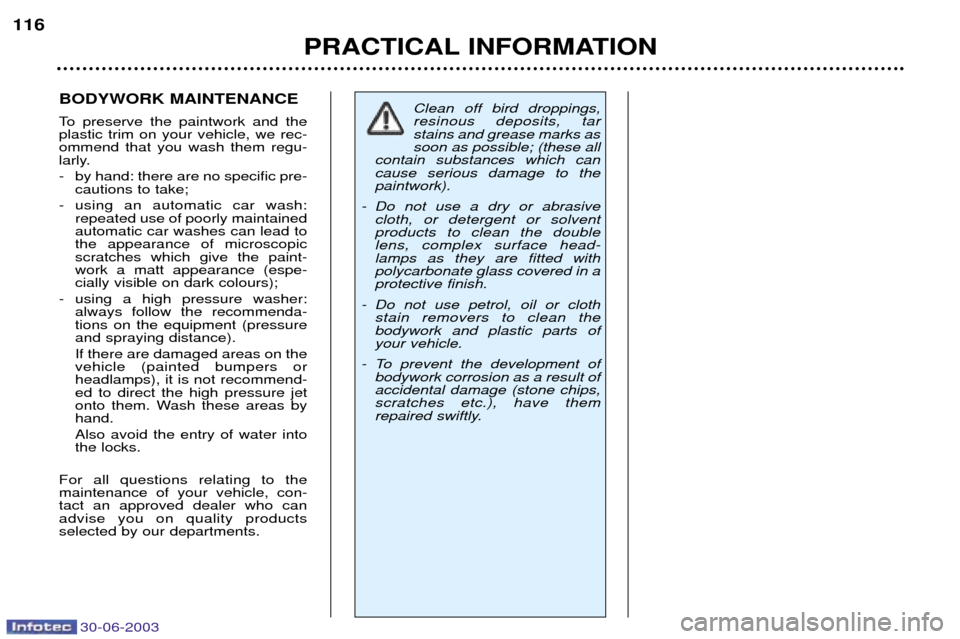

For all questions relating to themaintenance of your vehicle, con-tact an approved dealer who canadvise you on quality productsselected by our departments. Clean off bird droppings,resinous deposits, tarstains and grease marks assoon as possible; (these all
contain substances which cancause serious damage to thepaintwork).
- Do not use a dry or abrasive cloth, or detergent or solventproducts to clean the doublelens, complex surface head-lamps as they are fitted withpolycarbonate glass covered in aprotective finish.
- Do not use petrol, oil or cloth stain removers to clean thebodywork and plastic parts ofyour vehicle.
- To prevent the development of bodywork corrosion as a result ofaccidental damage (stone chips,scratches etc.), have them
repaired swiftly.
