PRACTICAL INFORMATION
108
Fuse Rating
Functions
1 10 A Reversing lights switch - Speed sensor
2 15 A Canister - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 20 A Windscreen wash pump
8 20 A Fan unit relay - Engine control unit - Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam
11 10 A Left-hand main beam
12 15 A Right-hand main beam
13 15 A Horns
14 10 A Front windscreen wash pump
15 30 A Throttle unit heater - Oxygen sensor - Engine control unit - Ignition coil - Engine management
solenoid valve - Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan

07-10-2002
PRACTICAL INFORMATION109
BATTERY
To charge the battery using a battery charger:
Ð Disconnect the battery,
Ð Follow the instructions for use given by the battery charger manufacturer,
Ð Reconnect starting with the negative (Ð) terminal,
Ð Check that the terminals and connectors are clean. If they are covered with sul-
phate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery:
Ð Connect the red cable to the positive (+) terminals of the two batteries,
Ð Connect one end of the green or black cable to the negative (Ð) terminal of the slave battery,
Ð Connect the other end of the green or black cable to an earth point on the bro- ken down vehicle as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect the cables. ECONOMY MODE FUNCTION After the engine has stopped, with the key in the accessories position, cer-
tain functions (windscreen wiper, elec-tric windows, courtesy lights, audioequipment etc.) can only be used forthirty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message
"Economy mode active"
appears on the multifunction displayand the active functions are put on
standby.
A flat battery will prevent the engine from starting.
Ð Never disconnect a terminal when the engine is running.
Ð Never charge a battery without first disconnecting the terminals.
Ð After every reconnection of the battery, switch on the ignition and wait
1 minute before starting to allow the electronic systems to be ini- tialised. If slight difficulties are experienced after this, please contact
a PEUGEOT dealer.
It is advisable to disconnect the battery if the vehicle is not
to be used for a period of more than one month.

07-10-2002
PRACTICAL INFORMATION
110
FITTING AUDIO EQUIPMENT
Your vehicle is equipped with certain factory-fitted audio equipment:
Ð roof aerial,
Ð coaxial aerial cable,
Ð basic interference suppression,
Ð supply to front speakers,
Ð supply to rear speakers and
tweeters,
Ð two 8-way connectors. Making the connectionsA1 :Ð
A2 :Ð
A3 :Ð
A4 :Ð
A5 :Ð
A6 : Ignition positive
A7 : (+) Permanent
A8 : Earth
B1: (+) Rear right speaker
B2 : (Ð) Rear right speaker
B3 : (+) Front right speaker and
tweeter
B4 : (Ð) Front right speaker and
tweeter
B5 : (+) Front left speaker and
tweeter
B6 : (Ð) Front left speaker and
tweeter
B7 : (+) Rear left speaker
B8 : (Ð) Rear left speaker
FITTING SPEAKERSThe factory-fitted equipment allows the fitting of:
Ð 165 mm diameter speakers in the
front doors,
Ð 130 mm diameter speakers at the rear,
Ð 22.5 mm diameter tweeters in the mirror trims.
Contact a PEUGEOT dealer.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE111
Without lifting (four wheels on the ground)
You must always use a tow bar. From the front or the rear Attach the tow bar to the towing eye. By lifting (two wheels only on the ground) It is preferable to lift the vehicle by the wheels.
Never use the radiator crossmember. Special features of the automatic gearboxes When towing with all four wheels on the ground, the following rules must beadhered to:
Ð gear lever in position
N,
Ð tow the vehicle at a speed less than 30 mph (50 km/h) over a distance of not more than 30 miles (50 km),
Ð do not add oil to the gearbox. BOOT LUGGAGE CARRIER*
A boot luggage carrier is available
from your PEUGEOT dealer. When it is used, take care not to con- ceal the third brake light. Follow the manufacturer's recommen- dations.
TOWING YOUR VEHICLE

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE
112
TOWING A TRAILER,
CARAVAN, BOAT etc.
Only use original PEUGEOT tow bars that have been tested andapproved from the design stage of
your vehicle. The tow bar must be fit-
ted by a PEUGEOT dealer. The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is basically designed for transporting people and luggage but it
may also be used for towing a trailer. Driving with a trailer subjects the towing vehicle to more significant stress and itsdriver must be particularly careful. Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % for every
1 000 metres of altitude. Driving advice Distribution of loads:
Distribute the
load in the trailer so that the heaviest items are as close as possible to the axleand the nose weight approaches themaximum permitted without exceeding it. Cooling: Towing a trailer on a slope
increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent onthe engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient and theoutside temperature. In all cases, pay attention to the coolant temperature. If the warning light comes on, stop the
vehicle and switch off the engine assoon as possible. Tyres:
Check the tyre pressures of the
towing vehicle and of the trailer,observing the recommended pres-sures. Braking: Towing increases the brak-
ing distance. Lights: Check the electrical signalling
on the trailer.Side wind: Take into acount the
increased sensitivity to side wind.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE113
BODYWORK MAINTENANCE
To preserve the paintwork and the plastic trim on your vehicle, we recom-
mend that you wash them regularly.
Ð by hand: there are no specific pre-
cautions to take;
Ð using an automatic car wash: repeated use of poorly maintained automatic car washes can lead to
the appearance of microscopicscratches which give the paintworka matt appearance (especially visi-ble on dark colours);
Ð using a high pressure washer: always follow the recommendationson the equipment (pressure andspraying distance). If there are damaged areas on the vehicle (painted bumpers, or head-lamps), it is not recommended todirect the high pressure jet onto
them. Wash these areas by hand. Also avoid the entry of water into the locks.
For all questions relating to the main-tenance of your vehicle, contact anapproved dealer who can advise youon quality products selected by ourdepartments. Ð Clean off bird droppings,
resinous deposits, tarstains and grease marksas soon as possible;
(these all contain sub-
stances which can cause seriousdamage to the paintwork).
Ð Do not use a dry or abrasive cloth, or detergent or solvent products toclean the double lens, complexsurface headlamps as they are fit-ted with polycarbonate glass cov-ered in a protective finish.
Ð Do not use petrol, oil or cloth stain removers to clean the bodyworkand plastic parts of your vehicle.
Ð To prevent the development of bodywork corrosion as a result ofaccidental damage (stone chips,scratches etc.), have them
repaired swiftly.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE
114

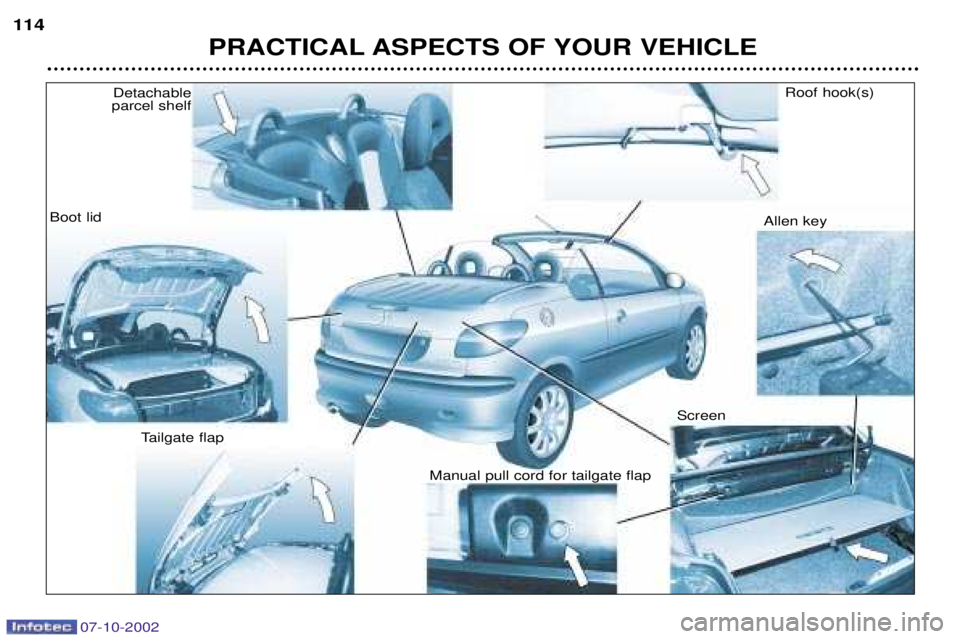

Detachable
parcel shelf
Boot lid
Tailgate flap Manual pull cord for tailgate flapScreenAllen key
Roof hook(s)

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE115

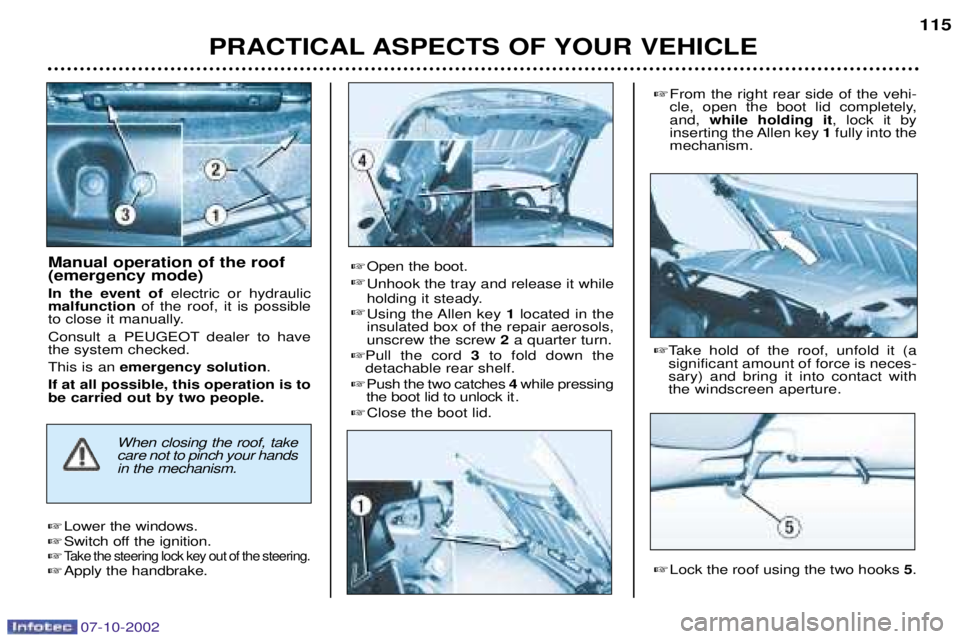

Manual operation of the roof (emergency mode) In the event of
electric or hydraulic
malfunction of the roof, it is possible
to close it manually.
Consult a PEUGEOT dealer to have the system checked. This is an emergency solution .
If at all possible, this operation is to be carried out by two people. Open the boot.
 Unhook the tray and release it while
holding it steady.
 Using the Allen key 1located in the
insulated box of the repair aerosols, unscrew the screw 2a quarter turn.
 Pull the cord 3to fold down the
detachable rear shelf.
 Push the two catches 4while pressing
the boot lid to unlock it .
 Close the boot lid.
From the right rear side of the vehi-
cle, open the boot lid completely,and, while holding it , lock it by
inserting the Allen key 1fully into the
mechanism.
 Lock the roof using the two hooks 5.
When closing the roof, take care not to pinch your handsin the mechanism.

Take hold of the roof, unfold it (a significant amount of force is neces-sary) and bring it into contact withthe windscreen aperture.
 Lower the windows.
 Switch off the ignition.

Take the steering lock key out of the steering. Apply the handbrake.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE
116

Take out the Allen key 1 while hold-
ing the boot lid , then fold it down
slowly and steadily, without trying to lock it.
 Open the boot.
 Pull the two white clips 6located
above the catches and turn them aquarter turn downwards while keep-ing the boot lid closed.
 Push the two white clips 6into their
locking holes.
 Close the boot.
Contact a PEUGEOT dealer to havethe system checked.
The roof must not be ope-rated while a loadedluggage-holder is fitted onthe boot lid.
When closing the roof, to prevent
risk of injury, ensure that no-one isin the proximity of the movingparts.
In the event of danger, release the control button; the opera-
tion will stop immediately.

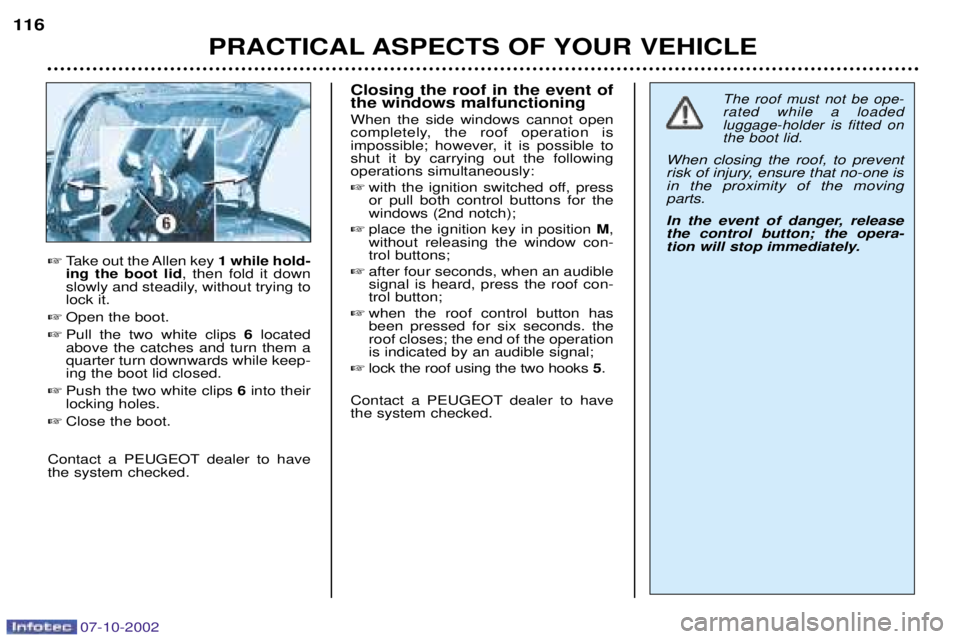

Closing the roof in the event of the windows malfunctioning When the side windows cannot open
completely, the roof operation is
impossible; however, it is possible toshut it by carrying out the followingoperations simultaneously:  with the ignition switched off, press or pull both control buttons for thewindows (2nd notch);
 place the ignition key in position M,
without releasing the window con-trol buttons;
 after four seconds, when an audiblesignal is heard, press the roof con-trol button;
 when the roof control button hasbeen pressed for six seconds. theroof closes; the end of the operationis indicated by an audible signal;
 lock the roof using the two hooks 5.
Contact a PEUGEOT dealer to havethe system checked.

07-10-2002
PRACTICAL ASPECTS OF YOUR VEHICLE117
206 CC ACCESSORIES
For your PEUGEOT only use accessories and original parts approved by the manufacturer.
These accessories and parts are all adapted to your PEUGEOT, after being tested and approved for reliability and safety, which
PEUGEOT cannot guarantee for other products.
A wide choice of original accessories, approved by PEUGEOT, is available through the dealer network. They all carry the
PEUGEOT guarantee. Safety:
Anti-theft alarms, lift detection alarm, window engraving, wheel locks, signalling triangle, first aid kit, ...
Protection: Covers suitable for side air bags, carpets, boot storage tray, É
Communication: Telephone, satellite navigation system, CD changers, audio systems, speakers, audio trim, ...
Personalisation: Alloy wheels, trims, mud flaps, aluminium and wood panel trim, ...
Comfort: Centre armrest, can holder, CD or cassette storage, telephone console, anti-air swirl net, ....
Leisure: Towbar, roof bars , snow chains, ...
Children: Booster seats and child seats, Kiddy Isofix seat, ...
Maintenance products: Screenwash, interior and exterior maintenance and cleaning products.
