Side lights W 5 W
Turn the pin connector
Ba quarter turn and remove it.
Change the bulb.
Single unit headlamp H4 55/60 W
Ð Disconnect the connector.
Ð Remove the rubber protector.
Ð Press the two ends of the securing clip to release it.
Change the bulb A.
Ð On fitting, ensure that the direction notches are in the correct position and that the clip is secured correctly.
Ð Refit the rubber protector carefully.
Ð Reconnect the connector. Double unit headlamp H7 55 W
Ð Pull tab
Cupwards and remove the protective cover.
Ð Disconnect the connector.
Ð Press the end of the securing clip to release it. Change the faulty bulb.
Ð On fitting, ensure that the direction notches are in the correct position and that the clip is secured correctly.
Ð Reconnect the connector.
Ð Refit the protective cover.
CHANGING A BULB Dipped/main beam headlamps
Note
Ð Only touch the bulbs with a dry cloth.
Ð To change the bulbs on the right-hand side, remove the windscreen wash reservoir filler pipe first.
Ð Condensation may form inside the headlamps. It will disappear when they are used.

24-02-2003
PRACTICAL INFORMATION
124
Direction indicator side repeater WY5W amber Push the repeater forwards or back-
wards and release the assembly. Hold the connector and turn the transparent cover a quarter turn. Change the bulb.
Direction indicators PY21W amber
Turn the pin connector Ca quarter
turn and remove it. Change the bulb.

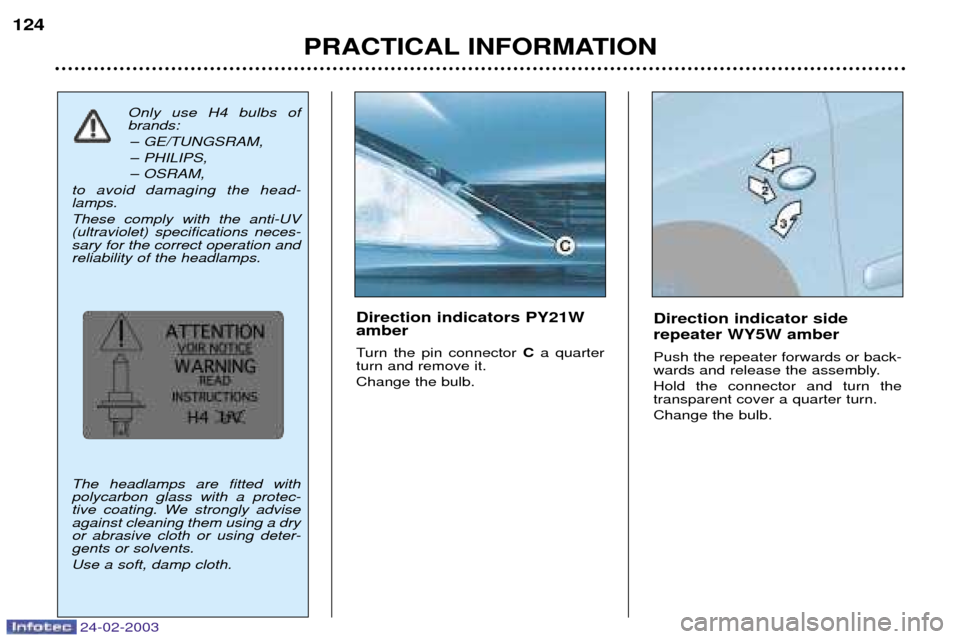

Only use H4 bulbs of brands:
Ð GE/TUNGSRAM,
Ð PHILIPS,
Ð OSRAM,
to avoid damaging the head- lamps. These comply with the anti-UV (ultraviolet) specifications neces-sary for the correct operation andreliability of the headlamps. The headlamps are fitted with polycarbon glass with a protec-
tive coating. We strongly adviseagainst cleaning them using a dryor abrasive cloth or using deter-gents or solvents. Use a soft, damp cloth.

24-02-2003
PRACTICAL INFORMATION
126
Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.

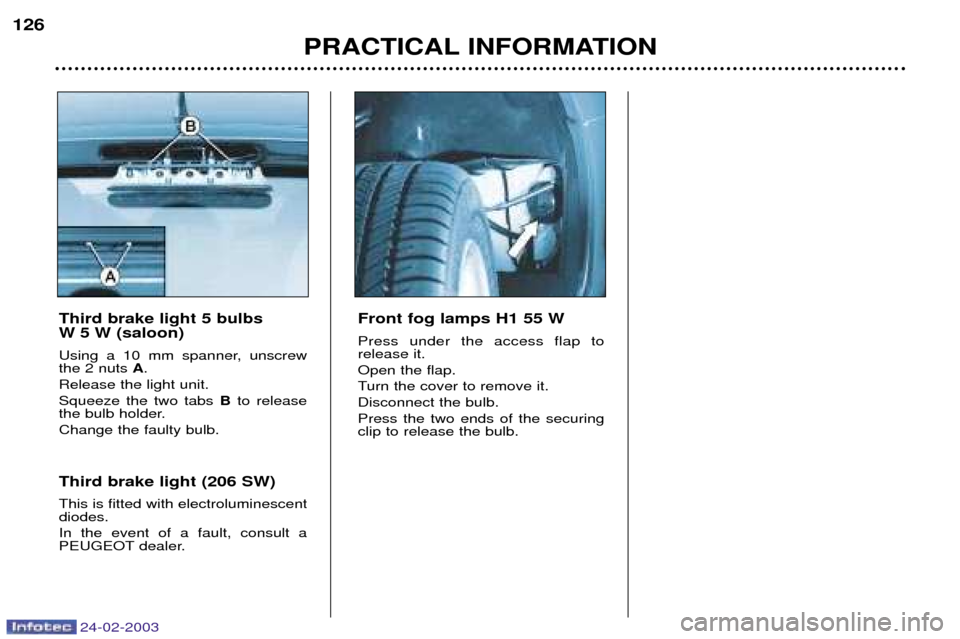

Third brake light 5 bulbs
W 5 W (saloon)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

24-02-2003
PRACTICAL INFORMATION125
Rear lights (saloon) Release the top of the boot side trim. Unscrew the wing bolt inside the boot using the wheelbrace if neces-
sary. Disconnect the connector
A.
Release the light unit. Release spanner Bfrom the bulb
holder. Unscrew nut Cusing spanner Band
remove the bulb holder. Change the faulty bulb.When refitting, stow spanner Bon
support Dand refit the light.
Saloon 206 SW

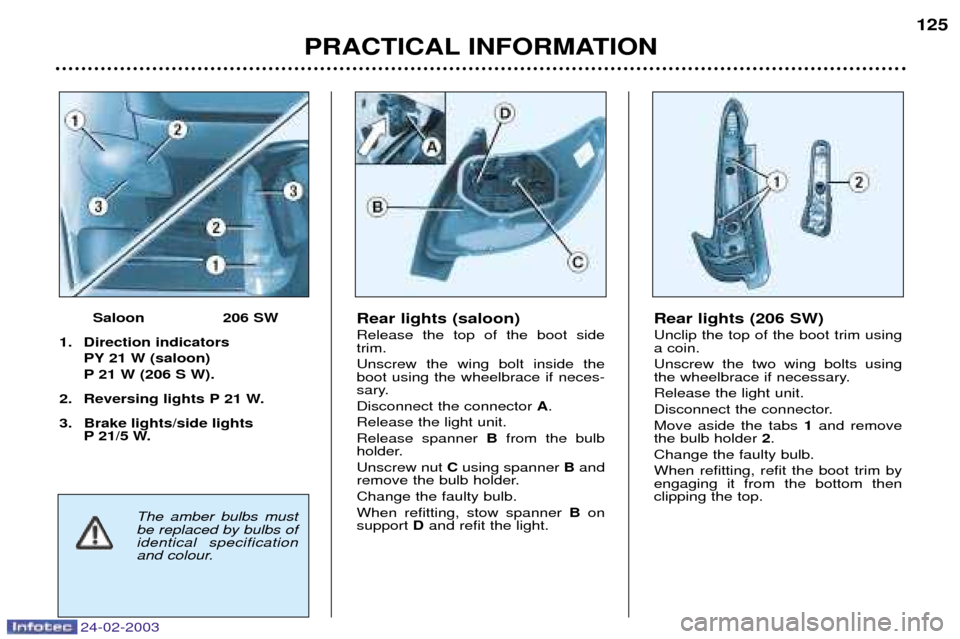

1. Direction indicators PY 21 W (saloon)
P 21 W (206 S W).
2. Reversing lights P 21 W.
3. Brake lights/side lights P 21/5 W.
The amber bulbs must be replaced by bulbs ofidentical specification
and colour. Rear lights (206 SW) Unclip the top of the boot trim using a coin. Unscrew the two wing bolts using
the wheelbrace if necessary. Release the light unit.
Disconnect the connector.Move aside the tabs
1and remove
the bulb holder 2.
Change the faulty bulb.When refitting, refit the boot trim by engaging it from the bottom thenclipping the top.

24-02-2003
PRACTICAL INFORMATION
126
Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs
W 5 W (saloon)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.

24-02-2003
PRACTICAL INFORMATION127
Rear fog lamp P 21 W Unclip the lamp and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb. Number plate lights W 5 W Insert a thin screwdriver into one of the outer holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.

24-02-2003
PRACTICAL INFORMATION
128

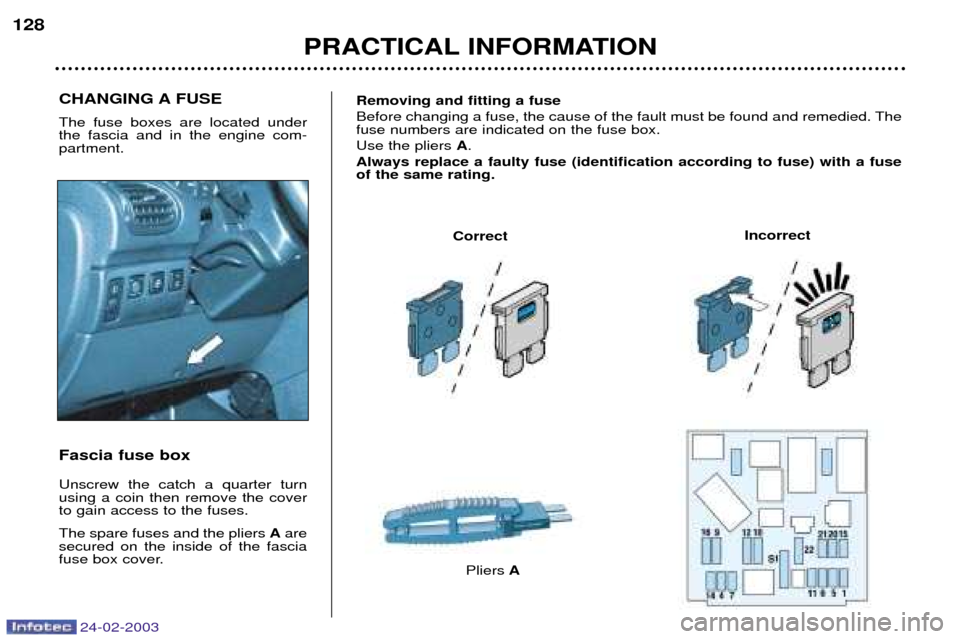

CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover. Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct
Pliers A Incorrect

24-02-2003
PRACTICAL INFORMATION
130
Engine compartment fuse box
To gain access to the box in the engine compartment (next to the
battery), unclip the cover. After carrying out work, close the
cover very carefully.The electrical circuit of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories in yourvehicle, consult a PEUGEOT
dealer. Some electrical accessories or the way in which they are fittedmay have an adverse effect onthe operation of your vehicle (itselectronic control circuits, theaudio circuit and the electricalcharging circuit). PEUGEOT declines any respon- sibility for expenses incurredthrough the repair of your vehicleor for any malfunctions resultingfrom the installation of auxiliaryaccessories, not supplied andnot recommended by PEUGEOTand not installed in accordancewith PEUGEOT's instructions, inparticular for any equipment thepower consumption of whichexceeds 10 milliamps.
* The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a PEUGEOT dealer.

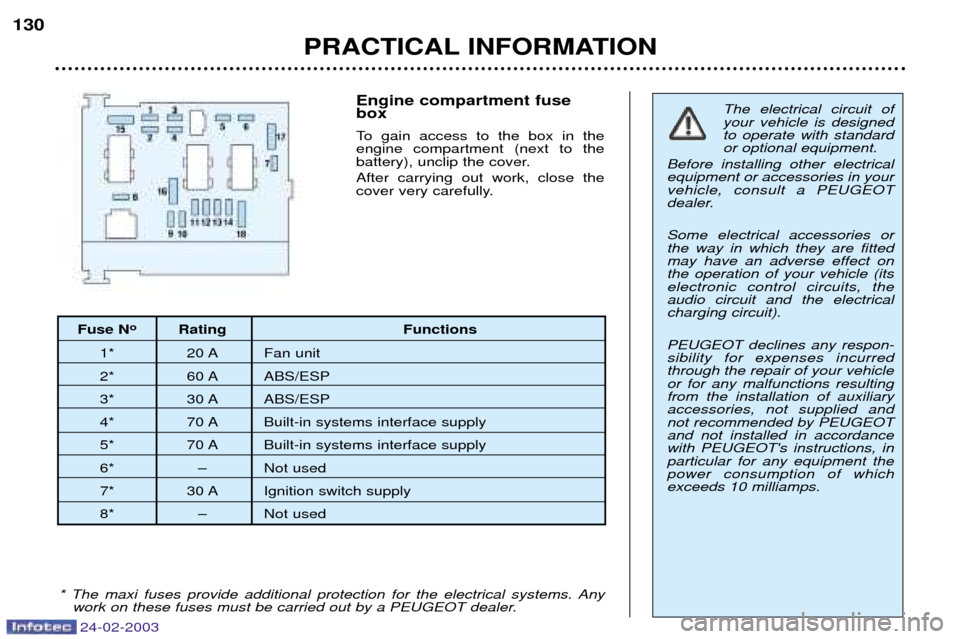

Fuse N o
Rating Functions
1* 20 A Fan unit
2* 60 A ABS/ESP
3* 30 A ABS/ESP
4* 70 A Built-in systems interface supply
5* 70 A Built-in systems interface supply
6* Ð Not used
7* 30 A Ignition switch supply
8* Ð Not used

24-02-2003
PRACTICAL INFORMATION131
Fuse N
o
Rating Functions

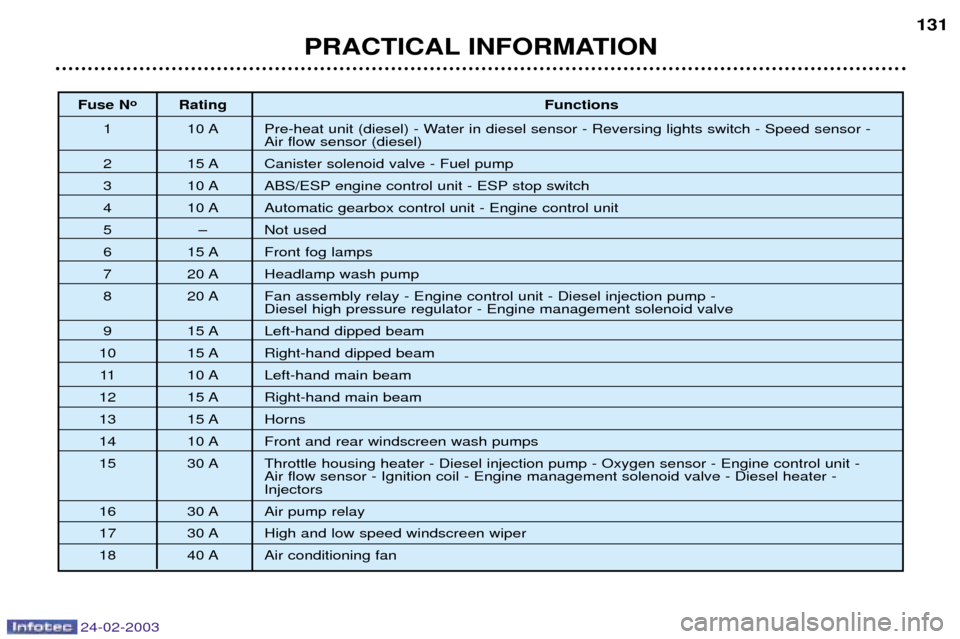

1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 20 A Headlamp wash pump
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 15 A Right-hand main beam
13 15 A Horns
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan

24-02-2003
PRACTICAL INFORMATION
128
CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover. Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers
A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct
Pliers A Incorrect
