Peugeot 206 Dag 2002.5 Owner's Manual

24-02-2003
YOUR 206 IN DETAIL
108
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed.Front air bag malfunction If this warning light comes on, accompanied by a buz-zer and the message "Air
bag fault" on the multifunction dis-
play, contact a PEUGEOT dealer tohave the system checked.
AIR BAGS The air bags have been designed to maximise the safety of the occu-pants in the event of serious colli-sions; they work in conjunction withthe force limiting seat belts. In the event of a serious collision, the electronic detectors record andanalyse any abrupt deceleration ofthe vehicle: if the triggering thre-shold is reached, the air bags inflateinstantly and protect the occupantsof the vehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags only operate when the ignition is switched on. Note:
the gas escaping from the air
bags can be a minor irritant. Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat.
With the ignition switched off, insert the key into the passengerair bag disarming switch 1, turn it
to the "OFF" position, then remo-
ve the key keeping the slot in thisposition.
The air bag warning light on theinstrument panel is lit throu-ghout the disarming process.
* According to destination.

24-02-2003
YOUR 206 IN DETAIL109
In the "OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bagand thus ensure the safety of yourpassenger in the event of an impact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag
disarmed" on the multifunction dis-
play, indicates that the passenger airbag is disarmed (switch in the"OFF" position). SIDE AIR BAGS These are incorporated into the frame of the front seat back, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head.
Operating check
This is confirmed by a light on theinstrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds, or
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.

24-02-2003
YOUR 206 IN DETAIL
110

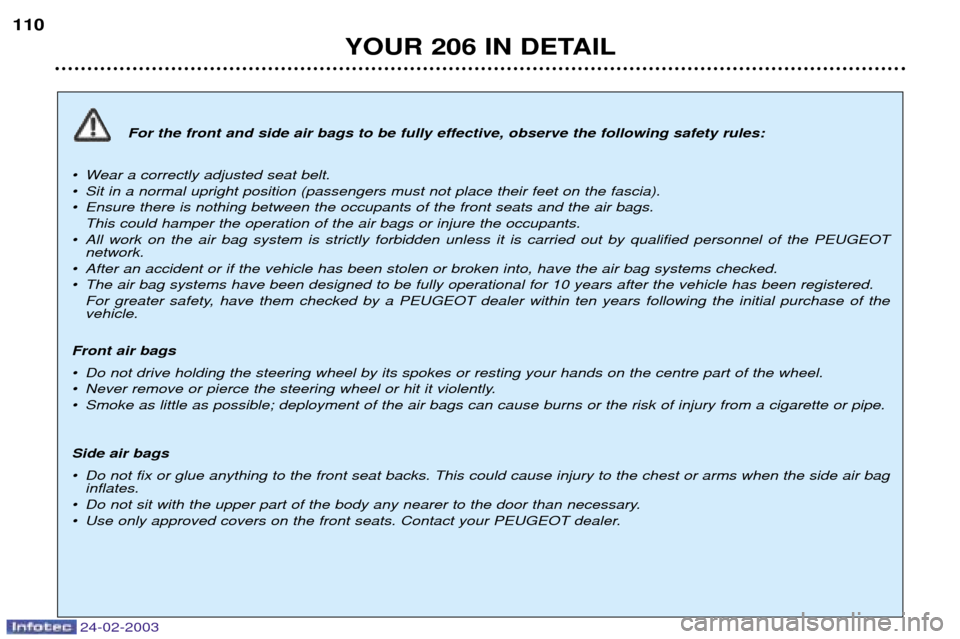

For the front and side air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Ensure there is nothing between the occupants of the front seats and the air bags. This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered. For greater safety, have them checked by a PEUGEOT dealer within ten years following the initial purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe. Side air bags
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Use only approved covers on the front seats. Contact your PEUGEOT dealer.

24-02-2003
YOUR 206 IN DETAIL109
In the "OFF" position, the passen-
ger air bag will not be triggered in the event of an impact. As soon as the child seat is remo- ved, turn the air bag slot to the "ON"
position to re-activate the air bagand thus ensure the safety of yourpassenger in the event of an impact. Operating check This is confirmed by an indicator light, accompanied by an audiblesignal and a message on the multi-
function display. With the ignition on (2nd notch), illu- mination of this warning light accom-panied by an audible signal and themessage "Passenger air bag
disarmed" on the multifunction dis-
play, indicates that the passenger airbag is disarmed (switch in the"OFF" position). SIDE AIR BAGS These are incorporated into the frame of the front seat back, on thedoor side. They are deployed independently of each other depending on which sidethe collision occurs, in collisionswhich could cause injury to thechest, the abdomen or the head.
Operating check
This is confirmed by a light on theinstrument panel. It comes on for 6 seconds, each time the ignition is switched on. If the indicator light:
Ð does not light up when the ignition is switched on, or
Ð does not go out after 6 seconds, or
Ð flashes for 5 minutes then stays on,
Contact a PEUGEOT dealer.

24-02-2003
YOUR 206 IN DETAIL
110
For the front and side air bags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position (passengers must not place their feet on the fascia).
¥ Ensure there is nothing between the occupants of the front seats and the air bags. This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered. For greater safety, have them checked by a PEUGEOT dealer within ten years following the initial purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Never remove or pierce the steering wheel or hit it violently.
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe. Side air bags
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air bag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
¥ Use only approved covers on the front seats. Contact your PEUGEOT dealer.

24-02-2003
PRACTICAL INFORMATION111

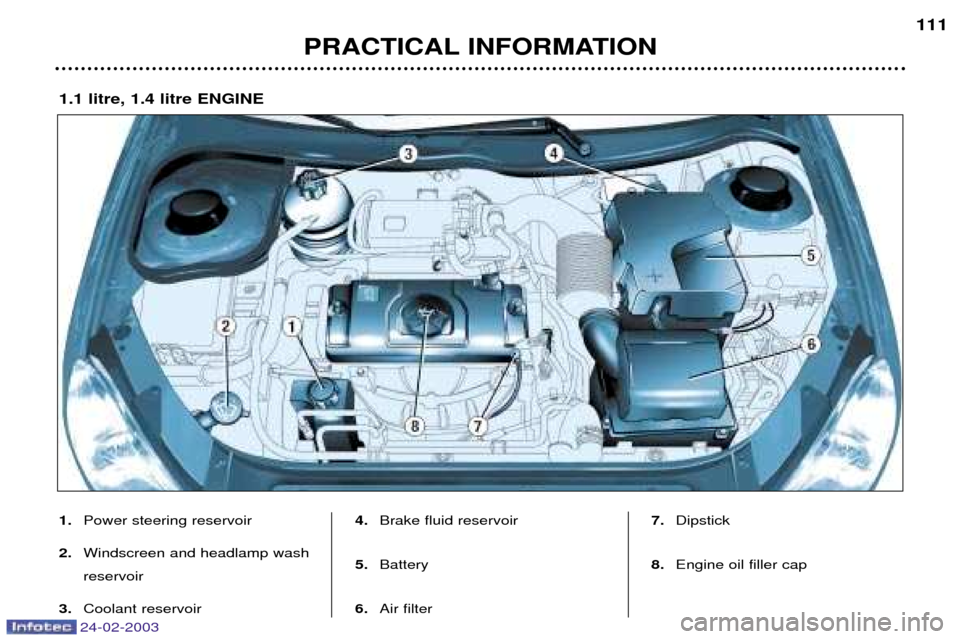

1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.1 litre, 1.4 litre ENGINE

24-02-2003
PRACTICAL INFORMATION
112

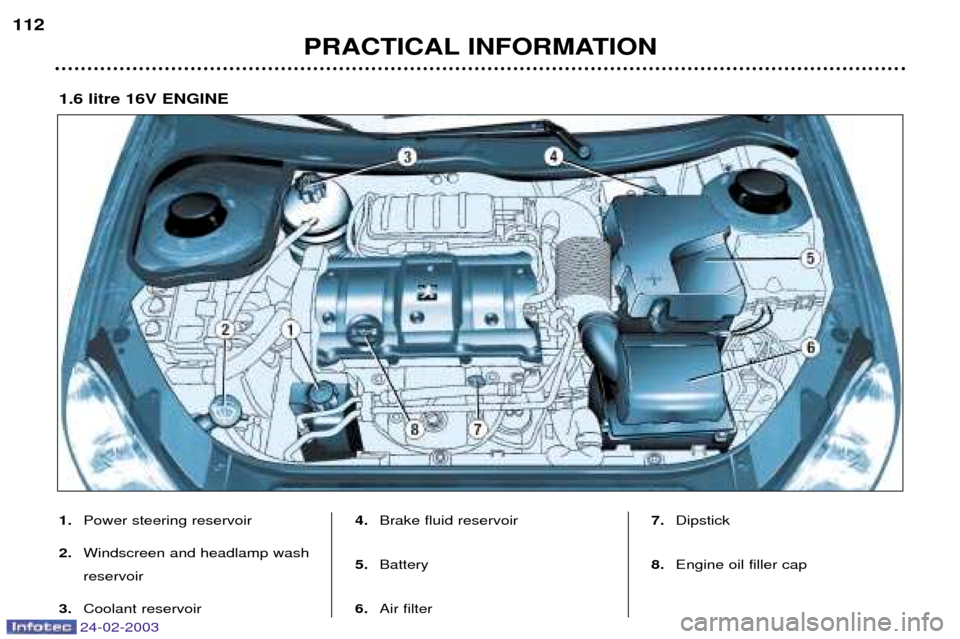

1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.6 litre 16V ENGINE

24-02-2003
PRACTICAL INFORMATION113

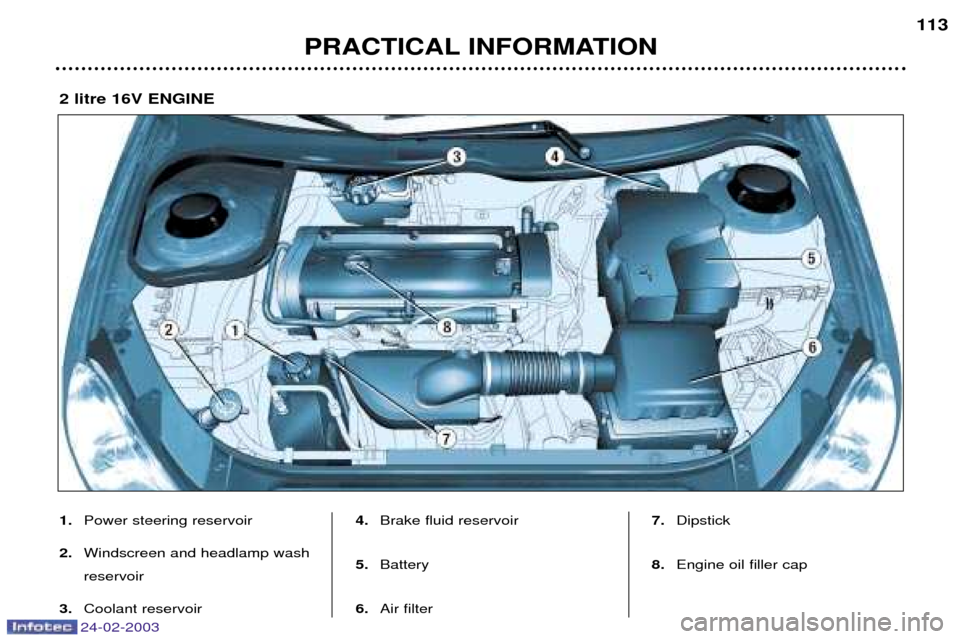

1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
2 litre 16V ENGINE

24-02-2003
PRACTICAL INFORMATION
114

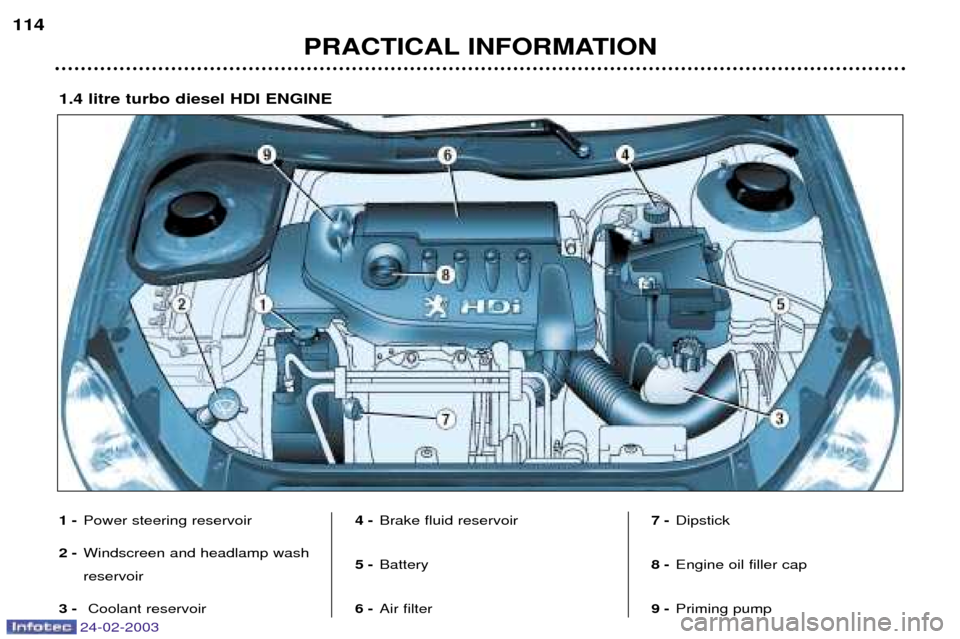

1-
Power steering reservoir
2- Windscreen and headlamp wash reservoir
3- Coolant reservoir 4-
Brake fluid reservoir
5- Battery
6- Air filter 7-
Dipstick
8- Engine oil filler cap
9- Priming pump
1.4 litre turbo diesel HDI ENGINE

24-02-2003
PRACTICAL INFORMATION115

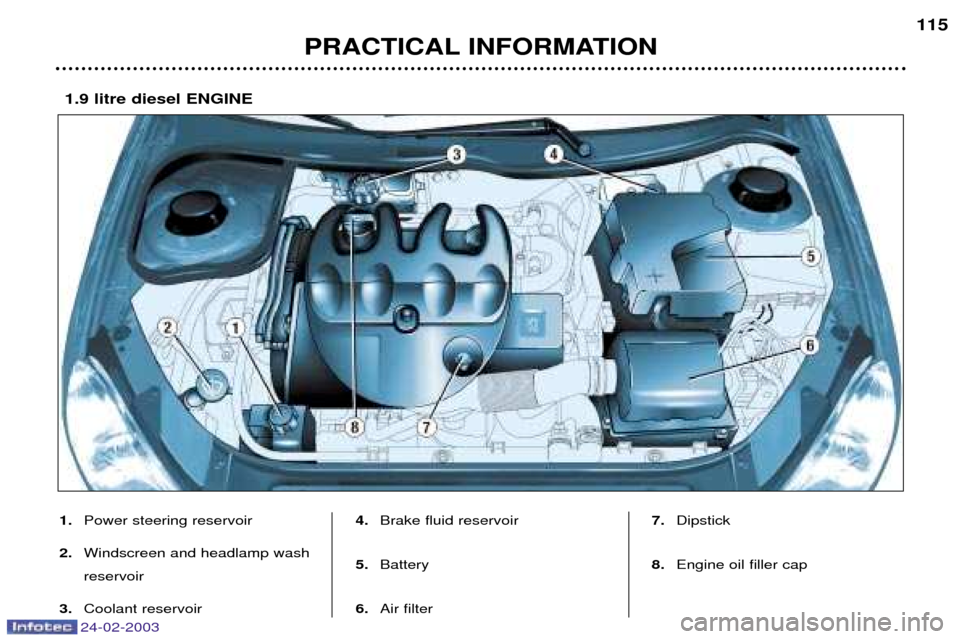

1.
Power steering reservoir
2. Windscreen and headlamp wash reservoir
3. Coolant reservoir 4.
Brake fluid reservoir
5. Battery
6. Air filter 7.
Dipstick
8. Engine oil filler cap
1.9 litre diesel ENGINE
