PEUGEOT 207 2011 Owners Manual

4
i
89
VISIBILITY

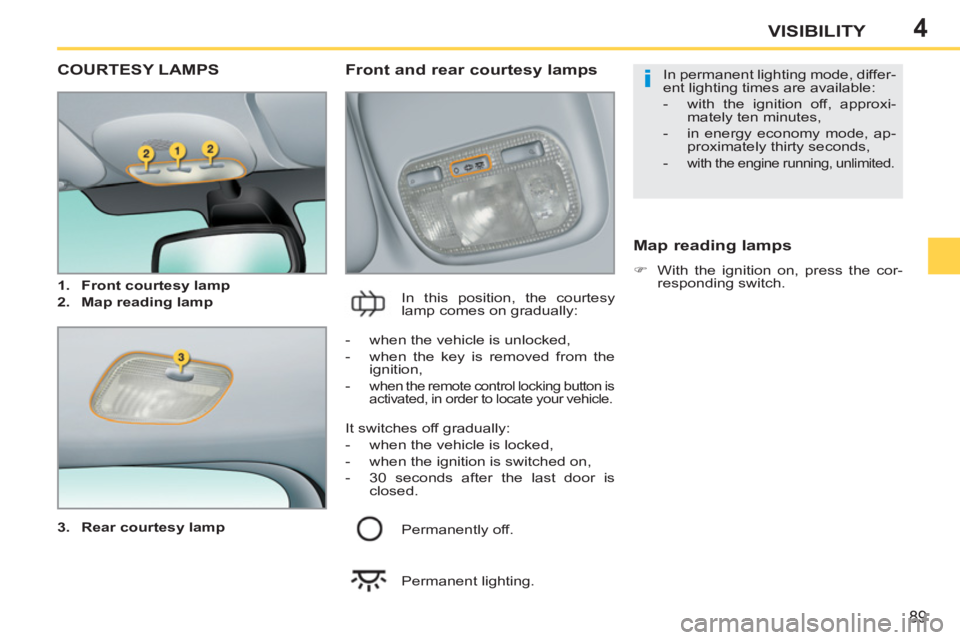

COURTESY LAMPS

3.
Rear courtesy lamp




Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:

Map reading lamps



)
With the ignition on, press the cor-
responding switch.
In permanent lighting mode, differ-
ent lighting times are available:


- with the ignition off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.




- when the vehicle is unlocked,

- when the key is removed from the
ignition,

-
when the remote control locking button is
activated, in order to locate your vehicle.

Permanently off.
Permanent lighting. It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

1.
Front courtesy lamp


2.
Map reading lamp

5
i
CHILD SAFETY
90

PEUGEOT recommends
that
children should travel in the rear
seats
of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the
age of 2.

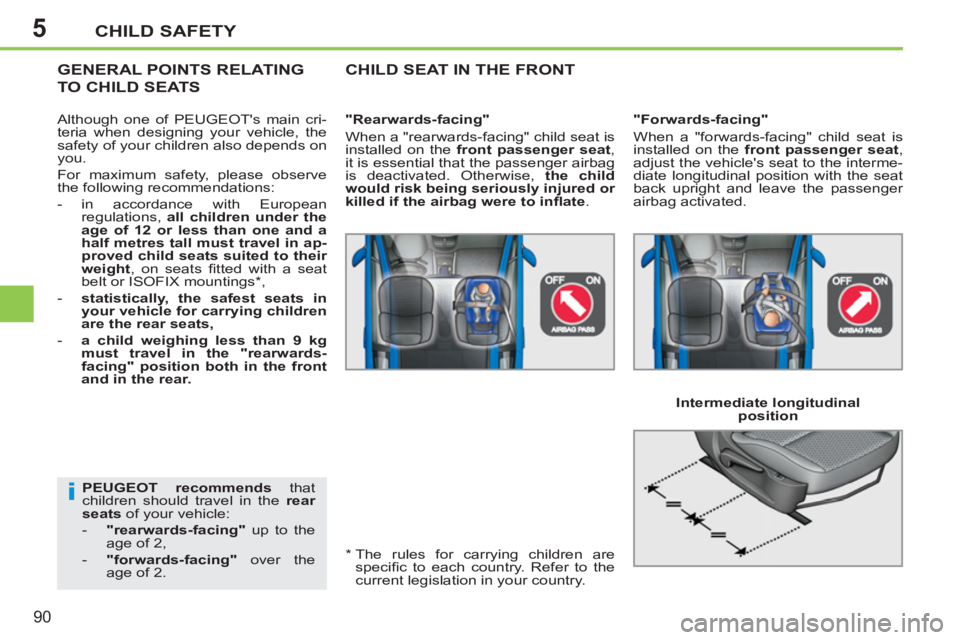

GENERAL POINTS RELATING
TO CHILD SEATS
CHILD SEAT IN THE FRONT


"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European
regulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.



Intermediate longitudinal
position

"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.

5
!
CHILD SAFETY
91

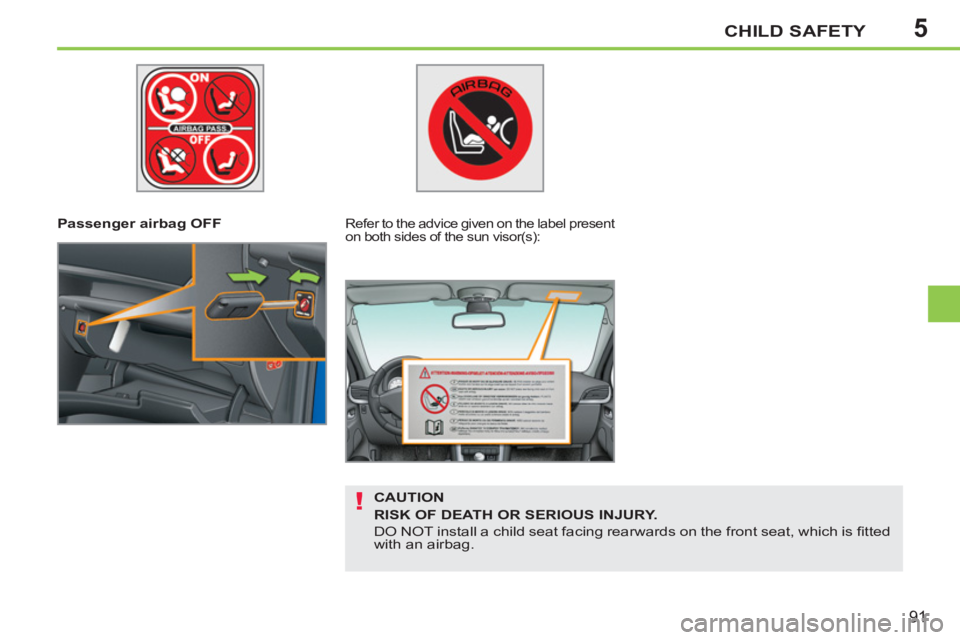

Passenger airbag OFF

Refer to the advice given on the label present
on both sides of the sun visor(s):


CAUTION

RISK OF DEATH OR SERIOUS INJURY.

DO NOT install a child seat facing rearwards on the front seat, which is fi tted
with an airbag.

5CHILD SAFETY
92

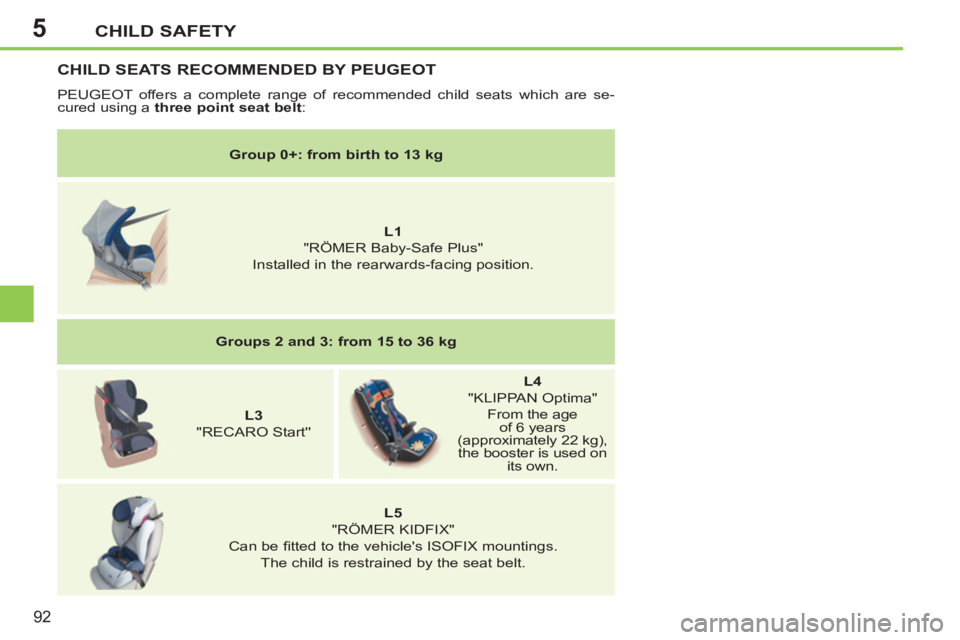

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg









L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster is used on
its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

5CHILD SAFETY
93

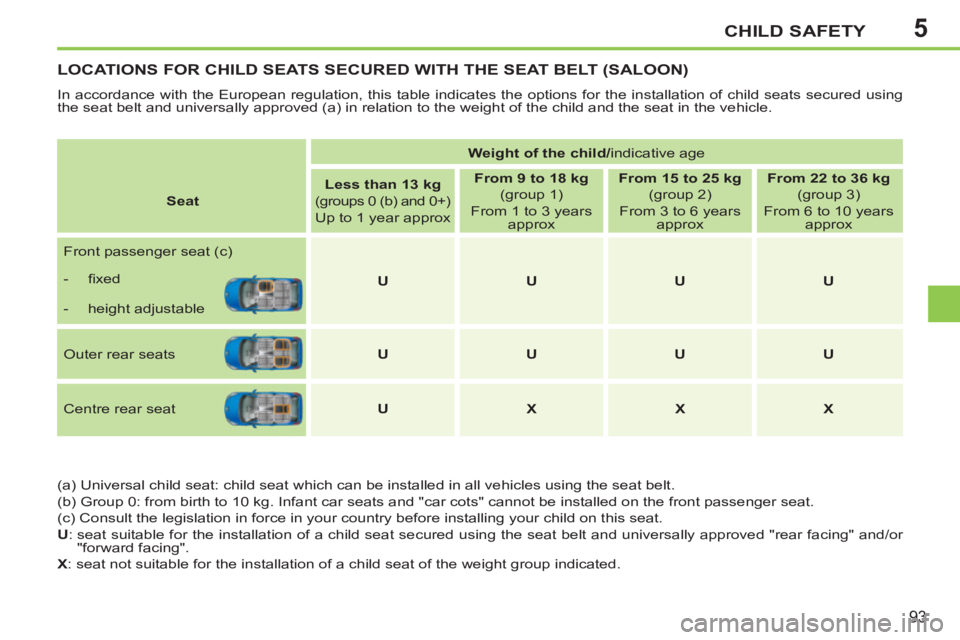

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

X
: seat not suitable for the installation of a child seat of the weight group indicated.

Weight of the child/
indicative age

Seat


Less than 13 kg


(groups 0 (b) and 0+)

Up to 1 year approx

From 9 to 18 kg


(group 1)
From 1 to 3 years
approx

From 15 to 25 kg


(group 2)
From 3 to 6 years
approx

From 22 to 36 kg


(group 3)
From 6 to 10 years
approx
Front passenger seat (c)


U



U



U



U



- fi xed


- height adjustable
Outer rear seats

U



U



U



U


Centre rear seat

U



X



X



X

5CHILD SAFETY
94

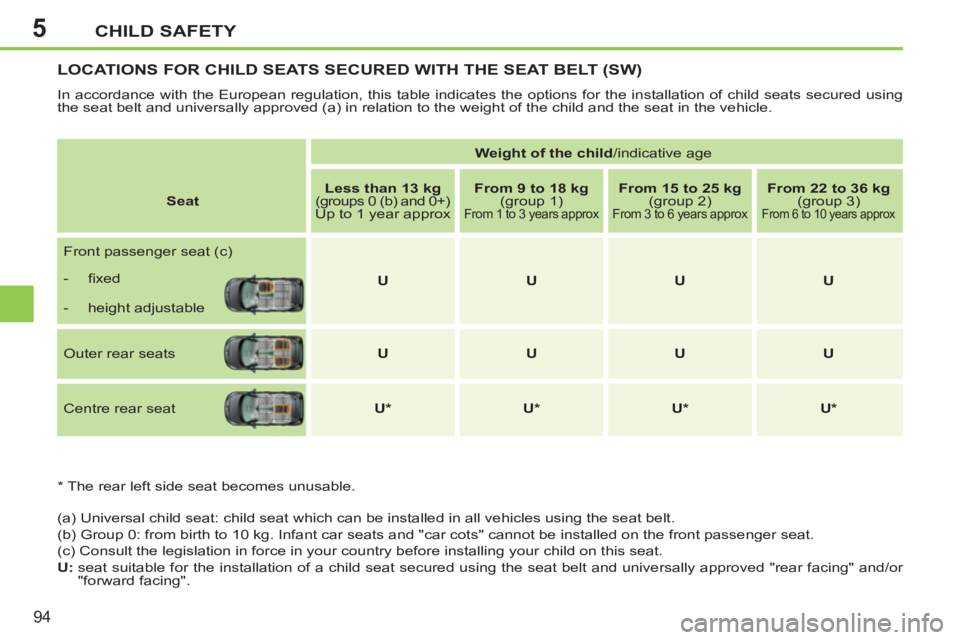

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT (SW)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".

Weight of the child
/indicative age


Seat



Less than 13 kg

(groups 0 (b) and 0+)
Up to 1 year approx

From 9 to 18 kg

(group 1)
From 1 to 3 years approx



From 15 to 25 kg

(group 2)
From 3 to 6 years approx



From 22 to 36 kg

(group 3)
From 6 to 10 years approx

Front passenger seat (c)


U



U



U



U



- fi xed


- height adjustable
Outer rear seats

U



U



U



U


Centre rear seat

U *



U *



U *



U *



*
The rear left side seat becomes unusable.

5
!
CHILD SAFETY
95

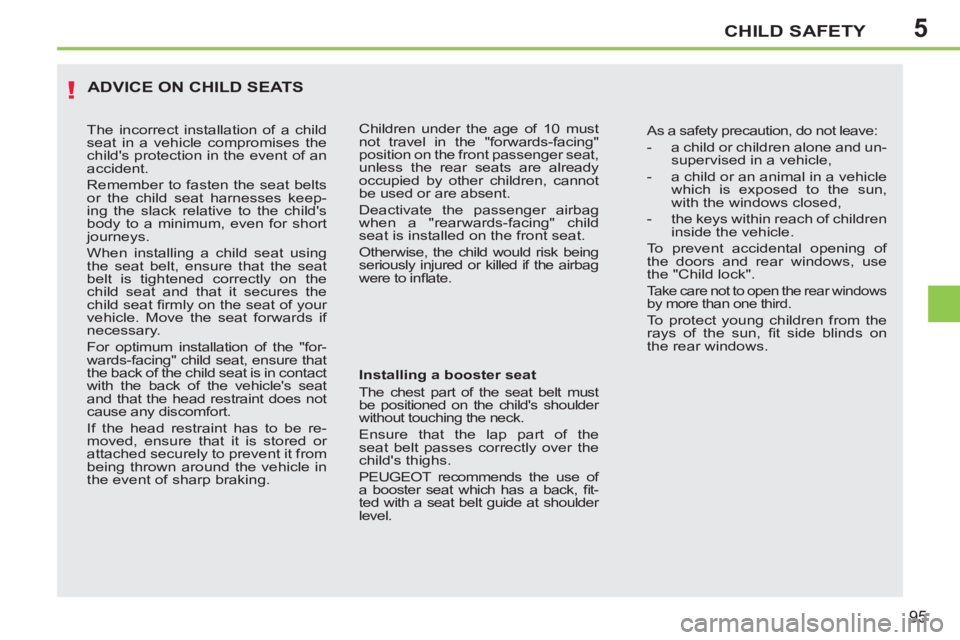

ADVICE ON CHILD SEATS


Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the
seat belt passes correctly over the
child's thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keep-
ing the slack relative to the child's
body to a minimum, even for short
journeys.
When installing a child seat using
the seat belt, ensure that the seat
belt is tightened correctly on the
child seat and that it secures the
child seat fi rmly on the seat of your
vehicle. Move the seat forwards if
necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. As a safety precaution, do not leave:


- a child or children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun,
with the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear windows
by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on
the rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already
occupied by other children, cannot
be used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child
seat is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

5
!
i
CHILD SAFETY
96
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table giving
the locations for the installation of
ISOFIX child seats.

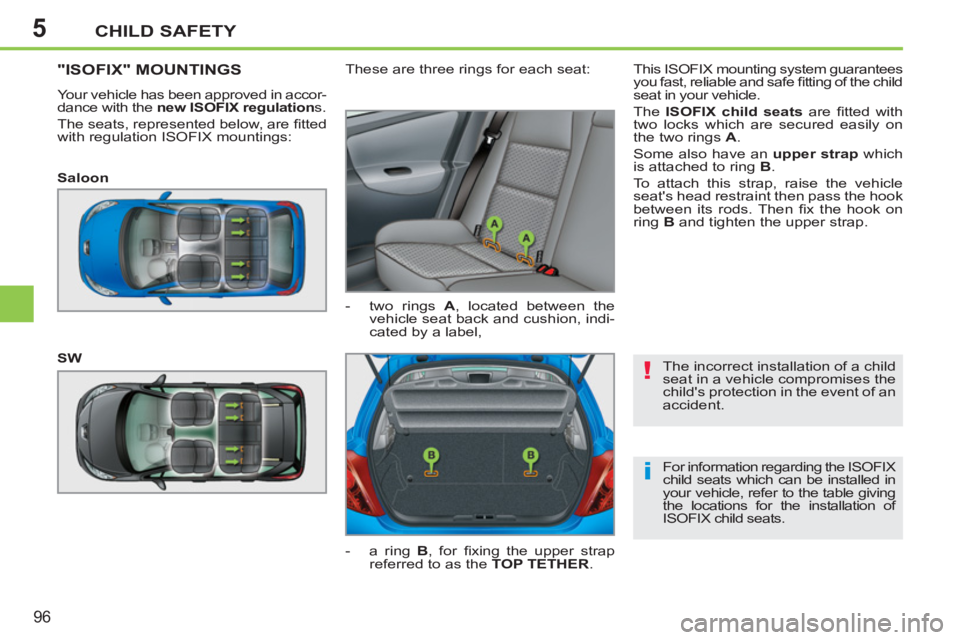

"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation
s.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: These are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, for fi xing the upper strap
referred to as the TOP TETHER
. This ISOFIX mounting system guarantees
you fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two locks which are secured easily on
the two rings A
.
Some also have an upper strap
which
is attached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.
Saloon


SW

5
i
CHILD SAFETY

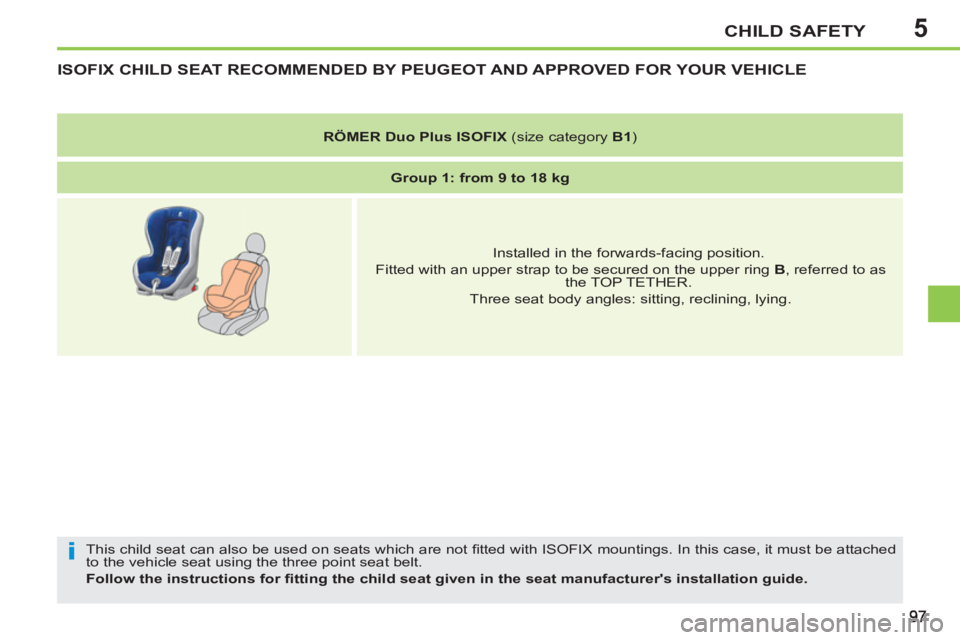

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
This child seat can also be used on seats which are not fi tted with ISOFIX mountings. In this case, it must be attached
to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.


RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg








Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
, referred to as
the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

5CHILD SAFETY
98

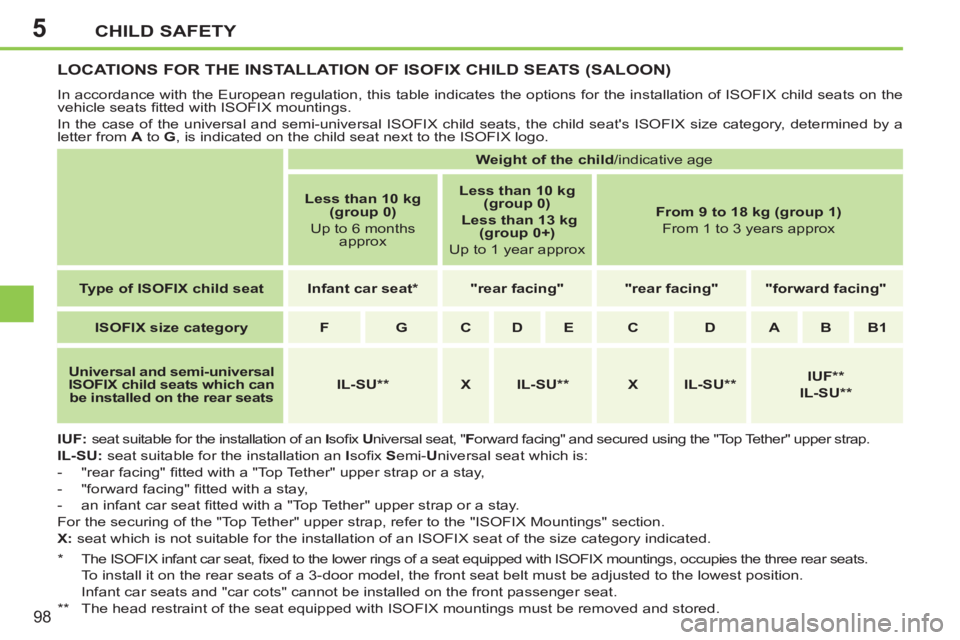

LOCATIONS FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)

In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
vehicle seats fi tted with ISOFIX mountings.
In the case of the universal and semi-universal ISOFIX child seats, the child seat's ISOFIX size category, determined by a
letter from A
to G
, is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" and secured using the "Top Tether" upper strap.

IL-SU:
seat suitable for the installation an I
sofi x S
emi- U
niversal seat which is:


- "rear facing" fi tted with a "Top Tether" upper strap or a stay,

- "forward facing" fi tted with a stay,

- an infant car seat fi tted with a "Top Tether" upper strap or a stay.
For the securing of the "Top Tether" upper strap, refer to the "ISOFIX Mountings" section.

X:
seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.






Weight of the child
/indicative age





Less than 10 kg
(group 0)

Up to 6 months
approx

Less than 10 kg
(group 0)

Less than 13 kg
(group 0+)

Up to 1 year approx

From 9 to 18 kg (group 1)

From 1 to 3 years approx


Type of ISOFIX child seat



Infant car seat *



"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1




Universal and semi-universal
ISOFIX child seats which can
be installed on the rear seats


IL-SU **



X



IL-SU **



X



IL-SU **



IUF **
IL-SU **



*
The ISOFIX infant car seat, fi xed to the lower rings of a seat equipped with ISOFIX mountings, occupies the three rear seats.
To install it on the rear seats of a 3-door model, the front seat belt must be adjusted to the lowest position.
Infant car seats and "car cots" cannot be installed on the front passenger seat.

**
The head restraint of the seat equipped with ISOFIX mountings must be removed and stored.
