Page 71 of 248
3
i
ACCESS
69

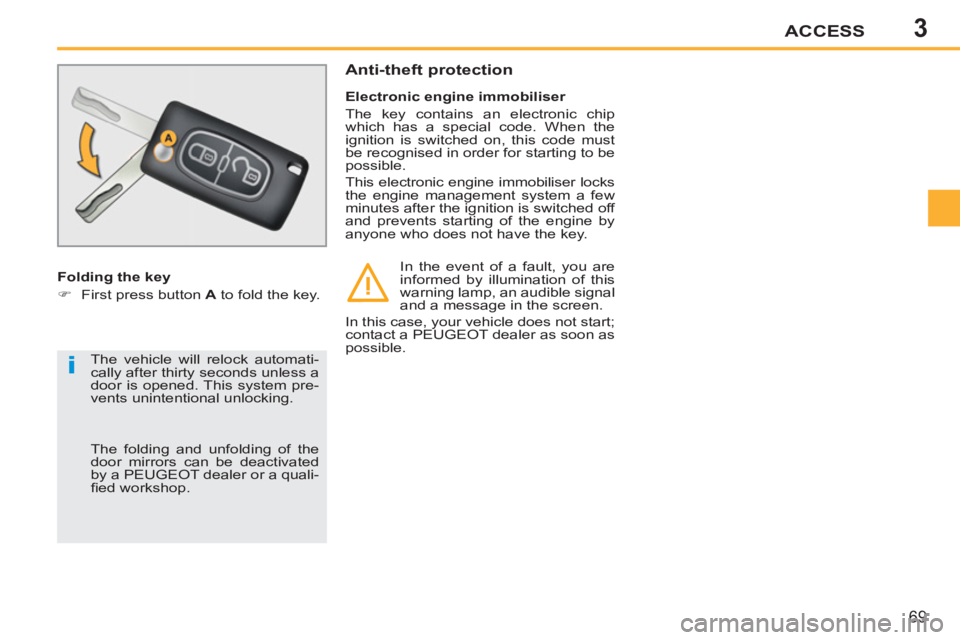

Folding the key
)
First press button A
to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
door mirrors can be deactivated
by a PEUGEOT dealer or a quali-
fi ed workshop.

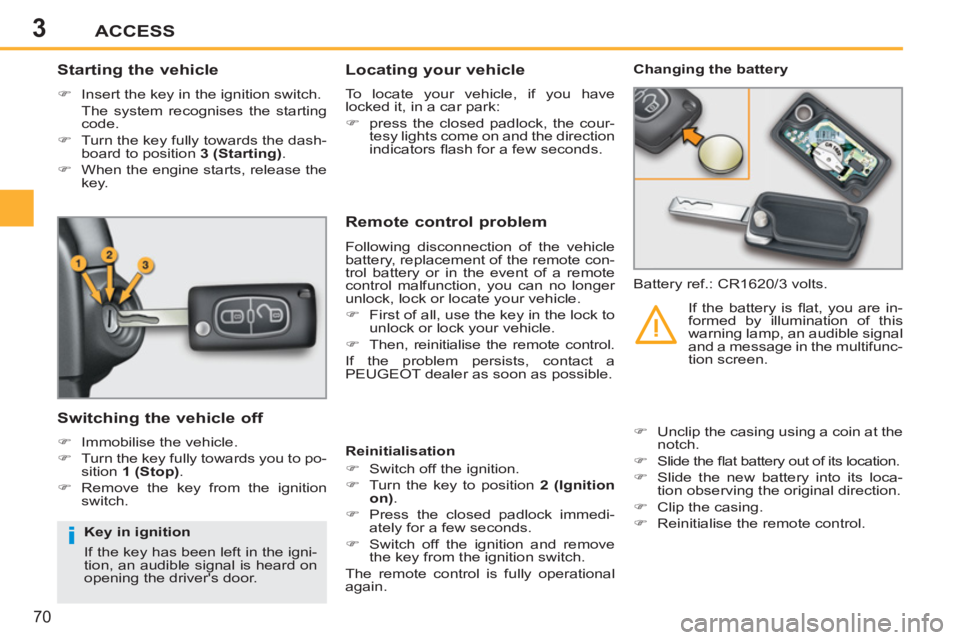

Page 72 of 248
3
i
ACCESS
70
Starting the vehicle
)
Insert the key in the ignition switch.
The system recognises the starting
code.
)
Turn the key fully towards the dash-
board to position 3 (Starting)
.
)
When the engine starts, release the
key.
Switching the vehicle off
)
Immobilise the vehicle.
)
Turn the key fully towards you to po-
sition 1 (Stop)
.
)
Remove the key from the ignition
switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
)
First of all, use the key in the lock to
unlock or lock your vehicle.
)
Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
)
Switch off the ignition.
)
Turn the key to position 2 (Ignition
on)
.
)
Press the closed padlock immedi-
ately for a few seconds.
)
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
)
Unclip the casing using a coin at the
notch.
)
Slide the fl at battery out of its location.
)
Slide the new battery into its loca-
tion observing the original direction.
)
Clip the casing.
)
Reinitialise the remote control.
If the battery is fl at, you are in-
formed by illumination of this
warning lamp, an audible signal
and a message in the multifunc-
tion screen.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
)
press the closed padlock, the cour-
tesy lights come on and the direction
indicators fl ash for a few seconds.
Key in ignition
If the key has been left in the igni-
tion, an audible signal is heard on
opening the driver's door.
Page 73 of 248
3
!
ACCESS
71

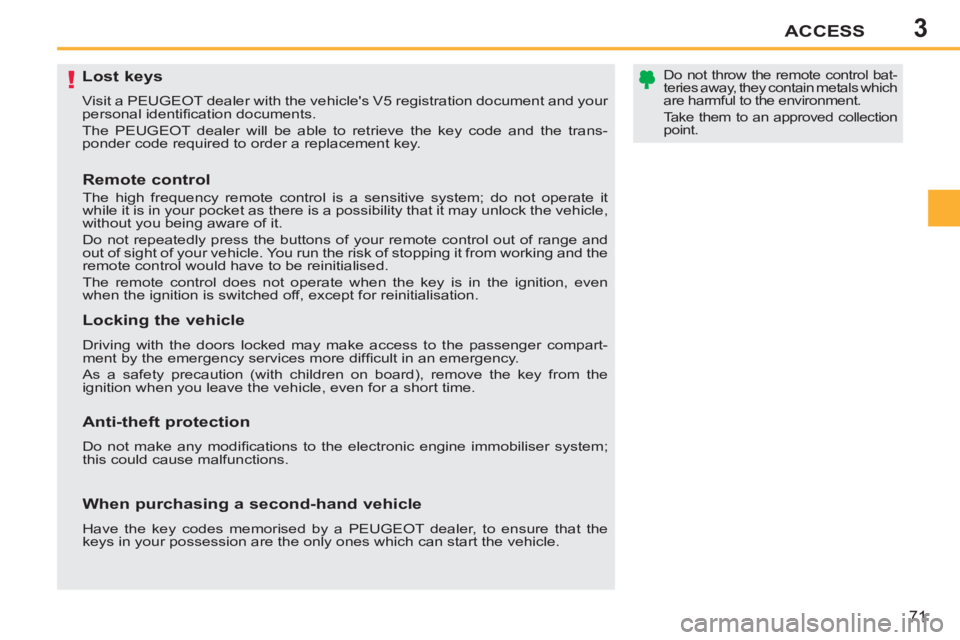

Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration document and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the key code and the trans-
ponder code required to order a replacement key.
Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate it
while it is in your pocket as there is a possibility that it may unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle.
Page 74 of 248
3
i
i
i
ACCESS
72

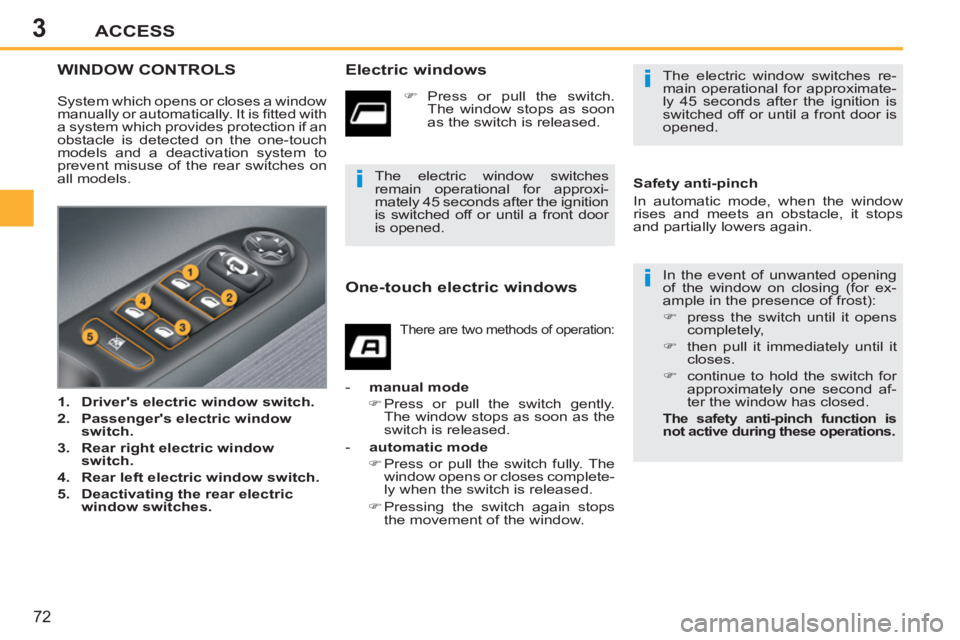

WINDOW CONTROLS
Electric windows
In the event of unwanted opening
of the window on closing (for ex-
ample in the presence of frost):
)
press the switch until it opens
completely,
)
then pull it immediately until it
closes.
)
continue to hold the switch for
approximately one second af-
ter the window has closed.
The safety anti-pinch function is
not active during these operations.
One-touch electric windows
There are two methods of operation:
- manual mode
)
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
)
Press or pull the switch fully. The
window opens or closes complete-
ly when the switch is released.
)
Pressing the switch again stops
the movement of the window.
)
Press or pull the switch.
The window stops as soon
as the switch is released.
The electric window switches
remain operational for approxi-
mately 45 seconds after the ignition
is switched off or until a front door
is opened. System which opens or closes a window
manually or automatically. It is fi tted with
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1.
Driver's electric window switch.
2.
Passenger's electric window
switch.
3.
Rear right electric window
switch.
4.
Rear left electric window switch.
5.
Deactivating the rear electric
window switches.
The electric window switches re-
main operational for approximate-
ly 45 seconds after the ignition is
switched off or until a front door is
opened.
Safety anti-pinch
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.
Page 75 of 248
3
!
73

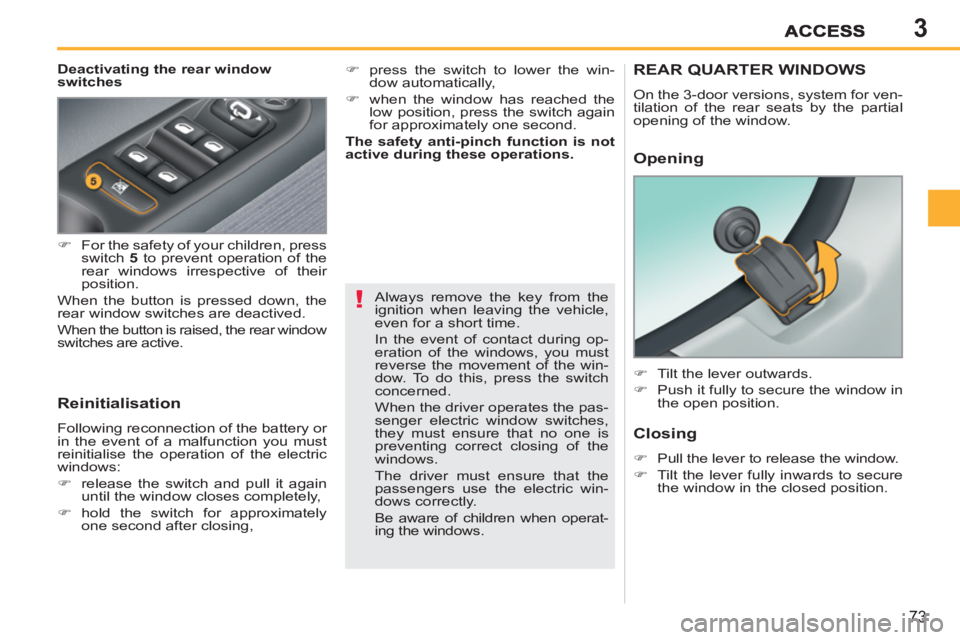

Deactivating the rear window
switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
)
release the switch and pull it again
until the window closes completely,
)
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats by the partial
opening of the window.
Opening
)
For the safety of your children, press
switch 5
to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, the
rear window switches are deactived.
When the button is raised, the rear window
switches are active.
Closing
)
Pull the lever to release the window.
)
Tilt the lever fully inwards to secure
the window in the closed position.
)
Tilt the lever outwards.
)
Push it fully to secure the window in
the open position.
)
press the switch to lower the win-
dow automatically,
)
when the window has reached the
low position, press the switch again
for approximately one second.
The safety anti-pinch function is not
active during these operations.
Page 76 of 248
3ACCESS
74

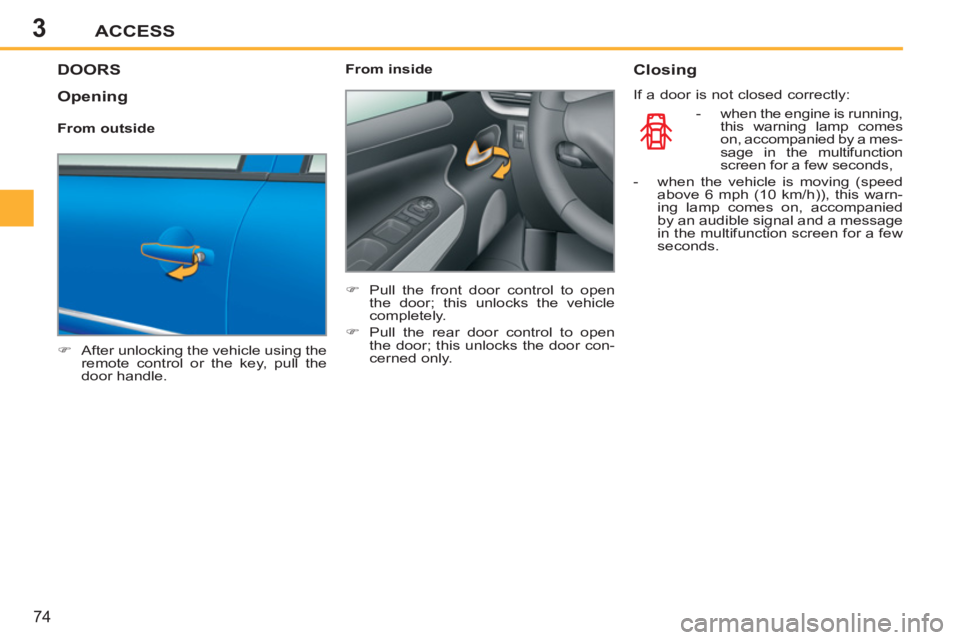

DOORS
)
After unlocking the vehicle using the
remote control or the key, pull the
door handle.
From inside
)
Pull the front door control to open
the door; this unlocks the vehicle
completely.
)
Pull the rear door control to open
the door; this unlocks the door con-
cerned only.
Closing
If a door is not closed correctly:
- when the engine is running,
this warning lamp comes
on, accompanied by a mes-
sage in the multifunction
screen for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
in the multifunction screen for a few
seconds.
Opening
From outside
Page 77 of 248
3
!i
i
ACCESS
75
If one of the doors or the boot is
open, the automatic central lock-
ing does not take place.

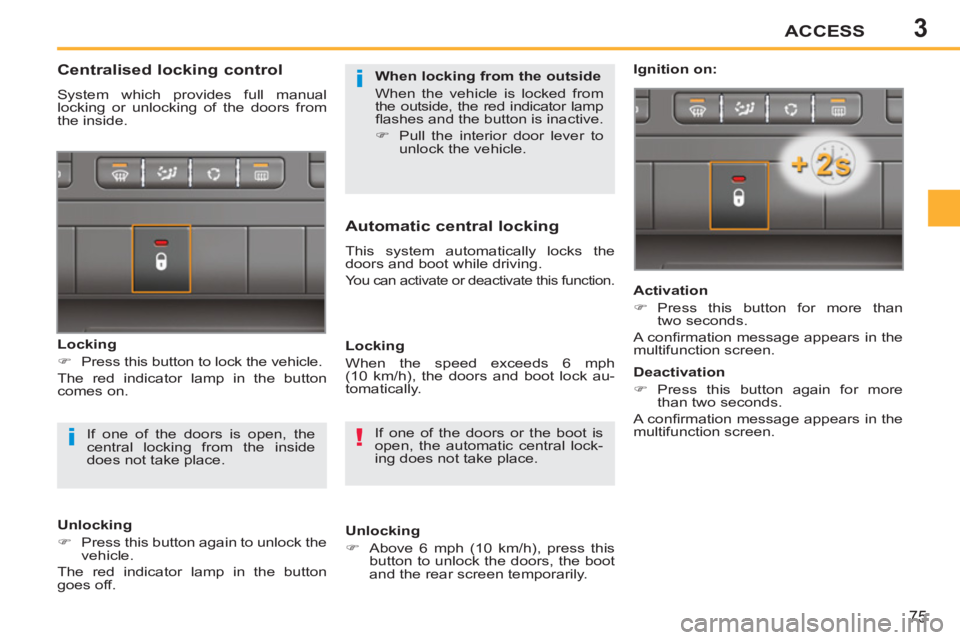

Centralised locking control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
)
Press this button to lock the vehicle.
The red indicator lamp in the button
comes on.
Automatic central locking
This system automatically locks the
doors and boot while driving.
You can activate or deactivate this function.
Ignition on:
Activation
)
Press this button for more than
two seconds.
A confi rmation message appears in the
multifunction screen.
Unlocking
)
Above 6 mph (10 km/h), press this
button to unlock the doors, the boot
and the rear screen temporarily.
If one of the doors is open, the
central locking from the inside
does not take place.
Unlocking
)
Press this button again to unlock the
vehicle.
The red indicator lamp in the button
goes off.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.
Deactivation
)
Press this button again for more
than two seconds.
A confi rmation message appears in the
multifunction screen.
When locking from the outside
When the vehicle is locked from
the outside, the red indicator lamp
fl ashes and the button is inactive.
)
Pull the interior door lever to
unlock the vehicle.
Page 78 of 248

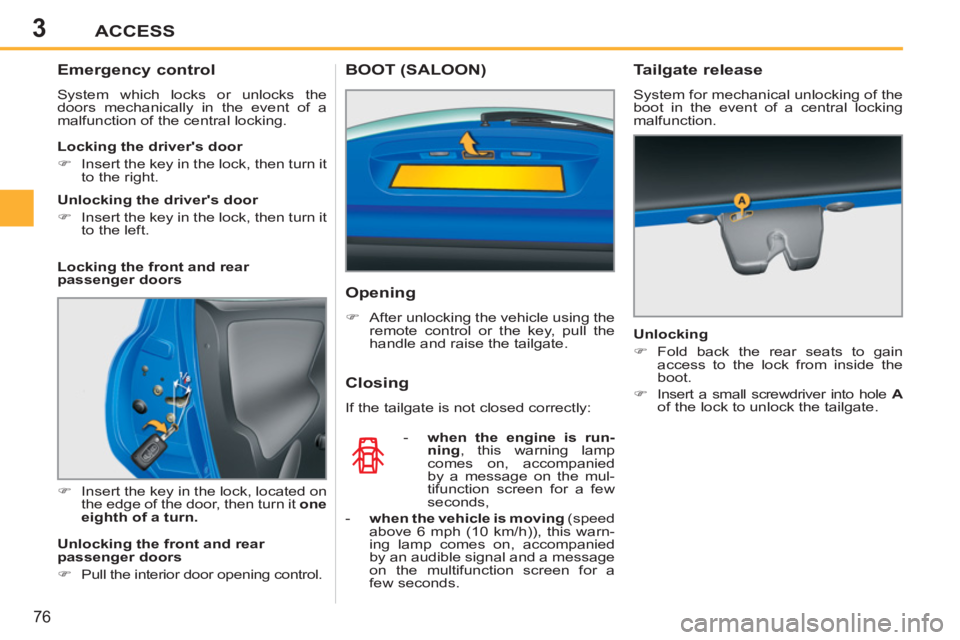

3ACCESS
76
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the central locking.
)
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn.
Locking the driver's door
)
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
)
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
- when the engine is run-
ning
, this warning lamp
comes on, accompanied
by a message on the mul-
tifunction screen for a few
seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
)
Fold back the rear seats to gain
access to the lock from inside the
boot.
)
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Opening
)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT (SALOON)
Closing
If the tailgate is not closed correctly:
Page 79 of 248
3ACCESS
77
Opening
)
After unlocking the vehicle using the
remote control or the key, pull on the
handle A
and raise the tailgate.
-
when the engine is running
,
this warning lamp comes on,
accompanied by a message in
the multifunction screen for a
few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an au-
dible signal and a message in the multi-
function screen for a few seconds.
Closing
)
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
BOOT (SW)
Page 80 of 248
3
!
ACCESS
78

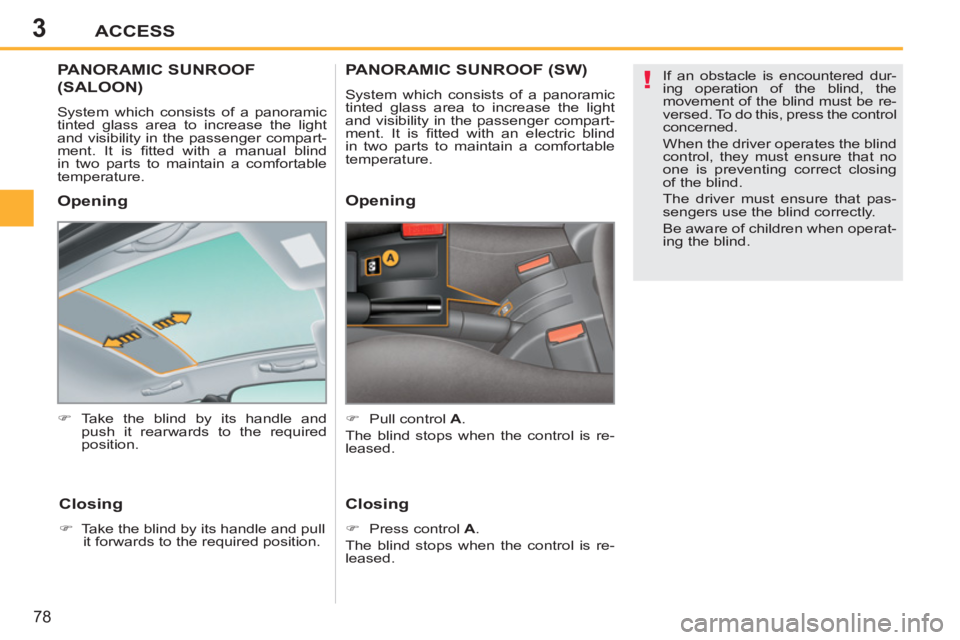

PANORAMIC SUNROOF
(SALOON)
System which consists of a panoramic
tinted glass area to increase the light
and visibility in the passenger compart-
ment. It is fi tted with a manual blind
in two parts to maintain a comfortable
temperature.
)
Take the blind by its handle and
push it rearwards to the required
position.
Opening
Closing
)
Take the blind by its handle and pull
it forwards to the required position.
If an obstacle is encountered dur-
ing operation of the blind, the
movement of the blind must be re-
versed. To do this, press the control
concerned.
When the driver operates the blind
control, they must ensure that no
one is preventing correct closing
of the blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operat-
ing the blind.
PANORAMIC SUNROOF (SW)
System which consists of a panoramic
tinted glass area to increase the light
and visibility in the passenger compart-
ment. It is fi tted with an electric blind
in two parts to maintain a comfortable
temperature.
Opening
)
Pull control A
.
The blind stops when the control is re-
leased.
Closing
)
Press control A
.
The blind stops when the control is re-
leased.
