The key cannot be removed from

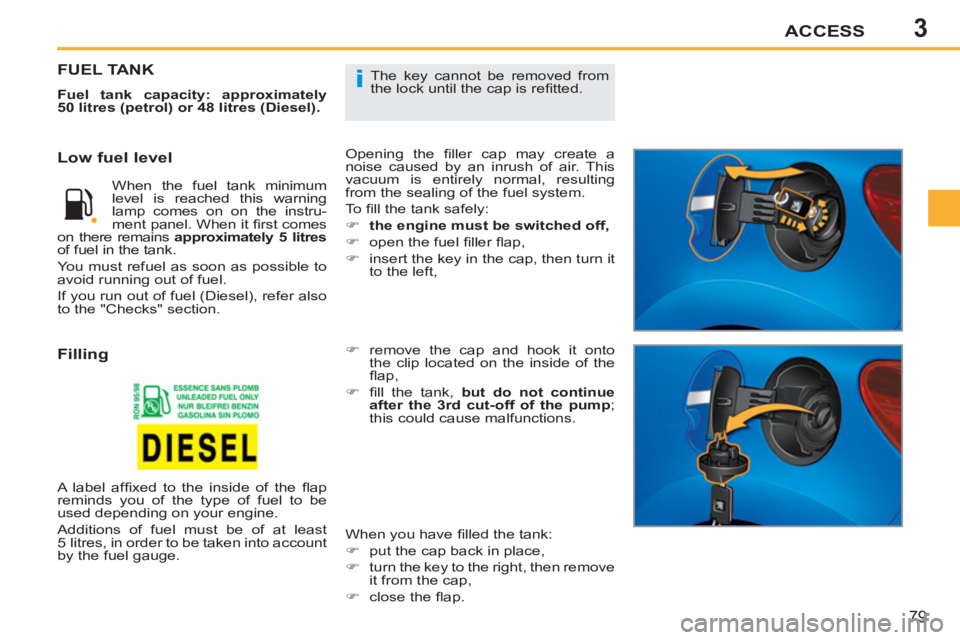

the lock until the cap is refi tted. FUEL TANK
Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Opening the fi ller cap may create a
noise caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system.
To fi ll the tank safely:
)
the engine must be switched off,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
When you have fi lled the tank:
)
put the cap back in place,
)
turn the key to the right, then remove
it from the cap,
)
close the fl ap.
)
remove the cap and hook it onto
the clip located on the inside of the
fl ap,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the pump
;
this could cause malfunctions.
Low fuel level
Filling
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximately 5 litres
of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.
Page 82 of 248
3
DIESEL
ACCESS
80

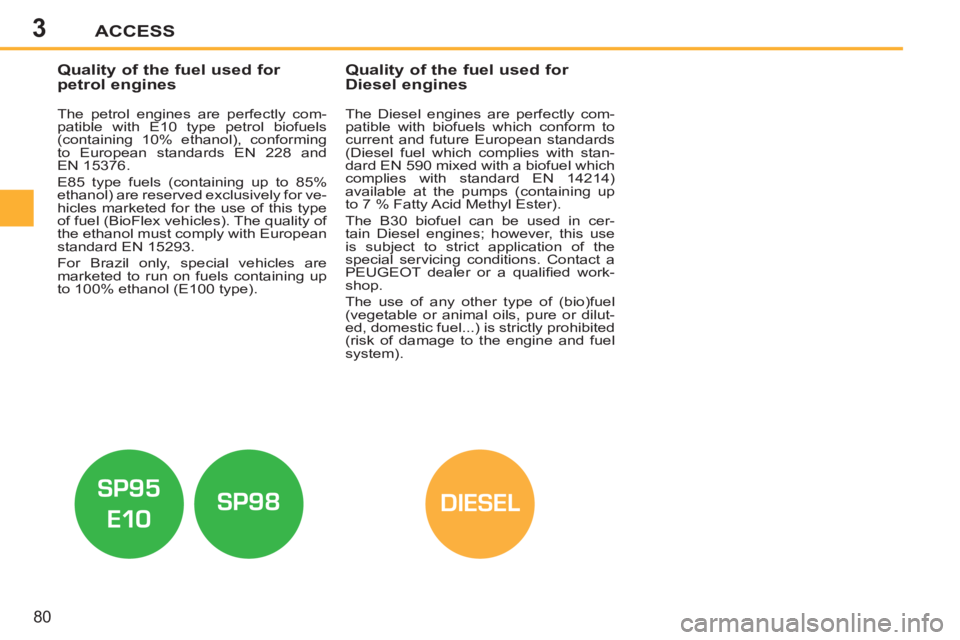

Quality of the fuel used for
petrol engines
Quality of the fuel used for
Diesel engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10% ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85%
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100% ethanol (E100 type).
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Contact a
PEUGEOT dealer or a qualifi ed work-
shop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Page 83 of 248
3
ii
ACCESS
81
MISFUEL PREVENTION *
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
It is still possible to use a fuel can
to fi ll the reservoir.
In order to ensure a good fl ow of fuel,
do not place the nozzle of the fuel
can in direct contact with the fl ap of
the misfuel prevention device.
Travelling abroad
As Diesel fuel pump nozzles may be
different in other countries, the pres-
ence of the misfuel prevention device
may make refuelling impossible.
Before travelling abroad, we rec-
ommend that you check with the
PEUGEOT dealer network, whether
your vehicle is suitable for the fuel
pumps in the country in which you
want to travel.
*
According to destination country.
Page 84 of 248
4
82
VISIBILITY

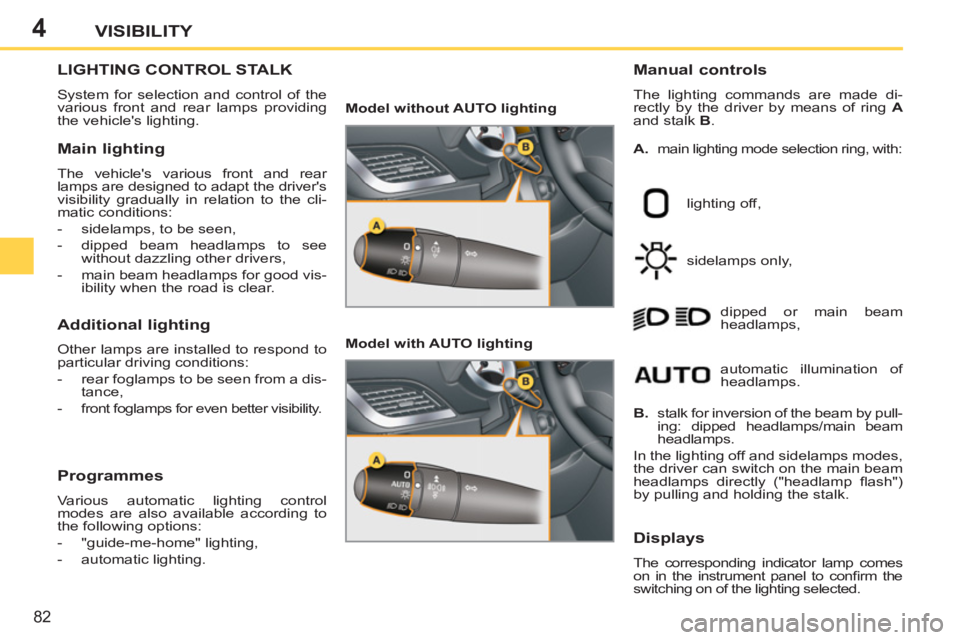

LIGHTING CONTROL STALK
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Manual controls
The lighting commands are made di-
rectly by the driver by means of ring A
and stalk B
.
lighting off,
sidelamps only,
dipped or main beam
headlamps,
B.
stalk for inversion of the beam by pull-
ing: dipped headlamps/main beam
headlamps.
In the lighting off and sidelamps modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
by pulling and holding the stalk.
Displays
The corresponding indicator lamp comes
on in the instrument panel to confi rm the
switching on of the lighting selected.
Main lighting
The vehicle's various front and rear
lamps are designed to adapt the driver's
visibility gradually in relation to the cli-
matic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps for good vis-
ibility when the road is clear.
Additional lighting
Other lamps are installed to respond to
particular driving conditions:
- rear foglamps to be seen from a dis-
tance,
- front foglamps for even better visibility.
Programmes
Various automatic lighting control
modes are also available according to
the following options:
- "guide-me-home" lighting,
- automatic lighting.
A.
main lighting mode selection ring, with:
Model without AUTO lighting
Model with AUTO lighting
automatic illumination of
headlamps.
Page 85 of 248
4
!
i
83
VISIBILITY

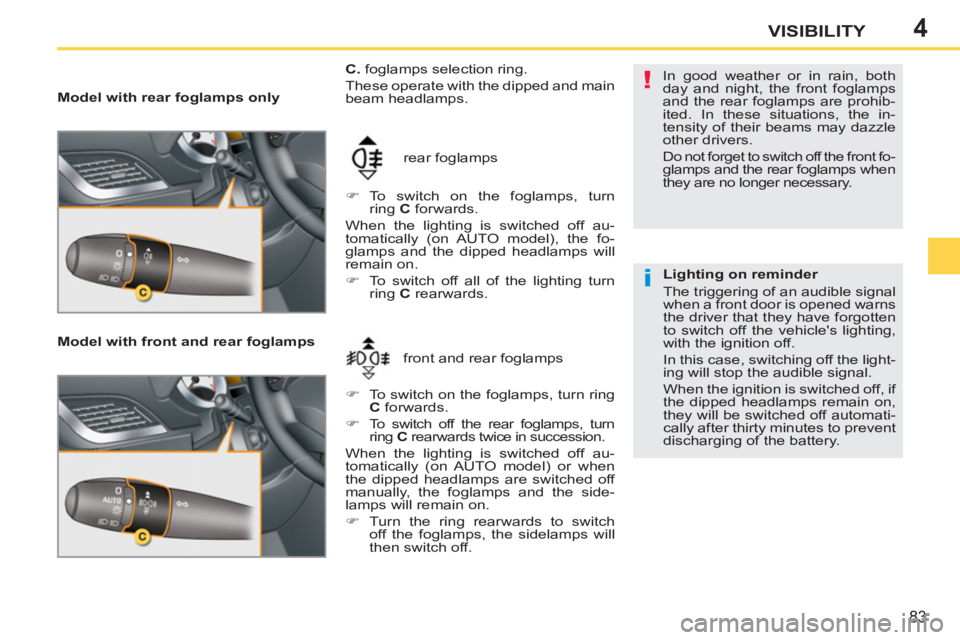

Model with rear foglamps only
Model with front and rear foglamps
front and rear foglamps rear foglamps
C.
foglamps selection ring.
These operate with the dipped and main
beam headlamps.
)
To switch on the foglamps, turn
ring C
forwards.
When the lighting is switched off au-
tomatically (on AUTO model), the fo-
glamps and the dipped headlamps will
remain on.
)
To switch off all of the lighting turn
ring C
rearwards.
)
To switch on the foglamps, turn ring
C
forwards.
)
To switch off the rear foglamps, turn
ring C
rearwards twice in succession.
When the lighting is switched off au-
tomatically (on AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and the side-
lamps will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off. In good weather or in rain, both
day and night, the front foglamps
and the rear foglamps are prohib-
ited. In these situations, the in-
tensity of their beams may dazzle
other drivers.
Do not forget to switch off the front fo-
glamps and the rear foglamps when
they are no longer necessary.
Lighting on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that they have forgotten
to switch off the vehicle's lighting,
with the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off, if
the dipped headlamps remain on,
they will be switched off automati-
cally after thirty minutes to prevent
discharging of the battery.
Page 86 of 248
4
!
84
VISIBILITY
In fog or snow, the sunshine sen-
sor may detect suffi cient light.
Therefore, the lighting will not
come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
- selection of the lighting duration to 15, 30
or 60 seconds in the vehicle parameters
in the multifunction screen confi guration
menu,
- automatic activation of "guide-me-home"
lighting when automatic illumination of
headlamps is in operation.
Automatic illumination
of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected (sensor behind the rear view
mirror) or when the windscreen wipers
are switched on.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lighting is
switched off automatically.
"Guide-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation
)
With the ignition off, activate a
"headlamp fl ash" using stalk B
.
)
A second "headlamp fl ash" switches
the function off again.
Switching off
The "guide-me-home" lighting is switched
off automatically following the door lock-
ing command, after a given time.
Activation
)
Turn ring A
to the " AUTO
" position. The
automatic illumination of headlamps
is accompanied by a message in the
multifunction screen.
Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

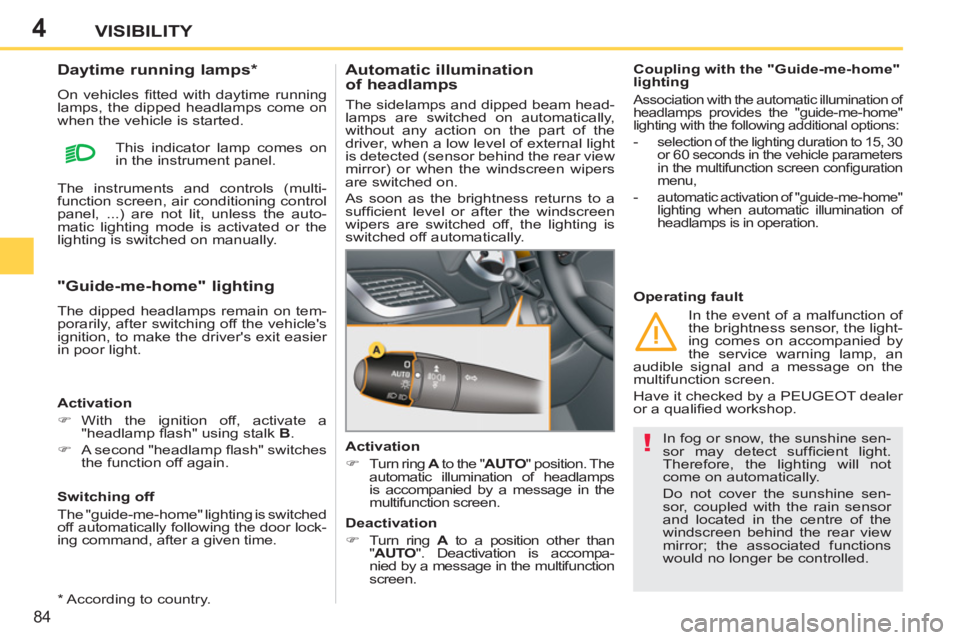

Daytime running lamps *
On vehicles fi tted with daytime running
lamps, the dipped headlamps come on
when the vehicle is started.
This indicator lamp comes on
in the instrument panel.
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, unless the auto-
matic lighting mode is activated or the
lighting is switched on manually.
Deactivation
)
Turn ring A
to a position other than
" AUTO
". Deactivation is accompa-
nied by a message in the multifunction
screen.
*
According to country.
Page 87 of 248
4
i
85
VISIBILITY

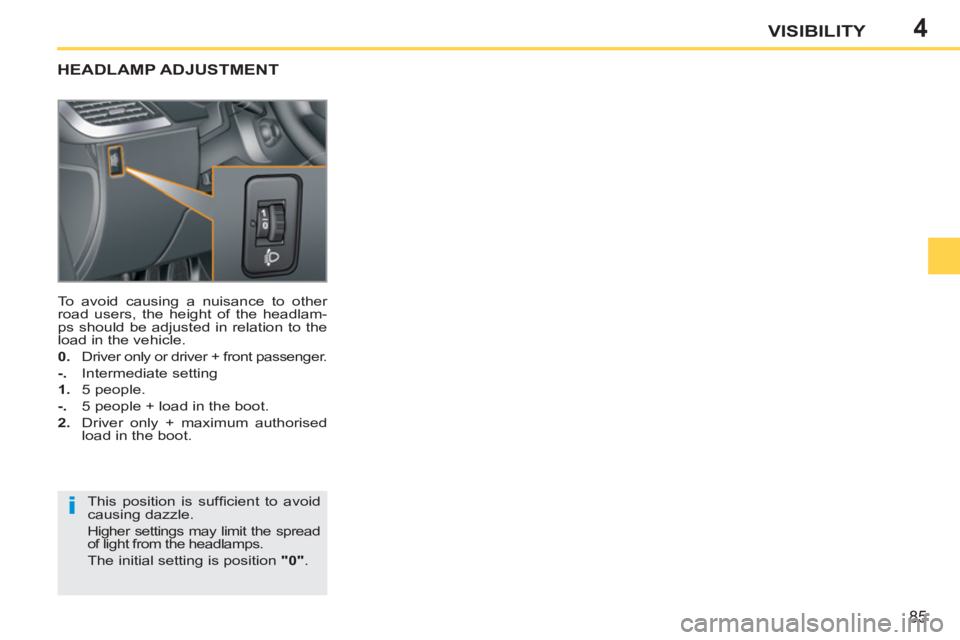

HEADLAMP ADJUSTMENT
This position is suffi cient to avoid
causing dazzle.
Higher settings may limit the spread
of light from the headlamps.
The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the headlam-
ps should be adjusted in relation to the
load in the vehicle.
0
.
Driver only or driver + front passenger.
-
. Intermediate setting
1.
5 people.
-
. 5 people + load in the boot.
2.
Driver only + maximum authorised
load in the boot.
Page 88 of 248
4
86
VISIBILITY
WIPER CONTROL STALK
System for the selection and control of
the various front and rear wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's various front and rear wipers
are designed to progressively improve the
driver's visibility according to the weather
conditions.
Manual controls
The wiping commands are made di-
rectly by the driver using stalk A
and its
ring B
.
Model with intermittent wiping
Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (in proportion to
the speed of the vehicle),
automatic (refer to a fol-
lowing page).
off,
single wipe (press down-
wards),
Programmes
Various automatic wiping control modes
are also available depending on the fol-
lowing options:
- automatic rain sensitive windscreen
wipers,
- rear wiping on engaging reverse
gear.
Windscreen wipers
A.
wiping speed selection control:
Page 89 of 248
4
!
i
87
VISIBILITY
Windscreen and headlamp
wash

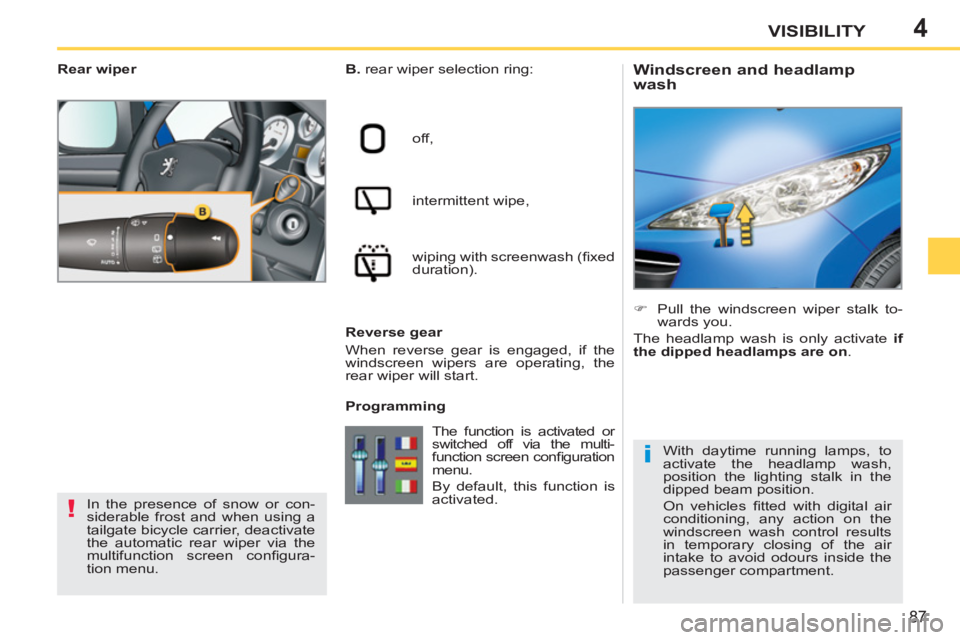

B.
rear wiper selection ring:
off,
intermittent wipe,
wiping with screenwash (fi xed
duration).
Reverse gear
When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.
Programming
)
Pull the windscreen wiper stalk to-
wards you.
The headlamp wash is only activate if
the dipped headlamps are on
.
Rear wiper
In the presence of snow or con-
siderable frost and when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
multifunction screen confi gura-
tion menu. The function is activated or
switched off via the multi-
function screen confi guration
menu.
By default, this function is
activated.
With daytime running lamps, to
activate the headlamp wash,
position the lighting stalk in the
dipped beam position.
On vehicles fi tted with digital air
conditioning, any action on the
windscreen wash control results
in temporary closing of the air
intake to avoid odours inside the
passenger compartment.
Page 90 of 248
4
!
i
88
VISIBILITY
Special position of the windscreen
wipers

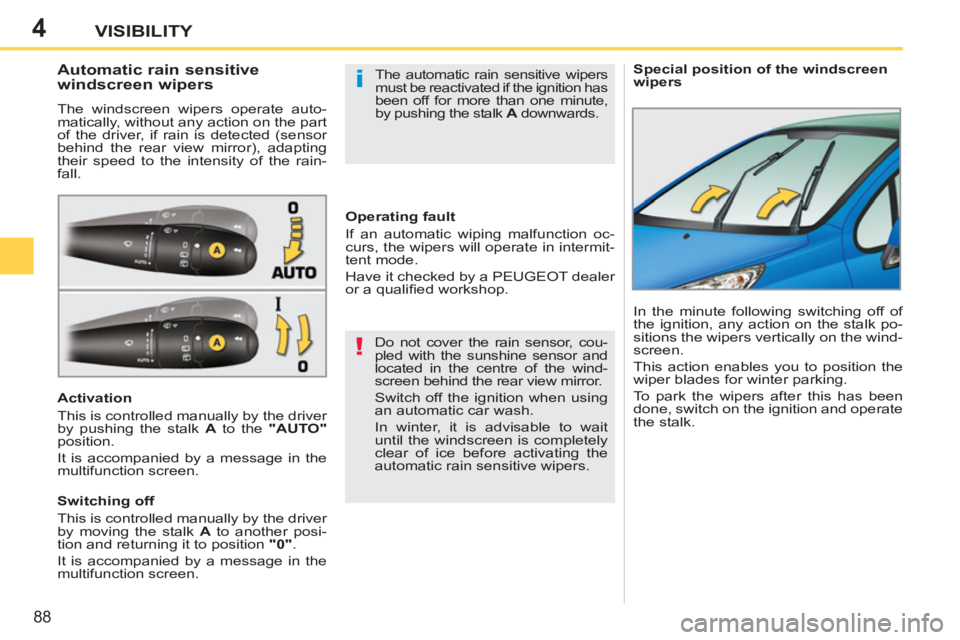

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the rear view mirror), adapting
their speed to the intensity of the rain-
fall.
Activation
This is controlled manually by the driver
by pushing the stalk A
to the "AUTO"
position.
It is accompanied by a message in the
multifunction screen. In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers a
fter this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, cou-
pled with the sunshine sensor and
located in the centre of the wind-
screen behind the rear view mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute,
by pushing the stalk A
downwards.
Switching off
This is controlled manually by the driver
by moving the stalk A
to another posi-
tion and returning it to position "0"
.
It is accompanied by a message in the
multifunction screen.
Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
