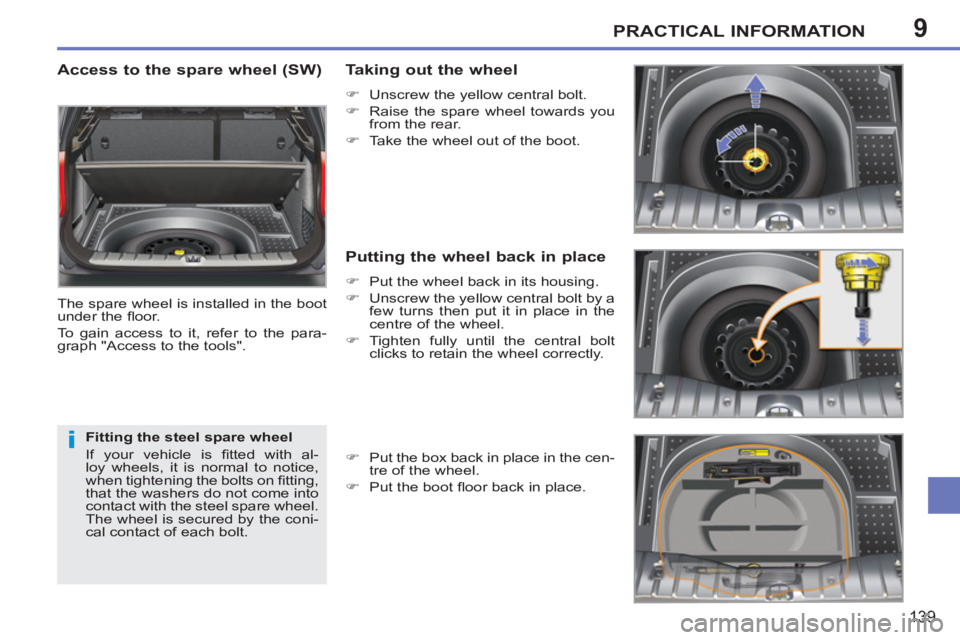

Access to the spare wheel (SW)
The spare wheel is installed in the boot
under the fl oor.
To gain access to it, refer to the para-
graph "Access to the tools".
Fitting the steel spare wheel
If your vehicle is fi tted with al-
loy wheels, it is normal to notice,
when tightening the bolts on fi tting,
that the washers do not come into
contact with the steel spare wheel.
The wheel is secured by the coni-
cal contact of each bolt.
Taking out the wheel
)
Unscrew the yellow central bolt.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
Putting the wheel back in place
)
Put the wheel back in its housing.
)
Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
)
Tighten fully until the central bolt
clicks to retain the wheel correctly.
)
Put the box back in place in the cen-
tre of the wheel.
)
Put the boot fl oor back in place.
Page 142 of 248
9
i
PRACTICAL INFORMATION
140
Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: the ground
must be level, stable and non-
slippery.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
You should ensure that the occu-
pants get out of the vehicle and
wait where they are safe.
Never go underneath a vehicle
raised using a jack; use an axle
stand.

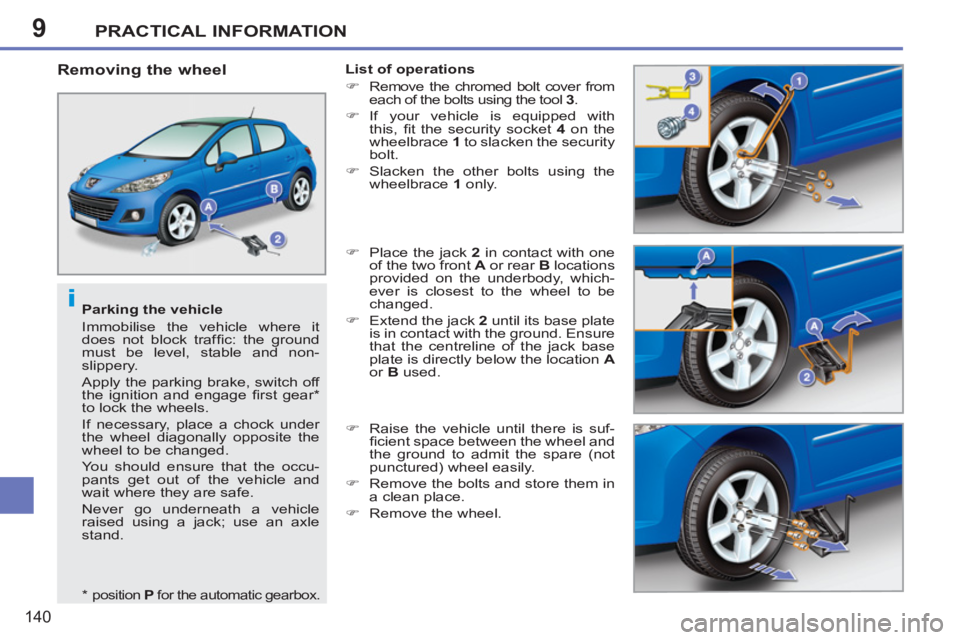

Removing the wheel
List of operations
)
Remove the chromed bolt cover from
each of the bolts using the tool 3
.
)
If your vehicle is equipped with
this, fi t the security socket 4
on the
wheelbrace 1
to slacken the security
bolt.
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
*
position P
for the automatic gearbox.
Page 143 of 248
9
i
PRACTICAL INFORMATION
141
After changing a wheel
To store the punctured wheel in
the boot correctly, fi rst remove the
central cover.
Have the tightening of the bolts
and the pressure of the spare
wheel checked by a PEUGEOT
dealer or a qualifi ed workshop
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.

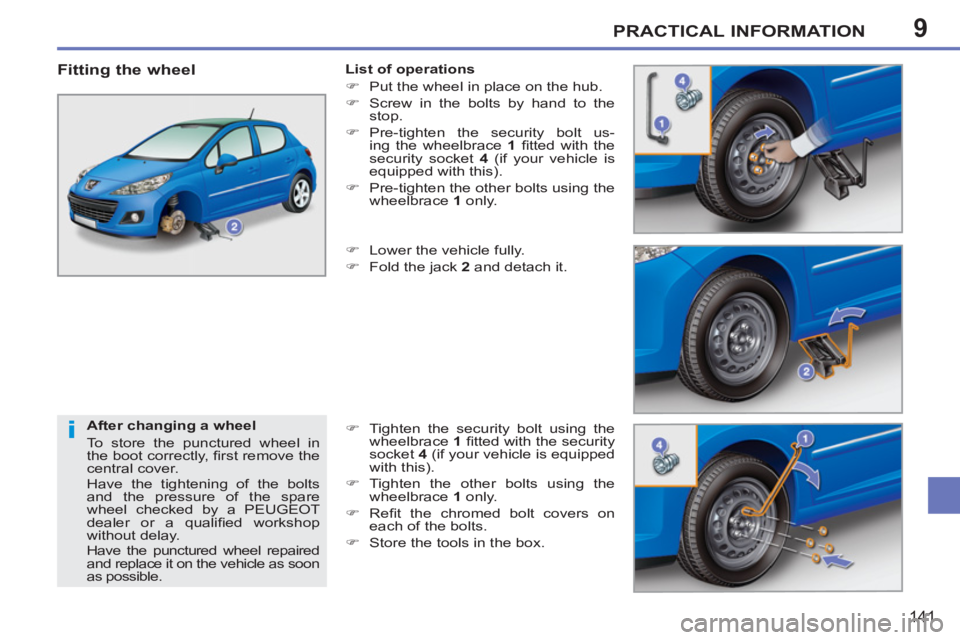

Fitting the wheel
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand to the
stop.
)
Pre-tighten the security bolt us-
ing the wheelbrace 1
fi tted with the
security socket 4
(if your vehicle is
equipped with this).
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
(if your vehicle is equipped
with this).
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts.
)
Store the tools in the box.
Page 144 of 248
9
i
ii
PRACTICAL INFORMATION
142

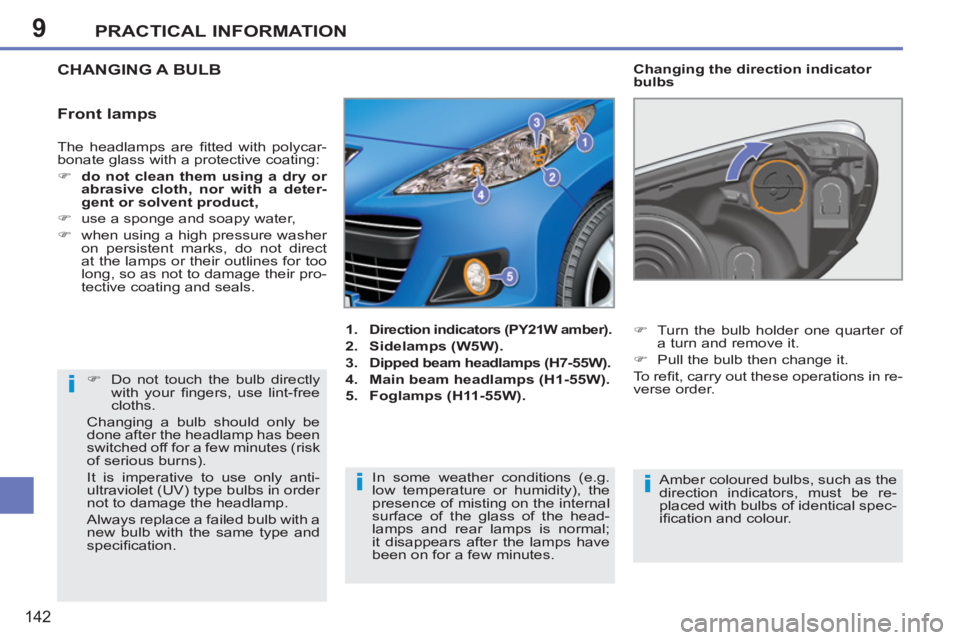

The headlamps are fi tted with polycar-
bonate glass with a protective coating:
)
do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure washer
on persistent marks, do not direct
at the lamps or their outlines for too
long, so as not to damage their pro-
tective coating and seals.
Front lamps CHANGING A BULB
Changing the direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical spec-
ifi cation and colour.
)
Turn the bulb holder one quarter of
a turn and remove it.
)
Pull the bulb then change it.
To r efi t, carry out these operations in re-
verse order.
1.
Direction indicators (PY21W amber).
2.
Sidelamps (W5W).
3.
Dipped beam headlamps (H7-55W).
4.
Main beam headlamps (H1-55W).
5.
Foglamps (H11-55W).
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
Page 145 of 248
9PRACTICAL INFORMATION
143

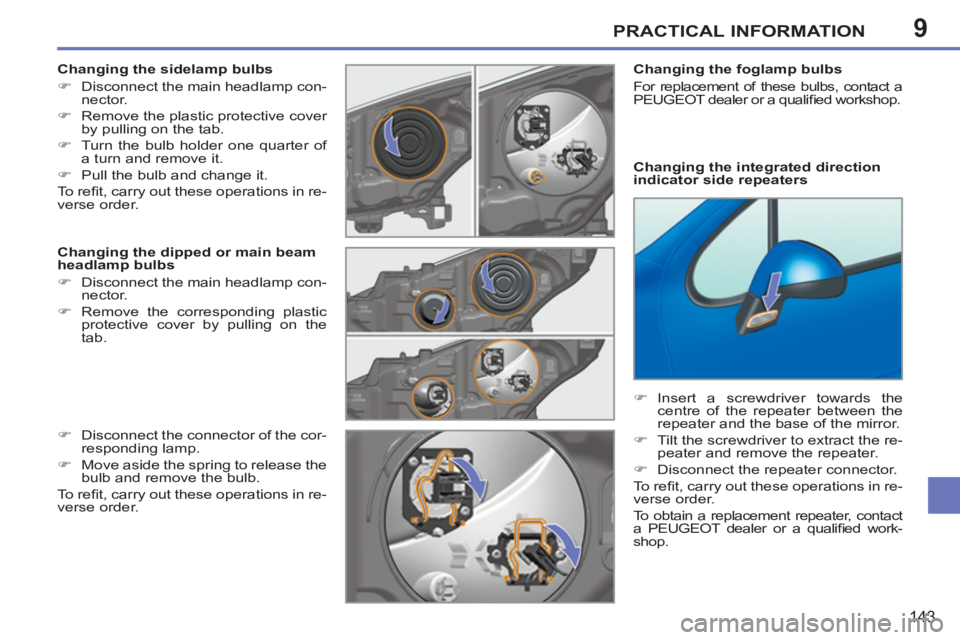

Changing the sidelamp bulbs
)
Disconnect the main headlamp con-
nector.
)
Remove the plastic protective cover
by pulling on the tab.
)
Turn the bulb holder one quarter of
a turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Changing the dipped or main beam
headlamp bulbs
)
Disconnect the main headlamp con-
nector.
)
Remove the corresponding plastic
protective cover by pulling on the
tab.
)
Disconnect the connector of the cor-
responding lamp.
)
Move aside the spring to release the
bulb and remove the bulb.
To r efi t, carry out these operations in re-
verse order.
Changing the foglamp bulbs
For replacement of these bulbs, contact a
PEUGEOT dealer or a qualifi ed workshop.
Changing the integrated direction
indicator side repeaters
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove the repeater.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
To obtain a replacement repeater, contact
a PEUGEOT dealer or a qualifi ed work-
shop.
Page 146 of 248
9
i
PRACTICAL INFORMATION
144

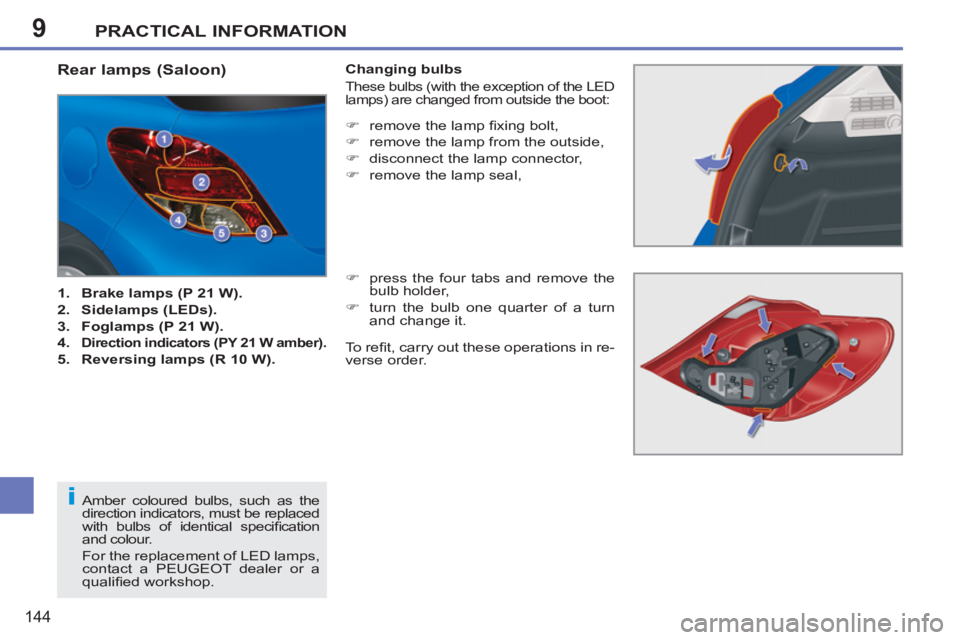

Rear lamps (Saloon)
1.
Brake lamps (P 21 W).
2.
Sidelamps (LEDs).
3.
Foglamps (P 21 W).
4.
Direction indicators (PY 21 W amber).
5.
Reversing lamps (R 10 W).
Changing bulbs
These bulbs (with the exception of the LED
lamps) are changed from outside the boot:
)
remove the lamp fi xing bolt,
)
remove the lamp from the outside,
)
disconnect the lamp connector,
)
remove the lamp seal,
)
press the four tabs and remove the
bulb holder,
)
turn the bulb one quarter of a turn
and change it.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifi cation
and colour.
For the replacement of LED lamps,
contact a PEUGEOT dealer or a
qualifi ed workshop.
To r efi t, carry out these operations in re-
verse order.
Page 147 of 248
9
!
PRACTICAL INFORMATION
145
Changing the third brake lamp bulbs
(4 bulbs W 5 W)
)
Press on the fi xing pins on each side
of the lamp.
)
Remove the lamp from the outside.
)
Turn the bulb holder which corresponds
to the faulty bulb one quarter of a turn
and remove it.
)
Pull the bulb and change it.

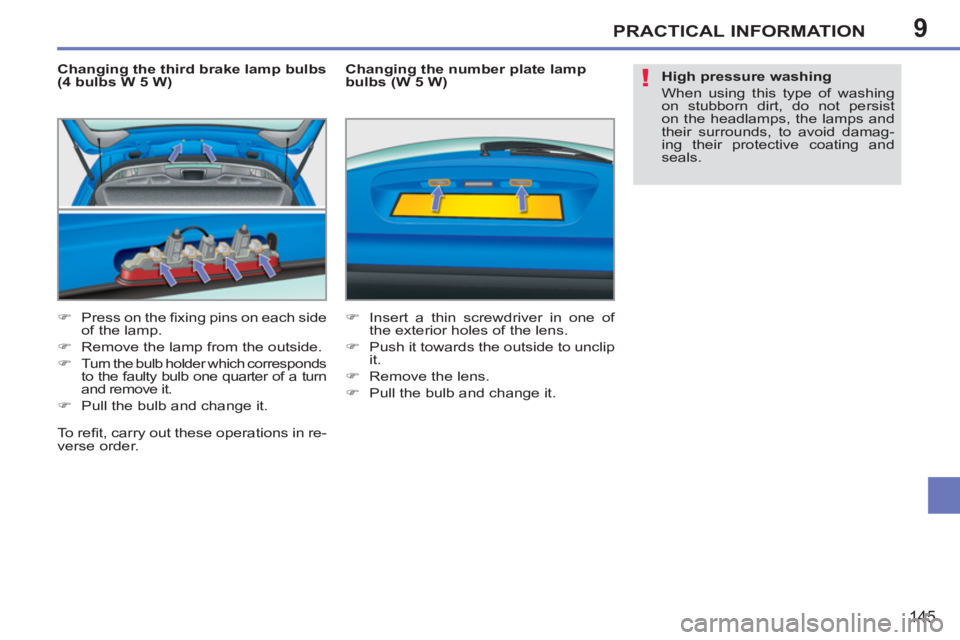

Changing the number plate lamp
bulbs (W 5 W)
)
Insert a thin screwdriver in one of
the exterior holes of the lens.
)
Push it towards the outside to unclip
it.
)
Remove the lens.
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.
Page 148 of 248
9
i
PRACTICAL INFORMATION
146

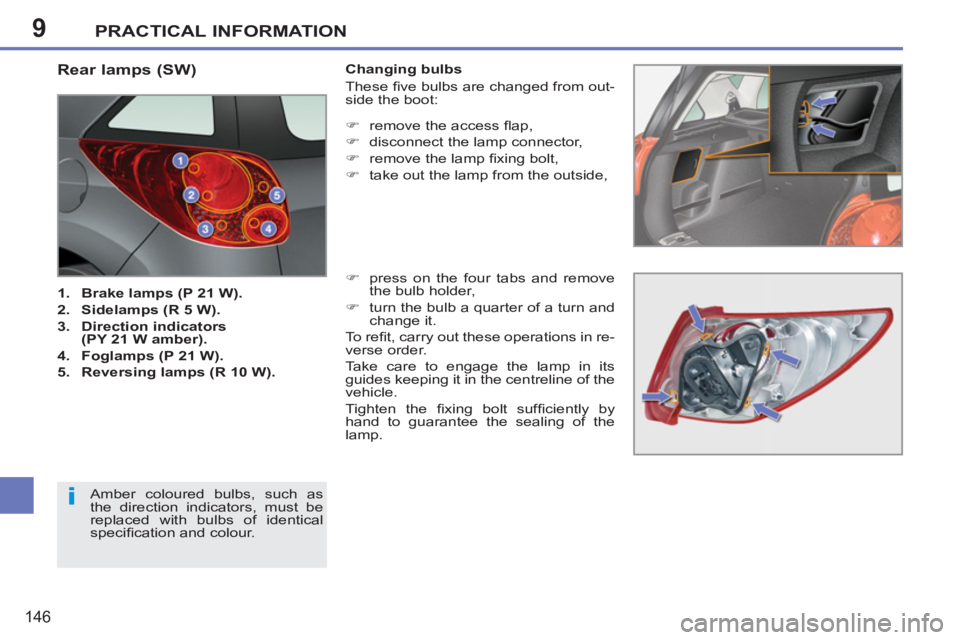

Rear lamps (SW)
1.
Brake
lamps
(P 21 W).
2.
Sidelamps
(R 5 W).
3.
Direction indicators
(PY 21 W amber).
4.
Foglamps
(P 21 W).
5.
Reversing
lamps
(R 10 W).
Changing bulbs
These fi ve bulbs are changed from out-
side the boot:
)
remove the access fl ap,
)
disconnect the lamp connector,
)
remove the lamp fi xing bolt,
)
take out the lamp from the outside,
)
press on the four tabs and remove
the bulb holder,
)
turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Take care to engage the lamp in its
guides keeping it in the centreline of the
vehicle.
Tighten the fi xing bolt suffi ciently by
hand to guarantee the sealing of the
lamp.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
Page 149 of 248
9
!
PRACTICAL INFORMATION
147

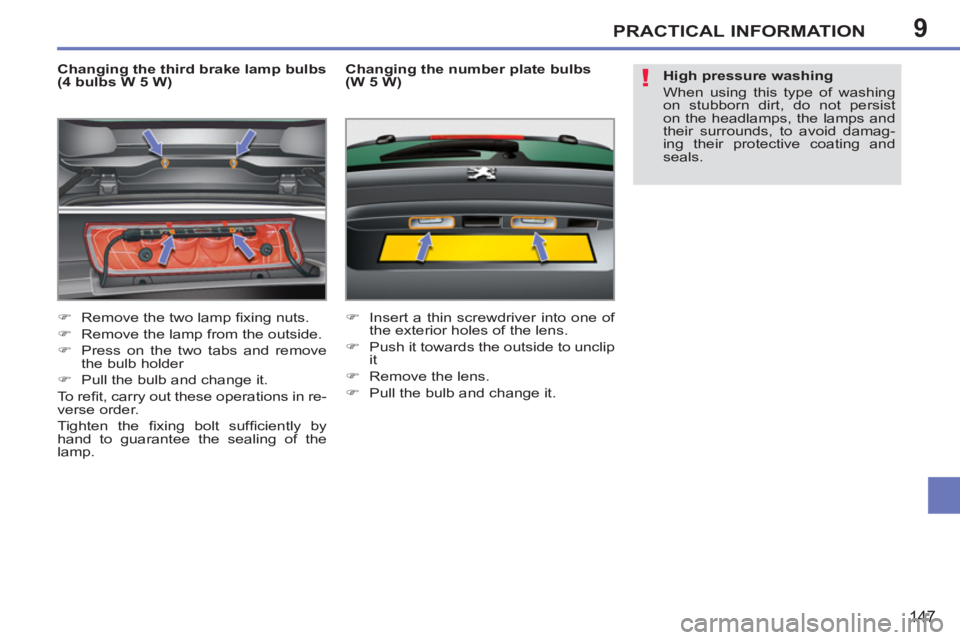

Changing the third brake lamp bulbs
(4 bulbs W 5 W)
)
Remove the two lamp fi xing nuts.
)
Remove the lamp from the outside.
)
Press on the two tabs and remove
the bulb holder
)
Pull the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
Tighten the fi xing bolt suffi ciently by
hand to guarantee the sealing of the
lamp.
Changing the number plate bulbs
(W 5 W)
)
Insert a thin screwdriver into one of
the exterior holes of the lens.
)
Push it towards the outside to unclip
it
)
Remove the lens.
)
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lamps and
their surrounds, to avoid damag-
ing their protective coating and
seals.
Page 150 of 248
9
!
i
PRACTICAL INFORMATION
148
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance
with its instructions, particularly
when the combined consumption
of all additional equipment con-
nected exceeds 10 milliamperes.
Installation of electrical acces-
sories
Your vehicle's electrical circuit is
designed to operate with the stan-
dard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT
dealer or a qualifi ed workshop.

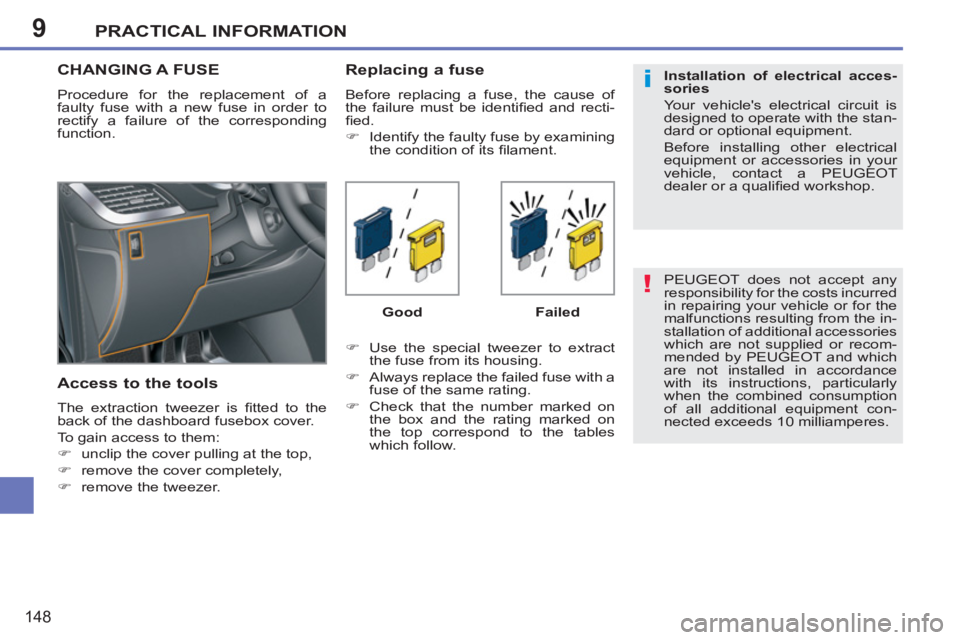

CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:
)
unclip the cover pulling at the top,
)
remove the cover completely,
)
remove the tweezer.
Replacing a fuse
Before replacing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by examining
the condition of its fi lament.
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the failed fuse with a
fuse of the same rating.
)
Check that the number marked on
the box and the rating marked on
the top correspond to the tables
which follow.
Good
Failed
