10TECHNICAL DATA
169

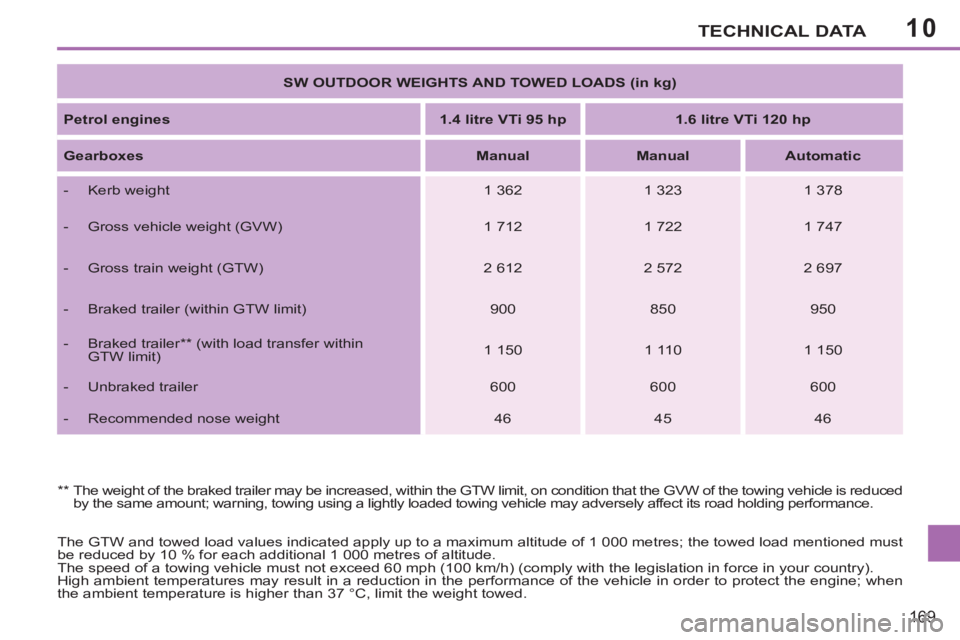

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)



Petrol engines


1.4 litre VTi 95 hp



1.6 litre VTi 120 hp



Gearboxes


Manual



Manual



Automatic




- Kerb weight
1 362
1 323
1 378


- Gross vehicle weight (GVW)
1 712
1 722
1 747


- Gross train weight (GTW)
2 612
2 572
2 697


- Braked trailer (within GTW limit)
900
850
950


- Braked trailer ** (with load transfer within
GTW limit)
1 150
1 110
1 150


- Unbraked trailer
600
600
600


- Recommended nose weight
46
45
46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.

10
170
TECHNICAL DATA

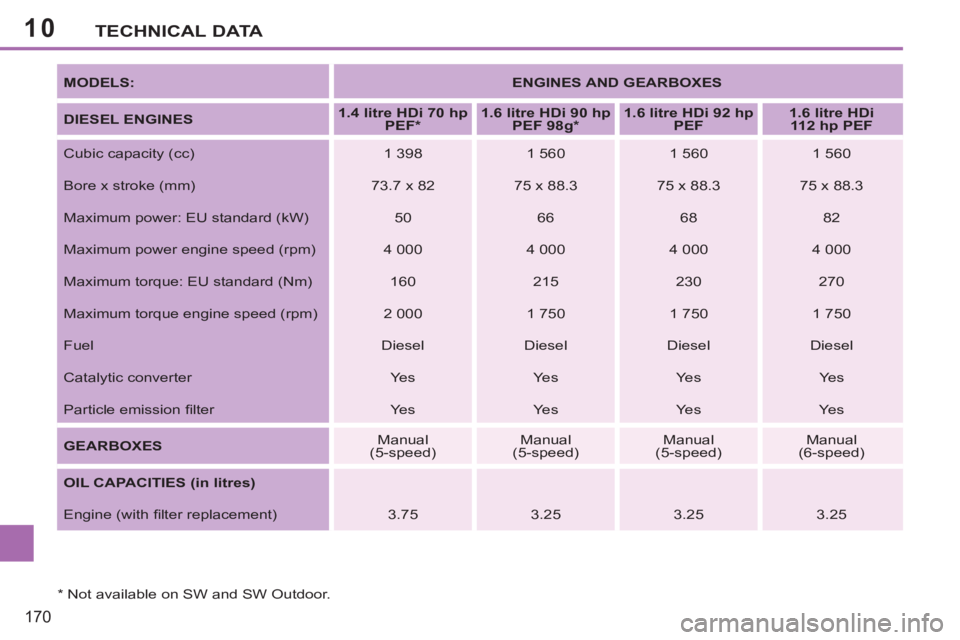

MODELS:


ENGINES AND GEARBOXES



DIESEL ENGINES


1.4 litre HDi 70 hp
PEF *



1.6 litre HDi 90 hp
PEF 98g *



1.6 litre HDi 92 hp
PEF


1.6 litre HDi
112 hp PEF

Cubic capacity (cc)
1 398
1 560
1 560
1 560
Bore x stroke (mm)
73.7 x 82
75 x 88.3
75 x 88.3
75 x 88.3
Maximum power: EU standard (kW)
50
66
68
82
Maximum power engine speed (rpm)
4 000
4 000
4 000
4 000
Maximum torque: EU standard (Nm)
160
215
230
270
Maximum torque engine speed (rpm)
2 000
1 750
1 750
1 750
Fuel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Yes
Yes
Yes
Particle emission fi lter
Yes
Yes
Yes
Yes

GEARBOXES

Manual
(5-speed)
Manual
(5-speed)
Manual
(5-speed)
Manual
(6-speed)

OIL CAPACITIES (in litres)










Engine (with fi lter replacement)
3.75
3.25
3.25
3.25

*
Not available on SW and SW Outdoor.

10TECHNICAL DATA
171


SALOON WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.4 litre HDi
70 hp PEF



1.6 litre HDi
90 hp PEF 98g



1.6 litre HDi
92 hp
PEF



1.6 litre HDi
112 hp PEF



Gearboxes


Manual



Manual



Manual



Manual




- Kerb weight
1 259 - 1 246 -
1 245/1 279
1 278 - 1 265
1 277 - 1 264 -
1 214/1 317
1 280 - 1 265 -
1 296/1 339


- Gross vehicle weight (GVW)
1 665 - 1 642 -
1 620
1 664 - 1 643
1 718/1 703 -
1 649
1 737 - 1 726 -
1 671


- Gross train weight (GTW)
2 265 - 2 242 -
2 220
1 664 - 1643
2 673/2 688 -
2 669
2 717 - 2 706 -
2 691


- Braked trailer (within GTW limit)
600


970

980 - 980 - 1 020


- Braked trailer ** (with load transfer within
GTW limit)
850 - 850


1 150
1 150 - 1 150


- Unbraked trailer
600


600
600


- Recommended nose weight
46


46
46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

**
The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
172
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

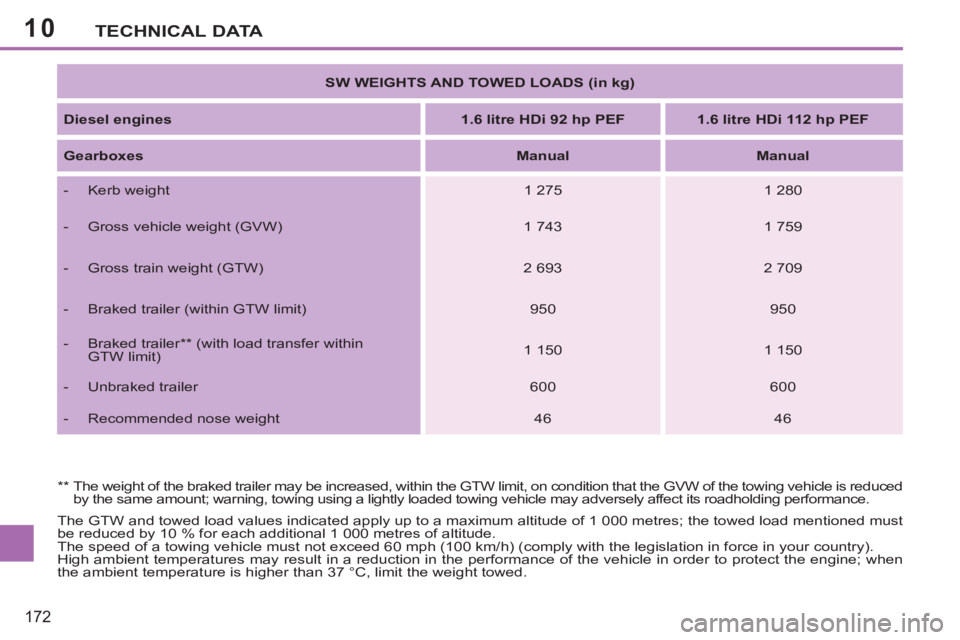

SW WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi 92 hp PEF



1.6 litre HDi 112 hp PEF



Gearboxes


Manual



Manual




- Kerb weight
1 275
1 280


- Gross vehicle weight (GVW)
1 743
1 759


- Gross train weight (GTW)
2 693
2 709


- Braked trailer (within GTW limit)
950
950


- Braked trailer ** (with load transfer within
GTW limit)
1 150
1 150


- Unbraked trailer
600
600


- Recommended nose weight
46
46

10TECHNICAL DATA
173
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the weight towed.

** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

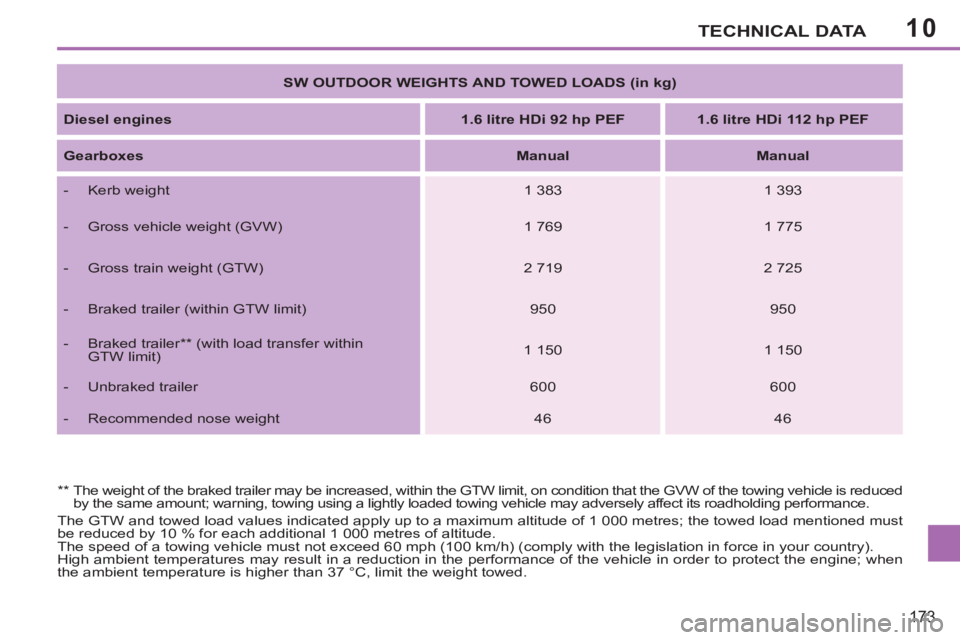

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)



Diesel engines


1.6 litre HDi 92 hp PEF



1.6 litre HDi 112 hp PEF



Gearboxes


Manual



Manual




- Kerb weight
1 383
1 393


- Gross vehicle weight (GVW)
1 769
1 775


- Gross train weight (GTW)
2 719
2 725


- Braked trailer (within GTW limit)
950
950


- Braked trailer ** (with load transfer within
GTW limit)
1 150
1 150


- Unbraked trailer
600
600


- Recommended nose weight
46
46

10
174
TECHNICAL DATA

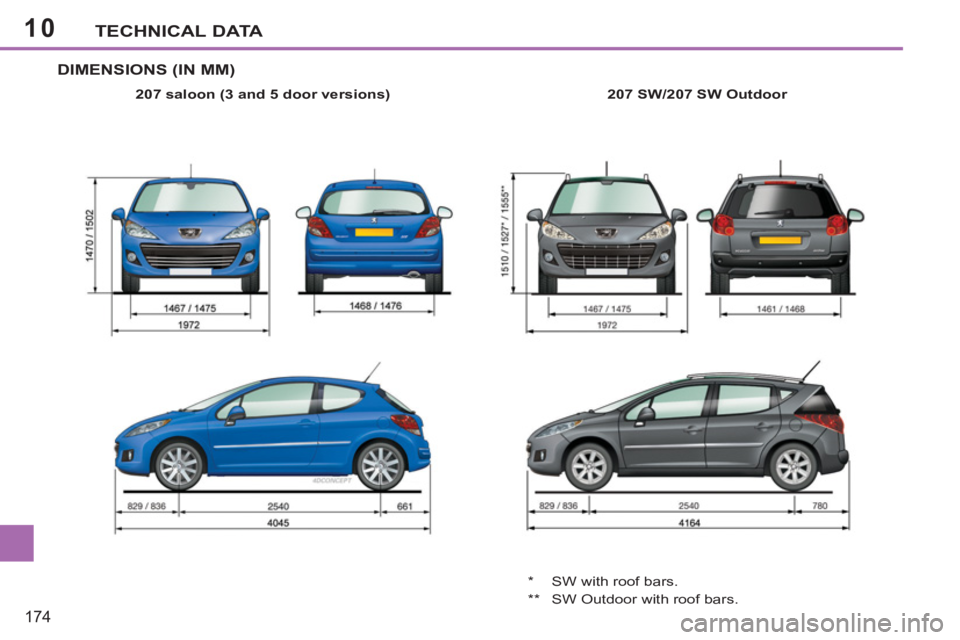

DIMENSIONS (IN MM)

207 saloon (3 and 5 door versions)

207 SW/207 SW Outdoor

* SW with roof bars.
** SW Outdoor with roof bars.

10
!
i
175
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
Wheels which are fi tted with 205/45
R17 and, only on SW Outdoor,
with 205/55 R16 tyres, cannot be
fi tted with snow chains. For more
information, contact a PEUGEOT
dealer.
If the infl ation pressures are too low,
this increases fuel consumption. The infl ation pressures must be
checked when the tyres are cold,
at least once a month.

A. Vehicle identifi cation
number
(VIN)

under the bonnet.

This number is etched on the bodywork
near the passenger compartment fi lter.
B. Visible VIN on the dashboard.

This number is indicated on a self-ad-
hesive label which is visible through the
windscreen.
C. VIN on the chassis.

This number is indicated on a self-de-
stroying label affi xed to the centre pillar,
near the driver's door striker.

D. Manufacturer's label.

This label is affi xed to the edge of the
door on the driver's side.
It bears the following information:


- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the associated infl ation pressures,

- the paint colour code.

176

177
EMERGENCY OR ASSISTANCE CALL

178

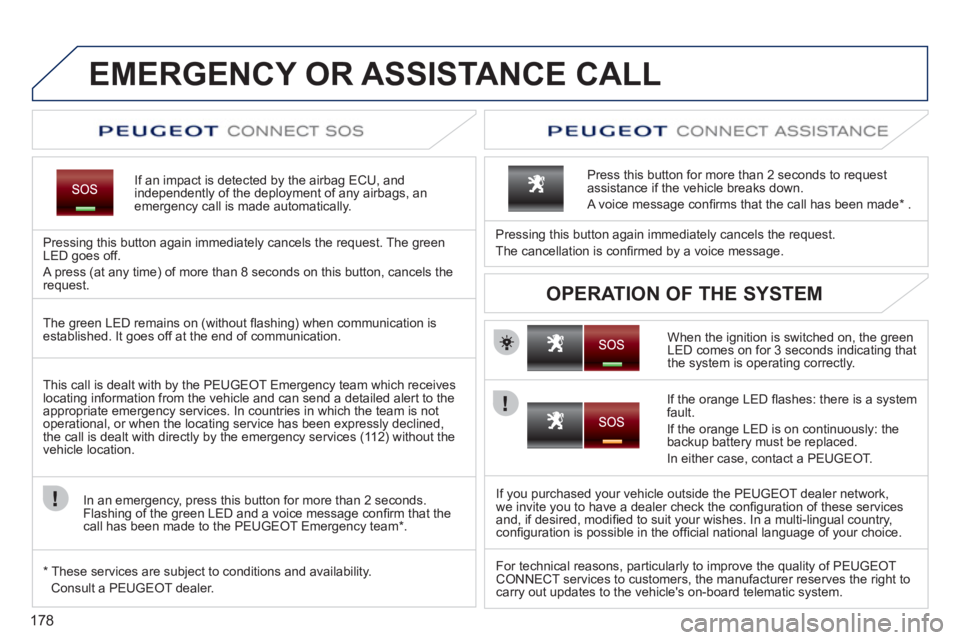

EMERGENCY OR ASSISTANCE CALL
If an impact is detected by the airbag ECU, andindependently of the deployment of any airbags, anemergency call is made automatically.


Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the PEUGEOT Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without the
vehicle location.

In an emergency, press this button
for more than 2 seconds.
Flashing of the green LED and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
*
These services are sub
ject to conditions and availability.
Consult a PEUGEOT dealer.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of PEUGEOTCONNECT services to customers, the manufacturer reserves the right tocarry out updates to the vehicle's on-board telematic system.
