buttons Peugeot 207 CC 2014 Owner's Manual

2

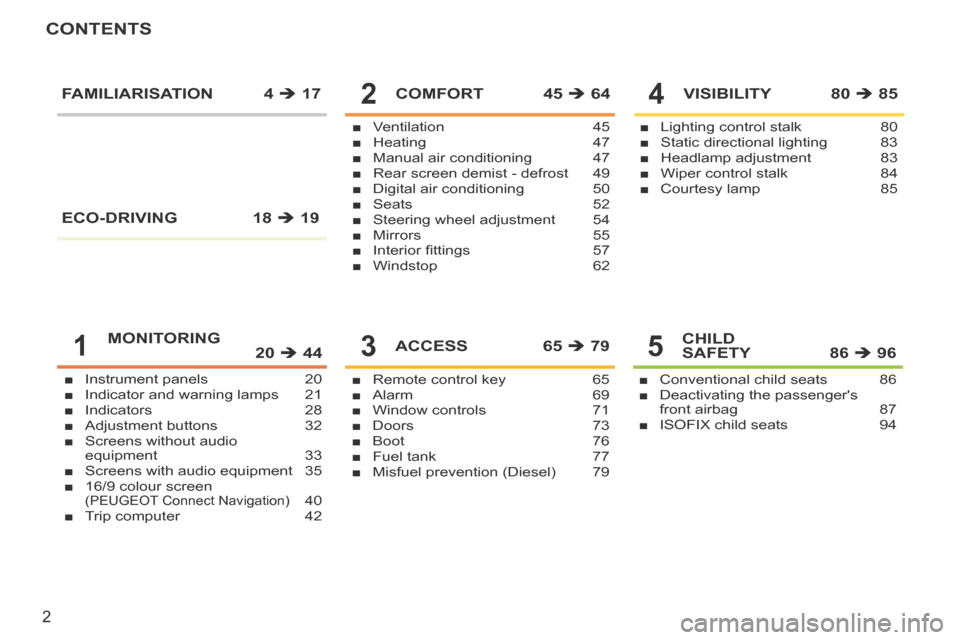

CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014

■ Instrument panels 20

■ Indicator and warning lamps 21

■ Indicators 28

■ Adjustment buttons 32

■ Screens without audio
equipment 33

■ Screens with audio equipment 35

■ 16/9 colour screen
(PEUGEOT Connect Navigation) 40

■ Trip computer 42
■ Ventilation 45

■ Heating 47

■ Manual air conditioning 47

■ Rear screen demist - defrost 49

■ Digital air conditioning 50

■ Seats 52

■ Steering wheel adjustment 54

■ Mirrors 55

■ Interior fi ttings 57

■ Windstop 62
COMFORT 45  64

■ Remote control key 65

■ Alarm 69

■ Window controls 71

■ Doors 73

■ Boot 76

■ Fuel tank 77

■ Misfuel prevention (Diesel) 79
ACCESS 65  79

■ Lighting control stalk 80

■ Static directional lighting 83

■ Headlamp adjustment 83

■ Wiper control stalk 84

■ Courtesy lamp 85
VISIBILITY 80  85

■ Conventional child seats 86

■ Deactivating the passenger's
front airbag 87

■ ISOFIX child seats 94
CHILD
SAFETY 86  96
FAMILIARISATION 4
 17
MONITORING
20  445
4
3
2
1
ECO-DRIVING 18  19

1MONITORING
33
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

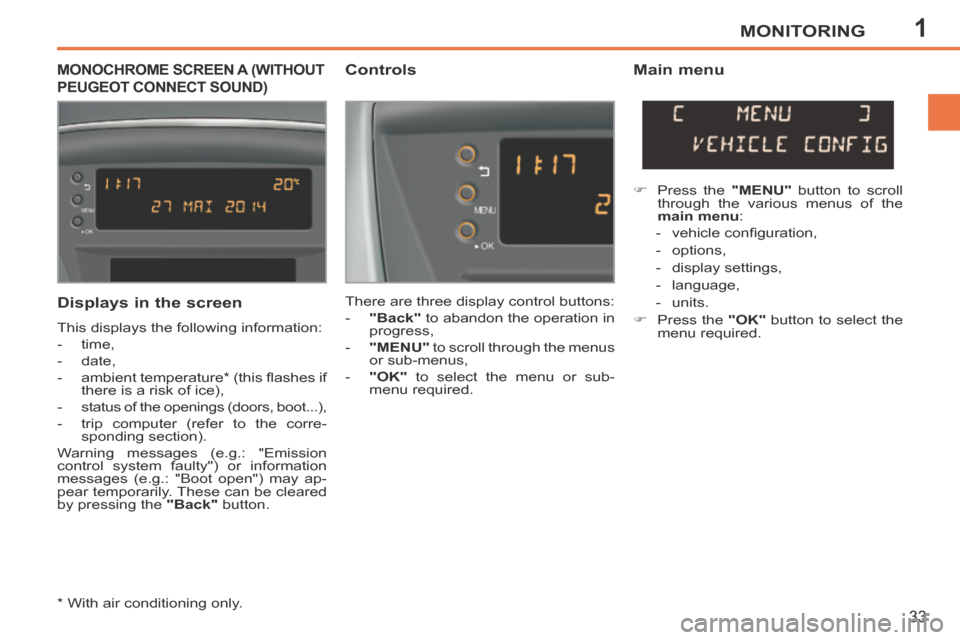

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)
Controls Main menu
There are three display control buttons:
- "Back" to abandon the operation in
progress,
- "MENU" to scroll through the menus or sub-menus,
- "OK" to select the menu or sub- menu required.  Press the
"MENU" button to scroll
through the various menus of the
main menu :
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
 Press the "OK" button to select the
menu required. Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- trip computer (refer to the corre- sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "Back" button.
* With air conditioning only.

1MONITORING
35
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

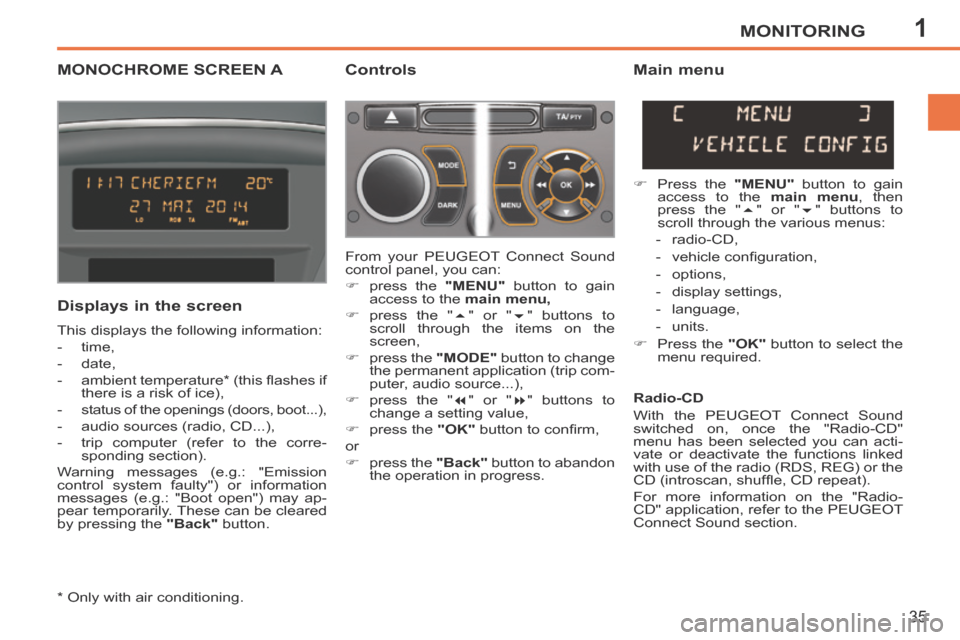

MONOCHROME SCREEN A Controls
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the corre- sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "Back" button.
Main menu
 Press the "MENU" button to gain
access to the main menu , then
press the "  " or "  " buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
 Press the "OK" button to select the
menu required.
From your
PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain
access to the main menu,
 press the "  " or "  " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
 press the "  " or "  " buttons to
change a setting value,
 press the "OK" button to confi rm,
or
 press the "Back" button to abandon
the operation in progress. Radio-CD
With the
PEUGEOT Connect Sound
switched on, once the "Radio-CD"
menu has been selected you can acti-
vate or deactivate the functions linked
with use of the radio (RDS, REG) or the
CD (introscan, shuffl e, CD repeat).
For more information on the "Radio-
CD" application, refer to the PEUGEOT
Connect Sound section.
* Only with air conditioning.

1
!
MONITORING
36
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

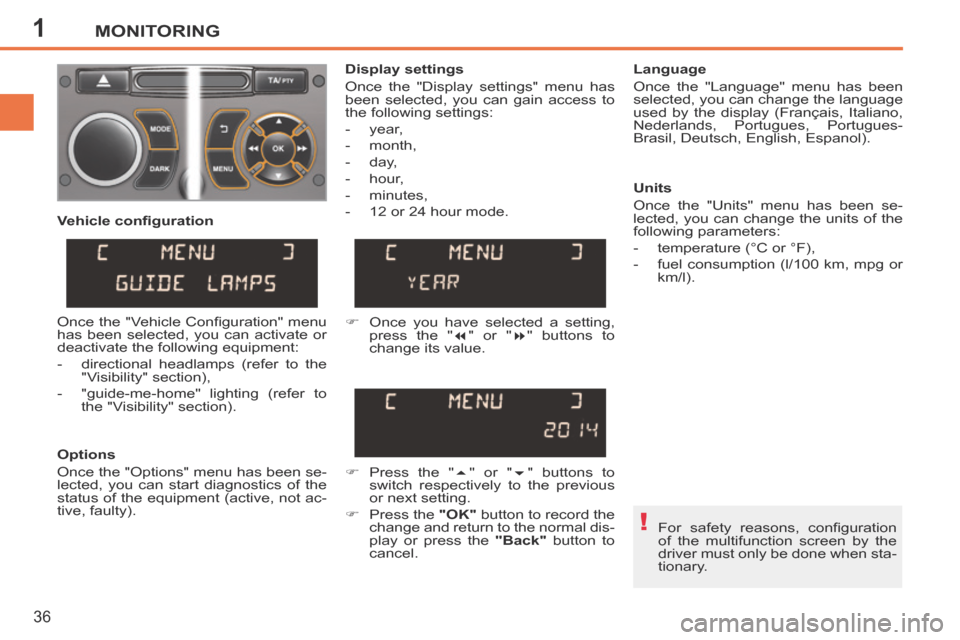

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
 Once you have selected a setting, press the "  " or "  " buttons to
change its value.
 Press the "  " or "  " buttons to
switch respectively to the previous
or next setting.
 Press the "OK" button to record the
change and return to the normal dis-
play or press the "Back" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).

1MONITORING
37
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

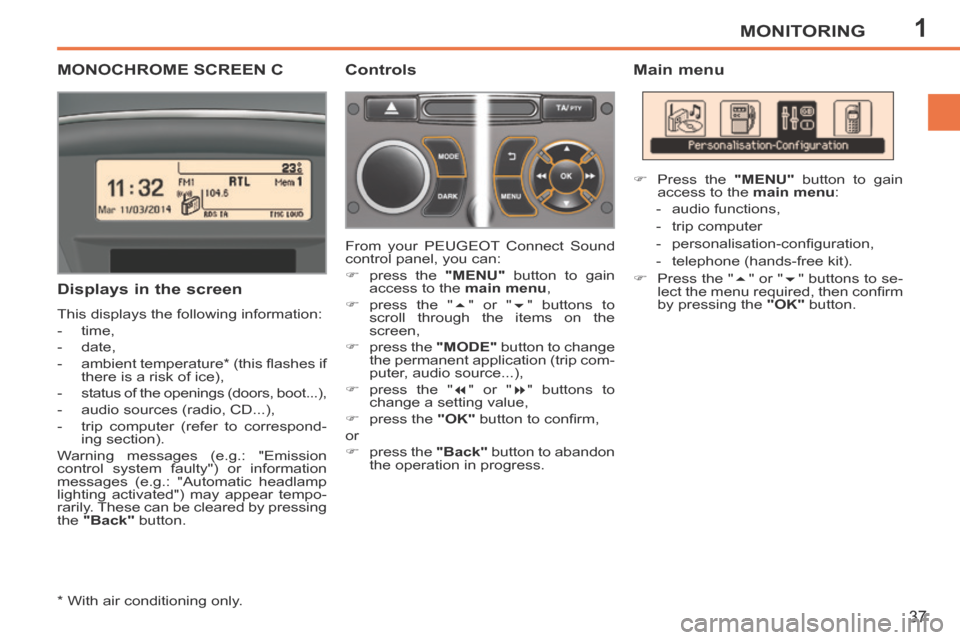

MONOCHROME SCREEN C
* With air conditioning only.
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to correspond- ing section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "Back" button. From your
PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain
access to the main menu ,
 press the "  " or "  " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
 press the "  " or "  " buttons to
change a setting value,
 press the "OK" button to confi rm,
or
 press the "Back" button to abandon
the operation in progress.  Press the
"MENU" button to gain
access to the main menu :
- audio functions,
- trip computer
- personalisation-confi guration,
- telephone (hands-free kit).
 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
Controls Main menu

1
!
MONITORING
39
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

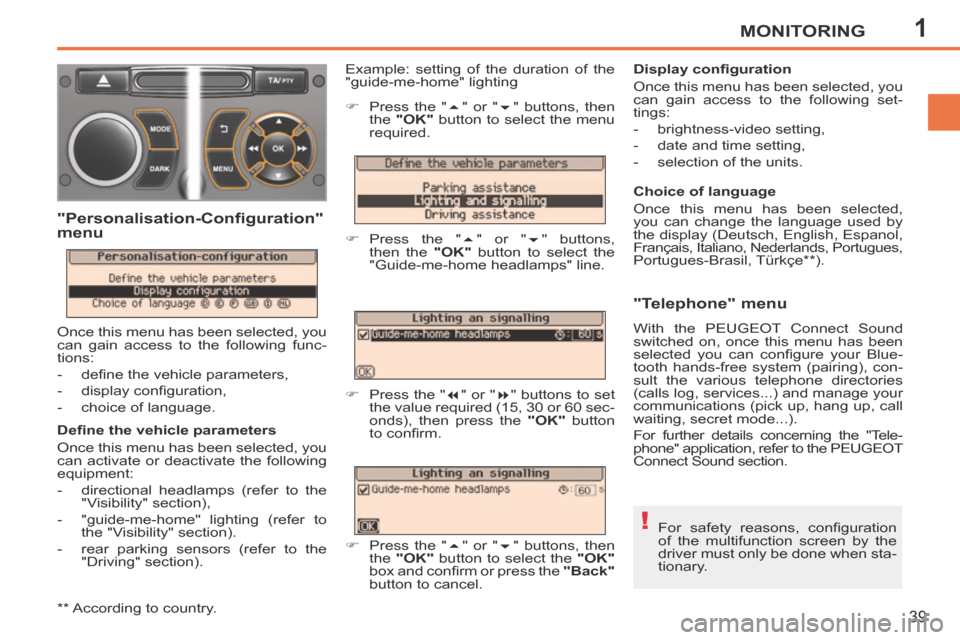

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).
- rear parking sensors (refer to the "Driving" section).
"Telephone" menu
With the PEUGEOT Connect Sound
switched on, once this menu has been
selected you can confi gure your Blue-
tooth hands-free system (pairing), con-
sult the various telephone directories
(calls log, services...) and manage your
communications (pick up, hang up, call
waiting, secret mode...).
For further details concerning the "Tele-
phone" application, refer to the PEUGEOT
Connect Sound section. Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, E spanol,
Français, Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.  Press the "
 " or "  " buttons, then
the "OK" button to select the menu
required.
 Press the "  " or "  " buttons,
then the "OK" button to select the
"Guide-me-home headlamps" line.
 Press the "  " or "  " buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK" button
to confi rm.
 Press the "  " or "  " buttons, then
the "OK" button to select the "OK"
box and confi rm or press the "Back"
button to cancel.
** According to country.

3
!
ACCESS
68
207CC_EN_CHAP03_OUVERTURES_ED01-2014
Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your per-
sonal identifi cation documents and if possible the key code label.
The PEUGEOT dealer will be able to look up the key code and the transpon-
der code required to order a new key. Do not throw the remote control bat-
teries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not operate \
it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without\
you being aware of it.
Do not repeatedly press the buttons of your remote control out of range \
and out of sight
of your vehicle. You run the risk of stopping it from working and the remote control would\

have to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the igni-
tion is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more diffi cult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a
very short period.
In all cases, it is essential to remove the key from the ignition switch\
when
leaving the vehicle.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobiliser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT
dealer, to ensure that only your keys can be used to open and start the vehicl\
e.

7
!
DRIVING
11 7
207CC_EN_CHAP07_CONDUITE_ED01-2014

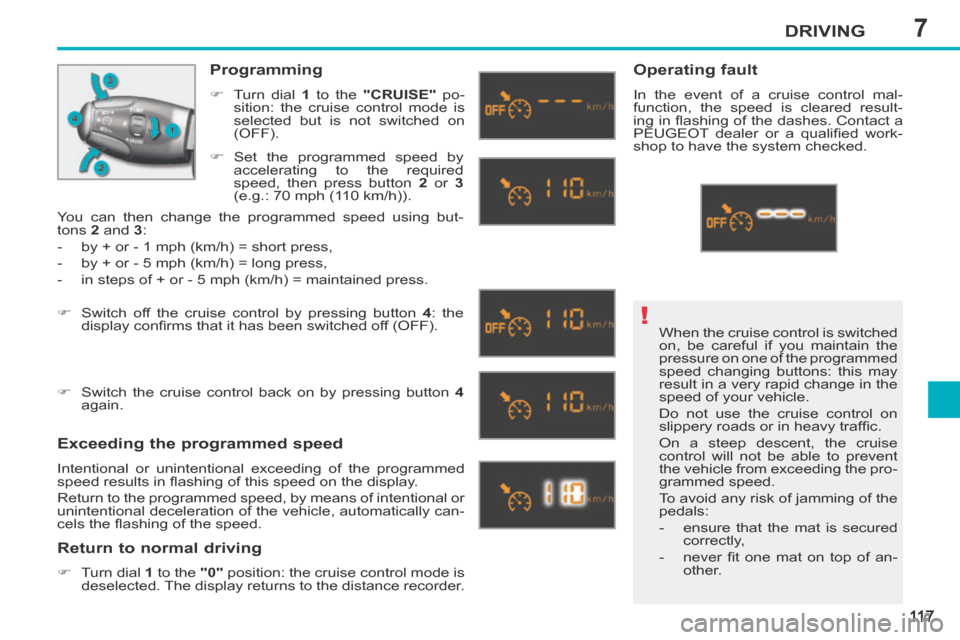

When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is secured correctly,
- never fi t one mat on top of an- other.
Programming
 Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
(OFF).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically can-
cels the fl ashing of the speed.
Return to normal driving
 Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance recorder.
Operating fault
In the event of a cruise control mal-
function, the speed is cleared result-
ing in fl ashing of the dashes. Contact a
PEUGEOT dealer or a qualifi ed work-
shop to have the system checked.
 Set the programmed speed by
accelerating to the required
speed, then press button 2 or 3
(e.g.: 70 mph (110 km/h)).
 Switch off the cruise control by pressing button 4 : the
display confi rms that it has been switched off (OFF).
 Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but-
tons
2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

164
01
207CC_EN_CHAP11B_RNEG_ED01-2014

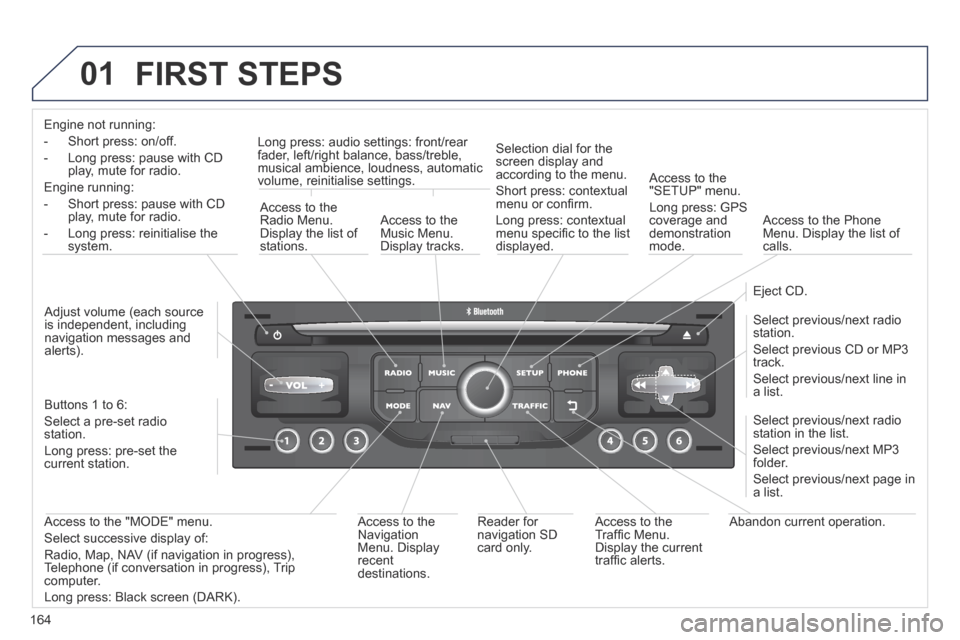

FIRST STEPS
Engine not running:
- Short press: on/off.
- Long press: pause with CD play, mute for radio.
Engine running:
- Short press: pause with CD play, mute for radio.
- Long press: reinitialise the system.
Access to the Radio Menu. Display the list of stations.
Access to the Music Menu. Display tracks.
Long press: audio settings: front/rear fader, left/right balance, bass/treble, musical ambience, loudness, automatic volume, reinitialise settings.
Selection dial for the screen display and according to the menu.
Short press: contextual menu or confi rm.
Long press: contextual menu specifi c to the list displayed.
Access to the "SETUP" menu.
Long press: GPS coverage and demonstration mode.
Access to the Phone Menu. Display the list of calls.
Eject CD.
Select previous/next radio station.
Select previous CD or MP3 track.
Select previous/next line in a list.
Select previous/next radio station in the list.
Select previous/next MP3 folder.
Select previous/next page in a list.
Abandon current operation. Access to the Traffi c Menu. Display the current traffi c alerts.
Reader for navigation SD card only.
Access to the Navigation Menu. Display recent destinations.
Access to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress), Telephone (if conversation in progress), Trip computer.
Long press: Black screen (DARK).
Buttons 1 to 6:
Select a pre-set radio station.
Long press: pre-set the current station.
Adjust volume (each source is independent, including navigation messages and alerts).

165
02
207CC_EN_CHAP11B_RNEG_ED01-2014

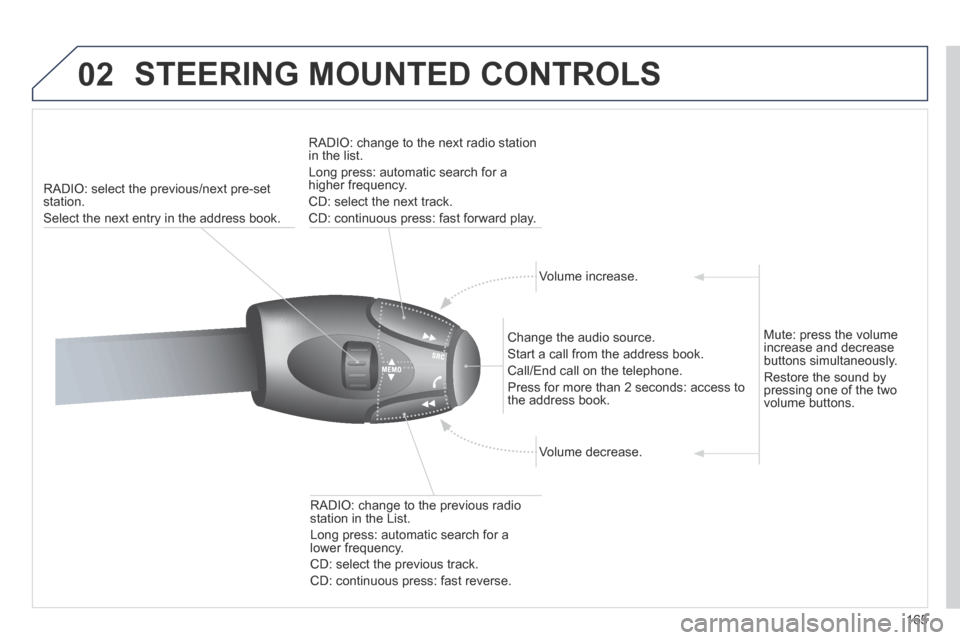

STEERING MOUNTED CONTROLS
RADIO: select the previous/next pre-set station.
Select the next entry in the address book.
RADIO: change to the next radio station in the list.
Long press: automatic search for a higher frequency.
CD: select the next track.
CD: continuous press: fast forward play.
Volume increase.
Change the audio source.
Start a call from the address book.
Call/End call on the telephone.
Press for more than 2 seconds: access to the address book.
Volume decrease.
RADIO: change to the previous radio station in the List.
Long press: automatic search for a lower frequency.
CD: select the previous track.
CD: continuous press: fast reverse.
Mute: press the volume increase and decrease buttons simultaneously.
Restore the sound by pressing one of the two volume buttons.
