i
!i
COMFORT
59

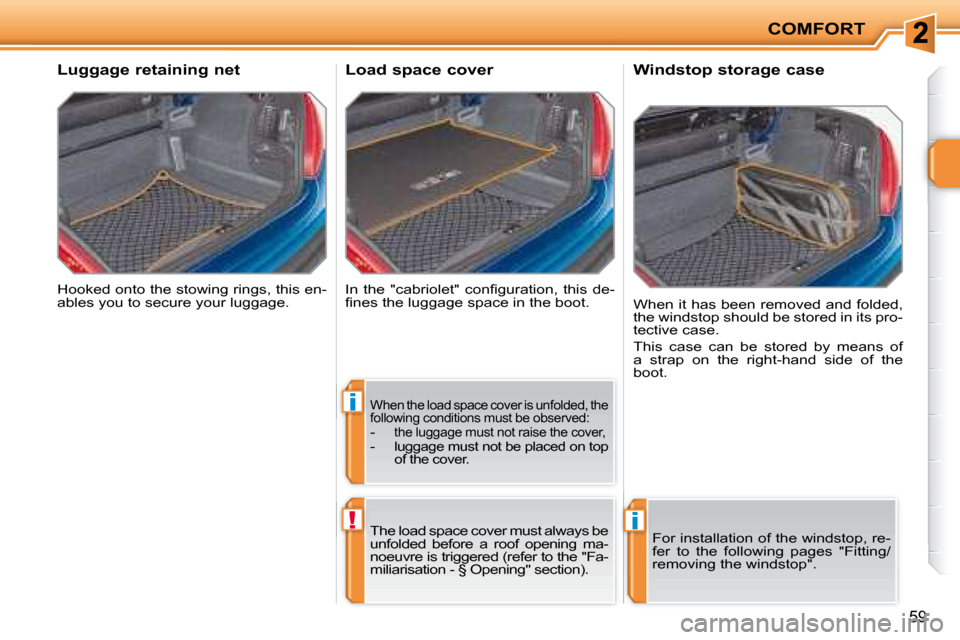

Hooked onto the stowing rings, this en-
ables you to secure your luggage.
Luggage retaining net
In the "cabriolet" coni guration, this de-
i nes the luggage space in the boot.
Load space cover
When it has been removed and folded,
the windstop should be stored in its pro-
tective case.
This case can be stored by means of
a strap on the right-hand side of the
boot.

Windstop storage case
When the load space cover is unfolded, the
following conditions must be observed:
- the luggage must not raise the cover, - luggage must not be placed on top
of the cover.
The load space cover must always be
unfolded before a roof opening ma-
noeuvre is triggered (refer to the "Fa-
miliarisation - § Opening" section). For installation of the windstop, re-
fer to the following pages "Fitting/
removing the windstop".

COMFORT
Windstop folded

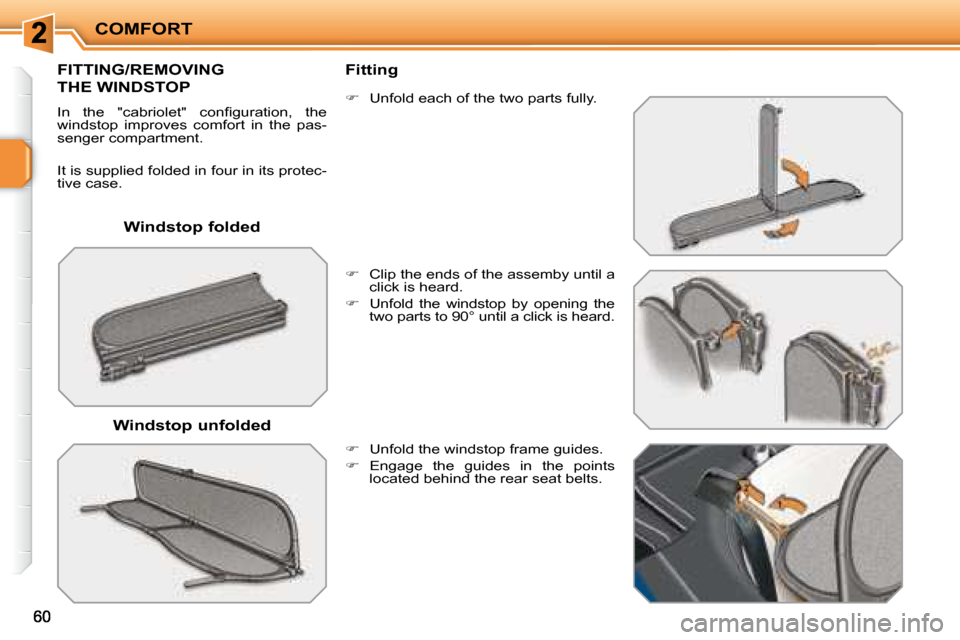

FITTING/REMOVING
THE WINDSTOP
In the "cabriolet" coni guration, the
windstop improves comfort in the pas-
senger compartment.
It is supplied folded in four in its protec-
tive case. Windstop unfolded Fitting

 Clip the ends of the assemby until a
click is heard.

 Unfold the windstop by opening the
two parts to 90° until a click is heard.

 Unfold the windstop frame guides.

 Engage the guides in the points
located behind the rear seat belts.

 Unfold each of the two parts fully.

i
COMFORT
61

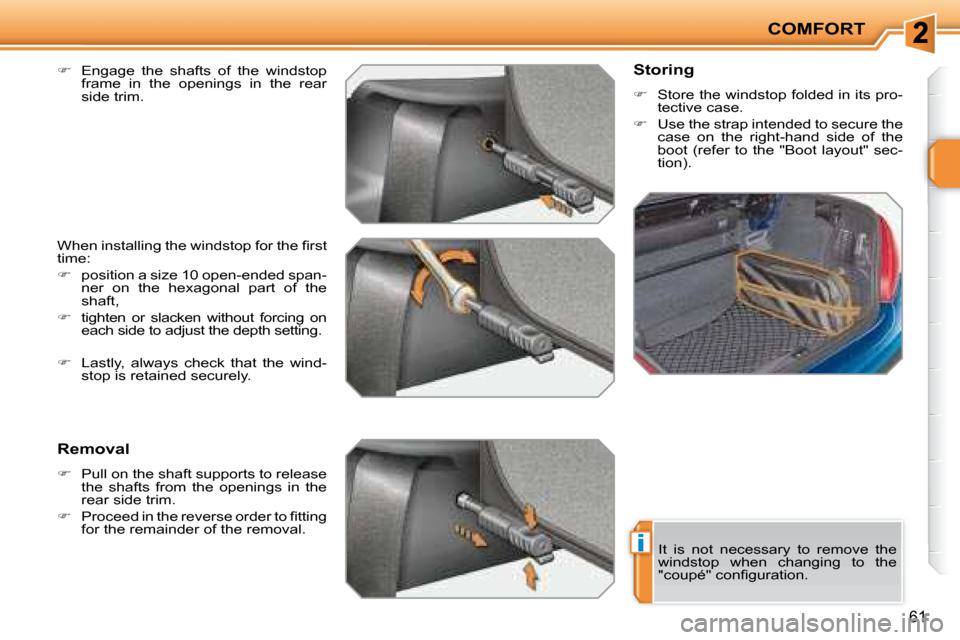

 Engage the shafts of the windstop
frame in the openings in the rear
side trim.
When installing the windstop for the i rst
time:

 position a size 10 open-ended span-
ner on the hexagonal part of the
shaft,

 tighten or slacken without forcing on
each side to adjust the depth setting.

 Lastly, always check that the wind-
stop is retained securely.
Removal

 Pull on the shaft supports to release
the shafts from the openings in the
rear side trim.

 Proceed in the reverse order to i tting
for the remainder of the removal. Storing

 Store the windstop folded in its pro-
tective case.

 Use the strap intended to secure the
case on the right-hand side of the
boot (refer to the "Boot layout" sec-
tion).
It is not necessary to remove the
windstop when changing to the
"coupé" coni guration.

!
i
ACCESS
62

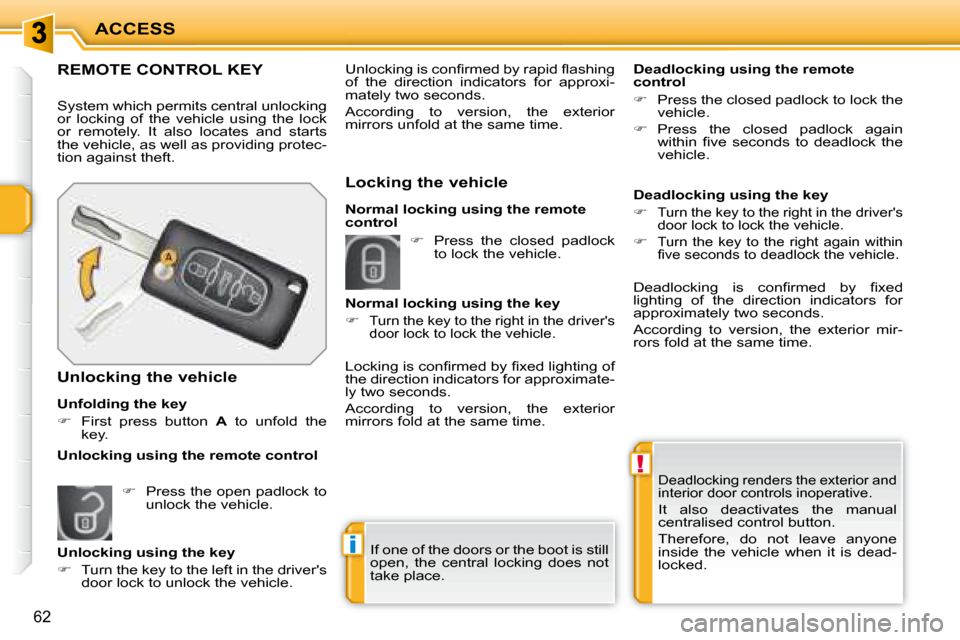

Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual
centralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle Unlocking is coni rmed by rapid l ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior
mirrors unfold at the same time.
Locking the vehicle
Deadlocking using the remote
control

 Press the closed padlock to lock the
vehicle.

 Press the closed padlock again
within i ve seconds to deadlock the
vehicle.

 Press the open padlock to
unlock the vehicle.
Unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
 Press the closed padlock
to lock the vehicle.
Normal locking using the key


Turn the key to the right in the driver's
door lock to lock the vehicle.
Locking is coni rmed by i xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the exterior
mirrors fold at the same time.
Unlocking using the remote control Deadlocking using the key


Turn the key to the right in the driver's
door lock to lock the vehicle.


Turn the key to the right again within
i ve seconds to deadlock the vehicle.
Deadlocking is coni rmed by i xed
lighting of the direction indicators for
approximately two seconds.
According to version, the exterior mir-
rors fold at the same time.
Normal locking using the remote
control

!
i
ACCESS
63

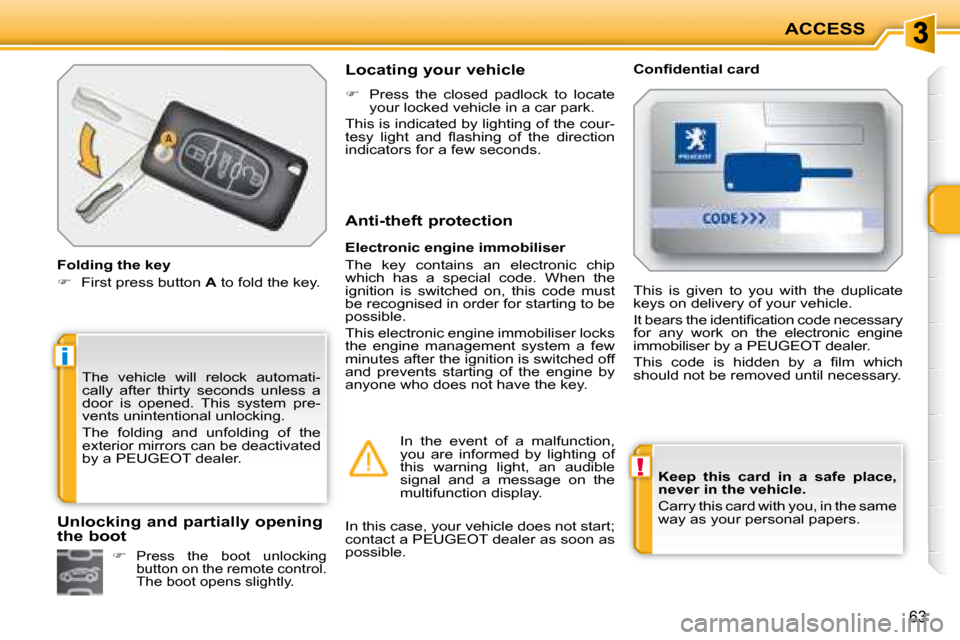

Keep this card in a safe place,
never in the vehicle.
Carry this card with you, in the same
way as your personal papers.
The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

 First press button A to fold the key. Locating your vehicle
Coni dential card

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy light and l ashing of the direction
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate
keys on delivery of your vehicle.
It bears the identii cation code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.
This code is hidden by a i lm which
should not be removed until necessary.
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.


Press the boot unlocking
button on the remote control.
The boot opens slightly.

Unlocking and partially opening
the boot

i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver’s door is opened.
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the fascia
to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.


Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the l at battery out of its loca-
tion.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control. If the battery is l at, you are in-
formed by lighting of this warn-
ing light, an audible signal and
a message on the multifunction
display.

!
ACCESS
65

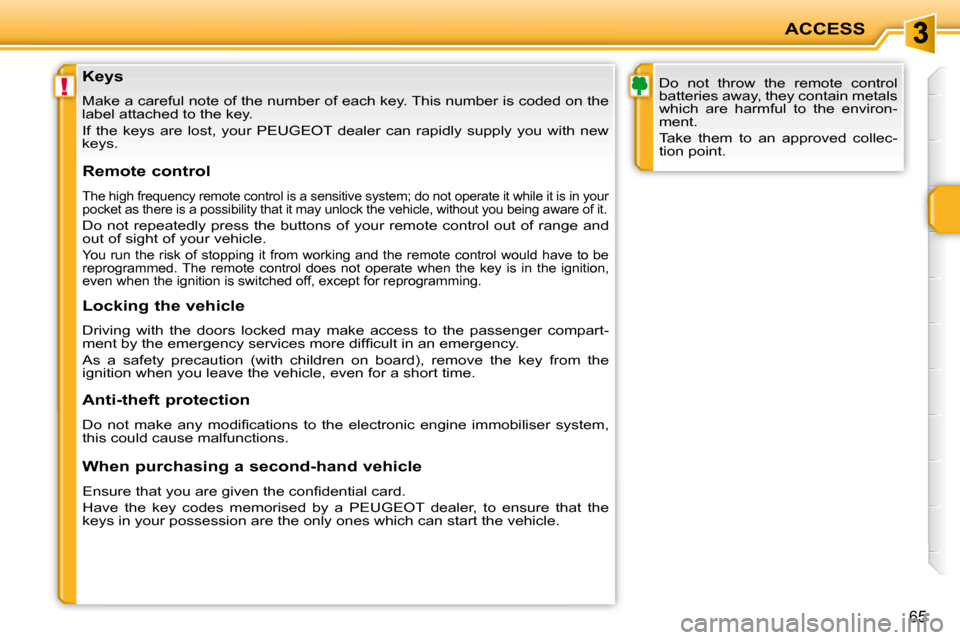

Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you w ith new
keys.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive s ystem; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to be
reprogrammed. The remote control does not operate w hen the key is in the ignition,
even when the ignition is switched off, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more difi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modii cations to the electronic engine immobi liser system,
this could cause malfunctions.
When purchasing a second-hand vehicle
Ensure that you are given the coni dential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

!
i
ACCESS
63

Keep this card in a safe place,
never in the vehicle.
Carry this card with you, in the same
way as your personal papers.
The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

 First press button A to fold the key. Locating your vehicle
Coni dential card

 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy light and l ashing of the direction
indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate
keys on delivery of your vehicle.
It bears the identii cation code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.
This code is hidden by a i lm which
should not be removed until necessary.
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.


Press the boot unlocking
button on the remote control.
The boot opens slightly.

Unlocking and partially opening
the boot

i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver’s door is opened.
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the fascia
to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.


Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
 Unclip the casing using a coin at the
notch.

 Slide the l at battery out of its loca-
tion.

 Slide the new battery into its loca-
tion observing the original direction.

 Clip the casing.

 Reinitialise the remote control. If the battery is l at, you are in-
formed by lighting of this warn-
ing light, an audible signal and
a message on the multifunction
display.

!
ACCESS
65
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you w ith new
keys.
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environ-
ment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive s ystem; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to be
reprogrammed. The remote control does not operate w hen the key is in the ignition,
even when the ignition is switched off, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
ment by the emergency services more difi cult in an emergency.
As a safety precaution (with children on board), remove the key fro m the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modii cations to the electronic engine immobi liser system,
this could cause malfunctions.
When purchasing a second-hand vehicle
Ensure that you are given the coni dential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .
