CHILD SAFETY
89
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
" R E C A R O S t a r t ' '
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 102 of 223
CHILD SAFETY
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
X : seat not suitable for the installation of a child sea t of the weight group indicated.
Seat
Weight of the child / indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
- i x e d
U U U U
- height adjustable
Rear side seats U U U U
Rear centre seat * U X X X
Page 103 of 223
CHILD SAFETY
91
LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SW)
In accordance with the European regulation (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a) in relat ion to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg.
( c ) C o n s u l t t h e l e g i s l a t i o n i n f o r c e i n y o u r c o u n t r y b e f o r e i n s t a l l i n g y o u r c h i l d o n t h i s s e a t .
U : seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or
"forward facing".
Seat Weight of the child
/ indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U U U U
i x e d
height adjustable
Rear side seats
U U U
U
Rear centre seat U * U * U*
U*
* The rear left side seat becomes unusable.
Page 104 of 223
!
CHILD SAFETY
92
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of a
b o o s t e r s e a t w h i c h h a s a b a c k , i t t e d
with a seat belt guide at shoulder level.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t n o t
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e . As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
d o o r s , u s e t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , i t s i d e b l i n d s o n t h e
rear windows.
Page 105 of 223
!
i
CHILD SAFETY
93
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
"ISOFIX" MOUNTINGS
Your vehicle has been approved in accor-
dance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e i t t e d
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , f o r i x i n g t h e u p p e r s t r a p
referred to as the TOP TETHER . This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e i t t i n g o f
the child seat in your vehicle.
The
ISOFIX child seats a r e i t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n i x t h e h o o k o n
ring B and tighten the upper strap.
Saloon
GTi
SW
Page 106 of 223
i
CHILD SAFETY
94
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t i t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to the vehicle seat using t he three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r i t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
ISOFIX RÖMER Duo Plus (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX uppe r ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 107 of 223
CHILD SAFETY
95
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
I n a c c o r d a n c e w i t h t h e E u r o p e a n r e g u l a t i o n ( E C E 1 6 ) , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r t h e i n s t a l l a t i o n o f I S O F I X c h i l d s e a t s
o n t h e v e h i c l e s e a t s i t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o i x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o i x S emi- U niversal seat which is:
- " r e a r f a c i n g " i t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " i t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t i t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o i x M o u n t i n g s " s e c t i o n .
X : seat which is not suitable for the installation of an ISO FIX seat of the size category indicated.
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to
1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category
F
G
C
D
E C
D A
B B1
U n i v e r s a l a n d s e m i - u n i v e r s a l
ISOFIX child seats which can be installed on the rear seats
IL-SU **
X
IL-SU **
X
IL-SU ** IUF **
IL-SU **
* T h e I S O F I X i n f a n t c a r s e a t , i x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r s e a t s .
To install it on the rear seats of a 3-door model, the fron t seat belt must be adjusted to the lowest position.
* * T h e h e a d r e s t r a i n t o f t h e s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s m u s t b e r e m o v e d a n d s t o r e d .
Page 108 of 223
CHILD SAFETY
96
SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (GTI)
I n a c c o r d a n c e w i t h t h e E u r o p e a n r e g u l a t i o n ( E C E 1 6 ) , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r t h e i n s t a l l a t i o n o f I S O F I X c h i l d s e a t s
o n t h e v e h i c l e s e a t s i t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o i x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap. IL-SU: seat suitable for the installation of an I s o i x S emi- U niversal seat which is: - " r e a r f a c i n g " i t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " i t t e d w i t h a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o i x M o u n t i n g s " s e c t i o n .
X : seat which is not suitable for the installation of an I SOFIX seat of the size category indicated.
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to
6 months approx
Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to
1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat "rear facing" "rear facing" "rear facing"
ISOFIX size category F
G C * D ** E C * D ** A B B1
U n i v e r s a l a n d s e m i - u n i v e r s a l
ISOFIX child seats which can be installed on the rear seats
X IL-SU IL-SU
IUF
IL-SU
* The corresponding front seat belt must be adjusted to the highest position minus one notch. The corresponding front seat must be adjusted to the mid-way longitudinal position plus two notches. ** The corresponding front seat belt must be adjusted to the highest position minus one notch.
Page 109 of 223
CHILD SAFETY
97

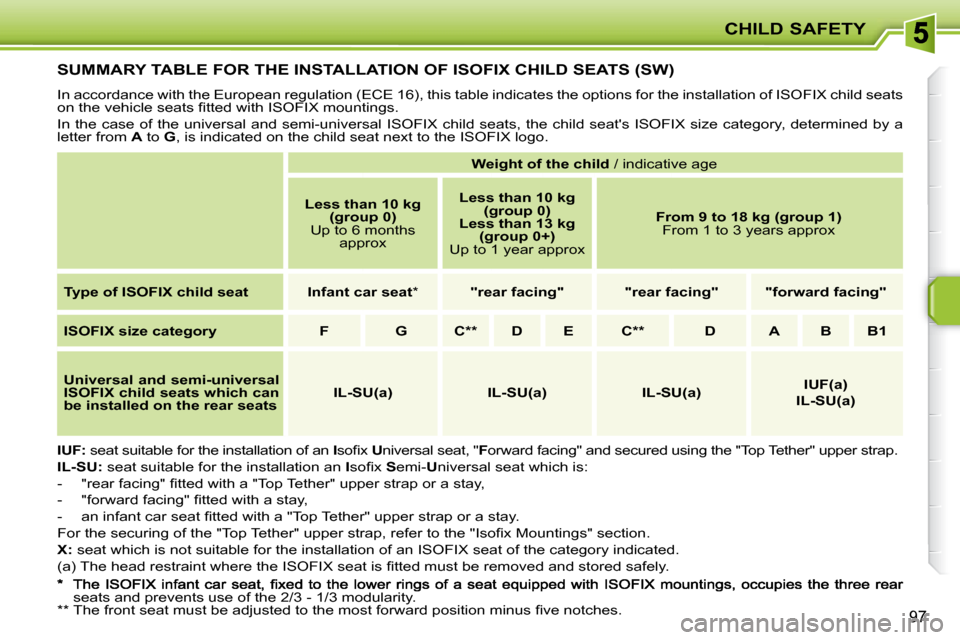

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
I n a c c o r d a n c e w i t h t h e E u r o p e a n r e g u l a t i o n ( E C E 1 6 ) , t h i s t a b l e i n d i c a t e s t h e o p t i o n s f o r t h e i n s t a l l a t i o n o f I S O F I X c h i l d s e a t s
o n t h e v e h i c l e s e a t s i t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat's ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o i x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o i x S emi- U niversal seat which is:
- " r e a r f a c i n g " i t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " i t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t i t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o i x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an ISO FIX seat of the category indicated.
( a ) T h e h e a d r e s t r a i n t w h e r e t h e I S O F I X s e a t i s i t t e d m u s t b e r e m o v e d a n d s t o r e d s a f e l y .
Weight of the child / indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C ** D E C ** D A B B1
U n i v e r s a l a n d s e m i - u n i v e r s a l
ISOFIX child seats which can
be installed on the rear seats
IL-SU(a) IL-SU(a) IL-SU(a)
IUF(a)
IL-SU(a)
seats and prevents use of the 2/3 - 1/3 modularity. * * T h e f r o n t s e a t m u s t b e a d j u s t e d t o t h e m o s t f o r w a r d p o s i t i o n m i n u s i v e n o t c h e s .
Page 110 of 223
!

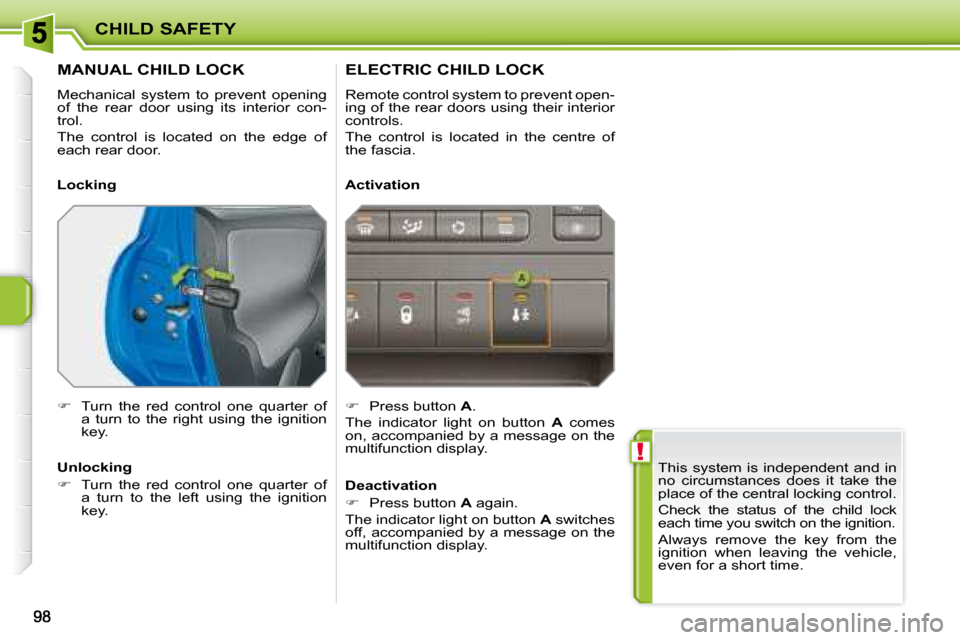

CHILD SAFETY
This system is independent and in
no circumstances does it take the
place of the central locking control.
C h e c k t h e s t a t u s o f t h e c h i l d l o c k
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
MANUAL CHILD LOCK
Mechanical system to prevent opening
of the rear door using its interior con-
trol.
The control is located on the edge of
each rear door.
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f
a turn to the right using the ignition
key.
ELECTRIC CHILD LOCK
Remote control system to prevent open-
ing of the rear doors using their interior
controls.
The control is located in the centre of
the fascia.
Press button A .
The indicator light on button A comes
on, accompanied by a message on the
multifunction display.
Locking
Unlocking
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f
a turn to the left using the ignition
key. A c t i v a t i o n
D e a c t i v a t i o n
Press button A again.
The indicator light on button A switches
off, accompanied by a message on the
multifunction display.
