SAFETY
99
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle. If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).
Lower the lights stalk when moving
to the left.
Raise the lights stalk when moving
to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.
A s a s a f e t y p r e c a u t i o n i n a t r a f i c j a m ,
switch on the hazard warning lights if
you are the last in the queue.
Press button A , the direction indica-
t o r s l a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lights
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lights come on.
They will switch off automatically the
i r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when overtaking a cyclist or a pedestrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
Page 112 of 223
!
i
i
i
SAFETY
100
TYRE UNDER-INFLATION
DETECTION
System which automatically checks the
pressure of the tyres while driving. All repairs and changing of tyres
o n a w h e e l i t t e d w i t h t h i s s y s t e m
must be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you ins-
tall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : i t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
" I d e n t i i c a t i o n f e a t u r e s " p a r a g r a p h )
to ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked
cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n l a t i o n d e t e c t i o n
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
S e n s o r s i t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of malfunction
(speed above 12 mph (20 km/h).
A message appears on the multifunc-
tion display, accompanied by an audible
signal, to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre
This warning light and the
STOP
warning light come on on the ins-
trument panel, accompanied by
an audible signal and a mes-
sage on the multifunction display
locating the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
t u r e d o r v e r y d e l a t e d t y r e ) , a n d
have the tyre pressure checked as
soon as possible.
Puncture
T h e t y r e u n d e r - i n l a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or
faulty
A message appears on the multifunc-
tion display, accompanied by an audi-
ble signal, to locate the wheel or wheels
which are not detected or to indicate a
fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e i t t e d .
T h e s p a r e w h e e l i s n o t i t t e d w i t h
a sensor.
Page 113 of 223
!
i
SAFETY
101

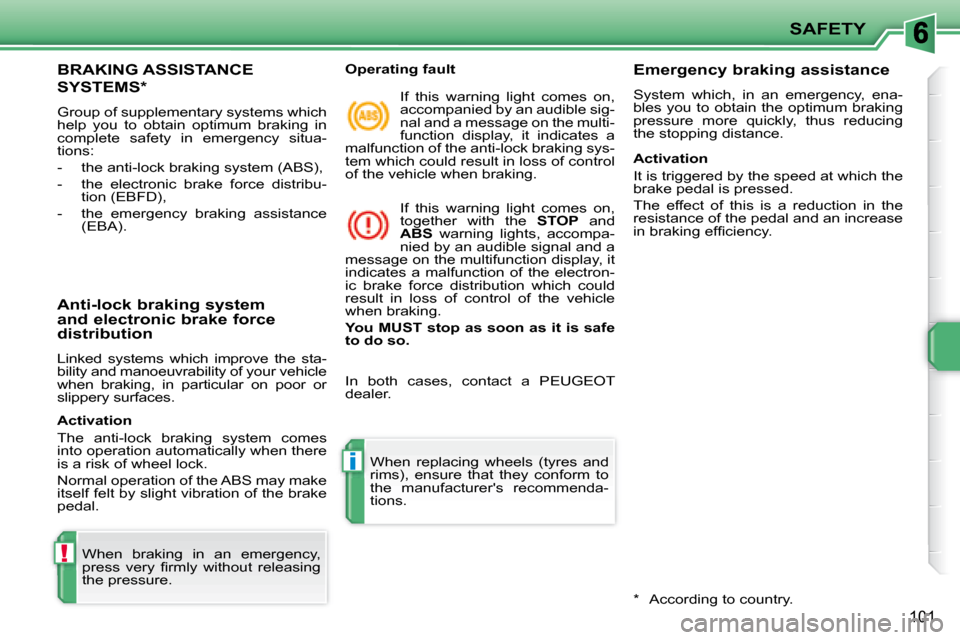

BRAKING ASSISTANCE
SYSTEMS *
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situa-
tions:
- the anti-lock braking system (ABS),
- the electronic brake force distribu-tion (EBFD),
- the emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
When braking in an emergency,
p r e s s v e r y i r m l y w i t h o u t r e l e a s i n g
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the multi-
function display, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning light comes on,
together with the STOP and
ABS warning lights, accompa-
nied by an audible signal and a
message on the multifunction display, it
indicates a malfunction of the electron-
ic brake force distribution which could
result in loss of control of the vehicle
when braking.
You MUST stop as soon as it is safe
to do so. Emergency braking assistance
System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f i c i e n c y .
* According to country.
In both cases, contact a PEUGEOT
dealer.
Page 114 of 223
!
SAFETY
102
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the fascia.
If this warning light comes on on
the instrument panel and the in-
dicator light on the button comes
on, this indicates that the ASR
and ESP systems are disarmed.
Reactivation
These systems are reactivated automa-
tically each time the ignition is switched
back on or from 30 mph (50 km/h) (ex-
cept in the case of the 1.6 l 16V THP
175 bhp petrol engine).
Press the "ESP OFF" button again
to reactivate them manually.
Operating fault
If this warning light comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction display, this indicates
a malfunction of these systems.
Contact a PEUGEOT dealer to have the
systems checked.
TRAJECTORY CONTROL
SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
t r a j e c t o r y r e q u i r e d b y t h e d r i v e r .
They come into operation in
t h e e v e n t o f a g r i p o r t r a j e c t o r y
problem.
T h i s i s i n d i c a t e d b y l a s h i n g o f
this warning light on the instru-
ment panel. Steering/ESP coupling system
(SSP)
This system optimises the stability of
the vehicle and its braking capacity by
combining the actions of the ESP and
electric power steering when braking on
surfaces on which the grip of the right-
hand and left-hand wheel differs.
It permits increased braking of the
wheels which are in contact with the
section of road offering the higher level
of grip and, anticipating the instability of
the vehicle, the application of a slight
correction to the turning angle of the
wheels to assist the driver in maintain-
i n g h i s t r a j e c t o r y .
Page 115 of 223
SAFETY
103

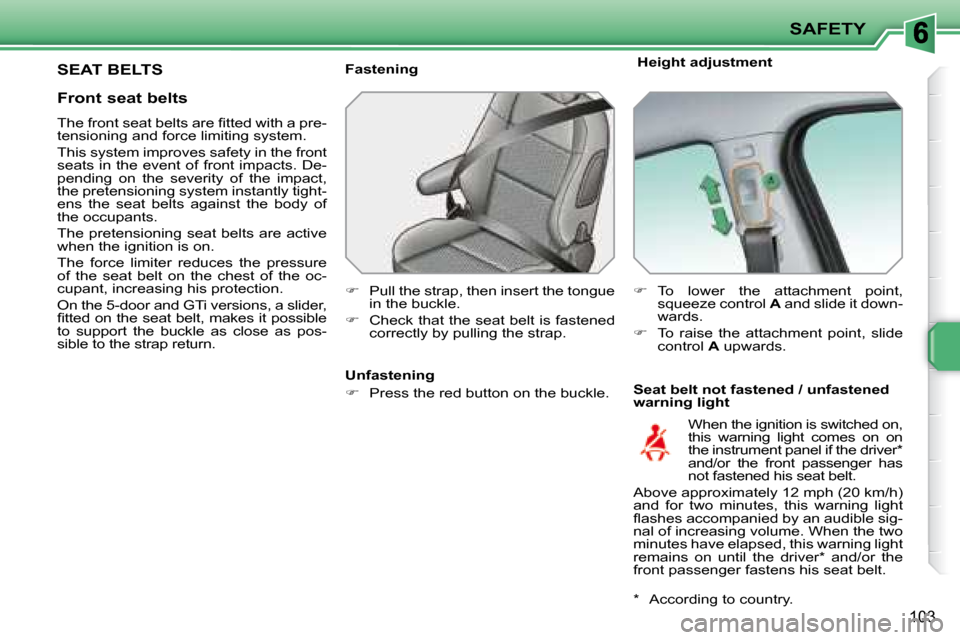

SEAT BELTS Height adjustment
Seat belt not fastened / unfastened
warning light
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To lower the attachment point,
squeeze control A and slide it down-
wards.
To raise the attachment point, slide
control A upwards.
When the ignition is switched on,
this warning light comes on on
the instrument panel if the driver *
and/or the front passenger has
not fastened his seat belt.
Above approximately 12 mph (20 km/h)
and for two minutes, this warning light
l a s h e s a c c o m p a n i e d b y a n a u d i b l e s i g -
nal of increasing volume. When the two
minutes have elapsed, this warning light
remains on until the driver * and/or the
front passenger fastens his seat belt.
* According to country.
Unfastening
Press the red button on the buckle.
Front seat belts
T h e f r o n t s e a t b e l t s a r e i t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of front impacts. De-
pending on the severity of the impact,
the pretensioning system instantly tight-
ens the seat belts against the body of
the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the oc-
cupant, increasing his protection.
On the 5-door and GTi versions, a slider,
i t t e d o n t h e s e a t b e l t , m a k e s i t p o s s i b l e
to support the buckle as close as pos-
sible to the strap return.
Page 116 of 223
SAFETY
104
1. Front left seat belt warning light.
2. Front right seat belt warning light.
3. Rear left seat belt warning light.
4. Rear centre seat belt warning light ** .
5. Rear right seat belt warning light.
On the central bar, the corresponding
warning light 1 or 2 comes on in red if
the seat belt is not fastened or is unfas-
tened.
Seat belt not fastened / unfastened
warning lights bar
Rear seat belts
T h e r e a r s e a t s a r e i t t e d w i t h t h r e e s e a t
belts ** , each with three anchoring points
and an inertia reel with force limiter.
Seat belt unfastened warning light
This warning light comes on on
the instrument panel if one or
more rear passengers unbuckle
their seat belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap. Seat belt unfastened warning lights
bar
When the ignition is switched on, the
corresponding warning lights
3, 4 ** and
5 come on for approximately 30 sec-
onds in red if the seat belt is not fas-
tened:
When the engine is running, the corres-
ponding warning light 3, 4 ** or 5 comes
on in red, accompanied by an audible
signal and a message on the multifunc-
tion display, if a rear passenger has un-
fastened his seat belt.
Unfastening
Press the red button on the buckle.
** Except GTi.
Page 117 of 223
i
SAFETY
105
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l i l t h e i r r o l e f u l l y .
If the seats have armrests * , the lap
part of the seat belt must always pass
under the armrest.
T h e s e a t b e l t s a r e i t t e d w i t h a n i n e r t i a
r e e l p e r m i t t i n g a u t o m a t i c a d j u s t m e n t
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e i t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e t r a n s f o r m e d o r m o d i i e d to avoid altering its perfor mance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e i f t y ,
- do not use the strap-guide * when a child seat is installed.
- never use the same seat belt to secure more than one person,
- never allow a child to travel on your lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight emission
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if necessary
replaced, by a PEUGEOT dealer.
Page 118 of 223
!
i
SAFETY
106
AIR BAGS The air bags do not operate
when the ignition is switched off.
This equipment will only operate
once. If a second impact occurs (du-
ring the same or a subsequent acci-
dent), the air bag will not operate. Front air bags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's air bag is incorporated in the
centre of the steering wheel; the front
passenger's air bag is incorpora ted in
the fascia above the glove box.
Activation
The air bags are triggered simulta-
neously, unless the passenger's front
air bag is disarmed, in the event of a
se rious front impact applied to all or part
of the front impact zone
A , in the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
front to the rear of the vehicle.
T h e f r o n t a i r b a g i n l a t e s b e t w e e n t h e
front occupant of the vehicle and the
fascia to cushion his forward move-
ment.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
Triggering of the air bag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic cart-
ridge incorporated in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
air bags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e l a t e r a p i d l y
so that they do not hinder visibility or
the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
air bags will not be triggered; the
s e a t b e l t a l o n e i s s u f i c i e n t t o p r o -
vide optimum protection in these
situations.
Page 119 of 223
!
!
SAFETY
107
If both air bag warning lights come
on continuously, do not install a
"rear facing" child seat on the front
passenger seat.
Contact a PEUGEOT dealer.
Operating fault
If this warning light comes on on
the instrument panel, accompa-
nied by an audible warning and
a message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked.
To guarantee the safety of your
child, it is imperative that the pas-
senger air bag is disarmed when
you install a "rear facing" child seat
on the front passenger seat.
Otherwise, the child would risk be-
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e
air bag were triggered.
According to version, this war-
ning light comes on either on
the instrument panel or on the
central bar when the ignition is
on and until the air bag is re-
armed. Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.

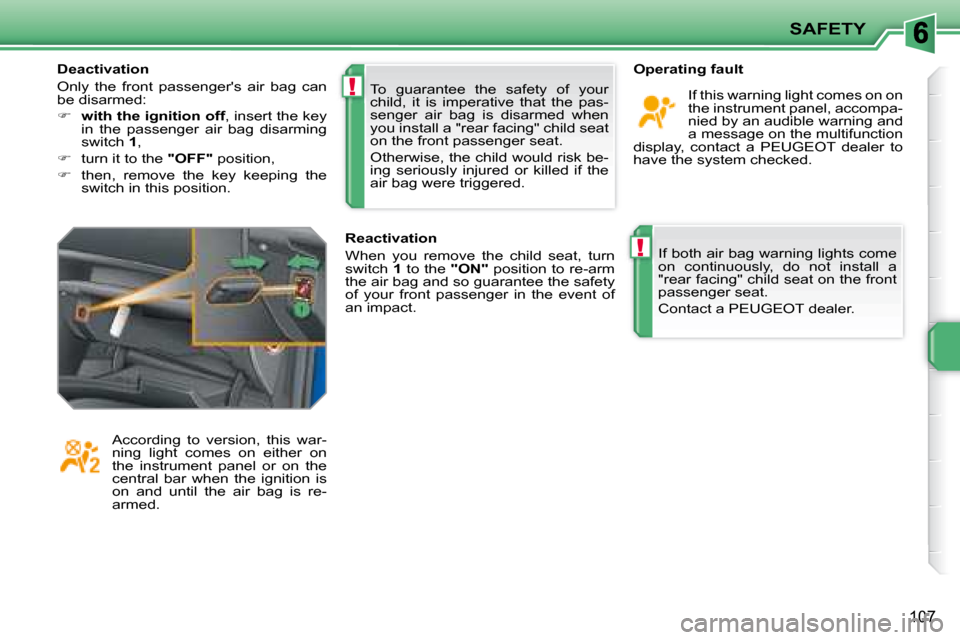

Deactivation
Only the front passenger's air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in this position.
Page 120 of 223
!
SAFETY
108

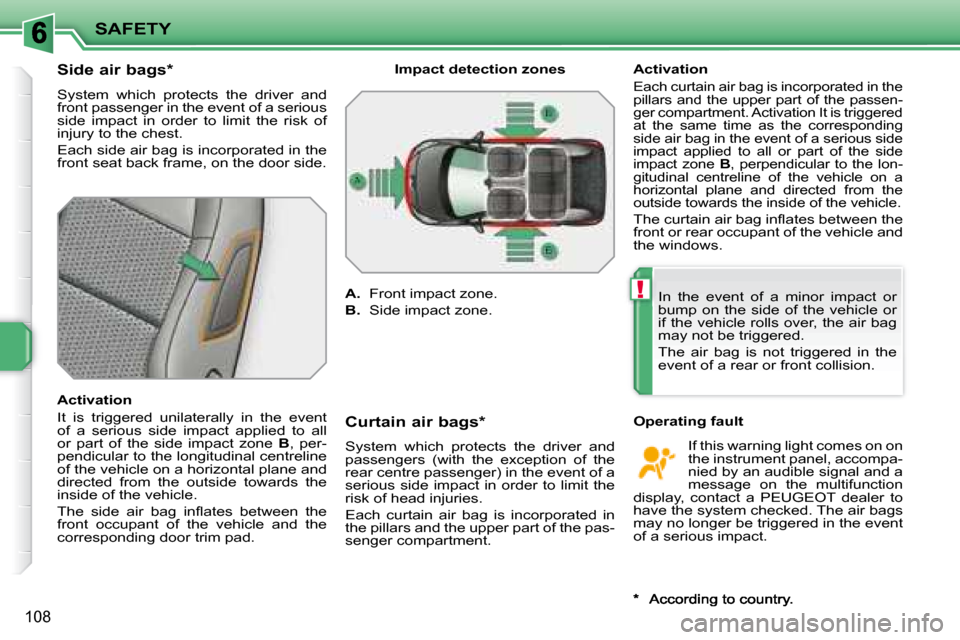

Side air bags *
System which protects the driver and
front passenger in the event of a seri ous
side impact in order to limit the risk of
i n j u r y t o t h e c h e s t .
Each side air bag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
T h e s i d e a i r b a g i n l a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags *
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
r i s k o f h e a d i n j u r i e s .
Each curtain air bag is incorporated in
the pillars and the upper part of the pas-
senger compartment.
If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
Operating fault
Activation
Each curtain air bag is incorporated in the
pillars and the upper part of the passen-
ger compartment. Activation It is triggered
at the same time as the corresponding
side air bag in the event of a serious side
impact applied to all or part of the side
impact zone
B , perpendicular to the lon-
gitudinal centreline of the vehicle on a
horizontal plane and directed from the
outside towards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n l a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
