Peugeot 207 Dag 2008 Owner's Manual

!
SAFETY
109

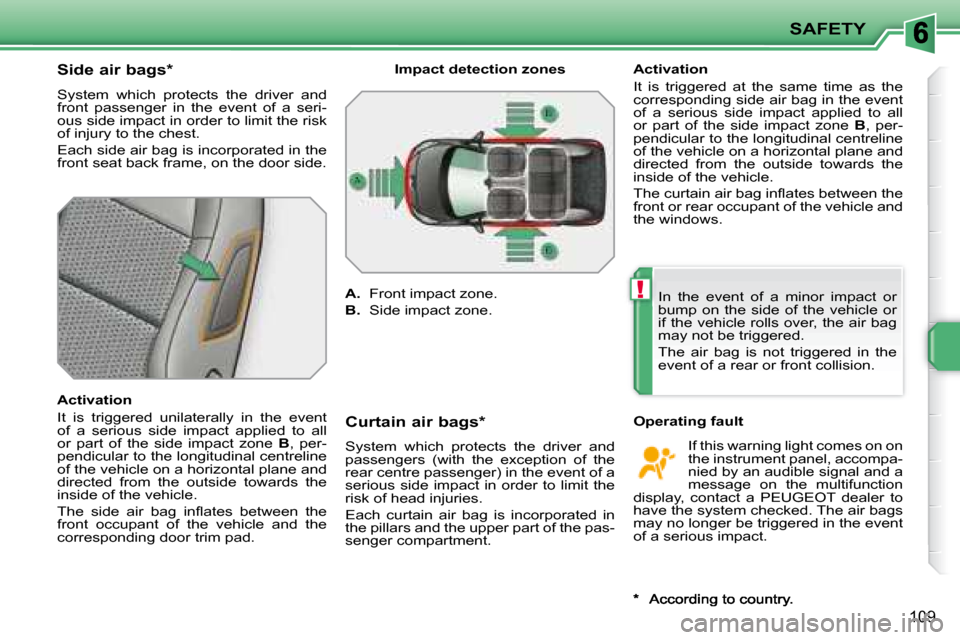

Side air bags *
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
of injury to the chest.
Each side air bag is incorporated in the
front seat back frame, on the door side.
Activation
It is triggered unilaterally in the event
of a serious side impact applied to all
or part of the side impact zone B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
The side air bag infl ates between the
front occupant of the vehicle and the
corresponding door trim pad. Curtain air bags *
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
risk of head injuries.
Each curtain air bag is incorporated in
the pillars and the upper part of the pas-
senger compartment.
If this warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction
display, contact a PEUGEOT dealer to
have the system checked. The air bags
may no longer be triggered in the event
of a serious impact.
Operating fault
Activation
It is triggered at the same time as the
corresponding side air bag in the event
of a serious side impact applied to all
or part of the side impact zone
B , per-
pendicular to the longitudinal centreline
of the vehicle on a horizontal plane and
directed from the outside towards the
inside of the vehicle.
The curtain air bag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle or
if the vehicle rolls over, the air bag
may not be triggered.
The air bag is not triggered in the
event of a rear or front collision.
Impact detection zones

A. Front impact zone.

B. Side impact zone.

!
SAFETY
110

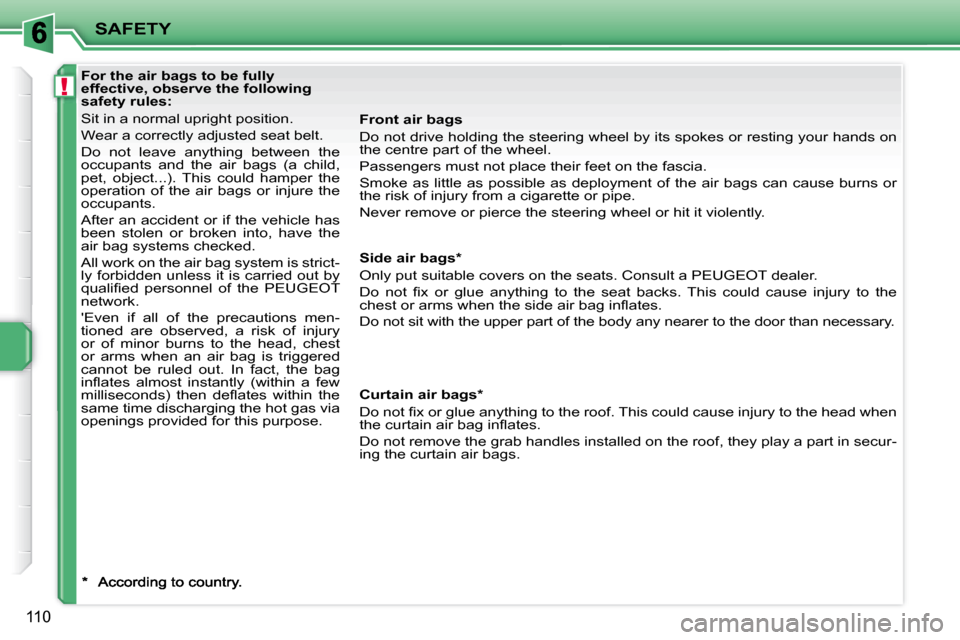

Front air bags
Do not drive holding the steering wheel by its spokes or resting your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Side air bags *
Only put suitable covers on the seats. Consult a PEUGEOT deal er.
Do not fi x or glue anything to the seat backs. This could ca use injury to the
chest or arms when the side air bag infl ates.
Do not sit with the upper part of the body any nea rer to the door than necessary.
Curtain air bags *
Do not fi x or glue anything to the roof. This could cause injury to the head when
the curtain air bag infl ates.
Do not remove the grab handles installed on the roof, the y play a part in secur-
ing the curtain air bags.
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the air bags (a child,
pet, object...). This could hamper the
operation of the air bags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
air bag systems checked.
All work on the air bag system is strict-
ly forbidden unless it is carried out by
qualifi ed personnel of the PEUGEOT
network.
'Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an air bag is triggered
cannot be ruled out. In fact, the bag
infl ates almost instantly (within a few
milliseconds) then defl ates within the
same time discharging the hot gas via
openings provided for this purpose.

!
111
When parking on a slope, direct
your wheels to chock them against
the pavement, pull the handbrake
and engage a gear.

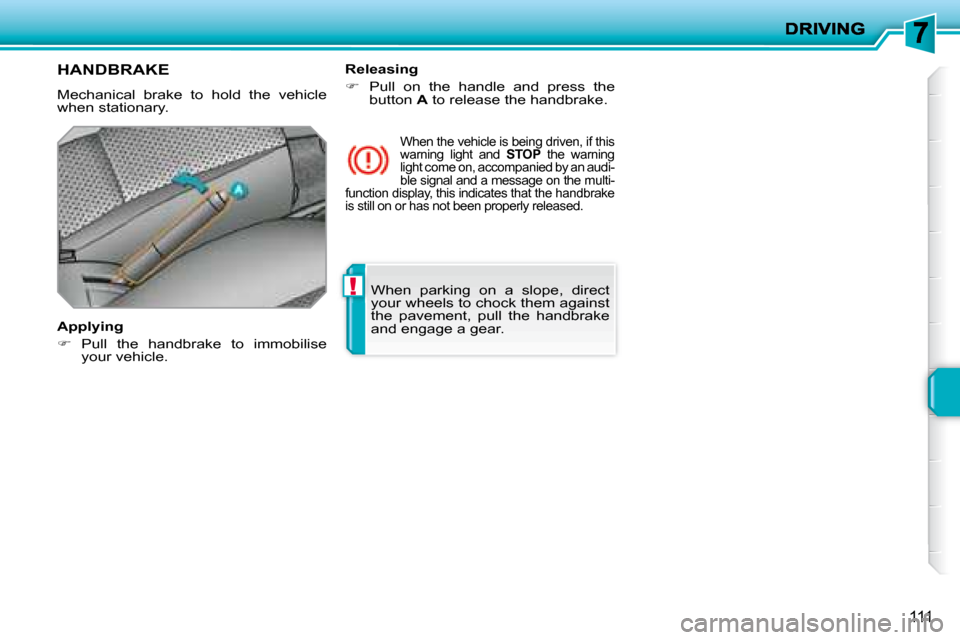

HANDBRAKE
Mechanical brake to hold the vehicle
when stationary.
Applying

 Pull the handbrake to immobilise
your vehicle.
When the vehicle is being driven, if this
warning light and STOP the warning
light come on, accompanied by an audi-
ble signal and a message on the multi-
function display, this indicates that the handbrake
is still on or has not been properly released.
Releasing

 Pull on the handle and press the
button A to release the handbrake.

i
112

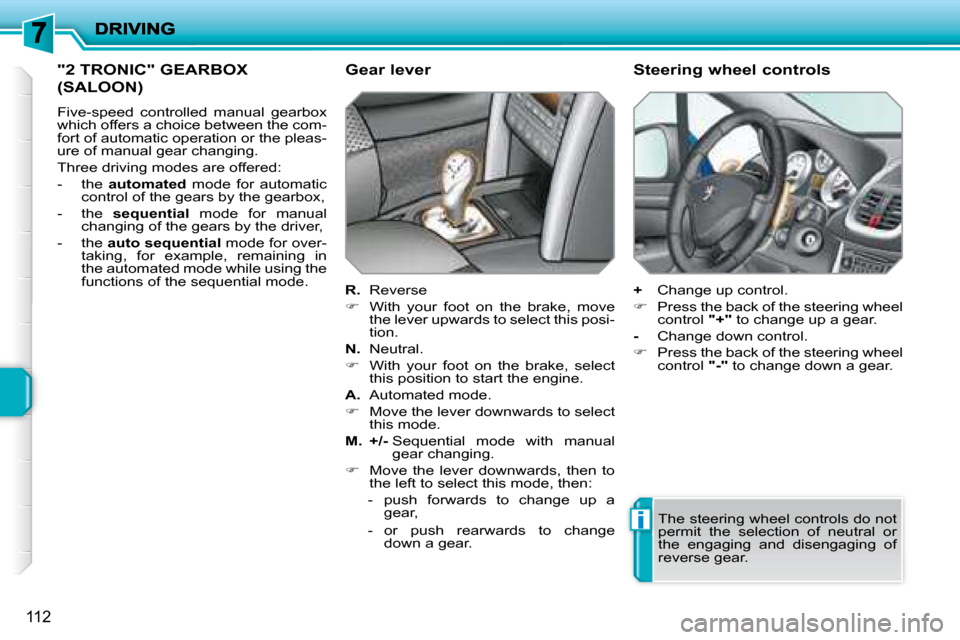

"2 TRONIC" GEARBOX
(SALOON)
Five-speed controlled manual gearbox
which offers a choice between the com-
fort of automatic operation or the pleas-
ure of manual gear changing.
Three driving modes are offered:
- the automated mode for automatic
control of the gears by the gearbox,
- the sequential mode for manual
changing of the gears by the driver,
- the auto sequential mode for over-
taking, for example, remaining in
the automated mode while using the
functions of the sequential mode.
R. Reverse

 With your foot on the brake, move
the lever upwards to select this posi-
tion.

N. Neutral.

 With your foot on the brake, select
this position to start the engine.

A. Automated mode.

 Move the lever downwards to select
this mode.

M. +/- Sequential mode with manual
gear changing.

 Move the lever downwards, then to
the left to select this mode, then:
- push forwards to change up a gear,
- or push rearwards to change down a gear.
Gear lever

+ Change up control.

 Press the back of the steering wheel
control "+" to change up a gear.

- Change down control.

 Press the back of the steering wheel
control "-" to change down a gear.
Steering wheel controls
The steering wheel controls do not
permit the selection of neutral or
the engaging and disengaging of
reverse gear.

i
i
i
113

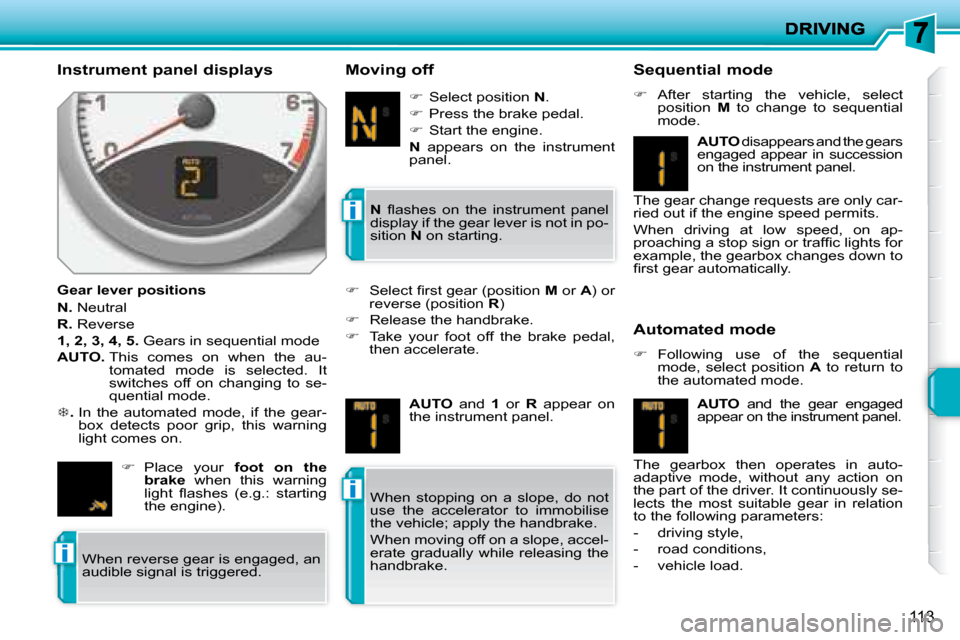

Instrument panel displays
Gear lever positions

N. Neutral

R. Reverse

1, 2, 3, 4, 5. Gears in sequential mode

AUTO. This comes on when the au-
tomated mode is selected. It
switches off on changing to se-
quential mode.

 . In the automated mode, if the gear-
box detects poor grip, this warning
light comes on. Moving off Sequential mode

 After starting the vehicle, select
position M to change to sequential
mode.
Automated mode

 Following use of the sequential
mode, select position A to return to
the automated mode.
When stopping on a slope, do not
use the accelerator to immobilise
the vehicle; apply the handbrake.
When moving off on a slope, accel-
erate gradually while releasing the
handbrake.

 Place your foot on the
brake when this warning
light fl ashes (e.g.: starting
the engine).
 Select position N .

 Press the brake pedal.

 Start the engine.

N appears on the instrument
panel.

N fl ashes on the instrument panel
display if the gear lever is not in po-
sition N on starting.

 Select fi rst gear (position M or A ) or
reverse (position R )

 Release the handbrake.

 Take your foot off the brake pedal,
then accelerate.

AUTO and 1 or R appear on
the instrument panel.
AUTO disappears and the gears
engaged appear in succession
on the instrument panel.
The gear change requests are only car-
ried out if the engine speed permits.
When driving at low speed, on ap-
proaching a stop sign or traffi c lights for
example, the gearbox changes down to
fi rst gear automatically.

AUTO and the gear engaged
appear on the instrument panel.
The gearbox then operates in auto-
adaptive mode, without any action on
the part of the driver. It continuously se-
lects the most suitable gear in relation
to the following parameters:
- driving style,
- road conditions,
- vehicle load.
When reverse gear is engaged, an
audible signal is triggered.

!
i

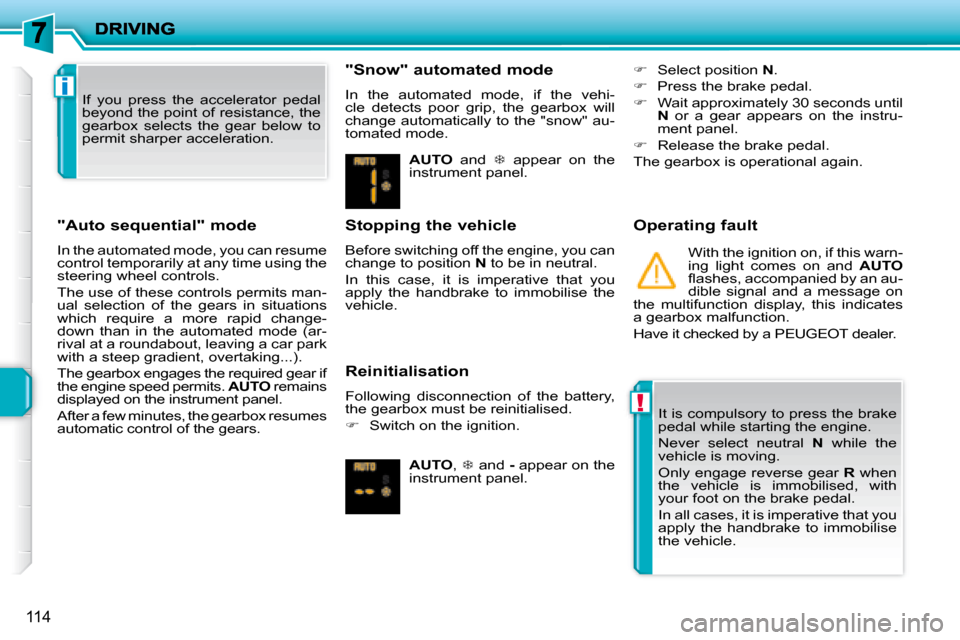

114
"Auto sequential" mode
In the automated mode, you can resume
control temporarily at any time using the
steering wheel controls.
The use of these controls permits man-
ual selection of the gears in situations
which require a more rapid change-
down than in the automated mode (ar-
rival at a roundabout, leaving a car park
with a steep gradient, overtaking...).
The gearbox engages the required gear if
the engine speed permits. AUTO remains
displayed on the instrument panel.
After a few minutes, the gearbox resumes
automatic control of the gears. "Snow" automated mode
In the automated mode, if the vehi-
cle detects poor grip, the gearbox will
change automatically to the "snow" au-
tomated mode.
Stopping the vehicle
Before switching off the engine, you can
change to position
N to be in neutral.
In this case, it is imperative that you
apply the handbrake to immobilise the
vehicle.
Reinitialisation
Following disconnection of the battery,
the gearbox must be reinitialised.

 Switch on the ignition. Operating fault
With the ignition on, if this warn-
ing light comes on and AUTO
fl ashes, accompanied by an au-
dible signal and a message on
the multifunction display, this indicates
a gearbox malfunction.
Have it checked by a PEUGEOT dealer.
It is compulsory to press the brake
pedal while starting the engine.
Never select neutral N while the
vehicle is moving.
Only engage reverse gear R when
the vehicle is immobilised, with
your foot on the brake pedal.
In all cases, it is imperative that you
apply the handbrake to immobilise
the vehicle.
If you press the accelerator pedal
beyond the point of resistance, the
gearbox selects the gear below to
permit sharper acceleration.

AUTO and  appear on the
instrument panel.

AUTO ,  and - appear on the
instrument panel.
 Select position N .

 Press the brake pedal.

 Wait approximately 30 seconds until

N or a gear appears on the instru-
ment panel.

 Release the brake pedal.
The gearbox is operational again.

115

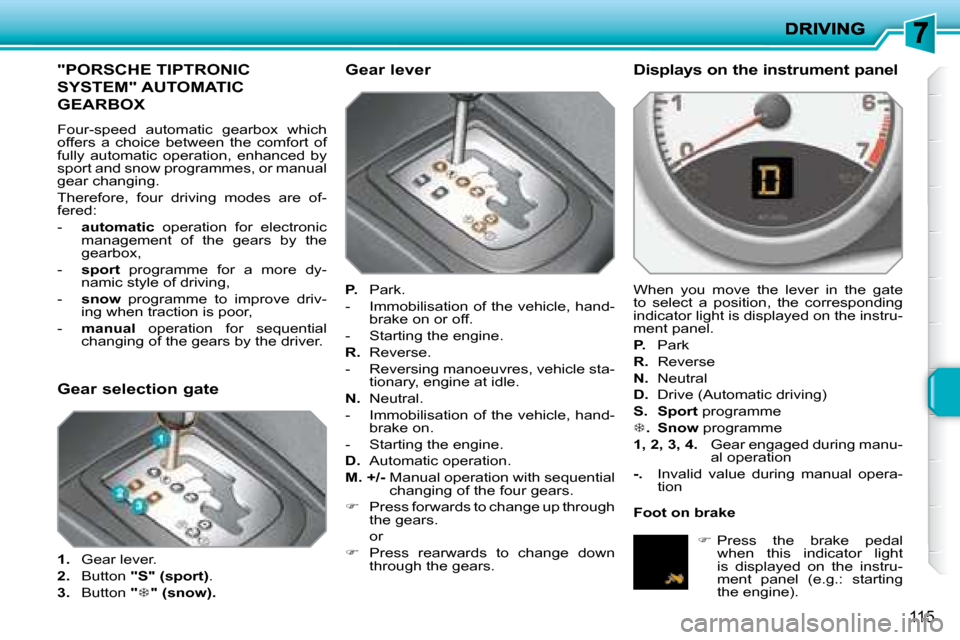

"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
Four-speed automatic gearbox which
offers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Therefore, four driving modes are of-
fered:
- automatic operation for electronic
management of the gears by the
gearbox,
- sport programme for a more dy-
namic style of driving,
- snow programme to improve driv-
ing when traction is poor,
- manual operation for sequential
changing of the gears by the driver. Gear lever

P. Park.
- Immobilisation of the vehicle, hand- brake on or off.
- Starting the engine.

R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.

N. Neutral.
- Immobilisation of the vehicle, hand- brake on.
- Starting the engine.

D. Automatic operation.

M. +/- Manual operation with sequential
changing of the four gears.

 Press forwards to change up through
the gears.
or

 Press rearwards to change down
through the gears. Displays on the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator light is displayed on the instru-
ment panel.

P. Park

R. Reverse

N. Neutral

D. Drive (Automatic driving)

S. Sport programme


. Snow programme

1, 2, 3, 4. Gear engaged during manu-
al operation

-. Invalid value during manual opera-
tion
Gear selection gate

1. Gear lever.

2. Button "S" (sport) .

3. Button "

" (snow). Foot on brake

 Press the brake pedal
when this indicator light
is displayed on the instru-
ment panel (e.g.: starting
the engine).

!
!
i
116

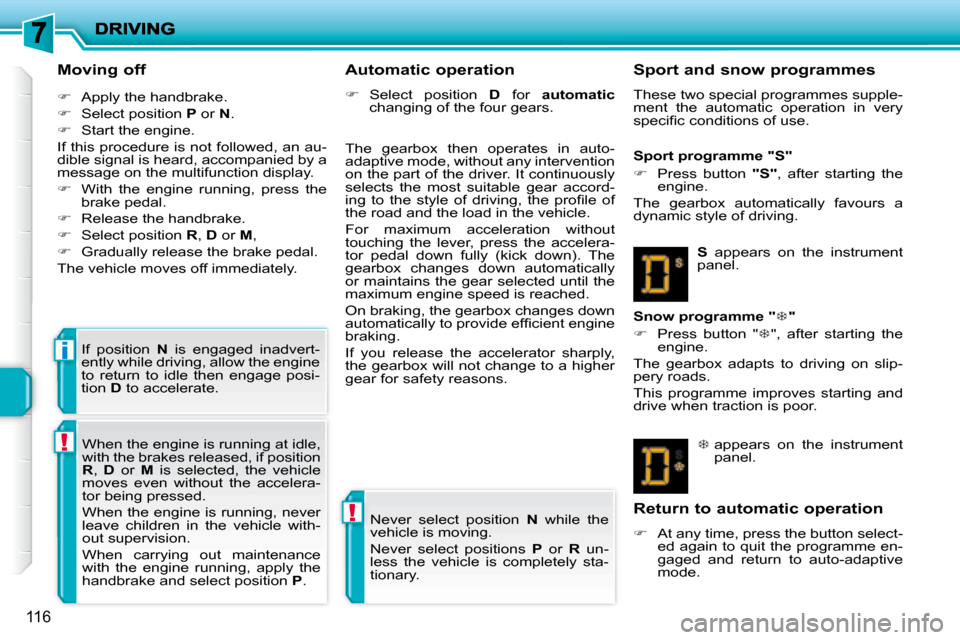

Moving off

 Apply the handbrake.

 Select position P or N .

 Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction display.

 With the engine running, press the
brake pedal.

 Release the handbrake.

 Select position R , D or M ,

 Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadvert-
ently while driving, allow the engine
to return to idle then engage posi-
tion D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
ing to the style of driving, the profi le of
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
automatically to provide effi cient engine
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation

 Select position D for automatic
changing of the four gears.

 appears on the instrument
panel.
Snow programme "
 "

 Press button "  ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"

 Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R un-
less the vehicle is completely sta-
tionary.
When the engine is running at idle,
with the brakes released, if position

R , D or M is selected, the vehicle
moves even without the accelera-
tor being pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance
with the engine running, apply the
handbrake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
specifi c conditions of use.
Return to automatic operation

 At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.

!i
117

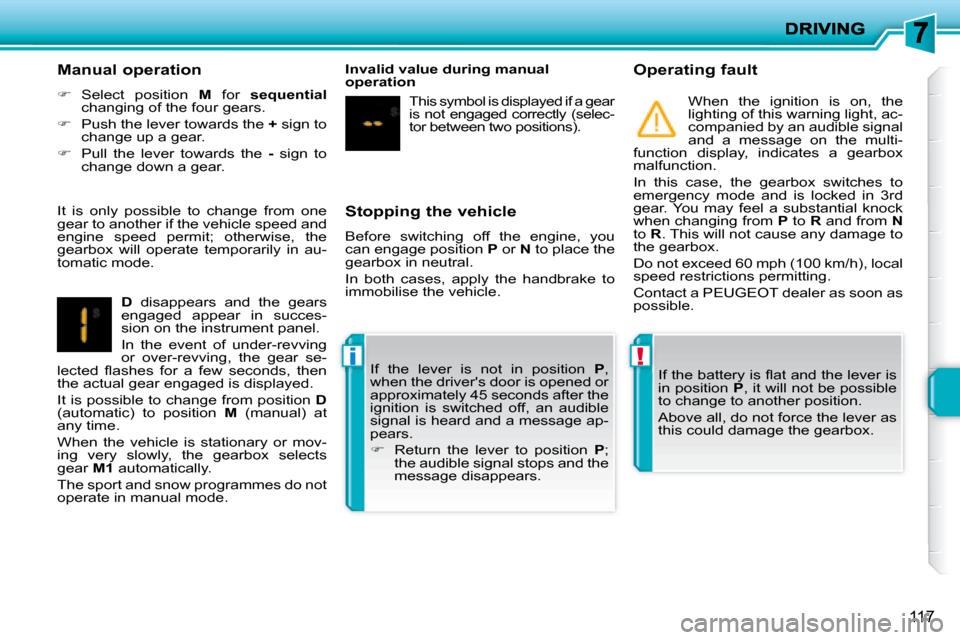

Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the handbrake to
immobilise the vehicle. Operating fault
When the ignition is on, the
lighting of this warning light, ac-
companied by an audible signal
and a message on the multi-
function display, indicates a gearbox
malfunction.
In this case, the gearbox switches to
emergency mode and is locked in 3rd
gear. You may feel a substantial knock
when changing from P to R and from N
to R . This will not cause any damage to
the gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Contact a PEUGEOT dealer as soon as
possible.
If the battery is fl at and the lever is
in position P , it will not be possible
to change to another position.
Above all, do not force the lever as
this could damage the gearbox.
Manual operation

 Select position M for sequential
changing of the four gears.

 Push the lever towards the + sign to
change up a gear.

 Pull the lever towards the - sign to
change down a gear.

D disappears and the gears
engaged appear in succes-
sion on the instrument panel.
In the event of under-revving
or over-revving, the gear se-
lected fl ashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode. If the lever is not in position
P ,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, an audible
signal is heard and a message ap-
pears.

 Return the lever to position P ;
the audible signal stops and the
message disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selec-
tor between two positions).

i
118

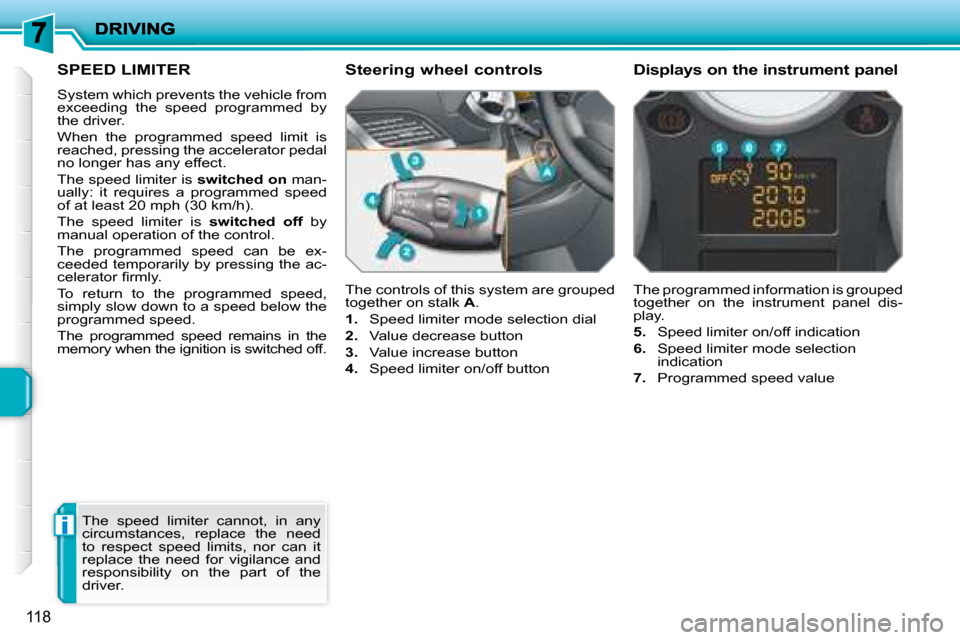

SPEED LIMITER
System which prevents the vehicle from
exceeding the speed programmed by
the driver.
When the programmed speed limit is
reached, pressing the accelerator pedal
no longer has any effect.
The speed limiter is switched on man-
ually: it requires a programmed speed
of at least 20 mph (30 km/h).
The speed limiter is switched off by
manual operation of the control.
The programmed speed can be ex-
ceeded temporarily by pressing the ac-
celerator fi rmly.
To return to the programmed speed,
simply slow down to a speed below the
programmed speed.
The programmed speed remains in the
memory when the ignition is switched off. The controls of this system are grouped
together on stalk
A .

1. Speed limiter mode selection dial

2. Value decrease button

3. Value increase button

4. Speed limiter on/off button The programmed information is grouped
together on the instrument panel dis-
play.

5. Speed limiter on/off indication
6. Speed limiter mode selection
indication

7. Programmed speed value
Steering wheel controls Displays on the instrument
panel
The speed limiter cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
