10
165
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.

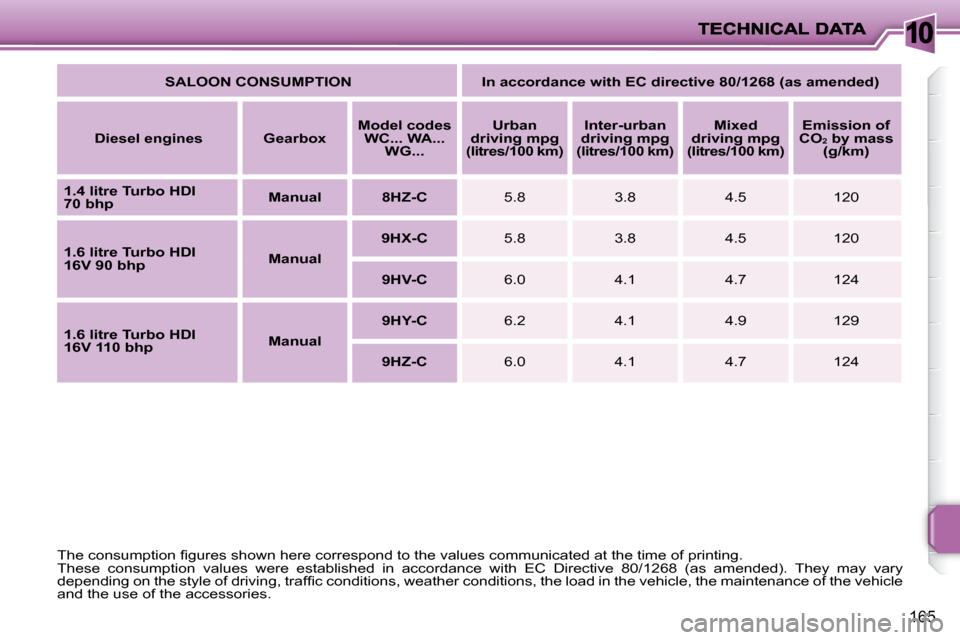

SALOON CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearbox
Model codes
WC... WA... WG...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre Turbo HDI
70 bhp
Manual 8HZ-C 5.8 3.8 4.5 120
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 3.8 4.5 120
9HV-C 6.0 4.1 4.7 124
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C 6.2 4.1 4.9 129
9HZ-C 6.0 4.1 4.7 124
Page 172 of 255
10
157

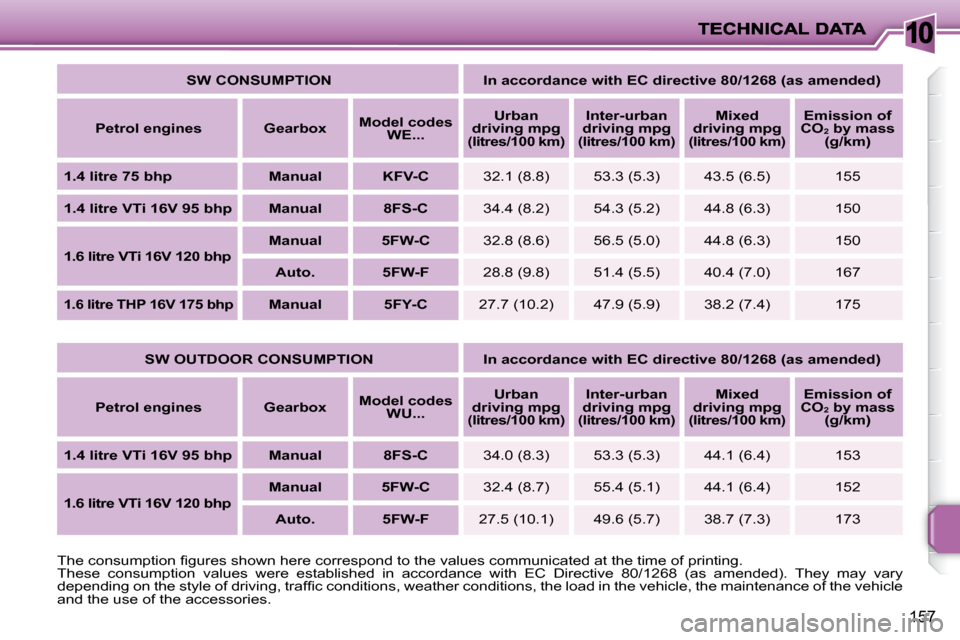

SW CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearbox
Model codes
WE...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre 75 bhp Manual KFV-C 32.1 (8.8) 53.3 (5.3) 43.5 (6.5) 155
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.8 (8.6) 56.5 (5.0) 44.8 (6.3) 150
Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167
1.6 litre THP 16V 175 bhp
Manual 5FY-C 27.7 (10.2) 47.9 (5.9) 38.2 (7.4) 175
SW OUTDOOR CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearbox
Model codes
WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.0 (8.3) 53.3 (5.3) 44.1 (6.4) 153
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.4 (8.7) 55.4 (5.1) 44.1 (6.4) 152
Auto. 5FW-F 27.5 (10.1) 49.6 (5.7) 38.7 (7.3) 173
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
Page 173 of 255
10
166
TECHNICAL DATA

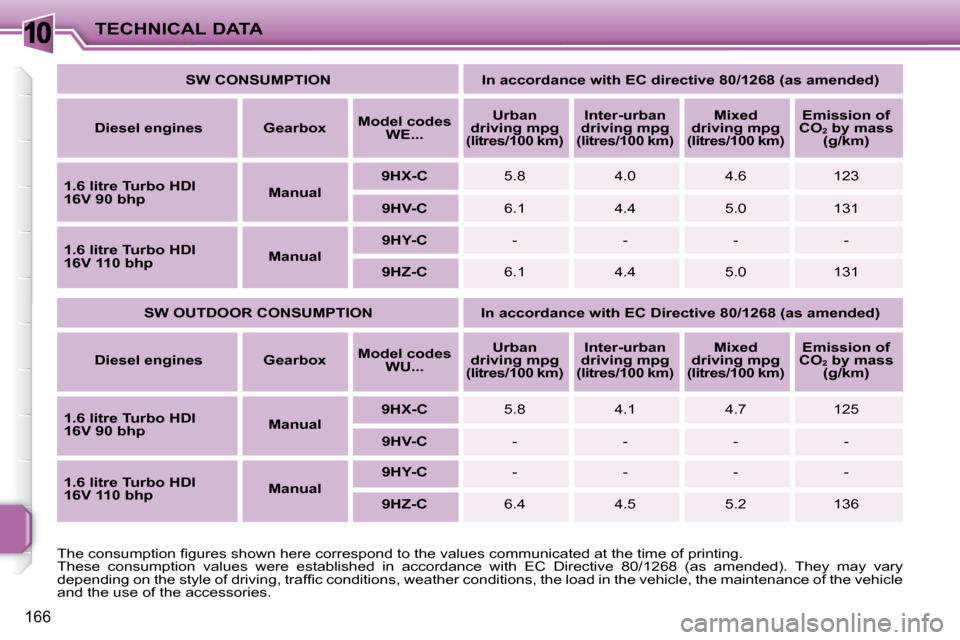

SW CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearbox
Model codes
WE...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.0 4.6 123
9HV-C 6.1 4.4 5.0 131
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -
9HZ-C 6.1 4.4 5.0 131
SW OUTDOOR CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearbox
Model codes
WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.1 4.7 125
9HV-C - - - -
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -
9HZ-C 6.4 4.5 5.2 136
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
Page 174 of 255
10
158
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

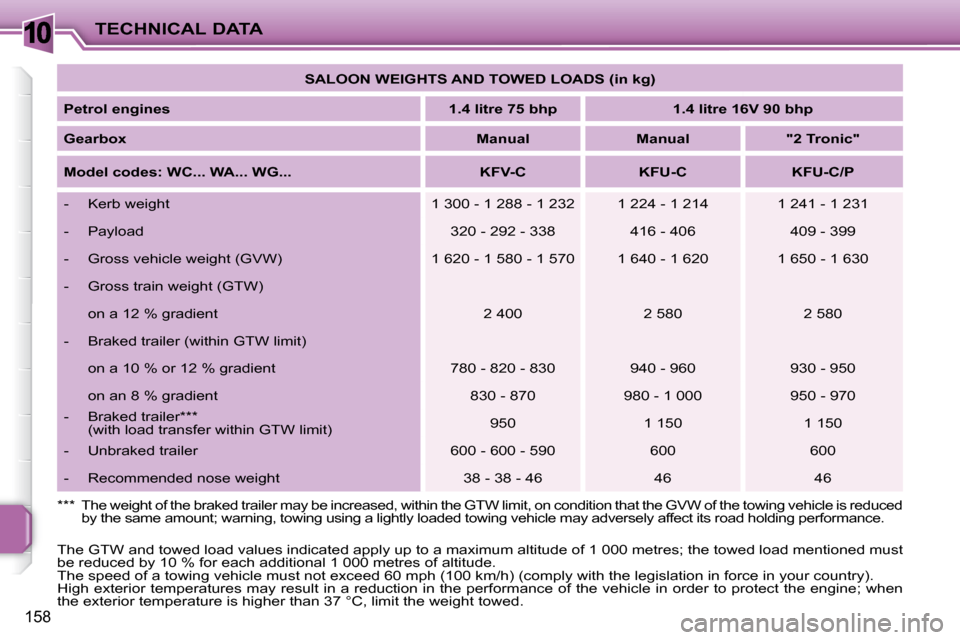

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 bhp 1.4 litre 16V 90 bhp
Gearbox
Manual Manual "2 Tronic"
Model codes: WC... WA... WG... KFV-C KFU-C KFU-C/P
- Kerb weight 1 300 - 1 288 - 1 232 1 224 - 1 214 1 241 - 1 2 31
- Payload 320 - 292 - 338 416 - 406 409 - 399
- Gross vehicle weight (GVW) 1 620 - 1 580 - 1 570 1 640 - 1 620 1 650 - 1 630
- Gross train weight (GTW)
on a 12 % gradient 2 400 2 580 2 580
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 780 - 820 - 830 940 - 960 930 - 950
on an 8 % gradient 830 - 870 980 - 1 000 950 - 970
- Braked trailer *** (with load transfer within GTW limit) 950 1 150 1 150
- Unbraked trailer 600 - 600 - 590 600 600
- Recommended nose weight 38 - 38 - 46 46 46
***
The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 175 of 255
10
159

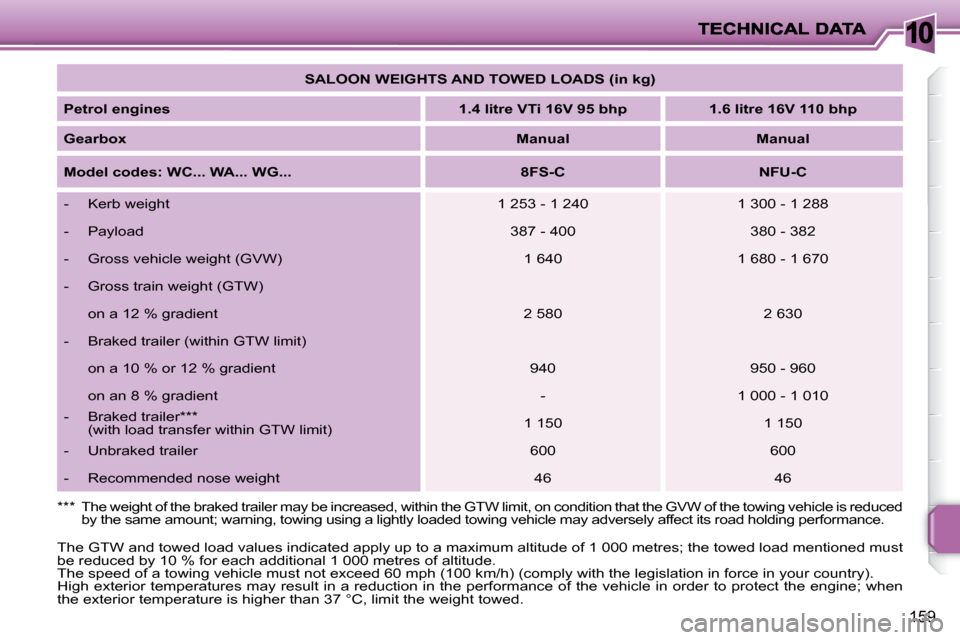

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi 16V 95 bhp 1.6 litre 16V 110 bhp
Gearbox
Manual Manual
Model codes: WC... WA... WG... 8FS-C NFU-C
- Kerb weight 1 253 - 1 240 1 300 - 1 288
- Payload 387 - 400 380 - 382
- Gross vehicle weight (GVW) 1 640 1 680 - 1 670
- Gross train weight (GTW)
on a 12 % gradient 2 580 2 630
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 940 950 - 960
on an 8 % gradient - 1 000 - 1 010
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
***
The weight of the braked trailer may be increased,
within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 176 of 255
10
160
TECHNICAL DATA

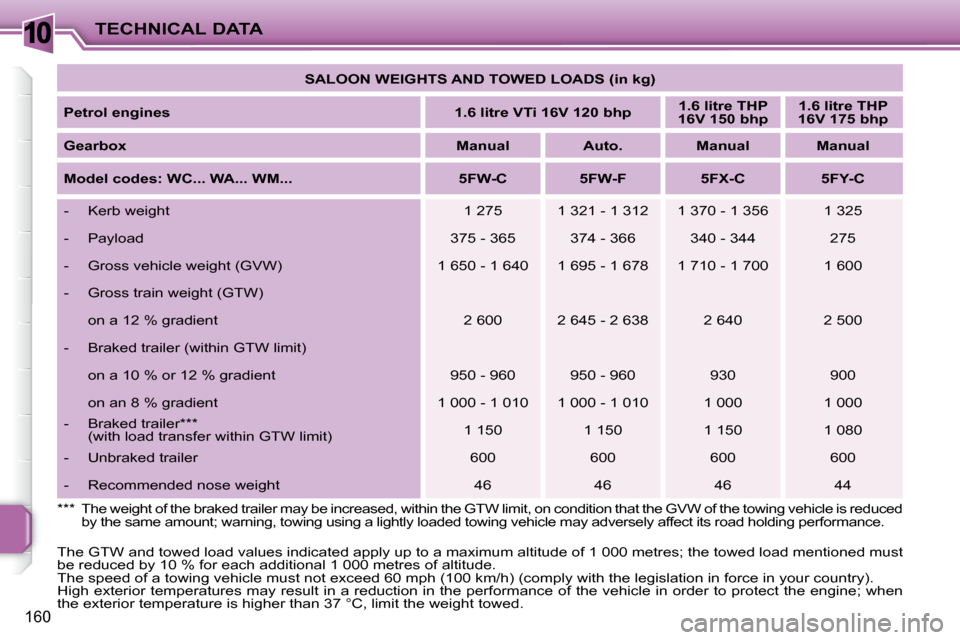

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp
1.6 litre THP
16V 175 bhp
Gearbox
Manual Auto. Manual Manual
Model codes: WC... WA... WM... 5FW-C 5FW-F 5FX-C 5FY-C
- Kerb weight 1 275 1 321 - 1 312 1 370 - 1 356 1 325
- Payload 375 - 365 374 - 366 340 - 344 275
- Gross vehicle weight (GVW) 1 650 - 1 640 1 695 - 1 678 1 710 - 1 700 1 600
- Gross train weight (GTW)
on a 12 % gradient 2 600 2 645 - 2 638 2 64 0 2 500
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950 - 960 950 - 960 930 900
on an 8 % gradient 1 000 - 1 010 1 000 - 1 010 1 000 1 000
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150 1 080
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 44
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
***
The weight of the braked trailer may be increased,
within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 177 of 255
10
167
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

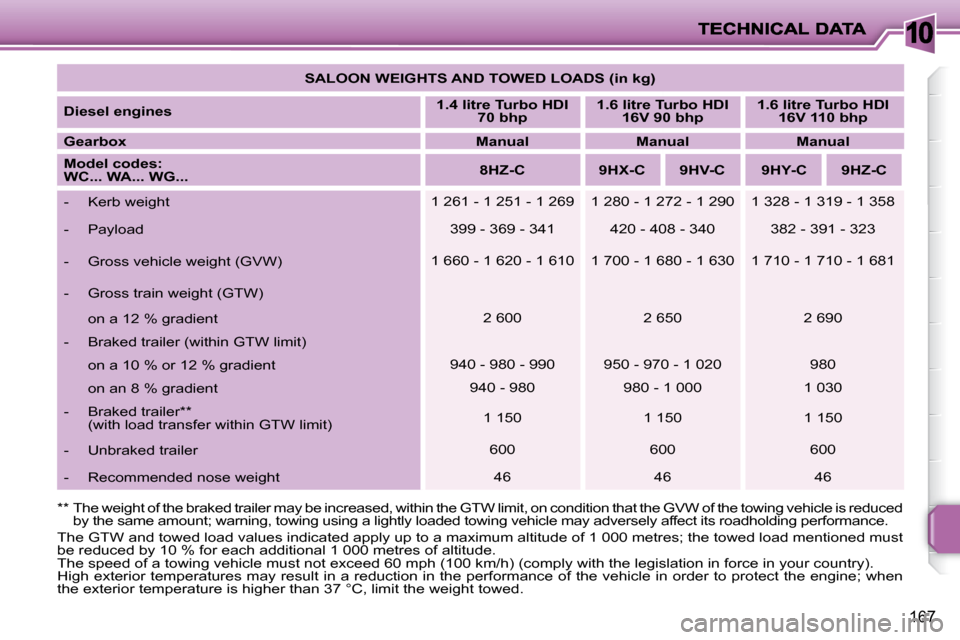

SALOON WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.4 litre Turbo HDI
70 bhp
1.6 litre Turbo HDI
16V 90 bhp
1.6 litre Turbo HDI
16V 110 bhp
Gearbox
Manual Manual Manual
Model codes:
WC... WA... WG...
8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C
- Kerb weight 1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 3
28 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 382 - 391 - 323
- Gross vehicle weight (GVW) 1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 7
10 - 1 710 - 1 681
- Gross train weight (GTW)
on a 12 % gradient 2 600 2 650 2 690
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 940 - 980 - 990 950 - 970 - 1 020 980
on an 8 % gradient 940 - 980 980 - 1 000 1 030
- Braked trailer **
(with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
Page 178 of 255
10
161

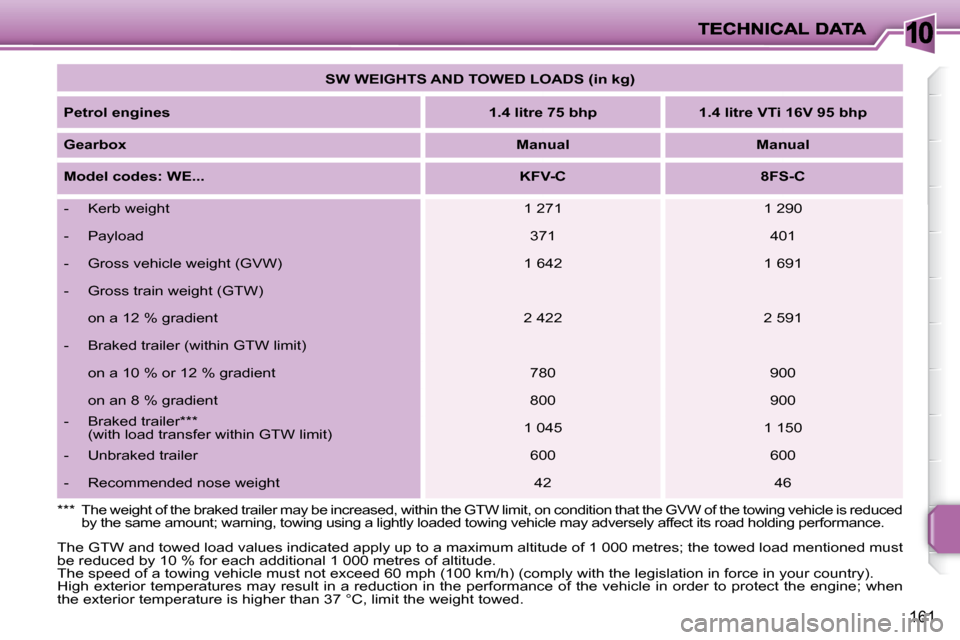

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 bhp 1.4 litre VTi 16V 95 bhp
Gearbox
Manual Manual
Model codes: WE...
KFV-C 8FS-C
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW)
on a 12 % gradient 2 422 2 591
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 780 900
on an 8 % gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
***
The weight of the braked trailer may be increased,
within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 179 of 255
10
162
TECHNICAL DATA

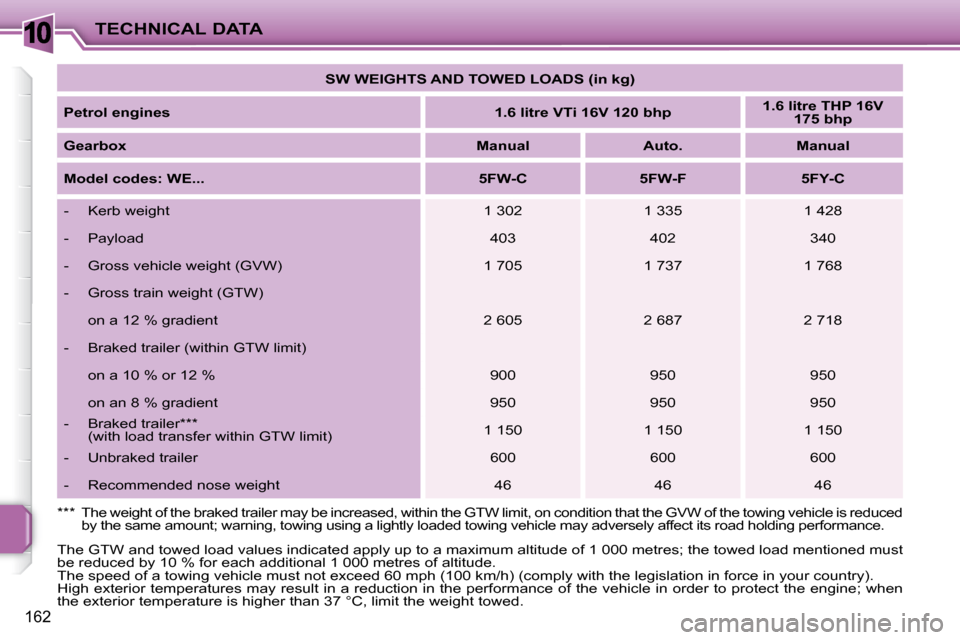

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP 16V
175 bhp
Gearbox
Manual Auto. Manual
Model codes: WE...
5FW-C 5FW-F 5FY-C
- Kerb weight 1 302 1 335 1 428
- Payload 403 402 340
- Gross vehicle weight (GVW) 1 705 1 737 1 768
- Gross train weight (GTW)
on a 12 % gradient 2 605 2 687 2 718
- Braked trailer (within GTW limit)
on a 10 % or 12 % 900 950 950
on an 8 % gradient 950 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
***
The weight of the braked trailer may be increased,
within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 180 of 255
10
163

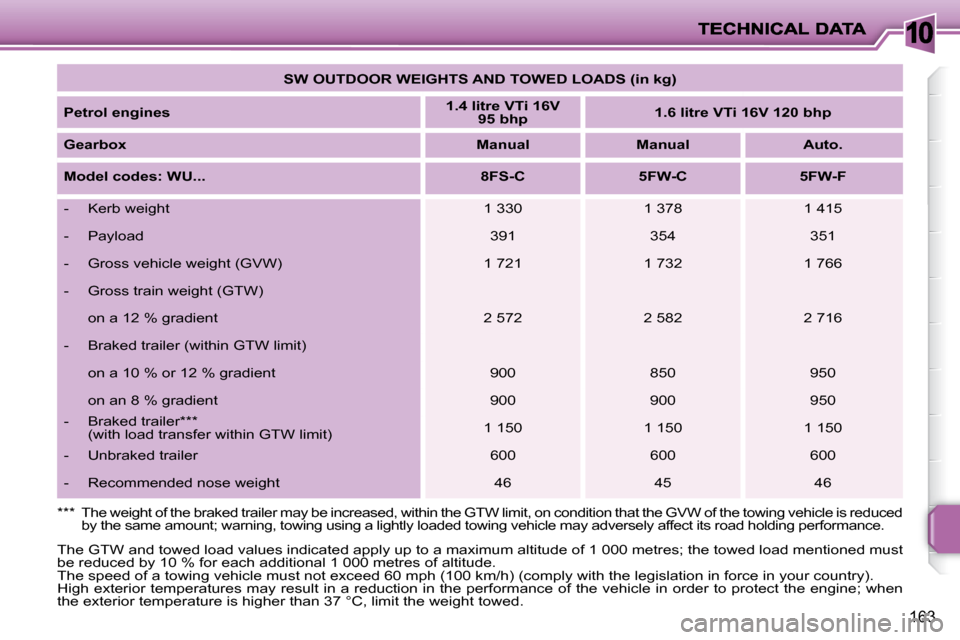

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi 16V
95 bhp
1.6 litre VTi 16V 120 bhp
Gearbox
Manual Manual Auto.
Model codes: WU...
8FS-C 5FW-C 5FW-F
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW)
on a 12 % gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 900 850 950
on an 8 % gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
***
The weight of the braked trailer may be increased,
within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
