Page 181 of 255
10TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

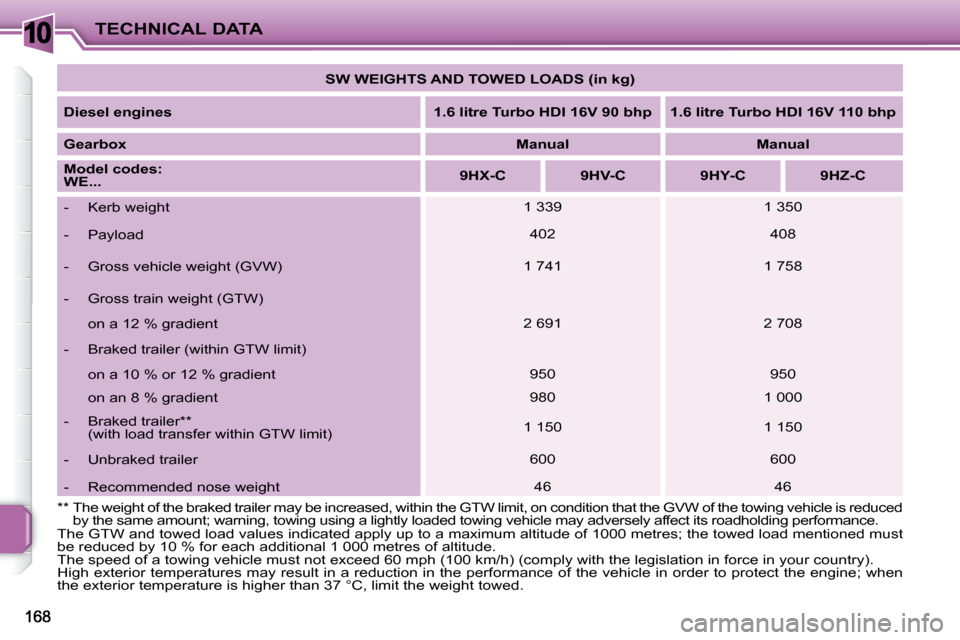

SW WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Gearbox
Manual Manual
Model codes:
WE...
9HX-C 9HV-C 9HY-C 9HZ-C
- Kerb weight 1 339 1 350
- Payload 402 408
- Gross vehicle weight (GVW) 1 741 1 758
- Gross train weight (GTW)
on a 12 % gradient 2 691 2 708
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950 950
on an 8 % gradient 980 1 000
- Braked trailer **
(with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
Page 182 of 255
10
169

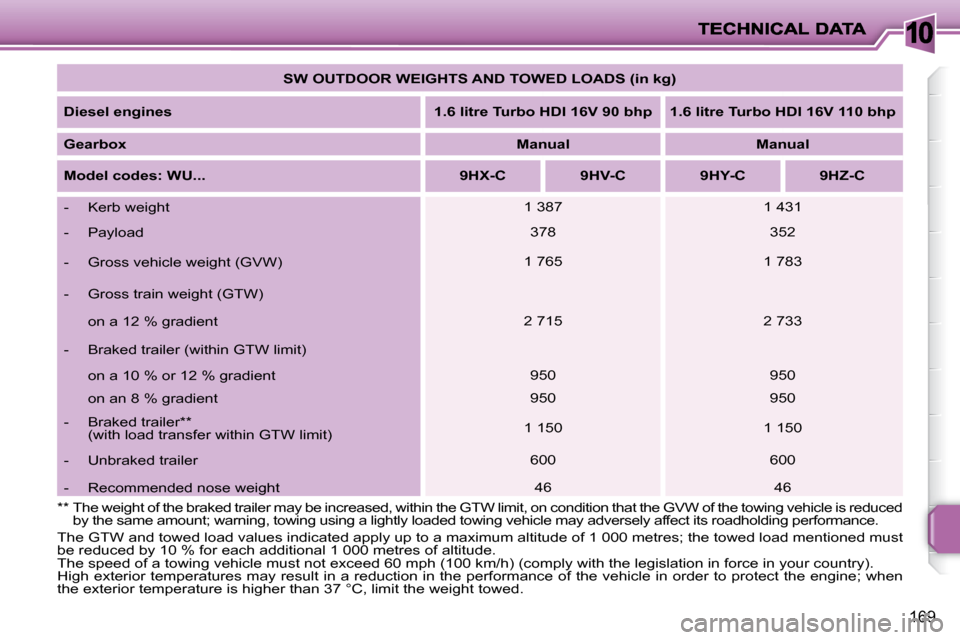

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Gearbox
Manual Manual
Model codes: WU... 9HX-C 9HV-C 9HY-C 9HZ-C
- Kerb weight 1 387 1 431
- Payload 378 352
- Gross vehicle weight (GVW) 1 765 1 783
- Gross train weight (GTW)
on a 12 % gradient 2 715 2 733
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950 950
on an 8 % gradient 950 950
- Braked trailer **
(with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 183 of 255
10
170
TECHNICAL DATA

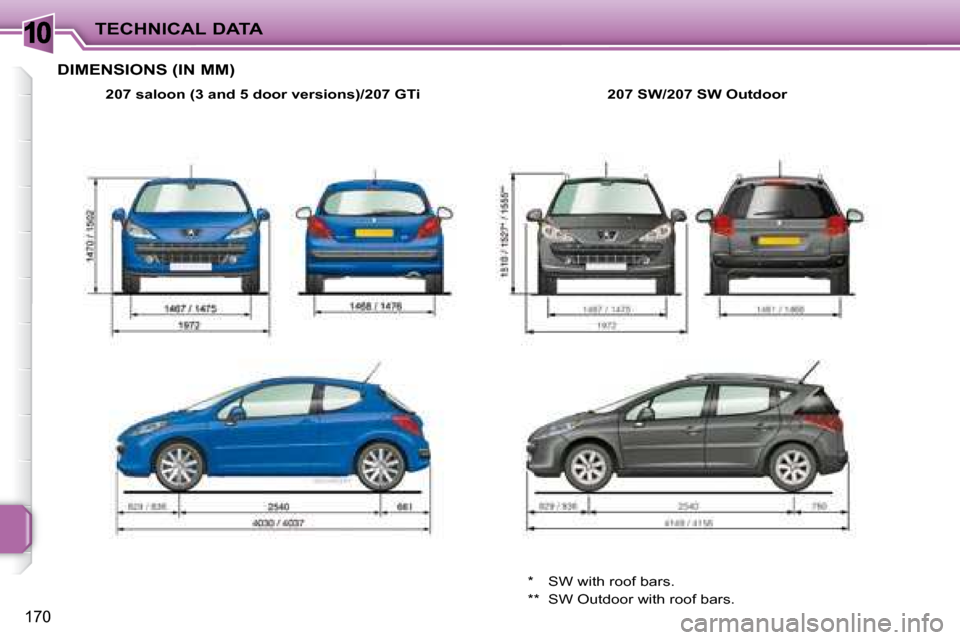

DIMENSIONS (IN MM)
207 saloon (3 and 5 door versions)/207 GTi 207 SW/207 SW Outdoor
* SW with roof bars.
** SW Outdoor with roof bars.
Page 184 of 255
10
!
i
171

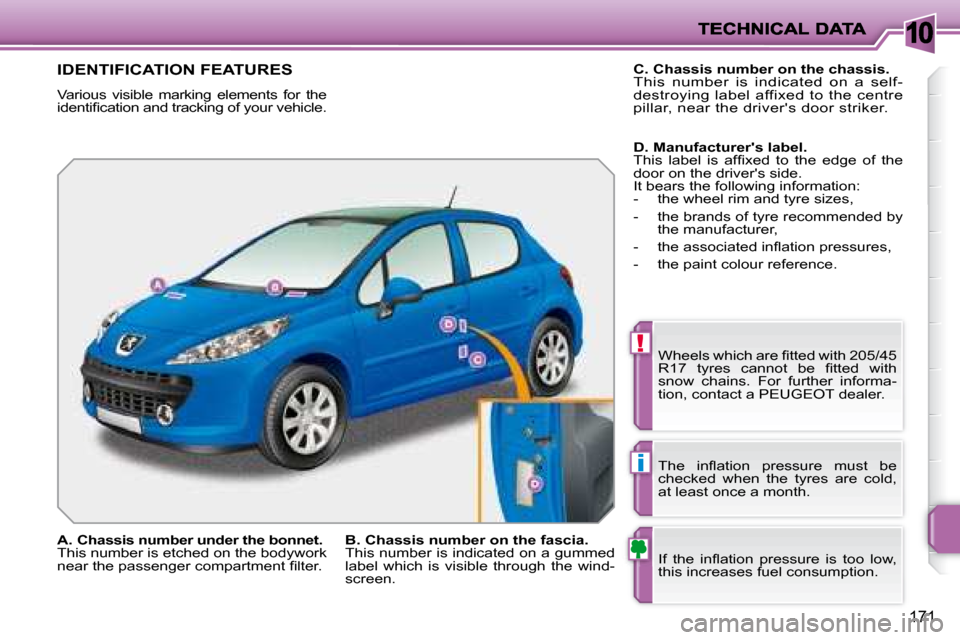

IDENTIFICATION FEATURES
Various visible marking elements for the
i d e n t i fi c a t i o n a n d t r a c k i n g o f y o u r v e h i c l e . W h e e l s w h i c h a r e fi t t e d w i t h 2 0 5 / 4 5
R 1 7 t y r e s c a n n o t b e fi t t e d w i t h
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
I f t h e i n fl a t i o n p r e s s u r e i s t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e m u s t b e
checked when the tyres are cold,
at least once a month.
A. Chassis number under the bonnet.
This number is etched on the bodywork
n e a r t h e p a s s e n g e r c o m p a r t m e n t fi l t e r .
B. Chassis number on the fascia.
This number is indicated on a gummed
label which is visible through the wind-
screen.
C. Chassis number on the chassis. This number is indicated on a self-destroying label affixed to the centre
pillar, near the driver's door striker.
D. Manufacturer's label.
T h i s l a b e l i s a f fi x e d t o t h e e d g e o f t h e
door on the driver's side.
It bears the following information:
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e a s s o c i a t e d i n fl a t i o n p r e s s u r e s ,
- the paint colour reference.
Page 185 of 255
172
S
O S SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK

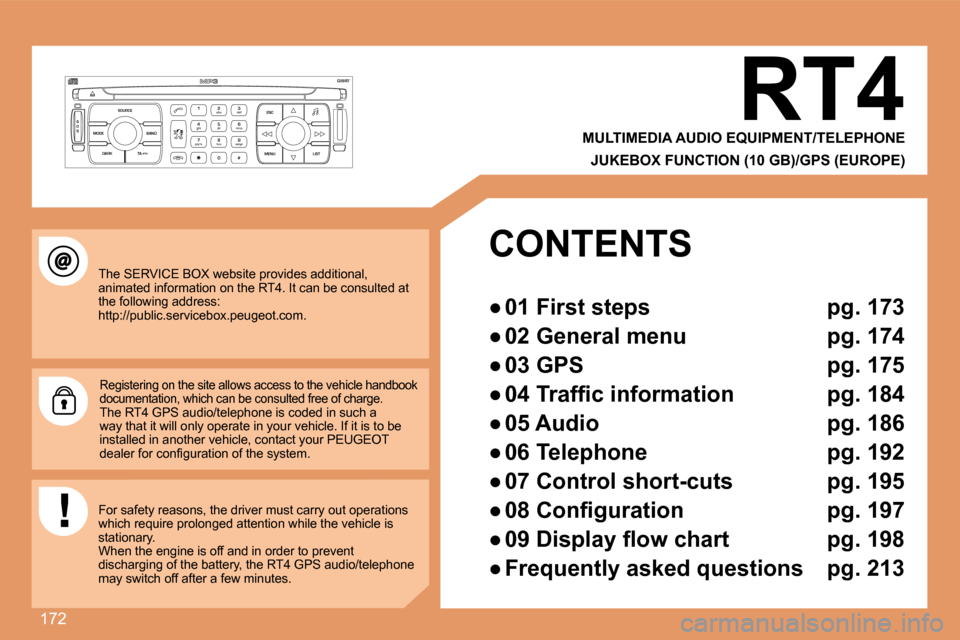

The SERVICE BOX website provides additional, animated information on the RT4. It can be consulte d at the following address: http://public.servicebox.peugeot.com.
Registering on the site allows access to the vehicle handbook documentation, which can be consulted free of charg e. The RT4 GPS audio/telephone is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact your PEUGEOT d e a l e r f o r c o n fi g u r a t i o n o f t h e s y s t e m .
For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary. When the engine is off and in order to prevent discharging of the battery, the RT4 GPS audio/telep hone may switch off after a few minutes.
RT4
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
CONTENTS
Page 186 of 255
173
S
O S
SOURCE
MODE BAND ESC
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
7
pqrs
0 # MENU LIST
TA
PTY
DARK
22
11
55
3344
88
99
10101515
11111717
18181212
1616
1414
7766
1313
01

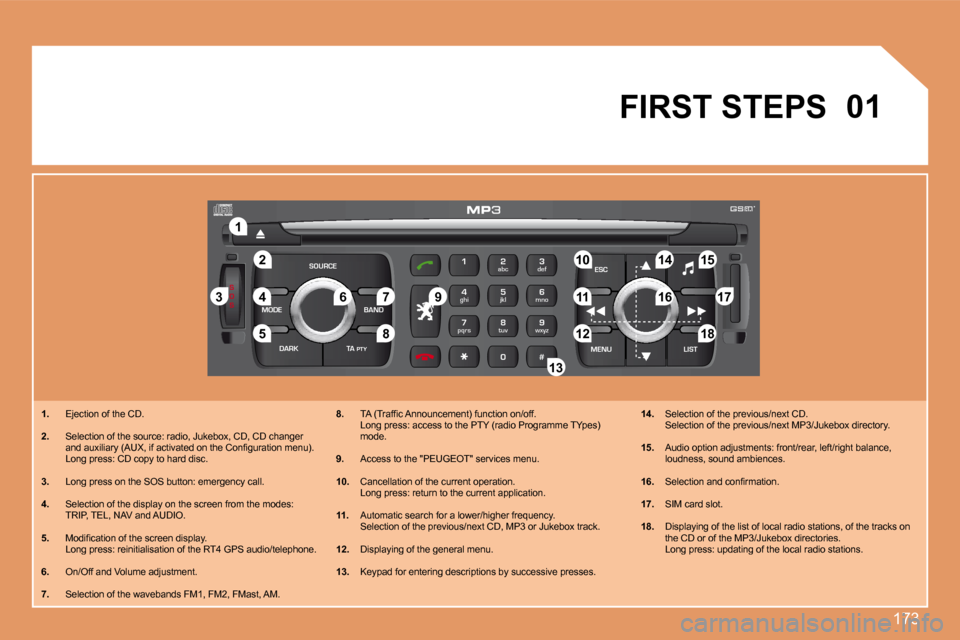

1. Ejection of the CD.
2. Selection of the source: radio, Jukebox, CD, CD c hanger a n d a u x i l i a r y ( A U X , i f a c t i v a t e d o n t h e C o n fi g u r a t i o n m e n u ) . Long press: CD copy to hard disc.
3. Long press on the SOS button: emergency call.
4. Selection of the display on the screen from the m odes: TRIP, TEL, NAV and AUDIO.
5. M o d i fi c a t i o n o f t h e s c r e e n d i s p l a y . Long press: reinitialisation of the RT4 GPS audio/ telephone.
6. On/Off and Volume adjustment.
7. Selection of the wavebands FM1, FM2, FMast, AM.
8. T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . Long press: access to the PTY (radio Programme TYp es) mode.
9. Access to the " PEUGEOT " services menu.
10. Cancellation of the current operation. Long press: return to the current application.
11. Automatic search for a lower/higher frequency. Selection of the previous/next CD, MP3 or Jukebox track.
12. Displaying of the general menu.
13. Keypad for entering descriptions by successive presses.
14. Selection of the previous/next CD. Selection of the previous/next MP3/Jukebox directory.
15. Audio option adjustments: front/rear, left/right balance, loudness, sound ambiences.
16. S e l e c t i o n a n d c o n fi r m a t i o n .
17. SIM card slot.
18. Displaying of the list of local radio stations, of the tracks on the CD or of the MP3/Jukebox directories. Long press: updating of the local radio stations.
FIRST STEPS
Page 187 of 255
174

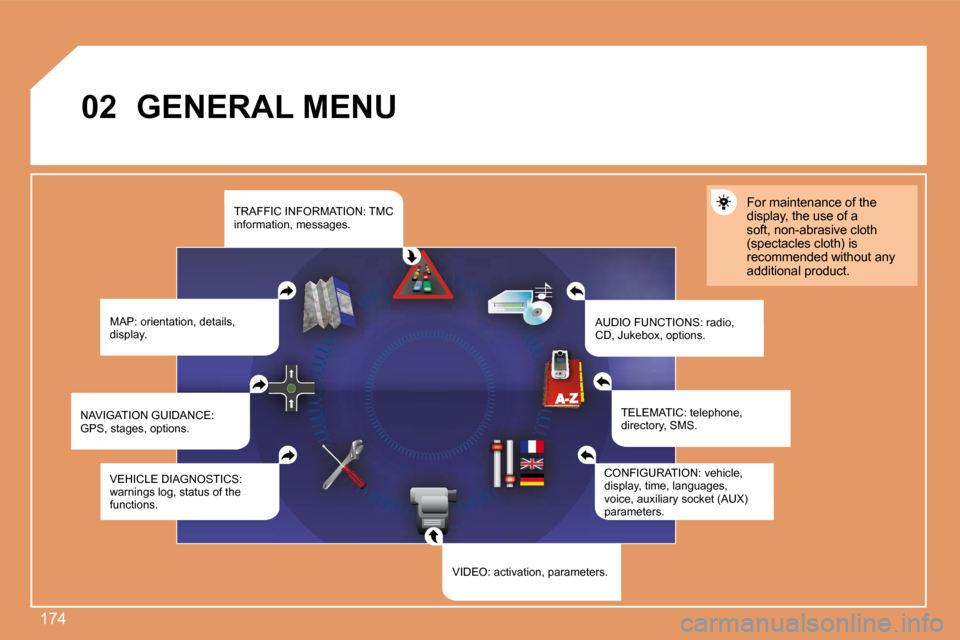

02 GENERAL MENU
MAP: orientation, details, display. AUDIO FUNCTIONS: radio, CD, Jukebox, options.
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended without any additional product.
TELEMATIC: telephone, directory, SMS.
CONFIGURATION: vehicle, display, time, languages, voice, auxiliary socket (AUX) parameters. parameters.
VIDEO: activation, parameters.
VEHICLE DIAGNOSTICS: warnings log, status of the functions.
NAVIGATION GUIDANCE: GPS, stages, options.
TRAFFIC INFORMATION: TMC information, messages.
Page 188 of 255
175
MENUESCLIST
MENU
ESC
MENU LISTESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
11
22
33
55
77
44
66
88
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03 GPS

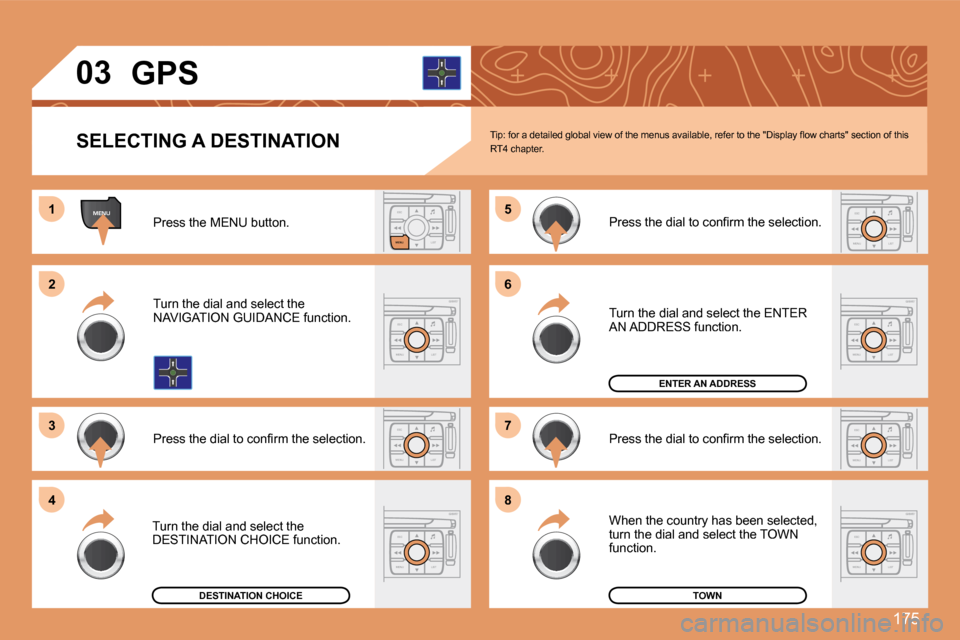

SELECTING A DESTINATION
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the DESTINATION CHOICE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the ENTER AN ADDRESS function.
When the country has been selected, turn the dial and select the TOWN function.
TOWN
ENTER AN ADDRESS
DESTINATION CHOICE
T i p : f o r a d e t a i l e d g l o b a l v i e w o f t h e m e n u s a v a i l a b l e , r e f e r t o t h e " D i s p l a y fl o w c h a r t s " s e c t i o n o f t h i s RT4 chapter.
Page 189 of 255
176
9
1111
1212
1414
10101313
ESC
MENU LIST
2
abc
5
jkl
8
tuv 3
def
6
mno
9
wxyz
1 4
ghi
r
7
pq s
0
#
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST

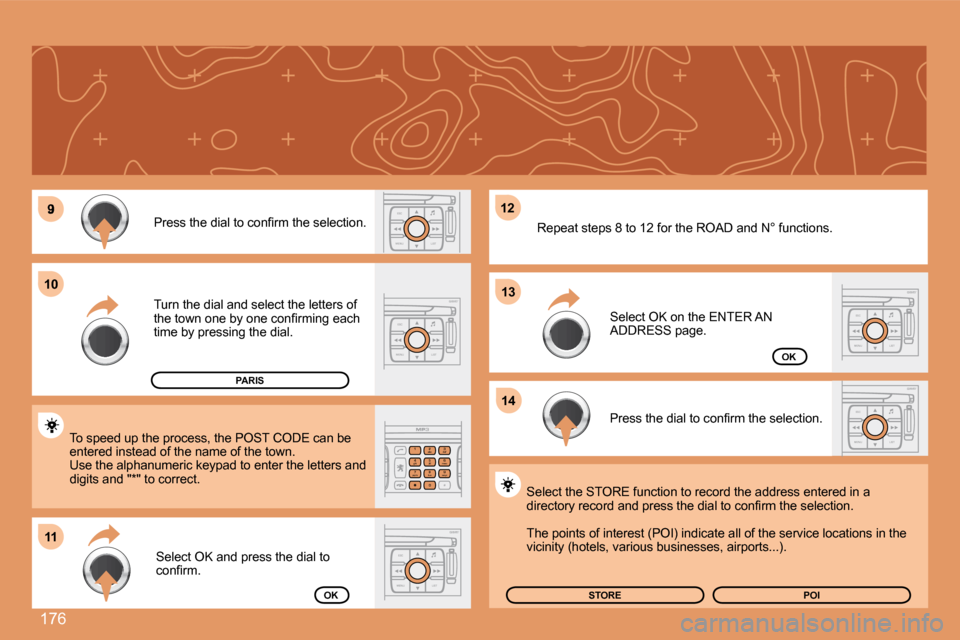

P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the letters of t h e t o w n o n e b y o n e c o n fi r m i n g e a c h time by pressing the dial.
Select OK and press the dial to c o n fi r m .
To speed up the process, the POST CODE can be entered instead of the name of the town. Use the alphanumeric keypad to enter the letters a nd digits and "*" to correct.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Select OK on the ENTER AN ADDRESS page.
Repeat steps 8 to 12 for the ROAD and N° functions .
OK
OK
Select the STORE function to record the address entered in a d i r e c t o r y r e c o r d a n d p r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
The points of interest (POI) indicate all of the service locations in the vicinity (hotels, various businesses, airports...).
STORE
PARIS
POI
Page 190 of 255
177
ESCLIST
MENU
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
MENU11
22
33
44
55
66
77
88
ESC
MENU LIST
ESC
MENU LIST
ESC
MENU LIST
03

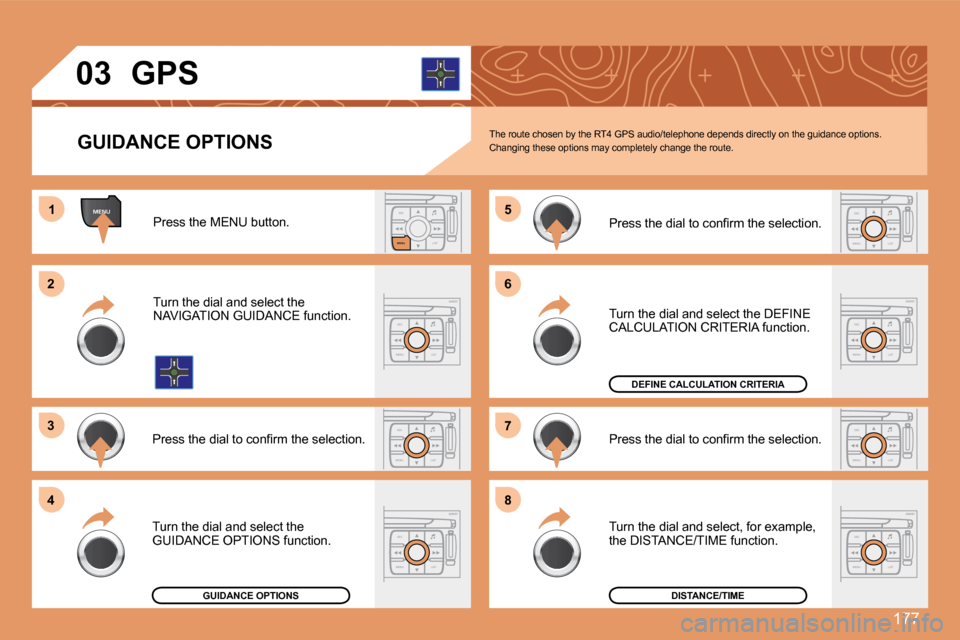

GUIDANCE OPTIONS
GPS
The route chosen by the RT4 GPS audio/telephone de pends directly on the guidance options. Changing these options may completely change the route.
Press the MENU button.
Turn the dial and select the NAVIGATION GUIDANCE function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
Turn the dial and select the GUIDANCE OPTIONS function.
Turn the dial and select the DEFINE CALCULATION CRITERIA function.
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
P r e s s t h e d i a l t o c o n fi r m t h e s e l e c t i o n .
GUIDANCE OPTIONSDISTANCE/TIME
DEFINE CALCULATION CRITERIA
Turn the dial and select, for example, the DISTANCE/TIME function.
