CHILD SAFETY
97

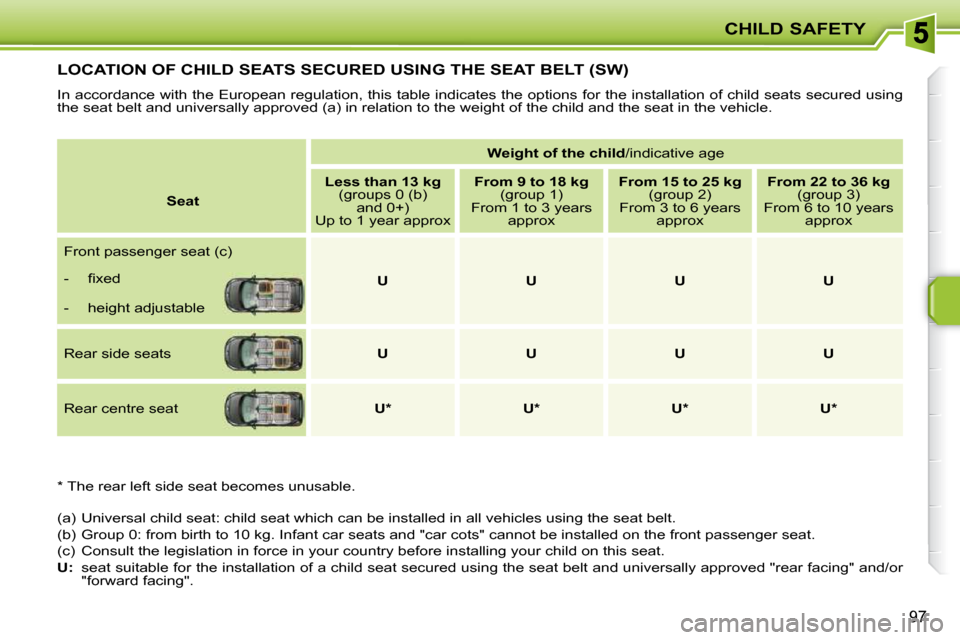

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SW)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed i n all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before in stalling your child on this seat.
U: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/ or
"forward facing".
Weight of the child /indicative age
Seat
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U U U U
- fi x e d
- h e i g h t a d j u s t a b l e
Rear side seats
U U U U
Rear centre seat U * U * U * U *
* The rear left side seat becomes unusable.
Page 92 of 267
!
i
CHILD SAFETY
98

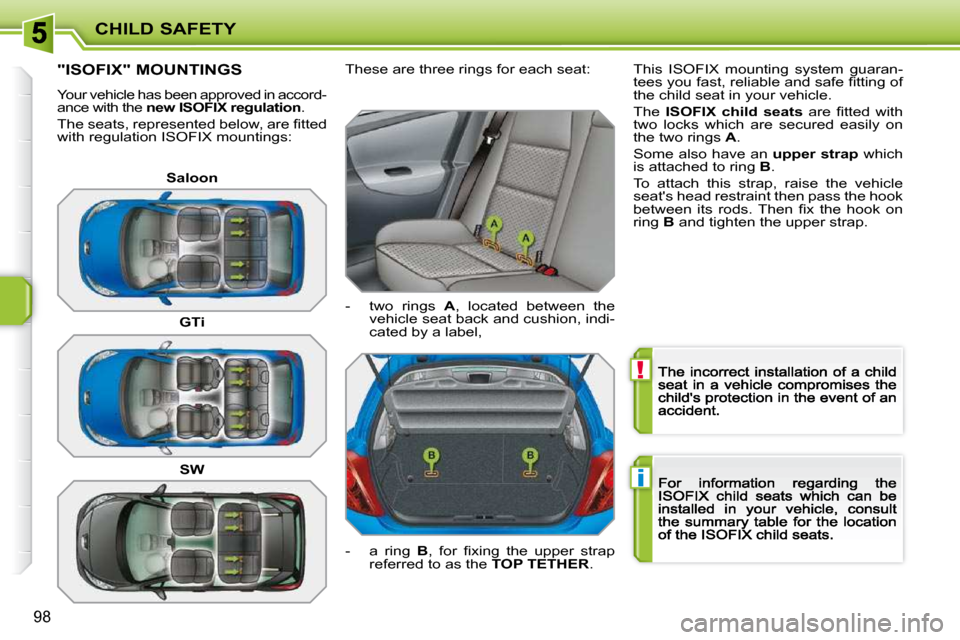

"ISOFIX" MOUNTINGS
Y o u r v e h i c l e h a s b e e n a p p r o v e d i n a c c o r d -ance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d with regulation ISOFIX mountings:
These are three rings for each seat:
- two rings A , located between the v e h i c l e s e a t b a c k a n d c u s h i o n , i n d i -cated by a label,
- a ring B , f o r fi x i n g t h e u p p e r s t r a p referred to as the TOP TETHER .
T h i s I S O F I X m o u n t i n g s y s t e m g u a r a n - t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f the child seat in your vehicle.
The ISOFIX child seats a r e fi t t e d w i t h two locks which are secured easily on the two rings A .
Some also have an upper strap which is attached to ring B .
To attach this strap, raise the vehicle seat's head restraint then pass the hook b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n ring B and tighten the upper strap.
Saloon
GTi
SW
Page 93 of 267
i
CHILD SAFETY
99

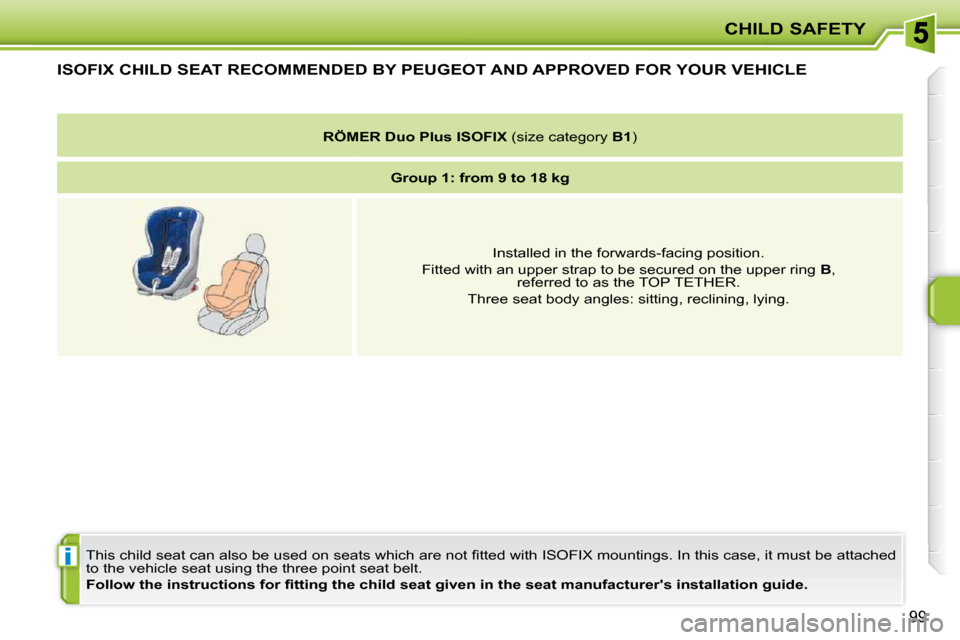

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
I n s t a l l e d i n t h e f o r w a r d s - f a c i n g p o s i t i o n .
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 94 of 267
CHILD SAFETY
100

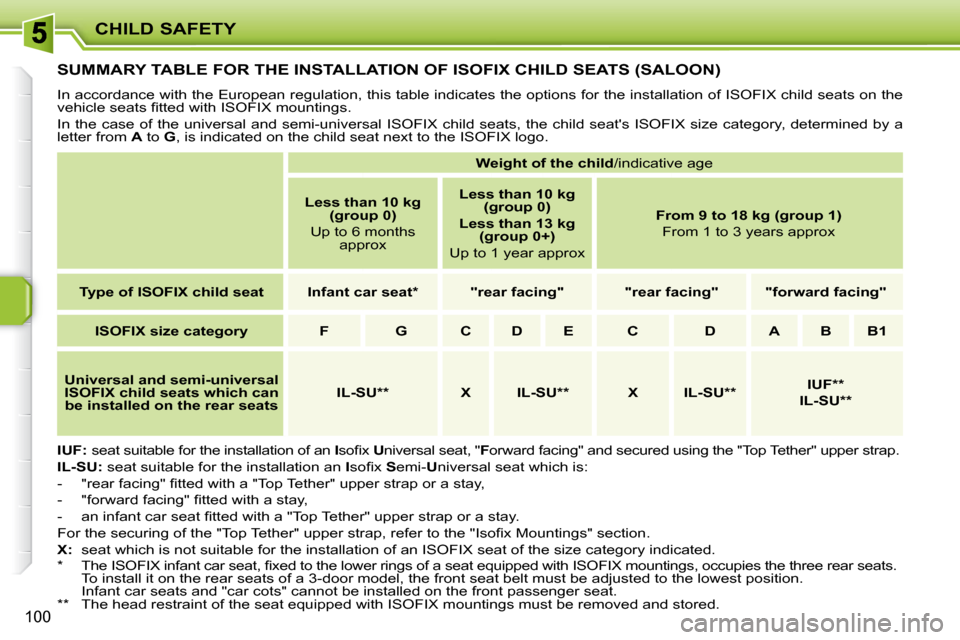

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
I n t h e c a s e o f t h e u n i v e r s a l a n d s e m i - u n i v e r s a l I S O F I X c h i l d s e a t s , t h e c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y , d e t e r m i n e d b y a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S e m i - U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an I SOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU ** X IL-SU ** X IL-SU **
IUF **
IL-SU **
* T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r s e a t s .
T o i n s t a l l i t o n t h e r e a r s e a t s o f a 3 - d o o r m o d e l , t h e f r o n t s e a t b e l t m u s t b e a d j u s t e d t o t h e l o w e s t p o s i t i o n .
Infant car seats and "car cots" cannot be installed on the fron t passenger seat.
* * T h e h e a d r e s t r a i n t o f t h e s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s m u s t b e r e m o v e d a n d s t o r e d .
Page 95 of 267
CHILD SAFETY
101

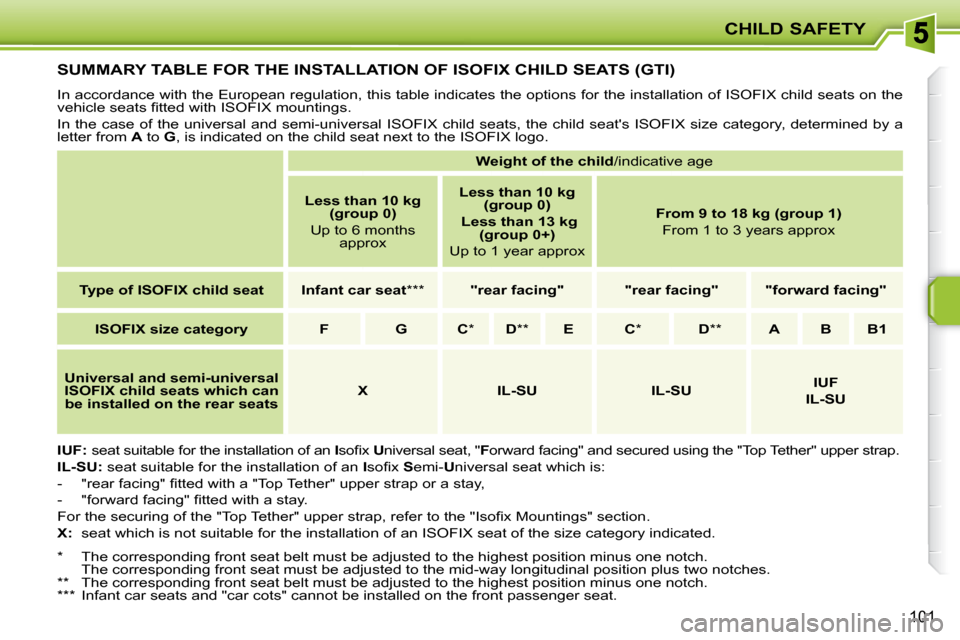

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (GTI)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
I n t h e c a s e o f t h e u n i v e r s a l a n d s e m i - u n i v e r s a l I S O F I X c h i l d s e a t s , t h e c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y , d e t e r m i n e d b y a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation of an I s o fi x S e m i - U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
X: seat which is not suitable for the installation of an ISOFIX seat of the size category indicated.
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat *** "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C * D ** E C * D ** A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
X IL-SU IL-SU
IUF
IL-SU
* The corresponding front seat belt must be adjusted to the highest position minus one notch.
T h e c o r r e s p o n d i n g f r o n t s e a t m u s t b e a d j u s t e d t o t h e m i d - w a y l o n g i t u d i n a l p o s i t i o n p l u s t w o n o t c h e s .
** The corresponding front seat belt must be adjusted to the highest position minus one notch.
*** Infant car seats and "car cots" cannot be installed o n the front passenger seat.
Page 96 of 267
CHILD SAFETY
102

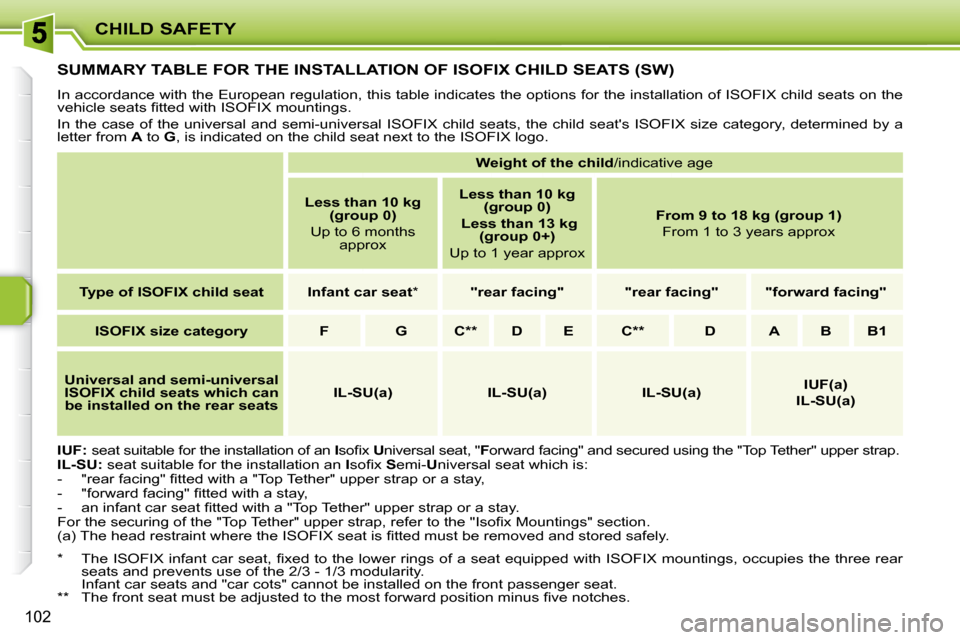

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS (SW)
In accordance with the European regulation, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
I n t h e c a s e o f t h e u n i v e r s a l a n d s e m i - u n i v e r s a l I S O F I X c h i l d s e a t s , t h e c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y , d e t e r m i n e d b y a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation of an I s o fi x U niversal seat, " F orward facing" and secured using the "Top Tether" upper strap.
IL-SU: seat suitable for the installation an I s o fi x S e m i - U niversal seat which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y ,
- " f o r w a r d f a c i n g " fi t t e d w i t h a s t a y ,
- a n i n f a n t c a r s e a t fi t t e d w i t h a " T o p T e t h e r " u p p e r s t r a p o r a s t a y .
F o r t h e s e c u r i n g o f t h e " T o p T e t h e r " u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s " s e c t i o n .
( a ) T h e h e a d r e s t r a i n t w h e r e t h e I S O F I X s e a t i s fi t t e d m u s t b e r e m o v e d a n d s t o r e d s a f e l y .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to 6 months approx
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to 1 year approx
From 9 to 18 kg (group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C ** D E C ** D A B B1
Universal and semi-universal
ISOFIX child seats which can be installed on the rear seats
IL-SU(a) IL-SU(a) IL-SU(a)
IUF(a)
IL-SU(a)
* T h e I S O F I X i n f a n t c a r s e a t , fi x e d t o t h e l o w e r r i n g s o f a s e a t e q u i p p e d w i t h I S O F I X m o u n t i n g s , o c c u p i e s t h e t h r e e r e a r
s e a t s a n d p r e v e n t s u s e o f t h e 2 / 3 - 1 / 3 m o d u l a r i t y .
Infant car seats and "car cots" cannot be installed on the fron t passenger seat.
* * T h e f r o n t s e a t m u s t b e a d j u s t e d t o t h e m o s t f o r w a r d p o s i t i o n m i n u s fi v e n o t c h e s .
Page 97 of 267
!
CHILD SAFETY
103

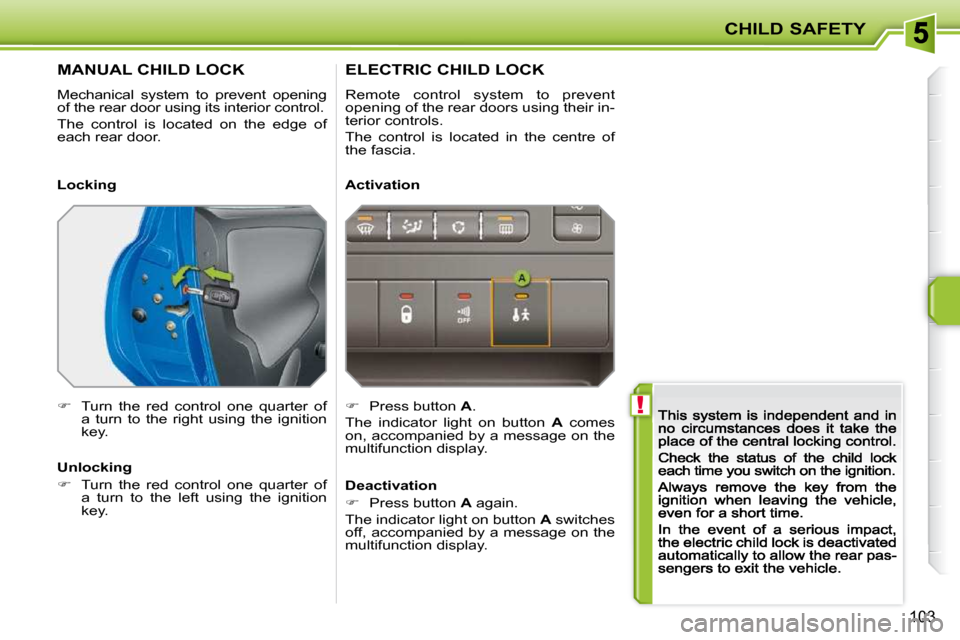

MANUAL CHILD LOCK
Mechanical system to prevent opening of the rear door using its interior control.
The control is located on the edge of each rear door.
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f a turn to the right using the ignition key.
ELECTRIC CHILD LOCK
Remote control system to prevent open i n g o f t h e r e a r d o o r s u s i n g t h e i r i n -terior controls.
The control is located in the centre of the fascia.
Press button A .
The indicator light on button A comes on, accompanied by a message on the multifunction display.
Locking
Unlocking
T u r n t h e r e d c o n t r o l o n e q u a r t e r o f a turn to the left using the ignition key.
Activation
Deactivation
Press button A again.
The indicator light on button A switches off, accompanied by a message on the multifunction display.
Page 98 of 267
i
SAFETY
104
DIRECTION INDICATORS
Selection of the left or right direction indi-cators to signal a change of direction of the vehicle.
Lower the lights stalk when moving to the left.
Raise the lights stalk when moving to the right.
"Motorway" function
System for indicating a change of lane
on a motorway.
M o v e t h e l i g h t i n g s t a l k b r i e fl y u p -
wards or downwards, without going
beyond the resistance point; the di-
r e c t i o n i n d i c a t o r s w i l l fl a s h 3 t i m e s .
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads. EMERGENCY OR ASSISTANCE
CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT platform.
For further details of the use of this equip-
ment, refer to the "Audio and telematics"
section PC Nav and PC Sound.
Page 99 of 267
i
i
SAFETY
105

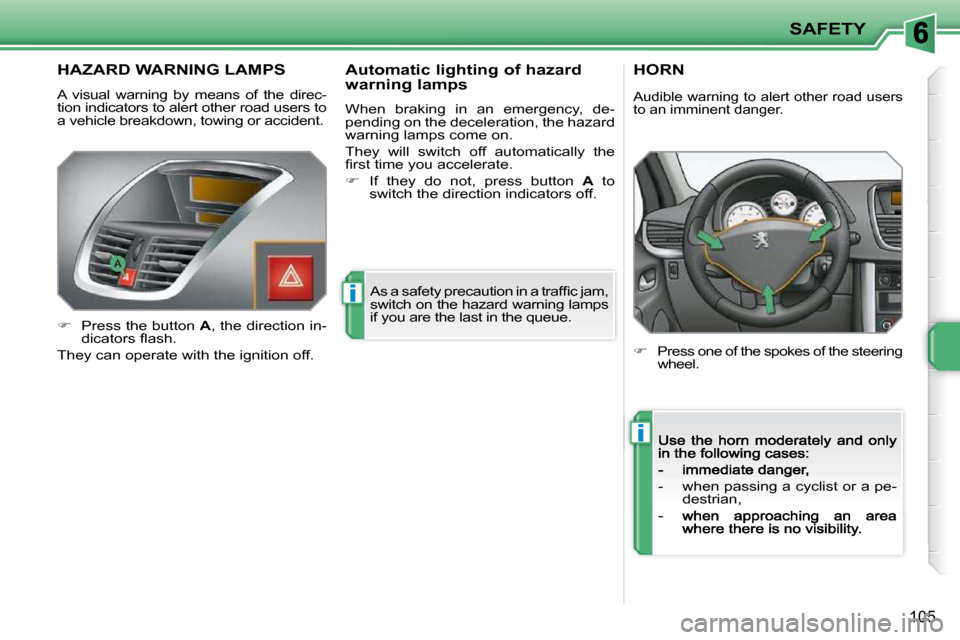

HAZARD WARNING LAMPS
A visual warning by means of the direc-tion indicators to alert other road users to a vehicle breakdown, towing or accident.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c j a m ,
switch on the hazard warning lamps
if you are the last in the queue.
Press the button A , the direction in-
d i c a t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off. HORN
Press one of the spokes of the steering wheel.
- when passing a cyclist or a pe-
destrian,
Audible warning to alert other road users to an imminent danger.
Page 100 of 267
!
i
i
i
SAFETY
106
TYRE UNDER-INFLATION
DETECTION
System which automatically checks the pressure of the tyres while driving.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a warning in the event of malfunction (speed above 12 mph (20 km/h).
Flat tyre
A message appears on the multifunc-tion display, accompanied by an audible signal, to locate the wheel concerned.
Check the tyre pressures as soon as possible.
This check must be carried out when the tyres are cold.
This warning light and the STOPwarning light come on on the instrument panel, accompanied by an audible signal and a mes-sage on the multifunction display locating the wheel concerned.
Stop immediately, avoiding any sud-den movement of the steering wheel and the brakes.
Change the damaged wheel (punc- t u r e d o r v e r y d e fl a t e d t y r e ) , a n d have the tyre pressure checked as soon as possible.
Puncture
Sensor(s) not detected or faulty
A message appears on the multifunc-tion display, accompanied by an audi-ble signal, to locate the wheel or wheels which are not detected or to indicate a fault in the system.
Contact a PEUGEOT dealer to replace the faulty sensor(s).
