Peugeot 207 Dag 2009 Manual Online
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 207 Dag, Model: Peugeot 207 Dag 2009Pages: 267, PDF Size: 20.02 MB
Page 81 of 267
i
88

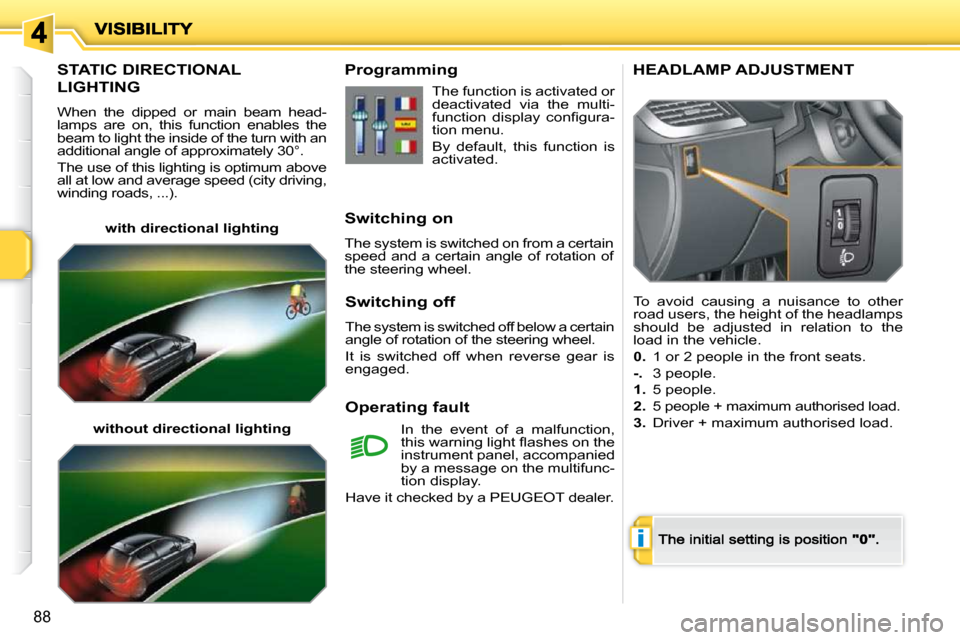

STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-lamps are on, this function enables the beam to light the inside of the turn with an additional angle of approximately 30°.
The use of this lighting is optimum above all at low and average speed (city driving, w i n d i n g r o a d s , . . . ) .
with directional lighting
Programming
Switching on
The system is switched on from a certain speed and a certain angle of rotation of the steering wheel.
Operating fault
The function is activated or deactivated via the multi- f u n c t i o n d i s p l a y c o n fi g u r a -tion menu.
By default, this function is activated.
In the event of a malfunction, t h i s w a r n i n g l i g h t fl a s h e s o n t h e instrument panel, accompanied by a message on the multifunc-tion display.
Have it checked by a PEUGEOT dealer.
Switching off
The system is switched off below a certain angle of rotation of the steering wheel.
It is switched off when reverse gear is engaged.
HEADLAMP ADJUSTMENT
To avoid causing a nuisance to other road users, the height of the headlamps should be adjusted in relation to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load. without directional lighting
Page 82 of 267
89

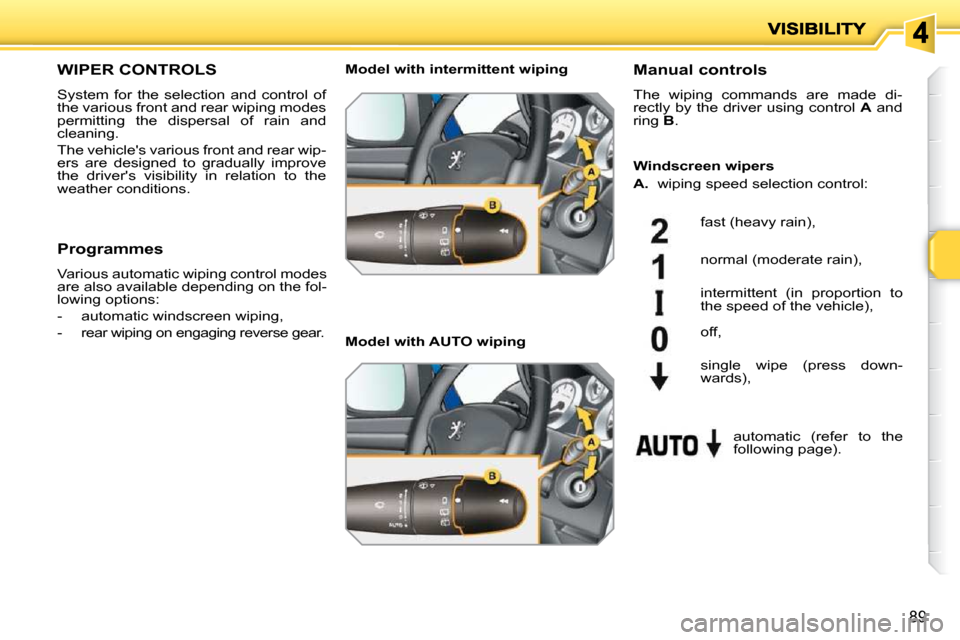

WIPER CONTROLS
System for the selection and control of
the various front and rear wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's various front and rear wip-
ers are designed to gradually improve
the driver's visibility in relation to the
weather conditions. Manual controls
The wiping commands are made di-
rectly by the driver using control
A and
ring B .
Model with intermittent wiping
Model with AUTO wiping f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (in proportion to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic (refer to the
f o l l o w i n g p a g e ) .
off,
single wipe (press down-
w a r d s ) ,
Programmes
Various automatic wiping control modes
are also available depending on the fol-
lowing options:
- automatic windscreen wiping,
- rear wiping on engaging reverse gear. Windscreen wipers
A. wiping speed selection control:
Page 83 of 267
!i
90

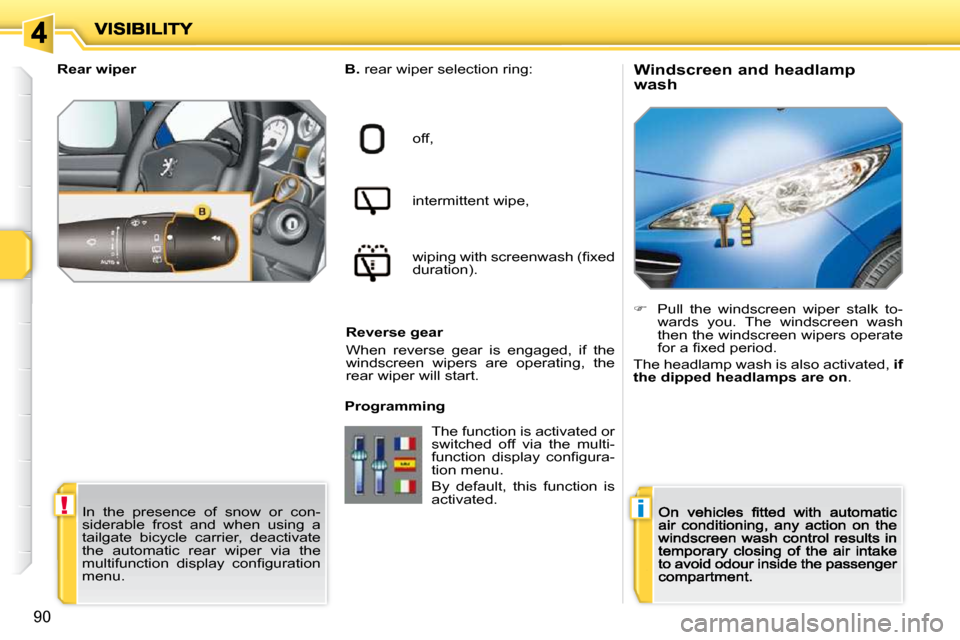

Windscreen and headlamp
wash
B. rear wiper selection ring:
off,
intermittent wipe,
w i p i n g w i t h s c r e e n w a s h ( fi x e d
d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.
Programming
Pull the windscreen wiper stalk to-wards you. The windscreen wash then the windscreen wipers operate f o r a fi x e d p e r i o d .
The headlamp wash is also activated, if the dipped headlamps are on .
Rear wiper
In the presence of snow or con-
siderable frost and when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
m u l t i f u n c t i o n d i s p l a y c o n fi g u r a t i o n
menu. The function is activated or
switched off via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
By default, this function is
activated.
Page 84 of 267
!
i
91
Special position of the windscreen wipers Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e i n t e r i o r m i r r o r ) , a d a p t i n g t h e i r
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk A to the "AUTO"
position.
It is accompanied by a message on the
multifunction display.
In the minute following switching off of the ignition, any action on the stalk posi-tions the wipers in the centre of the windscreen.
This action enables you to position the wiper blades for winter parking.
To park the wipers after this has been done, switch on the ignition and operate the stalk.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing the stalk
A downwards.
Switching off
This is controlled manually by the driver
by moving the stalk A to another posi-
tion and returning it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
Page 85 of 267
i
92
COURTESY LIGHTS
Selection and control of the various passenger compartment lights.
1. Front courtesy light
2. Map reading lights
3. Rear courtesy light
Front and rear courtesy lights
In this position, the courtesy light comes on gradually:
Map reading lights
With the ignition on, press the cor-responding switch.
- when the vehicle is unlocked, - when the key is removed from the ignition, - when the remote control locking but-ton is activated, in order to locate your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Page 86 of 267
!
CHILD SAFETY
93

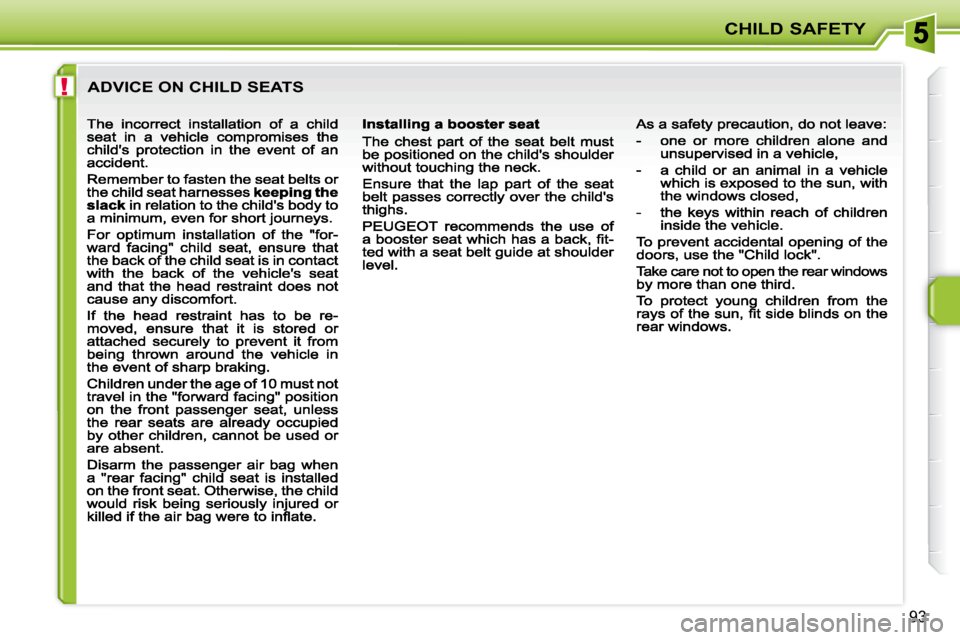

ADVICE ON CHILD SEATS
Page 87 of 267
i
CHILD SAFETY
94
PEUGEOT recommends t h a t c h i l -
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the
age of 2.

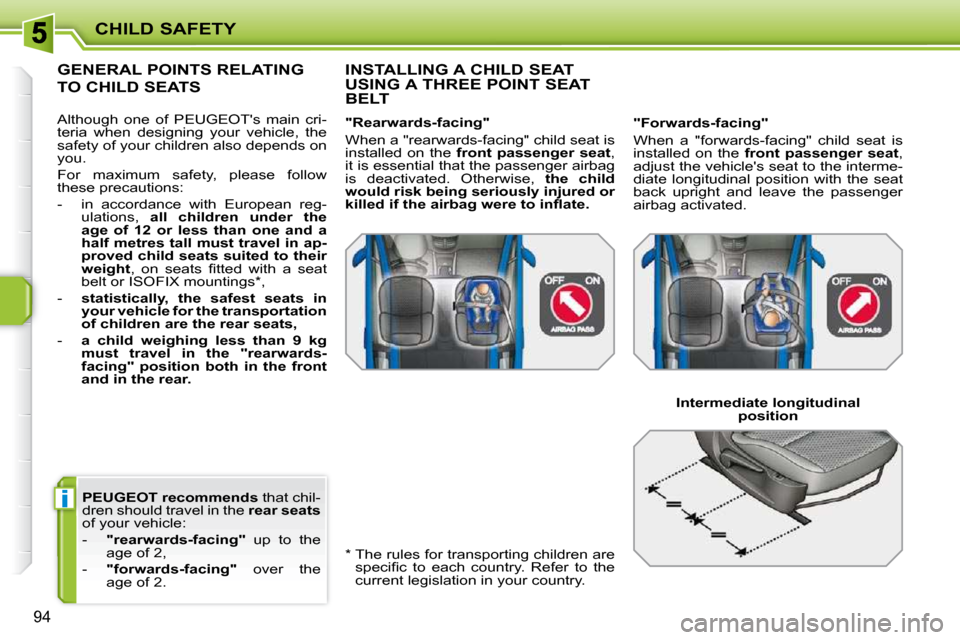

GENERAL POINTS RELATING
TO CHILD SEATS
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
W h e n a " f o r w a r d s - f a c i n g " c h i l d s e a t i s
installed on the front passenger seat ,
a d j u s t t h e v e h i c l e ' s s e a t t o t h e i n t e r m e -
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
W h e n a " r e a r w a r d s - f a c i n g " c h i l d s e a t i s
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Intermediate longitudinal position
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
A l t h o u g h o n e o f P E U G E O T ' s m a i n c r i -
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- i n a c c o r d a n c e w i t h E u r o p e a n r e g -
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
a n d i n t h e r e a r .
Page 88 of 267
CHILD SAFETY
95
Passenger air bag OFF

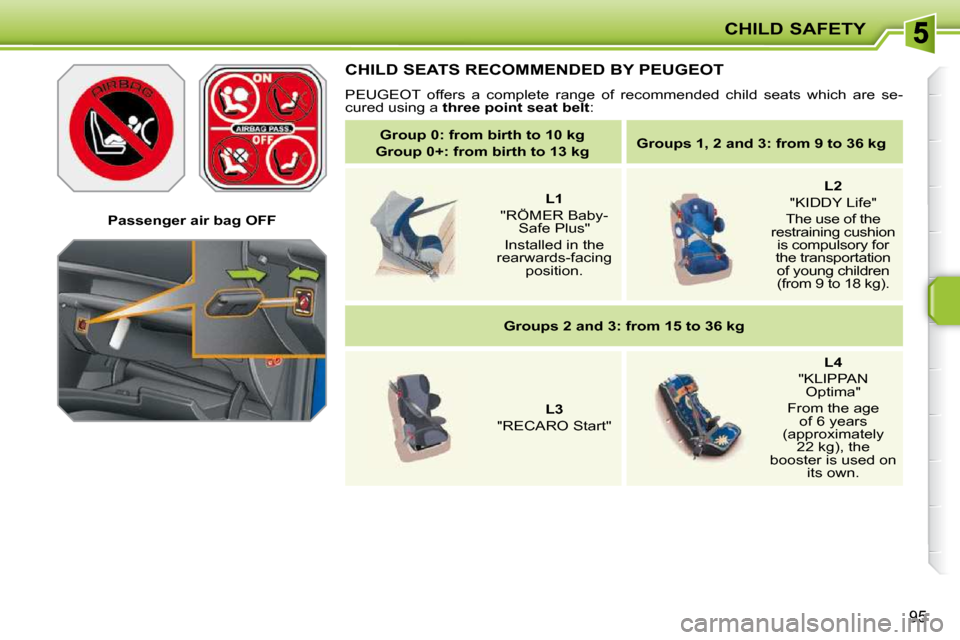

CHILD SEATS RECOMMENDED BY PEUGEOT
P E U G E O T o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h a r e s e -
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
r e a r w a r d s - f a c i n g position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
Page 89 of 267
CHILD SAFETY
95
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
P E U G E O T o f f e r s a c o m p l e t e r a n g e o f r e c o m m e n d e d c h i l d s e a t s w h i c h a r e s e -
cured using a three point seat belt :
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
Groups 1, 2 and 3: from 9 to 36 kg
L1
" R Ö M E R B a b y - Safe Plus"
Installed in the
r e a r w a r d s - f a c i n g position.
L2
"KIDDY Life"
The use of the
restraining cushion is compulsory for
the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
Page 90 of 267
CHILD SAFETY

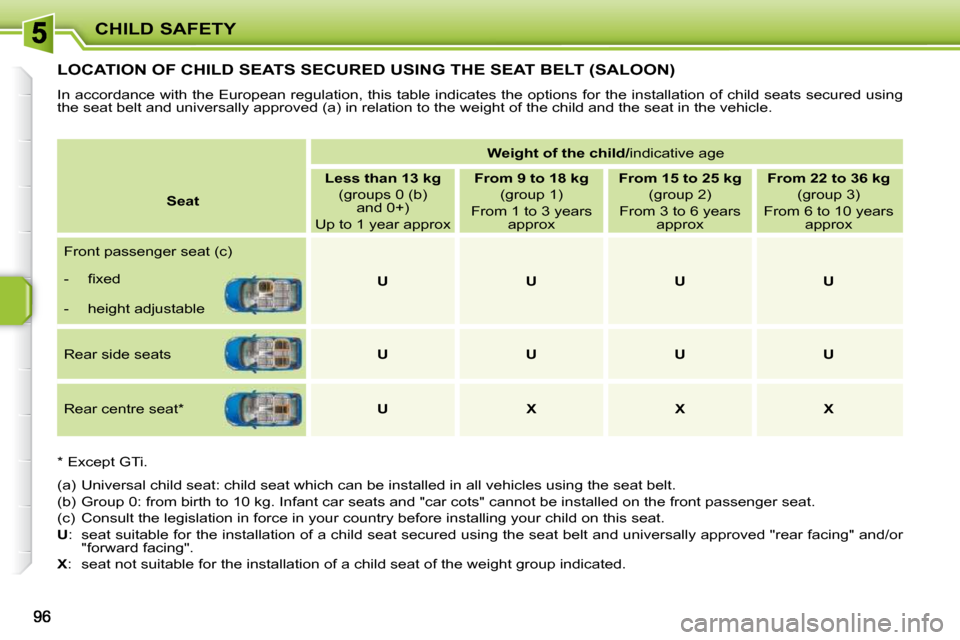

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT (SALOON)
In accordance with the European regulation, this table indicates the options for the installation of child seats secured using
the seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed i n all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before in stalling your child on this seat.
U : seat suitable for the installation of a child seat secure d using the seat belt and universally approved "rear facing" and /or
"forward facing".
X : seat not suitable for the installation of a child seat of the weight group indicated.
Weight of the child/ indicative age eight of the child/
Seat
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger seat (c)
U U U U
- fi x e d
- h e i g h t a d j u s t a b l e
Rear side seats
U U U U
Rear centre seat * U X X X
* Except GTi.
