Peugeot 208 2015 - RHD (UK, Australia) Repair Manual

59
208_en_Chap03_Indicateurs_ed01-2015

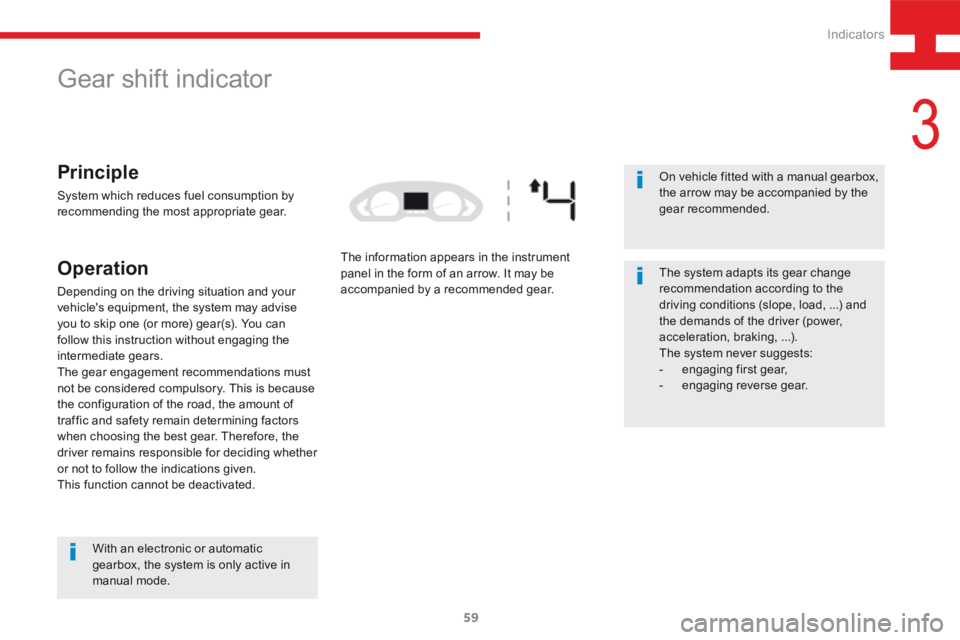

Gear shift indicator
Principle
System which reduces fuel consumption by
recommending the most appropriate gear.
Operation
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. This is because
the configuration of the road, the amount of
traffic and safety remain determining factors
when choosing the best gear. Therefore, the
driver remains responsible for deciding whether
or not to follow the indications given.
This function cannot be deactivated.With an electronic or automatic
gearbox, the system is only active in
manual mode. The information appears in the instrument
panel in the form of an arrow. It may be
accompanied by a recommended gear.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking,
...).
The system never suggests:
- engaging first gear,
- engaging reverse gear.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.
3
Indicators

60
208_en_Chap03_Indicateurs_ed01-2015
Energy load
Load reduction mode
Principle
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Economy mode
Principle
System which manages the period of use of
certain functions to maintain an adequate state
of charge of the battery.
After switching off the engine and for a
maximum cumulative period of around
30 minutes, you can continue to use functions
such as the audio and telematic system, the
wipers, dipped beam, courtesy lamps, ...
Entry into the mode
Once this time has elapsed, a message
advising the entry into energy economy mode
appears in the screen and the active functions
on put on standby.
If a telephone call is in progress at this time,
the connection via the audio system's hands-
free function will be maintained for around
10 minutes.
Coming out of the mode
These functions will be automatically restored
the next time the vehicle is used.
To restore the use of these functions
immediately, start the engine and allow it run
for at least five minutes.
The engine will not start if the battery is
discharged.
Indicators

61
208_en_Chap04_confort_ed01-2015

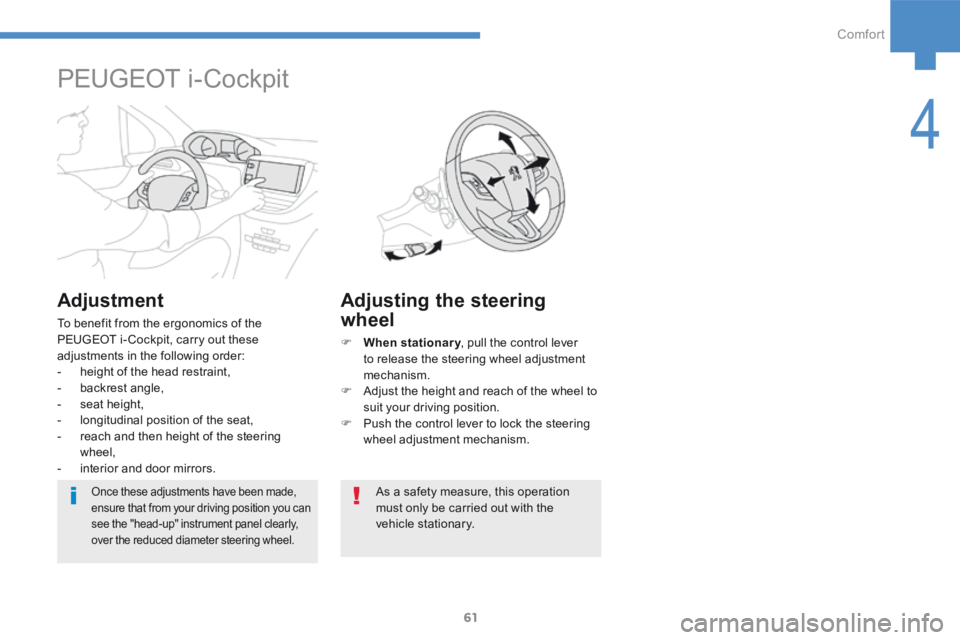

Adjusting the steering
wheel
F When stationary , pull the control lever
to release the steering wheel adjustment
mechanism.
F Adjust the height and reach of the wheel to
suit your driving position.
F Push the control lever to lock the steering
wheel adjustment mechanism.
As a safety measure, this operation
must only be carried out with the
vehicle stationary.
PEUGEOT i-Cockpit
Adjustment
To benefit from the ergonomics of the
PEUGEOT i- Cockpit, carry out these
adjustments in the following order:
- height of the head restraint,
- backrest angle,
- seat height,
- longitudinal position of the seat,
- reach and then height of the steering
wheel,
- interior and door mirrors.
Once these adjustments have been made,
ensure that from your driving position you can
see the "head-up" instrument panel clearly,
over the reduced diameter steering wheel.
4
Comfort

62
208_en_Chap04_confort_ed01-2015

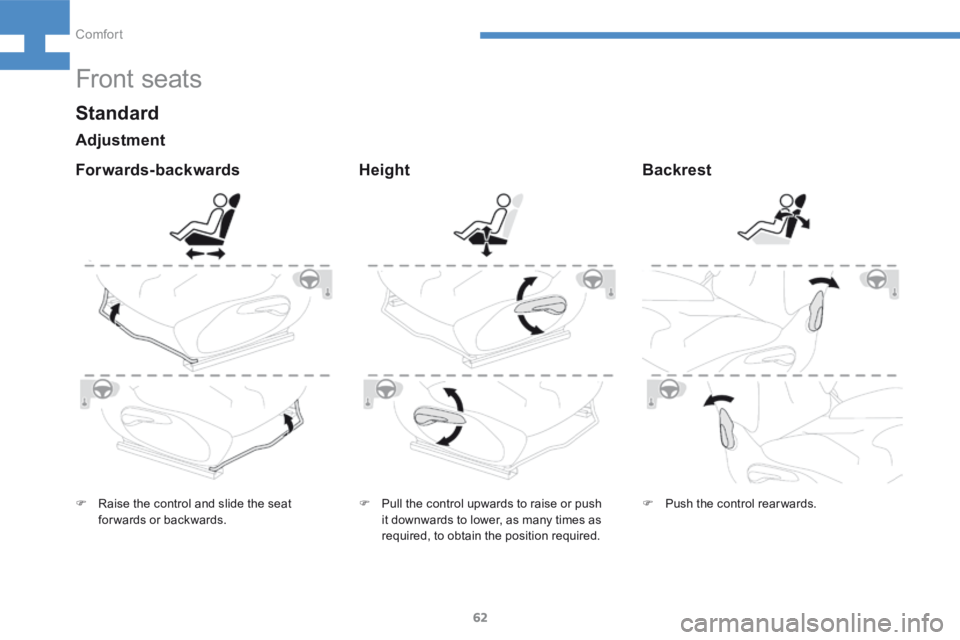

Front seats
F Raise the control and slide the seat
forwards or backwards. F
Pull the control upwards to raise or push
it downwards to lower, as many times as
required, to obtain the position required. F
Push the control rearwards.
Forwards-backwards HeightBackrest
Standard
Adjustment
Comfort

63
208_en_Chap04_confort_ed01-2015

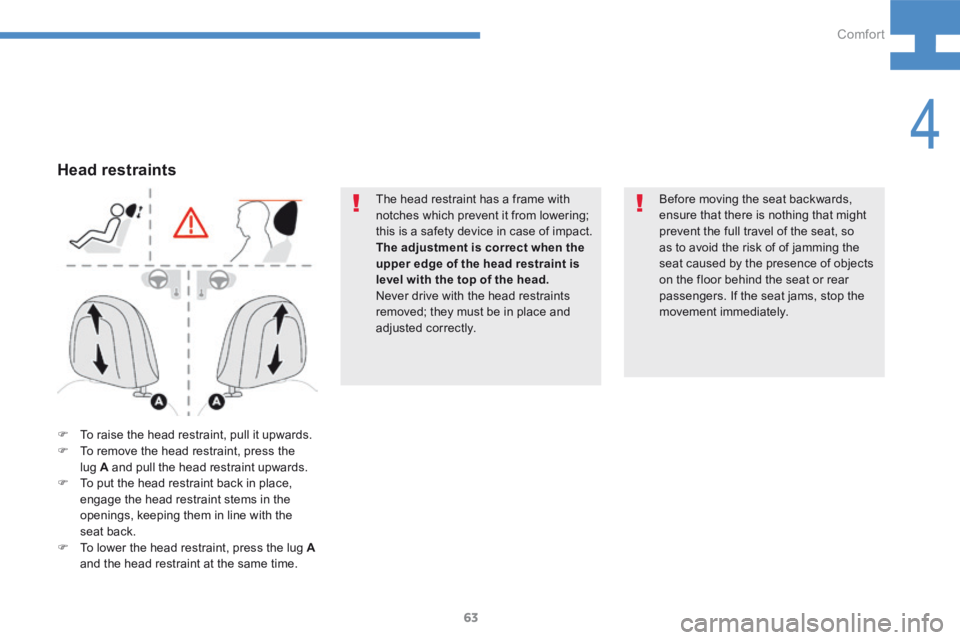

The head restraint has a frame with
notches which prevent it from lowering;
this is a safety device in case of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraints
F To raise the head restraint, pull it upwards.
F To remove the head restraint, press the
lug A and pull the head restraint upwards.
F To put the head restraint back in place,
engage the head restraint stems in the
openings, keeping them in line with the
seat back.
F To lower the head restraint, press the lug A
and the head restraint at the same time. Before moving the seat backwards,
ensure that there is nothing that might
prevent the full travel of the seat, so
as to avoid the risk of of jamming the
seat caused by the presence of objects
on the floor behind the seat or rear
passengers. If the seat jams, stop the
movement immediately.
4
Comfort

64
208_en_Chap04_confort_ed01-2015

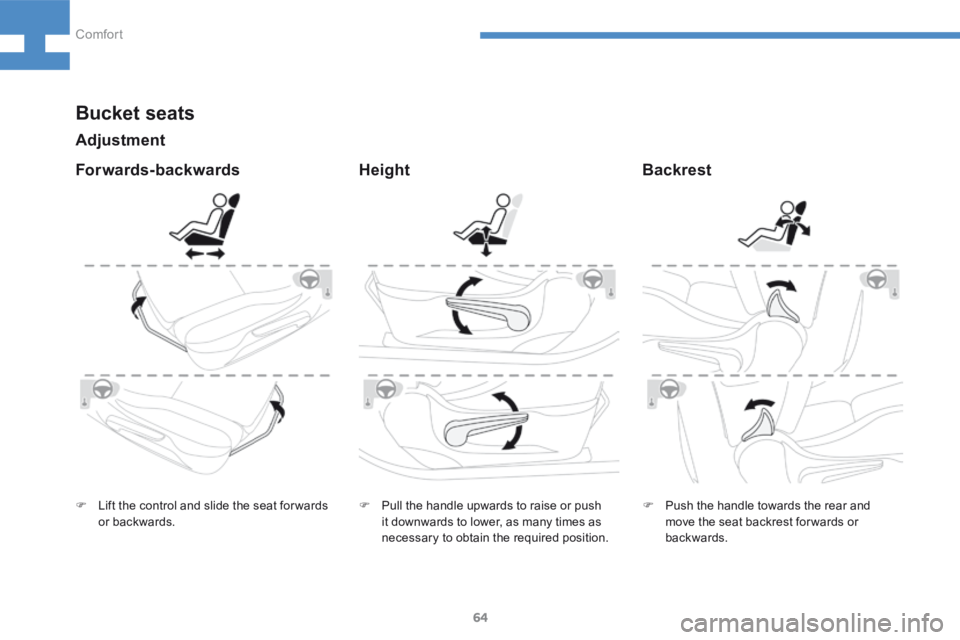

Bucket seats
HeightBackrest
Adjustment
F
Lift the control and slide the seat for wards
or backwards. F
Pull the handle upwards to raise or push
it downwards to lower, as many times as
necessary to obtain the required position. F
Push the handle towards the rear and
move the seat backrest for wards or
backwards.
Forwards-backwards
Comfort

65
208_en_Chap04_confort_ed01-2015

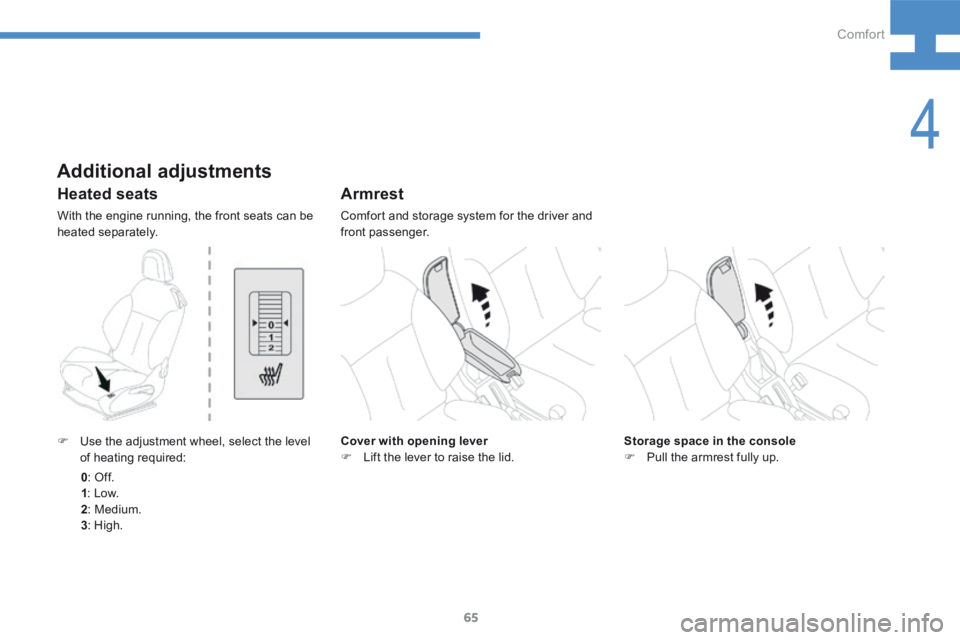

Heated seats
With the engine running, the front seats can be
heated separately.
Armrest
Comfort and storage system for the driver and
front passenger.
Cover with opening lever
F Lift the lever to raise the lid. Storage space in the console
F
Pull the armrest fully up.
Additional adjustments
F Use the adjustment wheel, select the level
of heating required:
0 : Of f.
1 : Low.
2 : Medium.
3 : High.
4
Comfort

66
208_en_Chap04_confort_ed01-2015
Folding the backrestRaising the seat backrest
F Move the front seats for ward if necessary.
F Position the outer seat belts on the
backrest and buckle them.
F Lower the head restraints to the lowest
position. F
Raise the seat backrest 2 .
F Latch the backrest in place, the red
indicators on the controls 1 are no longer
visible.
F Unbuckle and return the outer seat belts to
their normal positions ready for use.
F
Release the seat backrest 2 by press both
controls 1 simultaneously.
F Fold the seat backrest 2 on to the fixed
cushion.

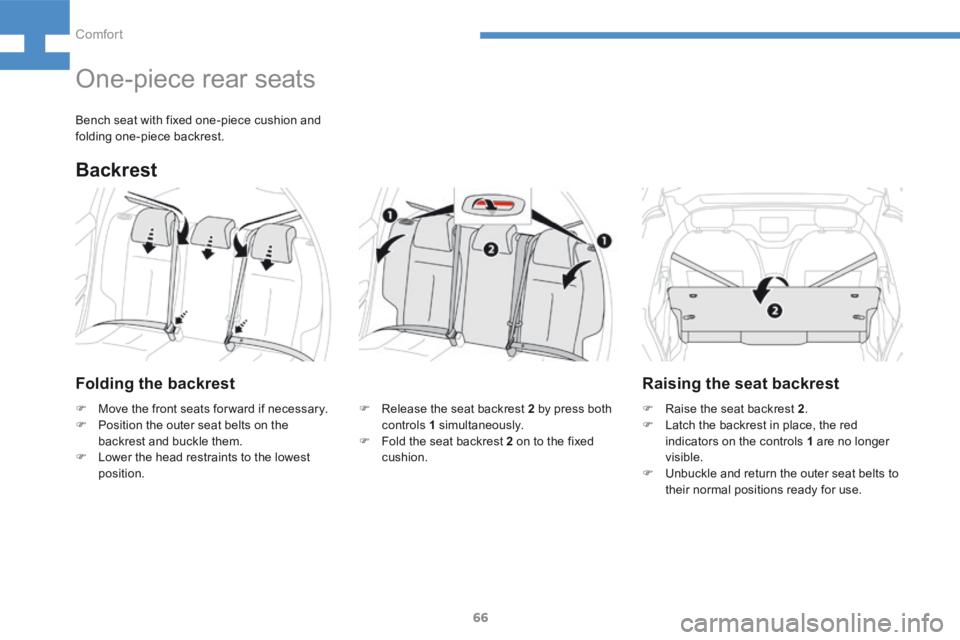

One-piece rear seats
Backrest
Bench seat with fixed one-piece cushion and
folding one-piece backrest.
Comfort

67
208_en_Chap04_confort_ed01-2015
Head restraints
These have one position for use (up) and a
stowed position (down).
They can be removed and are interchangeable
side to side.
To remove a head restraint:
F pull the head restraint fully up,
F then, press the lug A .
2/3 - 1/3 split rear seats
Folding the backrest
F Release the backrest by pressing control 1
for the seat backrest 2 .
F
Fold the seat backrest 2 on to the fixed cushion.
Bench seat with fixed one-piece cushion and
split backrest (left hand 2/3, right hand 1/3)
which can be folded individually to adapt the
load space in the boot.
F Move the corresponding front seat for ward
if necessary.
F Position the corresponding outer seat belt
against the backrest and buckle it.
F Fully lower or remove the head restraint. The rear cushion is not removable.
Seat backrest
4
Comfort

68
208_en_Chap04_confort_ed01-2015

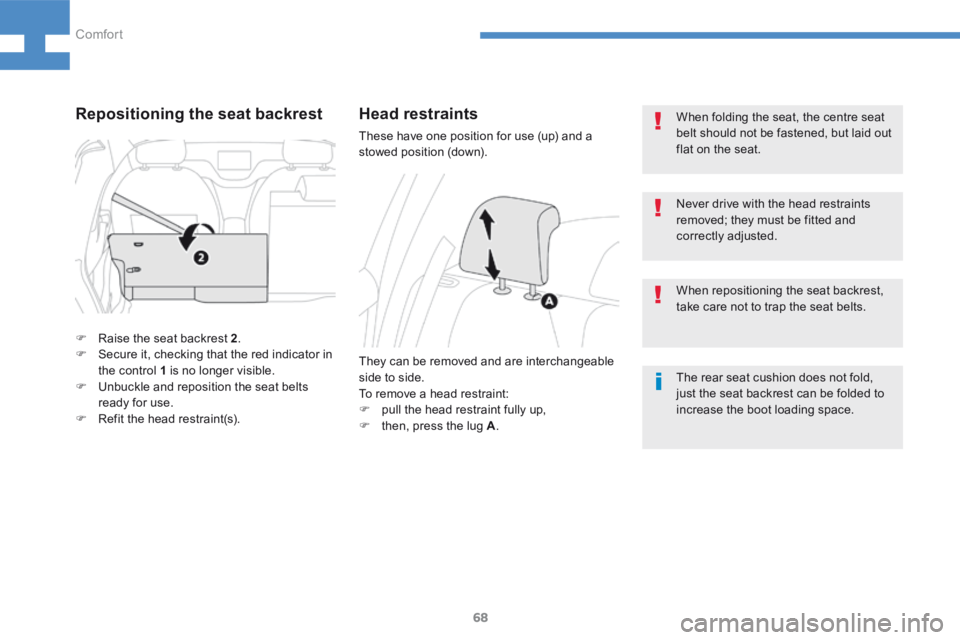

When folding the seat, the centre seat
belt should not be fastened, but laid out
flat on the seat.
The rear seat cushion does not fold,
just the seat backrest can be folded to
increase the boot loading space.Head restraints
These have one position for use (up) and a
stowed position (down).
They can be removed and are interchangeable
side to side.
To remove a head restraint:
F pull the head restraint fully up,
F then, press the lug A . When repositioning the seat backrest,
take care not to trap the seat belts.
Repositioning the seat backrest
F
Raise the seat backrest 2 .
F Secure it, checking that the red indicator in
the control 1 is no longer visible.
F Unbuckle and reposition the seat belts
ready for use.
F Refit the head restraint(s). Never drive with the head restraints
removed; they must be fitted and
correctly adjusted.
Comfort
