Peugeot 3008 Hybrid 4 2011 Owner's Manual

199

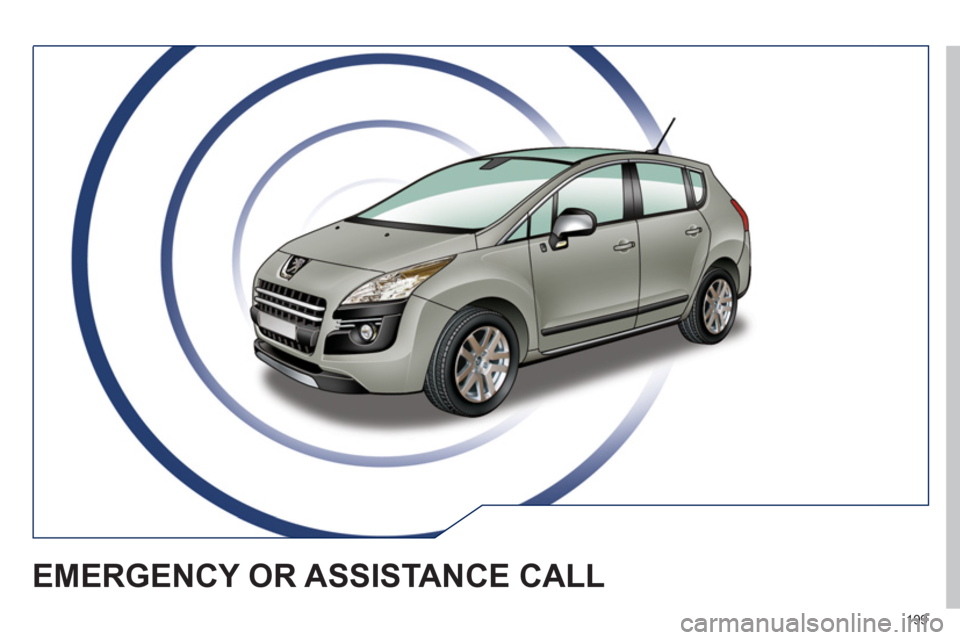

EMERGENCY OR ASSISTANCE CALL

200
EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than 2 seconds.Flashing of the green LED and a voice message confi rm that
the call has been made to the PEUGEOT Emergency team * .
Pressin
g this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

When the i
gnition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressing this button again immediately cancels the request.
The cancellation is con
fi rmed by a voice message.
Press this button
for more than 2 seconds to requestassistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the PEUGEOT Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directly by the emergency services (11 2) without the
vehicle location.

I
f an impact is detected by the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*
These services are sub
ject to conditions and availability.
Consult a PEUGEOT dealer.
I
f the orange LED fl ashes: there is a systemfault.
If the oran
ge LED is on continuously: the
backup battery must be replaced.
In either case
, contact a PEUGEOT.
I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularl
y to improve the quality of PEUGEOT
CONNECT services to customers, the manufacturer reserves the right to carry out updates to the vehicle's on-board telematic system.

201
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

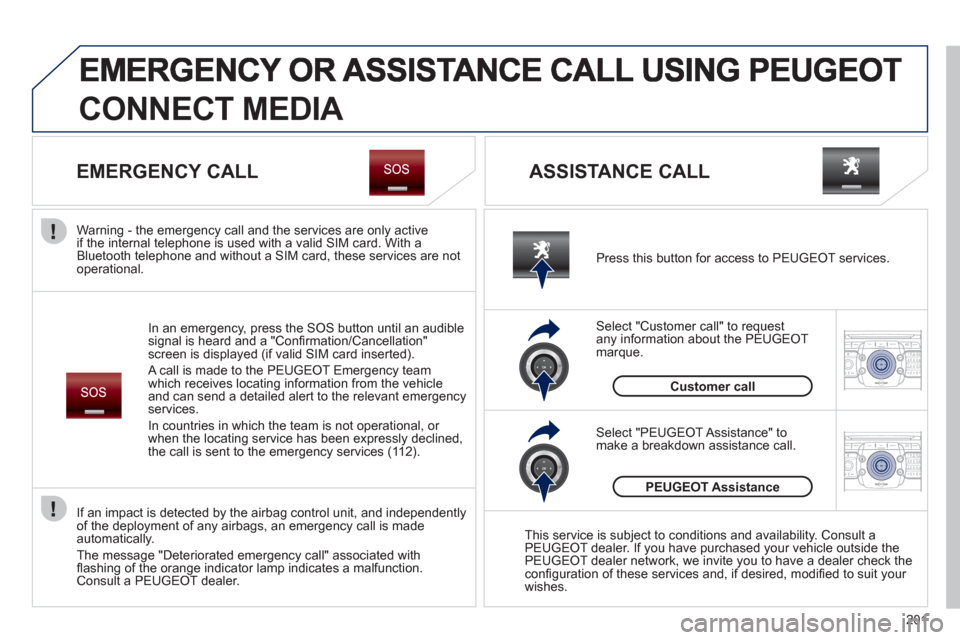

CONNECT MEDIA









EMERGENCY CALL
In an emergency, press the SOS button until an audible
signal is heard and a "Confi rmation/Cancellation"
screen is displayed (if valid SIM card inserted).
A call is made to the PEU
GEOT Emergency team
which receives locating information from the vehicleand can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or
when the locatin
g service has been expressly declined,
the call is sent to the emergency services (11 2). Warning - the emergency call and the services are only active
i
f the internal telephone is used with a valid SIM card. With a
Bluetooth telephone and without a SIM card, these services are not
operational. Press this button for access to PEUGEOT services.
Customer call
I
f an impact is detected by the airbag control unit, and independently
of the deployment of any airbags, an emergency call is made automatically.
The messa
ge "Deteriorated emergency call" associated with
fl ashing of the orange indicator lamp indicates a malfunction.Consult a PEUGEOT dealer.











ASSISTANCE CALL

Select "Customer call" to request
any information about the PEUGEOT marque.

Select "PEUGEOT Assistance" tomake a breakdown assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a
PEUGEOT dealer. If you have purchased your vehicle outside the
PEUGEOT dealer network, we invite you to have a dealer check theconfi guration of these services and, if desired, modifi ed to suit your
wishes.

202

203
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK

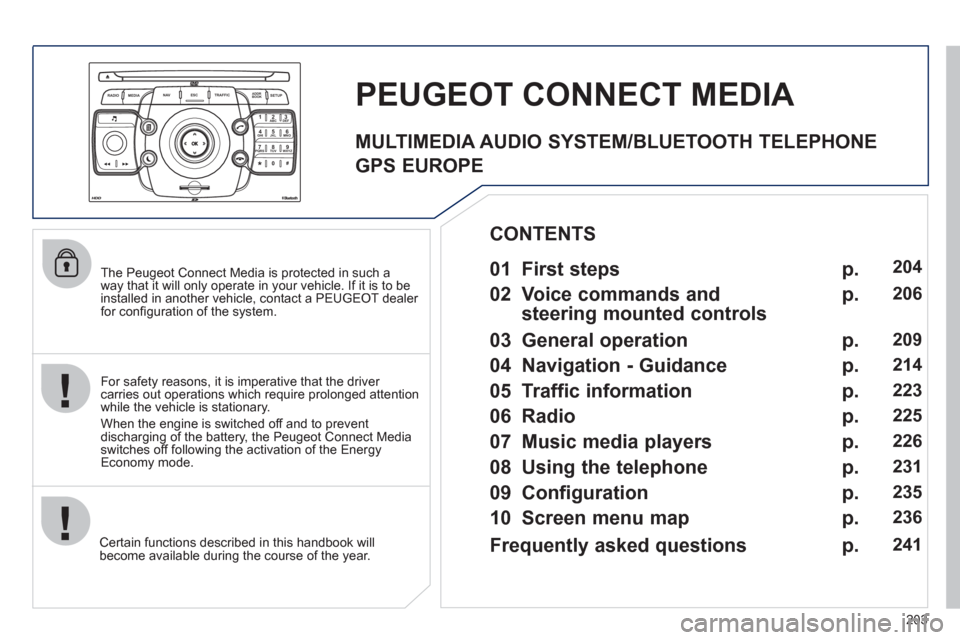

The Peugeot Connect Media is protected in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.

Certain functions described in this handbook will
become available during the course of the year.

PEUGEOT CONNECT MEDIA


For safety reasons, it is imperative that the driver carries out operations which require prolonged attention
while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the Peugeot Connect Mediaswitches off following the activation of the Energy Economy mode.


01 First steps

02 Voice commands and
steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Using the telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 204
206
209
214
223
225
226
231
235
2
36

CONTENTS

Frequently asked questions p.
241


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

204
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
RADIO MEDIANAV ESC TRAFFIC
SETUPADDR
BOOK
1
10
2
3
4
612
9
7
8
115
TU PQRS
0*
1. CD eject.
2. RADIO: access to the "Radio" Menu.
Display the list of stations in alphabetical order (FM waveband) or frequency order (AM
waveband).
MEDIA: access to the "Media" Menu (Audio CD,Jukebox, External Device).
Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and
display of the last destinations.
ESC: abandon the operation in progress.
Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function
described in detail in sections 02 and 10). ADDR B
OOK: access to the "Address book" Menu (function described in detail in section 10). SETUP: access to the "SETUP" Menu(confi guration) (function described in detail insections 02 and 10).
Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience...).
4. Volume adjustment (each source is independent,
including message and navigation alert).
Long press: reinitialisation of the system.
Short press: mute.
5. Automatic search for a radio station on a lower
frequency.Selection of the previous CD or MP3 track.
FIRST STEPS

Peugeot Connect Media CONTROL PANEL
6. Automatic search for a radio station on a higher
frequency.Selection of the next CD or MP3 track.
7. Normal display or black screen.
8. Selection of the successive display on the screenof "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is in progress)/"RADIO" or "MEDIA" currently being played.
9. PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call. 10. HANG UP: access to the "Phone" menu.
Hang up the current call or refuse an incomingcall, with Bluetooth connection.
11. Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio
frequencies.
12.
SD card reader.
Short press: clears the last character.

205
01
2ABC3DEF
5JKL4GHI6MNO
8TUV7PQRS9WXYZ
0*#
1
13
14
13. OK: confi rmation of the highlighted item on
the screen.
- 4-direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selectionof the previous/next frequency.
When "MEDIA" is displayed: selection of the
previous
/next track.
When "MAP" or "NAV" is displayed: horizontal
movement of the map. - 4-direction navi
gator: press up/down.
When "RADIO" is displayed: selection of
the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection
of the MP3 directory.
When "MAP" or "NAV" is displayed: vertical movement of the map.
Switch to the next or previous page of a menu.
Movement on the virtual keypad displayed.
FIRST STEPS

14. Rotation of the ring:
When the "RADIO" screen is displayed: selection
of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection
of the previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rea
r
map zoom.
M
ovement of the menu selection curser.

Peugeot Connect Media NAVIGATOR

206
2ABC3DEF5JKL4GHI6MNO8TUV7PQRS9WXYZ0*#
1NAV ESC TRAFFICADDR
BOOKSETUP
02
2
1
SETUP

Before using the system for the fi rst time, you are advised to listen
to, say and practice the tutorial.
Press the
SETUP button and select
the "Language & Speech" function.Turn the ring and select "Voice control". Activate voice recognition.
Select "Tutorial".









VOICE COMMANDS - VOICE
RECO. INITIATION
The phrases to be spoken according to the context are indicated in
the tables below.

Speak and Peugeot Connect Media acts.

Pressing the end o
f the lightingcontrol stalk activates voice
recognition.
CONTEXTSAYACTION
GENERAL
Help address book

Help voice control Help media
Help navigation
Help telephone

Help radio
Cancel

Correction Access to the address book help

Access to the voice recognition help
Access to the media management help
Access to the guidance, navigation help
Access to the telephone help

Access to the radio help
To cancel a voice command which is in
progress
Request to correct the last voice reco
gnition carried out
Clear
RADIO
Select station
Station
R
ead out station list
Enter frequency
Select wave band
AMFM TA on
TA off
Select a radio station
Select a radio station using its RDS
description from theRADIO list
Listen to the list of stations available
Listen to the frequency of the current radiostation
Choose the frequency waveband (AM or FM)

Change the frequency waveband to AM
Change the frequency waveband to FM
Activate Traffi c Info (TA)
Deactivate Traffi c Info
NAVIGATION Destination input
V
oice advice off
Voice advice on
Save address
Start guidance
Abort guidance
Navi
gate entry
P
OI Search
Command to enter a new destinationaddress
Deactivate the spoken guidance instructions
Activate the spoken
guidance instructions
Save an address in the address book
Start guidance (once the address has been entered) Stop the guidance
Start guidance to an entry in the address book
Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS

207
02

VOICE COMMANDS - VOICE
RECO. INITIATION
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
CONTEXTSAYACTION
MEDIA
Media Select media Single slot
Jukebox
USB
Ext
ernal device SD-Card
Track <1 - 1 000>
Folder <1 - 1 000> Select the MEDIA source

Choose a source Select the CD player source
Select the Jukebox source
Select the USB player source
Select the audio AUX input source
Select the SD card source Select a specifi c track (number between
1 and 1 000) on the active MEDIUM
Select a Folder (number between 1 and
1 000
) on the active MEDIUM
TELEPHONE Phone menu
Enter number
Phone book
Dial
Save number
Accept
Reject O
pen the Telephone Menu
Enter a telephone number to be called
Open the phone book
Make a call
Save a number in the phone book
Accept an incoming call
Re
ject an incoming call
ADDRE
SS
BOOK Address book menu
Call

Navigate
Open the address book
Call fi le using its <fi le> description as described in the address book
Start guidance to an address in the addressbook using its <fi le> description

208
02VOICE COMMANDS AND STEERING MOUNTED CONTROLS









STEERING MOUNTED CONTROLS
RADIO: selection of the previous stored station.

Audio CD: selection of the previous track.
If "MEDIA" is displayed on the screen:
MP3 CD/SD CARD/JUKEBOX: selection of the previous folder.
Selection of the previous entry in the address book.
RADIO: selection of the next stored station.

Audio CD: selection of the next track.
If "MEDIA" is displayed on the screen:
MP3 CD/CARD/JUKEBOX: selection of the nextfolder.
Selection of the next entry in the address book.


RADIO: automatic search for a higher frequency.
CD/SD CARD/JUKEBOX: selection of the next track.

CD/SD CARD/JUKEBOX: continuous press: fast forward play.


RADIO: automatic search for a lower frequency.

CD/SD CARD/JUKEBOX: selection of the previous track.

CD/SD CARD/JUKEBOX: continuous press: fast backward play.
- Change the sound source.
- Make a call from the address book.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds: access to the address book.
Volume increase.


Volume decrease.


Mute: by pressingthe volume increaseand decrease buttons simultaneously.
Restore the sound: by pressing one of thetwo volume buttons. Wiper stalk: displa
y of "RADIO" and "MEDIA".
Li
ghting stalk: activation of the voice command by means of a short press;
indication of the current navigation instruction by means of a long press.
