PRACTICAL INFORMATION
169

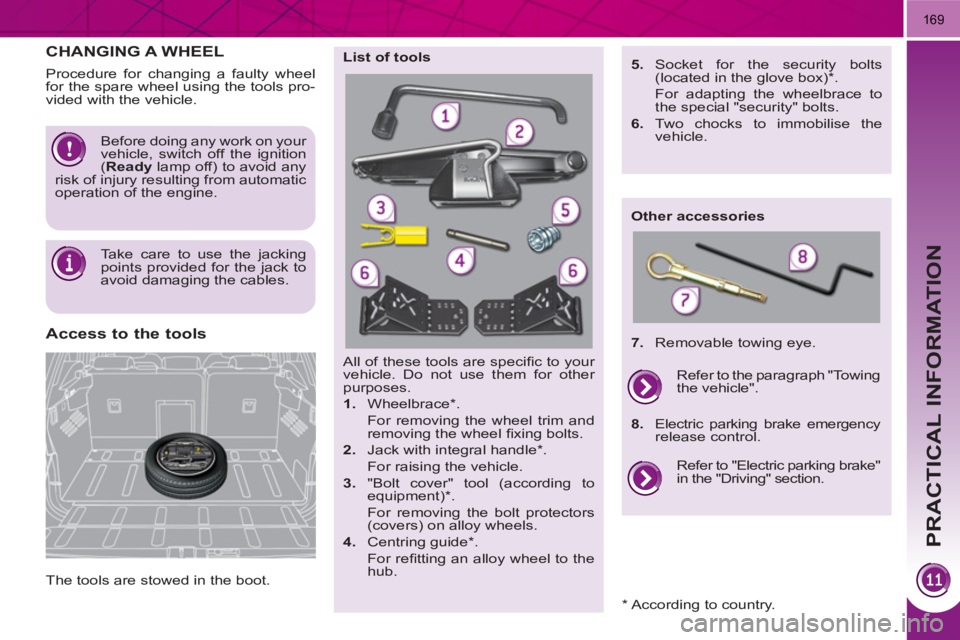

CHANGING A WHEEL
The tools are stowed in the boot.
Access to the tools
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
1.
Wheelbrace *
.
For removing the wheel trim and
removing the wheel fi xing bolts.
2.
Jack with integral handle *
.
For raising the vehicle.
3.
"Bolt cover" tool (according to
equipment) *
.
For removing the bolt protectors
(covers) on alloy wheels.
4.
Centring guide *
.
For refi tting an alloy wheel to the
hub.
List of tools
Other accessories
5.
Socket for the security bolts
(located in the glove box) *
.
For adapting the wheelbrace to
the special "security" bolts.
6.
Two chocks to immobilise the
vehicle.
7.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".
8.
Electric parking brake emergency
release control.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.
*
According to country.
Take care to use the jacking
points provided for the jack to
avoid damaging the cables.
Page 172 of 280
PRACTICAL INFORMATION
170
Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and put
the gear lever in the A
, M
or R
posi-
tion to lock the wheels.
Check that the braking warning lamp
and the P
warning lamp on the park-
ing brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the ve-
hicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.

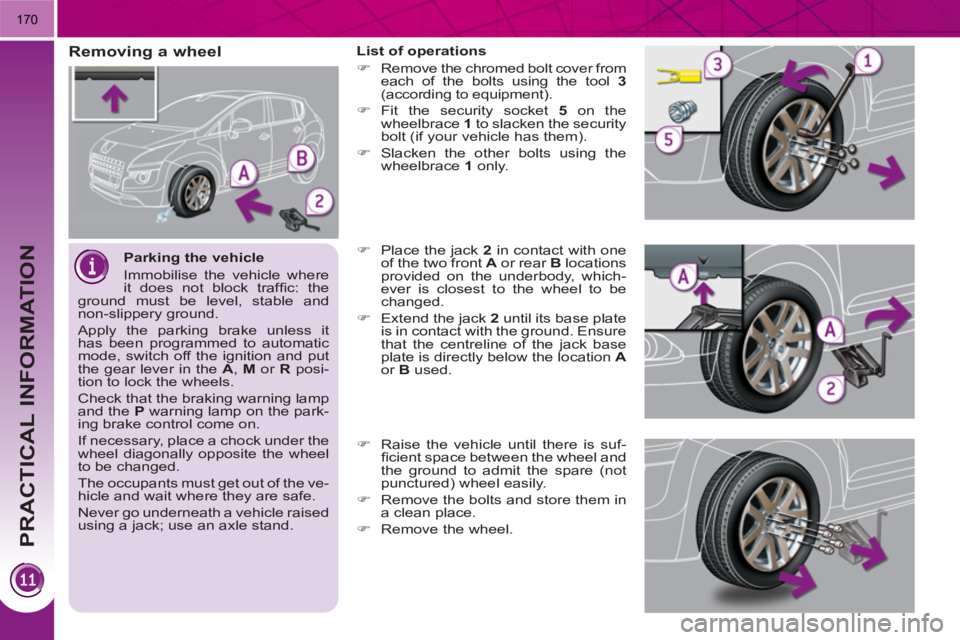

Removing a wheel
List of operations
)
Remove the chromed bolt cover from
each of the bolts using the tool 3
(according to equipment).
)
Fit the security socket 5
on the
wheelbrace 1
to slacken the security
bolt (if your vehicle has them).
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
Page 173 of 280
PRACTICAL INFORMATION
171

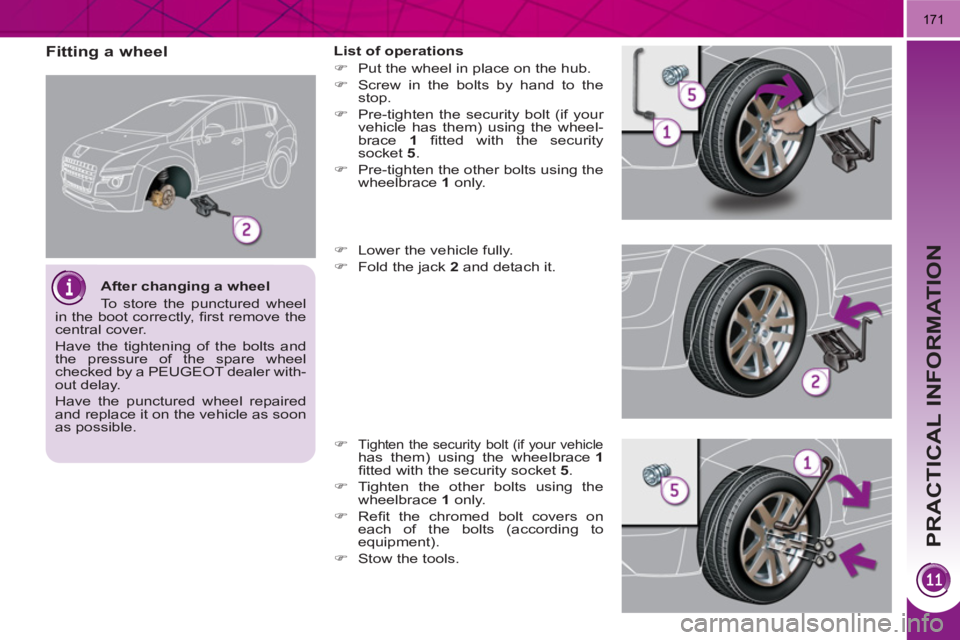

Fitting a wheel
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand to the
stop.
)
Pre-tighten the security bolt (if your
vehicle has them) using the wheel-
brace 1
fi tted with the security
socket 5
.
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt (if your vehicle has them) using the wheelbrace 1
fi tted with the security socket 5
.
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts (according to
equipment).
)
Stow the tools.
After changing a wheel
To store the punctured wheel
in the boot correctly, fi rst remove the
central cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer with-
out delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.
Page 174 of 280
PRACTICAL INFORMATION
172

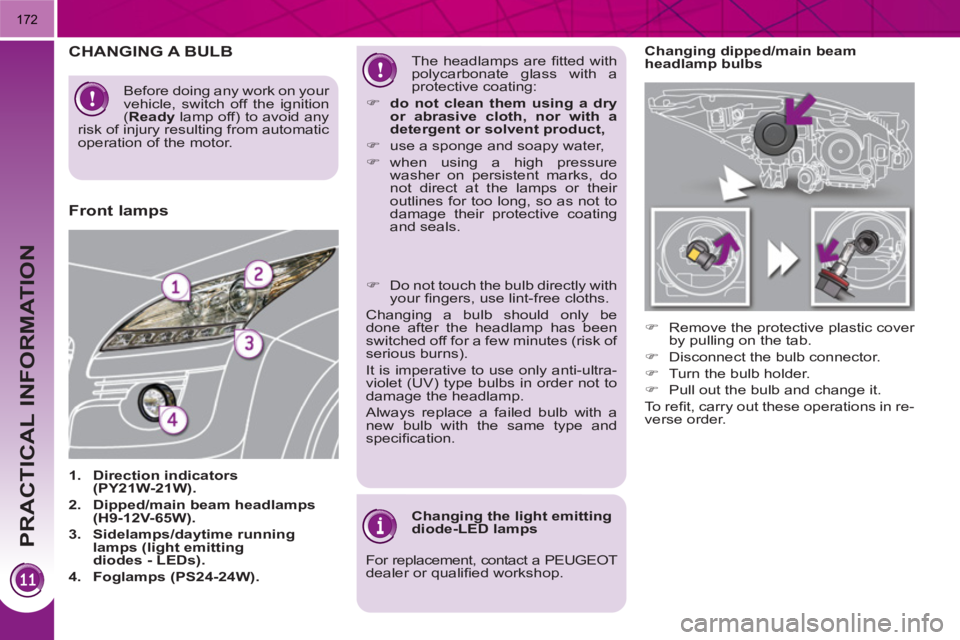

Changing dipped/main beam
headlamp bulbs
)
Remove the protective plastic cover
by pulling on the tab.
)
Disconnect the bulb connector.
)
Turn the bulb holder.
)
Pull out the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
CHANGING A BULB
1.
Direction indicators
(PY21W-21W).
2.
Dipped/main beam headlamps
(H9-12V-65W).
3.
Sidelamps/daytime running
lamps (light emitting
diodes - LEDs).
4.
Foglamps (PS24-24W).
The headlamps are fi tted with
polycarbonate glass with a
protective coating:
)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.
Front lamps
)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualifi ed workshop.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the motor.
Page 175 of 280
PRACTICAL INFORMATION
173

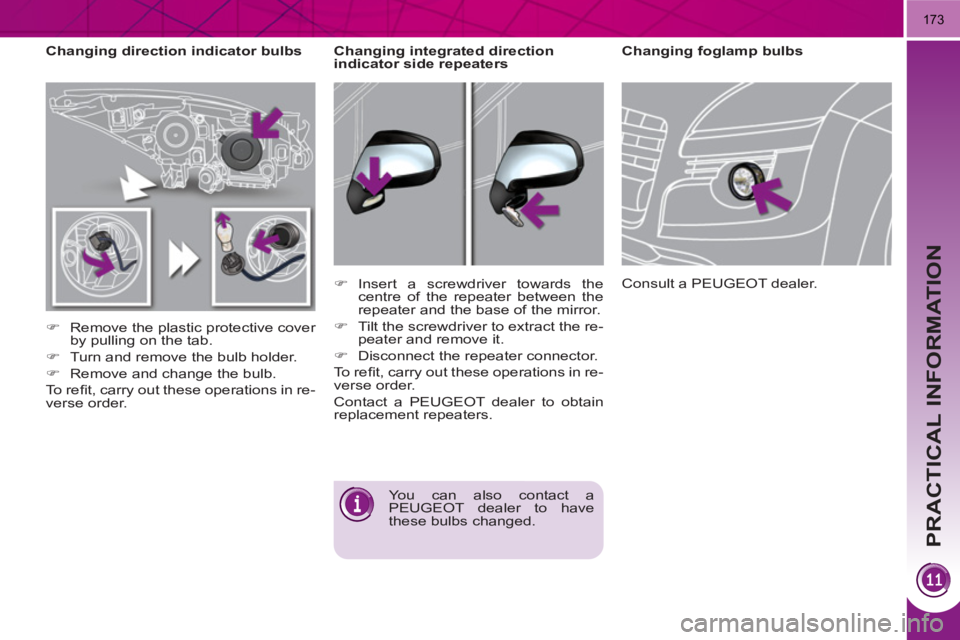

Changing direction indicator bulbs
)
Remove the plastic protective cover
by pulling on the tab.
)
Turn and remove the bulb holder.
)
Remove and change the bulb.
To r efi t, carry out these operations in re-
verse order.
Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed.
Consult a PEUGEOT dealer.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the re-
peater and remove it.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
Page 176 of 280
PRACTICAL INFORMATION
174

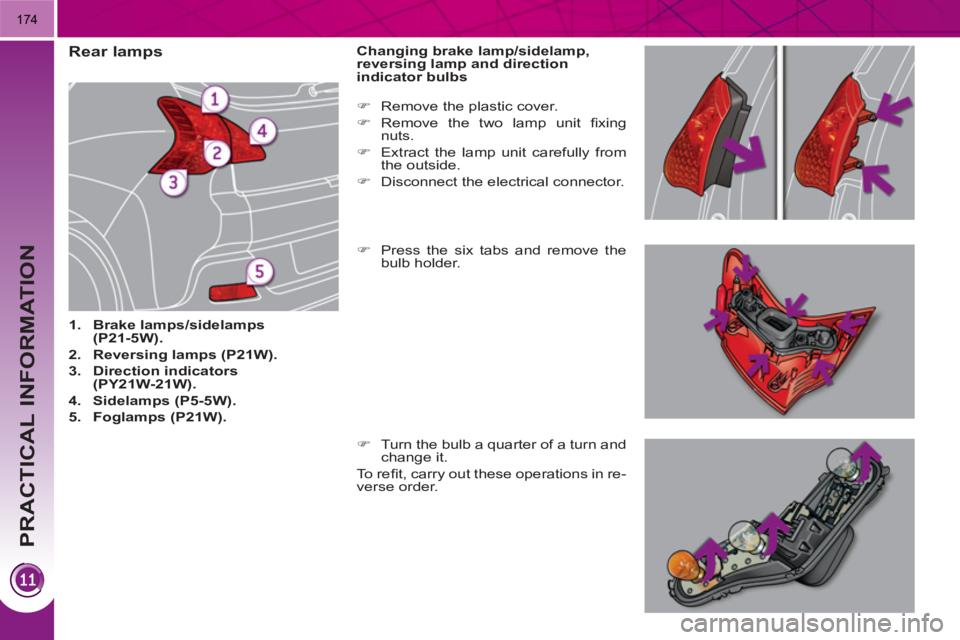

Rear lamps
1.
Brake lamps/sidelamps
(P21-5W).
2.
Reversing lamps (P21W).
3.
Direction indicators
(PY21W-21W).
4.
Sidelamps (P5-5W).
5.
Foglamps (P21W).
Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs
)
Press the six tabs and remove the
bulb holder.
)
Remove the plastic cover.
)
Remove the two lamp unit fi xing
nuts.
)
Extract the lamp unit carefully from
the outside.
)
Disconnect the electrical connector.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
Page 177 of 280
PRACTICAL INFORMATION
175

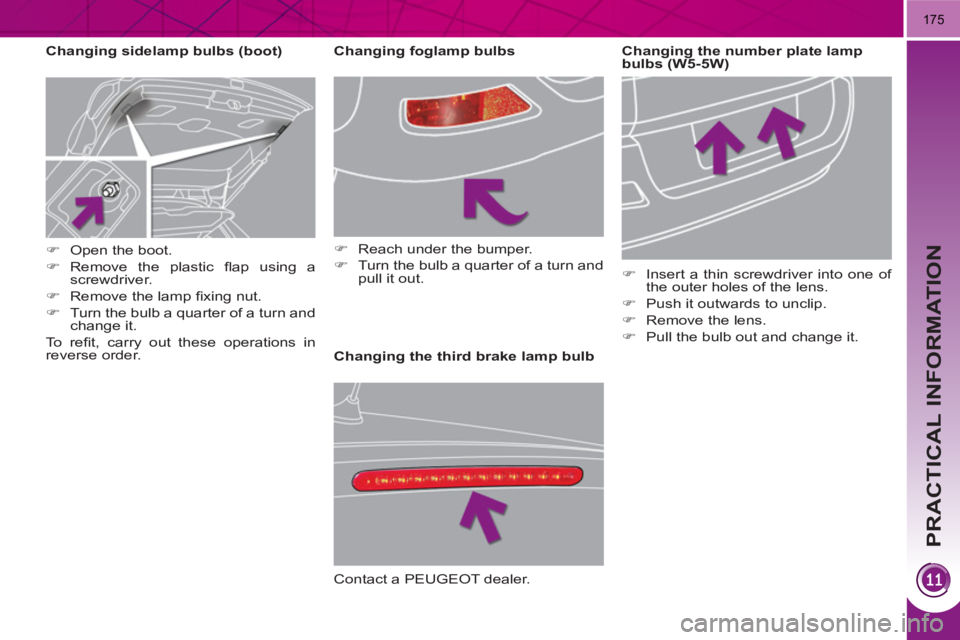

Changing the third brake lamp bulb
Changing sidelamp bulbs (boot)
Changing foglamp bulbs
)
Open the boot.
)
Remove the plastic fl ap using a
screwdriver.
)
Remove the lamp fi xing nut.
)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.
)
Reach under the bumper.
)
Turn the bulb a quarter of a turn and
pull it out.
Contact a PEUGEOT dealer.
Changing the number plate lamp
bulbs (W5-5W)
)
Insert a thin screwdriver into one of
the outer holes of the lens.
)
Push it outwards to unclip.
)
Remove the lens.
)
Pull the bulb out and change it.
Page 178 of 280
PRACTICAL INFORMATION
176
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:
)
remove the cover completely,
)
remove the tweezer.
Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by checking
the condition of its fi lament.
Good
Failed
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check that the number etched on
the box, the rating etched on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting from
the installation of accessories not
supplied and not recommended by
PEUGEOT and not installed in accor-
dance with its instructions, in particular
when the combined consumption of all
of the additional equipment connected
exceeds 10 milliamperes.
Page 179 of 280
PRACTICAL INFORMATION
177
Dashboard fuses
The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables
Fuse
N°
Rating
(A)
Functions
F1
15
Rear wiper.
F2
-
Not used.
F3
5
Airbag control unit.
F4
10
Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.
F5
30
Front one-touch electric windows.
F6
30
Rear one-touch electric windows.
F7
5
Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.
Page 180 of 280
PRACTICAL INFORMATION
178
Access to the fuses
)
refer to the paragraph "Access to
the tools".
Fuse
N°
Rating
(A)
Functions
F8
20
Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media).
F9
30
Front 12 V socket, cigarette lighter, rear 12 V
socket.
F10
15
Steering mounted controls.
F11
15
Low current ignition switch.
F12
15
Trailer presence, rain/sunshine sensor, supply for
fuses F32, F34, F35.
F13
5
Engine fusebox, airbag control unit.
F14
15
Instrument panel, instrument panel screen, supply
for fuse F33.
F15
30
Locking and deadlocking.
F17
40
Heated rear screen, supply for fuse F30.
SH
-
PARC shunt.
