Visiopark 2
The vehicle has a camera at the front, fitted
in the grille, and a camera at the rear, located
close to the tailgate opening control.
Using these cameras, the system displays
the vehicle's near surroundings in the touch
screen, offering views from the rear of the
vehicle (rear vision), when reverse gear is
engaged and views from the front of the vehicle
(front vision), when the gearbox is in neutral or
a gear is engaged.

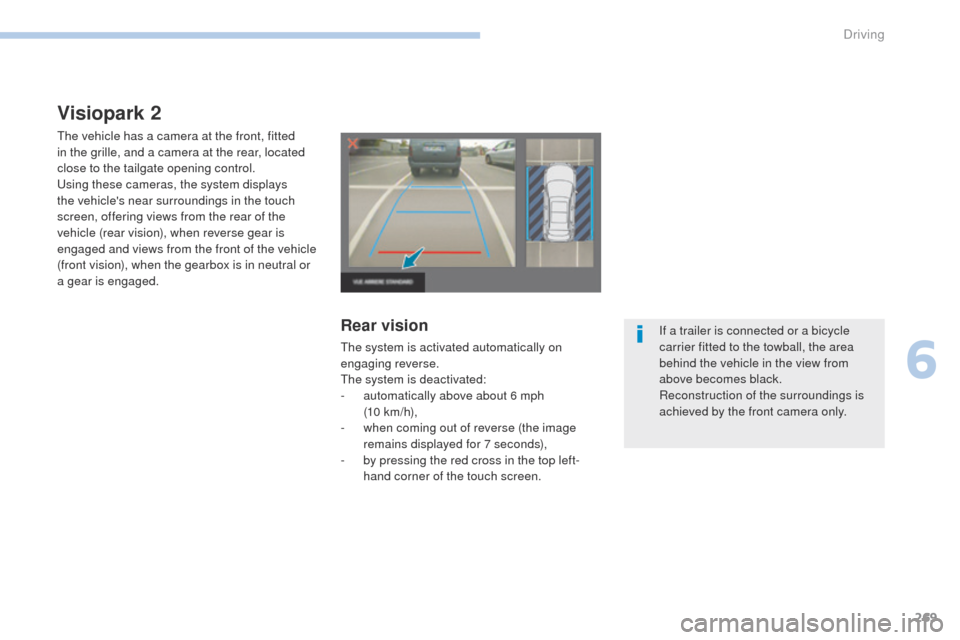

Rear vision
The system is activated automatically on
engaging reverse.
The system is deactivated:
-
a
utomatically above about 6 mph
(10 km/h),
-

w
hen coming out of reverse (the image
remains displayed for 7 seconds),
-

b
y pressing the red cross in the top left-
hand corner of the touch screen. If a trailer is connected or a bicycle
carrier fitted to the towball, the area
behind the vehicle in the view from
above becomes black.
Reconstruction of the surroundings is
achieved by the front camera only.
6
Driving

270
3008-2_en_Chap06_conduite_ed01-2016

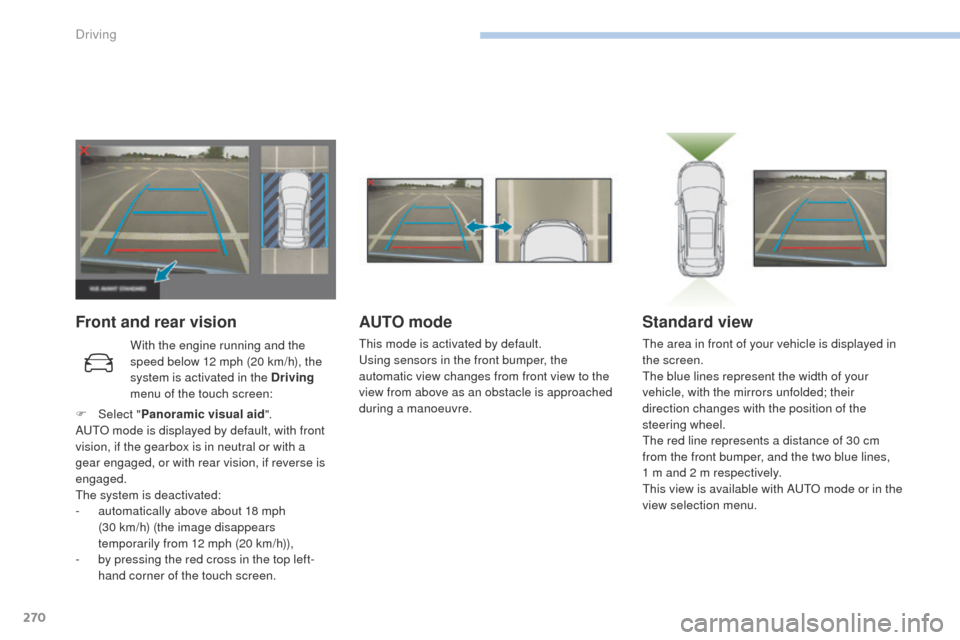

Front and rear visionAUTO mode
This mode is activated by default.
Using sensors in the front bumper, the
automatic view changes from front view to the
view from above as an obstacle is approached
during a manoeuvre.
Standard view
The area in front of your vehicle is displayed in
the screen.
The blue lines represent the width of your
vehicle, with the mirrors unfolded; their
direction changes with the position of the
steering wheel.
The red line represents a distance of 30 cm
from the front bumper, and the two blue lines,
1 m and 2 m respectively.
This view is available with AUTO mode or in the
view selection menu.
With the engine running and the
speed below 12 mph (20 km/h), the
system is activated in the Driving

menu of the touch screen:
F

Sel

ect " Panoramic visual aid ".
AUTO mode is displayed by default, with front
vision, if the gearbox is in neutral or with a
gear engaged, or with rear vision, if reverse is
engaged.
The system is deactivated:
-

a

utomatically above about 18 mph
(30

km/h) (the image disappears
temporarily from 12 mph (20 km/h)),
-

b

y pressing the red cross in the top left-
hand corner of the touch screen.
Driving

271
3008-2_en_Chap06_conduite_ed01-2016

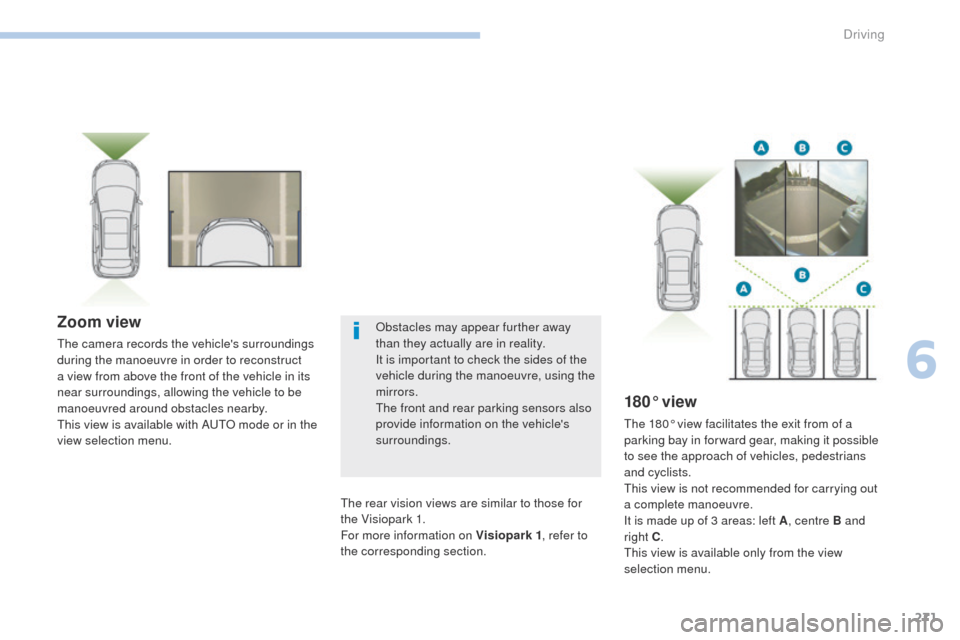

Zoom view
The camera records the vehicle's surroundings
during the manoeuvre in order to reconstruct
a view from above the front of the vehicle in its
near surroundings, allowing the vehicle to be
manoeuvred around obstacles nearby.
This view is available with AUTO mode or in the
view selection menu.
180° view
The 180° view facilitates the exit from of a
parking bay in forward gear, making it possible
to see the approach of vehicles, pedestrians
and cyclists.
This view is not recommended for carrying out
a complete manoeuvre.
It is made up of 3 areas: left A, centre B and
right C .
This view is available only from the view
selection menu.
The rear vision views are similar to those for
the Visiopark 1.
For more information on Visiopark 1
, refer to
the corresponding section. Obstacles may appear further away
than they actually are in reality.
It is important to check the sides of the
vehicle during the manoeuvre, using the
mirrors.
The front and rear parking sensors also
provide information on the vehicle's
surroundings.
6
Driving

272
3008-2_en_Chap06_conduite_ed01-2016
Park Assist
This system provides active assistance with
parking. It detects a parking space then
operates the steering to park in the space.
It operates the steering while the driver
manages the accelerator, brakes, gears and
clutch (manual gearbox). During phases of
entry into and exit from a parking space, the
system provides visual and audible information
to the driver in order to make the manoeuvres
safe. It may be necessary to move for wards
and backwards more than once.During a manoeuvre, the steering
wheel turns quickly: do not hold the
steering wheel, do not place your
hands between the spokes of the
steering wheel and take care with
loose and bulky clothing (scarves, ties,
handbags...) - Risk of injury!
When Park Assist is activated, it
prevents a change to STOP mode of
Stop & Start. In STOP mode, activation
of Park Assist restarts the engine.
This manoeuvring assistance system
cannot, in any circumstances, replace
the need for vigilance on the part of the
driver.
The driver must remain in control of their
vehicle ensuring that the space remains
clear throughout the manoeuvre.
In some circumstances, the sensors may
not detect small obstacles located in
their blind spots.
The driver can take control at any time by

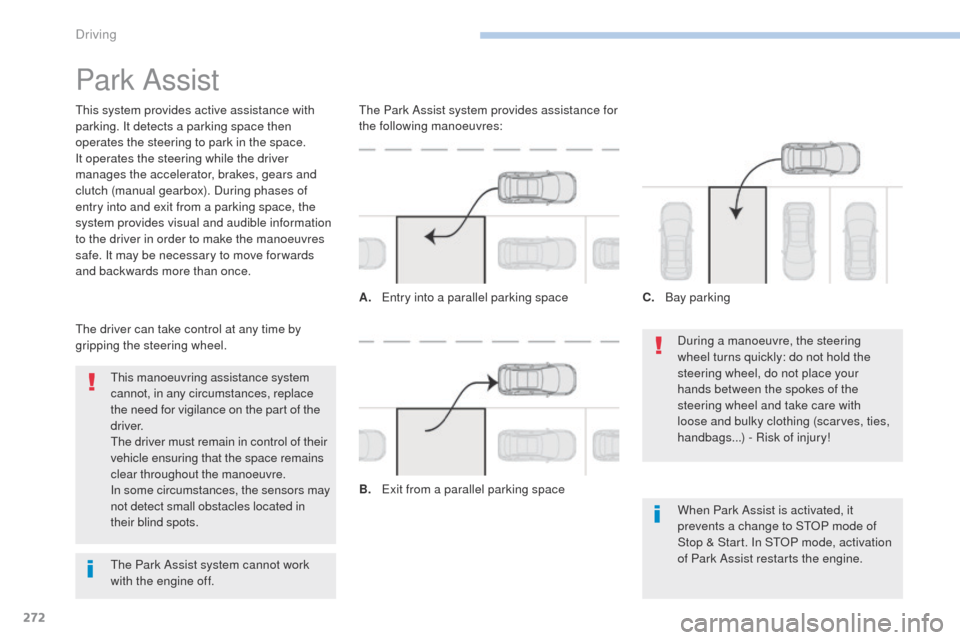

gripping the steering wheel. The Park Assist system provides assistance for
the following manoeuvres:
A.
E

ntry into a parallel parking space
B.
E

xit from a parallel parking spaceC.
B

ay parking
The Park Assist system cannot work
with the engine off.
Driving

273
3008-2_en_Chap06_conduite_ed01-2016

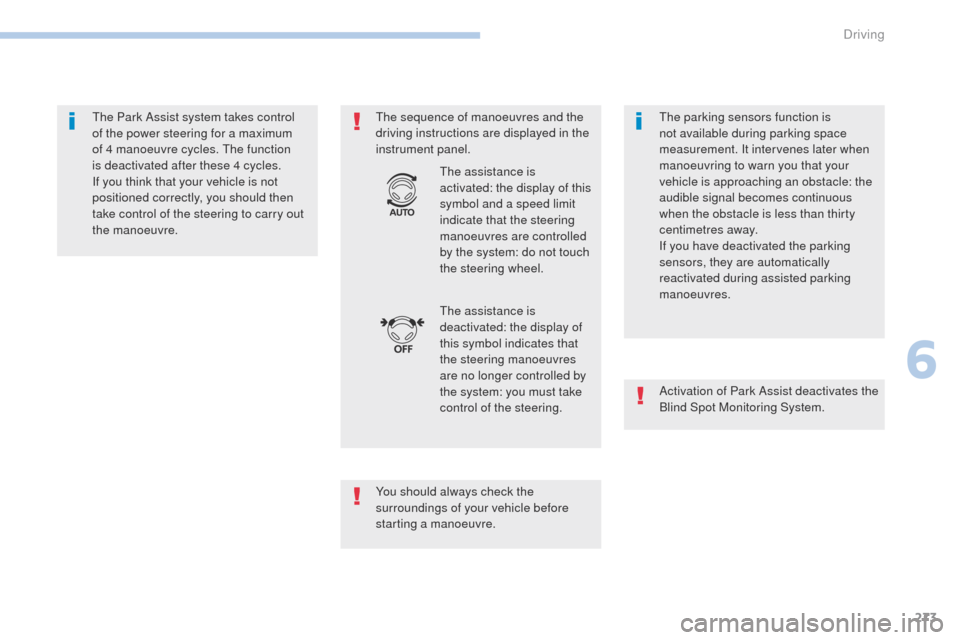

The Park Assist system takes control
of the power steering for a maximum
of 4 manoeuvre cycles. The function
is deactivated after these 4 cycles.
If you think that your vehicle is not
positioned correctly, you should then
take control of the steering to carry out
the manoeuvre.The sequence of manoeuvres and the
driving instructions are displayed in the
instrument panel.
You should always check the
surroundings of your vehicle before
starting a manoeuvre.The assistance is
deactivated: the display of
this symbol indicates that
the steering manoeuvres
are no longer controlled by
the system: you must take
control of the steering. The assistance is
activated: the display of this
symbol and a speed limit
indicate that the steering
manoeuvres are controlled
by the system: do not touch
the steering wheel.
The parking sensors function is
not available during parking space
measurement. It intervenes later when
manoeuvring to warn you that your
vehicle is approaching an obstacle: the
audible signal becomes continuous
when the obstacle is less than thirty
centimetres away.
If you have deactivated the parking
sensors, they are automatically
reactivated during assisted parking
manoeuvres.
Activation of Park Assist deactivates the
Blind Spot Monitoring System.
6
Driving

274
3008-2_en_Chap06_conduite_ed01-2016
Operation
Assistance with parallel parking
manoeuvres
F Select "Park Assist " in the
Driving menu of the touch
screen to activate the function.
To enter a parking space, the system
does not identify spaces that are clearly
smaller or larger than the vehicle.
This indicator lamp comes on in the
instrument panel to confirm activation
of the function.
F

L
imit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select " Enter parking slot "
in the touch screen. F

O
perate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F

D
rive slowly following the instructions until
the system finds a free space.
F

W

hen you have identified a parking space.
Driving

275
3008-2_en_Chap06_conduite_ed01-2016

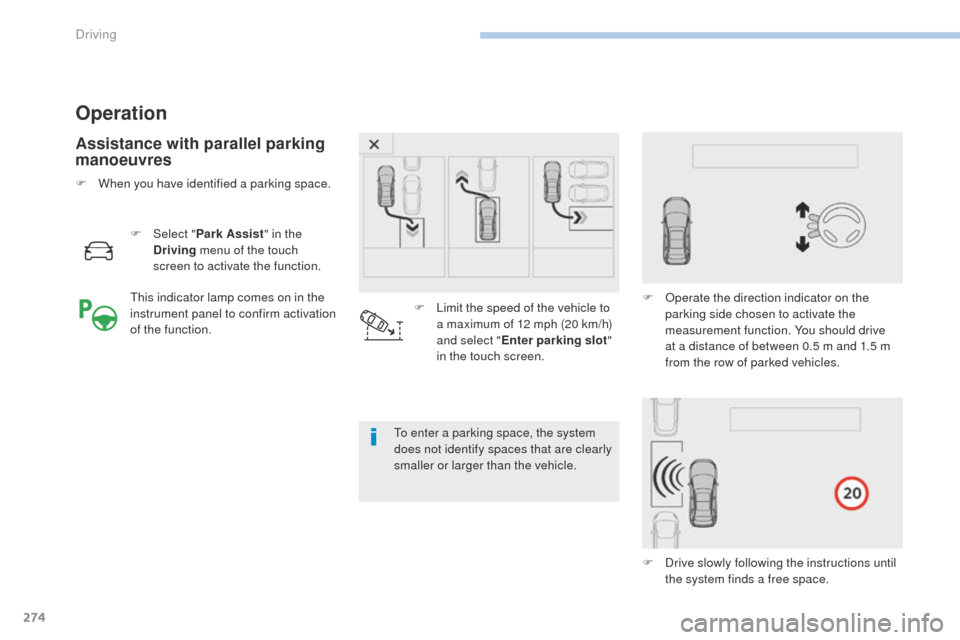

F Move for wards slowly until a message is displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F

S
elect reverse, release the steering wheel
and start moving without exceeding 4 mph
(7 km/h). F
T he assisted parking manoeuvre is in
progress.
W

ithout exceeding 4 mph (7 km/h), move
for wards and backwards, aided by the
warnings from the "Parking sensors"
system, until the indication of the end of the
manoeuvre. F
A t the end of the manoeuvre, the indicator
lamp goes out in the instrument panel,
accompanied by the display of a message
and an audible signal.
T

he assistance is deactivated: you can
take over control.
6
Driving

276
3008-2_en_Chap06_conduite_ed01-2016

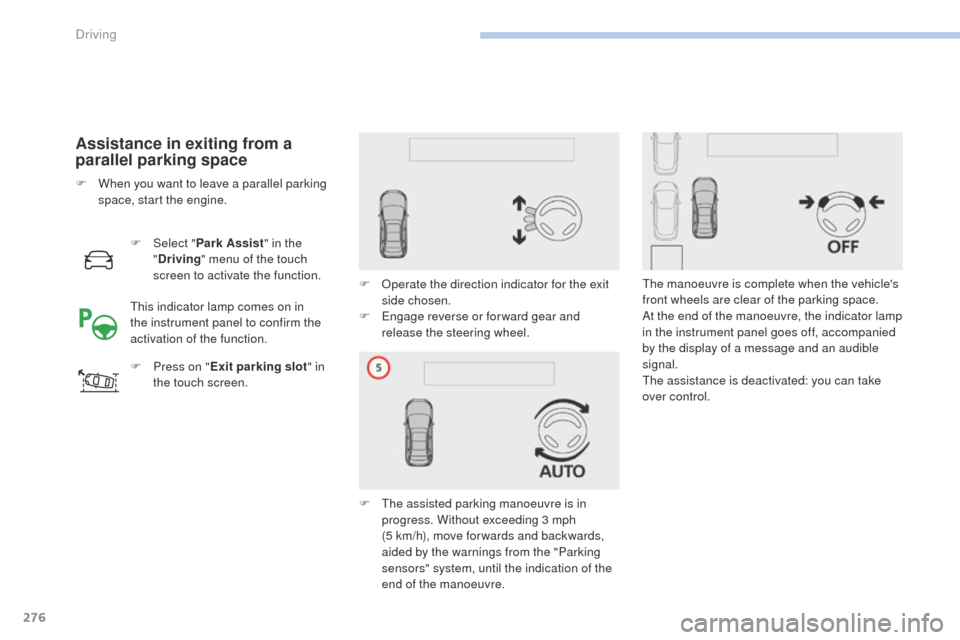

Assistance in exiting from a
parallel parking space
F Select "Park Assist " in the
" Driving " menu of the touch
screen to activate the function.
F

P
ress on " Exit parking slot " in
the touch screen. F

O
perate the direction indicator for the exit
side chosen.
F

E
ngage reverse or for ward gear and
release the steering wheel.
F

T
he assisted parking manoeuvre is in
progress. Without exceeding 3 mph
(5
km/h), move for wards and backwards,
aided by the warnings from the "Parking
sensors" system, until the indication of the
end of the manoeuvre.
F

W

hen you want to leave a parallel parking
space, start the engine.
This indicator lamp comes on in
the instrument panel to confirm the
activation of the function. The manoeuvre is complete when the vehicle's
front wheels are clear of the parking space.
At the end of the manoeuvre, the indicator lamp
in the instrument panel goes off, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.
Driving

277
3008-2_en_Chap06_conduite_ed01-2016
F Select "Park Assist " in the
" Driving " menu of the touch
screen to activate the function.

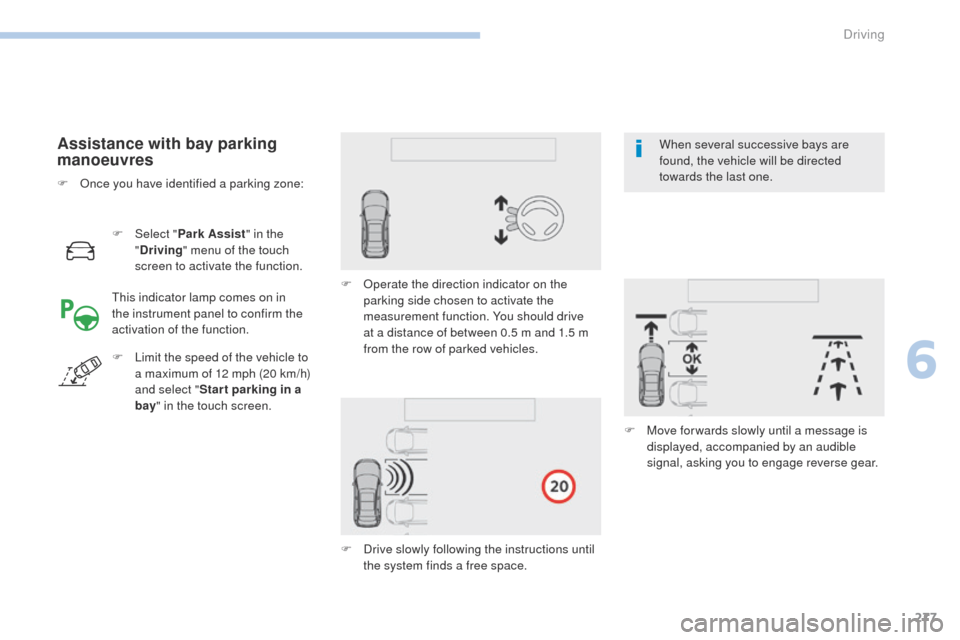

Assistance with bay parking
manoeuvres
This indicator lamp comes on in
the instrument panel to confirm the
activation of the function. F
O perate the direction indicator on the
parking side chosen to activate the
measurement function. You should drive
at a distance of between 0.5 m and 1.5 m
from the row of parked vehicles.
F

M
ove for wards slowly until a message is
displayed, accompanied by an audible
signal, asking you to engage reverse gear.
F

L
imit the speed of the vehicle to
a maximum of 12 mph (20 km/h)
and select " Star t parking in a
bay " in the touch screen. When several successive bays are
found, the vehicle will be directed
towards the last one.
F

O

nce you have identified a parking zone:
F
D
rive slowly following the instructions until
the system finds a free space.
6
Driving

278
3008-2_en_Chap06_conduite_ed01-2016

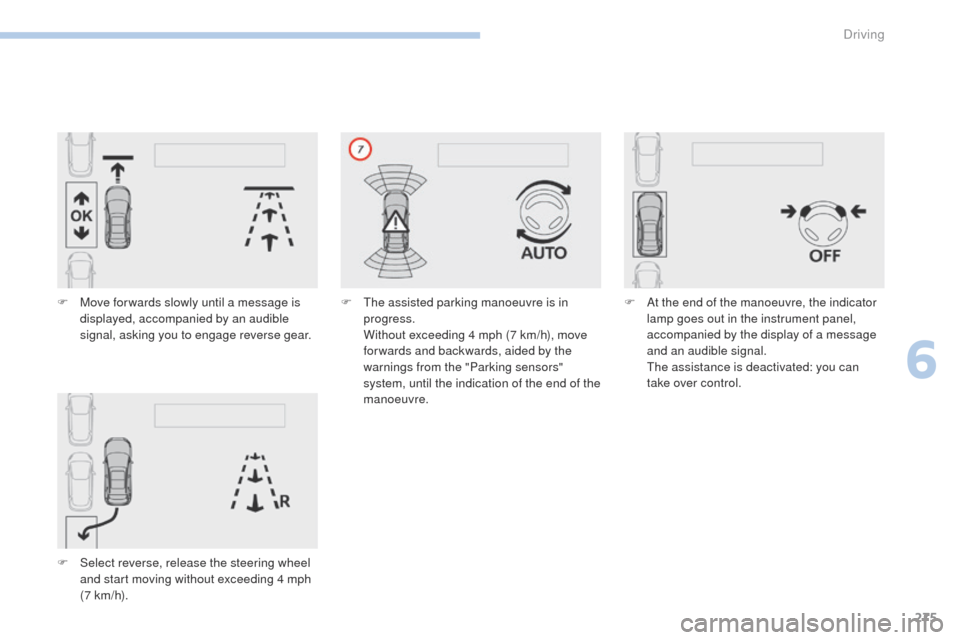

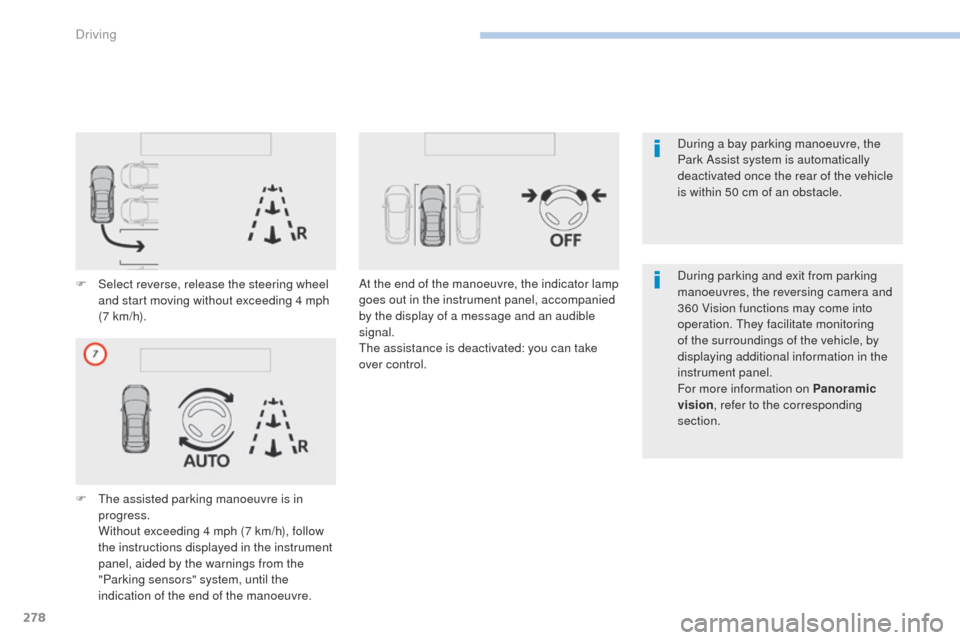

F Select reverse, release the steering wheel and start moving without exceeding 4 mph
(7 km/h).
F

T
he assisted parking manoeuvre is in
progress.
W

ithout exceeding 4 mph (7 km/h), follow
the instructions displayed in the instrument
panel, aided by the warnings from the
"Parking sensors" system, until the
indication of the end of the manoeuvre. At the end of the manoeuvre, the indicator lamp
goes out in the instrument panel, accompanied
by the display of a message and an audible
signal.
The assistance is deactivated: you can take
over control.
During parking and exit from parking
manoeuvres, the reversing camera and
360 Vision functions may come into
operation. They facilitate monitoring
of the surroundings of the vehicle, by
displaying additional information in the
instrument panel.
For more information on Panoramic
vision
, refer to the corresponding
section. During a bay parking manoeuvre, the
Park Assist system is automatically
deactivated once the rear of the vehicle
is within 50 cm of an obstacle.
Driving
