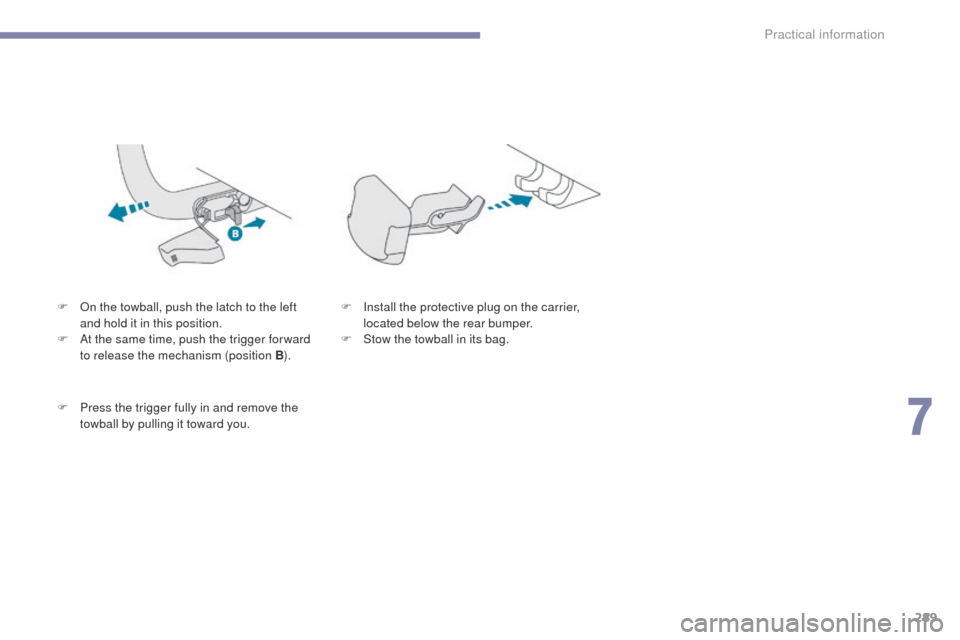

F On the towball, push the latch to the left and hold it in this position.
F

A
t the same time, push the trigger for ward
to release the mechanism (position B ).
F

P
ress the trigger fully in and remove the
towball by pulling it toward you. F
I nstall the protective plug on the carrier,
located below the rear bumper.
F

S
tow the towball in its bag.
7
Practical information

290
3008-2_en_Chap07_infos-pratiques_ed01-2016

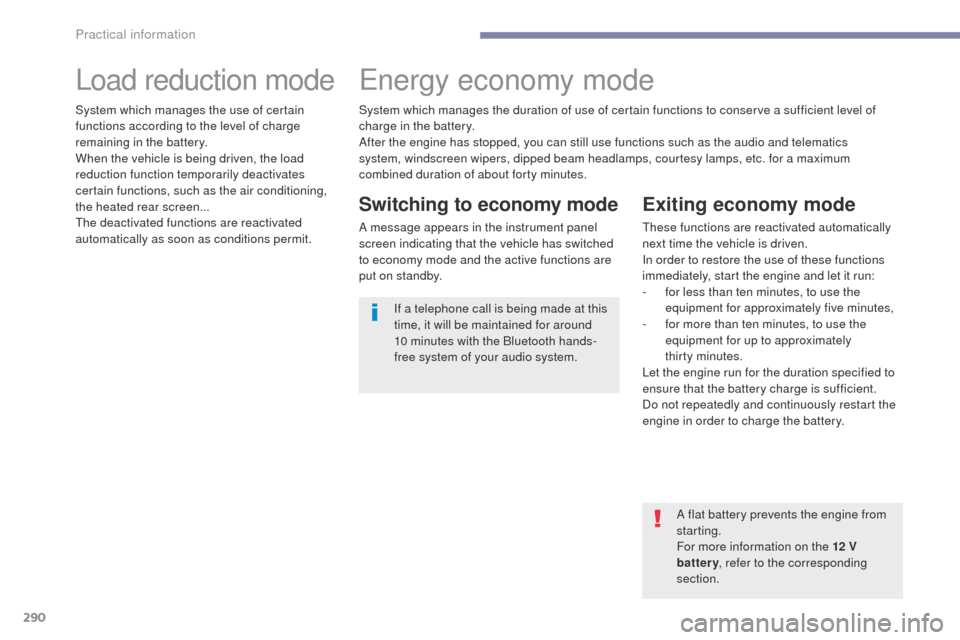

Load reduction modeEnergy economy mode
Switching to economy mode
A message appears in the instrument panel
screen indicating that the vehicle has switched
to economy mode and the active functions are
put on standby.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-

f
or less than ten minutes, to use the
equipment for approximately five minutes,
-

f
or more than ten minutes, to use the
equipment for up to approximately
thirty


minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
System which manages the duration of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system,

windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about forty minutes.
A flat battery prevents the engine from
starting.
For more information on the 12 V
battery, refer to the corresponding
section.
If a telephone call is being made at this
time, it will be maintained for around
10

minutes with the Bluetooth hands-
free system of your audio system.
Practical information

291
3008-2_en_Chap07_infos-pratiques_ed01-2016

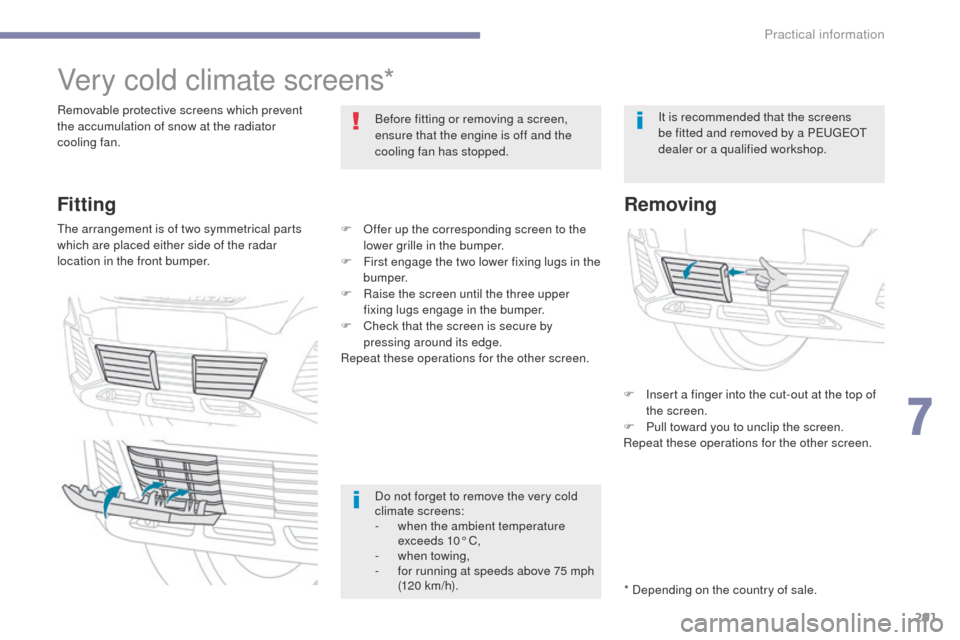

Very cold climate screens*
Removable protective screens which prevent
the accumulation of snow at the radiator
cooling fan.Before fitting or removing a screen,
ensure that the engine is off and the
cooling fan has stopped.
* Depending on the country of sale.It is recommended that the screens
be fitted and removed by a PEUGEOT
dealer or a qualified workshop.
Fitting
The arrangement is of two symmetrical parts
which are placed either side of the radar
location in the front bumper.
Removing
F Insert a finger into the cut-out at the top of
the screen.
F

P
ull toward you to unclip the screen.
Repeat these operations for the other screen.
Do not forget to remove the very cold
climate screens:
-
w

hen the ambient temperature
exceeds 10° C,
-
w

hen towing,
-

f

or running at speeds above 75 mph
(120 km/h).
F

O

ffer up the corresponding screen to the
lower grille in the bumper.
F

F

irst engage the two lower fixing lugs in the
b u m p e r.
F

R

aise the screen until the three upper
fixing lugs engage in the bumper.
F

C

heck that the screen is secure by
pressing around its edge.
Repeat these operations for the other screen.
7
Practical information

292
3008-2_en_Chap07_infos-pratiques_ed01-2016

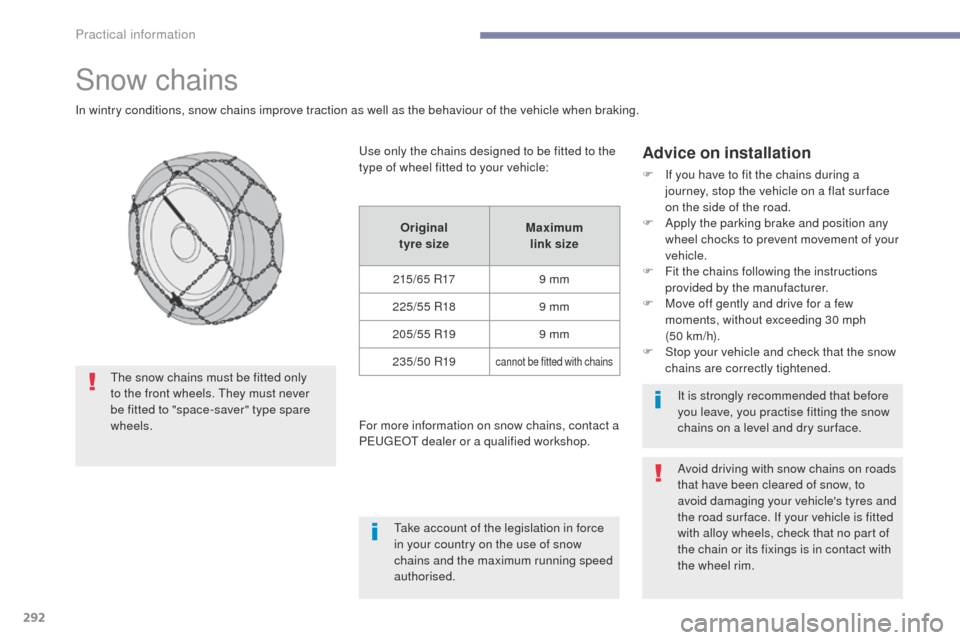

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50


km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Original
tyre size Maximum
link size
215/65 R17 9 mm
225/55 R18 9 mm
205/55 R19 9 mm
235/50 R19
cannot be fitted with chains
Practical information

293
3008-2_en_Chap07_infos-pratiques_ed01-2016

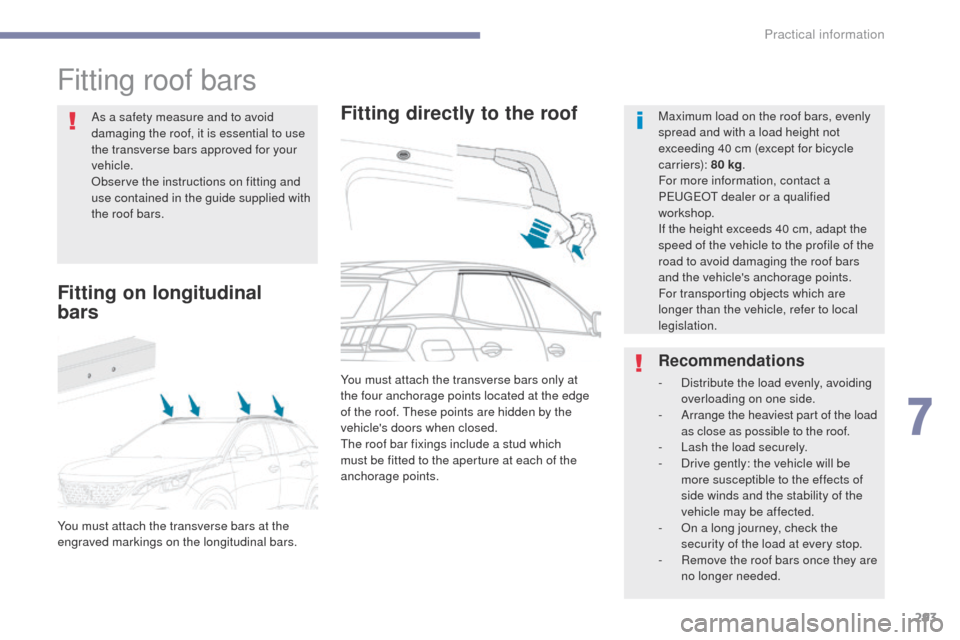

Fitting roof bars
Fitting directly to the roofMaximum load on the roof bars, evenly
spread and with a load height not
exceeding 40 cm (except for bicycle
c a r r i e r s): 80 kg.
For more information, contact a
PEUGEOT dealer or a qualified
workshop.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the vehicle's anchorage points.
For transporting objects which are
longer than the vehicle, refer to local
legislation.
Recommendations
- Distribute the load evenly, avoiding overloading on one side.
-
A

rrange the heaviest part of the load
as close as possible to the roof.
-

L
ash the load securely.
-

D
rive gently: the vehicle will be
more susceptible to the effects of
side winds and the stability of the
vehicle may be affected.
-

O
n a long journey, check the
security of the load at every stop.
-

R
emove the roof bars once they are
no longer needed.
As a safety measure and to avoid
damaging the roof, it is essential to use
the transverse bars approved for your
vehicle.
Observe the instructions on fitting and
use contained in the guide supplied with
the roof bars.
You must attach the transverse bars only at
the four anchorage points located at the edge
of the roof. These points are hidden by the
vehicle's doors when closed.
The roof bar fixings include a stud which
must be fitted to the aperture at each of the
anchorage points.
Fitting on longitudinal
bars
You must attach the transverse bars at the
engraved markings on the longitudinal bars.
7
Practical information

294
3008-2_en_Chap07_infos-pratiques_ed01-2016

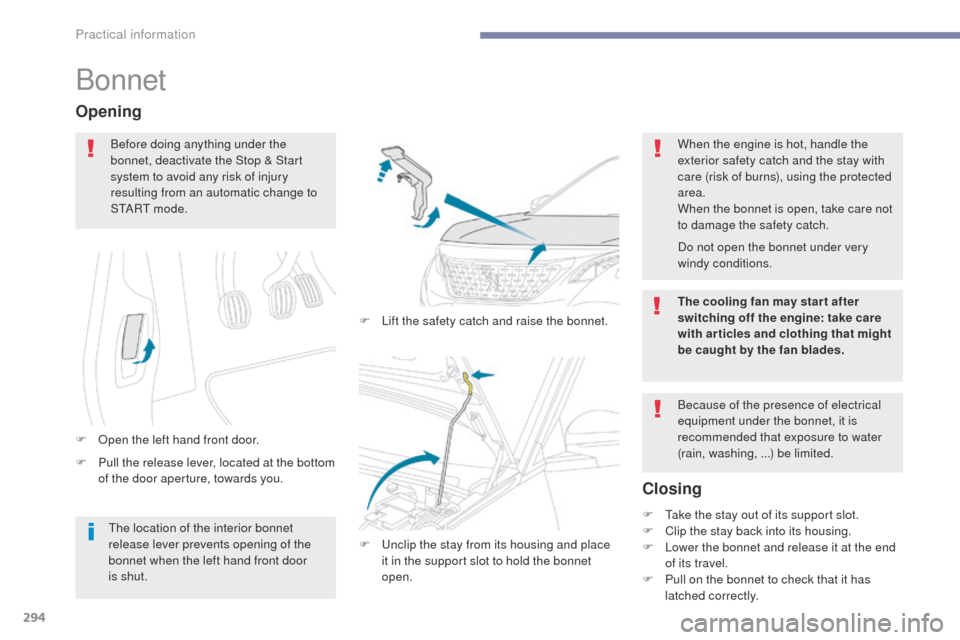

Bonnet
F Pull the release lever, located at the bottom of the door aperture, towards you.
Opening
F Open the left hand front door. F
L
ift the safety catch and raise the bonnet.
Closing
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
S TA R T m o d e .
When the engine is hot, handle the
exterior safety catch and the stay with
care (risk of burns), using the protected
area.
When the bonnet is open, take care not
to damage the safety catch.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited.
F

U
nclip the stay from its housing and place
it in the support slot to hold the bonnet
open. F

T
ake the stay out of its support slot.
F

C
lip the stay back into its housing.
F

L
ower the bonnet and release it at the end
of its travel.
F

P
ull on the bonnet to check that it has
latched correctly.
The location of the interior bonnet
release lever prevents opening of the
bonnet when the left hand front door
is shut. Do not open the bonnet under very
windy conditions.
The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
Practical information

295
3008-2_en_Chap07_infos-pratiques_ed01-2016

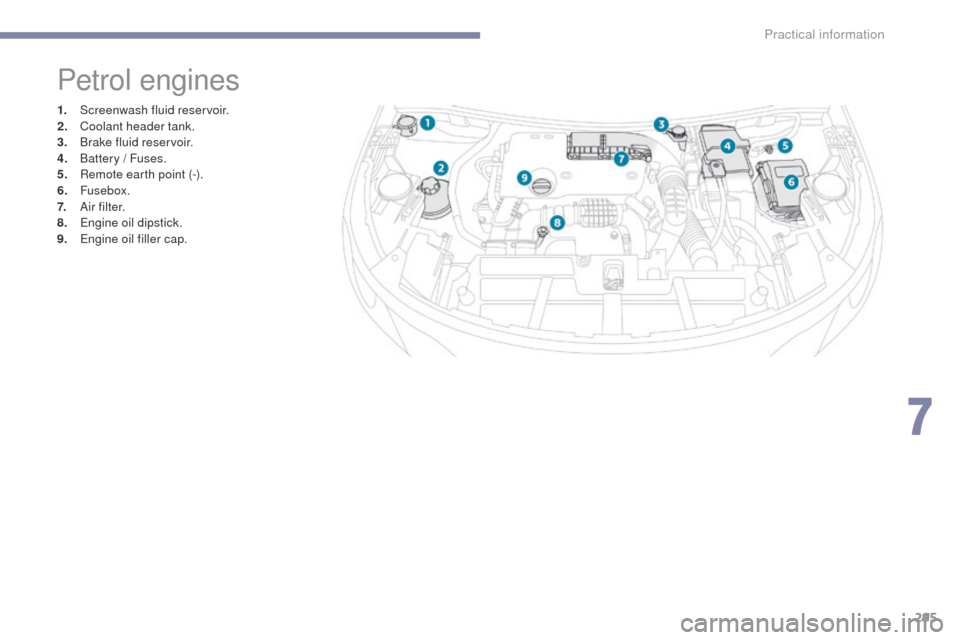

Petrol engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery / Fuses.
5.
R

emote earth point (-).
6.


Fusebox.
7.
A

i r f i l t e r.
8.
E

ngine oil dipstick.
9.
E

ngine oil filler cap.
7
Practical information

296
3008-2_en_Chap07_infos-pratiques_ed01-2016

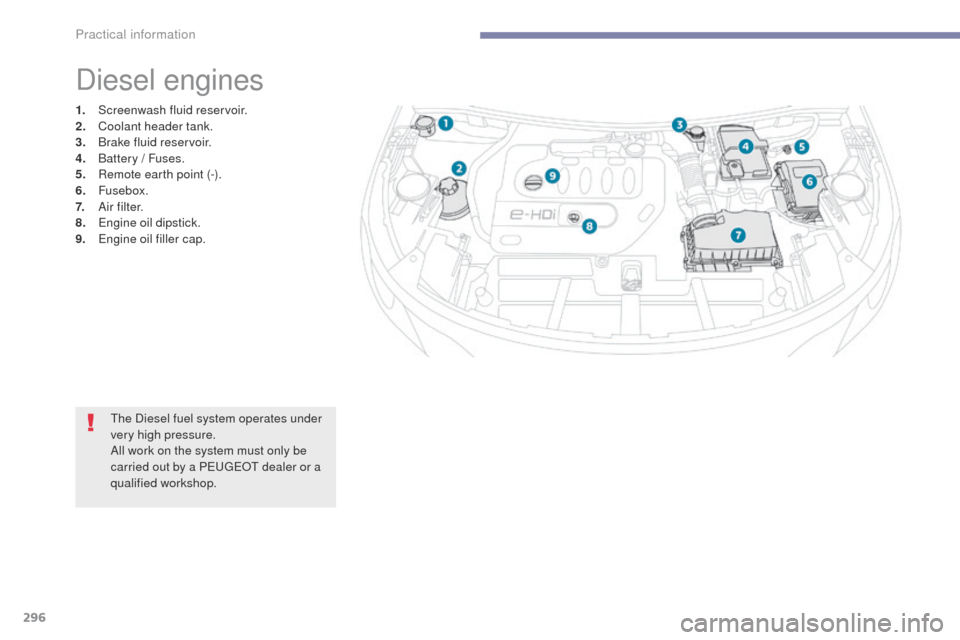

Diesel engines
1. Screenwash fluid reservoir.
2. Coolant header tank.
3.
B

rake fluid reservoir.
4.
B

attery / Fuses.
5.
R

emote earth point (-).
6.


Fusebox.
7.
A

i r f i l t e r.
8.
E

ngine oil dipstick.
9.
E

ngine oil filler cap.
The Diesel fuel system operates under
very high pressure.
All work on the system must only be
carried out by a PEUGEOT dealer or a
qualified workshop.
Practical information

297
3008-2_en_Chap07_infos-pratiques_ed01-2016

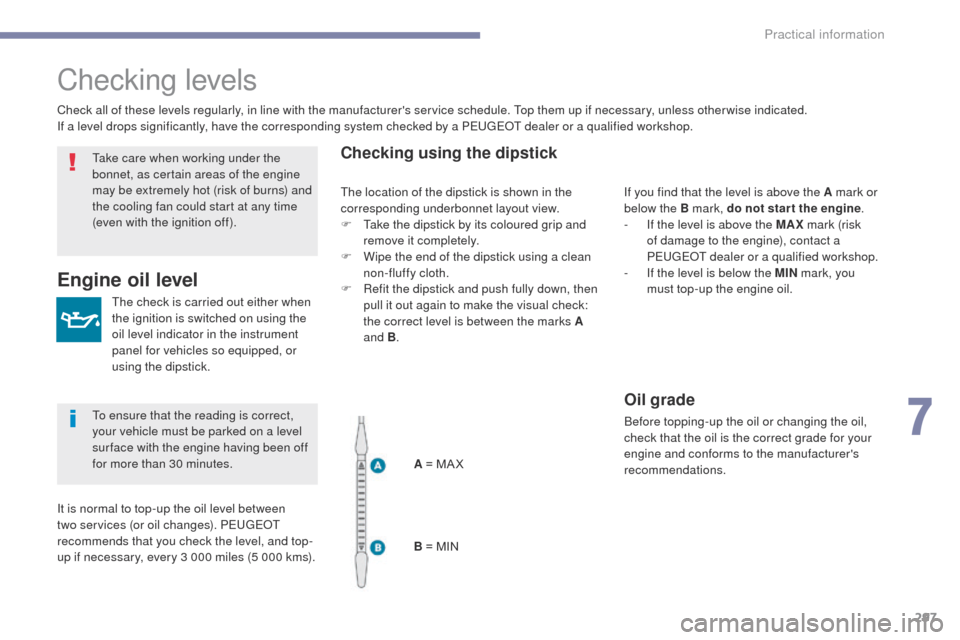

Checking levels
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
Engine oil level
Checking using the dipstick
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a PEUGEOT dealer or a qualified workshop.
It is normal to top-up the oil level between
two services (or oil changes). PEUGEOT
recommends that you check the level, and top-
up if necessary, every 3 000 miles (5 000 kms).A = MA X
B = MINIf you find that the level is above the A mark or
below the B mark, do not star t the engine
.
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
PEUGEOT dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top-up the engine oil.
Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and
the cooling fan could start at any time
(even with the ignition off).
To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
The location of the dipstick is shown in the
corresponding underbonnet layout view.
F

T

ake the dipstick by its coloured grip and
remove it completely.
F

W

ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R

efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B .
7
Practical information

298
3008-2_en_Chap07_infos-pratiques_ed01-2016
Topping-up the engine oil level
The location of the oil filler cap is shown in the
corresponding underbonnet layout view.
F
U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping-up the oil, the check when
switching on the ignition with the oil
level indicator in the instrument panel
is not valid during the 30 minutes after
topping-up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, never use
additives in the engine oil.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Practical information
