YOUR 306 AT A GLANCE3
1
- Adjustable side vent.
2 - Side window demisting vent.
3 - Passenger airbag*.
4 - Windscreen demisting vents.
5 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
6 - Heating/Ventilation,
Air conditioning controls*.
7 - Audio equipment*.
8 - Adjustable central vents. 9
- Windscreen wash-wipe
control.
10 - Steering wheel with
airbag*.
11 - Audio remote control*.
12 - Lighting control, fog lamps*
and horn.
13 - Headlamp height adjustment.
- Instrument dials lighting rheostat.
14 - Controls for:
- Electric mirrors*. - Electric windows*.
15 - Control for locking the rear
windows.
16 - Passenger airbag disarm-
ing switch*. 17
- Bonnet opening control.
18 - Fuse box.
19 - Steering lock and ignition.
20 - Fuel filler flap control*.
21 - Handbrake.
22 - Gear lever.
23 - Storage compartment.
24 - Ashtray.
25 - Glove box.
* According to specification.

ELECTRIC WINDOWS
1. Driver's electric window Manual mode: press or pull the switch lightly. The window stops as soon
as the switch is released.Automatic mode: press or pull the switch firmly. One touch completely
opens or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
101
21
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the corre-
sponding mirror.
Move the knob in all four directions to adjust the mirror.
34
A
99

MAINTENANCE OF YOUR 30623
PEUGEOT SERVICING LEVELS A AND C
First Level
Operations Description of operations
serviceACIntermediate visit
DRAIN AND REFILL- Engine oil.- Bleed fuel filter (diesel).- Oil filter.- Fuel filter (Petrol).REPLACEMENT- Fuel filter element (Diesel).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if cap is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Play in hubs, rods, ball joints, flexible mountings.- Shock absorbers for leaks.- Rear drum brake lining wear.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Smoke opacity (Diesel).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
: All driving conditions : Arduous conditions

91
In good weather or in rain, both day and night, if therear fog lamp is lit itcauses glare and is pro-
hibited. Do not forget to switch it off as soon as it is no longer needed. Do not cover the rain detector located on the windscreen behind
the interior mirror. When using an automatic car wash, switch off the ignition orcheck that the wiper control is notin the automatic position. In winter it is advisable to wait for the windscreen to completely clearof ice before operating the auto-matic wipe.
YOUR 306 IN DETAIL
3
2
1
0
4A

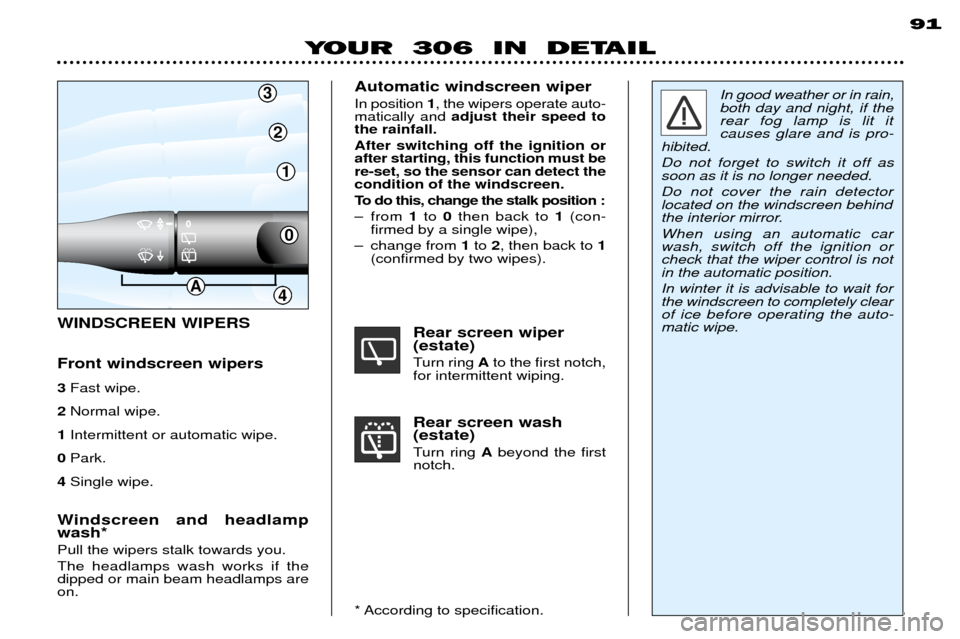

WINDSCREEN WIPERS Front windscreen wipers 3 Fast wipe.
2 Normal wipe.
1 Intermittent or automatic wipe.
0 Park.
4 Single wipe.
Windscreen and headlamp wash* Pull the wipers stalk towards you. The headlamps wash works if the dipped or main beam headlamps areon. Automatic windscreen wiper In position
1, the wipers operate auto-
matically and adjust their speed to
the rainfall. After switching off the ignition or after starting, this function must bere-set, so the sensor can detect thecondition of the windscreen.
To do this, change the stalk position :
Ð from 1to 0then back to 1(con-
firmed by a single wipe),
Ð change from 1to 2, then back to 1
(confirmed by two wipes).
Rear screen wiper (estate)
Turn ring Ato the first notch,
for intermittent wiping. Rear screen wash (estate)
Turn ring Abeyond the first
notch.
* According to specification.

YOUR 306 IN DETAIL
100
Tilting windows (3-door)
To open the rear side windows, tilt the lever
Aand push the window out-
wards.
A

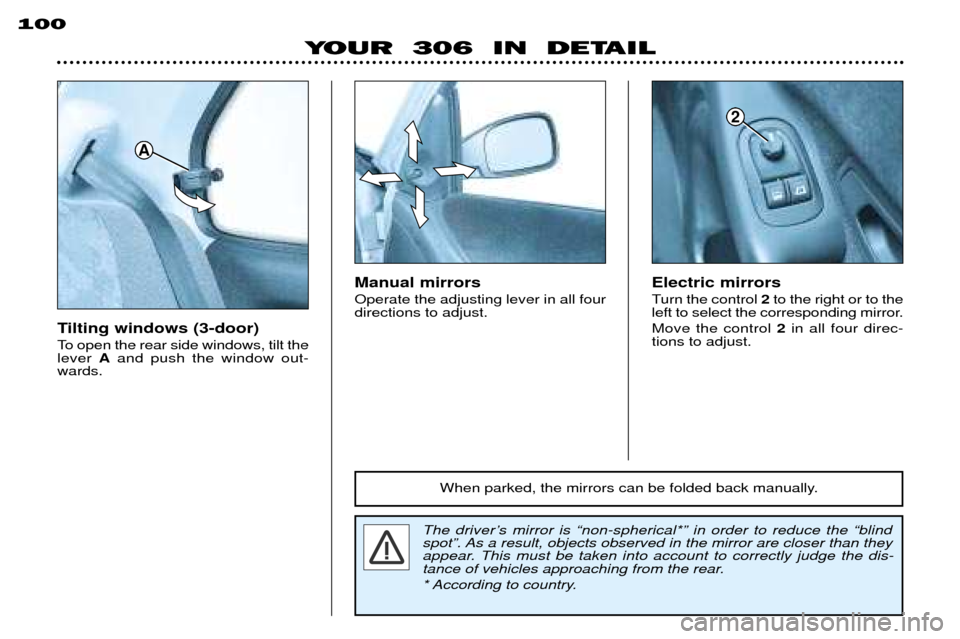

The driverÕs mirror is Ònon-spherical*Ó in order to reduce the Òblind
spotÓ. As a result, objects observed in the mirror are closer than they
appear. This must be taken into account to correctly judge the dis-
tance of vehicles approaching from the rear.
* According to country. When parked, the mirrors can be folded back manually.
Manual mirrors Operate the adjusting lever in all four directions to adjust.
Electric mirrors
Turn the control
2to the right or to the
left to select the corresponding mirror. Move the control 2in all four direc-
tions to adjust.
2

104
YOUR 306 IN DETAIL

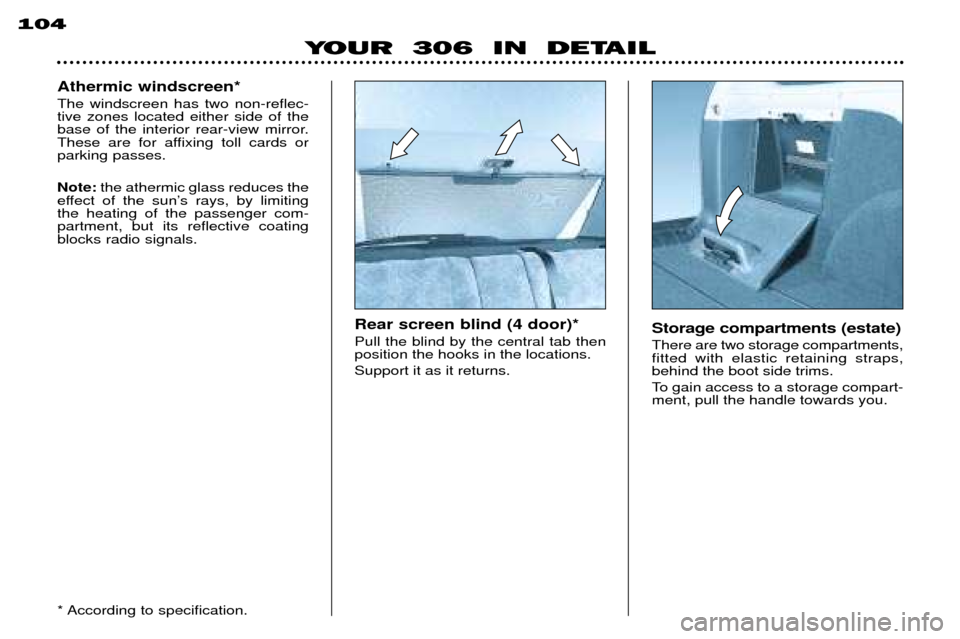

Storage compartments (estate) There are two storage compartments, fitted with elastic retaining straps,behind the boot side trims.
To gain access to a storage compart- ment, pull the handle towards you.
Rear screen blind (4 door)* Pull the blind by the central tab then position the hooks in the locations. Support it as it returns.
Athermic windscreen* The windscreen has two non-reflec- tive zones located either side of the
base of the interior rear-view mirror.
These are for affixing toll cards orparking passes. Note:
the athermic glass reduces the
effect of the sunÕs rays, by limiting the heating of the passenger com-partment, but its reflective coatingblocks radio signals.
* According to specification.

YOUR 306 IN DETAIL
102
Rear screen demisting Rear screen (and mirrors)* electric demisting control. Goes out automatically after
approximately 12 minutes to avoid excessive power consumption. Pressing the button again will operate the demisting for another 12 minutes.
* According to specification.
Digital clock* Setting: 1
- Adjusting of hours.
2 - Adjusting of minutes.
Outside temperature display* This indicates the outside tempera- ture. When the temperature isbetween minus 3 ¡C and + 5 ¡C, the¡C symbol flashes indicating a risk ofice.Hazard warning lights The switch and the direction indicators flash. This controls the indicator
lights simultaneously and continu-
ously.
Only use in case of danger, in an emergency stop or for driving inunusual conditions.
They can operate with the ignition off.
1
2

FASCIA FUSE BOX 28-fuse boxFuse No. Rating* Functions*
1 Ñ Not used
2 7.5A Automatic gearbox or excess speed buzzer control unit
3 5A ABS control unit
4 5A Instrument panel Ð Passenger compartment protection unit Ð Coolant temperature unit Ð Automatic gearbox lever lighting Ð Automatic gearbox relay Ð Passenger airbag disarming switch
5 25A Reversing lights switch Ð Automatic gearbox relay Ð Stop lights switch Ð Daylight running lights relay Ð Fan assembly relay Ð Pressostat control Ð Compressor relay
6 5A Instrument panel - Passenger compartment protection unit Ð Alarm warning light Ð Clock Ð Boot light Ð Radio aerial
7 30A Rear screen and mirrors demisting
8 20A Passenger compartment protection unit Ð Radio
9 20A Injection control unit Ð Fan assembly relay Ð Coolant temperature unit
10 20A Hazard warning lights Ð Front and rear courtesy lights
11 10A Instrument panel lighting Ð Side lights buzzer - Clock Ð Lighting rheostat Ð Side lights
12 10A Rear fog lamp
13 Ñ Not used
14 30A Rear screen and heated seats relay
MAINTENANCE OF YOUR 306
40
* According to specification.

Fuse No. Rating*Functions*
15 20A Towing attachment
16 30A Front window and sun roof relay
17 20A Horn control
18 10A Front fog lamps
19 10A Right rear light
20 30A Ventilation - Heating and air conditioning
21 10A Left rear light Ð Number plate lighting Ð Front side lights
22 10A Ventilation relay Ð Rear screen and mirrors demisting control
23 20A Lighter
24 Ñ Not used
25 10A Radio
26 30A Front window wiper and windscreen wash pump - Front windscreen wiper motor Ð Window wiper or rain sensor relay timer
2 7 1 5 A Storage compartment lighting Ð Glove compartment lighting Ð Direction indicators Ð Electric mirrors control Ð Map reading lights Ð Courtesy mirror Ð Rain sensor Ð Passenger compartment temperature sensor
28 15A Clock Ð Outside temperature Ð Window and heated seats relay Ð Rear screen wiper Ð Sun roof 41
MAINTENANCE OF YOUR 306
* According to specification.
