MAINTENANCE OF YOUR 306
42
The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT
dealer. Some electrical accessories or the way in which they are fitted canhave damaging effects on the ope-ration of your vehicle; the electroniccontrol circuits, the audio circuitand the battery charging circuit. PEUGEOT will not accept respon- sibility for the cost incurred in repai-ring your vehicle or for rectifyingthe malfunctions resulting from theinstallation of accessories not sup-plied and not recommended byPEUGEOT and not installed inaccordance with its instructions, inparticular where the equipment inquestion consumes more than 10 milliamperes. ** The maxi-fuses provide addi- tional protection for the electrical
systems. All work must be carried

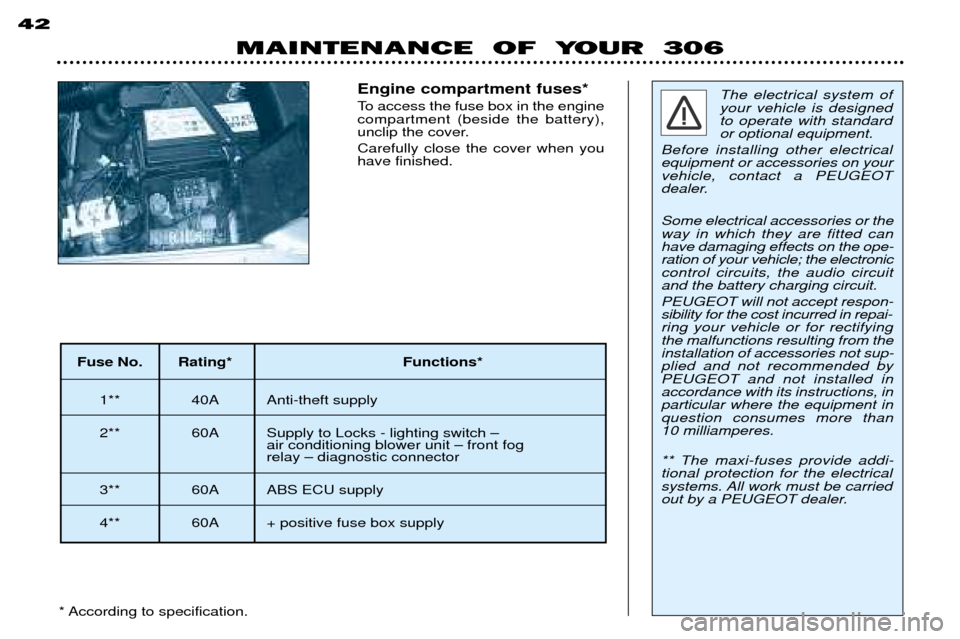

out by a PEUGEOT dealer.Engine compartment fuses*
To access the fuse box in the engine compartment (beside the battery),
unclip the cover. Carefully close the cover when you have finished.
* According to specification.
Fuse No. Rating* Functions* 1** 40A Anti-theft supply
2** 60A Supply to Locks - lighting switch Ð air conditioning blower unit Ð front fog relay Ð diagnostic connector
3** 60A ABS ECU supply
4** 60A + positive fuse box supply

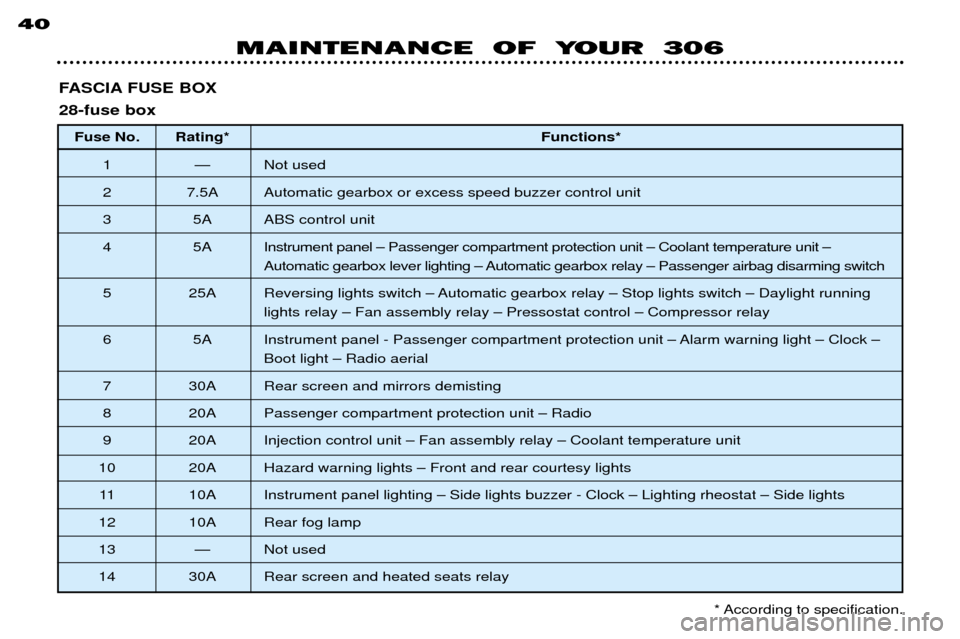

FASCIA FUSE BOX 28-fuse boxFuse No. Rating* Functions*
1 Ñ Not used
2 7.5A Automatic gearbox or excess speed buzzer control unit
3 5A ABS control unit
4 5A Instrument panel Ð Passenger compartment protection unit Ð Coolant temperature unit Ð Automatic gearbox lever lighting Ð Automatic gearbox relay Ð Passenger airbag disarming switch
5 25A Reversing lights switch Ð Automatic gearbox relay Ð Stop lights switch Ð Daylight running lights relay Ð Fan assembly relay Ð Pressostat control Ð Compressor relay
6 5A Instrument panel - Passenger compartment protection unit Ð Alarm warning light Ð Clock Ð Boot light Ð Radio aerial
7 30A Rear screen and mirrors demisting
8 20A Passenger compartment protection unit Ð Radio
9 20A Injection control unit Ð Fan assembly relay Ð Coolant temperature unit
10 20A Hazard warning lights Ð Front and rear courtesy lights
11 10A Instrument panel lighting Ð Side lights buzzer - Clock Ð Lighting rheostat Ð Side lights
12 10A Rear fog lamp
13 Ñ Not used
14 30A Rear screen and heated seats relay
MAINTENANCE OF YOUR 306
40
* According to specification.

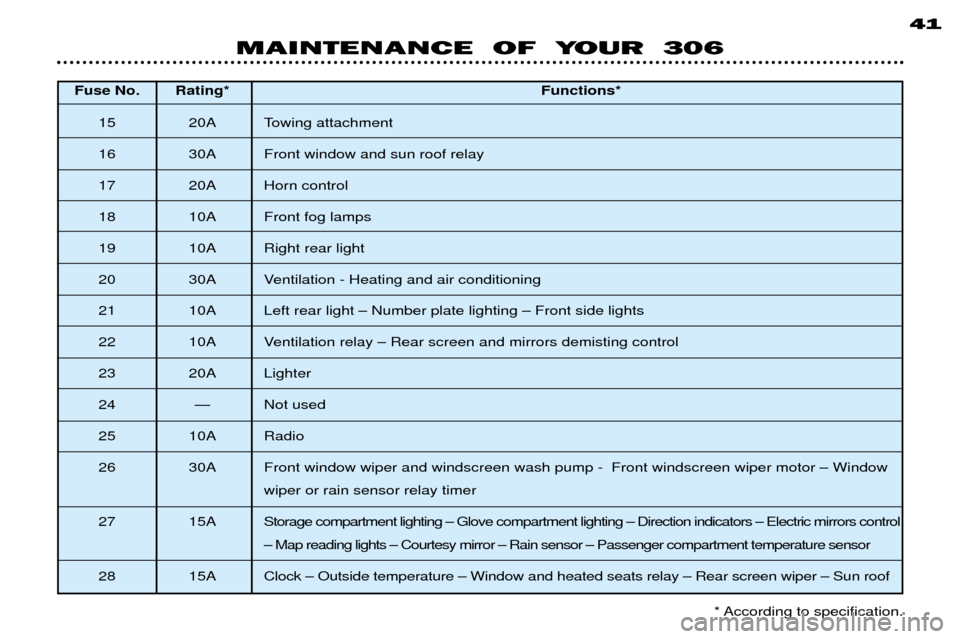

Fuse No. Rating*Functions*
15 20A Towing attachment
16 30A Front window and sun roof relay
17 20A Horn control
18 10A Front fog lamps
19 10A Right rear light
20 30A Ventilation - Heating and air conditioning
21 10A Left rear light Ð Number plate lighting Ð Front side lights
22 10A Ventilation relay Ð Rear screen and mirrors demisting control
23 20A Lighter
24 Ñ Not used
25 10A Radio
26 30A Front window wiper and windscreen wash pump - Front windscreen wiper motor Ð Window wiper or rain sensor relay timer
2 7 1 5 A Storage compartment lighting Ð Glove compartment lighting Ð Direction indicators Ð Electric mirrors control Ð Map reading lights Ð Courtesy mirror Ð Rain sensor Ð Passenger compartment temperature sensor
28 15A Clock Ð Outside temperature Ð Window and heated seats relay Ð Rear screen wiper Ð Sun roof 41
MAINTENANCE OF YOUR 306
* According to specification.
