YOUR 306 AT A GLANCE3
1
- Adjustable side vent.
2 - Side window demisting vent.
3 - Passenger airbag*.
4 - Windscreen demisting vents.
5 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
6 - Heating/Ventilation,
Air conditioning controls*.
7 - Audio equipment*.
8 - Adjustable central vents. 9
- Windscreen wash-wipe
control.
10 - Steering wheel with
airbag*.
11 - Audio remote control*.
12 - Lighting control, fog lamps*
and horn.
13 - Headlamp height adjustment.
- Instrument dials lighting rheostat.
14 - Controls for:
- Electric mirrors*. - Electric windows*.
15 - Control for locking the rear
windows.
16 - Passenger airbag disarm-
ing switch*. 17
- Bonnet opening control.
18 - Fuse box.
19 - Steering lock and ignition.
20 - Fuel filler flap control*.
21 - Handbrake.
22 - Gear lever.
23 - Storage compartment.
24 - Ashtray.
25 - Glove box.
* According to specification.

ELECTRIC WINDOWS
1. Driver's electric window Manual mode: press or pull the switch lightly. The window stops as soon
as the switch is released.Automatic mode: press or pull the switch firmly. One touch completely
opens or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
101
21
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the corre-
sponding mirror.
Move the knob in all four directions to adjust the mirror.
34
A
99

YOUR 306 AT A GLANCE
12
5 - Recirculation of interior air.

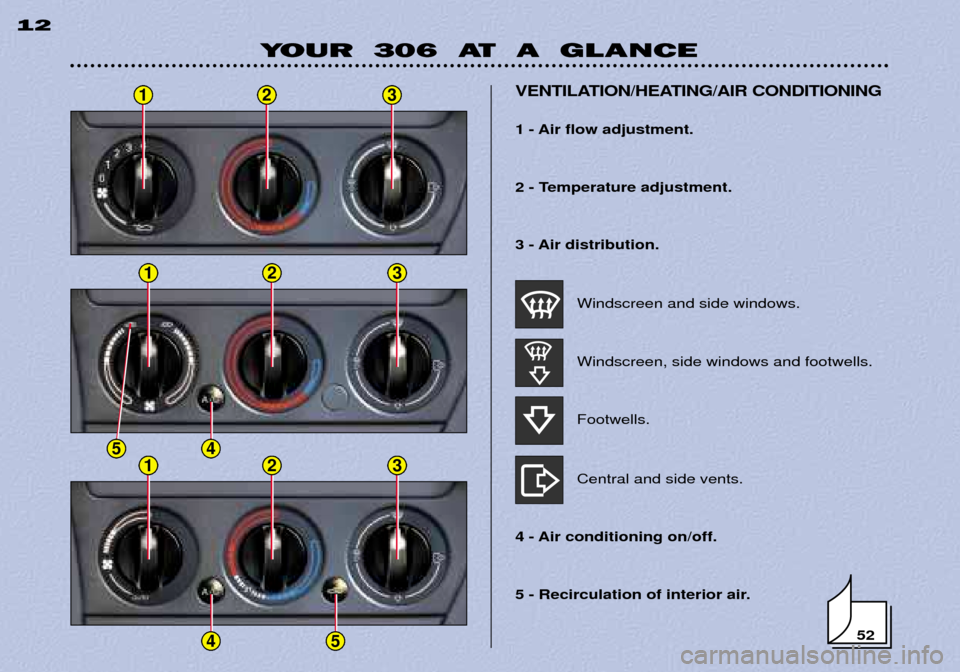

VENTILATION/HEATING/AIR CONDITIONING
1 - Air flow adjustment.
2 - Temperature adjustment.
3 - Air distribution.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells. Central and side vents.
4 - Air conditioning on/off.
52
123
123
4123
45
5

YOUR 306 IN DETAIL 51
Ventilation 1 - Windscreen demisting or de-icing vents.
2 - Front windows demisting or de-icing vents.
3 - Side vents.
4 - Central vents.
5 - Air outlet to front footwells.
6 - Air outlet to rear footwells.
Advice on use
- Position the air flow control at a sufficient level to ensure correct renewal of air inside the vehicle.
- Select the most suitable air distribution for your requirements and the climatic conditions.
- Select a suitable temperature setting and only modify it gradually for your comfort.

YOUR 306 IN DETAIL
52
To quickly de-ice or demist the windscreen and the side windows, set the heating and air flow controls to maximum.
To obtain even air distribution, ensure that the external air intake vent and the ventilation vents are not blocked and that the air can move freely under the frontseats. 2 - Adjusting the temperature
Turn the knob
2to the blue zone
(outside temperature) or to the red zone (hot).
3 - Adjusting the air flow
Turn the knob 3to the required flow
position.
This position prevents the
entry of outside air. It mustonly be used for a short timeto prevent the entry ofunpleasant odours or dust.
1 - Adjusting the air distribution
To direct hot or cold air, turn knob 1to the desired position.
321
Windscreen and side windows. Windscreen, side windows and footwells. Footwells only. Side and central vents.
HEATING

53
1 - Switching on Press the switch 1, the operating light will come on.
2 - Adjusting the temperature
Turn the knob 2to the blue zone (cold) or to the red zone (hot).
3 - Adjusting the air distribution
To direct the hot or cold air, turn the knob 3to the desired position. 4 - Adjusting the air flow
Turn the knob
4to obtain the desired
flow.
Entry of outside air This is the normal operating position. Recirculation of interior air This position prevents the
entry of outside air. Used at the same time as the
air conditioning, this will improve air conditioning performance. Used on its own, it prevents the entry of outside air (dust, unpleasantodours) but there is a risk of misting ofthe windows.
Avoid continuous operation in interior air recirculation mode. Important precautions: Operate the air conditioning system for 5 to 10 minutes once or twice amonth to keep it in good working
order. It is advisable to change the air con- ditioning system fluid every two years.
If the system is not producing cold air, stop using it and contact a
PEUGEOT dealer.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells only. Side and central vents.
43
21
YOUR 306 IN DETAIL
AIR CONDITIONING

543 - Adjusting the air distribution
To direct the hot or cold air, turn the knob 3to the desired position.
This provides optimum comfort as well as dehumidifying the air inside the vehicle.
In particular, it allows the temperature to be lowered in summer and the effective-
ness of the demisting to be increased in winter. 1 - Switching onPress the switch 1, the operating light will come on.
2 - Adjusting the temperature:
Turn the knob 2to the blue zone (cold) or to the red zone (hot).
On positioning the knob in the white zone the system automatically controls the
operation of the air conditioning. This ensures a comfortable temperature whatever the climatic conditions may be.
Temperature selection in auto mode requires 12 to 15 seconds before the required temperature is reached. Windscreen and side windows. Windscreen, side windows and footwells.
Footwells only. Side and central vents.
23
4
1
5
YOUR 306 IN DETAIL
AUTOMATIC AIR CONDITIONING

55
4 - Adjusting the air flow
In the AUTO position the flow is con- trolled automatically in accordancewith the temperature selected.
You can, however, adjust the flow manually by turning the knob 4
according to the desired flow.
In AUTO mode, this automatically adjusts the temperature inside thevehicle according to your wishes (pre-
set temperature). To do this, the elec-tronic control unit adjusts the temper-ature and the flow of air at the ventsand operates the air conditioning
system if necessary. 5 - Recirculation of interior air Press the switch 5, the indicator light
comes on.The air conditioning comes into oper-
ation automatically. This position must only be used in exceptional circumstances to:
- improve the performance of the air conditioning,
- prevent the entry of external air (dust, unpleasant odours),
- speed up heating inside the vehicle with a risk of misting of the windows. Special features If the air distribution control is in the windscreen de-icing position, the airconditioning system will start operat-ing automatically when the engine isswitched on.
If the air flow control is in the AUTO position, and air recirculation isselected, air conditioning will startautomatically in order to prevent con-densation on the windows. When you switch on the ignition, the air conditioning will automaticallyreturn to the operating mode it was inwhen it was last used. If the inside
temperature is greatly different fromthe required temperature displayedand the outside temperature is above5 ¡C the air conditioning will switch onautomatically regardless of the posi-tion of the air flow control. When the ignition is switched on, if the system had been in air recircula-tion mode, the system will automati-cally allow entry of outside air unlessthe temperature inside the vehicle isover 30 ¡C.
Important precautions Operate the air conditioning system for 5 to 10 minutes once or twice amonth to keep it in good working
order. It is advisable to change the air con- ditioning system fluid every 2 years.
If the system is not producing cold air, stop using it and contact a
PEUGEOT dealer.
Y
OUR 306 IN DETAIL

CHILD SEATS All children under the age of 10 are required to travel in approved child safety seats*, fitted with seat belts.
After carrying out numerous tests, PEUGEOT recommend the following systems :Up to 9 months (up to 22 lbs. or 10 kg) ÇBaby SafeÈ, a seat secured with its back to the engine and secured with a three-point seat belt, on either the front or rear seat.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg)
ÇRšmer PeggyÈ is fitted to the rear seat with a two-point (lap-belt) or three-pointbelt.
Over 3 or 4 years old (33 to 80 lbs or 15 to 36 kg) ÒKlippan OptimaÓ : is fitted in the rear with a three point belt (removable seatback). from 33 to 55 lbs. [15 to 25 kg] : booster + seatback.from 55 to 80 lbs. [25 to 36 kg] : use the booster on its own.
For maximum safety, fasten the three-point seat belts or the child seat straps keeping
the slack in relation to the childÕs body to a minimum, even for short journeys.
To prevent the doors from opening accidentally: use the child-proof lock.Also, do not open the rear windows more than a third.
88
YOUR 306 IN DETAIL
Never leave a child in a vehicle which is exposedto the sun and has thewindows closed.
To protect young children
from the sun, fit sunblinds to the rear windows. Never leave the keys in the reach
of children inside the car. Strap children into their child seats even on short journeys. Observe the precautions concern- ing the passenger airbag.
This was one of PEUGEOTÕs main criteria when designing your vehicle, however the safety of your children also depends on you. For maximum peace of mind,please follow these simple precautions: *According to current legislation
1
2
3
123

SPECIAL FEATURES
126
ALARM SYSTEM* Setting and disarming the alarm Switching off the siren The alarm completes the security equipment of your vehicle. It com-prises two types of protection: -exterior protection: when this is
set, the alarm sounds if a door,
the bonnet, the boot or the tail- gate are opened.
- interior sensor protection: when
it is set, the alarm sounds if thesensors detect a variation in the
air movement inside the vehicle(breaking of a window) or amovement inside the vehicle.
It is also equipped with an anti-
tamper function. If an attempt is made to neutralise the leads to the siren, the centralcontrol or the battery:
- the alarm is triggered,- the siren sounds, the headlights come on*. To set the alarm (exterior and interior protection) The ignition must be switched off.
You must be outside the vehiclePress the locking button of the remote control key (if your vehiclehas deadlocking, you then need topress this button again). The doors will lock.The direction indicators come on continuously for two seconds. The red lamp on the switch flashes once a second. Five seconds afterwards : the exteri- or protection is set. Fifty seconds afterwards : the interi- or protection is set. Note :
when the alarm is triggered,
the siren sounds for thirty seconds. It then stops, but the alarm remains set.
Warning
If, on setting the alarm, a door, the boot, tailgate or the bonnet are notproperly closed, the siren will be trig-
gered briefly. If the vehicle is proper-ly closed within forty five secondsafter this, the alarm is set, the direc-tion indicators come on continuouslyfor two seconds. In all cases the alarm is set forty five seconds afterwards. To disarm the alarm (exteriorand interior protection) Press the unlocking button on the remote control. The doors unlock.The direction indicators flash for two seconds. The red lamp on the switch goes out.Note :
if the lamp continues to flash
after disarming the alarm, it is
because it has been triggered. Thisflashing will stop on switching on theignition.
