3YOUR 307 AT A GLANCE
1. Speaker (tweeter) location.
2. Side window demisting vent.
3. Windscreen demisting vents.
4. Passenger air bag.
5. Brightness sensor.
6. Multifunction display.
7. Alarm button.
8. Central locking button.
9. Hazard warning lights switch.
10. ESP/ASR switch*.
11. Lights and direction indicators stalk.
12. Instrument dials.
13. Steering wheel adjustment control. 14. Windscreen wash/wipe
stalk.
Trip computer stalk.
15. Driver's air bag. Horn.
16. Radio remote control stalk.
17. Headlamp height adjustment.
18. Electric mirror controls. Window controls. Rear window lockingcontrol.
19. Steering lock and ignition.
20. Cruise control switch.
21. 12 V accessories socket
22. Passenger air bag disarming switch.
23. Rubbish container.
24. Cup / can holder.
25. Handbrake. 26. Rear footwell heating vent.
27. Gear lever.
28. Front ash tray.
29. Heating / air conditioning
controls.
30. CD changer.
31. RB3 / RD3 audio equipment.
32. Central adjustable heating / ventilation vent and air flow regulation.
33. Side adjustable heating / ventilation vent and airflow regulation.
34. Fuse box.
35. Glove box.
36. Opening the bonnet.
37. Heated seat controls.
* During the year.

1.4 LITRE PETROL ENGINE 1 -Power steering reservoir
2 - Windscreen/headlamp wash reservoir*
3- Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification
PRACTICAL INFORMATION
94

PRACTICAL INFORMATION95
1.6 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Wash/wipe and headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification

PRACTICAL INFORMATION
96
2 LITRE 16V PETROL ENGINE 1 -
Power steering reservoir
2 - Windscreen/headlamp wash reservoir*
3 - Coolant reservoir 4 -
Brake fluid reservoir
5 - Battery
6 - Fuse box
7 - Air filter 8 -
Dipstick
9 - Engine oil filler cap
* According to specification

PRACTICAL INFORMATION
98
2 LITRE HDI TURBO DIESEL ENGINE (89 HP/108 HP) 1 -
Power steering reservoir
2 - Windscreen/headlamp wash reservoir* 3 -
Coolant reservoir
4 - Brake fluid reservoir
5 - Battery
6 - Fuse box 7 -
Air filter
8 - Dipstick
9 - Engine oil filler cap
10 -Priming pump*
* According to specification

CHANGING A FUSE The fuse boxes are located under the fascia (left hand side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the instrument panel fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box. Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
106
Correct
PliersAIncorrect
Fuse no. Rating* Functions*
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric window/sunroof.
5 15 A Rear brake light including trailer.
7 20 A Rear courtesy light, front courtesy light, map readers - Lighter - Glove box lighting.

Engine compartment fuses Fuse box
To access the fuse box in the engine compartment (next to the battery): unclip the cover.
Carefully close the cover and refit the style cover when you havefinished.
PRACTICAL INFORMATION
108
The electrical system of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories on yourvehicle, contact a PEUGEOT dea-
ler. PEUGEOT will not accept respon- sibility for the cost incurred inrepairing your vehicle or for recti-fying the malfunctions resultingfrom the installation of accesso-ries not supplied and not recom-mended by PEUGEOT and notinstalled in accordance with itsinstructions, in particular wherethe equipment in questionconsumes more than 10 milliam-peres. ** The maxi-fuses provide additio- nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N¡ Rating* Functions* 1** 30 A Fan unit.
2** 30 A ESP/ABS pump motor.
3** 30 A ESP/ABS solenoid valves.
4** 60 A Built-in Systems Interface supply.
5 70 A Built-in Systems Interface supply.
6 20 A Heated seats.
7 30 A Ignition switch, power.
8** 70 A Power steering electro-pump unit.

PRACTICAL INFORMATION109
Fuse N¡ Rating*
Functions*
1 10 A Automatic gearbox reversing lights switch - Automatic gearbox starting inhibitor relay control - Manual gearbox reversing lights switch -
Vehicle speed sensor - Pre-heat control unit - Water in diesel sensor -
DW air flow sensor.
2 15 A Canister solenoid valve - Fuel pump.
3 10 A Power steering control unit - ABS or ESP control unit.
4 10 A Injection control unit - Fan unit relay control - Additional heating relay control -
Automatic gearbox control unit - Automatic gearbox sequential control -
Automatic gearbox shiftlock relay.
5 15 A Particulate emission filter control unit.
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Fan unit relay control - Injection control unit supply.
9 15 A Left dipped beam
10 15 A Right dipped beam
11 10 A Left main beam
12 10 A Right main beam
13 15 A Horn
14 10 A Front and rear headlamps wash pump
15 30 A Oxygen sensors - Exhaust gas recirculation solenoid valve - Ignition coil - Diesel high pressure regulator - Injectors supply (petrol).
16 40 A Petrol engine air pump with automatic gearbox.
17 30 A Low/high speed front wiper.
18 40 A Air conditioning blower.
* According to specification.

CHANGING A FUSE The fuse boxes are located under the fascia (left hand side) and in theengine compartment. The spare fuses and special pliers A
are fixed to the inside of the lid of the instrument panel fuse box. Removing and changing a fuse Before changing a fuse you must establish the cause of the fault and
have it corrected. The fuse numbersare indicated on the fuse box. Use the special pliers A.
Always change a faulty fuse for one of the same rating. Fascia fuses
Unscrew the bolt a quarter of a turn with a coin, then pull thehandle to open the cover andaccess the fuses.
PRACTICAL INFORMATION
106
Correct
PliersAIncorrect
Fuse no. Rating* Functions*
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Front electric window/sunroof.
5 15 A Rear brake light including trailer.
7 20 A Rear courtesy light, front courtesy light, map readers - Lighter - Glove box lighting.

PRACTICAL INFORMATION107
* According to specification.

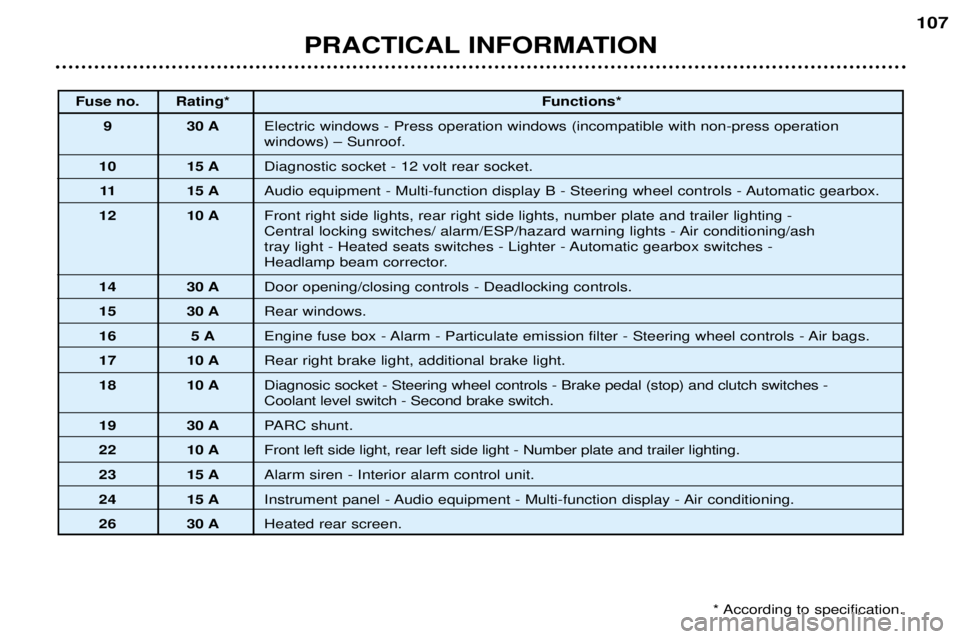

Fuse no. Rating* Functions*
9 30 A Electric windows - Press operation windows (incompatible with non-press operation windows) Ð Sunroof.
10 15 A Diagnostic socket - 12 volt rear socket.
11 15 A Audio equipment - Multi-function display B - Steering wheel controls - Automatic gearbox.
12 10 A Front right side lights, rear right side lights, number plate and trailer lighting -
Central locking switches/ alarm/ESP/hazard warning lights - Air conditioning/ash
tray light - Heated seats switches - Lighter - Automatic gearbox switches -
Headlamp beam corrector.
14 30 A Door opening/closing controls - Deadlocking controls.
15 30 A Rear windows.
16 5 A Engine fuse box - Alarm - Particulate emission filter - Steering wheel controls - Air bags.
17 10 A Rear right brake light, additional brake light.
18 10 A Diagnosic socket - Steering wheel controls - Brake pedal (stop) and clutch switches - Coolant level switch - Second brake switch.
19 30 A PARC shunt.
22 10 A Front left side light, rear left side light - Number plate and trailer lighting.
23 15 A Alarm siren - Interior alarm control unit.
24 15 A Instrument panel - Audio equipment - Multi-function display - Air conditioning.
26 30 A Heated rear screen.
