Page 6 of 183
14-04-2003
6YOUR 307 SW AT A GLANCE
FRONT SEATS 1- Forwards/backwards adjust- ment.
2- Seat back angle adjustment.
3- Driver or passenger seatheight adjustment.
4- Front removable armrest.
5- Head restraint height andangle adjustment
To raise or lower the headrestraint, pull it forwards, sliding it at the same time.
Never drive with thehead restraints removed.
6- Storage drawer.
7- ÒAviationÓ style table.
88
Page 90 of 183
14-04-2003
FRONT SEATS
1 - Forwards/backwards adjust-ment Lift the control and slide the seat forwards or backwards.
2 - Seat back angle adjustment Push the handle towards the
rear.
3 - Driver's or passenger's seat height adjustment Pull the handle upwards or push it downwards as many times asnecessary to obtain the requiredposition.
4 - Armrests These can be folded down andare removable.
To remove them, press the but- ton located between the armrestand the side of the seat and pullit.
YOUR 307 SW IN DETAIL
88
Page 95 of 183
14-04-2003
Removing a seat Fold the corresponding seat.
Tilt the two red levers Funder the
seat to release the front feet.Lift it and carry it using the carrying handle G.
In the 3rd row, position the fixingpoint closers to obtain a flat boot
floor. Refitting a seat
In the 3rd row, first remove the floor fixing point closers using a thin
screwdriver. Before positioning the 3rd row seats, move those of the 2nd row forward. Check that nothing is obstructing the floor fixing points thus pre-venting correct locking of the seatfeet. Carry the seat using the carrying handle
G.
Position the front feet in the securingpoints.
Locked Free Push control Dupwards to check
that the rear feet are free.
Tilt the folded seat backwards. The rear feet lock automatically, as do the two red levers
F.
Check that the seat is locked cor-
rectly. Lift the seat back, first releasing it by pulling the strap C.
To lock the additional seats, pressthe two levers E.
YOUR 307 SW IN DETAIL
92
Only lock the seat back on the cushion occasio-
nally, to avoid undue wearof the seat covers.
Avoid placing luggage on foldedseats. Never use the adjusting straps to remove, refit or carry a seat.
Page 102 of 183
14-04-2003
YOUR 307 SW IN DETAIL99
3rd row rear seat belts The 3rd row rear seats are fitted with two three-point inertia reel seatbelts.
To put on the seat belt, insert buckle C then buckle Dinto their respective
stalks.
To remove the seat belt, proceed in
the reverse order, then move buckleD to the location Eprovided.
To be effective, a seat belt must be tightened asclose to the body as pos-sible.
If the seats are fitted with arm-rests, the lap section of the seatbelt must always pass under thearmrest. Do not use the strap guide when a child seat is fitted. Do not invert the seat belt buckles as they will not carry out their
function fully. Depending on the nature and the seriousness of the impact, thepre-tensioners may be triggeredbefore and independently of trig-gering of the air bags. In all cases, the air bag warning light comes on. Following a collision, have the system checked by a PEUGEOT
dealer.
2nd row rear centre seat belt The 2nd row rear centre seat has a three-point inertia reel seat beltincorporated in the centre of theroof. Pass buckle A, then buckle B, into
the strap guide working from the inside to the outside of the seat. Insert buckle Ainto its stalk (right),
then buckle Binto its stalk (left).
To remove the seat belt, proceed in
the reverse order, then move buckleB to the magnet of the roof fixing
point.
Page 103 of 183
14-04-2003
5 seats 4 seats with table position
SEAT MODULARITY AND DIFFERENT CONFIGURATIONS
YOUR 307 SW IN DETAIL
100
The design of your vehicle and of its seats offers multiple seat configurations. There are
side seats which can be installed in the 2nd or 3rd
row, on the right or on the left. Once the centre seat has been removed from the 2nd row,
you can recentre the side seats for more comfort. There is also a centre seat, fitted in the central position of the
2nd row, which can also be installed in the left position in the
3rd row. In this case, you must use the 3rd row rear left seat belt without passing it through the strap guide.
You can add up to two additional seatsin the 3rd row, on the
right or on the left.
The various operations resulting in modification of the existing configuration must be carried outwhen the vehicle is stationary (see "Seats" section).
Examples of varied arrangements combining comfort and practicality:
Page 150 of 183
14-04-2003

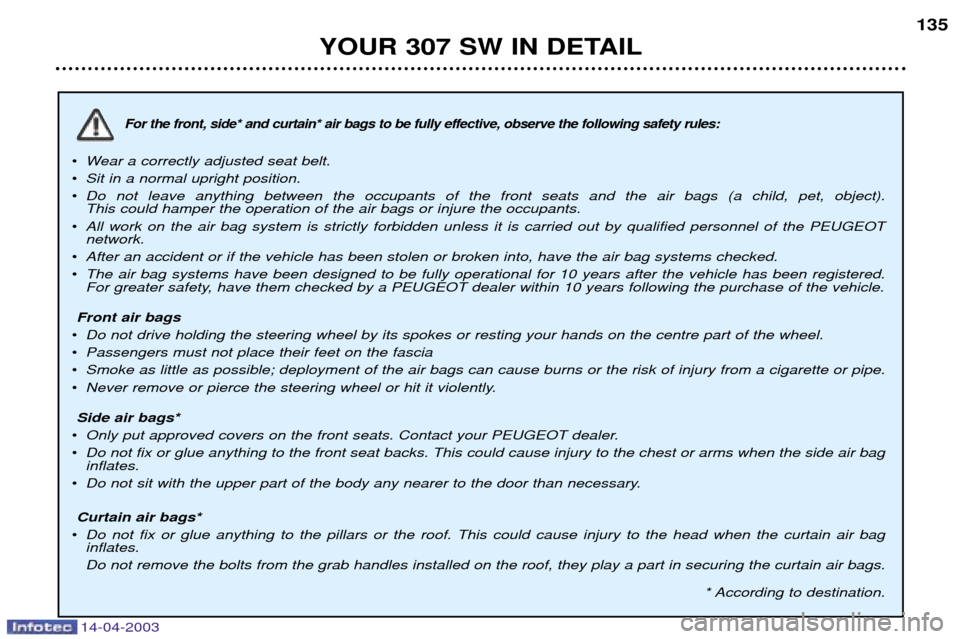

For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years following the purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL135
Page 152 of 183
14-04-2003
For the front, side* and curtain* air bags to be fully effective, observe the following safety rules:
¥Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave anything between the occupants of the front seats and the air bags (a child, pet, object). This could hamper the operation of the air bags or injure the occupants.
¥ All work on the air bag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the air bag systems checked.
¥ The air bag systems have been designed to be fully operational for 10 years after the vehicle has been registered.
For greater safety, have them checked by a PEUGEOT dealer within 10 years following the purchase of the vehicle.
Front air bags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Passengers must not place their feet on the fascia
¥ Smoke as little as possible; deployment of the air bags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently.
Side air bags*
¥ Only put approved covers on the front seats. Contact your PEUGEOT dealer.
¥ Do not fix or glue anything to the front seat backs. This could cause injury to the chest or arms when the side air baginflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Curtain air bags*
¥ Do not fix or glue anything to the pillars or the roof. This could cause injury to the head when the curtain air baginflates. Do not remove the bolts from the grab handles installed on the roof, they play a part in securing the curtain air bags.
* According to destination.
YOUR 307 SW IN DETAIL135
Page 175 of 183
14-04-2003
ENTERTAINMENT SCREEN KIT This video assembly will enable the rear passengers to pass the time pleasantly while watching their favourite film or playing their favourite game, by means, in
particular, of the connection of a DVD player or games console to the central support, fitted between the front seats. The entertainment screen kit consists of:
- a 16/9ths, 7 inch, LCD colour monitor with direction adjustment in the threeaxes,
- two high frequency, wireless, stereo headphones,
- a removable support,
- three audio/video sockets on the fixed base and in the glove compartment. The monitor and the support can be removed and stored, each in their own
protective cover.
The entertainment screen kit accepts all types of audio/video source, PAL/NTSC
compatible, such as: DVD player, camcorder, games console, ... These sources are connected to the three audio/video sockets, AV 1in the glove
compartment or AV 2on the fixed base.
PRACTICAL INFORMATION 157
