Never drive with the head restraints removed; theymust be in place and cor-rectly adjusted.
5. ArmrestsThese can be folded down and are removable.
To remove them, press the but- ton located between the armrestand the side of the seat and pull.
6. Head restraint height and angle adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time.
To remove the head restraint, place it in the top position, lift thelug using a coin and pull it for-wards and upwards at the sametime.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back. Active seat back
(front seat)
This possesses a device to prevent"whiplash". When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head being thrown backwards.
7. Storage drawers There is a storage drawer under each front seat.
Ð To open it, lift it and pull.
Ð To take it out, open it to its full extent, press the ends of the slides
and lift it, then remove it completely.
Do not place heavy objects in thedrawers. Under the front passenger seat, the layout of the floor allows for storageof a first aid kit and a warning triangle(small version).
8. Aviation style table There is an aviation style table, fitted
with a can holder, on the back ofeach front seat. REAR HEAD RESTRAINTS These have a high position for when they are in use and a low position forwhen they are stored. The head restraints are also remo- vable.
To remove them, pull upwards as far as the stop then press the lug (sideseat) or the two lugs (centre seat).
YOUR 307 SW IN DETAIL
89
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

22-07-2002
Never drive with the head restraints removed; theymust be in place and cor-rectly adjusted.
5. ArmrestsThese can be folded down and are removable.
To remove them, press the but- ton located between the armrestand the side of the seat and pull.
6. Head restraint height and angle adjustment
To raise or lower the restraint, pull it forwards, sliding it at thesame time.
To remove the head restraint, place it in the top position, lift thelug using a coin and pull it for-wards and upwards at the sametime.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back. Active seat back
(front seat)
This possesses a device to prevent"whiplash". When there is an impact from the
rear, the action of the body on theseat back forces the head restraintforwards and upwards, preventingthe head being thrown backwards.
7. Storage drawers There is a storage drawer under each front seat.
Ð To open it, lift it and pull.
Ð To take it out, open it to its full extent, press the ends of the slides
and lift it, then remove it completely.
Do not place heavy objects in thedrawers. Under the front passenger seat, the layout of the floor allows for storageof a first aid kit and a warning triangle(small version).
8. Aviation style table There is an aviation style table, fitted
with a can holder, on the back ofeach front seat. REAR HEAD RESTRAINTS These have a high position for when they are in use and a low position forwhen they are stored. The head restraints are also remo- vable.
To remove them, pull upwards as far as the stop then press the lug (sideseat) or the two lugs (centre seat).
YOUR 307 SW IN DETAIL
89
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

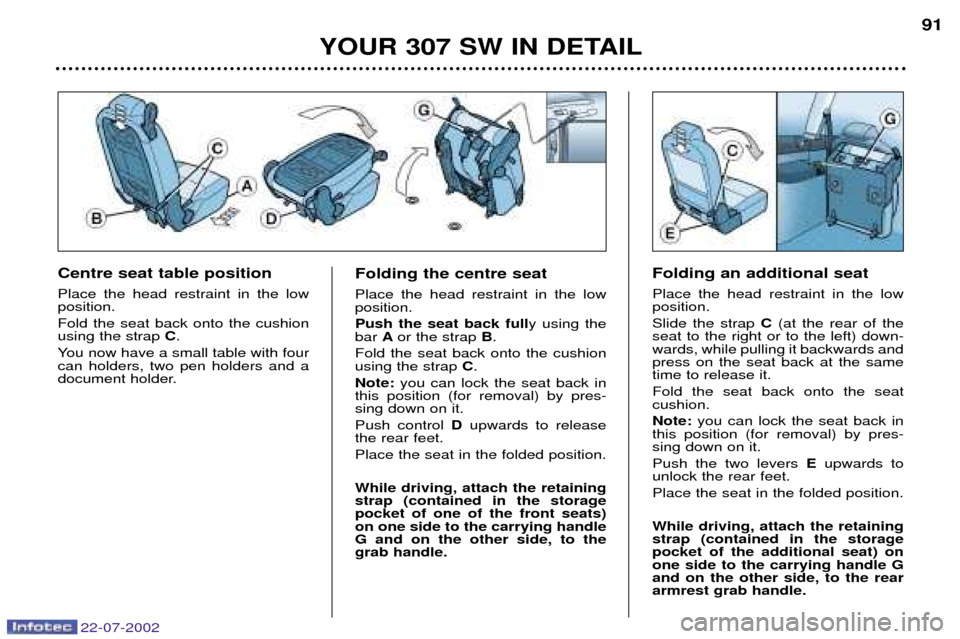

REAR SEATS Forwards-backwards adjustment* Lift the bar Aand slide the seat for-
wards or backwards.
From the 3rd row, you can pull thestrap Band slide the seat forwards
or backwards.This manoeuvre makes it easier for
passengers to exit the 3rd row, whenthe 2nd row seat is folded.
Seat back angle adjustment Pull one strap C(two straps for each
side seat, one for the centre seat) and adjust to the required angle. Release the strap to lock.
To adjust the angle of the seat from the 3rd row or the boot, pull onestrap Cat the rear of the seat.
Note: the additional seat can be
angled and folded by means of asingle strap Cat the rear of the seat
on the right or on the left. Folding a side seat: access to the 3rd row: Place the head restraint in the low position. Push the seat back fully
using bar A.
Fold the seat back onto the cushion using the strap C.
Note: you can lock the seat back in
this position (e.g. for removal) bypressing down on it. Push control Dupwards to release
the rear feet.Place the seat in the "folded" posi- tion. exit from the 3rd row or folding from the boot: Place the head restraint in the low posi- tion. Push the seat back fully
using the
strap B.
Fold the seat back onto the cushion using the strap C.
Note: you can lock the seat back in this
position (for removal) by pressing downon it. Push the control Dupwards to release
the rear feet.Place the seat in the folded position.
YOUR 307 SW IN DETAIL
90
While driving attach the retaining strap (contained in the storage pocket of the corresponding front seat): - on the 2nd row: on one side, to the carrying handle G and on the other
side, to the grab handle,
- on the 3rd row: on one side, to the carrying handle G and on the other side, to the rear armrest grab handle. * Excluding additional seat.
22-07-2002

22-07-2002
YOUR 307 SW IN DETAIL91
Centre seat table position Place the head restraint in the low position. Fold the seat back onto the cushion using the strap C.
You now have a small table with fourcan holders, two pen holders and a
document holder.
Folding the centre seat Place the head restraint in the low position. Push the seat back full y using the
bar Aor the strap B.
Fold the seat back onto the cushion using the strap C.
Note: you can lock the seat back in
this position (for removal) by pres-sing down on it. Push control Dupwards to release
the rear feet.Place the seat in the folded position. While driving, attach the retaining strap (contained in the storagepocket of one of the front seats)on one side to the carrying handleG and on the other side, to thegrab handle. Folding an additional seat Place the head restraint in the low position. Slide the strap
C(at the rear of the
seat to the right or to the left) down- wards, while pulling it backwards andpress on the seat back at the sametime to release it. Fold the seat back onto the seat cushion. Note: you can lock the seat back in
this position (for removal) by pres- sing down on it. Push the two levers Eupwards to
unlock the rear feet.Place the seat in the folded position. While driving, attach the retaining strap (contained in the storagepocket of the additional seat) onone side to the carrying handle Gand on the other side, to the reararmrest grab handle.

22-07-2002
Removing a seat Fold the corresponding seat.
Tilt the two red levers Funder the
seat to release the front feet.Lift it and carry it using the carrying handle G.
In the 3rd row, position the fixingpoint closers to obtain a flat boot
floor. Refitting a seat
In the 3rd row, first remove the floor fixing point closers using a screwdri-ver or a coin. Before positioning the 3rd row seats, move those of the 2nd row forward. Check that nothing is obstructing the floor fixing points thus pre-venting correct locking of the seatfeet. Carry the seat using the carrying handle
G.
Position the front feet in the securingpoints.
Locked Free Push control Dupwards to check
that the rear feet are free.
Tilt the folded seat backwards. The rear feet lock automatically, as do the two red levers
F.
Check that the seat is locked cor-
rectly. Lift the seat back, first releasing it by pulling the strap C.
To lock the additional seats, pressthe two levers E.
YOUR 307 SW IN DETAIL
92
Only lock the seat back on the cushion occasio-
nally, to avoid undue wearof the seat covers.
Avoid placing luggage on foldedseats. Never use the adjusting straps to remove, refit or carry a seat.

22-07-2002
''Isofix'' mountings
Available on the two side rear seats, the Isofix mountings allow for fittingof a special child seat for
PEUGEOT vehicles and sold by
PEUGEOT dealers. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. The special approved child seat is
the Isofix KIDDY seat. It can be usedin the "rear facing" position when theside seats are recentred from birth to13 kg and in the "forwards facing"position from 9 to 18 kg. In the "forwards facing" position, the front seat must be in the mid-wayposition on the slide, with the seatback upright. The combined use of the Isofix mounting, the restraining cushion
and the seat belt is then compulsory.
The Isofix KIDDY seat can also be installed on a side seat in the 2nd
row, positioned in the 3rd row. In this
case, the Isofix KIDDY seat must bein the "rear facing" position, the bodysupported on the seat back of thecorresponding 2nd row seat.
YOUR 307 SW IN DETAIL
93
This seat can also be used on seats not fitted with Isofix mountings: inthis case it is compulsory to attach itto the vehicle's seat by means of thethree-point seat belt.
When the Isofix KIDDY seat is fit- ted in the "rear facing" positionon the front passenger seat, it isimperative that that passenger airbag be disarmed. Otherwise there is a risk the child could be seriously injured or evenkilled due to deployment of the airbag. Follow the instructions for fitting the child seat in the manufactu-rer's instruction booklet.

22-07-2002
CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:
- All children under the age of 10* must travel in a special approved child seat*, adapted to their weight, in a seat fitted with
a seat belt.
- Front passenger seat*: children under the age of 10 must not travel in the "forwards facing" position**. The "rearwards facing" position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg) "Britax Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the "mid-way"position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Ršmer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Ršmer Vario'': installed in the rear with a three point seat belt.
YOUR 307 SW IN DETAIL
94
1
2
3

22-07-2002
YOUR 307 SW IN DETAIL95
Never leave a child or an animal in a vehicle whichis exposed to the sun andhas the windows closed.
Never leave the keys within reach
of children inside the car. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the front pas-senger seat. Observe strictly the recommenda- tions for assembling the child seatas shown in the child seat instruc-tions.From 3 to 10 years (15 to 36 kg)
"Recaro start'': installed in the rear with a three-point seat belt. The height and width of the seat back must be adjusted according to the age and build of your child. "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or thechild seat straps, keeping the slack in relation to the child's body to a minimum.
To prevent the doors from opening accidentally, use the child-lock. Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case, adjust the front passenger seat as far back as possible and leave the air bag active.
4
5

YOUR 307 SW IN DETAIL
96
Summary of options for the installation of child restraints, depending on the weight of the child and their position in the vehicle (in accordance with Directive 2000/3):
U : universal category
U (R) : universal category with a height adjustable passenger seat; it must be adjusted to between mid and maximum height (in conformity with ¤ 3.3. of appendix 2 of annex XVIII of Directive 2000/3).
According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 13 kg).
L2 : ROMER Prince E1 03301058 Universal (9 to18 kg).
L3 : ROMER Vario E1 03301120 Universal (15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing E1 03301123 and Universal (birth to 13 kg)*.
L7 : KIDDY Isofix Forwards facing E2 030011 Universal (9 to 18 kg)*.
* See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings. Weight range
Seat < 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger UU UU
Fixed seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Front passenger U (R) U (R) U (R) U (R)
Height adjustable seat (R) L1, L6 L2, L7 L3, L4, L5 L4, L5
Side UU UU
Seat off centre and recentred L1, L6 L2, L7 L3, L4, L5 L4, L5
Centre UU UU
Centre seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Side
Additional seat L1 L2 L3, L4, L5 L4, L5
Side UU UU
2nd row side seat L3, L4, L5 L4, L5
Side UU UU
2nd row centre seat L3, L4, L5 L4, L5
1st row
2nd row
3rd row
22-07-2002

22-07-2002
SEAT BELTS Front and 2nd row rear side seat belts The front seats are fitted with pre- tensioners and force limiters whilethe rear seats have force limiters
only.

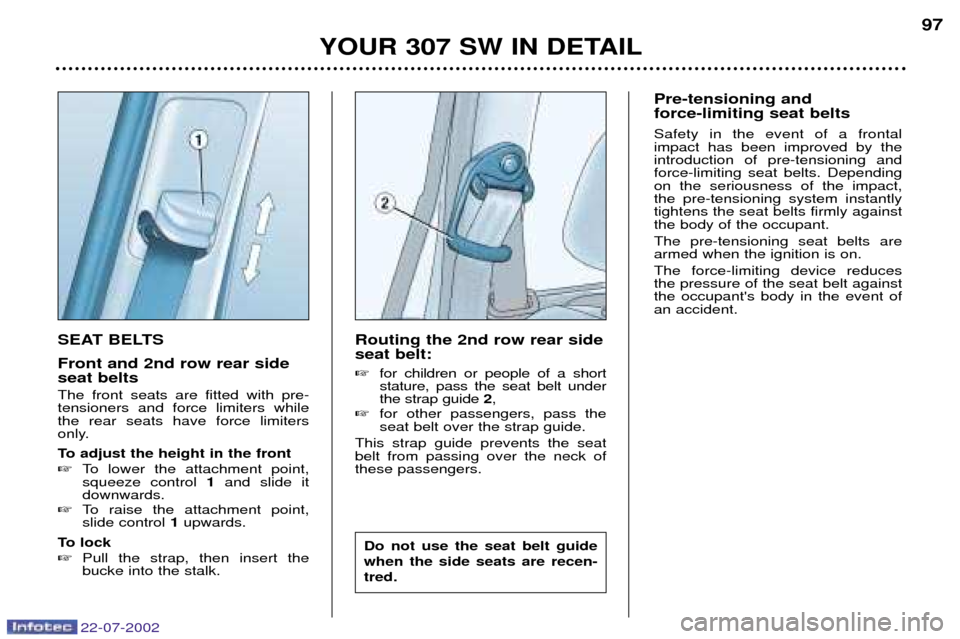

To adjust the height in the front To lower the attachment point, squeeze control 1and slide it
downwards.
To raise the attachment point,slide control 1upwards.
To lock Pull the strap, then insert the bucke into the stalk. Routing the 2nd row rear side seat belt:
for children or people of a short stature, pass the seat belt underthe strap guide 2,
for other passengers, pass theseat belt over the strap guide.
This strap guide prevents the seatbelt from passing over the neck ofthese passengers.
YOUR 307 SW IN DETAIL 97
Pre-tensioning and force-limiting seat belts Safety in the event of a frontal impact has been improved by theintroduction of pre-tensioning andforce-limiting seat belts. Dependingon the seriousness of the impact,the pre-tensioning system instantlytightens the seat belts firmly againstthe body of the occupant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt againstthe occupant's body in the event ofan accident.
Do not use the seat belt guide when the side seats are recen-tred.
