Peugeot 308 2014 Owner's Manual

259
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

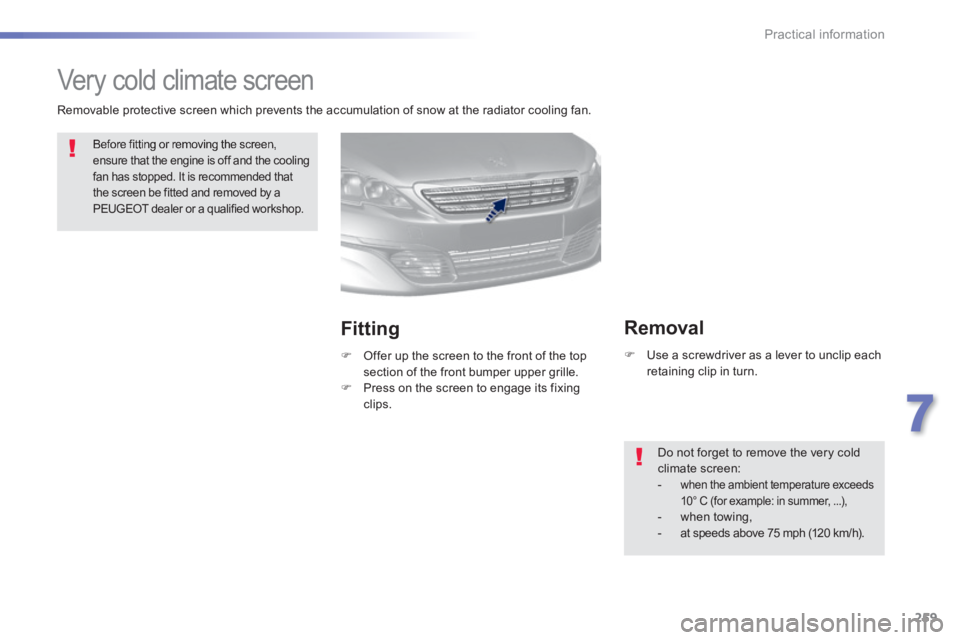

Very cold climate screen
Before fitting or removing the screen, ensure that the engine is off and the cooling fan has stopped. It is recommended that the screen be fitted and removed by a PEUGEOT dealer or a qualified workshop.
Fitting
 Offer up the screen to the front of the top section of the front bumper upper grille.  Press on the screen to engage its fixing clips.
Removal
 Use a screwdriver as a lever to unclip each retaining clip in turn.
Do not forget to remove the very cold climate screen: - when the ambient temperature exceeds 10° C (for example: in summer, ...), - when towing, - at speeds above 75 mph (120 km/h).
Removable protective screen which prevents the accumulation of snow at the radiator cooling fan.

260
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

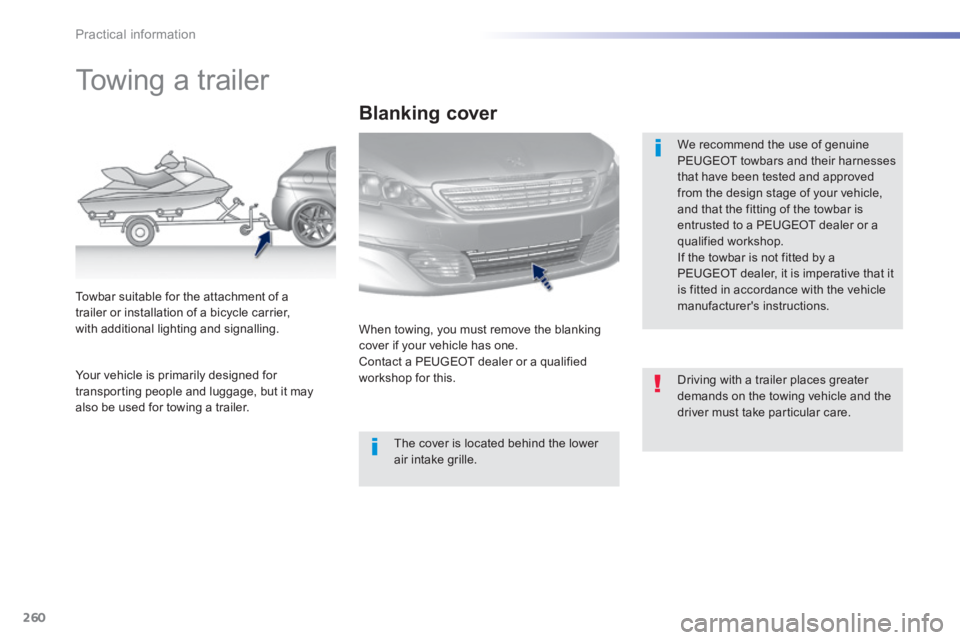

Towing a trailer
We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is
entrusted to a PEUGEOT dealer or a qualified workshop. If the towbar is not fitted by a PEUGEOT dealer, it is imperative that it is fitted in accordance with the vehicle manufacturer's instructions. Towbar suitable for the attachment of a trailer or installation of a bicycle carrier, with additional lighting and signalling.
Blanking cover
When towing, you must remove the blanking cover if your vehicle has one. Contact a PEUGEOT dealer or a qualified workshop for this. Driving with a trailer places greater demands on the towing vehicle and the driver must take particular care.
Your vehicle is primarily designed for transporting people and luggage, but it may also be used for towing a trailer.
The cover is located behind the lower air intake grille.

261
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

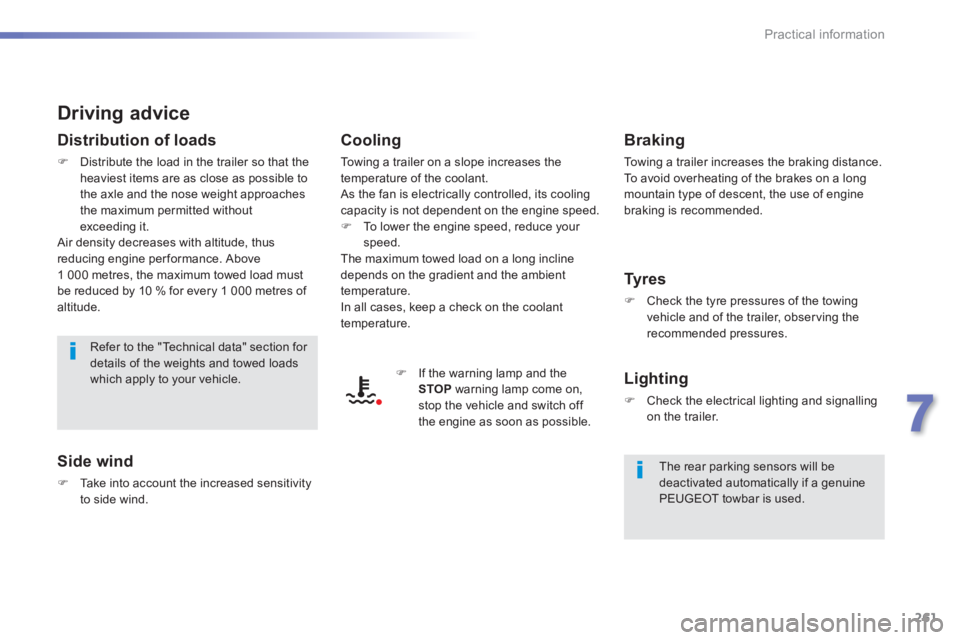

Driving advice
Distribution of loads
 Distribute the load in the trailer so that the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted without
exceeding it. Air density decreases with altitude, thus reducing engine performance. Above 1 000 metres, the maximum towed load must be reduced by 10 % for every 1 000 metres of altitude.
Side wind
 Take into account the increased sensitivity to side wind.
Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.
 To lower the engine speed, reduce your speed. The maximum towed load on a long incline depends on the gradient and the ambient temperature. In all cases, keep a check on the coolant temperature.
 If the warning lamp and the STOP warning lamp come on, stop the vehicle and switch off the engine as soon as possible.
Braking
Towing a trailer increases the braking distance. To avoid overheating of the brakes on a long mountain type of descent, the use of engine braking is recommended.
Ty r e s
 Check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pressures.
Lighting
 Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.
Refer to the "Technical data" section for details of the weights and towed loads which apply to your vehicle.

262
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

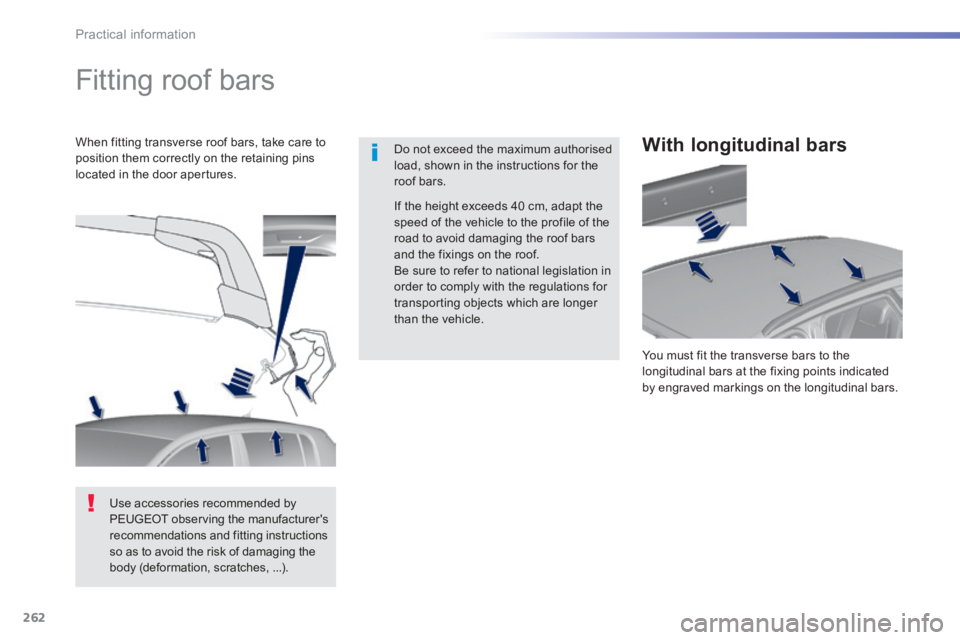

Fitting roof bars
Do not exceed the maximum authorised load, shown in the instructions for the roof bars.
When fitting transverse roof bars, take care to position them correctly on the retaining pins located in the door apertures.
Use accessories recommended by PEUGEOT observing the manufacturer's recommendations and fitting instructions so as to avoid the risk of damaging the body (deformation, scratches, ...).
If the height exceeds 40 cm, adapt the speed of the vehicle to the profile of the
road to avoid damaging the roof bars and the fixings on the roof. Be sure to refer to national legislation in order to comply with the regulations for transporting objects which are longer than the vehicle.
With longitudinal bars
You must fit the transverse bars to the longitudinal bars at the fixing points indicated by engraved markings on the longitudinal bars.

263
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

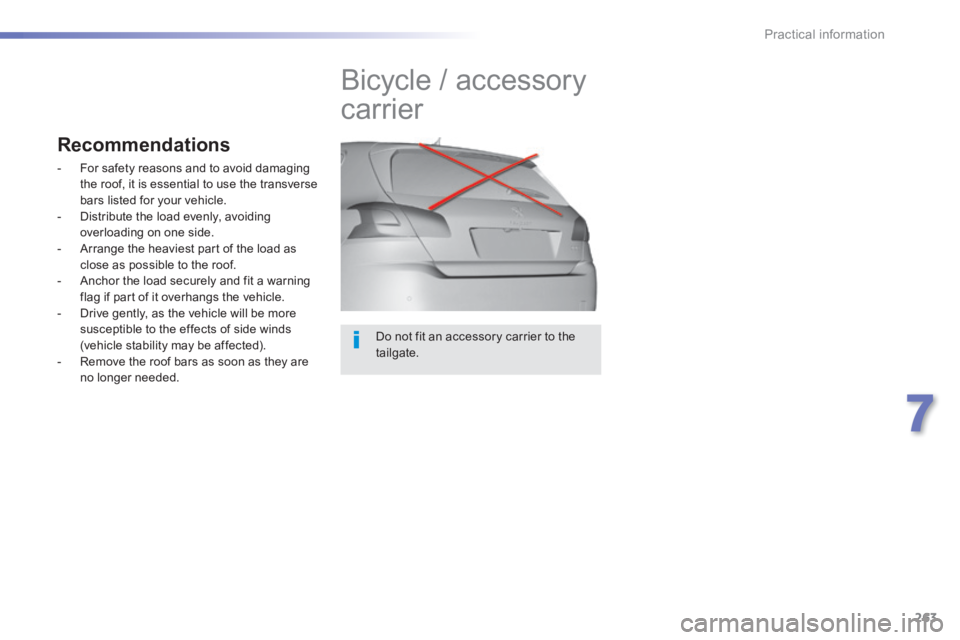

Do not fit an accessory carrier to the tailgate.
Bicycle / accessory
carrier
Recommendations
- For safety reasons and to avoid damaging the roof, it is essential to use the transverse bars listed for your vehicle. - Distribute the load evenly, avoiding overloading on one side. - Arrange the heaviest part of the load as close as possible to the roof. - Anchor the load securely and fit a warning flag if part of it overhangs the vehicle. - Drive gently, as the vehicle will be more susceptible to the effects of side winds (vehicle stability may be affected). - Remove the roof bars as soon as they are no longer needed.

264
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

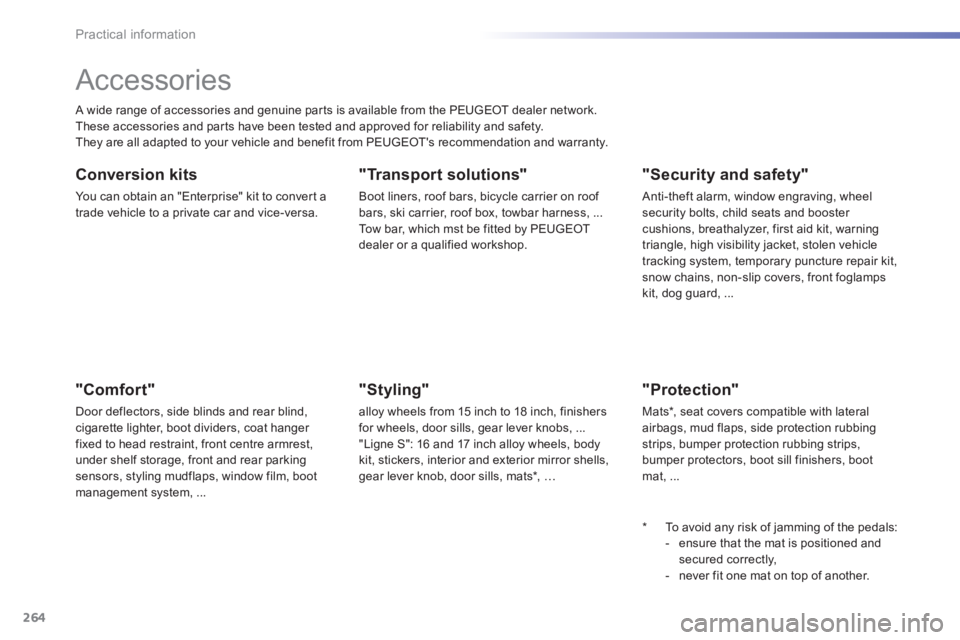

Accessories
A wide range of accessories and genuine parts is available from the PEUGEOT dealer network. These accessories and parts have been tested and approved for reliability and safety. They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort"
Door deflectors, side blinds and rear blind, cigarette lighter, boot dividers, coat hanger
fixed to head restraint, front centre armrest, under shelf storage, front and rear parking sensors, styling mudflaps, window film, boot management system, ...
"Transport solutions"
Boot liners, roof bars, bicycle carrier on roof bars, ski carrier, roof box, towbar harness, ...
Tow bar, which mst be fitted by PEUGEOT dealer or a qualified workshop.
"Styling"
alloy wheels from 15 inch to 18 inch, finishers for wheels, door sills, gear lever knobs, ... "Ligne S": 16 and 17 inch alloy wheels, body kit, stickers, interior and exterior mirror shells, gear lever knob, door sills, mats * , …
* To avoid any risk of jamming of the pedals: - ensure that the mat is positioned and secured correctly, - never fit one mat on top of another.
"Security and safety"
Anti-theft alarm, window engraving, wheel security bolts, child seats and booster
cushions, breathalyzer, first aid kit, warning triangle, high visibility jacket, stolen vehicle tracking system, temporary puncture repair kit, snow chains, non-slip covers, front foglamps kit, dog guard, ...
"Protection"
Mats * , seat covers compatible with lateral airbags, mud flaps, side protection rubbing strips, bumper protection rubbing strips, bumper protectors, boot sill finishers, boot mat, ...
Conversion kits
You can obtain an "Enterprise" kit to convert a trade vehicle to a private car and vice-versa.

265
7
Practical information
308_EN_CHAP07_INFO PR ATIQUES_ED02-2013

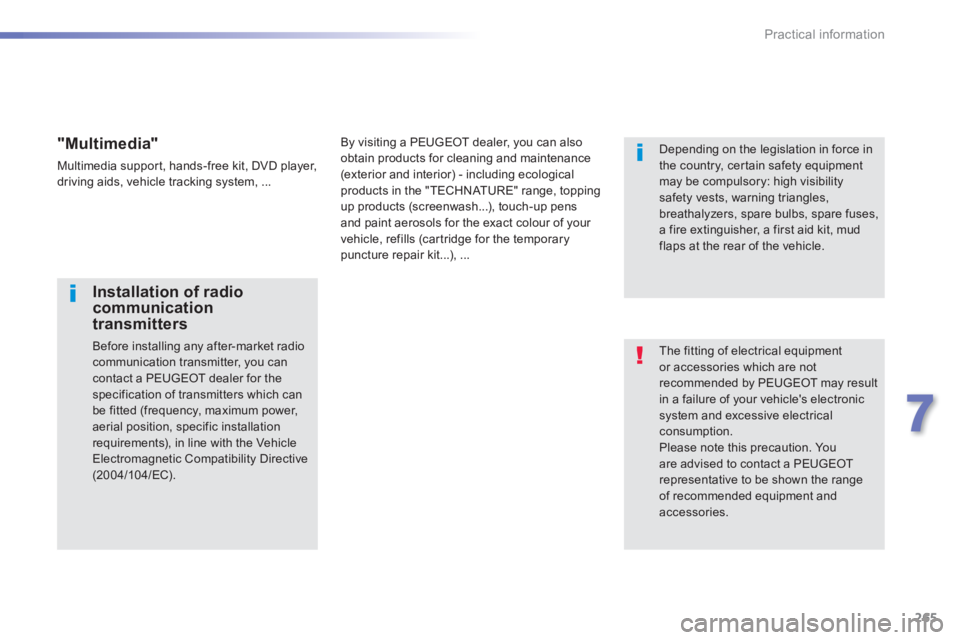

The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electrical consumption. Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the range of recommended equipment and accessories.
Installation of radio communication transmitters
Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).
Depending on the legislation in force in the country, certain safety equipment may be compulsory: high visibility safety vests, warning triangles, breathalyzers, spare bulbs, spare fuses,
a fire extinguisher, a first aid kit, mud flaps at the rear of the vehicle.
By visiting a PEUGEOT dealer, you can also obtain products for cleaning and maintenance (exterior and interior) - including ecological products in the "TECHNATURE" range, topping up products (screenwash...), touch-up pens and paint aerosols for the exact colour of your vehicle, refills (cartridge for the temporary puncture repair kit...), ...
"Multimedia"
Multimedia support, hands-free kit, DVD player, driving aids, vehicle tracking system, ...

266
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

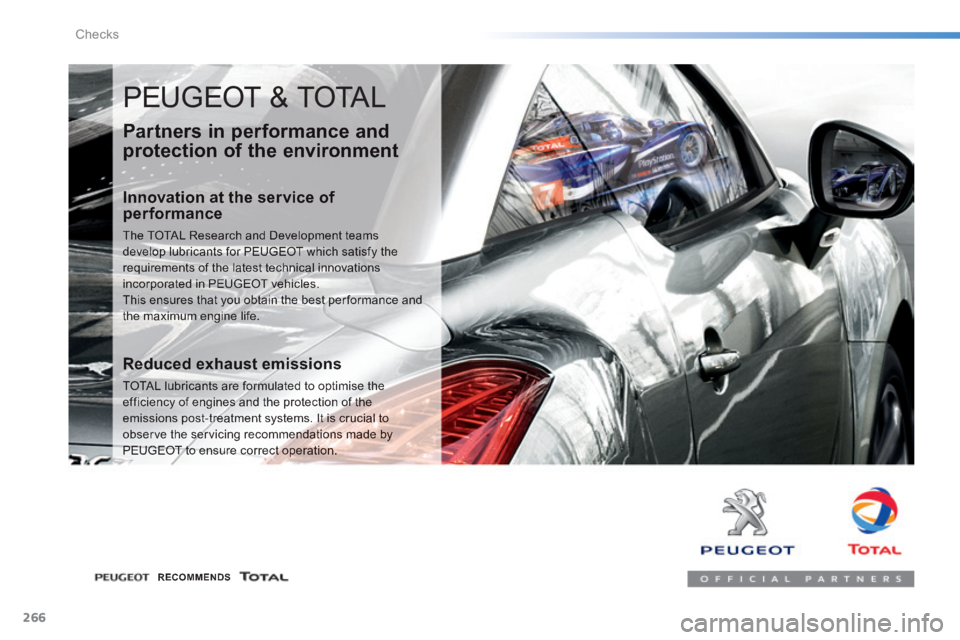

PEUGEOT & TOTAL
Partners in performance and
protection of the environment
Innovation at the service of performance
The TOTAL Research and Development teams develop lubricants for PEUGEOT which satisfy the requirements of the latest technical innovations incorporated in PEUGEOT vehicles. This ensures that you obtain the best per formance and the maximum engine life.
Reduced exhaust emissions
TOTAL lubricants are formulated to optimise the efficiency of engines and the protection of the emissions post-treatment systems. It is crucial to
observe the servicing recommendations made by PEUGEOT to ensure correct operation.
RECOMMENDS RECOMMENDS

267
8
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

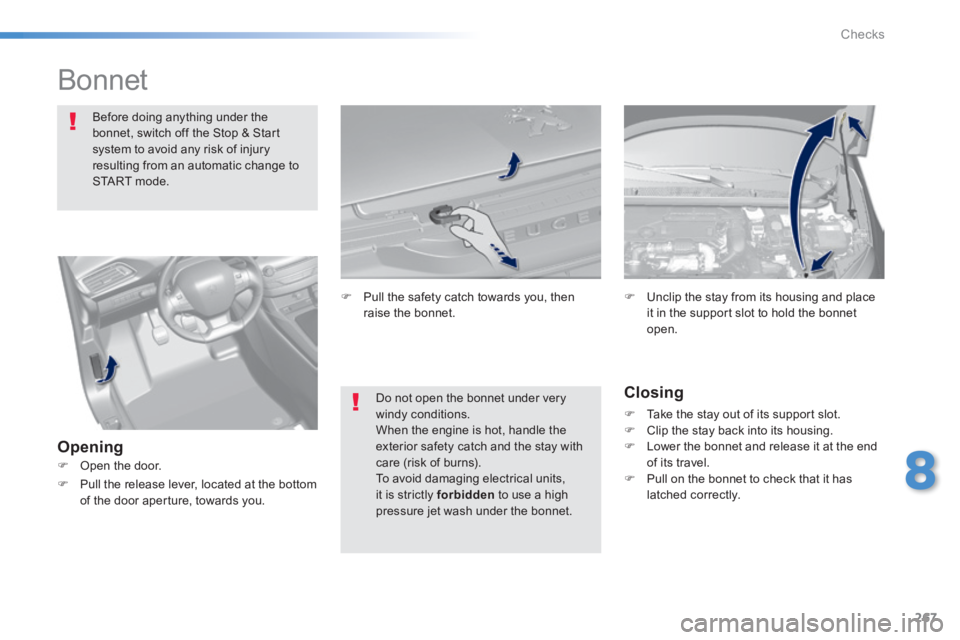

Bonnet
Before doing anything under the bonnet, switch off the Stop & Start system to avoid any risk of injury resulting from an automatic change to START mode.
Opening
Closing
 Take the stay out of its support slot.  Clip the stay back into its housing.  Lower the bonnet and release it at the end of its travel.  Pull on the bonnet to check that it has latched correctly.
 Unclip the stay from its housing and place it in the support slot to hold the bonnet open.
Do not open the bonnet under very windy conditions.
When the engine is hot, handle the exterior safety catch and the stay with care (risk of burns). To avoid damaging electrical units, it is strictly forbidden to use a high pressure jet wash under the bonnet.
 Pull the safety catch towards you, then raise the bonnet.
 Open the door.
 Pull the release lever, located at the bottom of the door aperture, towards you.

268
Checks
308_EN_CHAP08_VERIFICATIONS_ED02-2013

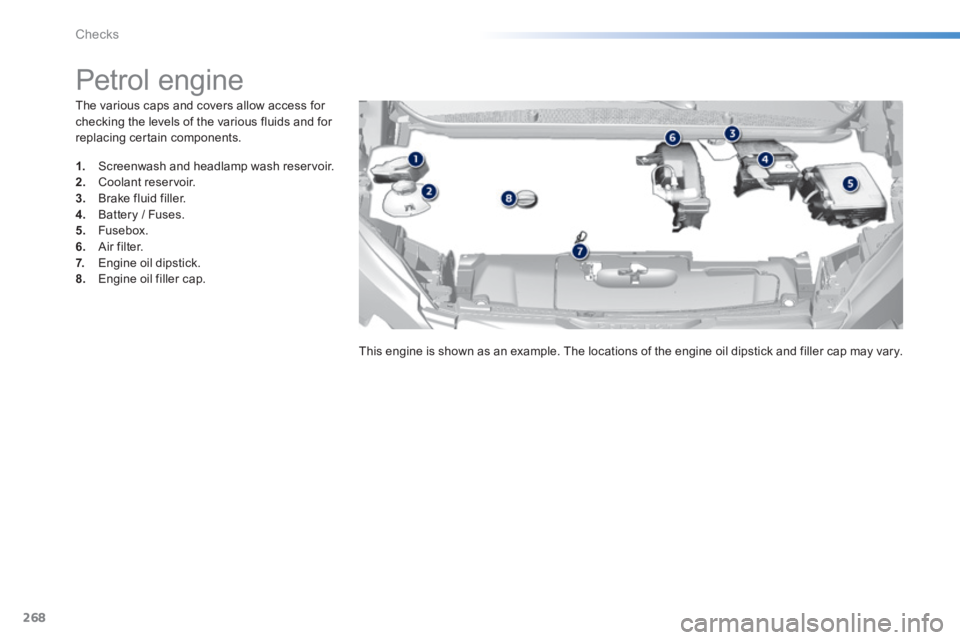

The various caps and covers allow access for checking the levels of the various fluids and for replacing certain components.
Petrol engine
1. Screenwash and headlamp wash reservoir. 2. Coolant reservoir. 3. Brake fluid filler. 4. Battery / Fuses.
5. Fusebox. 6. Air filter. 7. Engine oil dipstick. 8. Engine oil filler cap.
This engine is shown as an example. The locations of the engine oil dipstick and filler cap may vary.
