Peugeot 308 2014 Owner's Manual

299
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Level 1Level 2Level 3Comments
Media

List
List of FM stations Press on a radio station to select it.
Confi rm Save the settings.
Media

Source
FM Radio
Select change of source .
DAB Radio
AM Radio
Jukebox
CD
USB
iPod
Bluetooth
AUX
Video
Media
Memo
Recall of preset stations Press on a radio station to select it.

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013
MEDIA

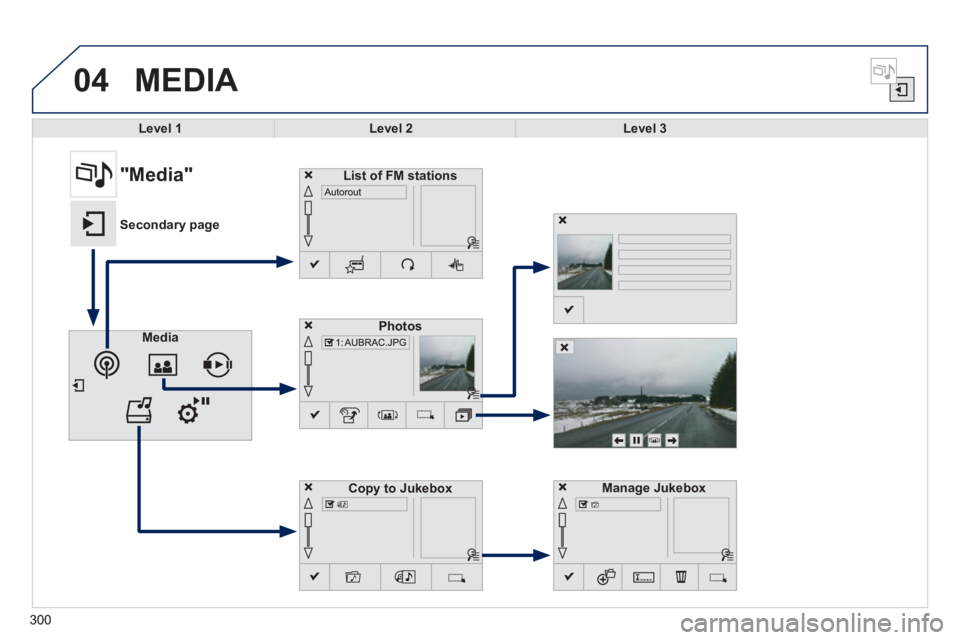

Level 1Level 2Level 3
MediaPhotos
Manage Jukebox
300300300
"Media"
Secondary page
List of FM stations
Copy to Jukebox

301
308_EN_CHAP10C_SMEGPLUS_ED02-2013
Level 1Level 2Level 3Comments
Media
Secondary page
Radio list
Preset Press a radio station to select it.
Update list Update the list of stations received.
Frequency Enter the desired radio frequency.
Confi rm Save the settings.
Media

Secondary page

Photos
Page selection Display the selected photo full screen.
Rotate Rotate the photo 90°.
Select all Select all the photos in the list.
Press again to deselect.
Slideshow
Previous photo.
Display the photos in sequence, full screen. Pause / Play.
Next photo.
Confi rm Save the settings.

Media

Secondary page

Manage Jukebox
Sort by folder
Choose the selection mode. Sort by album
Select all
Magnifying glass
Create folder
Choose the handling mode. Rename
Delete
Select all
Confi rm Save the options.
Copy Save the settings .

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013
302
MEDIA

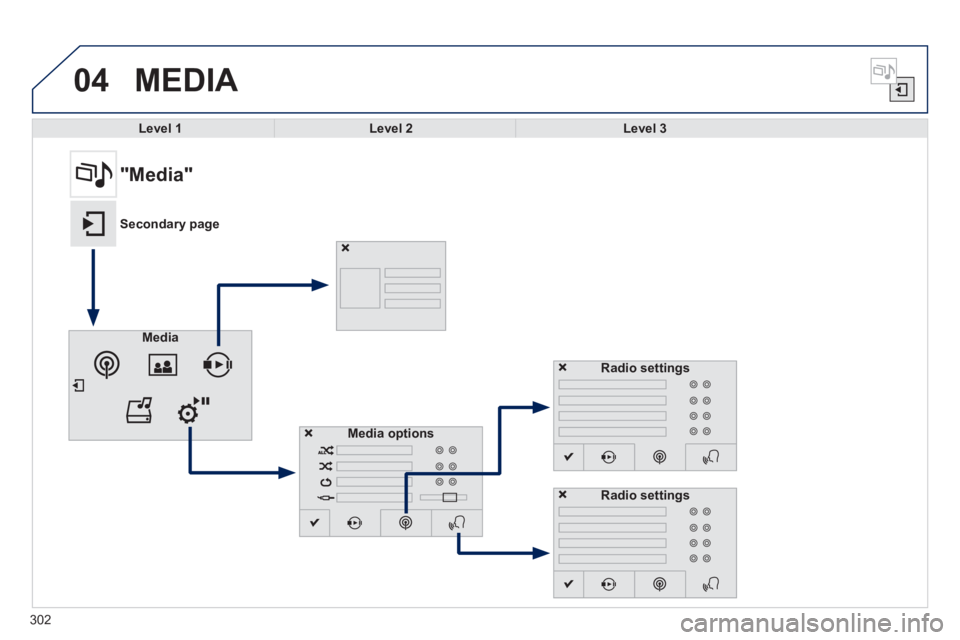

Level 1Level 2Level 3
"Media"
Secondary page
Media
Media options
Radio settings
Radio settings

308_EN_CHAP10C_SMEGPLUS_ED02-2013
303
Level 1Level 2Level 3Comments
Media

Secondary page

Media list
Presentation of the last media used.
Media

Secondary page

Media options
Media

Media options
Random (all tracks):
Choose the play settings. Random (current album):
Loop:
Aux. amplifi cation
Radio

Radio settings
RDS options
Activate or deactivate the options.
DAB/FM options
Display Radio Text
DAB radio thumbnails
Announcements

Radio settings
Traffi c announcements (TA)
Activate or deactivate the options. Weather
Varied - Sport
Alert settings
Confi rm Save the settings.

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013

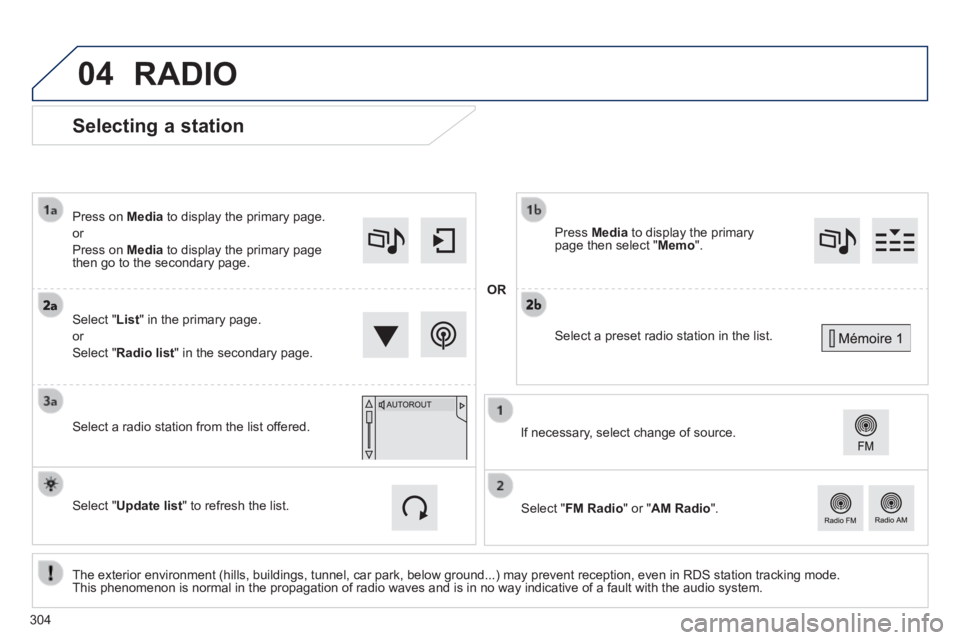

Selecting a station
The exterior environment (hills, buildings, tunnel, car park, below gro\
und...) may prevent reception, even in RDS station tracking mode. This phenomenon is normal in the propagation of radio waves and is in no\
way indicative of a fault with the audio system.
Select " List " in the primary page.
or
Select " Radio list " in the secondary page.
Press on Media to display the primary page.
or
Press on Media to display the primary page then go to the secondary page.
Select a radio station from the list offered. If necessary, select change of source.
Press Media to display the primary page then select " Memo ".
Select " FM Radio " or " AM Radio ".
OR
Select " Update list " to refresh the list.
RADIO
Select a preset radio station in the list.
304

04
305
308_EN_CHAP10C_SMEGPLUS_ED02-2013

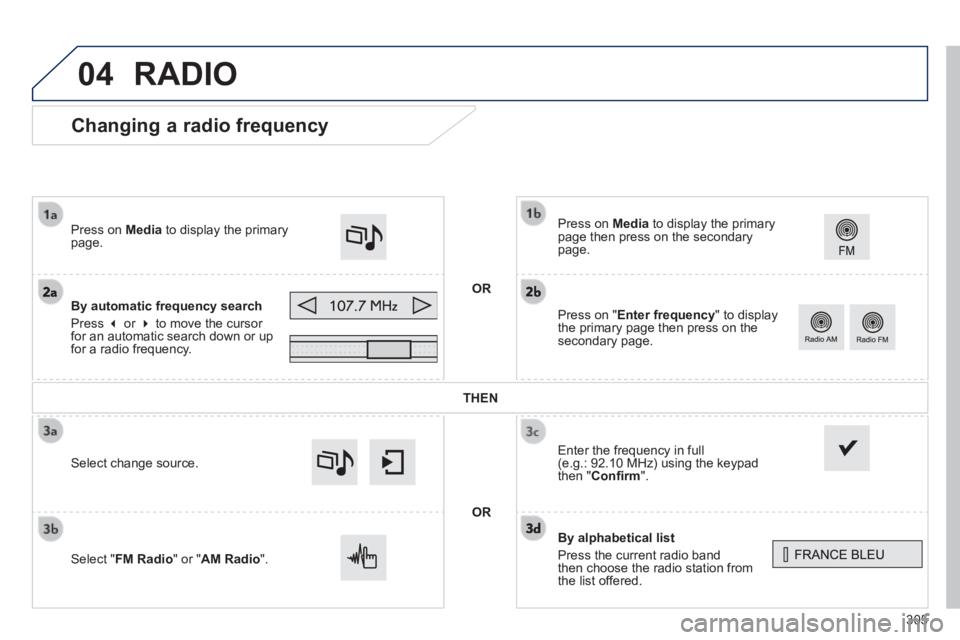

Changing a radio frequency
By alphabetical list
Press the current radio band then choose the radio station from the list offered.
Press on Media to display the primary page then press on the secondary page.
Enter the frequency in full (e.g.: 92.10 MHz) using the keypad then " Confi rm ".
By automatic frequency search
Press  or  to move the cursor for an automatic search down or up for a radio frequency.
Press on Media to display the primary page.
Press on " Enter frequency " to display the primary page then press on the secondary page.
OR
RADIO
Select change source.
Select " FM Radio " or " AM Radio ".
THEN
OR

04
308_EN_CHAP10C_SMEGPLUS_ED02-2013

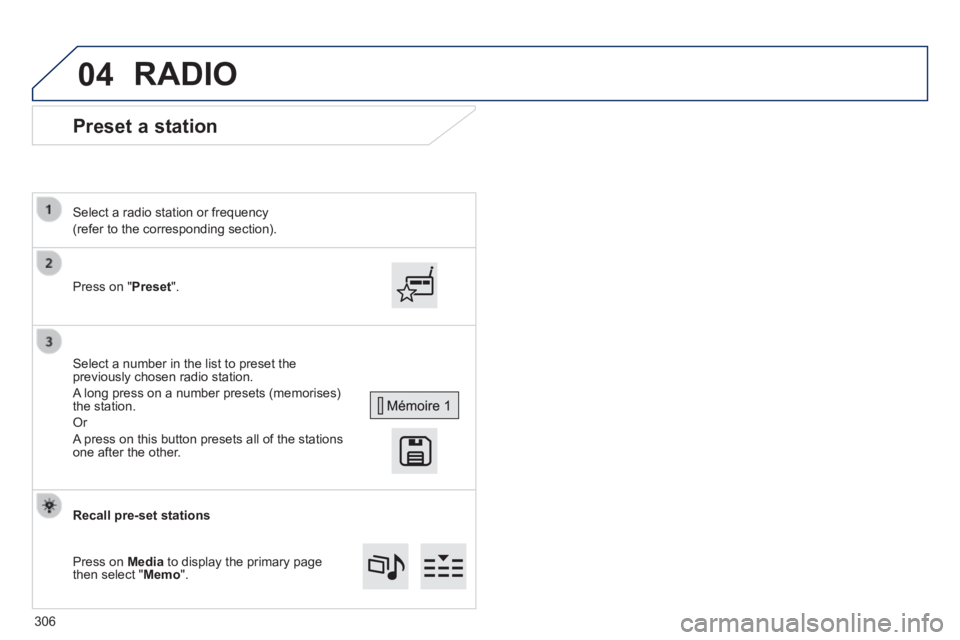

Preset a station
Press on " Preset ".
Select a radio station or frequency
(refer to the corresponding section).
Select a number in the list to preset the previously chosen radio station.
A long press on a number presets (memorises) the station.
Or
A press on this button presets all of the stations one after the other.
Recall pre-set stations
Press on Media to display the primary page then select " Memo ".
RADIO
306

04
307
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO

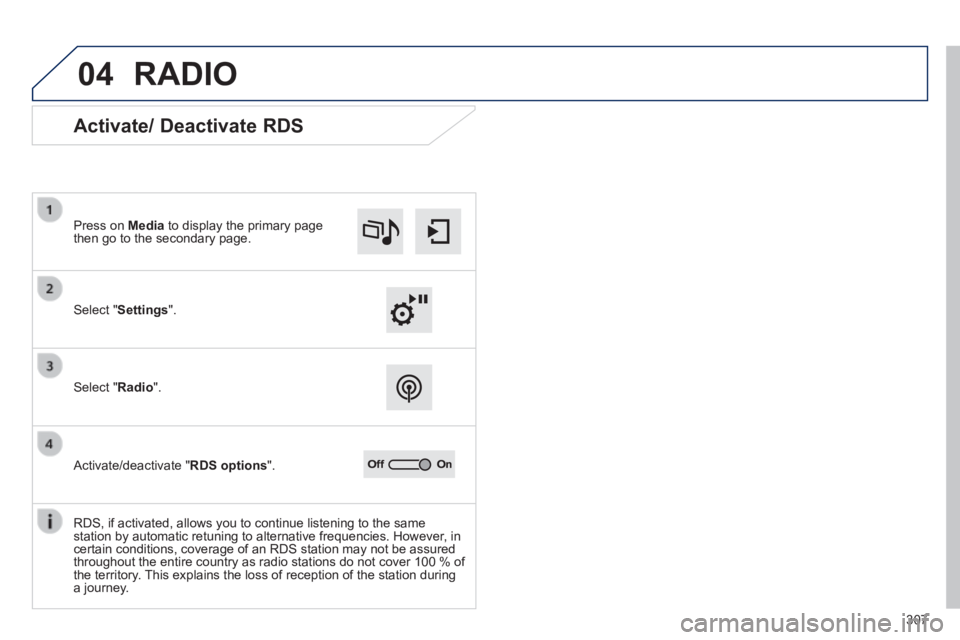

Activate/ Deactivate RDS
Select " Settings ".
Press on Media to display the primary page then go to the secondary page.
Select " Radio ".
Activate/deactivate " RDS options ".
RDS, if activated, allows you to continue listening to the same station by automatic retuning to alternative frequencies. However, in certain conditions, coverage of an RDS station may not be assured throughout the entire country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.

04
308
308_EN_CHAP10C_SMEGPLUS_ED02-2013
RADIO

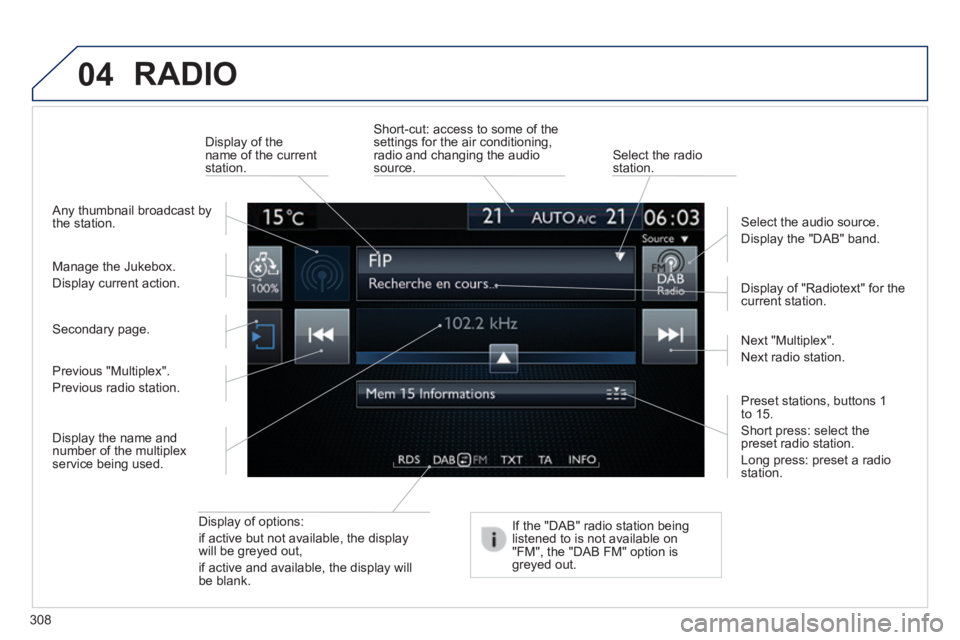

Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.
Display of "Radiotext" for the current station.
Manage the Jukebox.
Display current action.
Select the audio source.
Display the "DAB" band.
Display of the name of the current station.
Short-cut: access to some of the settings for the air conditioning, radio and changing the audio source. Select the radio station.
If the "DAB" radio station being listened to is not available on "FM", the "DAB FM" option is greyed out.
Any thumbnail broadcast by the station.
Preset stations, buttons 1 to 15 .
Short press: select the preset radio station.
Long press: preset a radio station.
Next "Multiplex".
Next radio station.
Secondary page.
Display the name and number of the multiplex service being used.
Previous "Multiplex".
Previous radio station.
