PEUGEOT 308 2015 Owners Manual

99

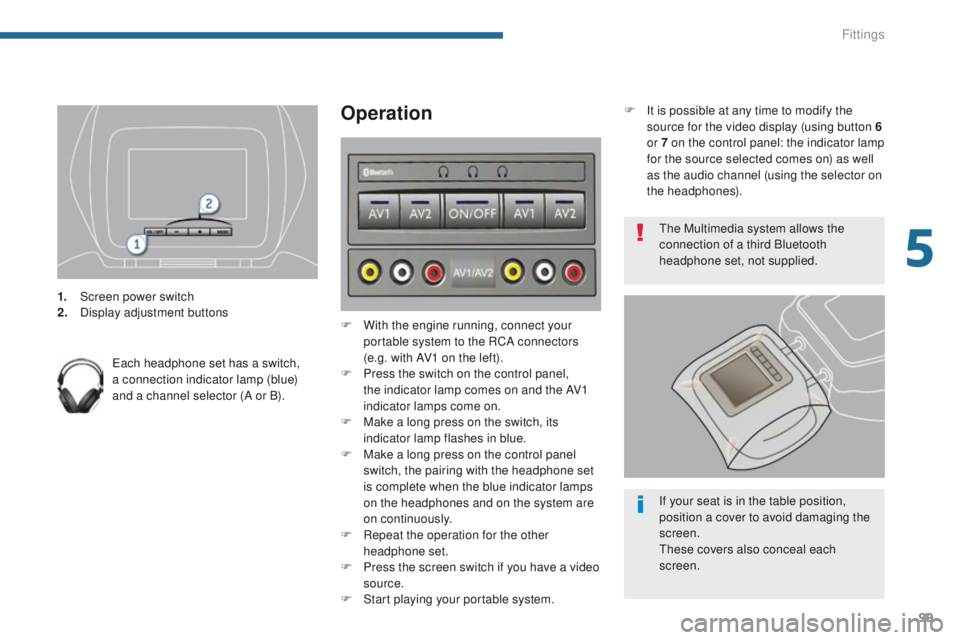

1. Screen power switch
2. Display adjustment buttons
Each headphone set has a switch,
a connection indicator lamp (blue)
and a channel selector (A or B).
Operation
F With the engine running, connect your portable system to the RCA connectors
(e.g. with AV1 on the left).
F

P
ress the switch on the control panel,
the indicator lamp comes on and the AV1
indicator lamps come on.
F

M
ake a long press on the switch, its
indicator lamp flashes in blue.
F

M
ake a long press on the control panel
switch, the pairing with the headphone set
is complete when the blue indicator lamps
on the headphones and on the system are
on continuously.
F

R
epeat the operation for the other
headphone set.
F

P
ress the screen switch if you have a video
source.
F

S
tart playing your portable system. The Multimedia system allows the
connection of a third Bluetooth
headphone set, not supplied.
If your seat is in the table position,
position a cover to avoid damaging the
screen.
These covers also conceal each
screen.
F

I
t is possible at any time to modify the
source for the video display (using button 6
or 7 on the control panel: the indicator lamp
for the source selected comes on) as well
as the audio channel (using the selector on
the headphones).
5
Fittings

100

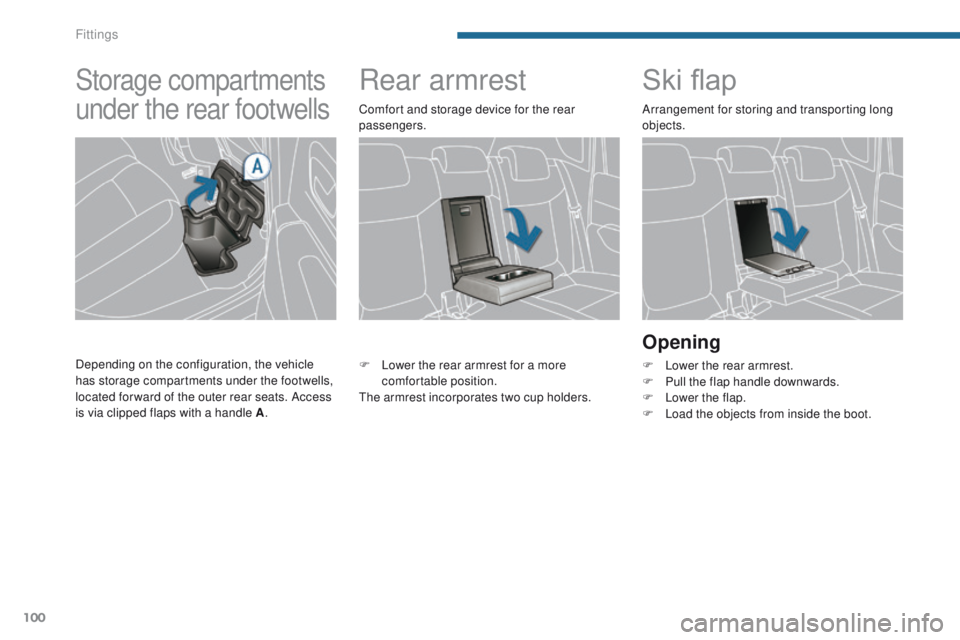

Rear armrestSki flap
Opening
F Lower the rear armrest.
F
P ull the flap handle downwards.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
F
L
ower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders. Comfort and storage device for the rear
passengers. Arrangement for storing and transporting long
objects.
Storage compartments
under the rear footwells
Depending on the configuration, the vehicle
has storage compartments under the footwells,
located for ward of the outer rear seats. Access
is via clipped flaps with a handle A
.
Fittings

101
Automatic mode
Pressing and releasing the control opens or
closes the blind completely. Pressing again
stops the movement.

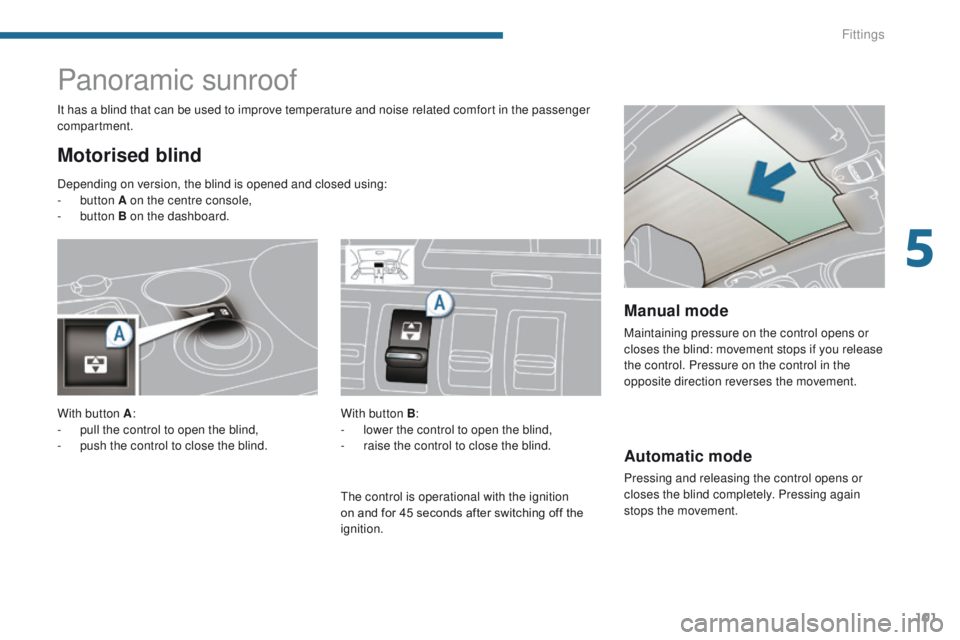

Panoramic sunroof
Motorised blind
It has a blind that can be used to improve temperature and noise related comfort in the passenger
compartment.With button B:
-

l
ower the control to open the blind,
-

r
aise the control to close the blind.
Manual mode
Maintaining pressure on the control opens or
closes the blind: movement stops if you release
the control. Pressure on the control in the
opposite direction reverses the movement.
Depending on version, the blind is opened and closed using:
-

button
A on the centre console,
-

button
B on the dashboard.
With button A :
-

p

ull the control to open the blind,
-

p

ush the control to close the blind. The control is operational with the ignition
on and for 45 seconds after switching off the
ignition.
5
Fittings

102

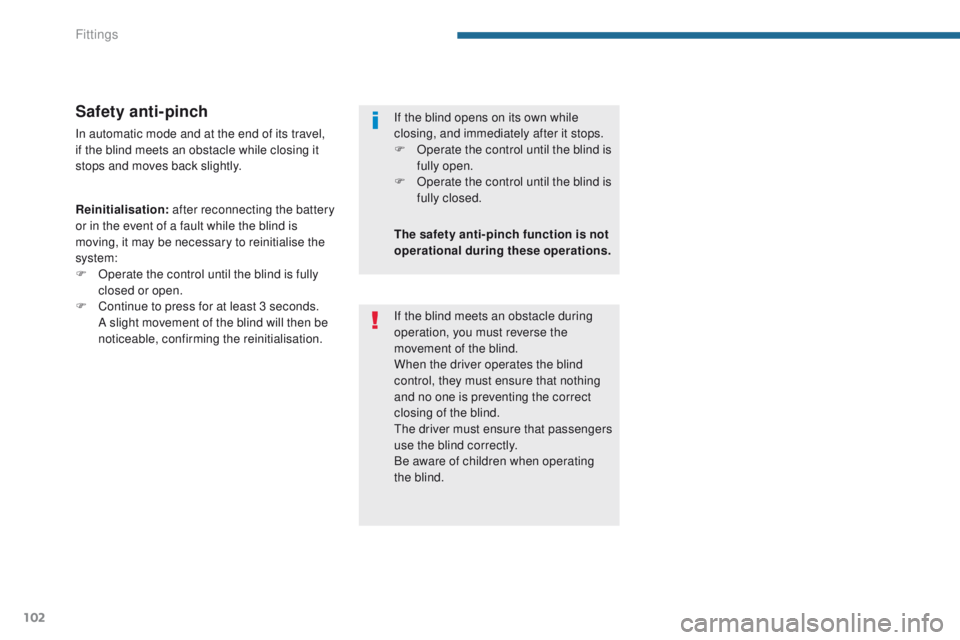

Safety anti-pinch
In automatic mode and at the end of its travel,
if the blind meets an obstacle while closing it
stops and moves back slightly.
Reinitialisation: after reconnecting the battery
or in the event of a fault while the blind is
moving, it may be necessary to reinitialise the
system:
F

O
perate the control until the blind is fully
closed or open.
F

C
ontinue to press for at least 3 seconds.
A slight movement of the blind will then be
noticeable, confirming the reinitialisation. If the blind opens on its own while
closing, and immediately after it stops.
F
O perate the control until the blind is
fully open.
F

O
perate the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
If the blind meets an obstacle during
operation, you must reverse the
movement of the blind.
When the driver operates the blind
control, they must ensure that nothing
and no one is preventing the correct
closing of the blind.
The driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.
Fittings

103

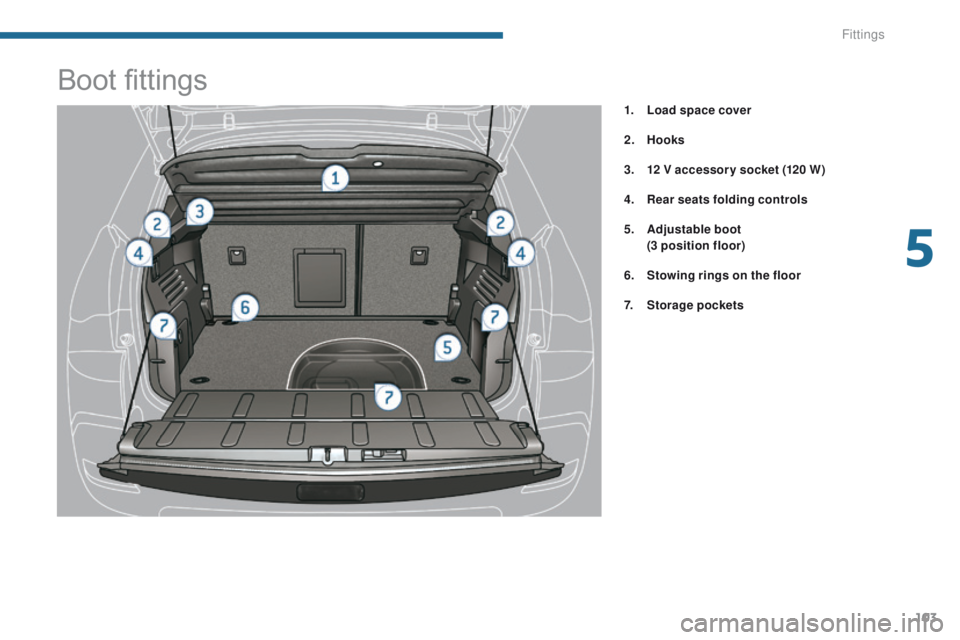

Boot fittings
1. Load space cover
2.
Hoo
ks
3.
1

2 V accessor y socket (120 W)
4.
R

ear seats folding controls
5.
A

djustable boot


(
3 position floor )
6.
S

towing rings on the floor
7.
Sto

rage pockets
5
Fittings

104

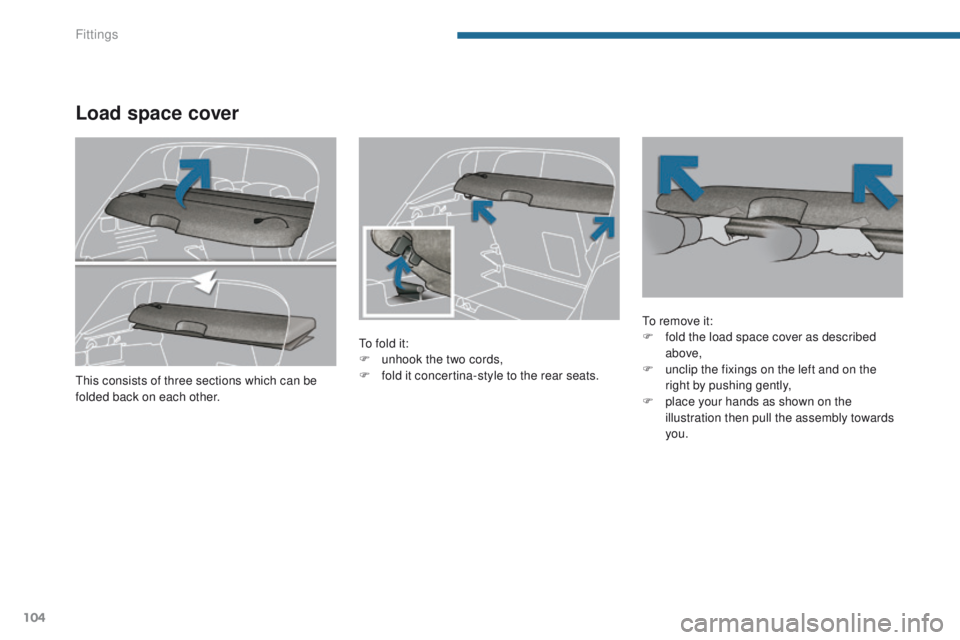

Load space cover
To fold it:
F u nhook the two cords,
F

f
old it concertina-style to the rear seats. To remove it:
F
f old the load space cover as described
above,
F

u
nclip the fixings on the left and on the
right by pushing gently,
F

p
lace your hands as shown on the
illustration then pull the assembly towards
you.
This consists of three sections which can be
folded back on each other.
Fittings

105

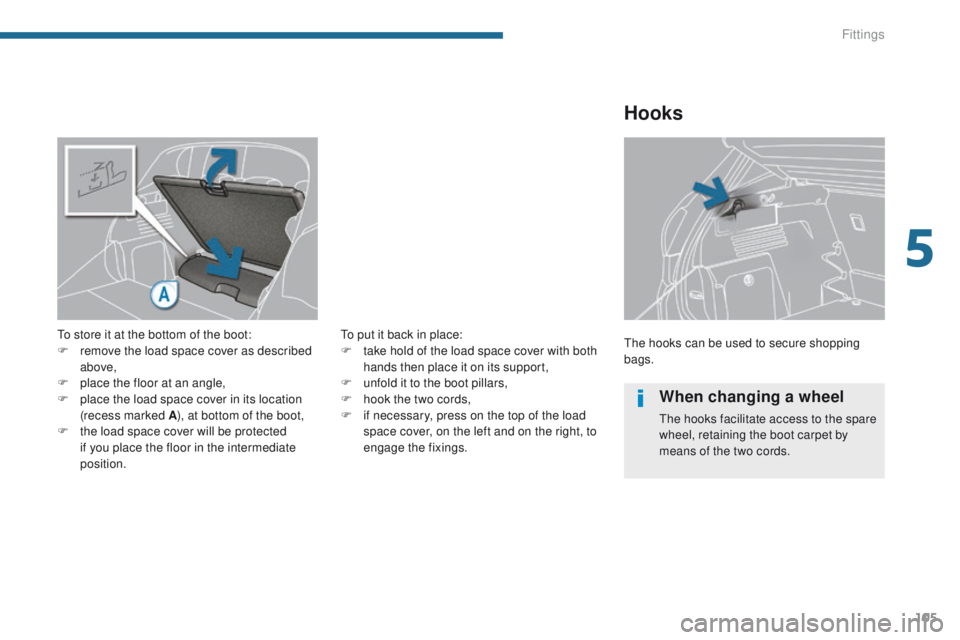

The hooks can be used to secure shopping
bags.
Hooks
To store it at the bottom of the boot:
F r emove the load space cover as described
above,
F

p
lace the floor at an angle,
F

p
lace the load space cover in its location
(recess marked A ), at bottom of the boot,
F

t
he load space cover will be protected
if you place the floor in the intermediate
position. To put it back in place:
F
t ake hold of the load space cover with both
hands then place it on its support,
F

u
nfold it to the boot pillars,
F

h
ook the two cords,
F

i
f necessary, press on the top of the load
space cover, on the left and on the right, to
engage the fixings.
When changing a wheel
The hooks facilitate access to the spare
wheel, retaining the boot carpet by
means of the two cords.
5
Fittings

106

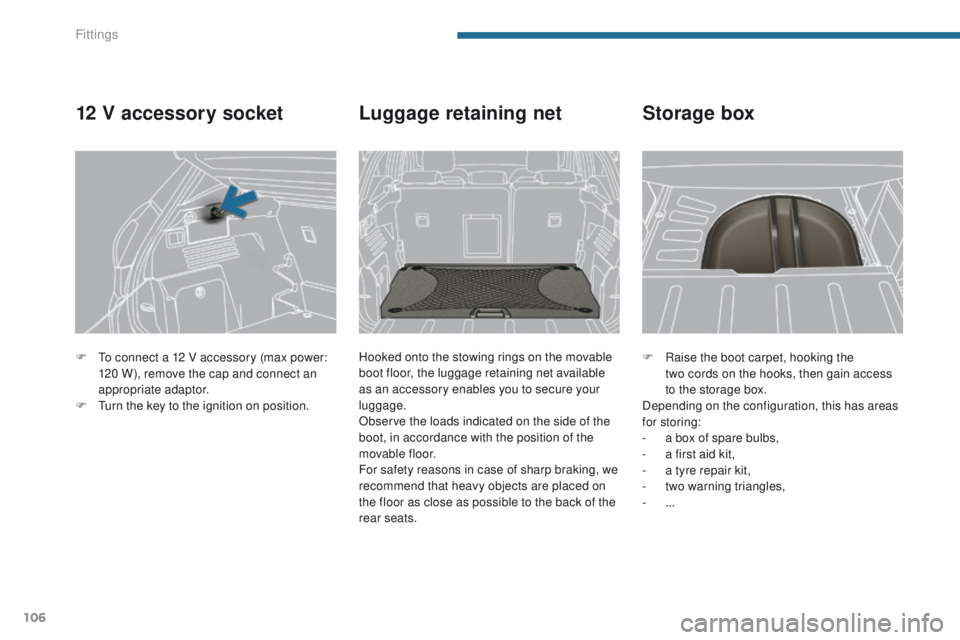

F Raise the boot carpet, hooking the two cords on the hooks, then gain access
to the storage box.
Depending on the configuration, this has areas
for storing:
-

a b
ox of spare bulbs,
-

a f
irst aid kit,
-

a t
yre repair kit,
-

t
wo warning triangles,
-


...
Storage box
F To connect a 12 V accessory (max power: 120 W), remove the cap and connect an
appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket Luggage retaining net
Hooked onto the stowing rings on the movable
boot floor, the luggage retaining net available
as an accessory enables you to secure your
luggage.
Observe the loads indicated on the side of the
boot, in accordance with the position of the
movable floor.
For safety reasons in case of sharp braking, we
recommend that heavy objects are placed on
the floor as close as possible to the back of the
rear seats.
Fittings

107

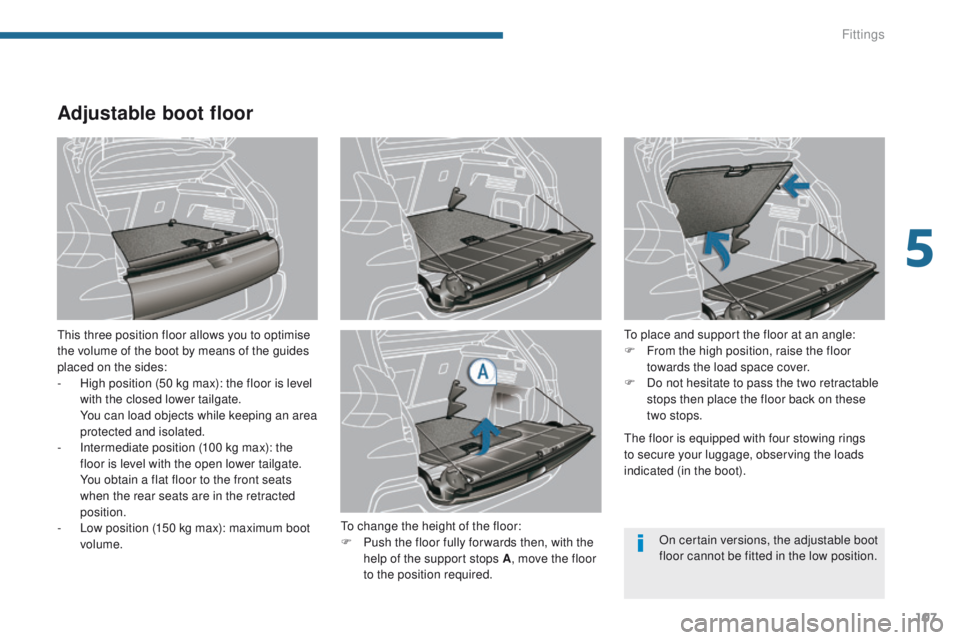

Adjustable boot floor
This three position floor allows you to optimise
the volume of the boot by means of the guides
placed on the sides:
-
H
igh position (50 kg max): the floor is level
with the closed lower tailgate.
Y

ou can load objects while keeping an area
protected and isolated.
-

I
ntermediate position (100 kg max): the
floor is level with the open lower tailgate.
Y

ou obtain a flat floor to the front seats
when the rear seats are in the retracted
position.
-

L
ow position (150 kg max): maximum boot
volume. To place and support the floor at an angle:
F
F rom the high position, raise the floor
towards the load space cover.
F

D
o not hesitate to pass the two retractable
stops then place the floor back on these
two stops.
To change the height of the floor:
F

P
ush the floor fully for wards then, with the
help of the support stops A , move the floor
to the position required. The floor is equipped with four stowing rings
to secure your luggage, observing the loads
indicated (in the boot).
On certain versions, the adjustable boot
floor cannot be fitted in the low position.
5
Fittings

108

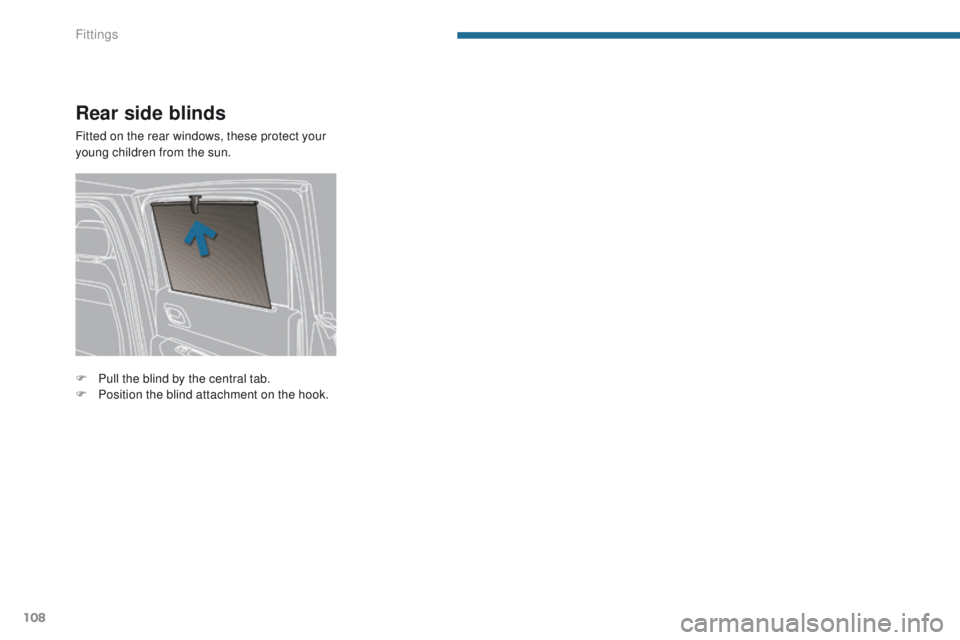

Rear side blinds
Fitted on the rear windows, these protect your
young children from the sun.
F
P
ull the blind by the central tab.
F

P
osition the blind attachment on the hook.
