PEUGEOT 308 2015 Manual Online

79

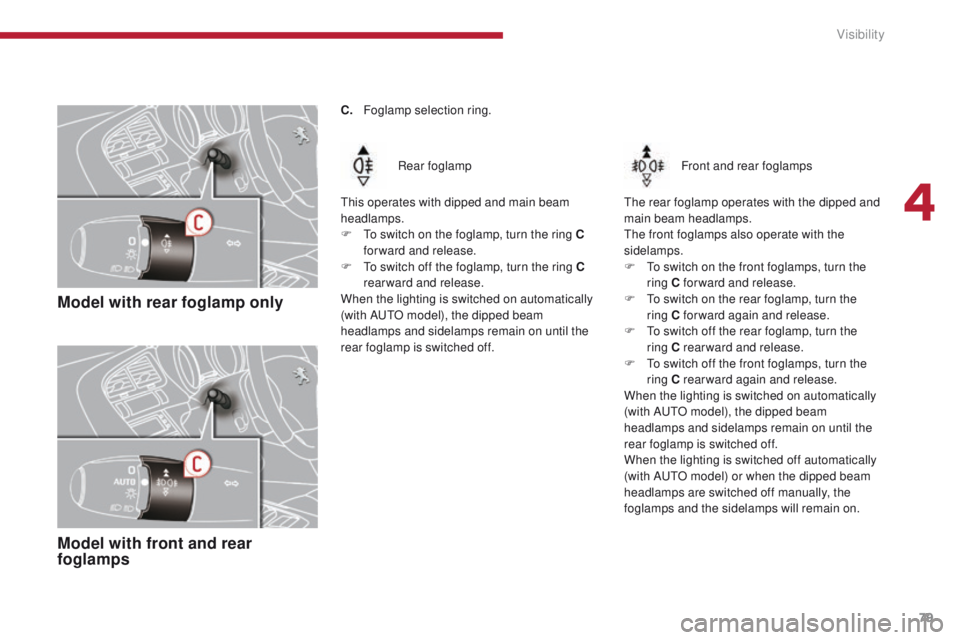

Model with rear foglamp only
Model with front and rear
foglamps
Rear foglamp
This operates with dipped and main beam
headlamps.
F

T

o switch on the foglamp, turn the ring C
forward and release.
F

T

o switch off the foglamp, turn the ring C
rearward and release.
When the lighting is switched on automatically
(with AUTO model), the dipped beam
headlamps and sidelamps remain on until the
rear foglamp is switched off. Front and rear foglamps
The rear foglamp operates with the dipped and
main beam headlamps.
The front foglamps also operate with the
sidelamps.
F

T
o switch on the front foglamps, turn the
ring C forward and release.
F

T
o switch on the rear foglamp, turn the
ring
C forward again and release.
F

T
o switch off the rear foglamp, turn the
ring
C rearward and release.
F

T
o switch off the front foglamps, turn the
ring C rearward again and release.
When the lighting is switched on automatically
(with AUTO model), the dipped beam
headlamps and sidelamps remain on until the
rear foglamp is switched off.
When the lighting is switched off automatically
(with AUTO model) or when the dipped beam
headlamps are switched off manually, the
foglamps and the sidelamps will remain on.
C.
F

oglamp selection ring.
4
Visibility

80

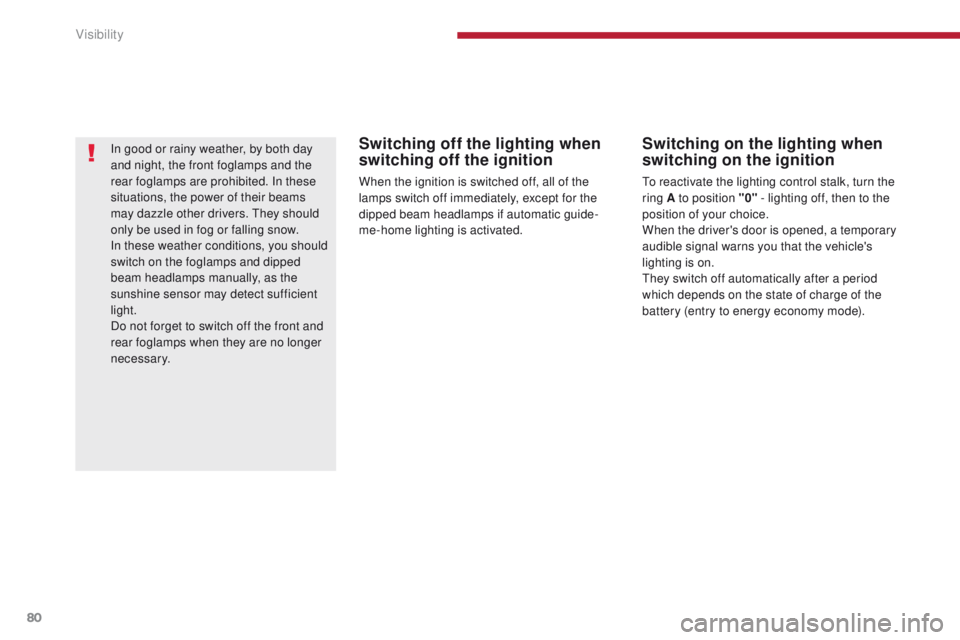

Switching off the lighting when
switching off the ignition
When the ignition is switched off, all of the
lamps switch off immediately, except for the
dipped beam headlamps if automatic guide-
me-home lighting is activated.
In good or rainy weather, by both day
and night, the front foglamps and the
rear foglamps are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or falling snow.
In these weather conditions, you should
switch on the foglamps and dipped
beam headlamps manually, as the
sunshine sensor may detect sufficient
light.
Do not forget to switch off the front and
rear foglamps when they are no longer
necessary.
Switching on the lighting when
switching on the ignition
To reactivate the lighting control stalk, turn the
ring A to position "0"
- lighting off, then to the
position of your choice.
When the driver's door is opened, a temporary
audible signal warns you that the vehicle's
lighting is on.
They switch off automatically after a period
which depends on the state of charge of the
battery (entry to energy economy mode).
Visibility

81

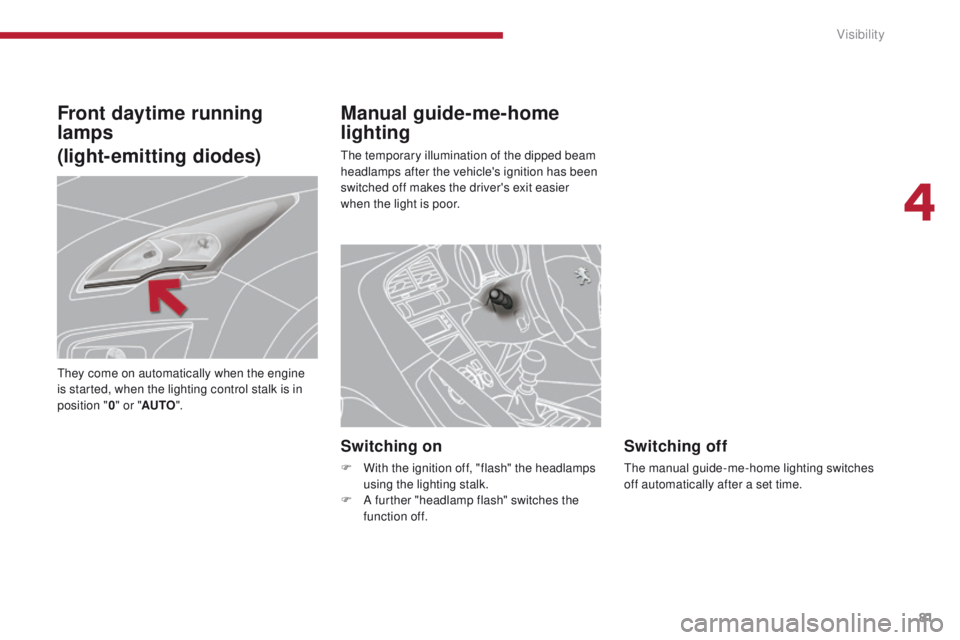

Manual guide-me-home
lighting
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Switching on
F With the ignition off, "flash" the headlamps using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Front daytime running
lamps
(light-emitting diodes)
They come on automatically when the engine
is started, when the lighting control stalk is in
position " 0" or " AUTO ".
4
Visibility

82

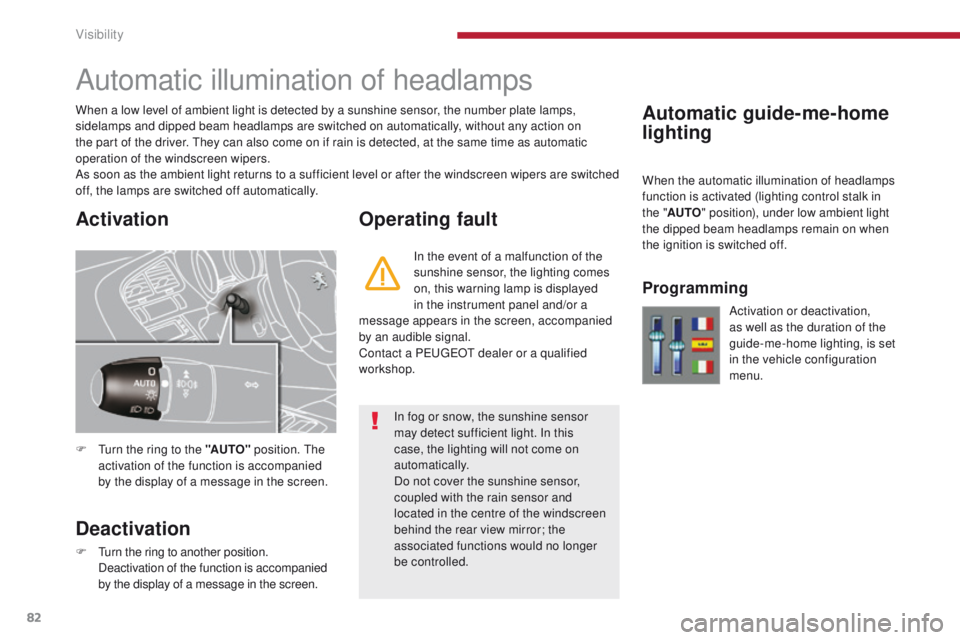

Automatic guide-me-home
lighting
Automatic illumination of headlamps
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message in the screen.
Deactivation
F Turn the ring to another position. Deactivation of the function is accompanied
by the display of a message in the screen.
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
in the instrument panel and/or a
message appears in the screen, accompanied
by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop. When the automatic illumination of headlamps
function is activated (lighting control stalk in
the
"
AUTO " position), under low ambient light
the dipped beam headlamps remain on when
the ignition is switched off.
Programming
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
When a low level of ambient light is detected by a sunshine sensor, the number plate lamps,
sidelamps and dipped beam headlamps are switched on automatically, without any action on
the part of the driver. They can also come on if rain is detected, at the same time as automatic
operation of the windscreen wipers.
As soon as the ambient light returns to a sufficient level or after the windscreen wipers are switched
off, the lamps are switched off automatically.
Activation or deactivation,
as well as the duration of the
guide-me-home lighting, is set
in the vehicle configuration
menu.
Activation
Visibility

83

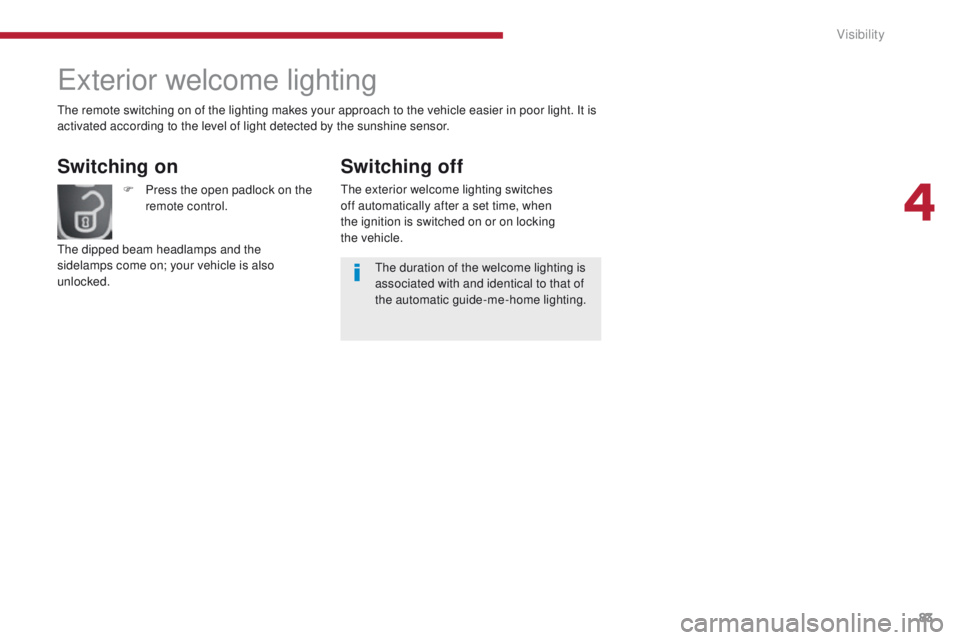

Exterior welcome lighting
Switching on
F Press the open padlock on the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked. The duration of the welcome lighting is
associated with and identical to that of
the automatic guide-me-home lighting.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the


vehicle.
The remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is
activated according to the level of light detected by the sunshine sensor.
4
Visibility

84

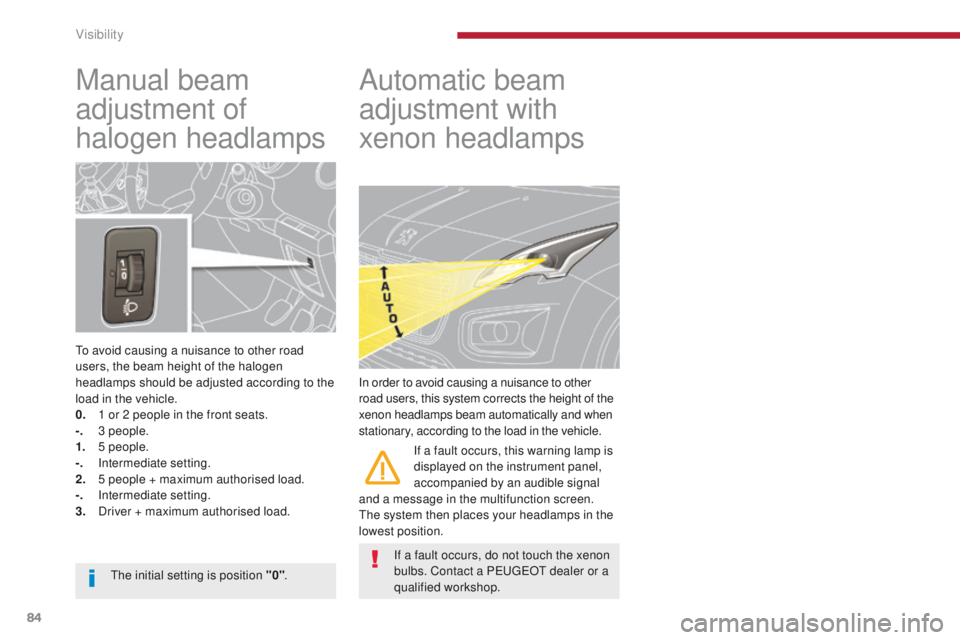

Manual beam
adjustment of
halogen headlamps
To avoid causing a nuisance to other road
users, the beam height of the halogen
headlamps should be adjusted according to the
load in the vehicle.
0.
1 o
r 2 people in the front seats.
-.
3

people.
1.
5

people.
-.
I

ntermediate setting.
2.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
3.
D

river + maximum authorised load.
Automatic beam
adjustment with
xenon headlamps
In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, according to the load in the vehicle. If a fault occurs, this warning lamp is
displayed on the instrument panel,
accompanied by an audible signal
and a message in the multifunction screen.
The system then places your headlamps in the
lowest position.
The initial setting is position "0" .If a fault occurs, do not touch the xenon
bulbs. Contact a PEUGEOT dealer or a
qualified workshop.
Visibility

85

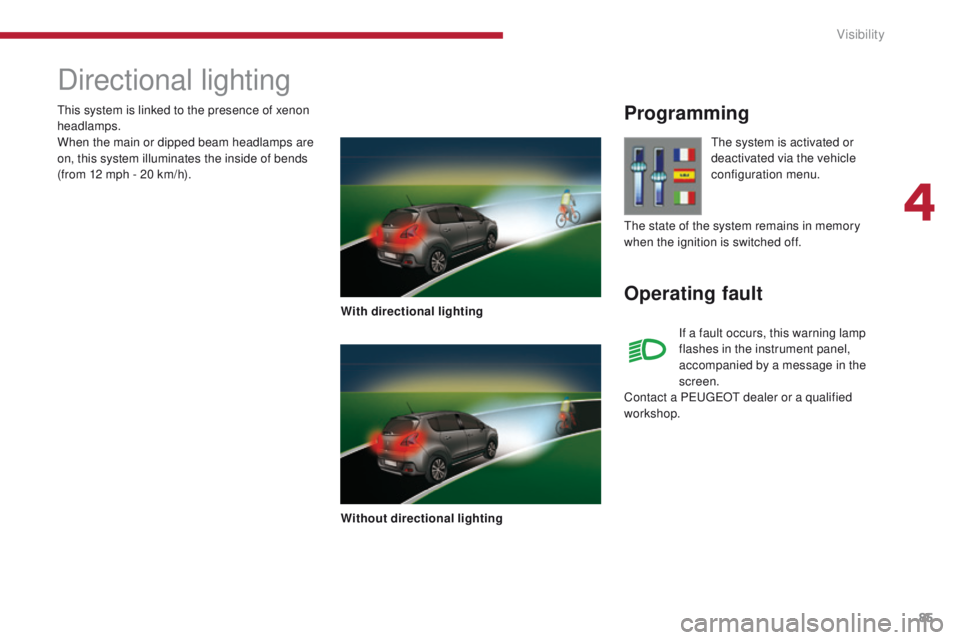

Directional lighting
With directional lighting
Without directional lighting
Programming
Operating fault
The system is activated or
deactivated via the vehicle
configuration menu.
If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
screen.
Contact a PEUGEOT dealer or a qualified
workshop.
This system is linked to the presence of xenon
headlamps.
When the main or dipped beam headlamps are
on, this system illuminates the inside of bends
(from 12 mph - 20 km/h).
The state of the system remains in memory
when the ignition is switched off.
4
Visibility

86

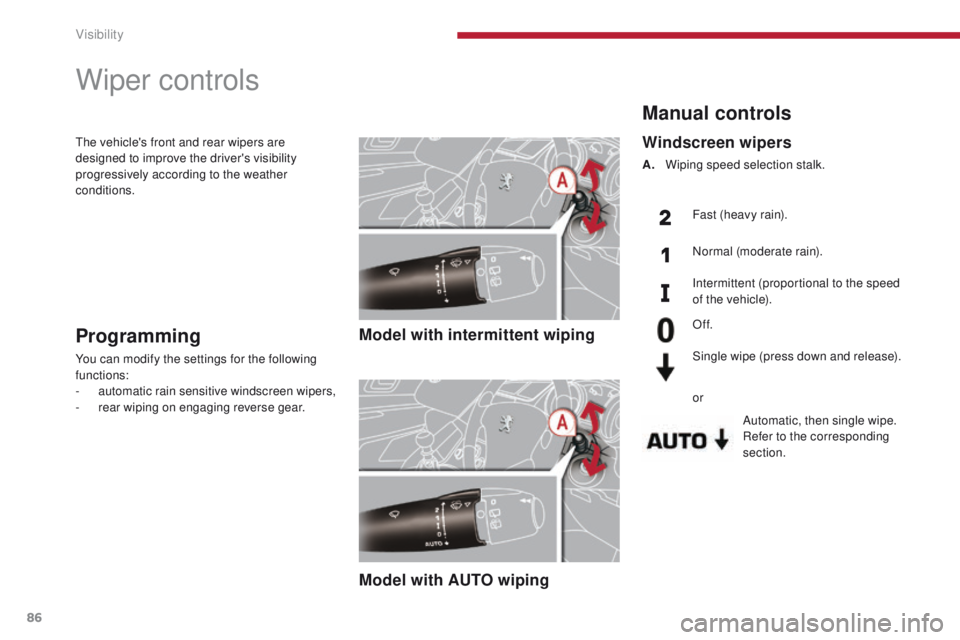

Manual controls
Automatic, then single wipe.
Refer to the corresponding
section.
Windscreen wipers
A. Wiping speed selection stalk.Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to the speed
of the vehicle).
Of f.
Single wipe (press down and release).
or
Wiper controls
Model with intermittent wiping
Model with AUTO wipingProgramming
You can modify the settings for the following
functions:
-
a
utomatic rain sensitive windscreen wipers,
-
r

ear wiping on engaging reverse gear.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the weather
conditions.
Visibility

87

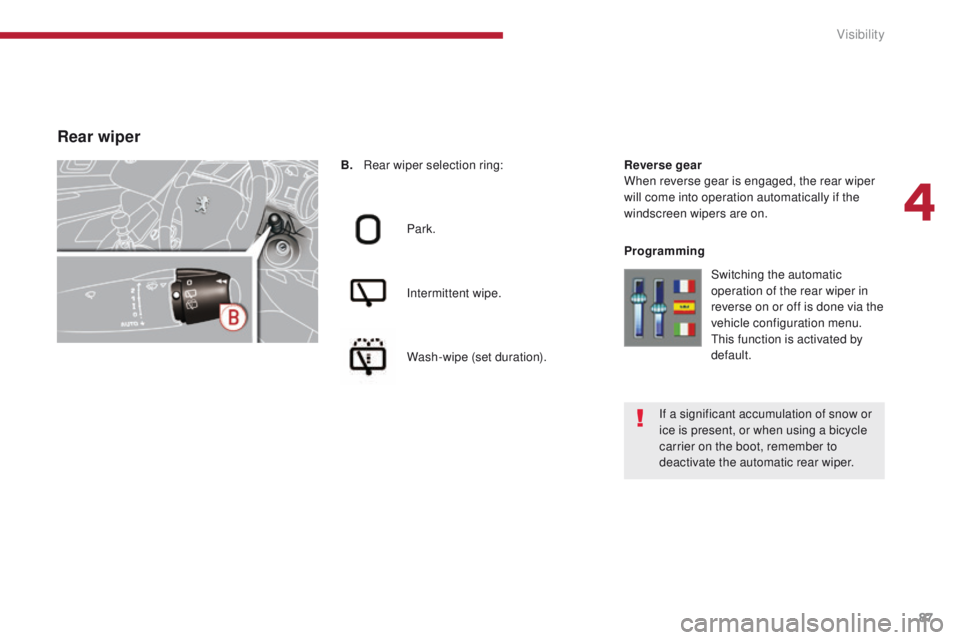

B. Rear wiper selection ring:Park.
Intermittent wipe.
Wash-wipe (set duration). Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are on.
Programming
Rear wiper
Switching the automatic
operation of the rear wiper in
reverse on or off is done via the
vehicle configuration menu.
This function is activated by
default.
If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, remember to
deactivate the automatic rear wiper.
4
Visibility

88

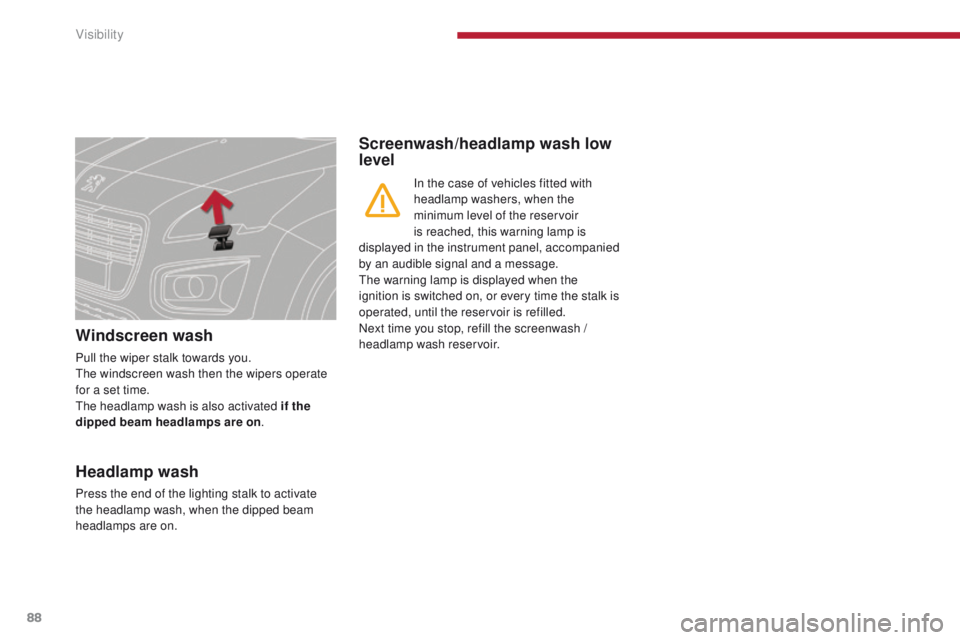

Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash then the wipers operate
for a set time.
The headlamp wash is also activated if the
dipped beam headlamps are on .
Screenwash/headlamp wash low
level
In the case of vehicles fitted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, accompanied
by an audible signal and a message.
The warning lamp is displayed when the
ignition is switched on, or every time the stalk is
operated, until the reservoir is refilled.
Next time you stop, refill the screenwash
/
headlamp wash reservoir.
Headlamp wash
Press the end of the lighting stalk to activate
the headlamp wash, when the dipped beam
headlamps are on.
Visibility
