MONITORING
INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL OR AUTOMATIC GEARBOX
5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls the service information.
Resets the function to zero (trip dis- tance recorder or service indicator).
8. Instrument panel lighting dimmer.
Adjusts the brightness of the lighting of the instruments and controls. Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the en- gine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h). A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator * ,

service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
Displays
For more information, refer to the
section related to the button or
function and its associated display. The following functions are displayed in
accordance with the selection.
- Result of the CHECK.
- Alert messages symbol.
- Speed limiter / Cruise control.
- Gear shift indicator.
- Automatic gearbox.
- Trip computer.
* Depending on version.

1
i
22
MONITORING
INSTRUMENT PANELS, PETROL OR DIESEL, MANUAL OR AUTOMATIC GEARBOX, WITH NAVIGATION
* Depending on version.
Dials
1. Rev counter.
Indicates the speed of rotation of the engine (x 1000 rpm).
2. Coolant temperature.
Indicates the temperature of the en- gine coolant (°Celsius).
3. Fuel level.
Indicates the quantity of fuel remain- ing in the tank.
4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h). 5. Small screen.
6. Central screen.
7. Control button.
Starts a manual CHECK and recalls
the service information.
Resets the function to zero (trip dis- tance recorder or service indicator).
8. Instrument panel lighting dimmer.
Adjusts the brightness of the lighting of the instruments and controls.
For more information, refer to the
section related to the button or
function and its associated display. Displays
A. Trip distance recorder.
(miles or km)
B. Distance recorder.
(miles or km)
C. Engine oil level indicator * ,

service indicator.
(miles or km)
These two functions are displayed when the ignition is switched on,
then disappear after a few seconds.
The following functions are displayed in
accordance with the selection.
- Result of the CHECK.
- Alert messages.
- Speed limiter / Cruise control.
- Gear shift indicator.
- Automatic gearbox.
-
Navigation - Guidance / Trip computer.
- Repeat of the current speed.

1
24
MONITORING

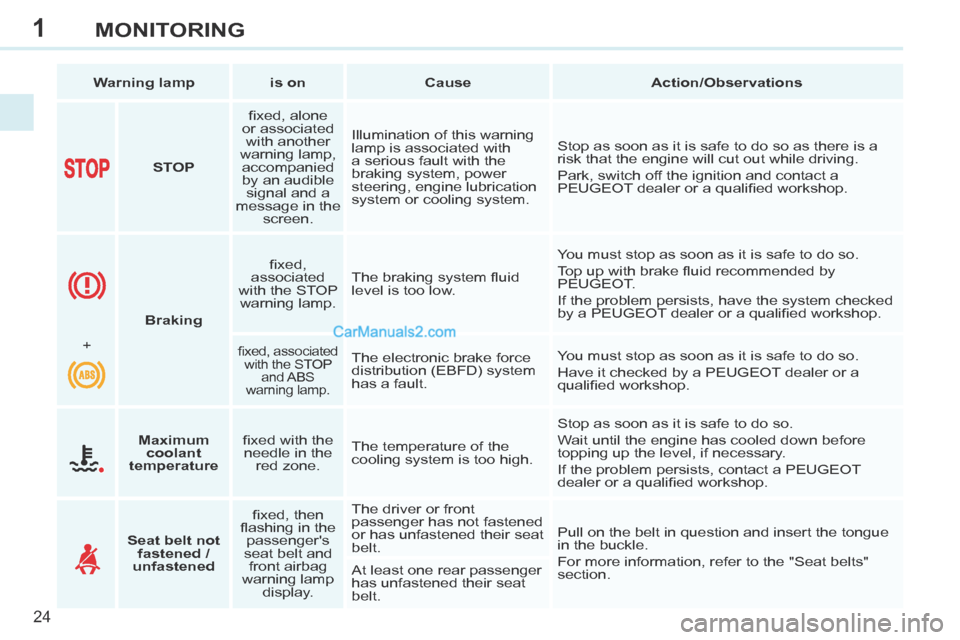

Warning lamp is on Cause Action/Observations
STOP fi xed, alone
or associated with another
warning lamp, accompanied
by an audible signal and a
message in the screen. Illumination of this warning
lamp is associated with
a serious fault with the
braking system, power
steering, engine lubrication
system or cooling system.
Stop as soon as it is safe to do so as there is a
risk that the engine will cut out while driving.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Braking fi xed,
associated
with the STOP warning lamp. The braking system fl uid
level is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualifi ed workshop.
+
fi xed, associated with the STOP and ABS
warning lamp. The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Maximum
coolant
temperature fi xed with the
needle in the red zone. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or a qualifi ed workshop.
Seat belt not fastened /
unfastened fi xed, then
fl ashing in the passenger's
seat belt and front airbag
warning lamp display. The driver or front
passenger has not fastened
or has unfastened their seat
belt.
Pull on the belt in question and insert the tongue
in the buckle.
For more information, refer to the "Seat belts"
section.
At least one rear passenger
has unfastened their seat
belt.

1
31
MONITORING

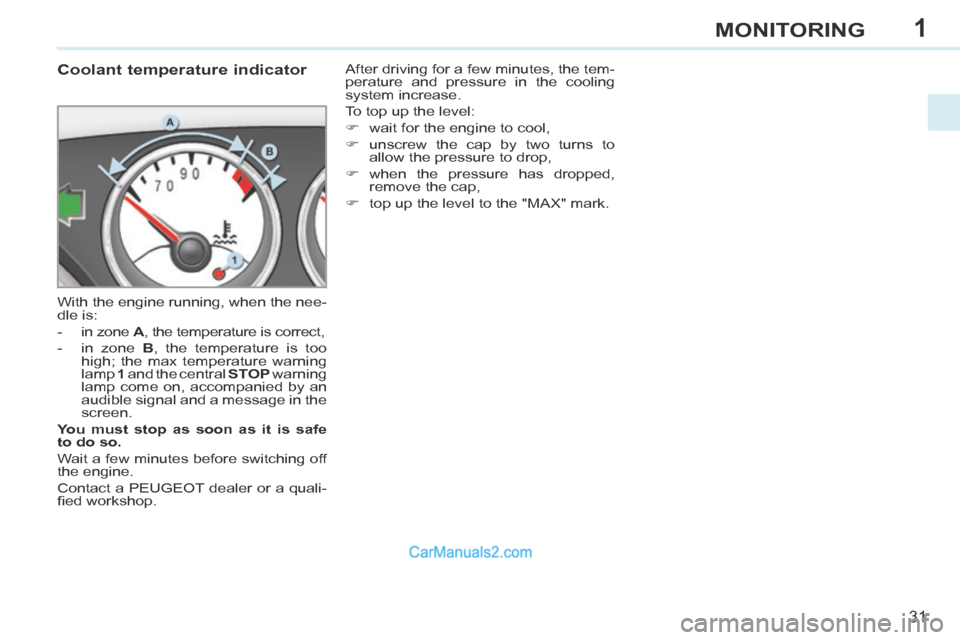

Coolant temperature indicator
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warning
lamp come on, accompanied by an
audible signal and a message in the
screen.
You must stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Contact a PEUGEOT dealer or a quali-
fi ed workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
 wait for the engine to cool,
 unscrew the cap by two turns to
allow the pressure to drop,
 when the pressure has dropped, remove the cap,
 top up the level to the "MAX" mark.

9
133
CHECKS

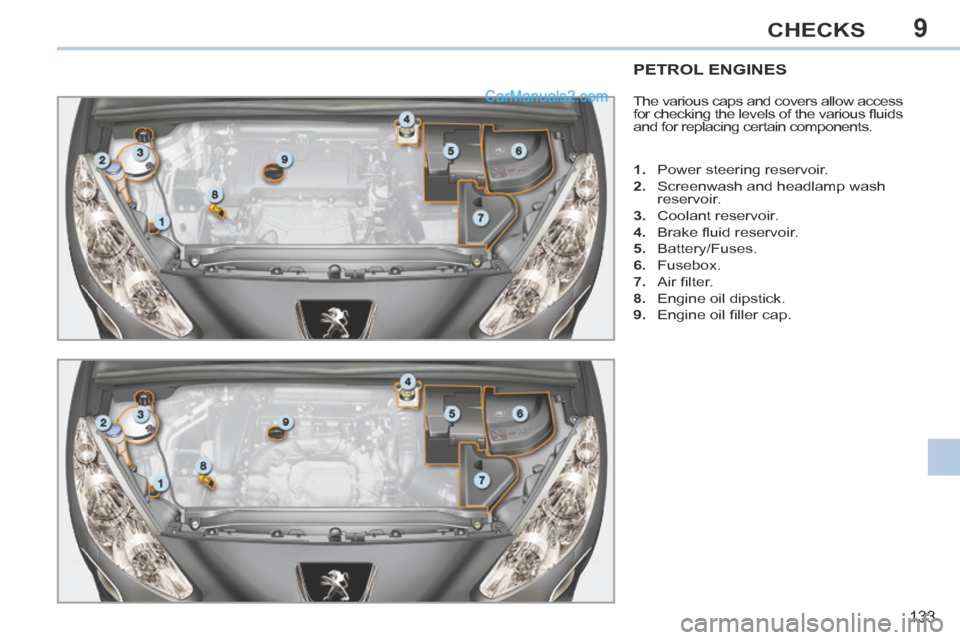

PETROL ENGINES
The various caps and covers allow access
for checking the levels of the various fl uids
and for replacing certain components.
1. Power steering reservoir.
2. Screenwash and headlamp wash reservoir.
3. Coolant reservoir.
4. Brake fl uid reservoir.
5. Battery/Fuses.
6. Fusebox.
7. Air fi lter.
8. Engine oil dipstick.
9. Engine oil fi ller cap.

9
134
CHECKS

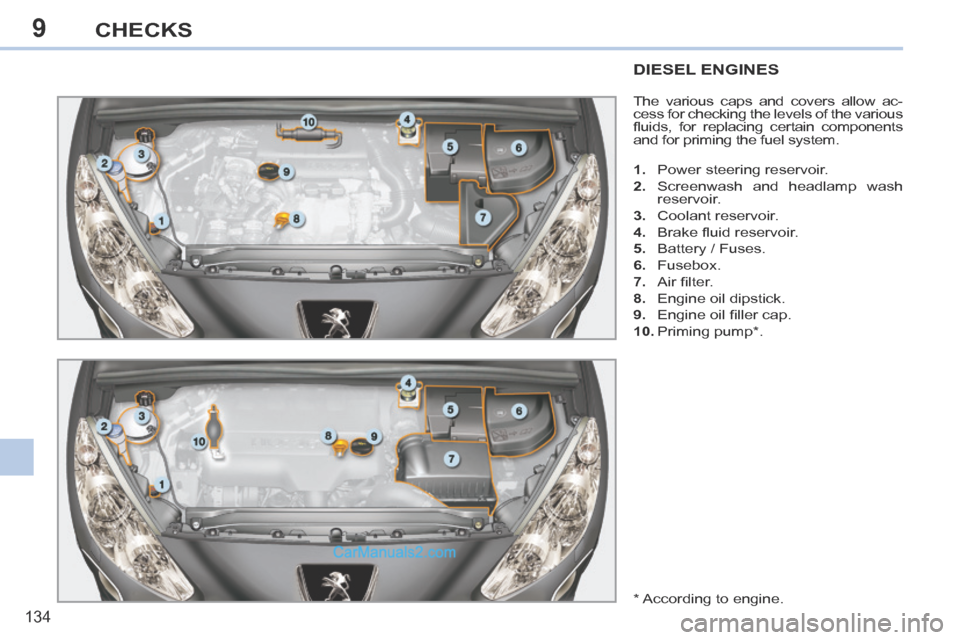

DIESEL ENGINES
The various caps and covers allow ac-
cess for checking the levels of the various
fl uids, for replacing certain components
and for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash reservoir.
3. Coolant reservoir.
4. Brake fl uid reservoir.
5. Battery / Fuses.
6. Fusebox.
7. Air fi lter.
8. Engine oil dipstick.
9. Engine oil fi ller cap.
10. Priming pump * .
* According to engine.

9
i
136
CHECKS

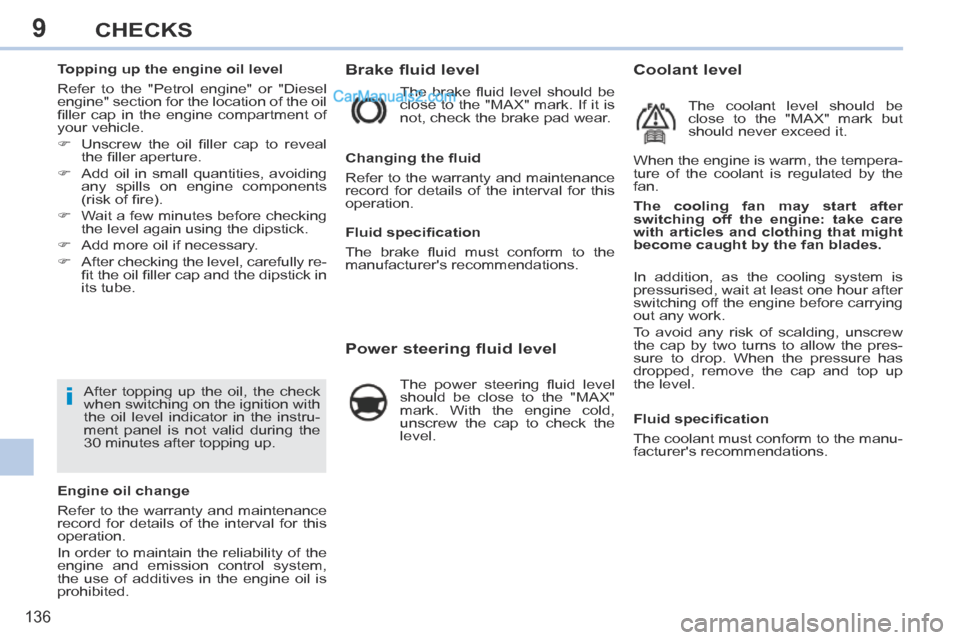

Brake fluid level
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.
Power steering fluid level
The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold,
unscrew the cap to check the
level.
Changing the fl uid
Refer to the warranty and maintenance
record for details of the interval for this
operation.
When the engine is warm, the tempera-
ture of the coolant is regulated by the
fan.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.
Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Topping up the engine oil level
Refer to the "Petrol engine" or "Diesel
engine" section for the location of the oil
fi ller cap in the engine compartment of
your vehicle.
 Unscrew the oil fi ller cap to reveal
the fi ller aperture.
 Add oil in small quantities, avoiding any spills on engine components
(risk of fi re).
 Wait a few minutes before checking the level again using the dipstick.
 Add more oil if necessary.
 After checking the level, carefully re- fi t the oil fi ller cap and the dipstick in
its tube.
After topping up the oil, the check
when switching on the ignition with
the oil level indicator in the instru-
ment panel is not valid during the
30 minutes after topping up.
Engine oil change
Refer to the warranty and maintenance
record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.

10
158
PRACTICAL INFORMATION

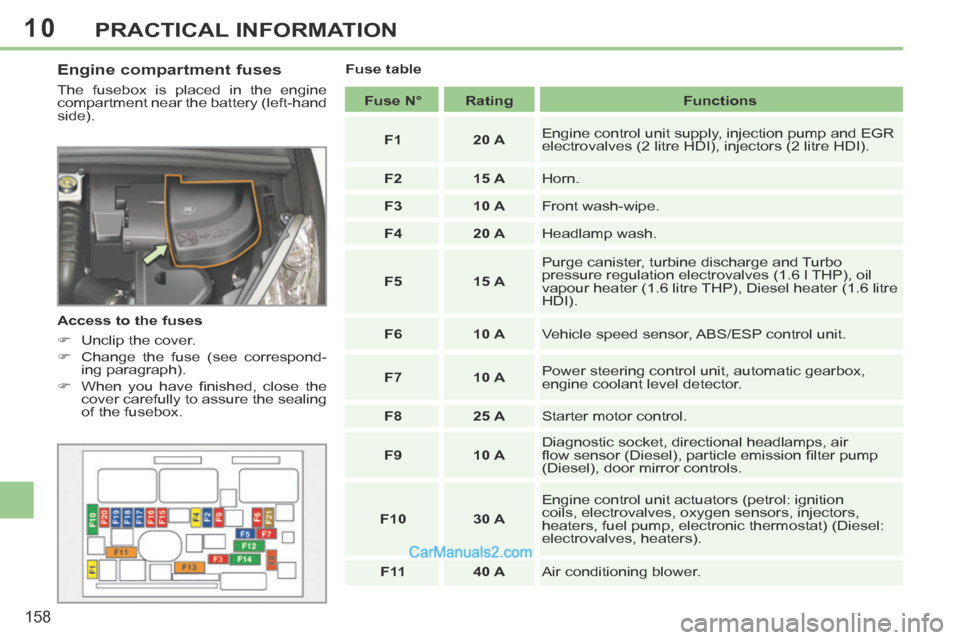

Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses
 Unclip the cover.
 Change the fuse (see correspond-ing paragraph).
 When you have fi nished, close the cover carefully to assure the sealing
of the fusebox. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
electrovalves (2 litre HDI), injectors (2 litre HDI).
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
pressure regulation electrovalves (1.6 l THP), oil
vapour heater (1.6 litre THP), Diesel heater (1.6 litre
HDI).
F6 10 A Vehicle speed sensor, ABS/ESP control unit.
F7 10 A Power steering control unit, automatic gearbox,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl ow sensor (Diesel), particle emission fi lter pump
(Diesel), door mirror controls.
F10 30 A Engine control unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat) (Diesel:
electrovalves, heaters).
F 11 40 A Air conditioning blower.

10
159
PRACTICAL INFORMATION

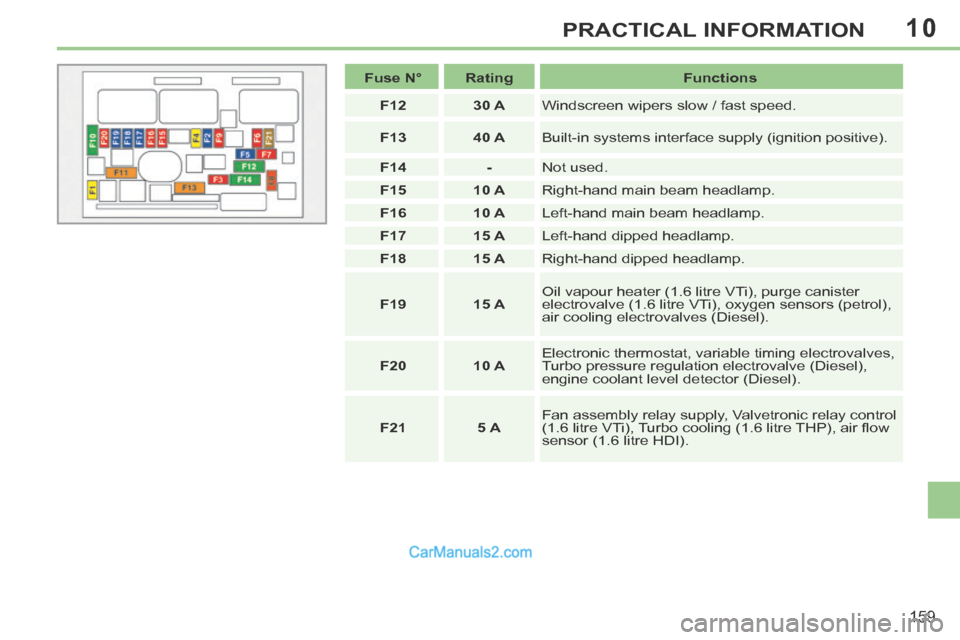

Fuse N° Rating Functions
F12 30 A Windscreen wipers slow / fast speed.
F13 40 A Built-in systems interface supply (ignition positive).
F14 - Not used.
F15 10 A Right-hand main beam headlamp.
F16 10 A Left-hand main beam headlamp.
F17 15 A Left-hand dipped headlamp.
F18 15 A Right-hand dipped headlamp.
F19 15 A Oil vapour heater (1.6 litre VTi), purge canister
electrovalve (1.6 litre VTi), oxygen sensors (petrol),
air cooling electrovalves (Diesel).
F20 10 A Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).
F21 5 A Fan assembly relay supply, Valvetronic relay control
(1.6 litre VTi), Turbo cooling (1.6 litre THP), air fl ow
sensor (1.6 litre HDI).

255

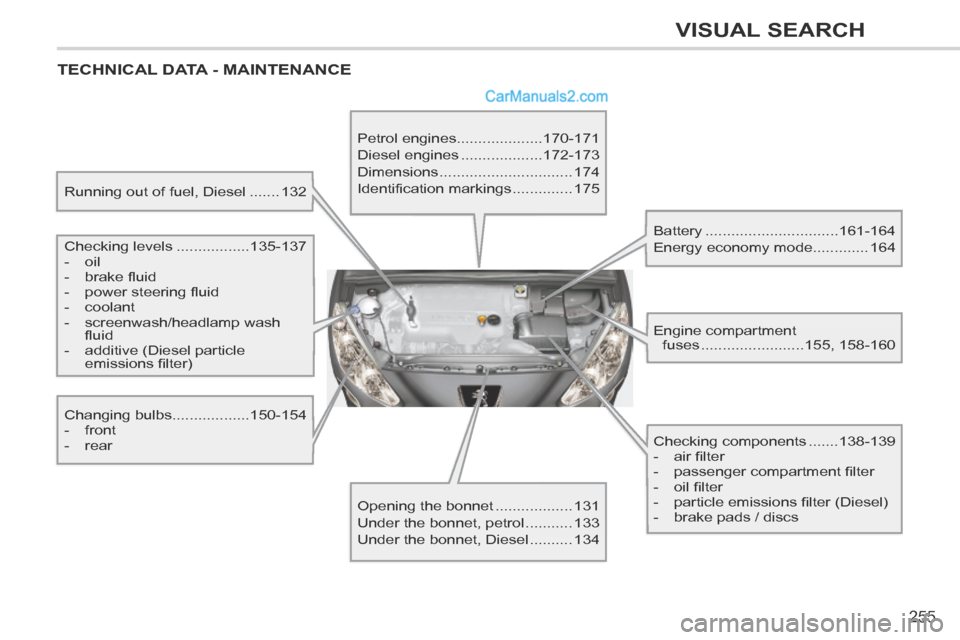

VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE
Running out of fuel, Diesel .......132
Checking levels ................. 135-137
- oil
- brake fl uid
- power steering fl uid
- coolant
- screenwash/headlamp wash fl uid
- additive (Diesel particle emissions fi lter)
Changing bulbs ..................150-154
- front
- rear Petrol engines
....................170-171
Diesel engines ................... 172-173
Dimensions ............................... 174
Identification markings .............. 175
Opening the bonnet .................. 131
Under the bonnet, petrol ........... 133
Under the bonnet, Diesel .......... 134 Battery ...............................
161-164
Energy economy mode .............164
Engine compartment fuses ........................ 155, 158-160
Checking components ....... 138-139
- air fi lter
- passenger compartment fi lter
- oil fi lter
- particle emissions fi lter (Diesel)
- brake pads / discs
