ACCESS
The rear windows do not have an
automatic mode or safety anti-
pinch function for closing.
Approximately 45 seconds after
removing the ignition key or open-
ing a door none of the windows can
be opened or closed. The ignition
must be switched back on in order
to open or close the windows.

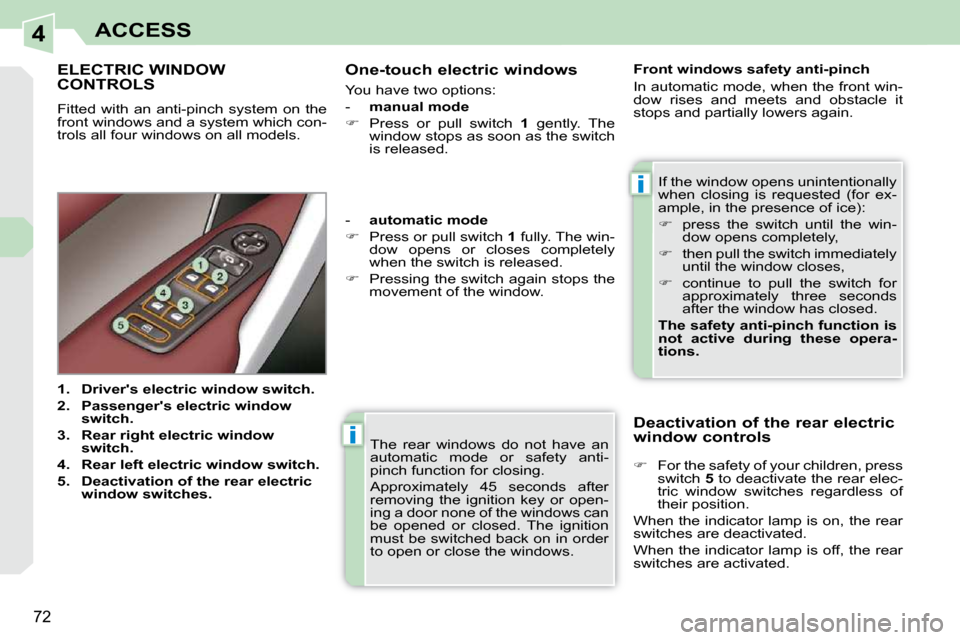

ELECTRIC WINDOW CONTROLS
Fitted with an anti-pinch system on the
front windows and a system which con-
trols all four windows on all models.

1. Driver's electric window switch.

2. Passenger's electric window
switch.

3. Rear right electric window
switch.

4. Rear left electric window switch.

5. Deactivation of the rear electric
window switches. If the window opens unintentionally
when closing is requested (for ex-
ample, in the presence of ice):

 press the switch until the win-
dow opens completely,

 then pull the switch immediately
until the window closes,

 continue to pull the switch for
approximately three seconds
after the window has closed.

The safety
anti
-
pinch
function is
not active during these opera-
tions.
Front windows safety anti-pinch
In automatic mode, when the front win-
dow rises and meets and obstacle it
stops and partially lowers again.
- automatic mode

 Press or pull switch 1 fully. The win-
dow opens or closes completely
when the switch is released.

 Pressing the switch again stops the
movement of the window.
One-touch electric windows
You have two options:
-
manual mode

 Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
Deactivation of the rear electric
window controls

 For the safety of your children, press
switch 5 to deactivate the rear elec-
tric window switches regardless of
their position.
When the indicator lamp is on, the rear
switches are deactivated.
When the indicator lamp is off, the rear
switches are activated.

4
!
i
i
73
ACCESS
This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows.

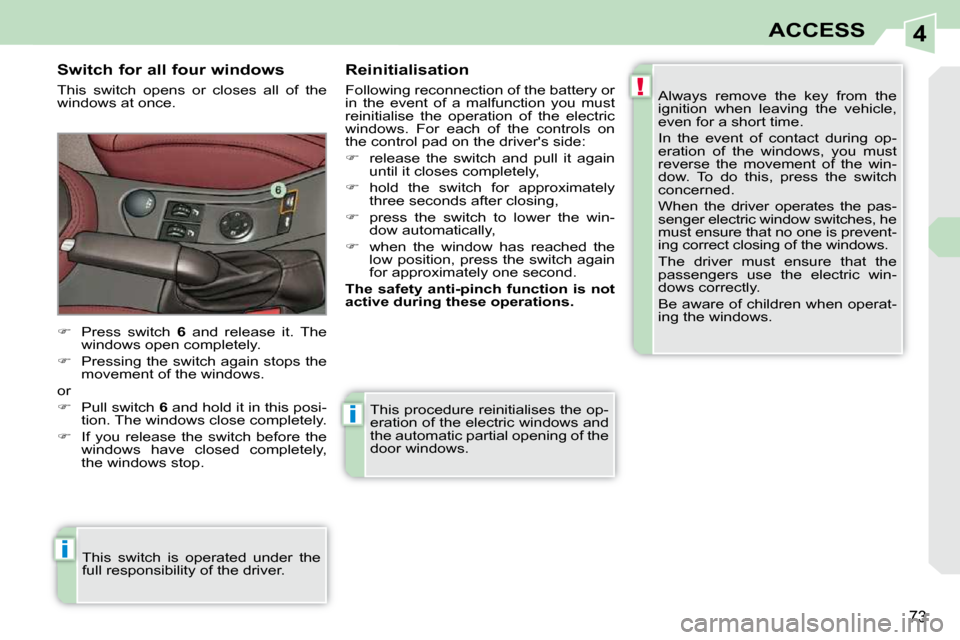

Switch for all four windows
This switch opens or closes all of the
windows at once.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows. For each of the controls on
the control pad on the driver's side:

 release the switch and pull it again
until it closes completely,

 hold the switch for approximately
three seconds after closing,

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second.

The safety anti-pinch function is not
active during these operations.

 Press switch 6 and release it. The
windows open completely.

 Pressing the switch again stops the
movement of the windows.
or

 Pull switch 6 and hold it in this posi-
tion. The windows close completely.

 If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver.

4
!
i
i
i
i
74
ACCESS

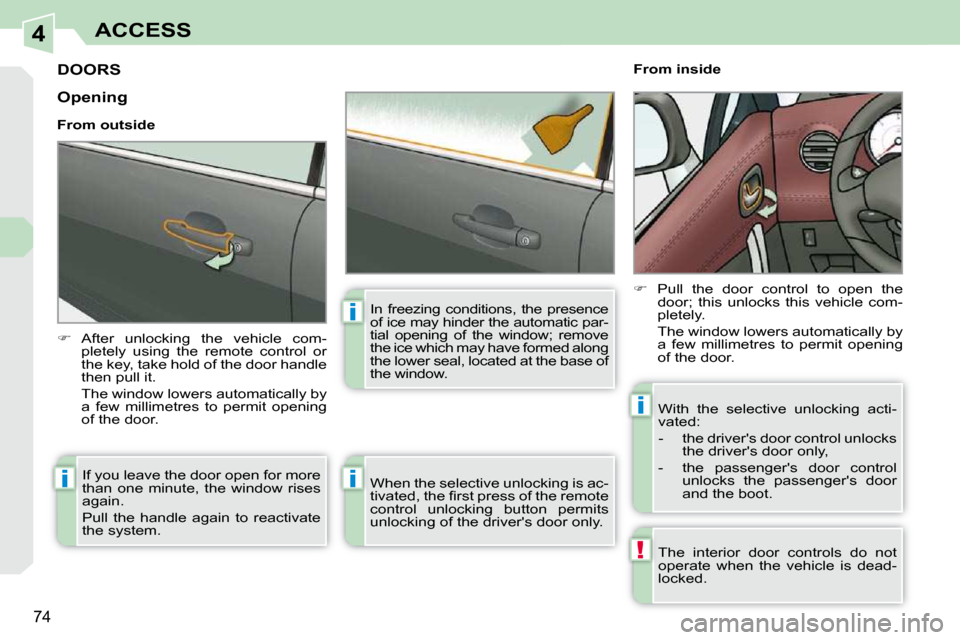

DOORS

 After unlocking the vehicle com-
pletely using the remote control or
the key, take hold of the door handle
then pull it.
The window lowers automatically by a few millimetres to permit opening
of the door. From inside

 Pull the door control to open the
door; this unlocks this vehicle com-
pletely.
The window lowers automatically by a few millimetres to permit opening
of the door.
The interior door controls do not
operate when the vehicle is dead-
locked.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system.
Opening
From outside
When the selective unlocking is ac-
tivated, the fi rst press of the remote
control unlocking button permits
unlocking of the driver's door only. With the selective unlocking acti-
vated:
- the driver's door control unlocks
the driver's door only,
- the passenger's door control unlocks the passenger's door
and the boot.
In freezing conditions, the presence
of ice may hinder the automatic par-
tial opening of the window; remove
the ice which may have formed along
the lower seal, located at the base of
the window.

4
i
i
!
!
75
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.

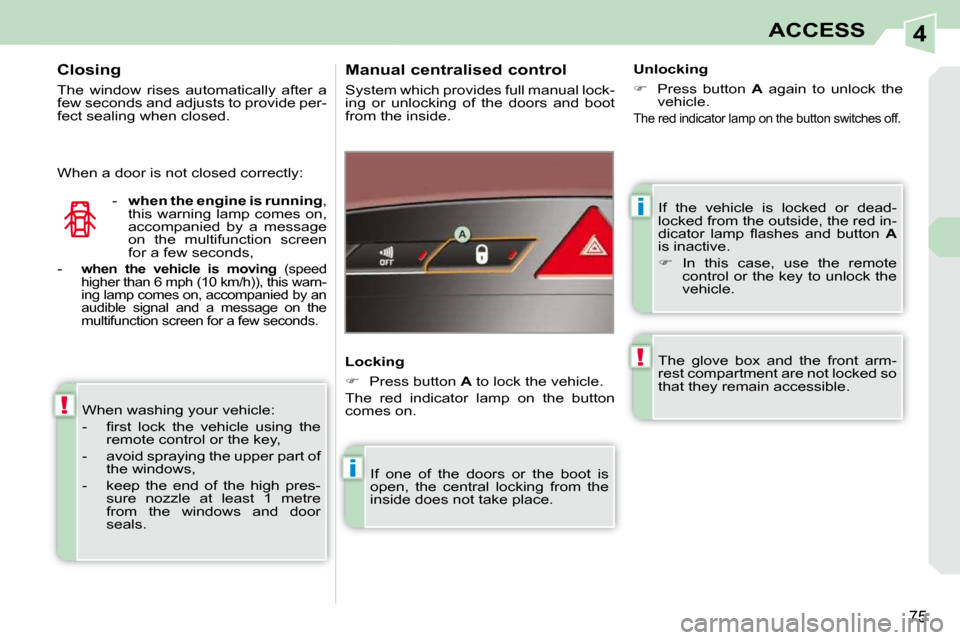

Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors or the boot is
open, the central locking from the
inside does not take place. Unlocking

 Press button A again to unlock the
vehicle.

The red indicator lamp on the button switches off.
The glove box and the front arm-
rest compartment are not locked so
that they remain accessible.
Closing
The window rises automatically after a
few seconds and adjusts to provide per-
fect sealing when closed.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-

when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
When washing your vehicle:
- fi rst lock the vehicle using the remote control or the key,
- avoid spraying the upper part of the windows,
- keep the end of the high pres- sure nozzle at least 1 metre
from the windows and door
seals.
When a door is not closed correctly:

4
!
76
ACCESS
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen. Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door

 Pull the interior door opening con-
trol.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is ac-
tive.

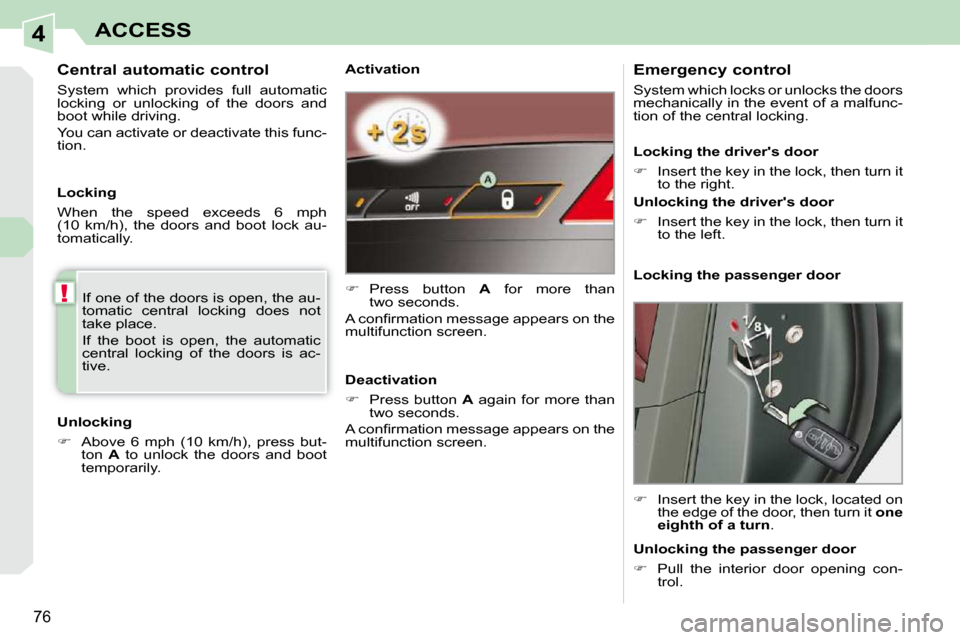

Central automatic control
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this func-
tion.
Unlocking

 Above 6 mph (10 km/h), press but-
ton A to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph
(10 km/h), the doors and boot lock au-
tomatically.

4
ii
77
ACCESS
Unlocking and partially opening
the boot

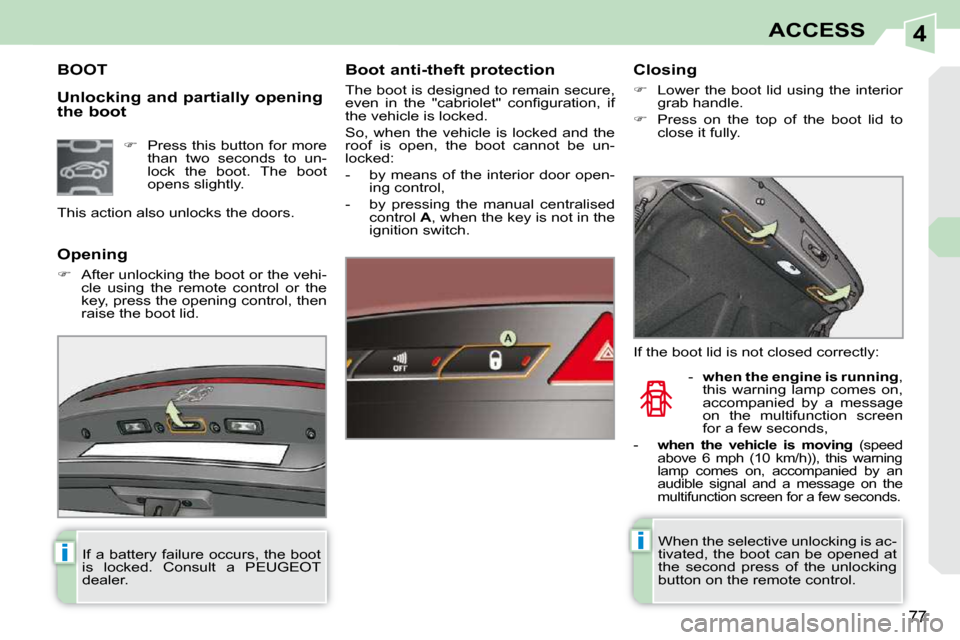

BOOT Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration, if
the vehicle is locked.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-ing control,
- by pressing the manual centralised control A , when the key is not in the
ignition switch.
Opening

 After unlocking the boot or the vehi-
cle using the remote control or the
key, press the opening control, then
raise the boot lid.
When the selective unlocking is ac-
tivated, the boot can be opened at
the second press of the unlocking
button on the remote control.

 Press this button for more
than two seconds to un-
lock the boot. The boot
opens slightly.
This action also unlocks the doors.
If a battery failure occurs, the boot
is locked. Consult a PEUGEOT
dealer. Closing

 Lower the boot lid using the interior
grab handle.

 Press on the top of the boot lid to
close it fully.
If the boot lid is not closed correctly: - when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-

when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.

4
i
78
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an in-
rush of air. This vacuum, which is
completely normal, is caused by
the sealing of the fuel system.

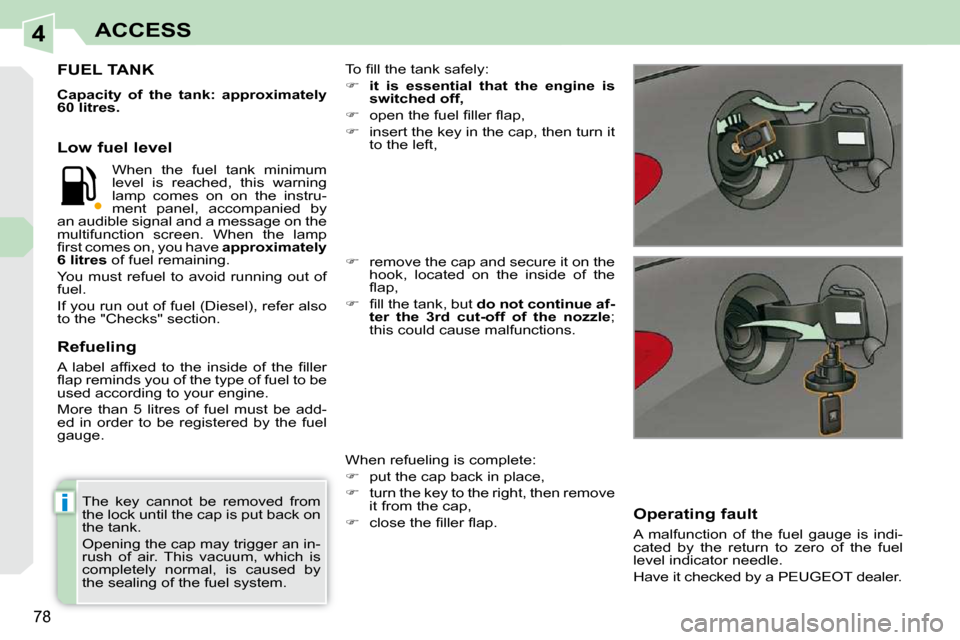

FUEL TANK

Capacity of the tank: approximately
60 litres. To fi ll the tank safely:

 it is essential that the engine is
switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When refueling is complete:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fi ller fl ap.

 remove the cap and secure it on the
hook, located on the inside of the
fl ap,

 fi ll the tank, but do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Refueling
A label affi xed to the inside of the fi ller
fl ap reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge. When the fuel tank minimum
level is reached, this warning
lamp comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction screen. When the lamp
fi rst comes on, you have approximately

6 litres of fuel remaining.
You must refuel to avoid running out of
fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Operating fault
A malfunction of the fuel gauge is indi-
cated by the return to zero of the fuel
level indicator needle.
Have it checked by a PEUGEOT dealer.

4
79
ACCESS

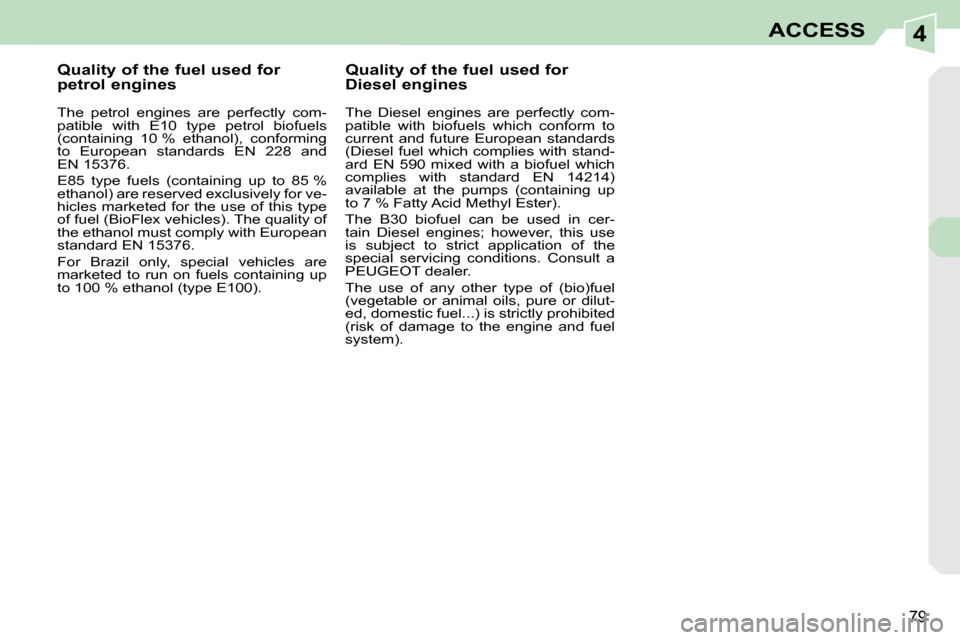

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15376.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (type E100). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stand-
ard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).

5
80
VISIBILITY

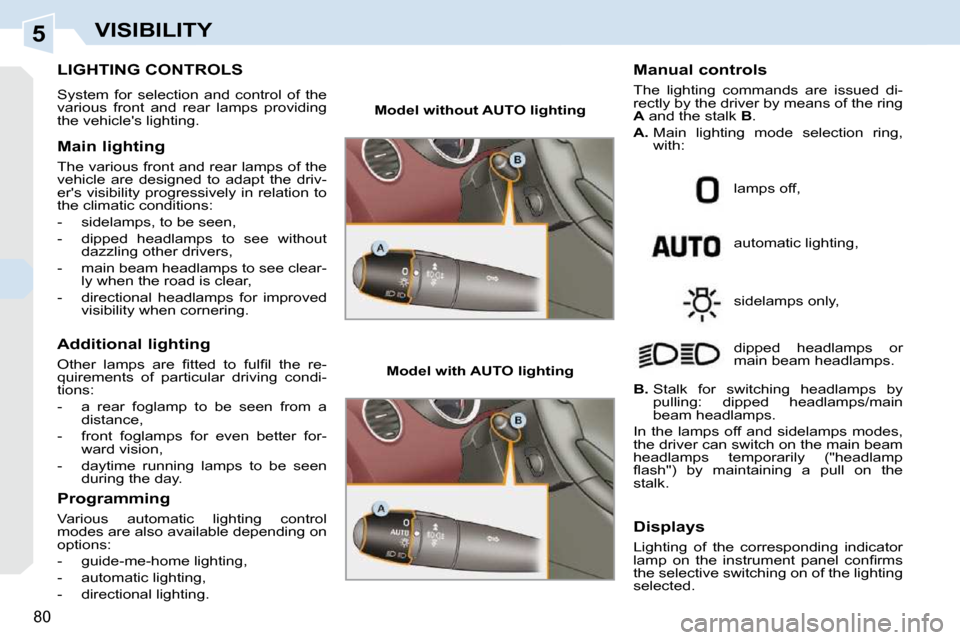

LIGHTING CONTROLS
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps to see clear- ly when the road is clear,
- directional headlamps for improved visibility when cornering.
Additional lighting
Other lamps are fi tted to fulfi l the re-
quirements of particular driving condi-
tions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better for- ward vision,
- daytime running lamps to be seen during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting automatic lighting,
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the ring

A and the stalk B .

A. Main lighting mode selection ring,
with:
lamps off,
sidelamps only,

B. Stalk for switching headlamps by
pulling: dipped headlamps/main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the
stalk. dipped headlamps or
main beam headlamps.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the selective switching on of the lighting
selected.

5
!i
i
81
VISIBILITY

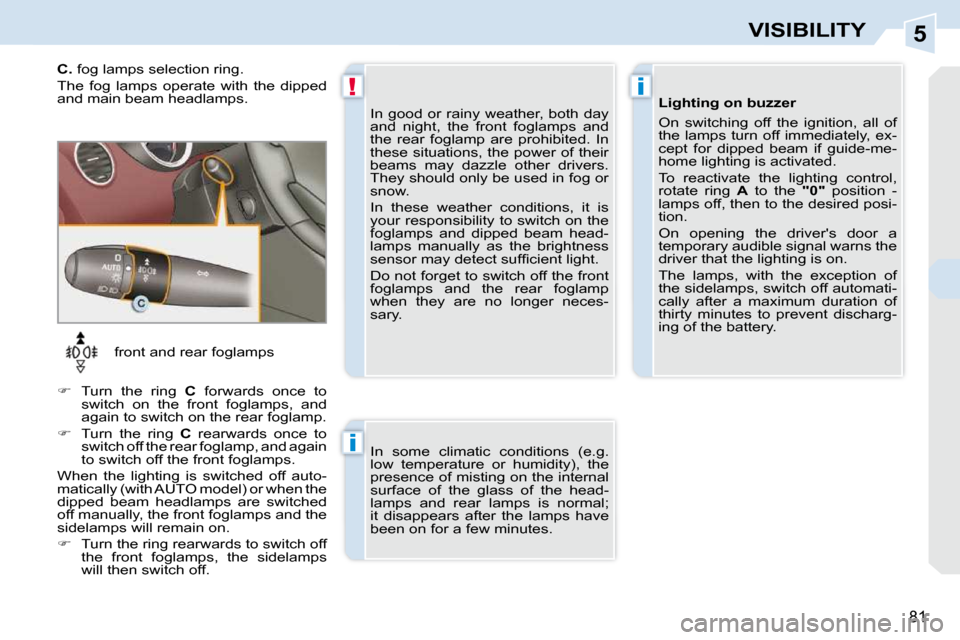

front and rear foglamps

 Turn the ring C forwards once to
switch on the front foglamps, and
again to switch on the rear foglamp.

 Turn the ring C rearwards once to
switch off the rear foglamp, and again
to switch off the front foglamps.
When the lighting is switched off auto-
matically (with AUTO model) or when the
dipped beam headlamps are switched
off manually, the front foglamps and the
sidelamps will remain on.

 Turn the ring rearwards to switch off
the front foglamps, the sidelamps
will then switch off. In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer neces-
sary.
Lighting on buzzer
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.
To reactivate the lighting control,
rotate ring
A to the "0" position -
lamps off, then to the desired posi-
tion.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.

C. fog lamps selection ring.
The fog lamps operate with the dipped
and main beam headlamps.
In some climatic conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
