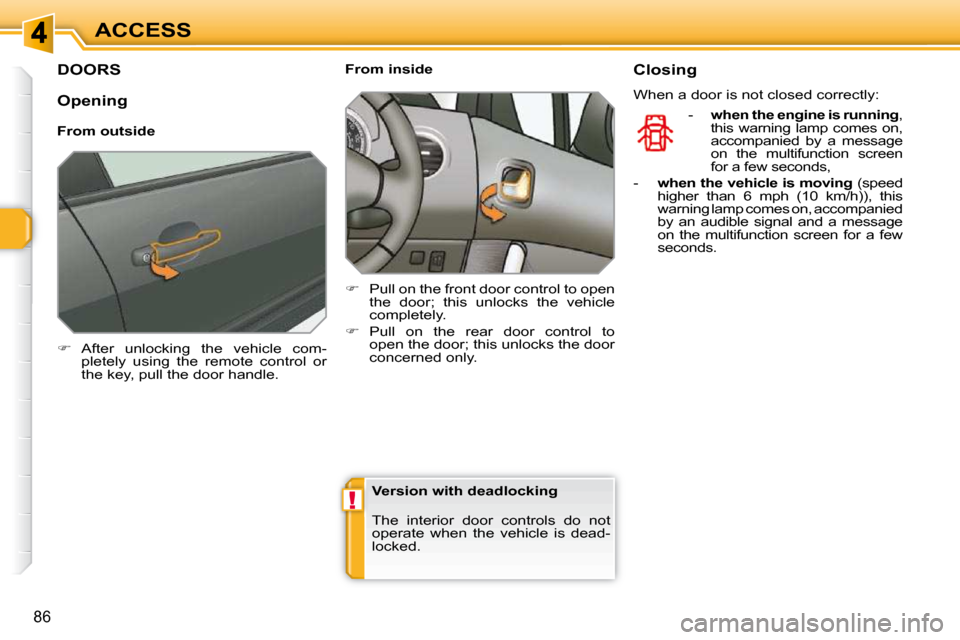

ACCESS
DOORS
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle. From inside
Pull on the front door control to open
the door; this unlocks the vehicle
completely.
Pull on the rear door control to
open the door; this unlocks the door
concerned only. Closing
When a door is not closed correctly:
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Opening
From outside
Version with deadlocking
The interior door controls do not
operate when the vehicle is dead-
locked.
Page 92 of 329
i
!
i
87
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
d i c a t o r l a m p fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot or the rear screen is
open, the automatic central locking
of the doors is active.

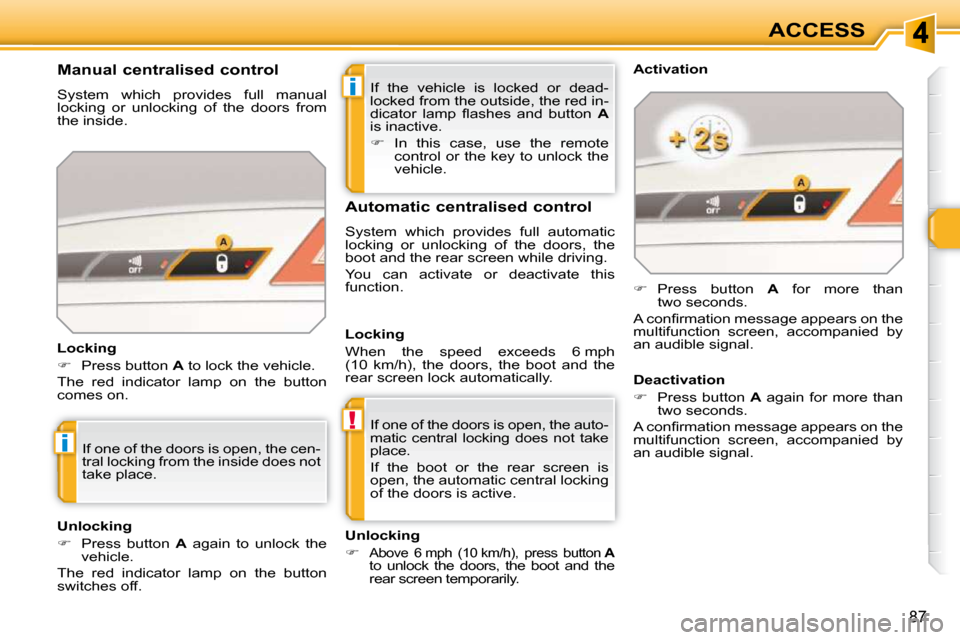

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, the
boot and the rear screen while driving.
You can activate or deactivate this
function. Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction screen, accompanied by
an audible signal.
Unlocking
Above 6 mph (10 km/h), press button A to unlock the doors, the boot and the
rear screen temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.
Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction screen, accompanied by
an audible signal.
Page 93 of 329
88
ACCESS

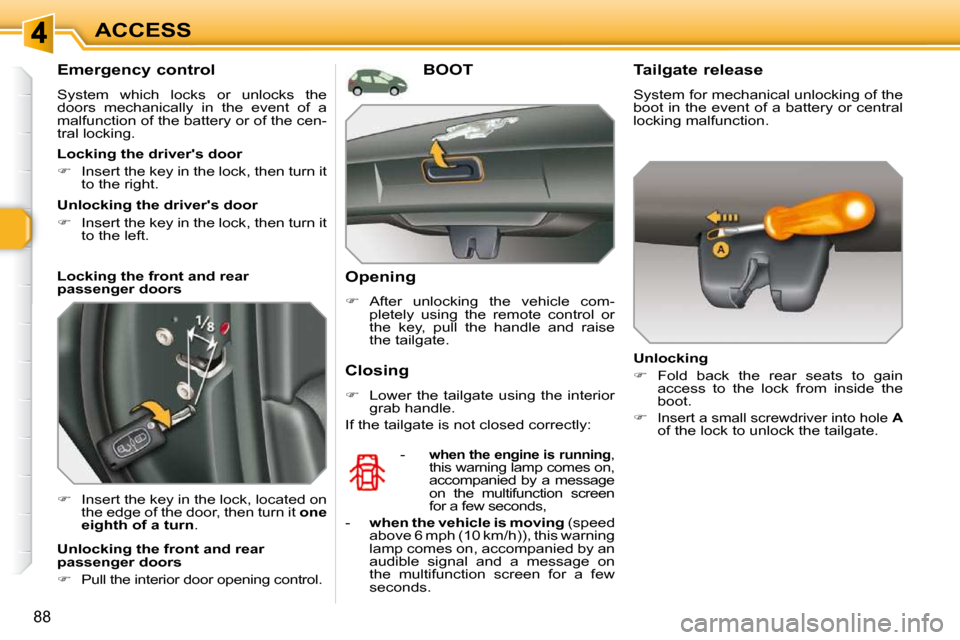

Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on
the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
Page 94 of 329
88
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on
the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
Page 95 of 329
ii
89
ACCESS
BOOT
Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, with the rear screen closed,
pull on the handle A and raise the
tailgate.
Closing
Lower the tailgate using the interior
grab handle.

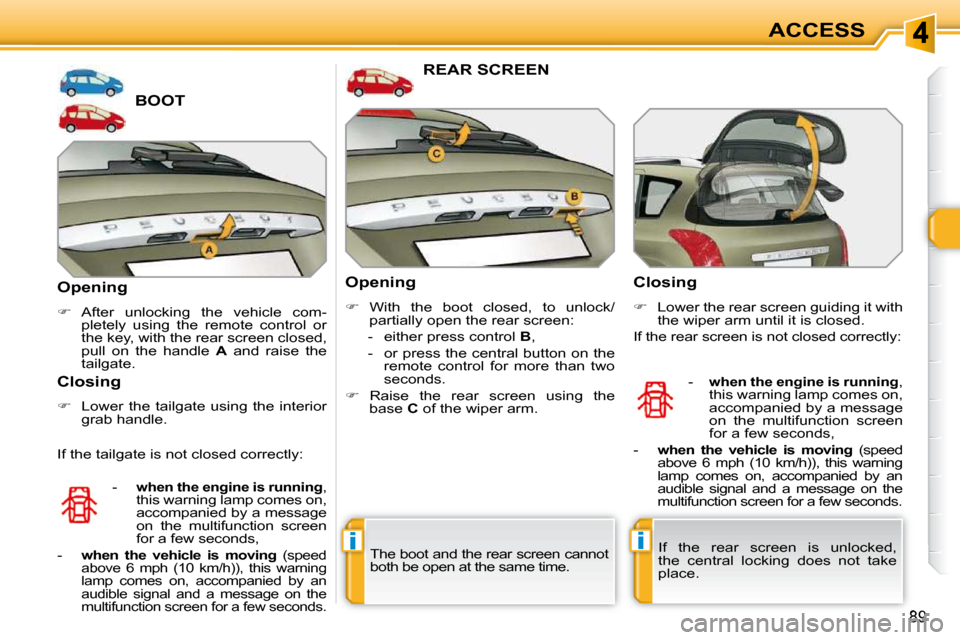

REAR SCREEN
Opening
With the boot closed, to unlock/
partially open the rear screen:
- either press control B ,
- or press the central button on the remote control for more than two
seconds.
Raise the rear screen using the
base C of the wiper arm. Closing
Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds. If the tailgate is not closed correctly:
The boot and the rear screen cannot
both be open at the same time.
If the rear screen is unlocked,
the central locking does not take
place.
Page 96 of 329
!
i
90
ACCESS

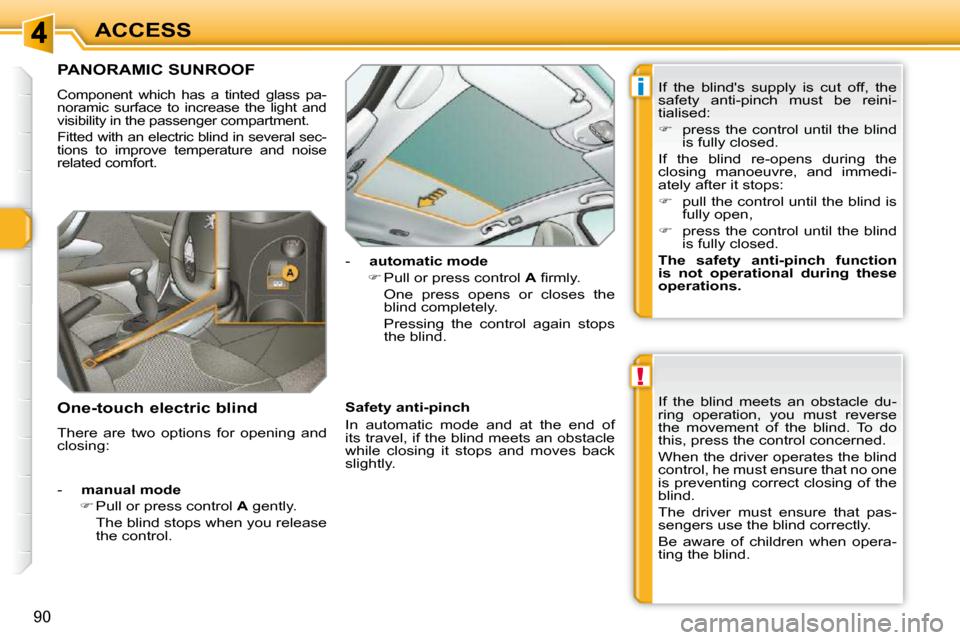

PANORAMIC SUNROOF
Component which has a tinted glass pa-
noramic surface to increase the light and
visibility in the passenger compartment.
Fitted with an electric blind in several sec-
tions to improve temperature and noise
related comfort.
If the blind meets an obstacle du-
ring operation, you must reverse
the movement of the blind. To do
this, press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when opera-
ting the blind.
-
manual mode
Pull or press control A gently.
The blind stops when you release the control. -
automatic mode
Pull or press control A fi r m l y .
One press opens or closes the blind completely.
Pressing the control again stops the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing: If the blind's supply is cut off, the
safety anti-pinch must be reini-
tialised:
press the control until the blind
is fully closed.
If the blind re-opens during the
closing manoeuvre, and immedi-
ately after it stops:
pull the control until the blind is
fully open,
press the control until the blind
is fully closed.
The safety anti-pinch function
is not operational during these
operations.
Page 97 of 329
i
91
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may trigger an air
intake noise. This vacuum, which is
perfectly normal, is caused by the
sealing of the fuel system.

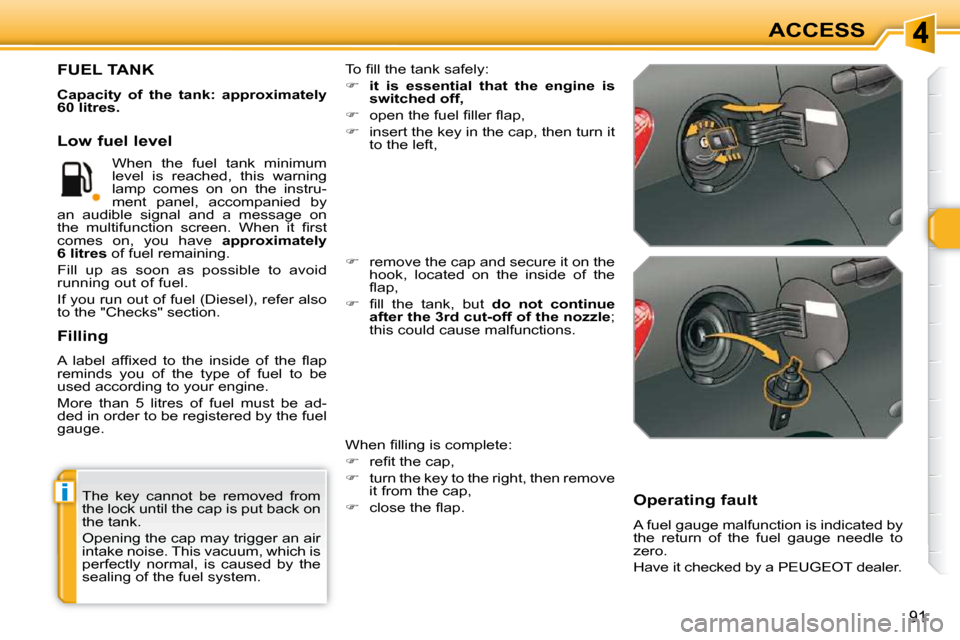

FUEL TANK
Capacity of the tank: approximately
60 litres. T o fi l l t h e t a n k s a f e l y :
it is essential that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n fi l l i n g i s c o m p l e t e :
r e fi t t h e c a p ,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and secure it on the
hook, located on the inside of the
fl a p ,
fi l l t h e t a n k , b u t do not continue
after the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be ad-
ded in order to be registered by the fuel
gauge.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel gauge needle to
zero.
Have it checked by a PEUGEOT dealer.
When the fuel tank minimum
level is reached, this warning
lamp comes on on the instru-
ment panel, accompanied by
an audible signal and a message on
t h e m u l t i f u n c t i o n s c r e e n . W h e n i t fi r s t
comes on, you have approximately
6 litres of fuel remaining.
Fill up as soon as possible to avoid
running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Page 98 of 329
i
92
ACCESS

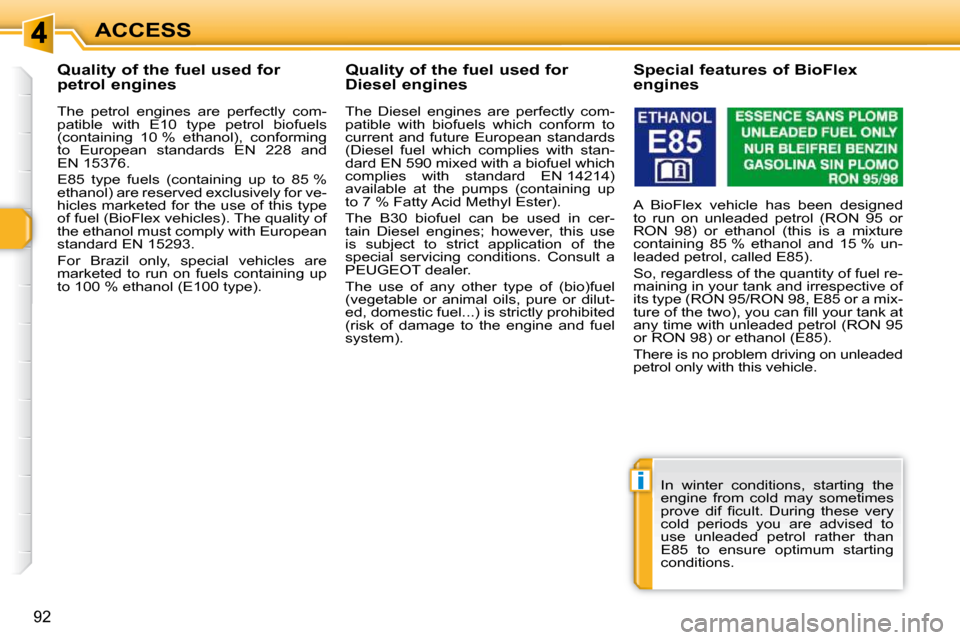

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system). Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85 % ethanol and 15 % un-
leaded petrol, called E85).
So, regardless of the quantity of fuel re-
maining in your tank and irrespective of
its type (RON 95/RON 98, E85 or a mix-
t u r e o f t h e t w o ) , y o u c a n fi l l y o u r t a n k a t
any time with unleaded petrol (RON 95
or RON 98) or ethanol (E85).
There is no problem driving on unleaded
petrol only with this vehicle.
In winter conditions, starting the
engine from cold may sometimes
p r o v e d i f fi c u l t . D u r i n g t h e s e v e r y
cold periods you are advised to
use unleaded petrol rather than
E85 to ensure optimum starting
conditions.
Page 99 of 329
93
VISIBILITY

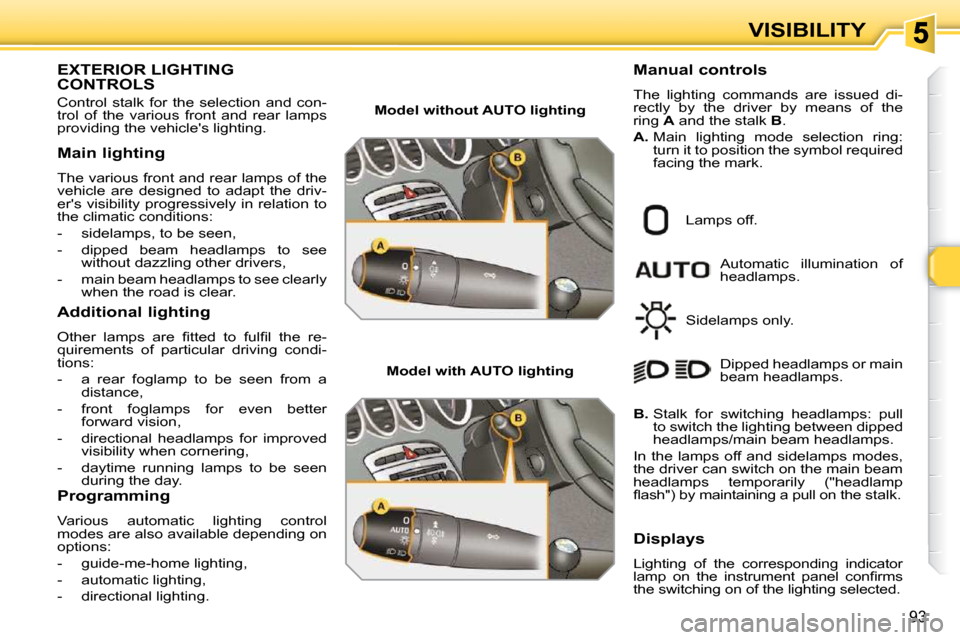

EXTERIOR LIGHTING CONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see without dazzling other drivers,
- main beam headlamps to see clearly when the road is clear.
Additional lighting
O t h e r l a m p s a r e fi t t e d t o f u l fi l t h e r e -
quirements of particular driving condi-
tions:
- a rear foglamp to be seen from a distance,
- front foglamps for even better forward vision,
- directional headlamps for improved visibility when cornering,
- daytime running lamps to be seen during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic lighting,
- directional lighting. Model without AUTO lighting
Model with AUTO lighting Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring
A and the stalk B .
A. Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.
B. Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl a s h " ) b y m a i n t a i n i n g a p u l l o n t h e s t a l k . Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
l a m p o n t h e i n s t r u m e n t p a n e l c o n fi r m s
the switching on of the lighting selected.
Page 100 of 329
!
i
94
VISIBILITY

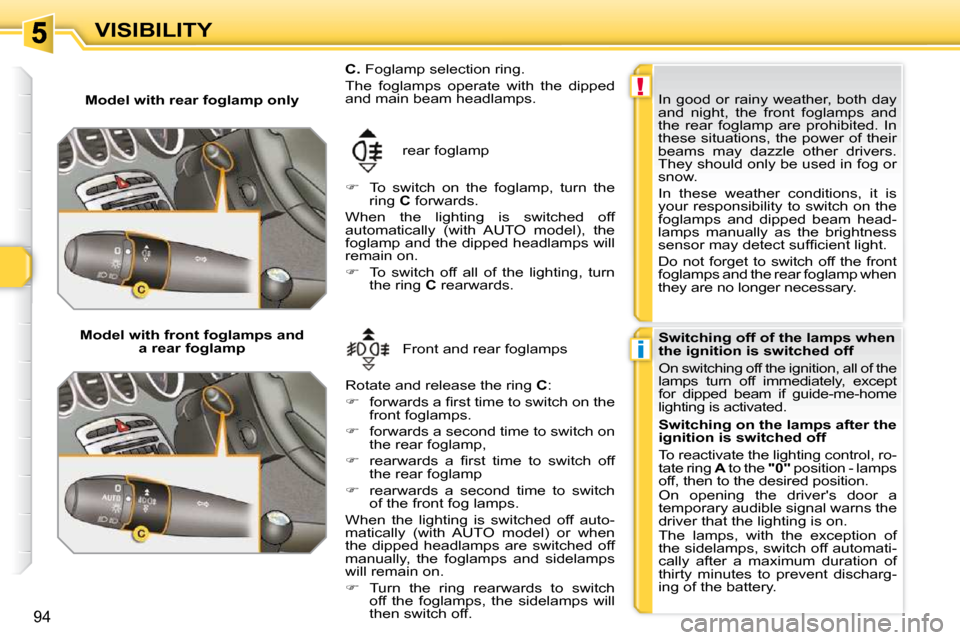

Model with rear foglamp only rear foglamp
To switch on the foglamp, turn the
ring C forwards.
When the lighting is switched off
a u t o m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e
foglamp and the dipped headlamps will
remain on.
To switch off all of the lighting, turn
the ring C rearwards. In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except
for dipped beam if guide-me-home
lighting is activated.
Model with front foglamps and
a rear foglamp Front and rear foglamps
Rotate and release the ring C :
f o r w a r d s a fi r s t t i m e t o s w i t c h o n t h e
front foglamps.
forwards a second time to switch on
the rear foglamp,
r e a r w a r d s a fi r s t t i m e t o s w i t c h o f f
the rear foglamp
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
C. Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Switching on the lamps after the
ignition is switched off
To reactivate the lighting control, ro-
tate ring A to the "0" position - lamps
off, then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a maximum duration of
thirty minutes to prevent discharg-
ing of the battery.
