Peugeot 308 SW BL 2009.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2009.5Pages: 329, PDF Size: 25.38 MB
Page 211 of 329
11
i
i
197
PRACTICAL INFORMATION

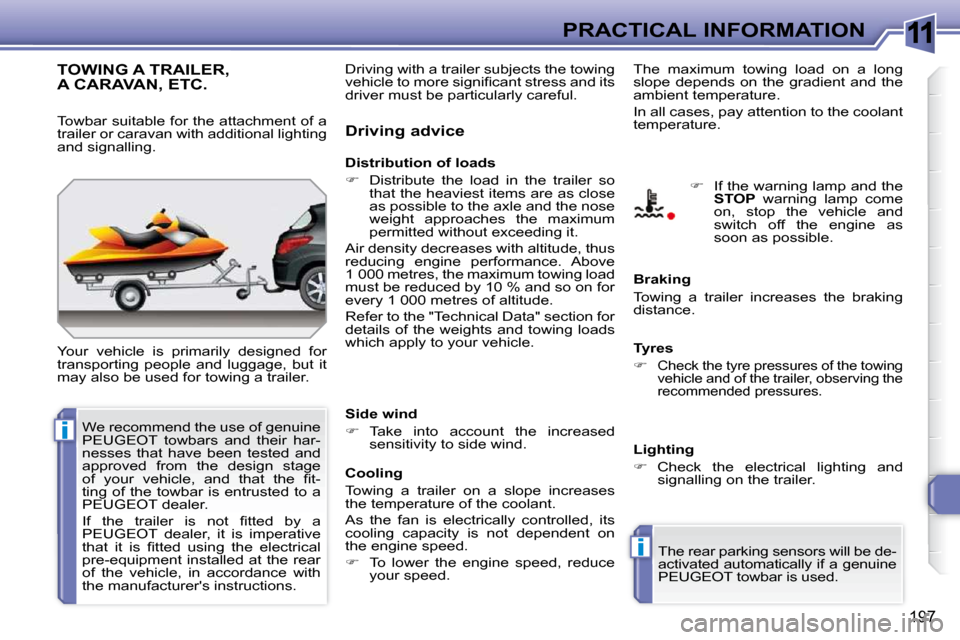

TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.
Page 212 of 329
11
ii
PRACTICAL INFORMATION

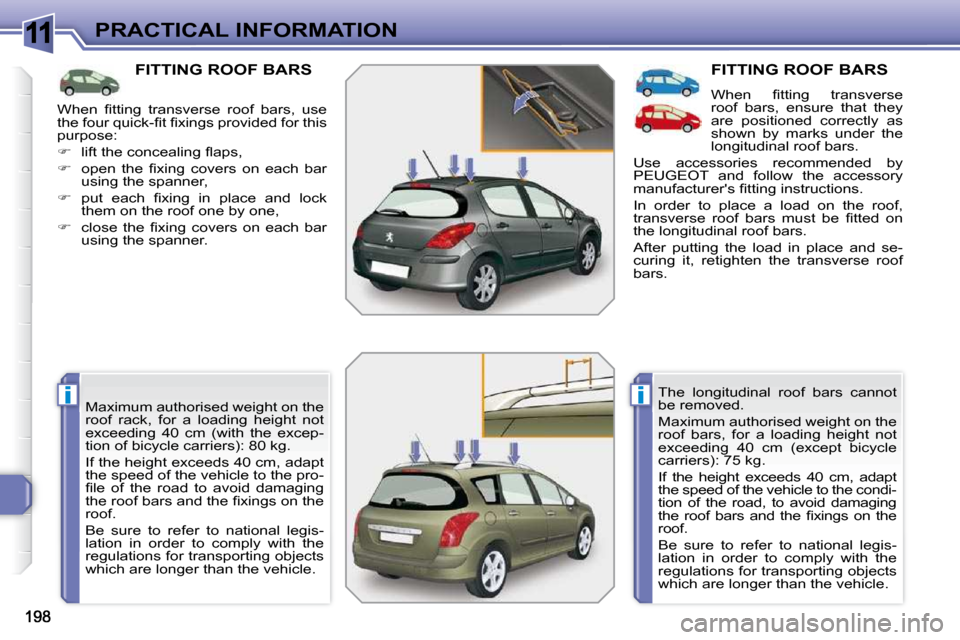

FITTING ROOF BARS
M a x i m u m a u t h o r i s e d w e i g h t o n t h e
roof rack, for a loading height not
e x c e e d i n g 4 0 c m ( w i t h t h e e x c e p -
t i o n o f b i c y c l e c a r r i e r s ) : 8 0 k g .
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the pro-
fi l e o f t h e r o a d t o a v o i d d a m a g i n g
t h e r o o f b a r s a n d t h e fi x i n g s o n t h e
roof.
B e s u r e t o r e f e r t o n a t i o n a l l e g i s -
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS
W h e n fi t t i n g t r a n s v e r s e
roof bars, ensure that they
are positioned correctly as
shown by marks under the
longitudinal roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ' s fi t t i n g i n s t r u c t i o n s .
In order to place a load on the roof,
t r a n s v e r s e r o o f b a r s m u s t b e fi t t e d o n
the longitudinal roof bars.
After putting the load in place and se-
curing it, retighten the transverse roof
bars.
The longitudinal roof bars cannot
be removed.
M a x i m u m a u t h o r i s e d w e i g h t o n t h e
roof bars, for a loading height not
e x c e e d i n g 4 0 c m ( e x c e p t b i c y c l e
c a r r i e r s ) : 7 5 k g .
I f t h e h e i g h t e x c e e d s 4 0 c m , a d a p t
the speed of the vehicle to the condi-
tion of the road, to avoid damaging
t h e r o o f b a r s a n d t h e fi x i n g s o n t h e
roof.
B e s u r e t o r e f e r t o n a t i o n a l l e g i s -
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
W h e n fi t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - fi t fi x i n g s p r o v i d e d f o r t h i s
p u r p o s e :
l i f t t h e c o n c e a l i n g fl a p s ,
o p e n t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner,
p u t e a c h fi x i n g i n p l a c e a n d l o c k
them on the roof one by one,
c l o s e t h e fi x i n g c o v e r s o n e a c h b a r
using the spanner.
Page 213 of 329
11
i
199
PRACTICAL INFORMATION

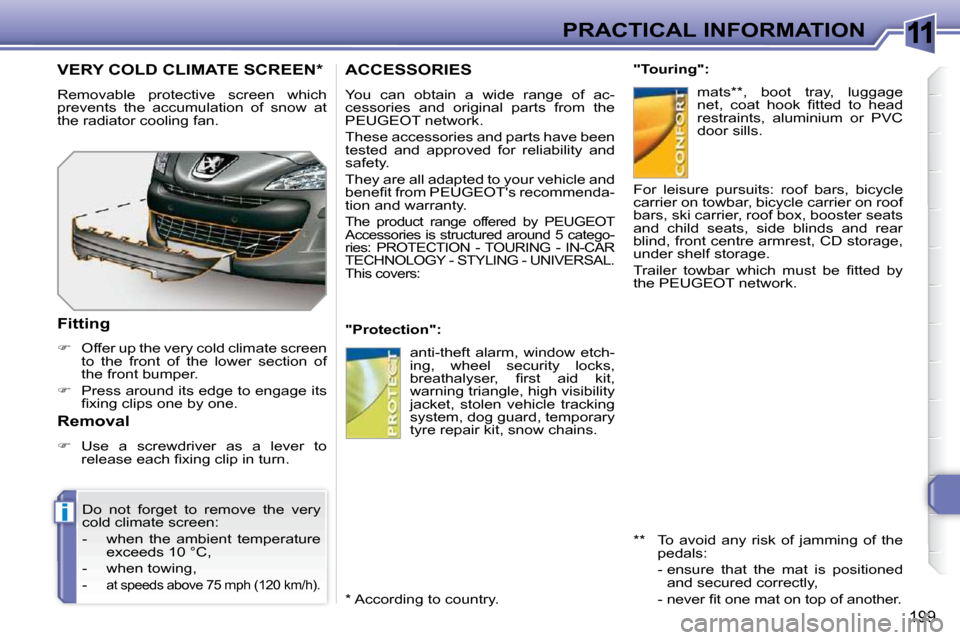

ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
T h i s c o v e r s :
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window etch-
ing, wheel security locks,
b r e a t h a l y s e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
Page 214 of 329
11
i
199
PRACTICAL INFORMATION
ACCESSORIES
You can obtain a wide range of ac-
cessories and original parts from the
PEUGEOT network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
T h i s c o v e r s :
"Protection": "Touring":
m a t s * * , b o o t t r a y , l u g g a g e
n e t , c o a t h o o k fi t t e d t o h e a d
restraints, aluminium or PVC
door sills.
anti-theft alarm, window etch-
ing, wheel security locks,
b r e a t h a l y s e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, dog guard, temporary
tyre repair kit, snow chains. F o r l e i s u r e p u r s u i t s : r o o f b a r s , b i c y c l e
carrier on towbar, bicycle carrier on roof
b a r s , s k i c a r r i e r , r o o f b o x , b o o s t e r s e a t s
and child seats, side blinds and rear
blind, front centre armrest, CD storage,
under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
* * T o a v o i d a n y r i s k o f j a m m i n g o f t h e
p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting
Offer up the very cold climate screen
to the front of the lower section of
the front bumper.
Press around its edge to engage its
fi x i n g c l i p s o n e b y o n e .
Do not forget to remove the very
c o l d c l i m a t e s c r e e n :
- when the ambient temperature e x c e e d s 1 0 ° C ,
- when towing,
-
a t s p e e d s a b o v e 7 5 m p h ( 1 2 0 k m / h ) .
Removal
Use a screwdriver as a lever to
r e l e a s e e a c h fi x i n g c l i p i n t u r n .
* A c c o r d i n g t o c o u n t r y .
Page 215 of 329
11
!
i
i

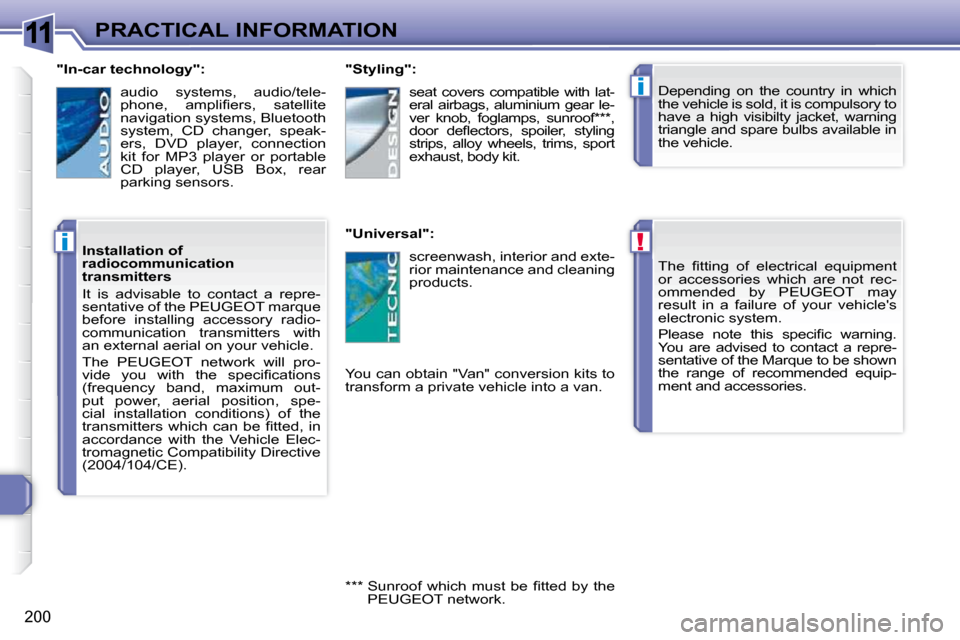

200
PRACTICAL INFORMATION T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibilty jacket, warning
triangle and spare bulbs available in
the vehicle.
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van. seat covers compatible with lat-
eral airbags, aluminium gear le-
v e r k n o b , f o g l a m p s , s u n r o o f * * * ,
d o o r d e fl e c t o r s , s p o i l e r , s t y l i n g
strips, alloy wheels, trims, sport
e x h a u s t , b o d y k i t .
s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
* * * S u n r o o f w h i c h m u s t b e fi t t e d b y t h e PEUGEOT network.
"In-car technology":
audio systems, audio/tele-
p h o n e , a m p l i fi e r s , s a t e l l i t e
n a v i g a t i o n s y s t e m s , B l u e t o o t h
system, CD changer, speak-
ers, DVD player, connection
kit for MP3 player or portable
C D p l a y e r , U S B B o x , r e a r
parking sensors.
Installation of
radiocommunication
transmitters
It is advisable to contact a repre-
sentative of the PEUGEOT marque
before installing accessory radio-
communication transmitters with
a n e x t e r n a l a e r i a l o n y o u r v e h i c l e .
The PEUGEOT network will pro-
v i d e y o u w i t h t h e s p e c i fi c a t i o n s
( f r e q u e n c y b a n d , m a x i m u m o u t -
put power, aerial position, spe-
c i a l i n s t a l l a t i o n c o n d i t i o n s ) o f t h e
t r a n s m i t t e r s w h i c h c a n b e fi t t e d , i n
accordance with the Vehicle Elec-
tromagnetic Compatibility Directive
( 2 0 0 4 / 1 0 4 / C E ) .
Page 216 of 329
12
201

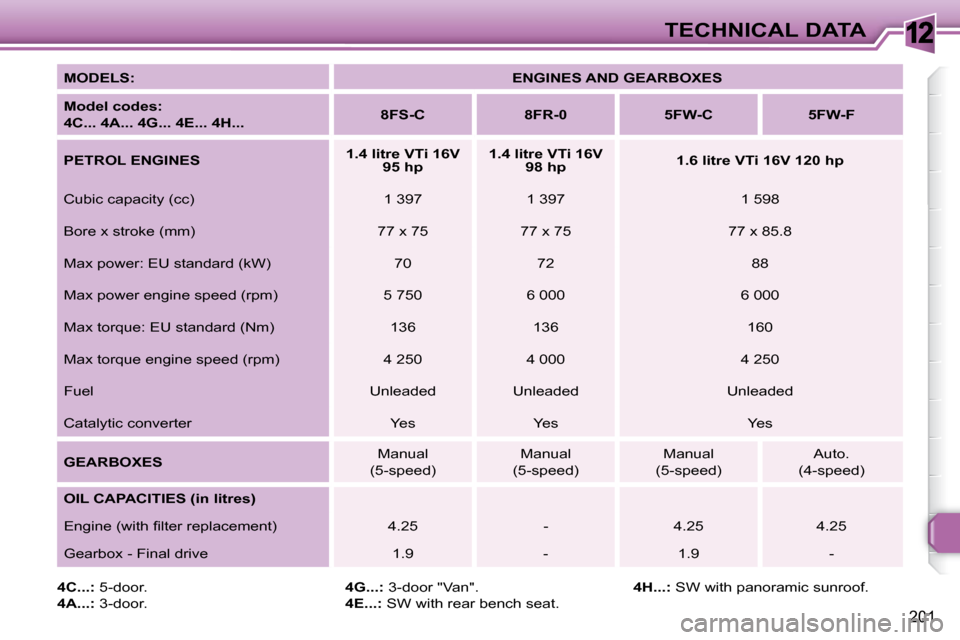

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4G... 4E... 4H...
8FS-C 8FR-0 5FW-C 5FW-F
PETROL ENGINES
1.4 litre VTi 16V
95
hp
1.4 litre VTi 16V
98
hp
1.6 litre VTi 16V 120
hp
Cubic capacity (cc) 1 397 1 397 1 598
Bore x stroke (mm) 77 x 75 77 x 75 77 x 85.8
Max power: EU standard (kW) 70 72 88
Max power engine speed (rpm) 5 750 6 000 6 000
Max torque: EU standard (Nm) 136 136 160
Max torque engine speed (rpm) 4 250 4 000 4 250
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed) Manual
(5-speed) Auto.
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 - 4.25 4.25
Gearbox - Final drive 1.9 - 1.9 -
4C...: 5-door.
4A...: 3-door.
4G...: 3-door "Van".
4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.
Page 217 of 329
12
202

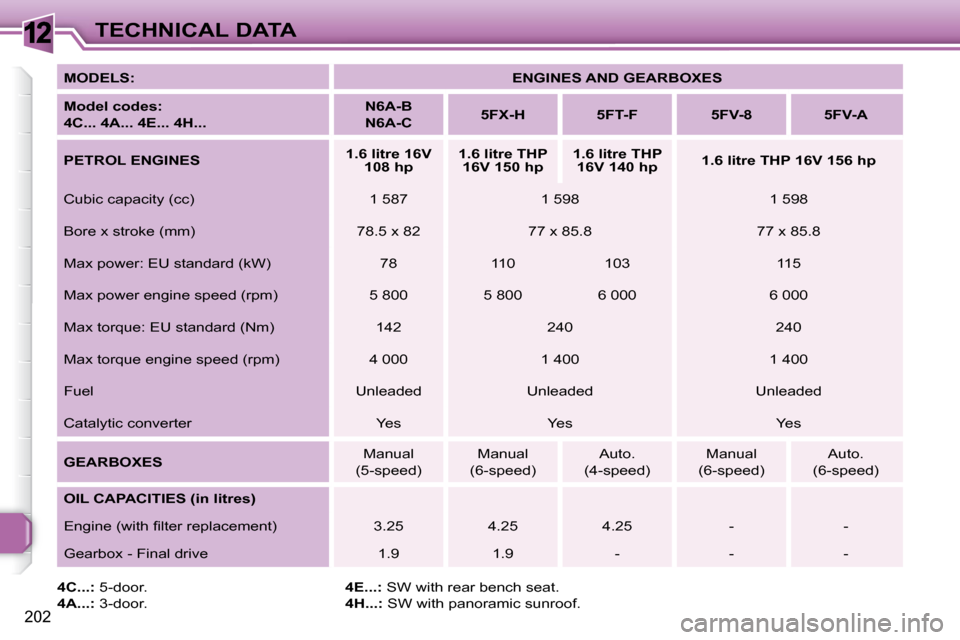

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4E... 4H...
N6A-B
N6A-C
5FX-H 5FT-F 5FV-8 5FV-A
PETROL ENGINES
1.6 litre 16V
108
hp
1.6 litre THP
16V 150
hp
1.6 litre THP
16V 140
hp
1.6 litre THP 16V 156
hp
Cubic capacity (cc) 1 587 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 78 110 103 115
Max power engine speed (rpm) 5 800 5 800 6 000 6 000
Max torque: EU standard (Nm) 142 240 240
Max torque engine speed (rpm) 4 000 1 400 1 400
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GEARBOXES Manual
(5-speed) Manual
(6-speed) Auto.
(4-speed) Manual
(6-speed) Auto.
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.25 4.25 4.25 - -
Gearbox - Final drive 1.9 1.9 - - -
4C...: 5-door.
4A...: 3-door.
4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.
Page 218 of 329
12
203

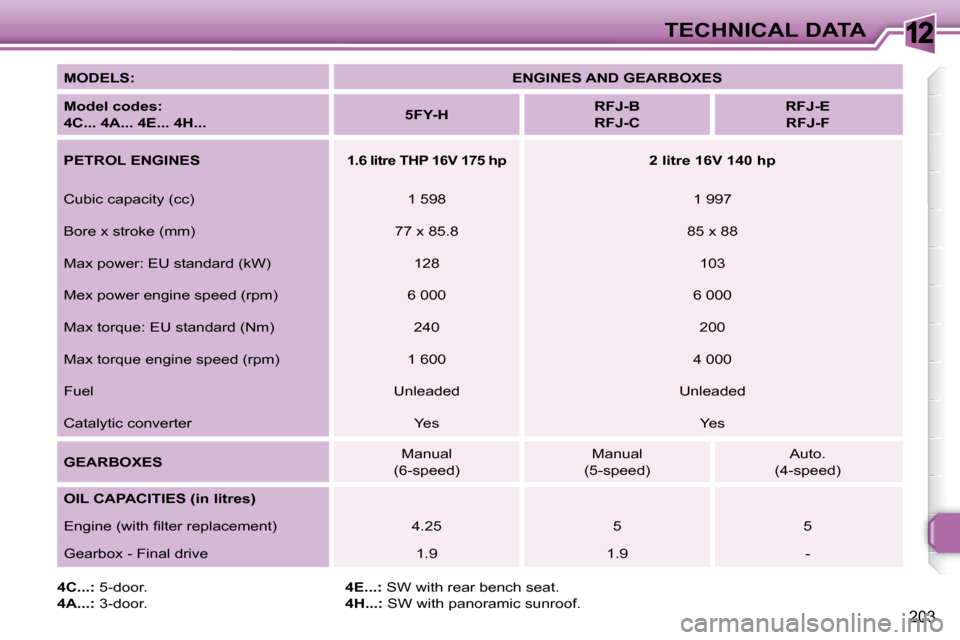

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4E... 4H...
5FY-H
RFJ-B
RFJ-C
RFJ-E
RFJ-F
PETROL ENGINES
1.6 litre THP 16V 175
hp
2 litre 16V 140
hp
Cubic capacity (cc) 1 598 1 997
Bore x stroke (mm) 77 x 85.8 85 x 88
Max power: EU standard (kW) 128 103
Mex power engine speed (rpm) 6 000 6 000
Max torque: EU standard (Nm) 240 200
Max torque engine speed (rpm) 1 600 4 000
Fuel Unleaded Unleaded
Catalytic converter Yes Yes
GEARBOXES Manual
(6-speed) Manual
(5-speed) Auto.
(4-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25 5 5
Gearbox - Final drive 1.9 1.9 -
4C...: 5-door.
4A...: 3-door.
4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.
Page 219 of 329
12
204

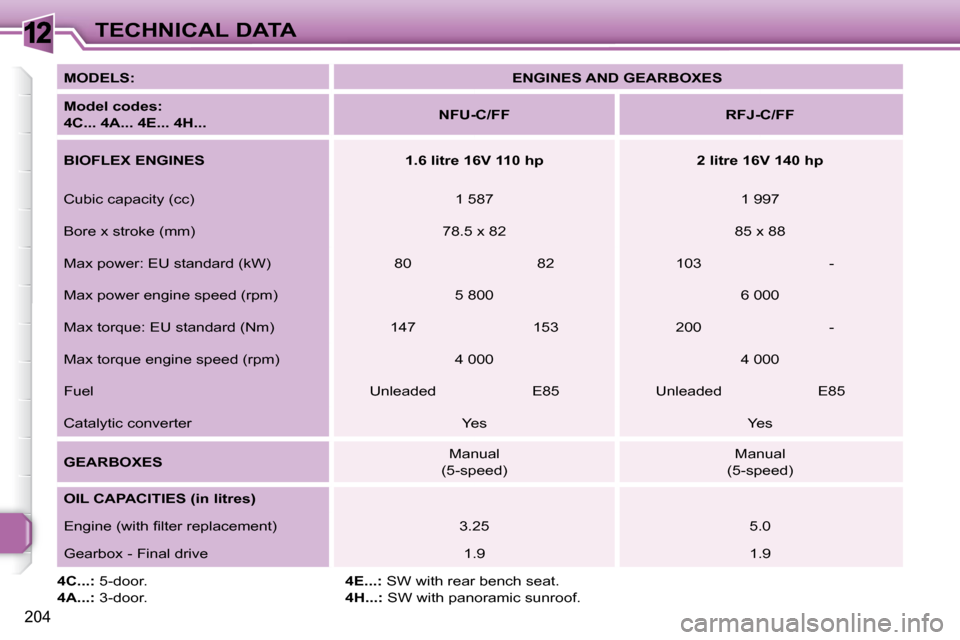

TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4E... 4H...
NFU-C/FF RFJ-C/FF
BIOFLEX ENGINES 1.6 litre 16V 110
hp 2 litre 16V 140
hp
Cubic capacity (cc) 1 587 1 997
Bore x stroke (mm) 78.5 x 82 85 x 88
Max power: EU standard (kW) 80 82 103 -
Max power engine speed (rpm) 5 800 6 000
Max torque: EU standard (Nm) 147 153 200 -
Max torque engine speed (rpm) 4 000 4 000
Fuel Unleaded E85 Unleaded E85
Catalytic converter Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.25 5.0
Gearbox - Final drive 1.9 1.9
4C...: 5-door.
4A...: 3-door.
4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.
Page 220 of 329

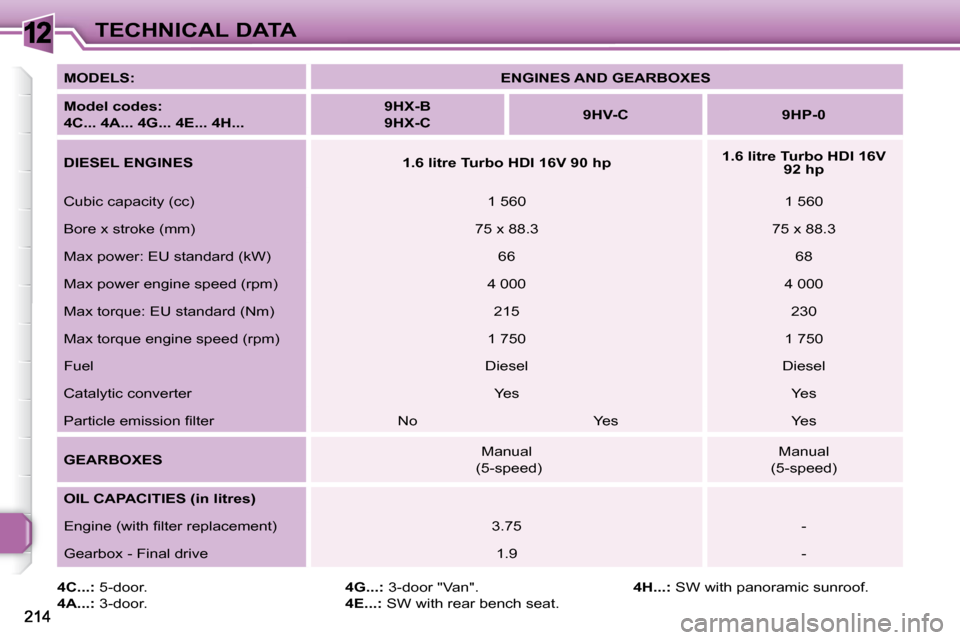

12TECHNICAL DATA
4C...: 5-door.
4A...: 3-door.
4G...: 3-door "Van".
4E...: SW with rear bench seat.
4H...: SW with panoramic sunroof.
MODELS:
ENGINES AND GEARBOXES
Model codes:
4C... 4A... 4G... 4E... 4H...
9HX-B
9HX-C
9HV-C 9HP-0
DIESEL ENGINES 1.6 litre Turbo
HDI 16V 90
hp
1.6 litre Turbo HDI 16V
92
hp
Cubic capacity (cc) 1 560 1 560
Bore x stroke (mm) 75 x 88.3 75 x 88.3
Max power: EU standard (kW) 66 68
Max power engine speed (rpm) 4 000 4 000
Max torque: EU standard (Nm) 215 230
Max torque engine speed (rpm) 1 750 1 750
Fuel Diesel Diesel
Catalytic converter Yes Yes
P a r t i c l e e m i s s i o n fi l t e r No Yes Yes
GEARBOXES Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 3.75 -
Gearbox - Final drive 1.9 -
