Peugeot 308 SW BL 2009.5 Owner's Manual

288
1
2
3
2
1
4
07
* The services available depend on the network,
the SIM card and the compatibility of the Bluetoot h telephone used. Check the telephone manual and with your network provider for details of the services available to you. A list of mobile telephones with the best level of compatibility is available from the dealer network.

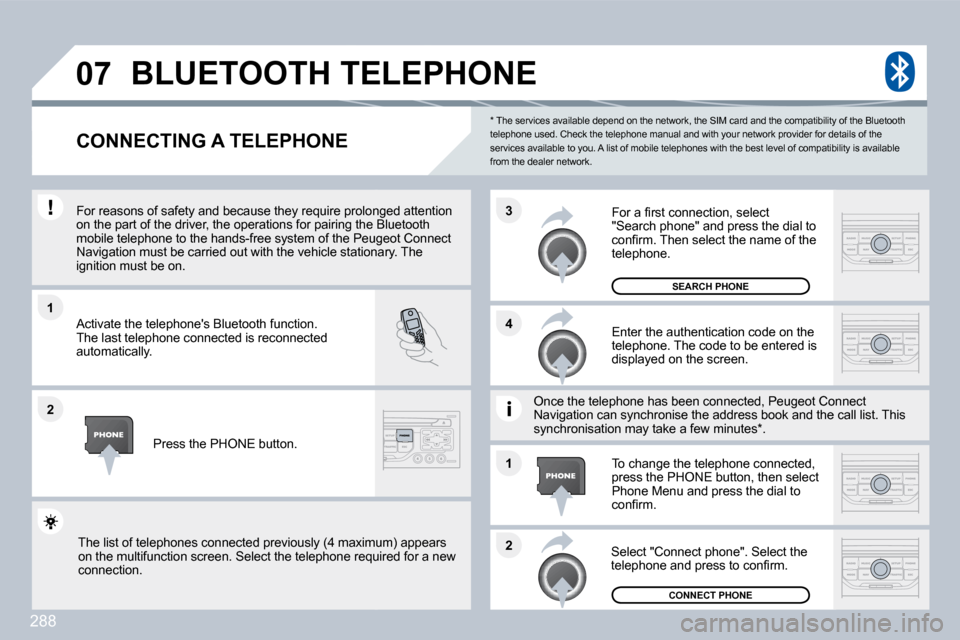

BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE
For reasons of safety and because they require pr olongrolonged attention on the part of the driver, the operations for pairing the B the Bluetooth mobile telephone to the hands-free system of the Pe ugeot Connect mobile telephone to the hands-free system of the Peugeot Connect Navigation must be carried out with the vehicle stationary. The Navigation must be carried out with the vehicle stationary. The ignition must be on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the PHONE button, then select Phone Menu and press the dial to confi rm.
Once the telephone has been connected, Peugeot Co nt Connect Navigation can synchronise the address book and the c the call list. This synchronisation may take a few minutes * .
Select "Connect phone". Select the telephone and press to confi rm.
The list of telephones connected previously (4 maximum) appears The list of telephones connected previously (4 maximum) appears on the multifunction screen. Select the telephone r equired for a new on the multifunction screen. Select the telephone required for a new connection.
Press the PHONE button.
For a fi rst connection, select "Search phone" and press the dial to confi rm. Then select the name of the telephone.
SEARCH PHONE
CONNECT PHONE

289
07
2
1
1
3
2
Press the end of the steering mounted control to a
ccept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing the dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a supe rimposed display An incoming call is announced by a ring and a superimposed display on the multifunction screen.
YES
To hang up, press the PHONE button or press the dial and select "End call" then confi rm by pressing the dial.
END CALL
Press the PHONE button.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" Menu function and press the dial to confi rm.
The list of the last 20 calls made and received in the vehicle appears The list of the last 20 calls made and received in the vehicle appears under "Phone" Menu. You can select a number and pre ss the dial to under "Phone" Menu. You can select a number and press the dial to make the call.
NO
It is also possible to select a number from the address book. You can It is also possible to select a number from the address book. You can select “Dial from address book”. The Peugeot Connec t Navigation select “Dial from address book”. The Peugeot Connect Navigation can record up to 4 000 entries. Press the end of the steering wheel control for more than Press the end of the steering wheel control for more than two seconds to gain access to the address book.
"PHONE" MENU
DIAL NUMBER
To delete a number, press the PHONE button then pr ess and hold on To delete a number, press the PHONE button then press and hold on a call number to display a list of actions including: Delete entry Delete list
BLUETOOTH TELEPHONE

290
4
3
2
1
6
5

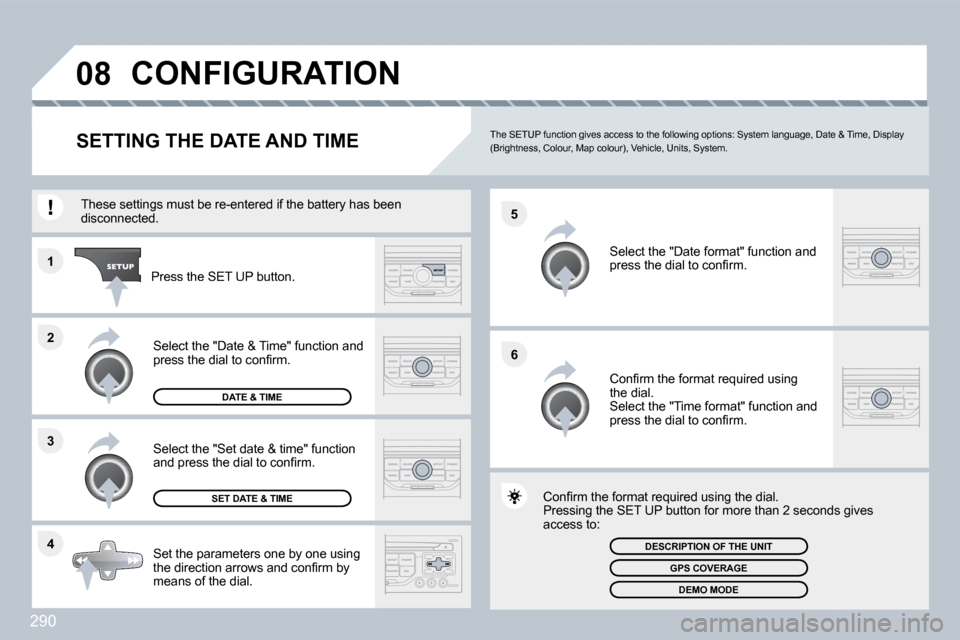

08 CONFIGURATION
SETTING THE DATE AND TIME The SETUP function gives access to the following
options: System language, Date & Time, Display (Brightness, Colour, Map colour), Vehicle, Units, System.
Set the parameters one by one using the direction arrows and confi rm by means of the dial.
Select the "Date format" function and press the dial to confi rm.
Select the "Set date & time" function and press the dial to confi rm.
Confi rm the format required using the dial. Pressing the SET UP button for more than 2 seconds gives Pressing the SET UP button for more than 2 seconds gives access to:
These settings must be re-entered if the battery has been These settings must be re-entered if the battery has been disconnected.
Press the SET UP button.
Confi rm the format required using the dial. Select the "Time format" function and press the dial to confi rm.
SET DATE & TIME
Select the "Date & Time" function and press the dial to confi rm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
DEMO MODE
DATE & TIME

291

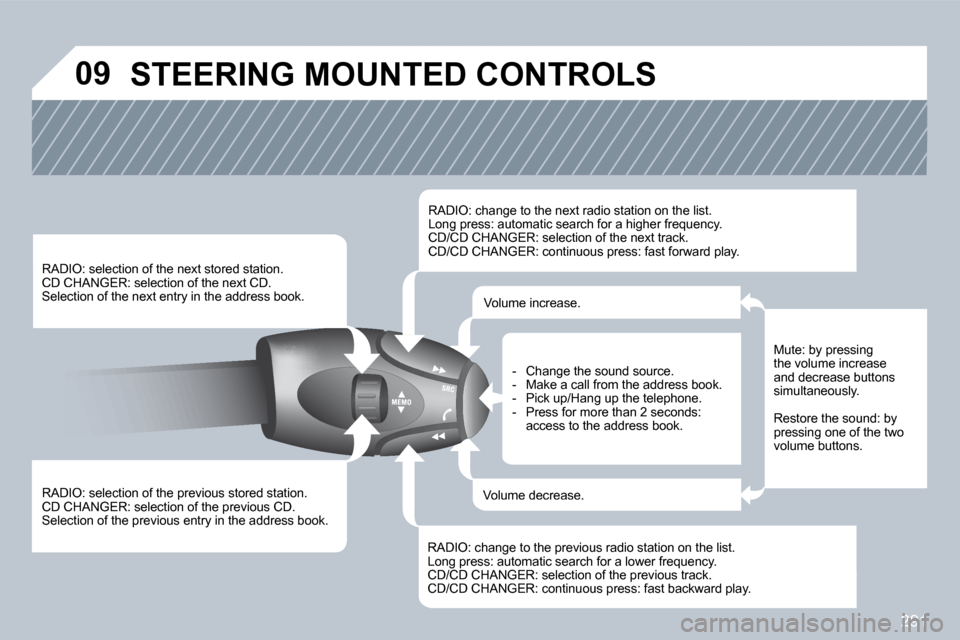

09 STEERING MOUNTED CONTROLS
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next entry in the address book.
RADIO: change to the next radio station on the list. Long press: automatic search for a higher frequenc y. CD/CD CHANGER: selection of the next track. CD/CD CHANGER: continuous press: fast forward play .
RADIO: change to the previous radio station on the list. Long press: automatic search for a lower frequency . CD/CD CHANGER: selection of the previous track. CD/CD CHANGER: continuous press: fast backward pla y.
- Change the sound source. - Make a call from the address book. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the address book.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.

292
10
1
2
3
1
2
4
1
2
3
4
3
3
3
3
2
2
2
2
4
4
4
4
4
3
3
3
3
3
2
3
2
2
3
3
3
4
4
4
4
4
3
3
12332
3
3

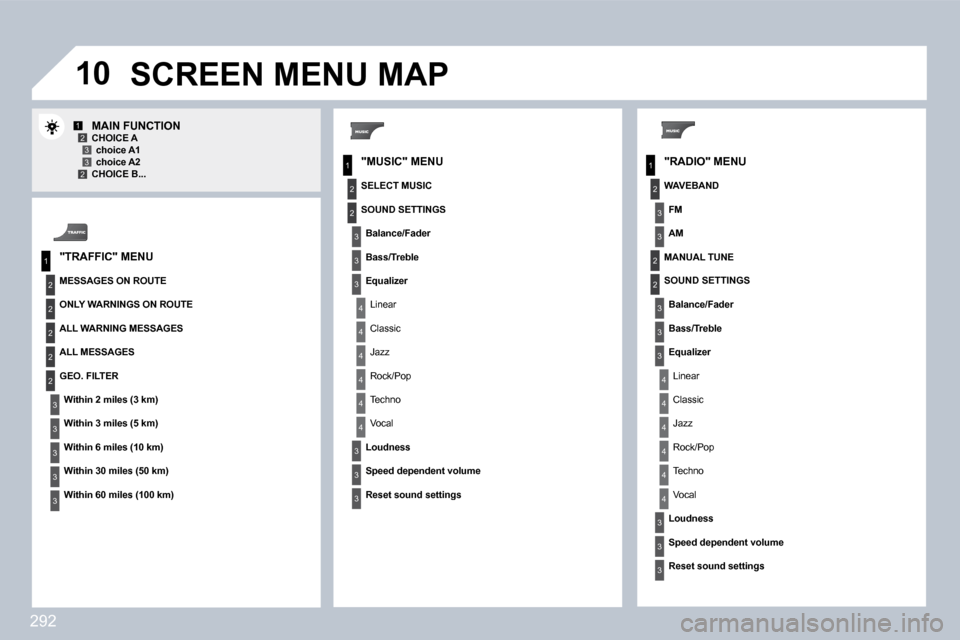

"RADIO" MENU
MAIN FUNCTION CHOICE A choice A1 choice A2 CHOICE B...
SCREEN MENU MAP
"MUSIC" MENU
"TRAFFIC" MENU
MESSAGES ON ROUTE
ONLY WARNINGS ON ROUTE
ALL WARNING MESSAGES
ALL MESSAGES
GEO. FILTER
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
Within 60 miles (100 km)
SELECT MUSIC
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings
WAVEBAND
FM
AM
MANUAL TUNE
SOUND SETTINGS
Balance/Fader
Bass/Treble
Equalizer
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
Loudness
Speed dependent volume
Reset sound settings

293
1
2
4
2
3
4
2
3
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
24
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
3
3
4
4
2
4
4
4
4
4
3
3
3
3
4
4
4
ROUTE OPTIONS
Route type
Fast route
Short route
Optimized route
Route dynamics
Traffi c independent
Semi-dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid ferries
Recalculate
STOPOVERS
Add stopover
Address input
Navigate HOME
Choose from address book
Choose from last destinations
Rearrange route
Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route

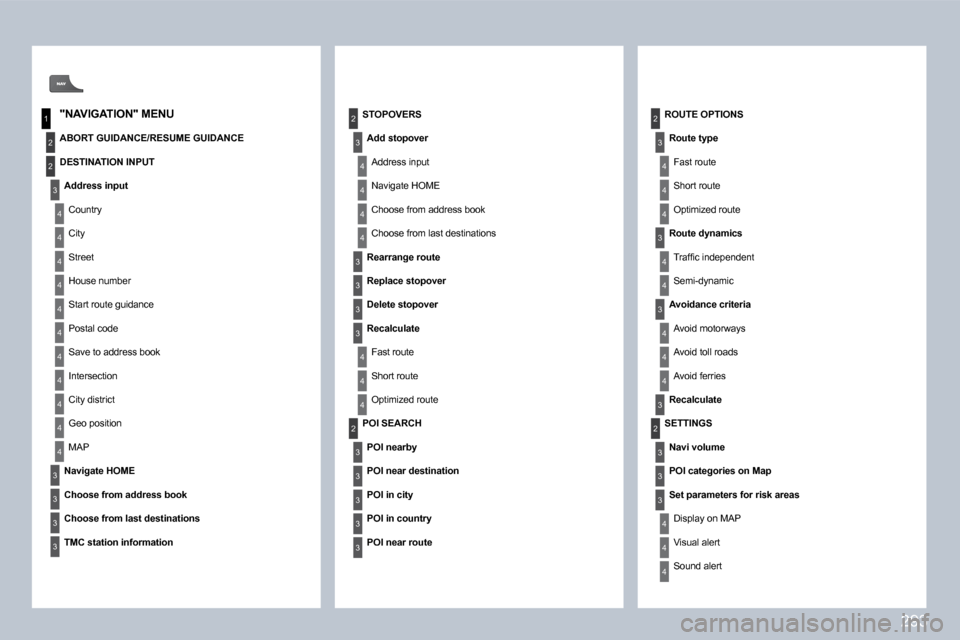

"NAVIGATION" MENU
ABORT GUIDANCE/RESUME GUIDANCE
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
SETTINGS
Navi volume
POI categories on Map
Set parameters for risk areas
Display on MAP
Visual alert
Sound alert
DESTINATION INPUT
Address input
Country
City
Street
House number
Start route guidance
Postal code
Save to address book
Intersection
City district
Geo position
MAP
Navigate HOME
Choose from address book
Choose from last destinations
TMC station information

294
1
2
3
4
1
3
4
3
4
2
2
2
3
4
4
4
4
2
3
3
3
2
3
3
3
2
3
4
4
4
4
2
4
3
4
3
3
3
3
3
3
3
3
2
4
4
2
3
4
4
3
4
4
4
2
3
3
3

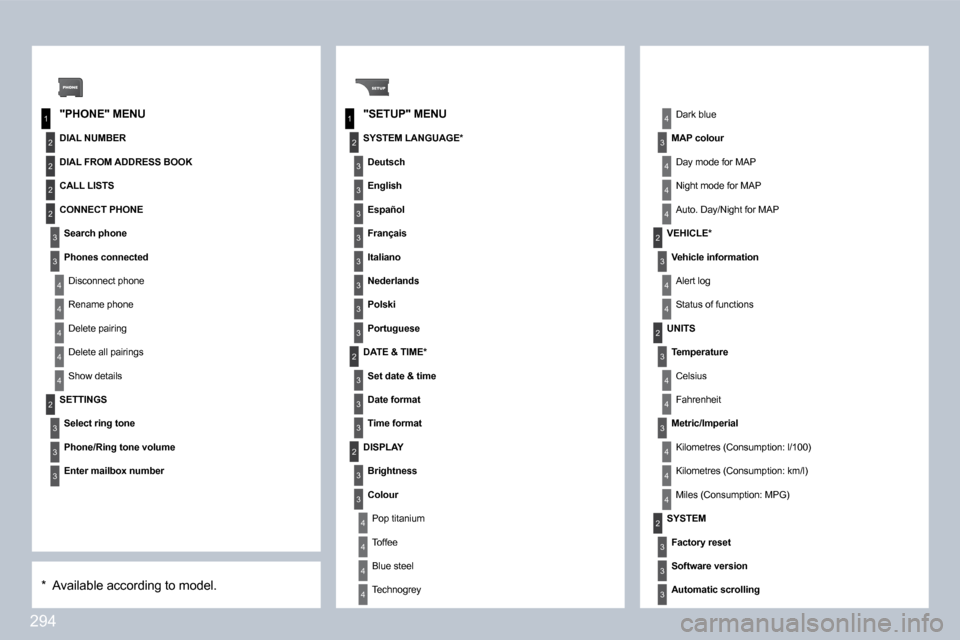

"PHONE" MENU "SETUP" MENU
DIAL NUMBER
SETTINGS
Select ring tone
Phone/Ring tone volume
Enter mailbox number
SYSTEM LANGUAGE *
Deutsch
English
Español
Français
Italiano
Nederlands
Polski
Portuguese
DATE & TIME *
Set date & time
Date format
Time format
Dark blue
MAP colour
Day mode for MAP
Night mode for MAP
Auto. Day/Night for MAP
VEHICLE *
Vehicle information
Alert log
Status of functions
DISPLAY
Brightness
Colour
Pop titanium
Toffee
Blue steel
Technogrey
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
Kilometres (Consumption: l/100)
Kilometres (Consumption: km/l)
Miles (Consumption: MPG)
SYSTEM
Factory reset
Software version
Automatic scrolling * Available according to model.
DIAL FROM ADDRESS BOOK
CALL LISTS
CONNECT PHONE
Search phone
Phones connected
Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details

295

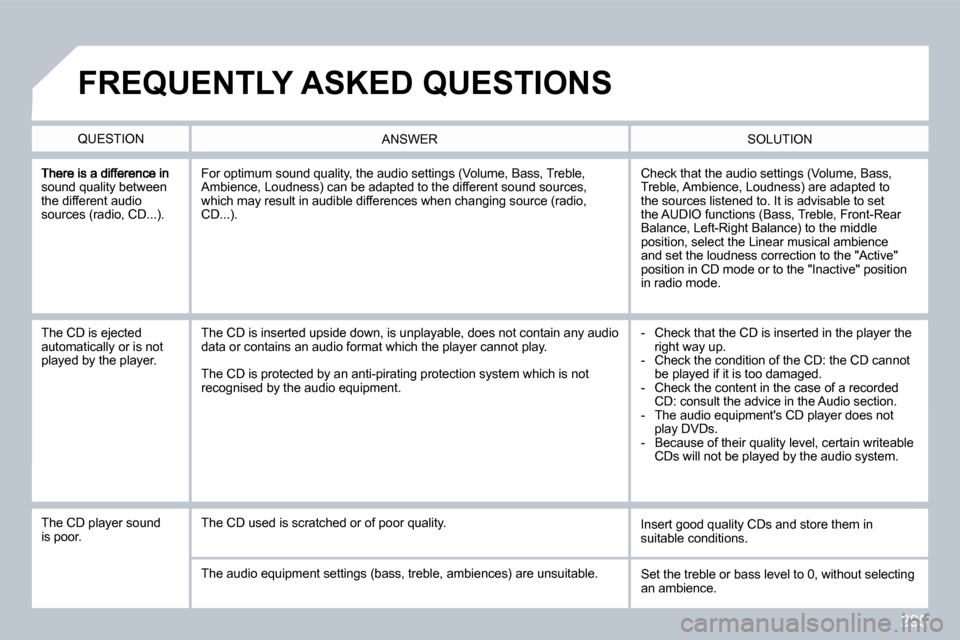

sound quality between the different audio sources (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the Linear musical ambience and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the player the right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the Audio section. - The audio equipment's CD player does not play DVDs. - Because of their quality level, certain writeable CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The CD player sound is poor. Insert good quality CDs and store them in suitable conditions. The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS

296

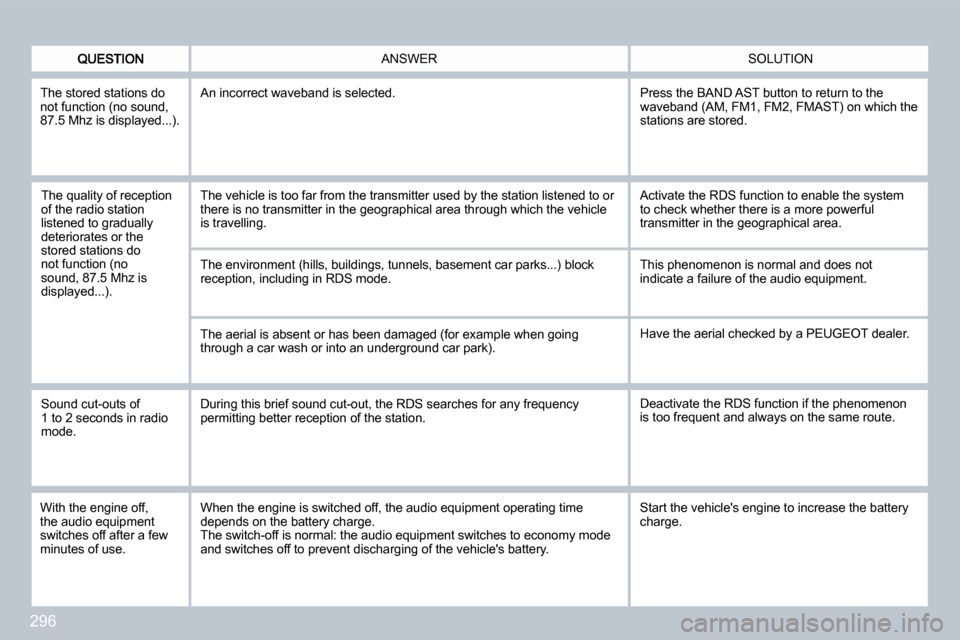

SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.

297

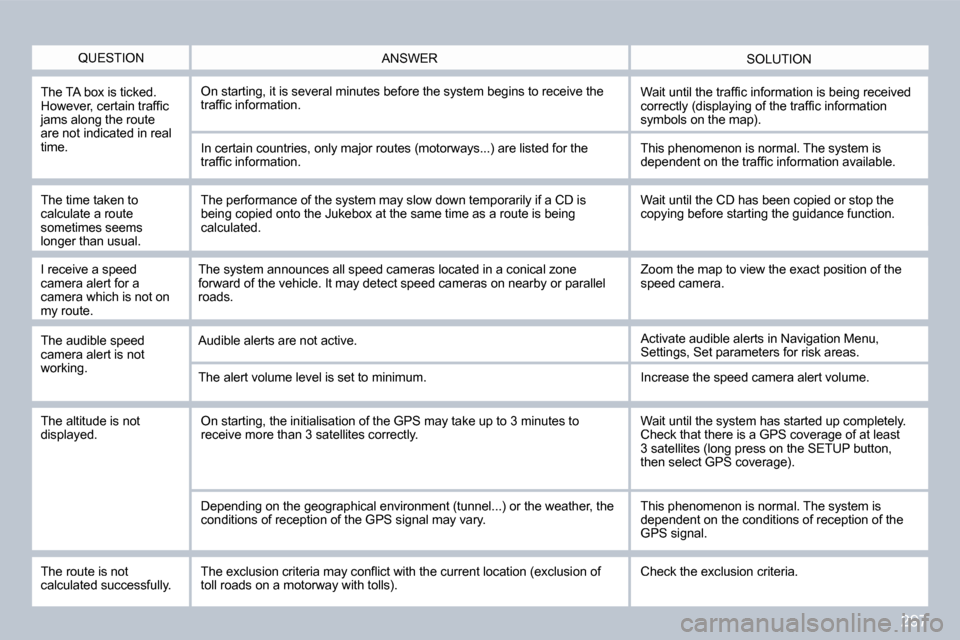

QUESTION SOLUTION ANSWER
The TA box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 3 satellites (long press on the SETUP button, then select GPS coverage).
Depending on the geographical environment (tunnel. ..) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route is not calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a motorway with tolls). Check the exclusion criteria.
I receive a speed camera alert for a camera which is not on my route.
The audible speed camera alert is not working.
The system announces all speed cameras located in a conical zone forward of the vehicle. It may detect speed cameras on nearby or parallel roads.
Audible alerts are not active.
The alert volume level is set to minimum.
Zoom the map to view the exact position of the speed camera.
Activate audible alerts in Navigation Menu, Settings, Set parameters for risk areas.
Increase the speed camera alert volume.
