Peugeot 308 SW BL 2011 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 308 SW BL, Model: Peugeot 308 SW BL 2011Pages: 336, PDF Size: 21.26 MB
Page 91 of 336
i
i

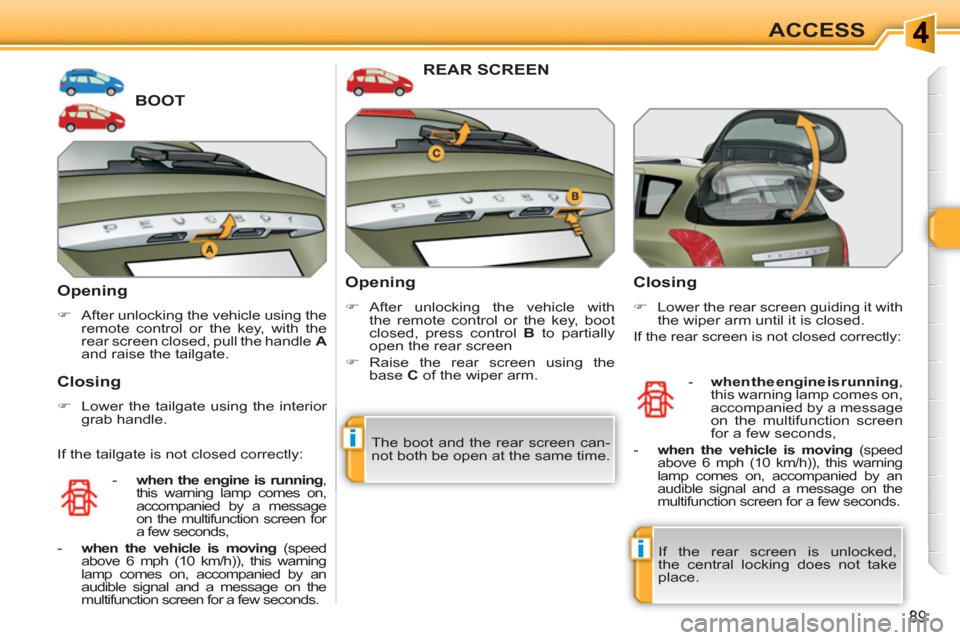

89
ACCESS
BOOT
Opening
)
After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull the handle A
and raise the tailgate.
Closing
)
Lower the tailgate using the interior
grab handle.
REAR SCREEN
Opening
)
After unlocking the vehicle with
the remote control or the key, boot
closed, press control B
to partially
open the rear screen
)
Raise the rear screen using the
base C
of the wiper arm.
Closing
)
Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
-
when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on the
multifunction screen for a few seconds.
If the tailgate is not closed correctly:
If the rear screen is unlocked,
the central locking does not take
place. The boot and the rear screen can-
not both be open at the same time.
Page 92 of 336
!
i
90
ACCESS
PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle dur-
ing operation, you must reverse the
movement of the blind. To do this,
press the control concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that pas-
sengers use the blind correctly.
Be aware of children when operat-
ing the blind.
- manual mode
)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode
)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.
Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric blind
There are two options for opening and
closing:
Reinitialisation:
if the blind's sup-
ply is cut off while it is moving, the
safety anti-pinch must be reini-
tialised:
)
press the control until the blind
is fully closed,
)
continue to press for at least
3 seconds. A slight movement of
the blind will then be noticeable,
confi rming the reinitialisation.
If the blind re-opens during a clos-
ing manoeuvre, and immediately
after it stops:
)
pull the control until the blind is
fully open,
)
press the control until the blind
is fully closed.
The safety anti-pinch function is
not operational during these op-
erations.
Page 93 of 336
i
91
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
Opening the cap may cause an in-
rush of air. This vacuum, which is
perfectly normal, is caused by the
sealing of the fuel system.

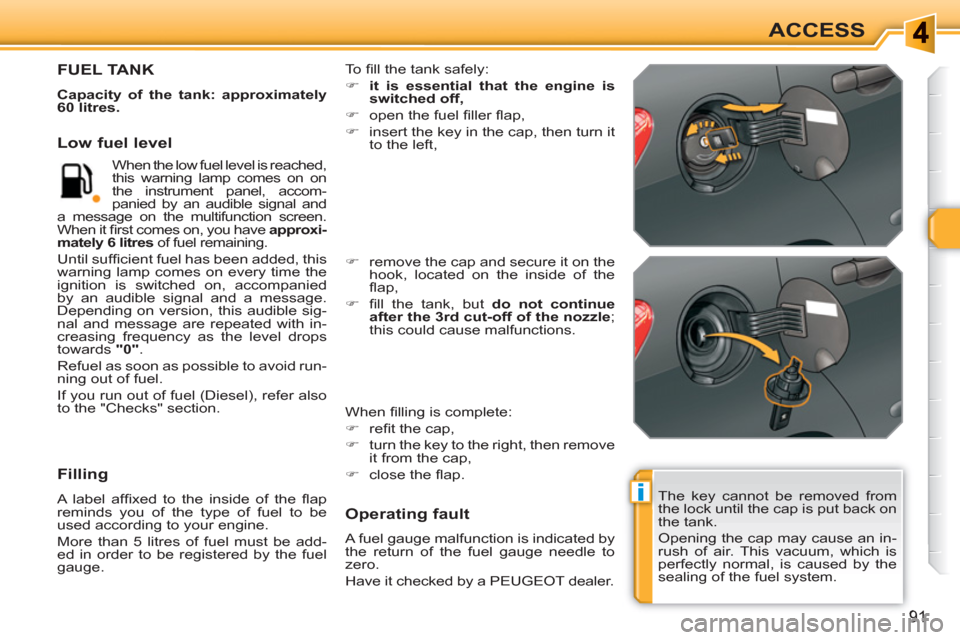

FUEL TANK
Capacity of the tank: approximately
60 litres.
To fi ll the tank safely:
)
it is essential that the engine is
switched off,
)
open the fuel fi ller fl ap,
)
insert the key in the cap, then turn it
to the left,
When fi lling is complete:
)
refi t the cap,
)
turn the key to the right, then remove
it from the cap,
)
close the fl ap.
)
remove the cap and secure it on the
hook, located on the inside of the
fl ap,
)
fi ll the tank, but do not continue
after the 3rd cut-off of the nozzle
;
this could cause malfunctions.
Low fuel level
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used according to your engine.
More than 5 litres of fuel must be add-
ed in order to be registered by the fuel
gauge.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel gauge needle to
zero.
Have it checked by a PEUGEOT dealer. When the low fuel level is reached,
this warning lamp comes on on
the instrument panel, accom-
panied by an audible signal and
a message on the multifunction screen.
When it fi rst comes on, you have approxi-
mately 6 litres
of fuel remaining.
Until suffi cient fuel has been added, this
warning lamp comes on every time the
ignition is switched on, accompanied
by an audible signal and a message.
Depending on version, this audible sig-
nal and message are repeated with in-
creasing frequency as the level drops
towards "0"
.
Refuel as soon as possible to avoid run-
ning out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Page 94 of 336
i
92
ACCESS

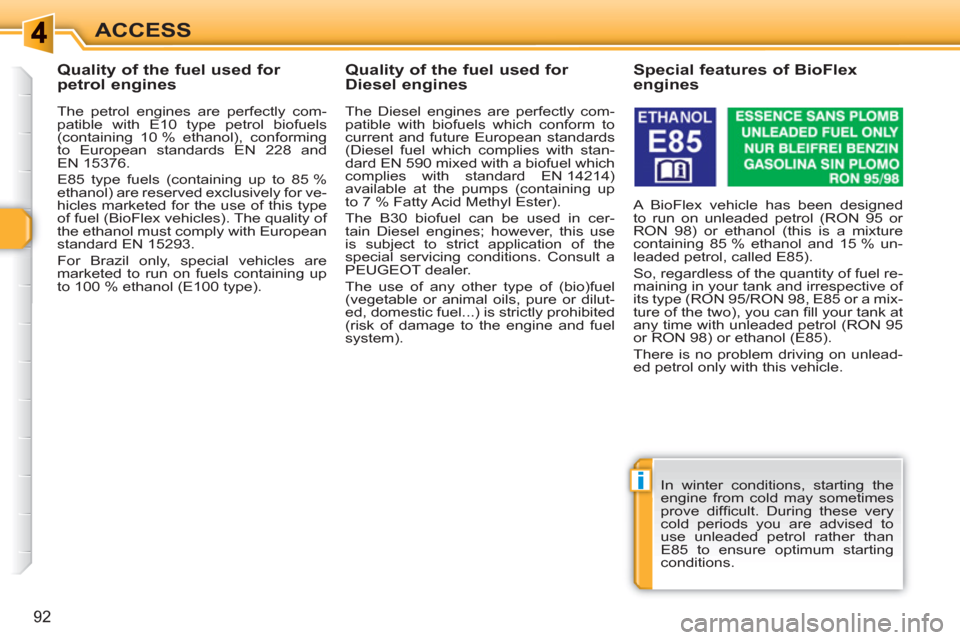

Quality of the fuel used for
petrol engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system).
Special features of BioFlex
engines
A BioFlex vehicle has been designed
to run on unleaded petrol (RON 95 or
RON 98) or ethanol (this is a mixture
containing 85 % ethanol and 15 % un-
leaded petrol, called E85).
So, regardless of the quantity of fuel re-
maining in your tank and irrespective of
its type (RON 95/RON 98, E85 or a mix-
ture of the two), you can fi ll your tank at
any time with unleaded petrol (RON 95
or RON 98) or ethanol (E85).
There is no problem driving on unlead-
ed petrol only with this vehicle.
In winter conditions, starting the
engine from cold may sometimes
prove diffi cult. During these very
cold periods you are advised to
use unleaded petrol rather than
E85 to ensure optimum starting
conditions.
Page 95 of 336
93
VISIBILITY

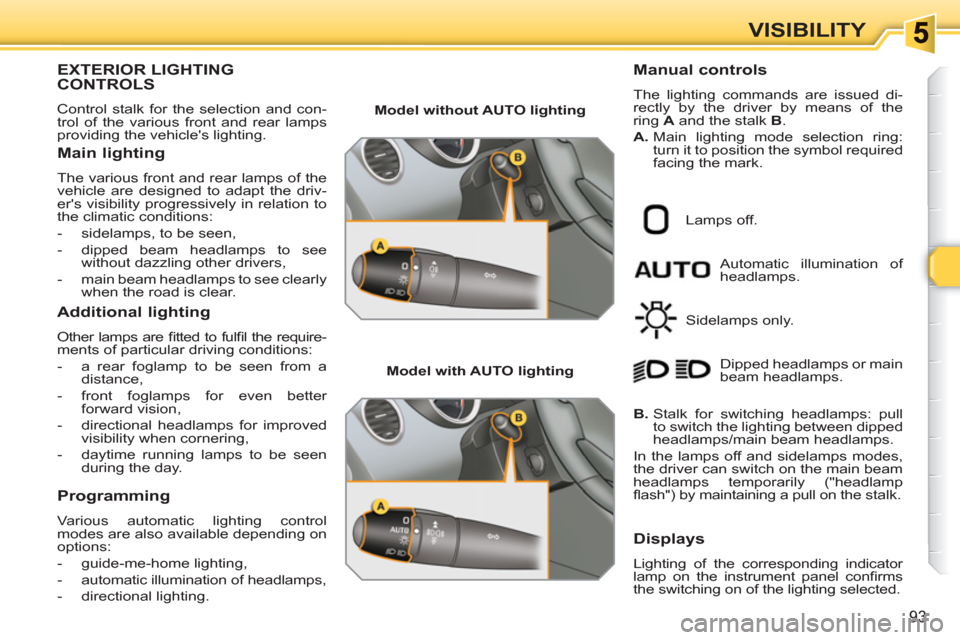

EXTERIOR LIGHTINGCONTROLS
Control stalk for the selection and con-
trol of the various front and rear lamps
providing the vehicle's lighting.
Main lighting
The various front and rear lamps of the
vehicle are designed to adapt the driv-
er's visibility progressively in relation to
the climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps to see clearly
when the road is clear.
Additional lighting
Other lamps are fi tted to fulfi l the require-
ments of particular driving conditions:
- a rear foglamp to be seen from a
distance,
- front foglamps for even better
forward vision,
- directional headlamps for improved
visibility when cornering,
- daytime running lamps to be seen
during the day.
Programming
Various automatic lighting control
modes are also available depending on
options:
- guide-me-home lighting,
- automatic illumination of headlamps,
- directional lighting.
Model without AUTO lighting
Model with AUTO lighting
Automatic illumination of
headlamps.
Manual controls
The lighting commands are issued di-
rectly by the driver by means of the
ring A
and the stalk B
.
A.
Main lighting mode selection ring:
turn it to position the symbol required
facing the mark.
Lamps off.
Sidelamps only.
B.
Stalk for switching headlamps: pull
to switch the lighting between dipped
headlamps/main beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Dipped headlamps or main
beam headlamps.
Displays
Lighting of the corresponding indicator
lamp on the instrument panel confi rms
the switching on of the lighting selected.
Page 96 of 336
!
i
94
VISIBILITY

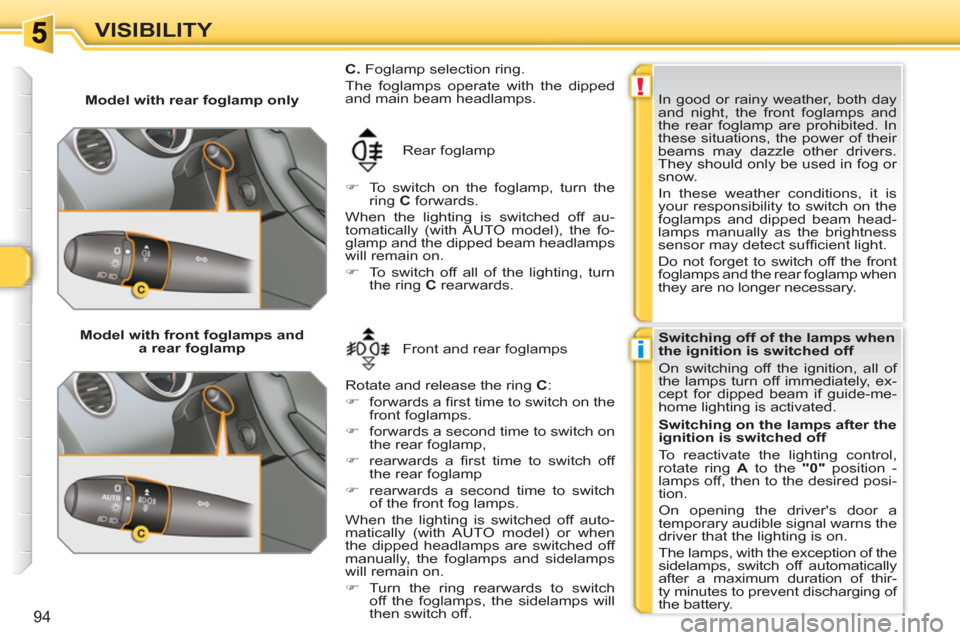

Model with rear foglamp only
Rear foglamp
)
To switch on the foglamp, turn the
ring C
forwards.
When the lighting is switched off au-
tomatically (with AUTO model), the fo-
glamp and the dipped beam headlamps
will remain on.
)
To switch off all of the lighting, turn
the ring C
rearwards.
In good or rainy weather, both day
and night, the front foglamps and
the rear foglamp are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
They should only be used in fog or
snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the brightness
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Switching off of the lamps when
the ignition is switched off
On switching off the ignition, all of
the lamps turn off immediately, ex-
cept for dipped beam if guide-me-
home lighting is activated.
Model with front foglamps and
a rear foglamp
Front and rear foglamps
Rotate and release the ring C
:
)
forwards a fi rst time to switch on the
front foglamps.
)
forwards a second time to switch on
the rear foglamp,
)
rearwards a fi rst time to switch off
the rear foglamp
)
rearwards a second time to switch
of the front fog lamps.
When the lighting is switched off auto-
matically (with AUTO model) or when
the dipped headlamps are switched off
manually, the foglamps and sidelamps
will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
Switching on the lamps after the
ignition is switched off
To reactivate the lighting control,
rotate ring A
to the "0"
position -
lamps off, then to the desired posi-
tion.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically
after a maximum duration of thir-
ty minutes to prevent discharging of
the battery.
Page 97 of 336
i
95
VISIBILITY

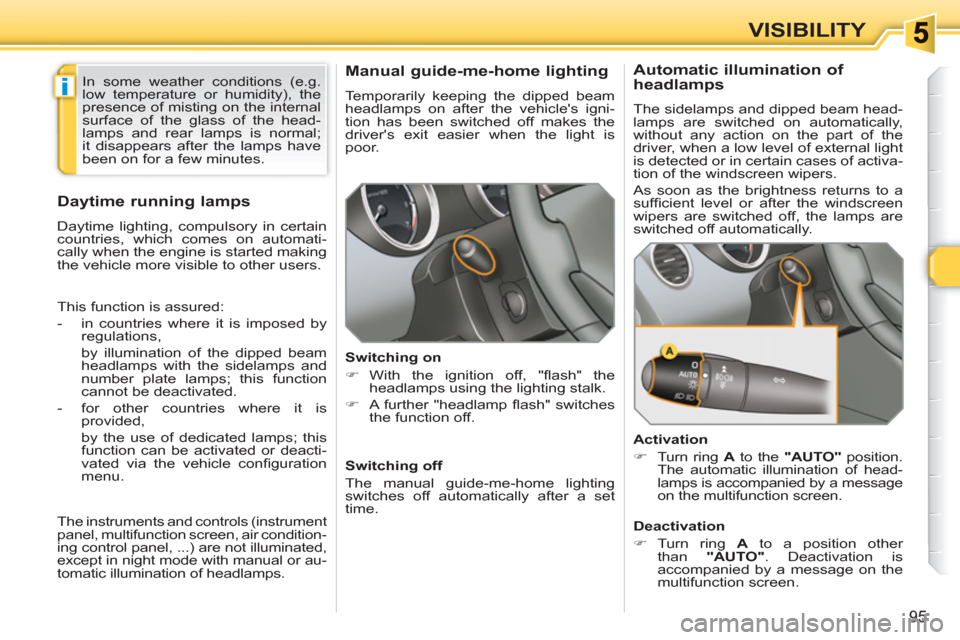

Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
)
With the ignition off, "fl ash" the
headlamps using the lighting stalk.
)
A further "headlamp fl ash" switches
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
Daytime running lamps
Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users. In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the internal
surface of the glass of the head-
lamps and rear lamps is normal;
it disappears after the lamps have
been on for a few minutes.
The instruments and controls (instrument
panel, multifunction screen, air condition-
ing control panel, ...) are not illuminated,
except in night mode with manual or au-
tomatic illumination of headlamps.
Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a message
on the multifunction screen.
Deactivation
)
Turn ring A
to a position other
than "AUTO"
. Deactivation is
accompanied by a message on the
multifunction screen.
This function is assured:
- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.
- for other countries where it is
provided,
by the use of dedicated lamps; this
function can be activated or deacti-
vated via the vehicle confi guration
menu.
Page 98 of 336
i
!
i
96
VISIBILITY

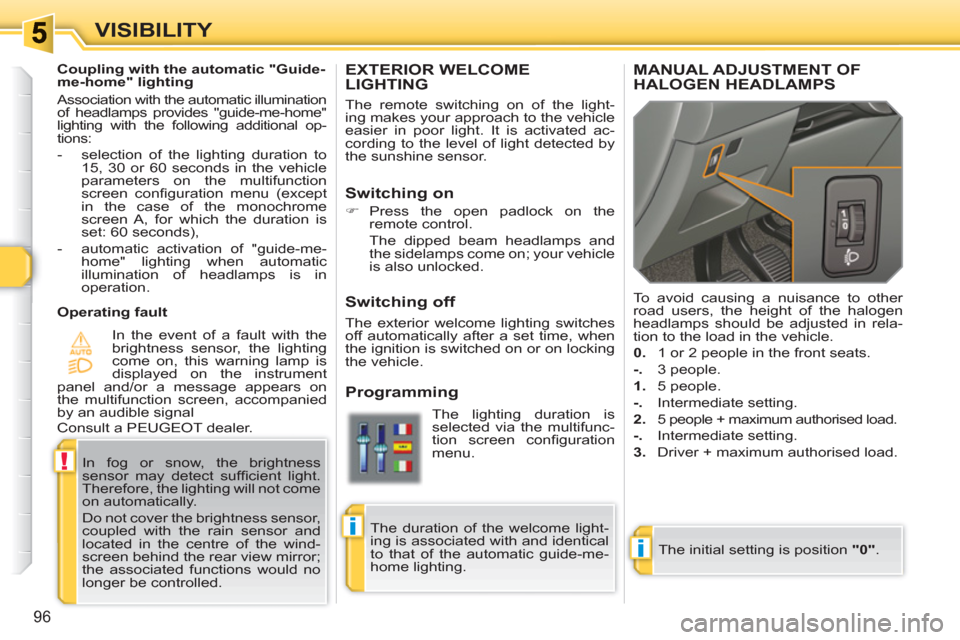

EXTERIOR WELCOMELIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
)
Press the open padlock on the
remote control.
The dipped beam headlamps and
the sidelamps come on; your vehicle
is also unlocked.
Programming
The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.
The duration of the welcome light-
ing is associated with and identical
to that of the automatic guide-me-
home lighting.
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lighting will not come
on automatically.
Do not cover the brightness sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumination
of headlamps provides "guide-me-home"
lighting with the following additional op-
tions:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
screen confi guration menu (except
in the case of the monochrome
screen A, for which the duration is
set: 60 seconds),
- automatic activation of "guide-me-
home" lighting when automatic
illumination of headlamps is in
operation.
Operating fault
In the event of a fault with the
brightness sensor, the lighting
come on, this warning lamp is
displayed on the instrument
panel and/or a message appears on
the multifunction screen, accompanied
by an audible signal
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OFHALOGEN HEADLAMPS
The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted in rela-
tion to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
5 people.
-.
Intermediate setting.
2.
5 people + maximum authorised load.
-.
Intermediate setting.
3.
Driver + maximum authorised load.
Switching off
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 99 of 336
!
i
97
VISIBILITY

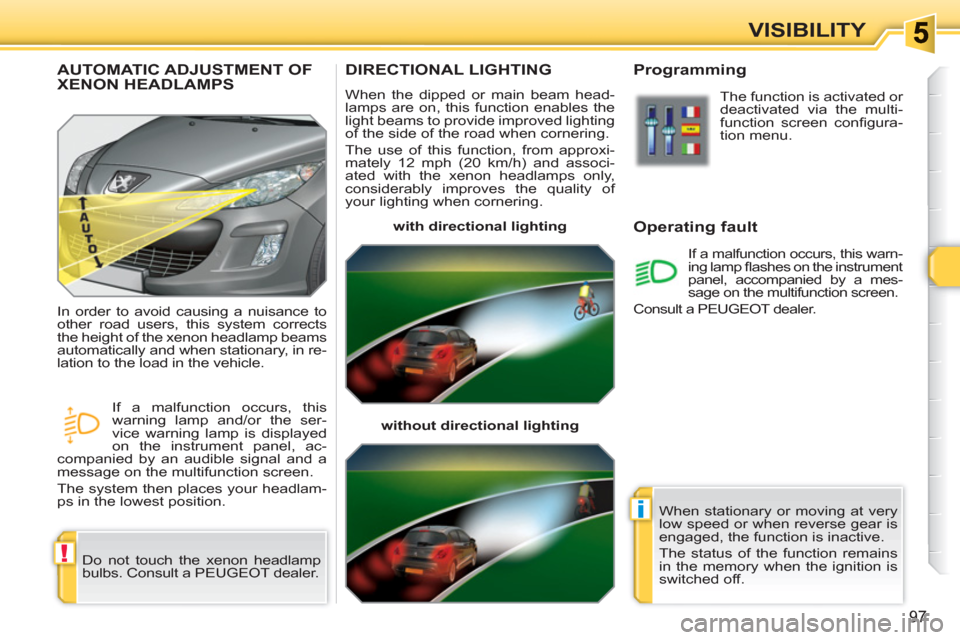

DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
mately 12 mph (20 km/h) and associ-
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting
Programming
Operating fault
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
If a malfunction occurs, this warn-
ing lamp fl ashes on the instrument
panel, accompanied by a mes-
sage on the multifunction screen.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF XENON HEADLAMPS
Do not touch the xenon headlamp
bulbs. Consult a PEUGEOT dealer. In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamp beams
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp and/or the ser-
vice warning lamp is displayed
on the instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your headlam-
ps in the lowest position.
When stationary or moving at very
low speed or when reverse gear is
engaged, the function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 100 of 336
98
VISIBILITY

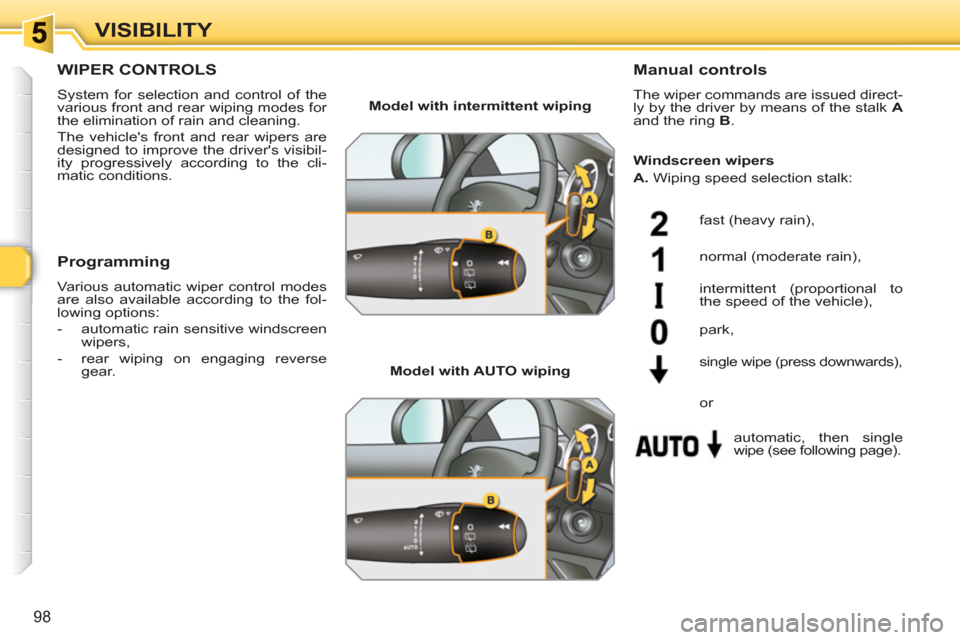

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibil-
ity progressively according to the cli-
matic conditions.
Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk A
and the ring B
.
Model with intermittent wiping
Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following page). park,
single wipe (press downwards),
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen
wipers,
- rear wiping on engaging reverse
gear.
Windscreen wipers
A.
Wiping speed selection stalk:
or
